【E-DEEC】基于matlab增强的分布式能源有效集群（E-DEEC）【含Matlab源码 1566期】

一、获取代码方式

获取代码方式1：
完整代码已上传我的资源：【E-DEEC】基于matlab增强的分布式能源有效集群（E-DEEC）【含Matlab源码 1566期】

获取代码方式2：
通过订阅紫极神光博客付费专栏，凭支付凭证，私信博主，可获得此代码。

备注：
订阅紫极神光博客付费专栏，可免费获得1份代码（有效期为订阅日起，三天内有效）；

二、部分源代码

clear all
xm=100;
ym=100;
sink.x=0.5*xm;  %location of sink on x-axis
sink.y=0.5*ym;  %location of sink on y-axis
n=100  %nodes+
P=0.1;  %probability of cluster heads
Eo=0.5;%initial energy
%
Echeck=Eo;
%
ETX=50*0.000000001;  %tx energy
ERX=50*0.000000001;  %rx energy
Efs=10*0.000000000001;  %free space loss
Emp=0.0013*0.000000000001;   %multipath loss
%Data Aggregation Energy
EDA=5*0.000000001;  %compression energy
a=1.5;   %fraction of energy enhancment of advance nodes
rmax=5000  %maximum number of rounds
do=sqrt(Efs/Emp);  %distance do is measured
Et=0;  %variable just use below
m=0.5;
mo=0.4;
b=3;
normal=n*(1-m);
advance=n*m*(1-mo);
monaysuper=n*m*mo;
for i=1:1:monaysuper
S(i).xd=rand(1,1)*xm;  %generates a random no. use to randomly distibutes nodes on x axis
XR(i)=S(i).xd;
S(i).yd=rand(1,1)*ym;  %generates a random no. use to randomly distibutes nodes on y axis
YR(i)=S(i).yd;
S(i).G=0; %node is elegible to become cluster head
%talhar=rand*a
S(i).E=Eo*(1+b);
%S(i).A=talhar;
E(i)= S(i).E;
%     if (E(i)>Echeck)
%         m1=m1+1;
%     end
Et=Et+E(i);  %estimating total energy of the network
%initially there are no cluster heads only nodes
S(i).type='N';
end
talha1=monaysuper+advance;
for i=monaysuper:1:talha1
S(i).xd=rand(1,1)*xm;  %generates a random no. use to randomly distibutes nodes on x axis
XR(i)=S(i).xd;
S(i).yd=rand(1,1)*ym;  %generates a random no. use to randomly distibutes nodes on y axis
YR(i)=S(i).yd;
S(i).G=0; %node is elegible to become cluster head
%talhar=rand*a
S(i).E=Eo*(1+a);
%S(i).A=talhar;
E(i)= S(i).E;
%     if (E(i)>Echeck)
%         m1=m1+1;
%     end
Et=Et+E(i);  %estimating total energy of the network
%initially there are no cluster heads only nodes
S(i).type='N';
end
for i=talha1:1:n
S(i).xd=rand(1,1)*xm;  %generates a random no. use to randomly distibutes nodes on x axis
XR(i)=S(i).xd;
S(i).yd=rand(1,1)*ym;  %generates a random no. use to randomly distibutes nodes on y axis
YR(i)=S(i).yd;
S(i).G=0; %node is elegible to become cluster head
%talhar=rand*a
S(i).E=Eo;
%S(i).A=talhar;
E(i)= S(i).E;
%     if (E(i)>Echeck)
%         m1=m1+1;
%     end
Et=Et+E(i);  %estimating total energy of the network
%initially there are no cluster heads only nodes
S(i).type='N';
end




d1=0.765*xm/2;  %distance between cluster head and base station
K=sqrt(0.5*n*do/pi)*xm/d1^2; %optimal no. of cluster heads
d2=xm/sqrt(2*pi*K);  %distance between cluster members and cluster head
Er=4000*(2*n*ETX+n*EDA+K*Emp*d1^4+n*Efs*d2^2);  %energy desipated in a round
S(n+1).xd=sink.x; %sink is a n+1 node, x-axis postion of a node
S(n+1).yd=sink.y; %sink is a n+1 node, y-axis postion of a node
countCHs=0;  %variable, counts the cluster head
cluster=1;  %cluster is initialized as 1
flag_first_dead=0; %flag tells the first node dead
flag_teenth_dead=0;  %flag tells the 10th node dead
flag_all_dead=0;  %flag tells all nodes dead
dead=0;  %dead nodes count initialized to 0
first_dead=0;
teenth_dead=0;
all_dead=0;
allive=n;
%counter for bit transmitted to Bases Station and to Cluster Heads
packets_TO_BS=0;
packets_TO_CH=0;
for r=0:1:rmax
r
if(mod(r, round(1/P) )==0)
for i=1:1:n
S(i).G=0;
S(i).cl=0;
end
end
Ea=Et*(1-r/rmax)/n;
dead=0;
for i=1:1:n

if (S(i).E<=0)
dead=dead+1;
if (dead==1)
if(flag_first_dead==0)
first_dead=r;
flag_first_dead=1;
end
end
if(dead==0.1*n)
if(flag_teenth_dead==0)
teenth_dead=r;
flag_teenth_dead=1;
end
end
if(dead==n)
if(flag_all_dead==0)
all_dead=r;
flag_all_dead=1;
end
end
end
if S(i).E>0
S(i).type='N';
end
end






1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

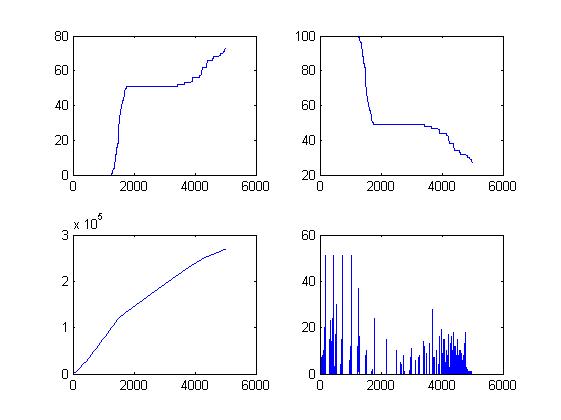

三、运行结果

四、matlab版本及参考文献

1 matlab版本
2014a

2 参考文献
[1] 沈再阳.精通MATLAB信号处理[M].清华大学出版社，2015.
[2]高宝建,彭进业,王琳,潘建寿.信号与系统——使用MATLAB分析与实现[M].清华大学出版社，2020.
[3]王文光,魏少明,任欣.信号处理与系统分析的MATLAB实现[M].电子工业出版社，2018.
