此篇为大家带来的是HBase项目实战系列(1) | Weibo项目简易版(附全代码)。
标注:
此处为反爬虫标记:读者可自行忽略
- 1
- 2
原文地址:https://buwenbuhuo.blog.csdn.net/
1. 需求分析
1.微博内容的浏览,数据库表设计
2.用户社交体现:关注用户,取关用户
3.拉取关注的人的微博内容

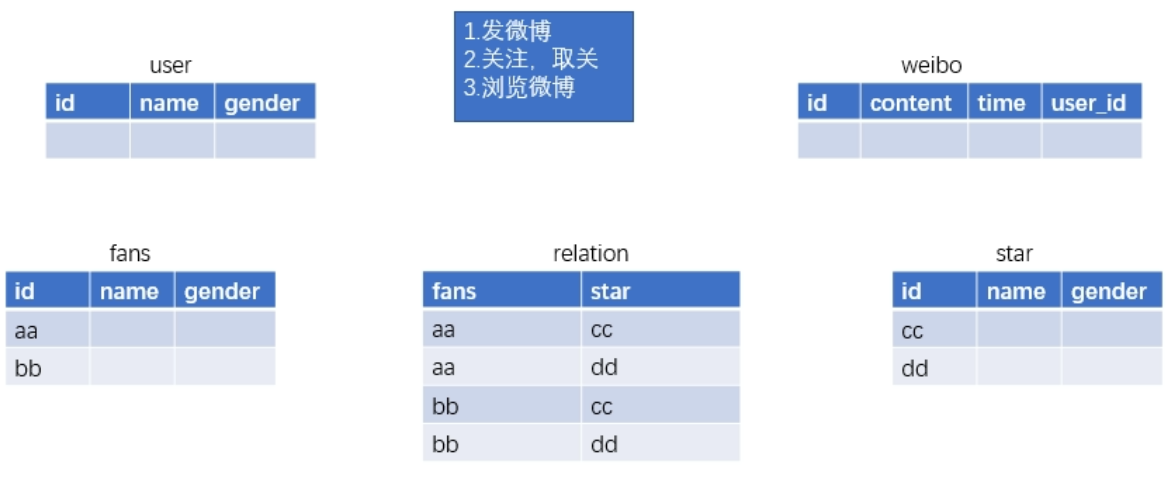

微博表的分析
- 1.

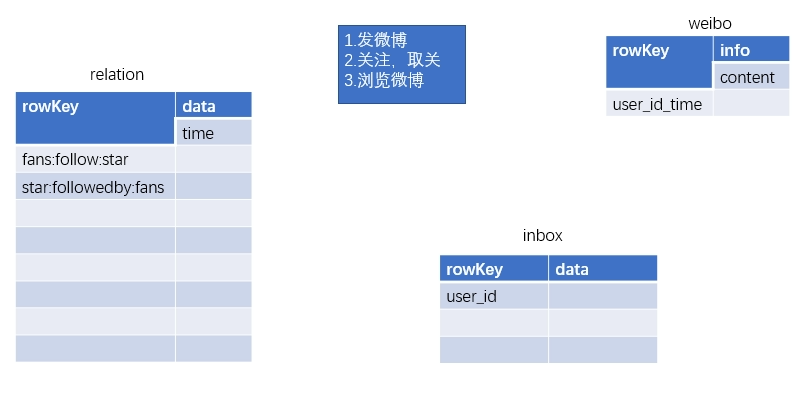

- 2. 项目所需要的表
2. 代码实现
1. 代码设计总览
// 一.创建
1.创建命名空间以及表名的定义
2.创建微博内容表
3.创建用户关系表
4.创建用户微博内容接收邮件表
- 1
- 2
- 3
- 4
- 5
// 二. 测试
5.发布微博内容
6.添加关注用户
7.移除(取关)用户
8.获取关注的人的微博内容
- 1
- 2
- 3
- 4
- 5
2.
2. 创建项目及添加依赖

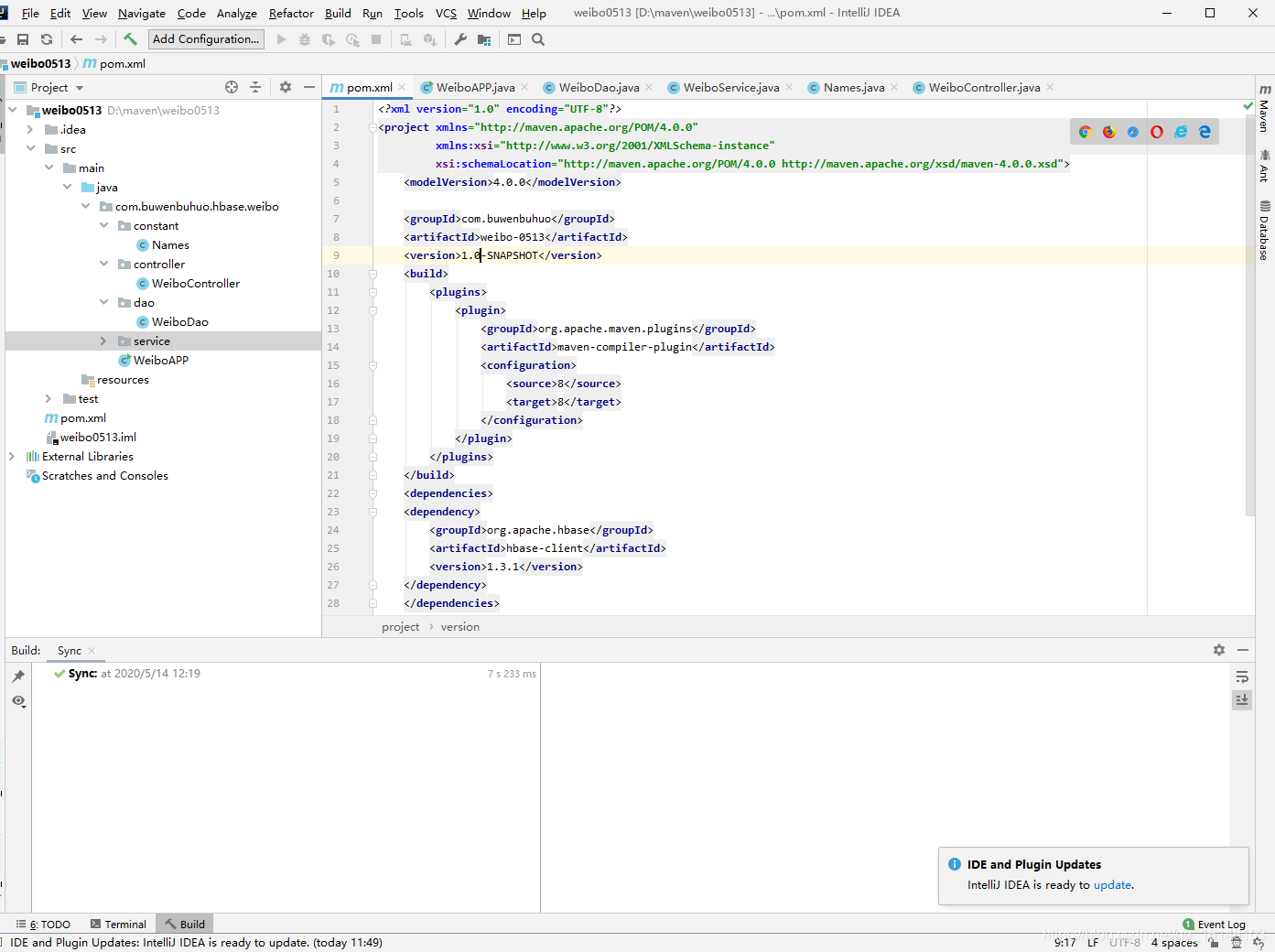

- 创建项目结构如下图
- 依赖
<build> <plugins> <plugin> <groupId>org.apache.maven.plugins</groupId> <artifactId>maven-compiler-plugin</artifactId> <configuration> <source>8</source> <target>8</target> </configuration> </plugin> </plugins> </build> <dependencies> <dependency> <groupId>org.apache.hbase</groupId> <artifactId>hbase-client</artifactId> <version>1.3.1</version> </dependency> </dependencies>
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
3. 创建
- 1. WeiboDao
package com.buwenbuhuo.hbase.weibo.dao;
import com.buwenbuhuo.hbase.weibo.constant.Names;
import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.hbase.*;
import org.apache.hadoop.hbase.client.*;
import org.apache.hadoop.hbase.util.Bytes;
import java.io.IOException;
import java.util.ArrayList;
import java.util.List;
/**
* @author 卜温不火
* @create 2020-05-13 21:25
* com.buwenbuhuo.hbase.weibo.dao - the name of the target package where the new class or interface will be created.
* weibo0513 - the name of the current project.
*/
public class WeiboDao { public static Connection connection = null; static { try { Configuration conf = HBaseConfiguration.create(); conf.set("hbase.zookeeper.quorum", "hadoop002,hadoop003,hadoop004"); connection = ConnectionFactory.createConnection(conf); }catch (IOException e){ e.printStackTrace(); } } public void createNamespace(String namespace) throws IOException { Admin admin = connection.getAdmin(); NamespaceDescriptor namespce = NamespaceDescriptor.create(namespace).build(); admin.createNamespace(namespce); admin.close(); } public void createTable(String tableName, String... families) throws IOException { // 因为下面的存在,此处可以省略 createTable(tableName,1,families); } public void createTable(String tableName,Integer versions, String... families) throws IOException { Admin admin = connection.getAdmin(); HTableDescriptor table = new HTableDescriptor(TableName.valueOf(tableName)); for (String family : families) { HColumnDescriptor familyDesc = new HColumnDescriptor(family); familyDesc.setMaxVersions(versions); table.addFamily(familyDesc); } admin.createTable(table); admin.close(); } public void putCell(String tableName, String rowKey, String family, String column, String value) throws IOException { Table table = connection.getTable(TableName.valueOf(tableName)); Put put = new Put(Bytes.toBytes(rowKey)); put.addColumn(Bytes.toBytes(family),Bytes.toBytes(column),Bytes.toBytes(value)); table.put(put); table.close(); } public List<String> getRowKeysByPrefix(String tableName, String prefix) throws IOException { ArrayList<String> list = new ArrayList<>(); Table table = connection.getTable(TableName.valueOf(tableName)); Scan scan = new Scan(); scan.setRowPrefixFilter(Bytes.toBytes(prefix)); ResultScanner scanner = table.getScanner(scan); for (Result result : scanner) { byte[] row = result.getRow(); String rowKey = Bytes.toString(row); list.add(rowKey); } scanner.close(); table.close(); return list; } public void putCells(String tableName, List<String> rowKeys, String family, String column, String value) throws IOException { Table table = connection.getTable(TableName.valueOf(tableName)); ArrayList<Put> puts = new ArrayList<>(); // 遍历RowKeys for (String rowKey : rowKeys) { Put put = new Put(Bytes.toBytes(rowKey)); put.addColumn(Bytes.toBytes(family),Bytes.toBytes(column),Bytes.toBytes(value)); puts.add(put); } table.put(puts); table.close(); } public List<String> getRowKeysByRange(String tableName, String startRow, String stopRow) throws IOException { List<String> list = new ArrayList<>(); Table table = connection.getTable(TableName.valueOf(tableName)); Scan scan = new Scan(Bytes.toBytes(startRow), Bytes.toBytes(stopRow)); ResultScanner scanner = table.getScanner(scan); for (Result result : scanner) { byte[] row = result.getRow(); String rowKey = Bytes.toString(row); list.add(rowKey); } scanner.close(); table.close(); return list; } public void deleteRow(String tableName, String rowKey) throws IOException { Table table = connection.getTable(TableName.valueOf(tableName)); Delete delete = new Delete(Bytes.toBytes(rowKey)); table.delete(delete); table.close(); } public void deleteCells(String tableName, String rowKey, String family, String column) throws IOException { Table table = connection.getTable(TableName.valueOf(tableName)); Delete delete = new Delete(Bytes.toBytes(rowKey)); delete.addColumns(Bytes.toBytes(family),Bytes.toBytes(column)); table.delete(delete); table.close(); } public List<String> getCellsByPrefix(String tableName, String prefix, String family, String column) throws IOException { List<String> list = new ArrayList<>(); Table table = connection.getTable(TableName.valueOf(tableName)); Scan scan = new Scan(); scan.setRowPrefixFilter(Bytes.toBytes(prefix)); scan.addColumn(Bytes.toBytes(family),Bytes.toBytes(column)); ResultScanner scanner = table.getScanner(scan); for (Result result : scanner) { Cell[] cells = result.rawCells(); list.add(Bytes.toString(CellUtil.cloneValue(cells[0]))); } scanner.close(); table.close(); return list; } public List<String> getFamilyByRowKey(String tableName, String rowKey, String family) throws IOException { List<String> list = new ArrayList<>(); Table table = connection.getTable(TableName.valueOf(tableName)); Get get = new Get(Bytes.toBytes(rowKey)); get.setMaxVersions(Names.INBOX_DATA_VERSIONS); get.addFamily(Bytes.toBytes(family)); Result result = table.get(get); for (Cell cell : result.rawCells()) { list.add(Bytes.toString(CellUtil.cloneValue(cell))); } table.close(); return list; } public List<String> getCellsByRowKey(String tableName, List<String> rowKeys, String family, String column) throws IOException { List<String> weibos = new ArrayList<>(); Table table = connection.getTable(TableName.valueOf(tableName)); List<Get> gets = new ArrayList<>(); for (String rowKey : rowKeys) { Get get = new Get(Bytes.toBytes(rowKey)); get.addColumn(Bytes.toBytes(family),Bytes.toBytes(column)); gets.add(get); } Result[] results = table.get(gets); for (Result result : results) { String weibo = Bytes.toString(CellUtil.cloneValue(result.rawCells()[0])); weibos.add(weibo); } table.close(); return weibos; }
}
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
- 70
- 71
- 72
- 73
- 74
- 75
- 76
- 77
- 78
- 79
- 80
- 81
- 82
- 83
- 84
- 85
- 86
- 87
- 88
- 89
- 90
- 91
- 92
- 93
- 94
- 95
- 96
- 97
- 98
- 99
- 100
- 101
- 102
- 103
- 104
- 105
- 106
- 107
- 108
- 109
- 110
- 111
- 112
- 113
- 114
- 115
- 116
- 117
- 118
- 119
- 120
- 121
- 122
- 123
- 124
- 125
- 126
- 127
- 128
- 129
- 130
- 131
- 132
- 133
- 134
- 135
- 136
- 137
- 138
- 139
- 140
- 141
- 142
- 143
- 144
- 145
- 146
- 147
- 148
- 149
- 150
- 151
- 152
- 153
- 154
- 155
- 156
- 157
- 158
- 159
- 160
- 161
- 162
- 163
- 164
- 165
- 166
- 167
- 168
- 169
- 170
- 171
- 172
- 173
- 174
- 175
- 176
- 177
- 178
- 179
- 180
- 181
- 182
- 183
- 184
- 185
- 186
- 187
- 188
- 189
- 190
- 191
- 192
- 193
- 194
- 195
- 196
- 197
- 198
- 199
- 200
- 201
- 202
- 203
- 204
- 205
- 206
- 207
- 208
- 209
- 210
- 211
- 212
- 213
- 214
- 215
- 216
- 217
- 218
- 219
- 220
- 221
- 222
- 223
- 224
- 225
- 226
- 227
- 228
- 229
- 230
- 231
- 232
- 233
- 234
- 235
- 236
- 237
- 238
- 239
- 240
- 241
- 242
- 243
- 244
- 245
- 246
- 247
- 248
- 249
- 250
- 251
- 252
- 253
- 2. WeiboService
package com.buwenbuhuo.hbase.weibo.service;
import com.buwenbuhuo.hbase.weibo.constant.Names;
import com.buwenbuhuo.hbase.weibo.dao.WeiboDao;
import javax.naming.Name;
import java.io.IOException;
import java.util.ArrayList;
import java.util.List;
/**
* @author 卜温不火
* @create 2020-05-13 21:27
* com.buwenbuhuo.hbase.weibo.service - the name of the target package where the new class or interface will be created.
* weibo0513 - the name of the current project.
*/
public class WeiboService { private WeiboDao dao = new WeiboDao(); public void init() throws IOException { //1) 创建命名空间以及表名的定义 dao.createNamespace(Names.NAMESPACE_WEIBO); //2) 创建微博内容表 dao.createTable(Names.TABLE_WEIBO,Names.WEIBO_FAMILY_DATA); //3) 创建用户关系表 dao.createTable(Names.TABLE_RELATION,Names.RELATION_FAMILY_DATA); //4) 创建用户微博内容接收邮件表 dao.createTable(Names.TABLE_INBOX,Names.INBOX_DATA_VERSIONS,Names.INBOX_FAMILY_DATA); } public void publish(String star, String content) throws IOException { // 1. 在weibo表中插入一条数据 String rowKey = star + "_" + System.currentTimeMillis(); dao.putCell(Names.TABLE_WEIBO,rowKey,Names.WEIBO_FAMILY_DATA,Names.WEIBO_COLUMN_CONTENT,content); // 2. 从relation表中获取star的所有fansID (默认有粉丝逻辑有些问题) String prefix = star+":followedby:"; List<String> list = dao.getRowKeysByPrefix(Names.TABLE_RELATION,prefix); if (list.size()<= 0){ return; } List<String> fansIds = new ArrayList<>(); // 遍历 for (String row : list) { String[] split = row.split(":"); // 获取粉丝ID fansIds.add(split[2]); } // 3. 向所有fans的inbox中插入本条weibo的id // 循环调用 or 批量调用 dao.putCells(Names.TABLE_INBOX,fansIds,Names.INBOX_FAMILY_DATA,star,rowKey); } public void follow(String fans, String star) throws IOException { // 1. 向relation表中插入两条数据 String rowKey1 = fans + ":follow:" + star; String rowKey2 = star + ":followedby:" + fans; String time = System.currentTimeMillis() + ""; dao.putCell(Names.TABLE_RELATION,rowKey1,Names.RELATION_FAMILY_DATA,Names.RELATION_COLUMN_TIME,time); dao.putCell(Names.TABLE_RELATION,rowKey2,Names.RELATION_FAMILY_DATA,Names.RELATION_COLUMN_TIME,time); // 2. 从weibo表中获取star的近期weibo // 拿取所有 String startRow = star; String stopRow = star + "|"; List<String> list = dao.getRowKeysByRange(Names.TABLE_WEIBO,startRow,stopRow); // 判断 if (list.size() <= 0){ return; } // 获取近期的weibo // 使用三元运算符进行判断 int fromIndex = list.size() > Names.INBOX_DATA_VERSIONS?list.size()-Names.INBOX_DATA_VERSIONS:0; List<String> recentWeiboIds = list.subList(fromIndex, list.size()); // 3. 向fans的inbox表中插入star的近期weiboId for (String recentWeiboId : recentWeiboIds) { dao.putCell(Names.TABLE_INBOX,fans, Names.INBOX_FAMILY_DATA,star,recentWeiboId); } } public void unFollow(String fans, String star) throws IOException { // 1. 删除relation表中的两条数据 String rowKey1 = fans + ":follow:" + star; String rowKey2 = star + ":followedby:" + fans; dao.deleteRow(Names.TABLE_RELATION,rowKey1); dao.deleteRow(Names.TABLE_RELATION,rowKey2); // 2. 删除inbox表中的一列 dao.deleteCells(Names.TABLE_INBOX,fans,Names.INBOX_FAMILY_DATA,star); } public List<String> getAllWeiboByUserId(String star) throws IOException { return dao.getCellsByPrefix(Names.TABLE_WEIBO,star,Names.WEIBO_FAMILY_DATA,Names.WEIBO_COLUMN_CONTENT); } public List<String> getAllRecentWeibos(String fans) throws IOException { // 1. 从inbox中获取fans的所有的star的近期weiboId List<String> list = dao.getFamilyByRowKey(Names.TABLE_INBOX,fans,Names.INBOX_FAMILY_DATA); // 2. 根据weiboID去weibo表中查询内容 return dao.getCellsByRowKey(Names.TABLE_WEIBO,list,Names.WEIBO_FAMILY_DATA,Names.WEIBO_COLUMN_CONTENT); }
}
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
- 70
- 71
- 72
- 73
- 74
- 75
- 76
- 77
- 78
- 79
- 80
- 81
- 82
- 83
- 84
- 85
- 86
- 87
- 88
- 89
- 90
- 91
- 92
- 93
- 94
- 95
- 96
- 97
- 98
- 99
- 100
- 101
- 102
- 103
- 104
- 105
- 106
- 107
- 108
- 109
- 110
- 111
- 112
- 113
- 114
- 115
- 116
- 117
- 118
- 119
- 120
- 121
- 122
- 123
- 124
- 125
- 126
- 127
- 128
- 129
- 130
- 131
- 132
- 133
- 134
- 135
- 136
- 137
- 138
- 3. Names
package com.buwenbuhuo.hbase.weibo.constant; /**
* @author 卜温不火
* @create 2020-05-13 23:28
* com.buwenbuhuo.hbase.weibo.constant - the name of the target package where the new class or interface will be created.
* weibo0513 - the name of the current project.
*/
public class Names { public final static String NAMESPACE_WEIBO = "weibo"; public final static String TABLE_WEIBO = "weibo:weibo"; public final static String TABLE_RELATION = "weibo:relation"; public final static String TABLE_INBOX = "weibo:inbox"; public final static String WEIBO_FAMILY_DATA = "data"; public final static String RELATION_FAMILY_DATA = "data"; public final static String INBOX_FAMILY_DATA = "data"; public final static String WEIBO_COLUMN_CONTENT = "content"; public final static String RELATION_COLUMN_TIME = "time"; public final static Integer INBOX_DATA_VERSIONS = 3;
}
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 4. WeiboController
package com.buwenbuhuo.hbase.weibo.controller;
import com.buwenbuhuo.hbase.weibo.service.WeiboService;
import java.io.IOException;
import java.util.List;
/**
* @author 卜温不火
* @create 2020-05-13 21:27
* com.buwenbuhuo.hbase.weibo.controller - the name of the target package where the new class or interface will be created.
* weibo0513 - the name of the current project.
*/
public class WeiboController { private WeiboService service = new WeiboService(); public void init() throws IOException { service.init(); } //5) 发布微博内容 public void publish(String star,String content) throws IOException { service.publish(star,content); } //6) 添加关注用户 public void follow(String fans,String star) throws IOException { service.follow(fans,star); } //7) 移除(取关)用户 public void unFollow(String fans,String star) throws IOException { service.unFollow(fans,star); } //8) 获取关注的人的微博内容 // 8.1 获取某个明星的所有weibo public List<String> getAllWeibosByUserID(String star) throws IOException { return service.getAllWeiboByUserId(star); } // 8.2 获取关注的所有star的近期weibo public List<String> getAllRecentWeibos(String fans) throws IOException { return service.getAllRecentWeibos(fans); } }
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 5. WeiboAPP
package com.buwenbuhuo.hbase.weibo;
import com.buwenbuhuo.hbase.weibo.controller.WeiboController;
import java.io.IOException;
import java.util.List;
/**
* @author 卜温不火
* @create 2020-05-13 21:24
* com.buwenbuhuo.hbase.weibo - the name of the target package where the new class or interface will be created.
* weibo0513 - the name of the current project.
*/
public class WeiboAPP { private static WeiboController controller = new WeiboController(); public static void main(String[] args) throws IOException { // 1. 创建表的初始化
// controller.init(); // 2. 发微博(发五条微博)
// controller.publish("buwenbuhuo","Happy 1");
// controller.publish("buwenbuhuo","Happy 2");
// controller.publish("buwenbuhuo","Happy 3");
// controller.publish("buwenbuhuo","Happy 4");
// controller.publish("buwenbuhuo","Happy 5"); // 3. 关注微博
// controller.follow("1002","buwenbuhuo");
// controller.follow("1003","buwenbuhuo"); // 4. 获取微博内容 // 最新的消息(获取)
// List<String> allRecentWeibos = controller.getAllRecentWeibos("1002"); // 查看数据
// for (String allRecentWeibo : allRecentWeibos) {
// System.out.println(allRecentWeibo);
// } // 5. 取关微博
// controller.unFollow("1002","buwenbuhuo"); // 查看数据
// for (String allRecentWeibo : allRecentWeibos) {
// System.out.println(allRecentWeibo);
// } // 6. 获取某一个人的所有微博
// List<String> allWeibosByUserID = controller.getAllWeibosByUserID("buwenbuhuo");
//
// for (String s : allWeibosByUserID) {
// System.out.println(s);
// } }
}
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
4. 测试

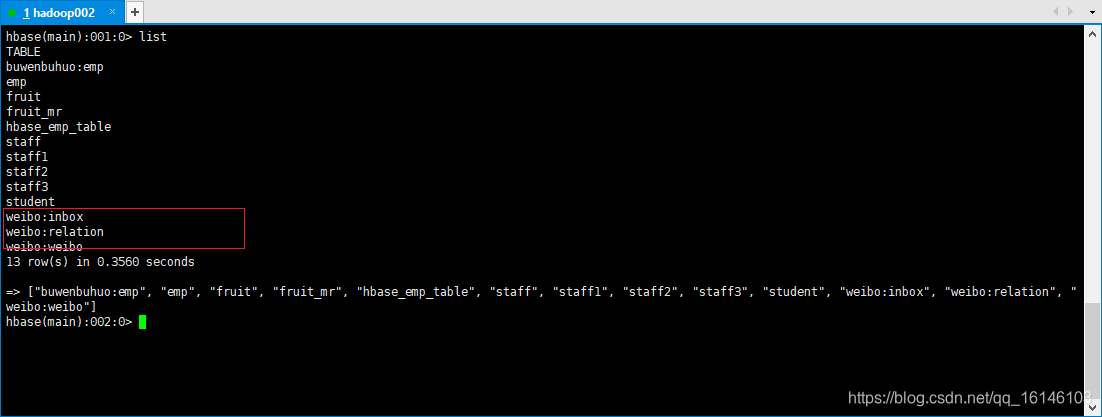

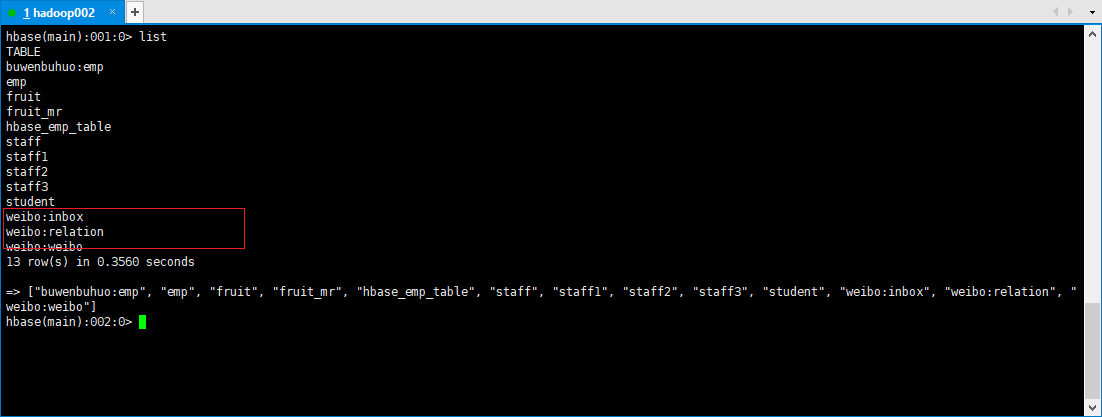

- 1. 建表的初始化
// 1. 创建表的初始化 controller.init();
- 1
- 2
- 2. 发微博
// 2. 发微博(发五条微博) controller.publish("buwenbuhuo","Happy 1"); controller.publish("buwenbuhuo","Happy 2"); controller.publish("buwenbuhuo","Happy 3"); controller.publish("buwenbuhuo","Happy 4"); controller.publish("buwenbuhuo","Happy 5");
// 查看weibo
hbase(main):002:0> scan 'weibo:weibo'
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 3. 关注微博
// 3. 关注微博 controller.follow("buwen","buwenbuhuo"); controller.follow("buhuo","buwenbuhuo");
// 查看是否关注
hbase(main):004:0> scan 'weibo:relation'
- 1
- 2
- 3
- 4
- 5
- 6
- 7

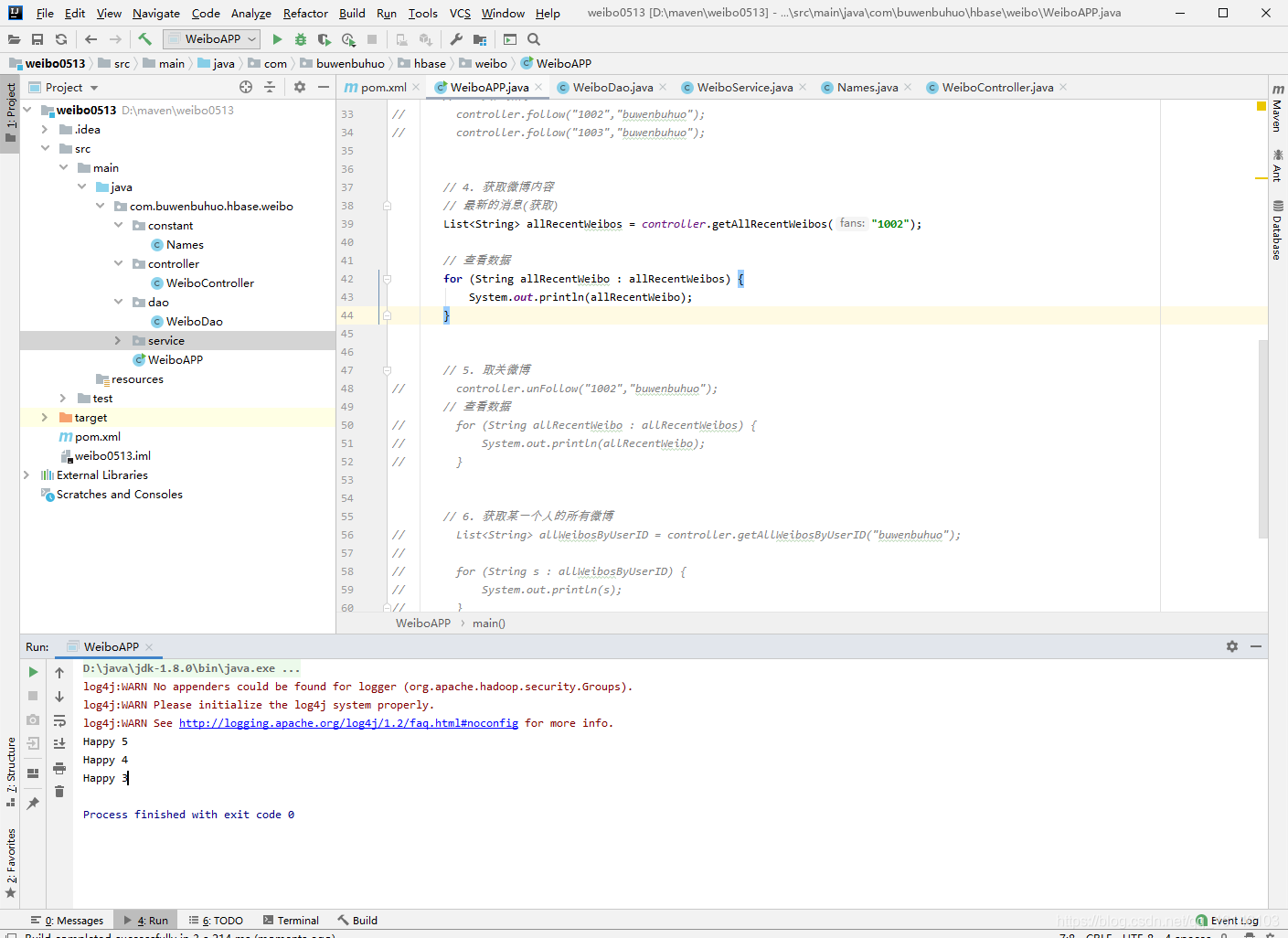

- 4. 获取微博内容
// 最新的消息(获取) List<String> allRecentWeibos = controller.getAllRecentWeibos("1002"); // 查看数据 for (String allRecentWeibo : allRecentWeibos) { System.out.println(allRecentWeibo); }
- 1
- 2
- 3
- 4
- 5
- 6
- 7

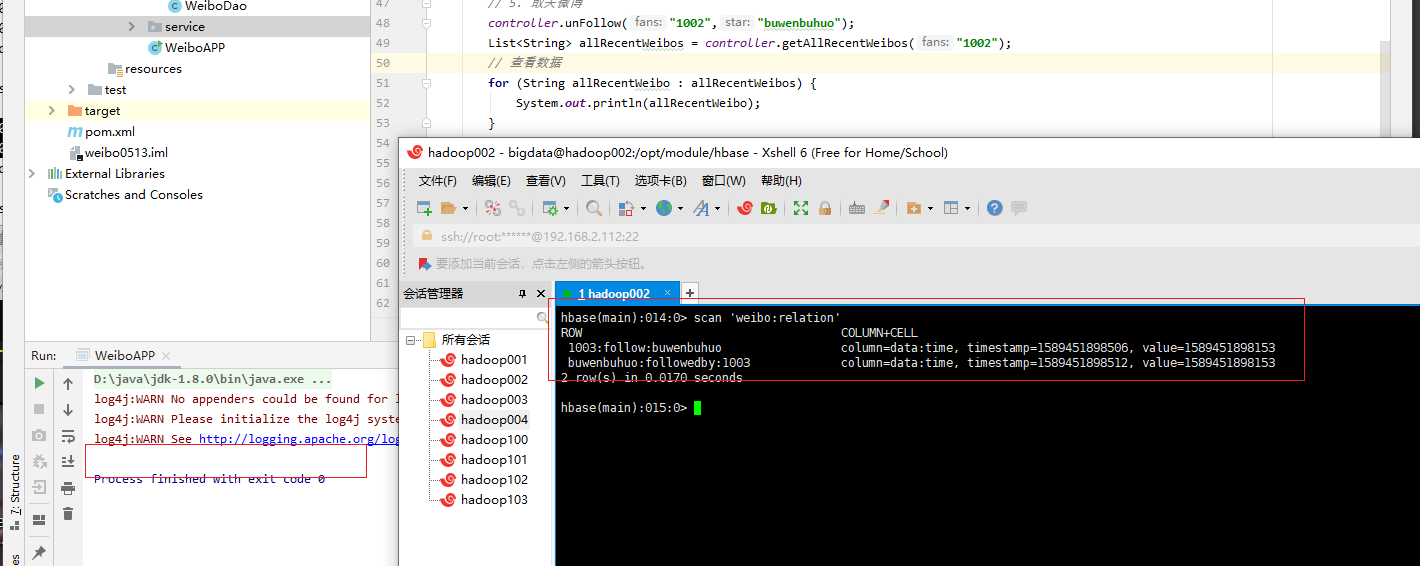

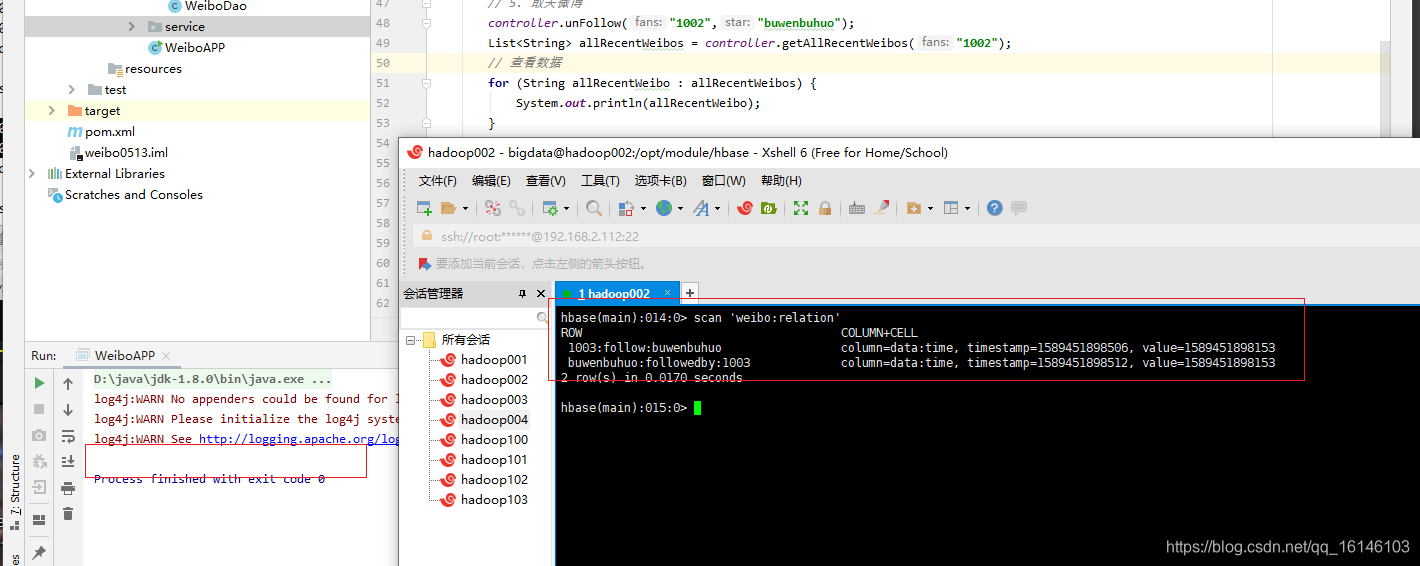

- 5. 取关微博
controller.unFollow("1002","buwenbuhuo"); List<String> allRecentWeibos = controller.getAllRecentWeibos("1002"); // 查看数据 for (String allRecentWeibo : allRecentWeibos) { System.out.println(allRecentWeibo); }
hbase(main):014:0> scan 'weibo:relation'
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9

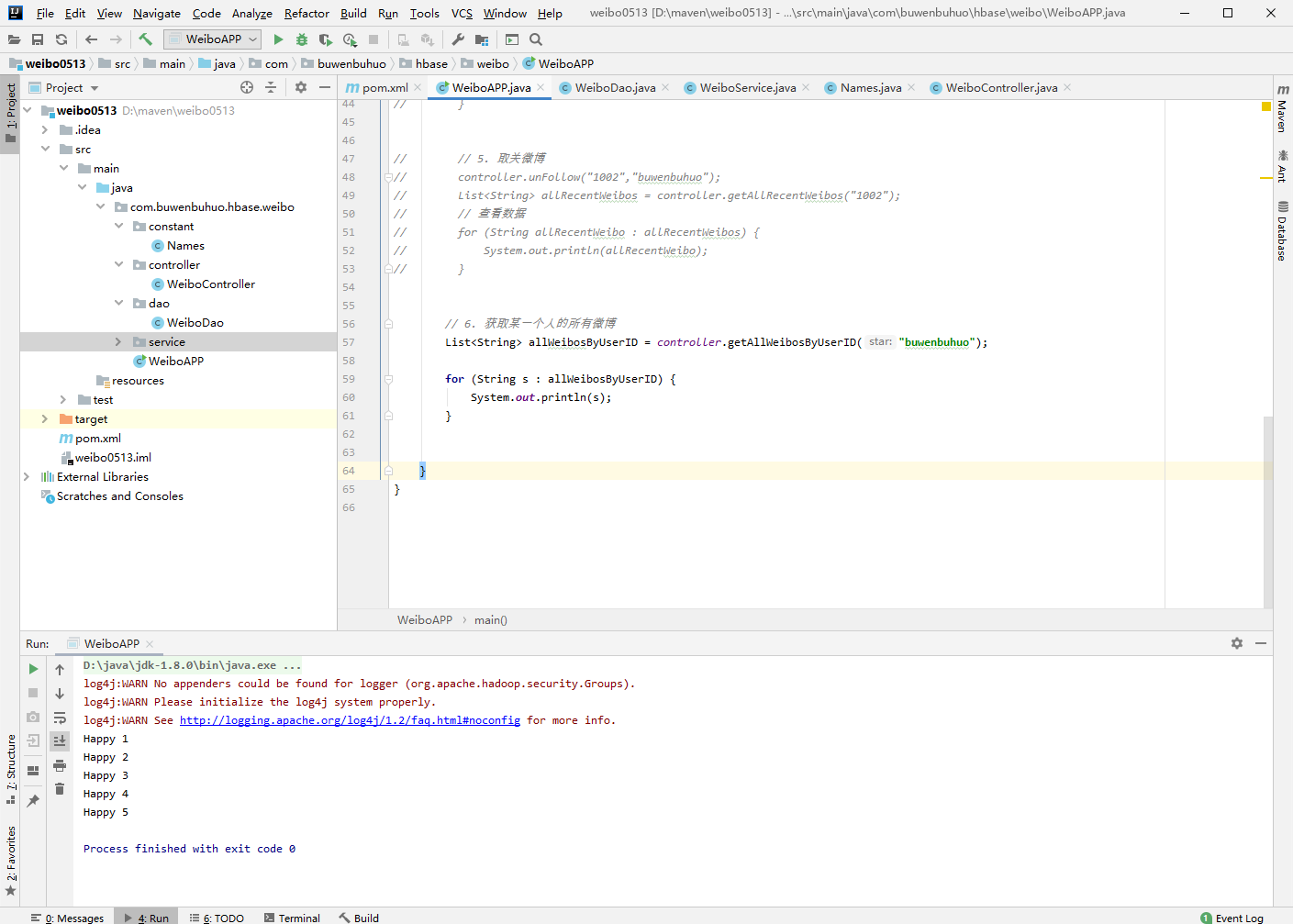

- 6. 获取所有人的微博
// 6. 获取某一个人的所有微博 List<String> allWeibosByUserID = controller.getAllWeibosByUserID("buwenbuhuo"); for (String s : allWeibosByUserID) { System.out.println(s); }
- 1
- 2
- 3
- 4
- 5
- 6
