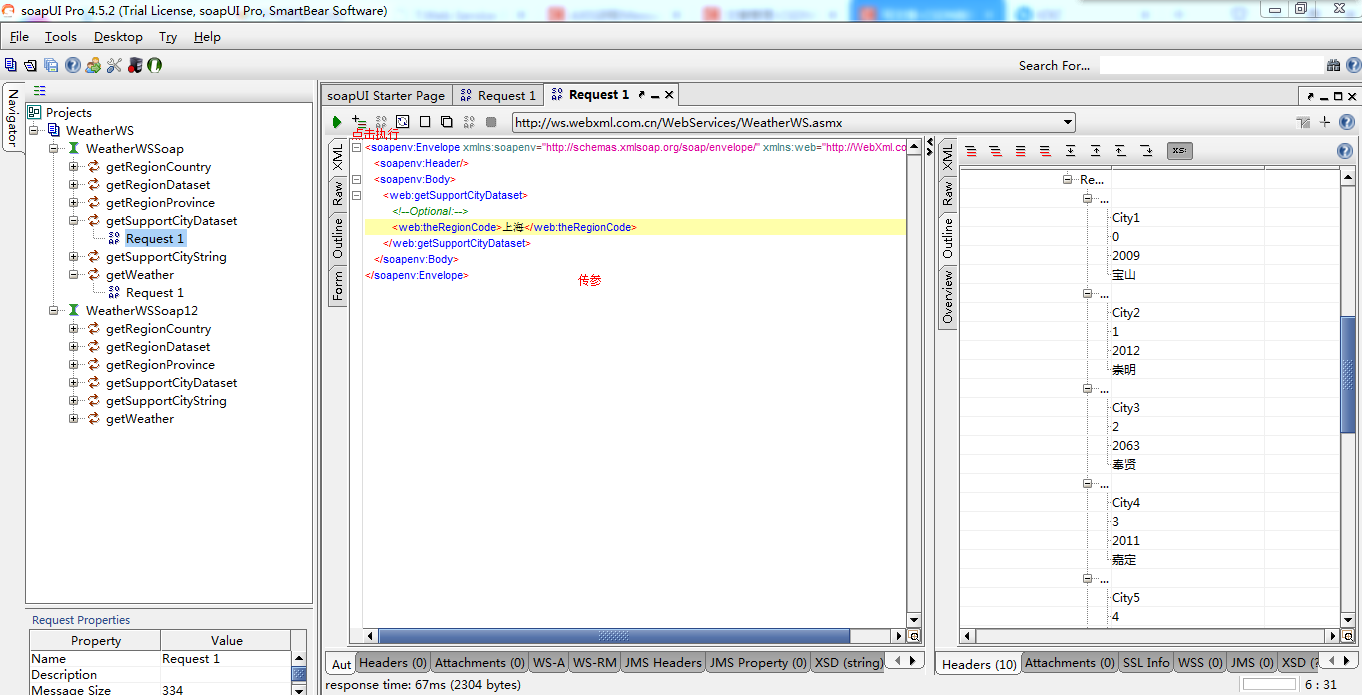

测试工具下载soapui测试

http://ws.webxml.com.cn/WebServices/WeatherWS.asmx?wsdl

pom配置：

<properties> <!-- axis --> <axis.version>1.4</axis.version> <!-- commons-iscovery--> <commons-discovery.version>0.2</commons-discovery.version> <!-- wsdl4j --> <wsdl4j.version>1.6.3</wsdl4j.version> <!-- slf4j --> <slf4j.version>1.7.29</slf4j.version> <!-- fastjson --> <fastjson.version>1.1.40</fastjson.version>
 </properties>

 <dependencies>
<!-- axis需要的jar --> <dependency> <groupId>commons-codec</groupId> <artifactId>commons-codec</artifactId> <version>1.10</version> </dependency> <dependency> <groupId>org.apache.poi</groupId> <artifactId>poi</artifactId> <version>${poi.version}</version> </dependency> <dependency> <groupId>org.apache.poi</groupId> <artifactId>poi-ooxml</artifactId> <version>${poi.version}</version> </dependency> <dependency> <groupId>org.apache.axis</groupId> <artifactId>axis</artifactId> <version>${axis.version}</version> </dependency> <dependency> <groupId>org.apache.axis</groupId> <artifactId>axis-saaj</artifactId> <version>${axis.version}</version> <scope>compile</scope> </dependency> <dependency> <groupId>org.apache.axis</groupId> <artifactId>axis-jaxrpc</artifactId> <version>${axis.version}</version> <scope>compile</scope> </dependency> <dependency> <groupId>commons-discovery</groupId> <artifactId>commons-discovery</artifactId> <version>${commons-discovery.version}</version> </dependency> <dependency> <groupId>wsdl4j</groupId> <artifactId>wsdl4j</artifactId> <version>${wsdl4j.version}</version> </dependency>
<!-- // axis需要的jar --> <dependency> <groupId>org.slf4j</groupId> <artifactId>slf4j-api</artifactId> <version>${slf4j.version}</version> </dependency> <dependency> <groupId>com.alibaba</groupId> <artifactId>fastjson</artifactId> <version>${fastjson.version}</version> </dependency>

 </dependencies>






1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73


Webservice工具类

package com.example.common.util.webservice.axis;

import org.apache.axis.Constants;
import org.apache.axis.client.Call;
import org.apache.axis.client.Service;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import javax.xml.namespace.QName;
import javax.xml.rpc.ParameterMode;
import java.util.ArrayList;
import java.util.List;
import java.util.Map;

/**
 * <pre>
 * WebService工具类
 * </pre>
 *
 * <pre>
 * @author mazq
 * 修改记录
 * 修改后版本: 修改人：  修改日期: 2020/12/17 14:07  修改内容:
 * </pre>
 */
public class WebServiceClientUtils { private static final Logger log = LoggerFactory.getLogger(WebServiceClientUtils.class); private static final Integer CONNET_TIME_OUT = 8000; public static String call(String point, String nameSpace, String methodName, Map<String, String> paramMap) throws Exception { // 创建call实例 Call call = null; try { call = (Call) new Service().createCall(); } catch (Throwable e) { log.error("new call失败",e); } call.setTargetEndpointAddress(point); call.setOperationName(new QName(nameSpace, methodName)); // 调用超时时间 call.setTimeout(CONNET_TIME_OUT); // 存放入参数 List<Object> paramValues = new ArrayList<Object>(); if (paramMap != null && paramMap.size() > 0) { for (Map.Entry<String, String> param : paramMap.entrySet()) { call.addParameter(param.getKey(), Constants.XSD_STRING, ParameterMode.IN); paramValues.add(param.getValue()); if (log.isInfoEnabled()) { log.info("webService参数封装，参数:{}，值为{}" , param.getKey(), param.getValue()); } } } // 设置返回参数类型 call.setReturnType(Constants.XSD_STRING); // 调用WebService服务 if (log.isInfoEnabled()) { log.info("开始调用webService"); } long start = System.currentTimeMillis(); Object object = call.invoke(paramValues.toArray()); long end = System.currentTimeMillis(); if (log.isInfoEnabled()) { log.info("调用webService ;耗时：{}", (end - start) + "ms"); } // WebService参数返回 String result = object.toString(); if (log.isInfoEnabled()) { log.info("WebService参数返回：{}", result); } return result; }

}







1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81


调用参数

// webservice请求参数
long timestamp = System.currentTimeMillis();
String md5Key = DigestUtils.md5DigestAsHex((username + password + timestamp).getBytes());
String paramJson="{" + "\"md5key\":\""+md5Key+"\"," + "\"username\":\""+username+"\"," + "\"timestamp\":\""+timestamp+"\"" + "}";
if (logger.isInfoEnabled()) { logger.info(String.format("参数打印>> username:%s,password:%s,timestamp:%s,md5Key:%s", username, password, timestamp, md5Key)); logger.info(String.format("json参数：%s", paramJson));
}
Map<String, String> paramMap = new HashMap<String, String>();
paramMap.put("in0", paramJson);

// webservice调用
String wsToken = WebServiceClinetUtil.call(point, null,"getSafeToken", paramMap);
if (logger.isInfoEnabled()) { logger.info(String.format("webservice server返回json：%s", wsToken));
}
JSONObject jsonObject = JSONObject.fromObject(wsToken);
Map<String, Object> wsMap = JsonUtil.formatListMap(jsonObject);
final String code = wsMap.get("code").toString();
String token = "";
if ("200".equals(code)) { token = wsMap.get("token").toString(); if (logger.isInfoEnabled()) { logger.info(String.format("api token：%s", token)); }
} else { logger.warn(String.format("api参数校验异常!code:%s，message:%s",wsMap.get("code").toString(), wsMap.get("message").toString()));
}






1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34
