松材线虫病边缘模型训练与推理部署

本文详细介绍了松材线虫病检测的边缘模型训练与推理部署全流程。首先，针对无人机拍摄的4032×3024原始图像进行预处理，缩放到1024×1024避免内存溢出，并定义了9个类别（包括麻栎、罩网、疑似、早期、轻度、中度、重度、死亡和逾年）。随后采用20%重叠率对图像进行切分，生成训练集60000张、验证集6495张的sahi数据集。模型训练基于yolo11s.yaml配置，在pwd数据集上进行10个Epoch的训练，虽然实际应用建议至少100个Epoch。评估结果显示，模型在pwd（重度）类别上表现最佳（mAP50达0.707），而pwd_early（早期）类别表现较差。为提升推理效率，将模型导出为TensorRT FP16引擎，GPU推理速度提升高达5倍，单张图片推理耗时约20ms。最后，通过Gradio构建了用户友好的检测应用，实现了松材线虫病的实时检测功能，为林业病害监测提供了有效的技术解决方案，具有较强的实用价值和推广前景。

1. 原始数据

无人机拍摄原始图像大小是4032 x 3024，这里缩放到1024 x 1024，避免在模型训练时内存溢出：

%%writefile pwd.yaml
# Train/val/test sets as 1) dir: path/to/imgs, 2) file: path/to/imgs.txt, or 3) list: [path/to/imgs1, path/to/imgs2, ..]
path: /home/jetson/ultralytics/dataset/pwd  # dataset root dir (absolute path)
train: train/images  # train images (relative to 'path')
val: val/images  # val images (relative to 'path')
test:  # test images (optional)

# Classes，类别
names:
  0: hardwood      # 麻栎
  1: net           # 罩网
  2: abnormal      # 疑似
  3: pwd_pre_early # 早期
  4: pwd_early     # 轻度
  5: pwd_moderate  # 中度
  6: pwd           # 重度
  7: dead_recent   # 死亡
  8: dead          # 逾年

Overwriting pwd.yaml

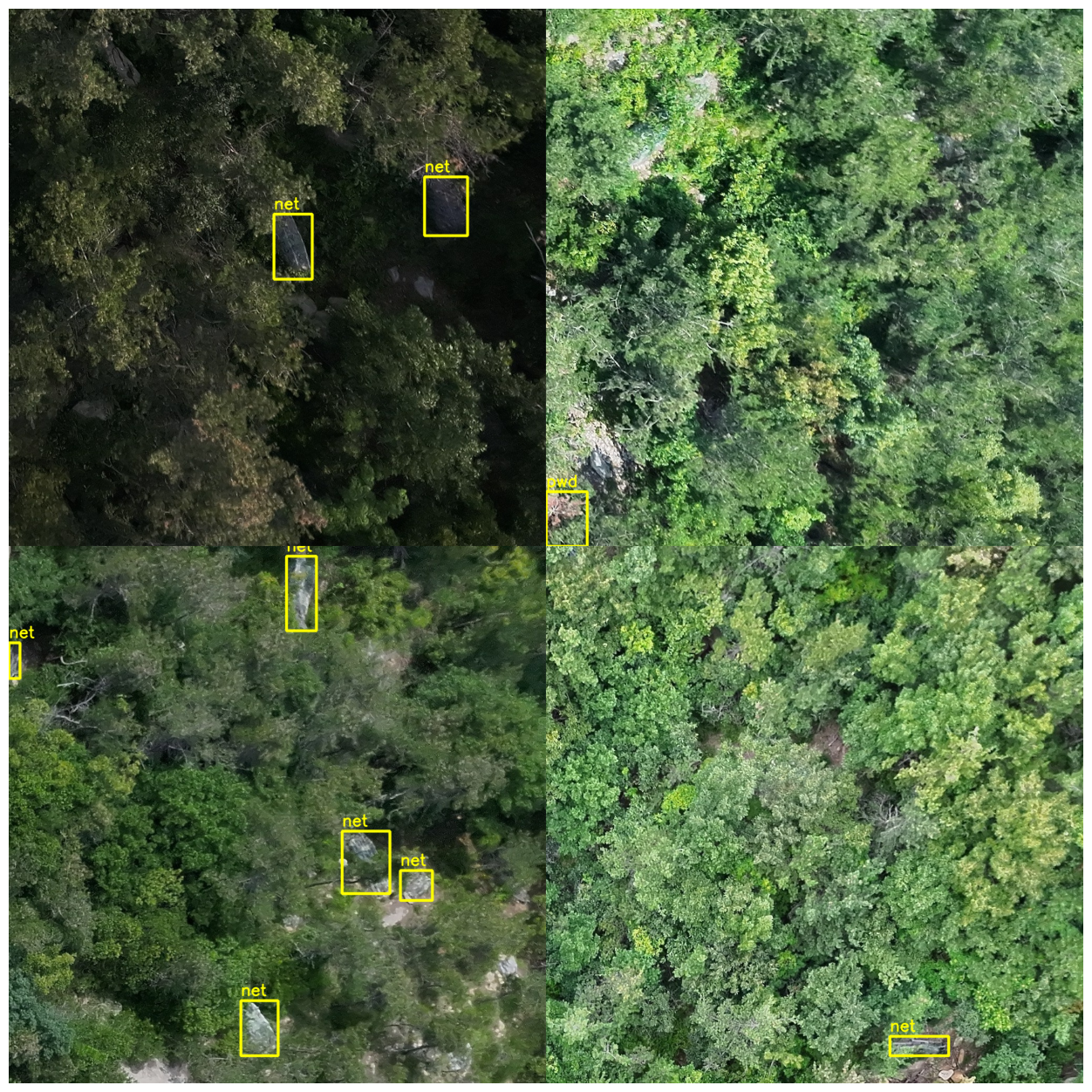

训练集3000张图像，验证集529张图像，查看验证集标注情况：

import os
import cv2
import yaml
import random
import numpy as np
from  matplotlib import pyplot as plt
%matplotlib inline

with open('pwd.yaml', 'r', encoding='utf-8') as f:
    data = yaml.load(f.read(), Loader=yaml.FullLoader)

classes = data['names']
file_path = os.path.join(data['path'], 'val/images')
file_list = os.listdir(file_path)

img_paths = random.sample(file_list, 4)
img_lists = []

for img_path in img_paths:
    img_path = os.path.join(file_path, img_path)
    img = cv2.imread(img_path)
    h, w, _ = img.shape
    tl = round(0.002 * (h + w) / 2) + 1
    color = (0, 255, 255)
    if img_path.endswith('.png'):
        with open(img_path.replace("images", "labels").replace(".png", ".txt")) as f:
            labels = f.readlines()
    if img_path.endswith('.jpg'):
        with open(img_path.replace("images", "labels").replace(".jpg", ".txt")) as f:
            labels = f.readlines()
    if img_path.endswith('.jpeg'):
        with open(img_path.replace("images", "labels").replace(".jpeg", ".txt")) as f:
            labels = f.readlines()
    for label in labels:
        l, x, y, wc, hc = [float(x) for x in label.strip().split()]
        x1 = int((x - wc / 2) * w)
        y1 = int((y - hc / 2) * h)
        x2 = int((x + wc / 2) * w)
        y2 = int((y + hc / 2) * h)

        cv2.rectangle(img, (x1, y1), (x2, y2),
                      color, thickness=tl, lineType=cv2.LINE_AA)
        cv2.putText(img,classes[int(l)],(x1, y1-10), cv2.FONT_HERSHEY_SIMPLEX, 1, color, 2, cv2.LINE_AA)
    img_lists.append(cv2.resize(img, (1024, 1024)))

image = np.concatenate([np.concatenate(img_lists[:2], axis=1), np.concatenate(img_lists[2:], axis=1)], axis=0)
cv2.imwrite("sample-pwd.png", image)

plt.rcParams["figure.figsize"] = (16, 16)
plt.imshow(image[:,:,::-1])
plt.axis('off')
plt.show()

2. 切分数据

对dataset/pwd数据集进行图像切分，切分大小为1024 x 1024，重叠率是20%，生成新的数据集dataset/pwd-sahi：

%%writefile pwd-sahi.yaml
# Train/val/test sets as 1) dir: path/to/imgs, 2) file: path/to/imgs.txt, or 3) list: [path/to/imgs1, path/to/imgs2, ..]
path: /home/jetson/ultralytics/dataset/pwd-sahi  # dataset root dir (absolute path)
train: train/images  # train images (relative to 'path')
val: val/images  # val images (relative to 'path')
test:  # test images (optional)

# Classes，类别
names:
  0: hardwood      # 麻栎
  1: net           # 罩网
  2: abnormal      # 疑似
  3: pwd_pre_early # 早期
  4: pwd_early     # 轻度
  5: pwd_moderate  # 中度
  6: pwd           # 重度
  7: dead_recent   # 死亡
  8: dead          # 逾年

Overwriting pwd-sahi.yaml

其中训练集60000张图像（部分为背景图），验证集6495张图像（不含背景图），查看验证集的标注情况：

import os
import cv2
import yaml
import random
import numpy as np
from  matplotlib import pyplot as plt
%matplotlib inline

with open('pwd-sahi.yaml', 'r', encoding='utf-8') as f:
    data = yaml.load(f.read(), Loader=yaml.FullLoader)

classes = data['names']
file_path = os.path.join(data['path'], 'val/images')
file_list = os.listdir(file_path)

img_paths = random.sample(file_list, 4)
img_lists = []

for img_path in img_paths:
    img_path = os.path.join(file_path, img_path)
    img = cv2.imread(img_path)
    h, w, _ = img.shape
    tl = round(0.002 * (h + w) / 2) + 1
    color = (0, 255, 255)
    if img_path.endswith('.png'):
        with open(img_path.replace("images", "labels").replace(".png", ".txt")) as f:
            labels = f.readlines()
    if img_path.endswith('.jpg'):
        with open(img_path.replace("images", "labels").replace(".jpg", ".txt")) as f:
            labels = f.readlines()
    if img_path.endswith('.jpeg'):
        with open(img_path.replace("images", "labels").replace(".jpeg", ".txt")) as f:
            labels = f.readlines()
    for label in labels:
        l, x, y, wc, hc = [float(x) for x in label.strip().split()]
        x1 = int((x - wc / 2) * w)
        y1 = int((y - hc / 2) * h)
        x2 = int((x + wc / 2) * w)
        y2 = int((y + hc / 2) * h)

        cv2.rectangle(img, (x1, y1), (x2, y2),
                      color, thickness=tl, lineType=cv2.LINE_AA)
        cv2.putText(img,classes[int(l)],(x1, y1-10), cv2.FONT_HERSHEY_SIMPLEX, 1, color, 2, cv2.LINE_AA)
    img_lists.append(cv2.resize(img, (1024, 1024)))

image = np.concatenate([np.concatenate(img_lists[:2], axis=1), np.concatenate(img_lists[2:], axis=1)], axis=0)
cv2.imwrite("sample-pwd-sahi.png", image)

plt.rcParams["figure.figsize"] = (16, 16)
plt.imshow(image[:,:,::-1])
plt.axis('off')
plt.show()

3. 模型训练

我们加载yolo11s.yaml模型的配置文件在dataset/pwd数据集上训练10个Epoch，模型的训练结果保存在pine_wilt_disease/yolo11s_10目录下：

%%writefile train.py
from ultralytics import YOLO

# Load a model
model = YOLO('yolo11s.yaml')  # load yaml model

# Train the model
results = model.train(data='pwd.yaml', epochs=10, imgsz=640,  workers=4, batch=8, project="pine_wilt_disease", name="yolo11s_10")

Overwriting train.py

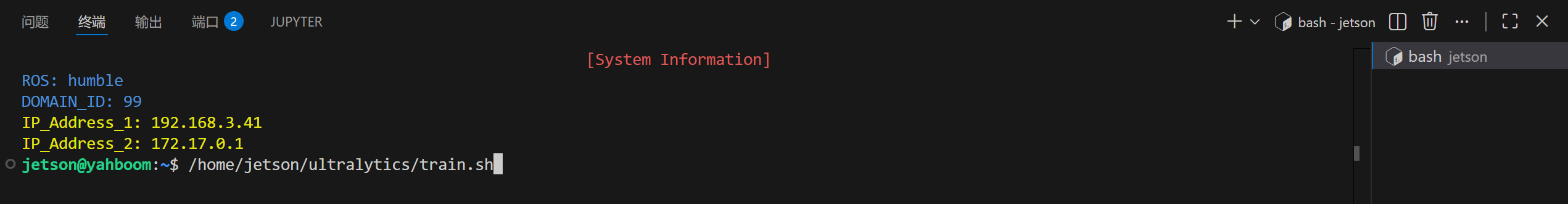

在终端中运行：/home/jetson/ultralytics/train.sh

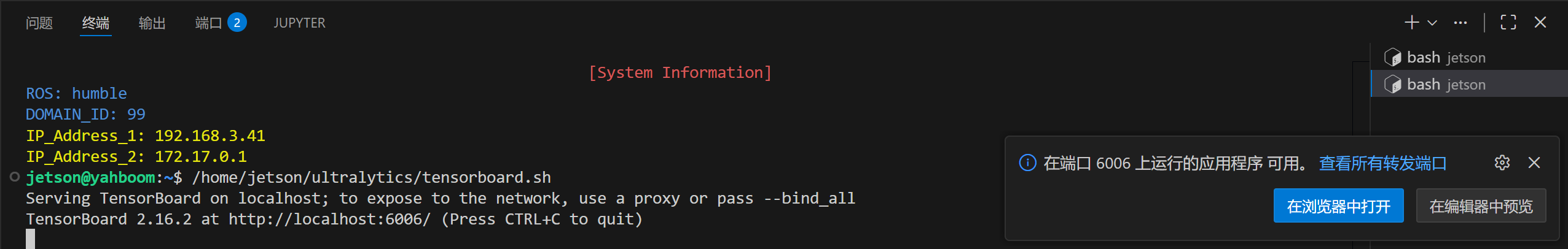

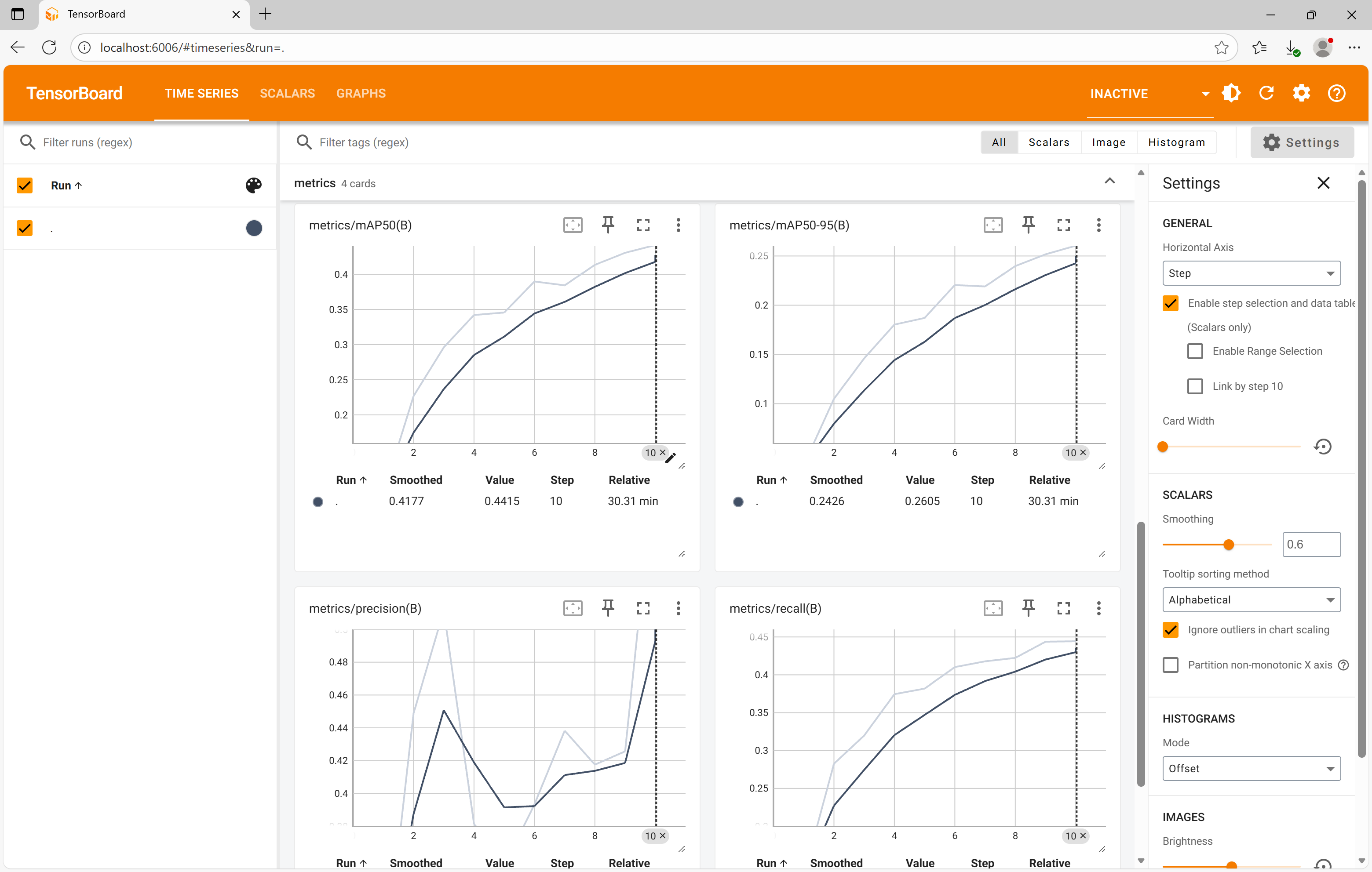

在另一个终端中运行/home/jetson/ultralytics/tensorboard.sh可以监控模型的训练情况：

4. 模型评估

加载训练好的模型，这里我们仅训练了10个Epoch，实际训练至少100个Epoch才能取得较好的效果：

from ultralytics import YOLO

# Load a model
model = YOLO('pine_wilt_disease/yolo11s_10/weights/best.pt')  # load the best model

# Evaluate the model
metrics = model.val(
    data='pwd.yaml',      # 数据集配置
    imgsz=640,            # 模型输入大小
    workers=4,            # 数据加载线程
    batch=8,              # 验证批次大小
    plots=True,           # 生成验证结果图
    split='val'           # 指定使用验证集
)

Ultralytics 8.3.55 🚀 Python-3.10.12 torch-2.5.0a0+872d972e41.nv24.08 CUDA:0 (Orin, 7620MiB)
YOLO11s summary (fused): 238 layers, 9,416,283 parameters, 0 gradients, 21.3 GFLOPs
val: Scanning /home/jetson/ultralytics/dataset/pwd/val/labels.cache... 529 images, 0 backgrounds, 0 corrupt: 100%|██████████| 529/529 [00:00<?, ?it/s]
                 Class     Images  Instances      Box(P          R      mAP50  mAP50-95): 100%|██████████| 67/67 [00:22<00:00,  2.92it/s]
                   all        529       8612      0.602      0.445      0.442      0.261
                   net        383       4210      0.681      0.625      0.683      0.401
             pwd_early        167        375          1          0     0.0362     0.0168
          pwd_moderate        253        503        0.4      0.225      0.224      0.108
                   pwd        383       1141      0.582      0.765      0.707      0.462
           dead_recent        376       1456      0.503      0.443      0.444       0.26
                  dead        229        927      0.444      0.613      0.557      0.318
Speed: 0.9ms preprocess, 24.5ms inference, 0.0ms loss, 4.1ms postprocess per image
Results saved to runs/detect/val

注意，图片实际标注的类别只有6类，不包含麻栎和疑似。

5. 模型导出

导出到TensorRT，GPU推理速度提升高达5倍：

from ultralytics import YOLO

model = YOLO("pine_wilt_disease/yolo11s_10/weights/best.pt")
# TensorRT FP16
model.export(format="engine", imgsz=640, batch=1, half=True)

WARNING ⚠️ TensorRT requires GPU export, automatically assigning device=0
Ultralytics 8.3.55 🚀 Python-3.10.12 torch-2.5.0a0+872d972e41.nv24.08 CUDA:0 (Orin, 7620MiB)
YOLO11s summary (fused): 238 layers, 9,416,283 parameters, 0 gradients, 21.3 GFLOPs

PyTorch: starting from 'pine_wilt_disease/yolo11s_10/weights/best.pt' with input shape (1, 3, 640, 640) BCHW and output shape(s) (1, 13, 8400) (18.3 MB)

ONNX: starting export with onnx 1.17.0 opset 19...
ONNX: slimming with onnxslim 0.1.47...
ONNX: export success ✅ 3.2s, saved as 'pine_wilt_disease/yolo11s_10/weights/best.onnx' (36.2 MB)

TensorRT: starting export with TensorRT 10.7.0...
[11/15/2025-16:23:19] [TRT] [I] [MemUsageChange] Init CUDA: CPU -2, GPU +0, now: CPU 1395, GPU 7158 (MiB)
[11/15/2025-16:23:25] [TRT] [I] [MemUsageChange] Init builder kernel library: CPU +970, GPU +258, now: CPU 2322, GPU 7418 (MiB)
[11/15/2025-16:23:26] [TRT] [I] ----------------------------------------------------------------
[11/15/2025-16:23:26] [TRT] [I] Input filename:   pine_wilt_disease/yolo11s_10/weights/best.onnx
[11/15/2025-16:23:26] [TRT] [I] ONNX IR version:  0.0.9
[11/15/2025-16:23:26] [TRT] [I] Opset version:    19
[11/15/2025-16:23:26] [TRT] [I] Producer name:    pytorch
[11/15/2025-16:23:26] [TRT] [I] Producer version: 2.5.0
[11/15/2025-16:23:26] [TRT] [I] Domain:
[11/15/2025-16:23:26] [TRT] [I] Model version:    0
[11/15/2025-16:23:26] [TRT] [I] Doc string:
[11/15/2025-16:23:26] [TRT] [I] ----------------------------------------------------------------
TensorRT: input "images" with shape(1, 3, 640, 640) DataType.FLOAT
TensorRT: output "output0" with shape(1, 13, 8400) DataType.FLOAT
TensorRT: building FP16 engine as pine_wilt_disease/yolo11s_10/weights/best.engine
[11/15/2025-16:23:26] [TRT] [I] Local timing cache in use. Profiling results in this builder pass will not be stored.
[11/15/2025-16:28:08] [TRT] [I] Compiler backend is used during engine build.
[11/15/2025-16:31:48] [TRT] [I] Detected 1 inputs and 1 output network tensors.
[11/15/2025-16:31:53] [TRT] [I] Total Host Persistent Memory: 543184 bytes
[11/15/2025-16:31:53] [TRT] [I] Total Device Persistent Memory: 0 bytes
[11/15/2025-16:31:53] [TRT] [I] Max Scratch Memory: 2764800 bytes
[11/15/2025-16:31:53] [TRT] [I] [BlockAssignment] Started assigning block shifts. This will take 162 steps to complete.
[11/15/2025-16:31:53] [TRT] [I] [BlockAssignment] Algorithm ShiftNTopDown took 19.653ms to assign 10 blocks to 162 nodes requiring 19046912 bytes.
[11/15/2025-16:31:53] [TRT] [I] Total Activation Memory: 19046400 bytes
[11/15/2025-16:31:53] [TRT] [I] Total Weights Memory: 18914082 bytes
[11/15/2025-16:31:53] [TRT] [I] Compiler backend is used during engine execution.
[11/15/2025-16:31:53] [TRT] [I] Engine generation completed in 506.948 seconds.
[11/15/2025-16:31:53] [TRT] [I] [MemUsageStats] Peak memory usage of TRT CPU/GPU memory allocators: CPU 2 MiB, GPU 140 MiB
TensorRT: export success ✅ 519.0s, saved as 'pine_wilt_disease/yolo11s_10/weights/best.engine' (21.6 MB)

Export complete (519.7s)
Results saved to /home/jetson/ultralytics/pine_wilt_disease/yolo11s_10/weights
Predict:         yolo predict task=detect model=pine_wilt_disease/yolo11s_10/weights/best.engine imgsz=640 half
Validate:        yolo val task=detect model=pine_wilt_disease/yolo11s_10/weights/best.engine imgsz=640 data=pwd.yaml half
Visualize:       https://netron.app

导出FP16精度的量化模型大概需要10分钟左右。

6. 模型推理

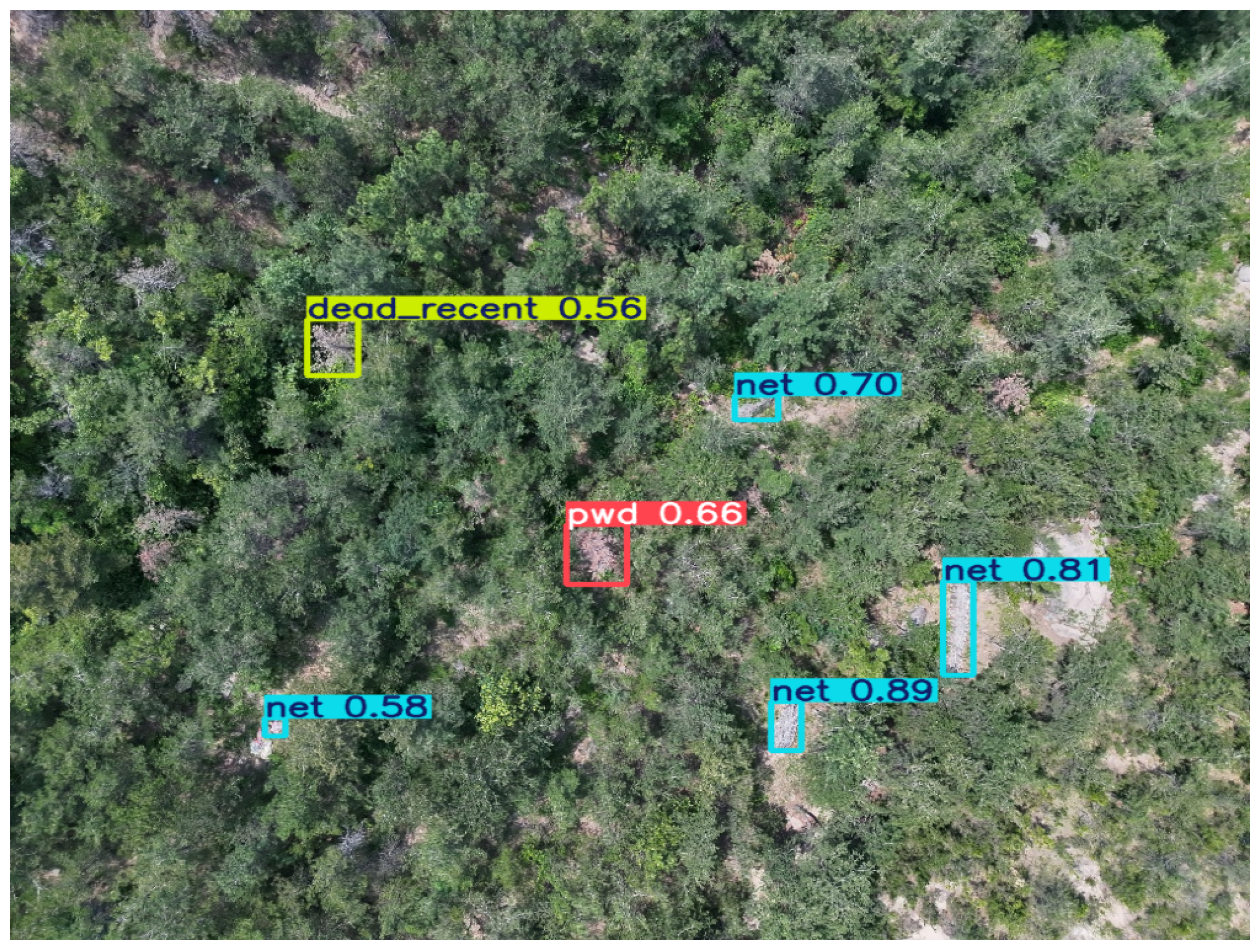

  1. 使用TensorRT引擎加载模型对验证集的部分图片进行推理，每张图片的推理耗时约20ms：
import cv2
import glob
from ultralytics import YOLO
import matplotlib.pyplot as plt
%matplotlib inline

# Load the TensorRT engine model
model = YOLO("pine_wilt_disease/yolo11s_10/weights/best.engine")
# Define the prediction function
def predict(image_path):
    reuslts = model.predict(image_path, conf=0.45, iou=0.55)
    return reuslts[0].plot()

# Load the images for inference
images_path = glob.glob("dataset/pwd/val/images/*.jpeg")
# Perform inference and display results
for image_path in images_path[:10]:
    result = predict(image_path)
    result = cv2.cvtColor(result, cv2.COLOR_BGR2RGB)
    result = cv2.resize(result, (4032 // 4, 3024 // 4))
    plt.imshow(result)
    plt.axis("off")
    plt.show()

WARNING ⚠️ Unable to automatically guess model task, assuming 'task=detect'. Explicitly define task for your model, i.e. 'task=detect', 'segment', 'classify','pose' or 'obb'.
Loading pine_wilt_disease/yolo11s_10/weights/best.engine for TensorRT inference...
[11/15/2025-16:31:54] [TRT] [I] Loaded engine size: 21 MiB
[11/15/2025-16:31:54] [TRT] [I] [MemUsageChange] TensorRT-managed allocation in IExecutionContext creation: CPU +0, GPU +18, now: CPU 0, GPU 36 (MiB)

image 1/1 /home/jetson/ultralytics/dataset/pwd/val/images/1d1d160a-ae4f-4fe4-801d-f001d4e7ff6d.jpeg: 640x640 4 nets, 1 pwd, 1 dead_recent, 20.1ms
Speed: 45.6ms preprocess, 20.1ms inference, 49.3ms postprocess per image at shape (1, 3, 640, 640)
...

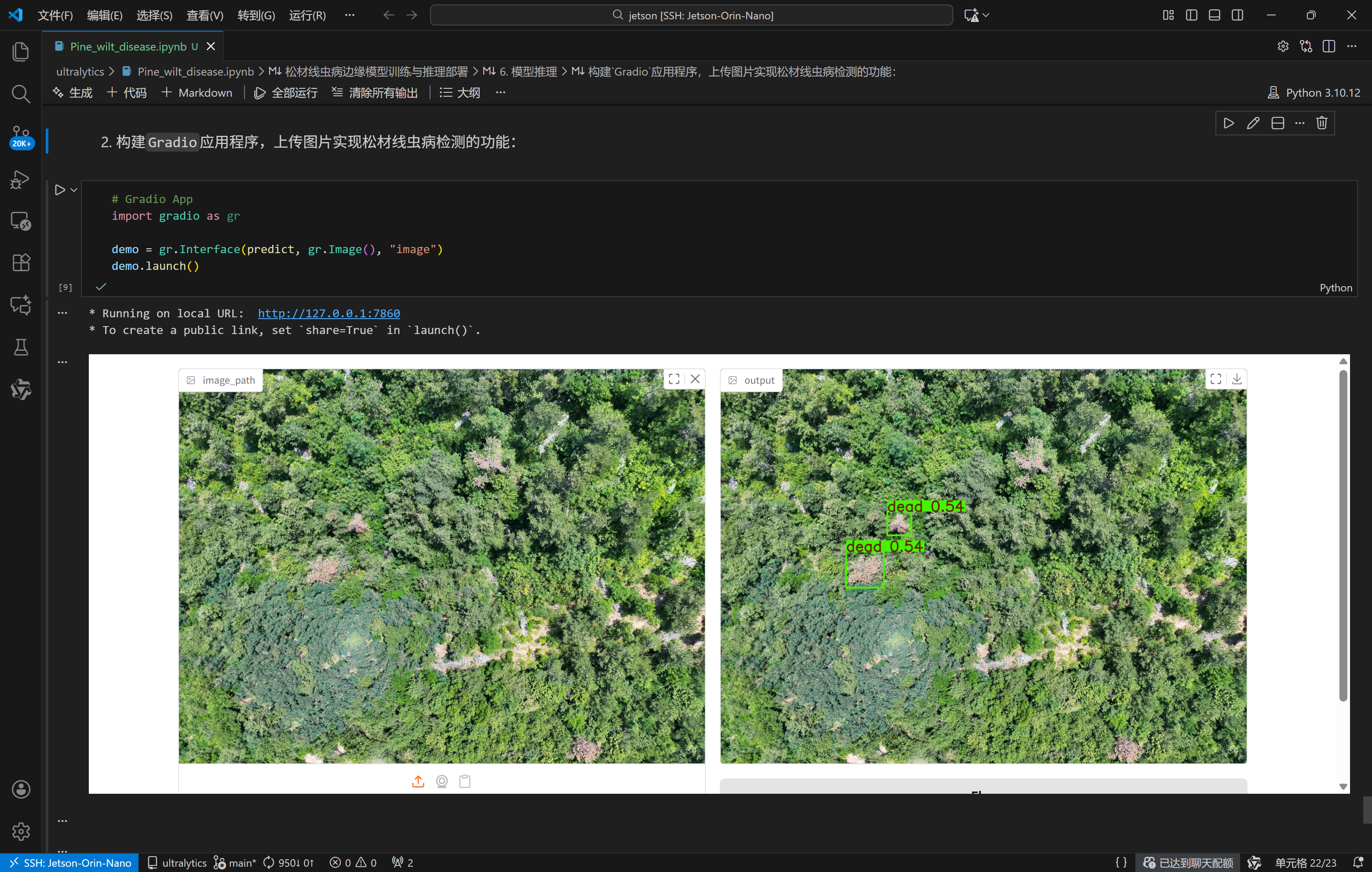

  1. 构建Gradio应用程序，上传图片实现松材线虫病检测的功能：

至此，本章结束。
