『PyQt5-Qt Designer篇』｜ 07 Qt Designer中栅格布局和表单布局的使用

举报
虫无涯 发表于 2023/09/25 10:19:37 2023/09/25
【摘要】 1 栅格布局 1.1 按钮布局拖入几个按钮，如图：选中所有按钮，右键点击布局-栅格布局：之后可以看到栅格布局的效果，类似计算器一样： 1.2 栅格布局中拖入控件先拖动栅格布局到窗口：可以拖动按钮到栅格布局中： 1.3 保存并调用保存为GriLay.ui，并生成GriLay.py文件：# -*- coding: utf-8 -*-# Form implementation generated...

1 栅格布局

1.1 按钮布局

  • 拖入几个按钮，如图：
    在这里插入图片描述
  • 选中所有按钮，右键点击布局-栅格布局：
    在这里插入图片描述

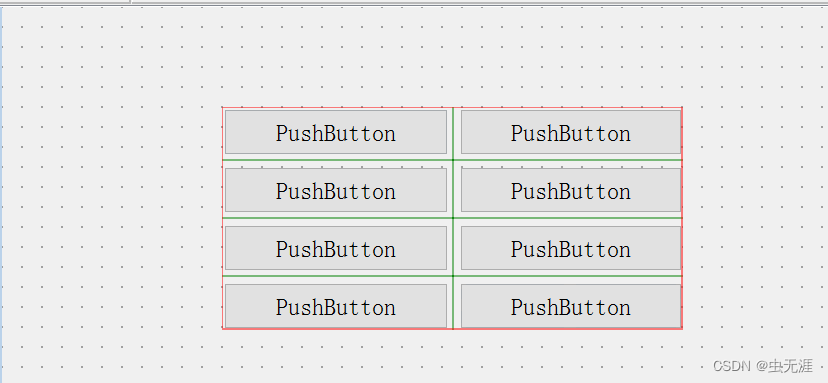

  • 之后可以看到栅格布局的效果，类似计算器一样：
    在这里插入图片描述

1.2 栅格布局中拖入控件

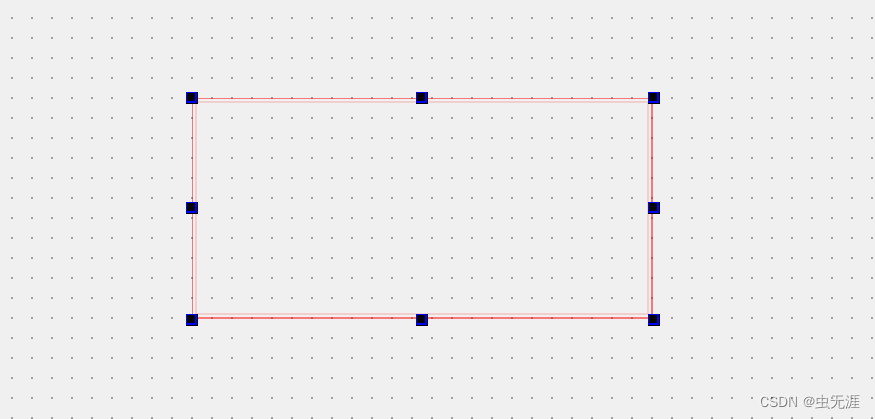

  • 先拖动栅格布局到窗口：
    在这里插入图片描述
  • 可以拖动按钮到栅格布局中：
    在这里插入图片描述

1.3 保存并调用

  • 保存为GriLay.ui，并生成GriLay.py文件：
# -*- coding: utf-8 -*-

# Form implementation generated from reading ui file 'GriLay.ui'
#
# Created by: PyQt5 UI code generator 5.15.4
#
# WARNING: Any manual changes made to this file will be lost when pyuic5 is
# run again.  Do not edit this file unless you know what you are doing.


from PyQt5 import QtCore, QtGui, QtWidgets


class Ui_MainWindow(object):
    def setupUi(self, MainWindow):
        MainWindow.setObjectName("MainWindow")
        MainWindow.resize(800, 600)
        self.centralwidget = QtWidgets.QWidget(MainWindow)
        self.centralwidget.setObjectName("centralwidget")
        self.gridLayoutWidget = QtWidgets.QWidget(self.centralwidget)
        self.gridLayoutWidget.setGeometry(QtCore.QRect(110, 230, 231, 112))
        self.gridLayoutWidget.setObjectName("gridLayoutWidget")
        self.gridLayout_2 = QtWidgets.QGridLayout(self.gridLayoutWidget)
        self.gridLayout_2.setContentsMargins(0, 0, 0, 0)
        self.gridLayout_2.setObjectName("gridLayout_2")
        self.pushButton_12 = QtWidgets.QPushButton(self.gridLayoutWidget)
        self.pushButton_12.setObjectName("pushButton_12")
        self.gridLayout_2.addWidget(self.pushButton_12, 2, 0, 1, 1)
        self.pushButton_11 = QtWidgets.QPushButton(self.gridLayoutWidget)
        self.pushButton_11.setObjectName("pushButton_11")
        self.gridLayout_2.addWidget(self.pushButton_11, 0, 0, 1, 1)
        self.pushButton_13 = QtWidgets.QPushButton(self.gridLayoutWidget)
        self.pushButton_13.setObjectName("pushButton_13")
        self.gridLayout_2.addWidget(self.pushButton_13, 1, 0, 1, 1)
        self.pushButton_10 = QtWidgets.QPushButton(self.gridLayoutWidget)
        self.pushButton_10.setObjectName("pushButton_10")
        self.gridLayout_2.addWidget(self.pushButton_10, 3, 0, 1, 1)
        self.pushButton_14 = QtWidgets.QPushButton(self.gridLayoutWidget)
        self.pushButton_14.setObjectName("pushButton_14")
        self.gridLayout_2.addWidget(self.pushButton_14, 1, 1, 1, 1)
        self.pushButton_15 = QtWidgets.QPushButton(self.gridLayoutWidget)
        self.pushButton_15.setObjectName("pushButton_15")
        self.gridLayout_2.addWidget(self.pushButton_15, 0, 1, 1, 1)
        self.pushButton_16 = QtWidgets.QPushButton(self.gridLayoutWidget)
        self.pushButton_16.setObjectName("pushButton_16")
        self.gridLayout_2.addWidget(self.pushButton_16, 2, 1, 1, 1)
        self.pushButton_17 = QtWidgets.QPushButton(self.gridLayoutWidget)
        self.pushButton_17.setObjectName("pushButton_17")
        self.gridLayout_2.addWidget(self.pushButton_17, 3, 1, 1, 1)
        self.widget = QtWidgets.QWidget(self.centralwidget)
        self.widget.setGeometry(QtCore.QRect(80, 70, 320, 83))
        self.widget.setObjectName("widget")
        self.gridLayout = QtWidgets.QGridLayout(self.widget)
        self.gridLayout.setContentsMargins(0, 0, 0, 0)
        self.gridLayout.setObjectName("gridLayout")
        self.pushButton = QtWidgets.QPushButton(self.widget)
        self.pushButton.setObjectName("pushButton")
        self.gridLayout.addWidget(self.pushButton, 0, 0, 1, 1)
        self.pushButton_2 = QtWidgets.QPushButton(self.widget)
        self.pushButton_2.setObjectName("pushButton_2")
        self.gridLayout.addWidget(self.pushButton_2, 0, 1, 1, 1)
        self.pushButton_3 = QtWidgets.QPushButton(self.widget)
        self.pushButton_3.setObjectName("pushButton_3")
        self.gridLayout.addWidget(self.pushButton_3, 0, 2, 1, 2)
        self.pushButton_4 = QtWidgets.QPushButton(self.widget)
        self.pushButton_4.setObjectName("pushButton_4")
        self.gridLayout.addWidget(self.pushButton_4, 1, 0, 1, 1)
        self.pushButton_5 = QtWidgets.QPushButton(self.widget)
        self.pushButton_5.setObjectName("pushButton_5")
        self.gridLayout.addWidget(self.pushButton_5, 1, 1, 1, 2)
        self.pushButton_6 = QtWidgets.QPushButton(self.widget)
        self.pushButton_6.setObjectName("pushButton_6")
        self.gridLayout.addWidget(self.pushButton_6, 1, 3, 1, 2)
        self.pushButton_7 = QtWidgets.QPushButton(self.widget)
        self.pushButton_7.setObjectName("pushButton_7")
        self.gridLayout.addWidget(self.pushButton_7, 2, 0, 1, 1)
        self.pushButton_8 = QtWidgets.QPushButton(self.widget)
        self.pushButton_8.setObjectName("pushButton_8")
        self.gridLayout.addWidget(self.pushButton_8, 2, 1, 1, 2)
        self.pushButton_9 = QtWidgets.QPushButton(self.widget)
        self.pushButton_9.setObjectName("pushButton_9")
        self.gridLayout.addWidget(self.pushButton_9, 2, 4, 1, 1)
        MainWindow.setCentralWidget(self.centralwidget)
        self.menubar = QtWidgets.QMenuBar(MainWindow)
        self.menubar.setGeometry(QtCore.QRect(0, 0, 800, 22))
        self.menubar.setObjectName("menubar")
        MainWindow.setMenuBar(self.menubar)
        self.statusbar = QtWidgets.QStatusBar(MainWindow)
        self.statusbar.setObjectName("statusbar")
        MainWindow.setStatusBar(self.statusbar)

        self.retranslateUi(MainWindow)
        QtCore.QMetaObject.connectSlotsByName(MainWindow)

    def retranslateUi(self, MainWindow):
        _translate = QtCore.QCoreApplication.translate
        MainWindow.setWindowTitle(_translate("MainWindow", "MainWindow"))
        self.pushButton_12.setText(_translate("MainWindow", "PushButton"))
        self.pushButton_11.setText(_translate("MainWindow", "PushButton"))
        self.pushButton_13.setText(_translate("MainWindow", "PushButton"))
        self.pushButton_10.setText(_translate("MainWindow", "PushButton"))
        self.pushButton_14.setText(_translate("MainWindow", "PushButton"))
        self.pushButton_15.setText(_translate("MainWindow", "PushButton"))
        self.pushButton_16.setText(_translate("MainWindow", "PushButton"))
        self.pushButton_17.setText(_translate("MainWindow", "PushButton"))
        self.pushButton.setText(_translate("MainWindow", "7"))
        self.pushButton_2.setText(_translate("MainWindow", "8"))
        self.pushButton_3.setText(_translate("MainWindow", "9"))
        self.pushButton_4.setText(_translate("MainWindow", "4"))
        self.pushButton_5.setText(_translate("MainWindow", "5"))
        self.pushButton_6.setText(_translate("MainWindow", "6"))
        self.pushButton_7.setText(_translate("MainWindow", "1"))
        self.pushButton_8.setText(_translate("MainWindow", "2"))
        self.pushButton_9.setText(_translate("MainWindow", "3"))

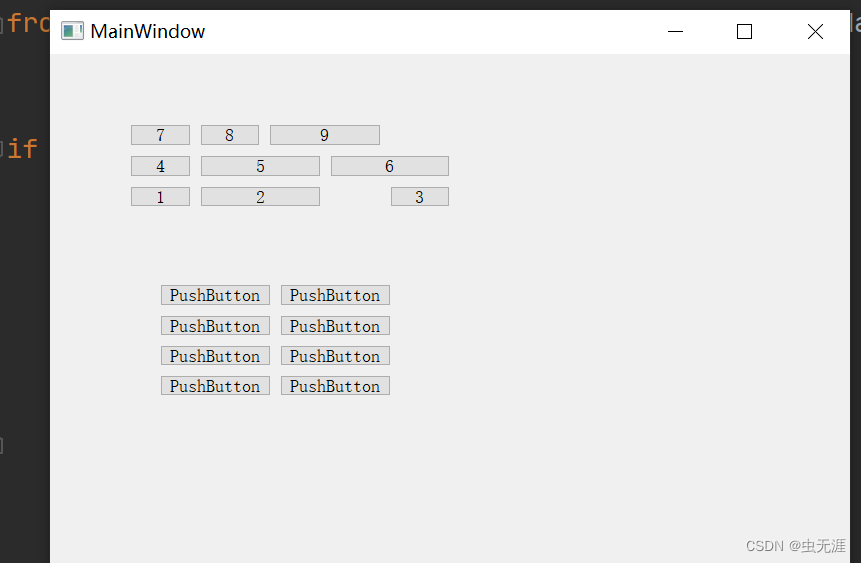

  • 创建main.py，并执行：
# -*- coding:utf-8 -*-
# 作者：虫无涯
# 日期：2023/8/28
# 文件名称：main.py
# 作用：主程序入口
# 联系：VX(NoamaNelson)
# 博客：https://blog.csdn.net/NoamaNelson

import sys
from test_case.GriLay import Ui_MainWindow
from PyQt5.QtWidgets import QApplication, QWidget, QMainWindow


if __name__ == "__main__":
    app = QApplication(sys.argv)
    window = QMainWindow()
    ui = Ui_MainWindow()
    ui.setupUi(window)
    window.show()

    sys.exit(app.exec_())

在这里插入图片描述

2 表单布局

2.1 标签+输入控件

  • 拖入标签和输入控件，如下：
    在这里插入图片描述

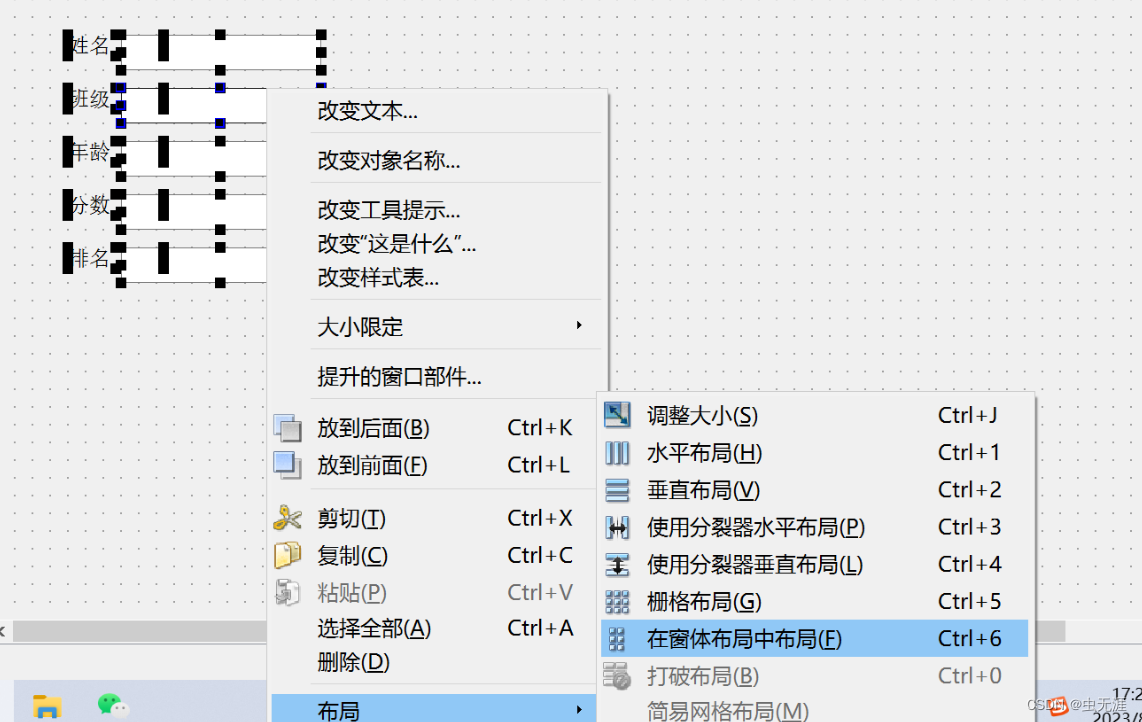

  • 选中所有的控件，右键点击布局-在窗体中布局：
    在这里插入图片描述

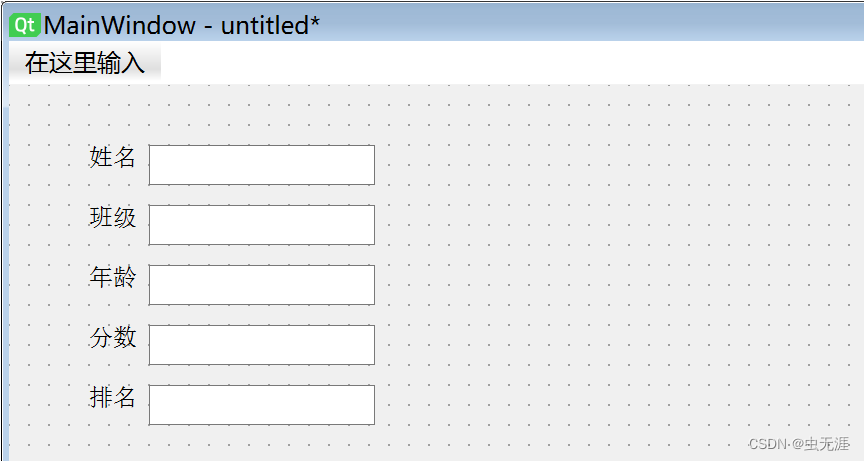

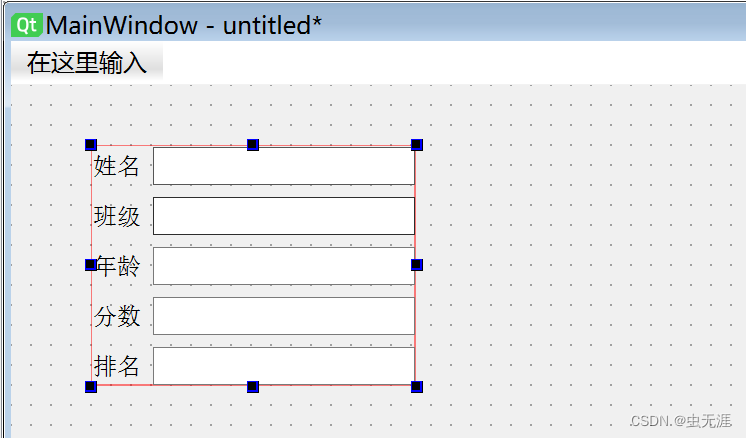

  • 效果如下：
    在这里插入图片描述

2.2 保存并调用

  • 保存为ForLay.ui，并生成ForLay.py文件：
# -*- coding: utf-8 -*-

# Form implementation generated from reading ui file 'ForLay.ui'
#
# Created by: PyQt5 UI code generator 5.15.4
#
# WARNING: Any manual changes made to this file will be lost when pyuic5 is
# run again.  Do not edit this file unless you know what you are doing.


from PyQt5 import QtCore, QtGui, QtWidgets


class Ui_MainWindow(object):
    def setupUi(self, MainWindow):
        MainWindow.setObjectName("MainWindow")
        MainWindow.resize(800, 600)
        self.centralwidget = QtWidgets.QWidget(MainWindow)
        self.centralwidget.setObjectName("centralwidget")
        self.widget = QtWidgets.QWidget(self.centralwidget)
        self.widget.setGeometry(QtCore.QRect(40, 30, 163, 121))
        self.widget.setObjectName("widget")
        self.formLayout = QtWidgets.QFormLayout(self.widget)
        self.formLayout.setContentsMargins(0, 0, 0, 0)
        self.formLayout.setObjectName("formLayout")
        self.label = QtWidgets.QLabel(self.widget)
        self.label.setObjectName("label")
        self.formLayout.setWidget(0, QtWidgets.QFormLayout.LabelRole, self.label)
        self.lineEdit = QtWidgets.QLineEdit(self.widget)
        self.lineEdit.setObjectName("lineEdit")
        self.formLayout.setWidget(0, QtWidgets.QFormLayout.FieldRole, self.lineEdit)
        self.label_2 = QtWidgets.QLabel(self.widget)
        self.label_2.setObjectName("label_2")
        self.formLayout.setWidget(1, QtWidgets.QFormLayout.LabelRole, self.label_2)
        self.lineEdit_2 = QtWidgets.QLineEdit(self.widget)
        self.lineEdit_2.setObjectName("lineEdit_2")
        self.formLayout.setWidget(1, QtWidgets.QFormLayout.FieldRole, self.lineEdit_2)
        self.label_3 = QtWidgets.QLabel(self.widget)
        self.label_3.setObjectName("label_3")
        self.formLayout.setWidget(2, QtWidgets.QFormLayout.LabelRole, self.label_3)
        self.lineEdit_4 = QtWidgets.QLineEdit(self.widget)
        self.lineEdit_4.setObjectName("lineEdit_4")
        self.formLayout.setWidget(2, QtWidgets.QFormLayout.FieldRole, self.lineEdit_4)
        self.label_4 = QtWidgets.QLabel(self.widget)
        self.label_4.setObjectName("label_4")
        self.formLayout.setWidget(3, QtWidgets.QFormLayout.LabelRole, self.label_4)
        self.lineEdit_3 = QtWidgets.QLineEdit(self.widget)
        self.lineEdit_3.setObjectName("lineEdit_3")
        self.formLayout.setWidget(3, QtWidgets.QFormLayout.FieldRole, self.lineEdit_3)
        self.label_5 = QtWidgets.QLabel(self.widget)
        self.label_5.setObjectName("label_5")
        self.formLayout.setWidget(4, QtWidgets.QFormLayout.LabelRole, self.label_5)
        self.lineEdit_5 = QtWidgets.QLineEdit(self.widget)
        self.lineEdit_5.setObjectName("lineEdit_5")
        self.formLayout.setWidget(4, QtWidgets.QFormLayout.FieldRole, self.lineEdit_5)
        MainWindow.setCentralWidget(self.centralwidget)
        self.menubar = QtWidgets.QMenuBar(MainWindow)
        self.menubar.setGeometry(QtCore.QRect(0, 0, 800, 22))
        self.menubar.setObjectName("menubar")
        MainWindow.setMenuBar(self.menubar)
        self.statusbar = QtWidgets.QStatusBar(MainWindow)
        self.statusbar.setObjectName("statusbar")
        MainWindow.setStatusBar(self.statusbar)

        self.retranslateUi(MainWindow)
        QtCore.QMetaObject.connectSlotsByName(MainWindow)

    def retranslateUi(self, MainWindow):
        _translate = QtCore.QCoreApplication.translate
        MainWindow.setWindowTitle(_translate("MainWindow", "MainWindow"))
        self.label.setText(_translate("MainWindow", "姓名"))
        self.label_2.setText(_translate("MainWindow", "班级"))
        self.label_3.setText(_translate("MainWindow", "年龄"))
        self.label_4.setText(_translate("MainWindow", "分数"))
        self.label_5.setText(_translate("MainWindow", "排名"))

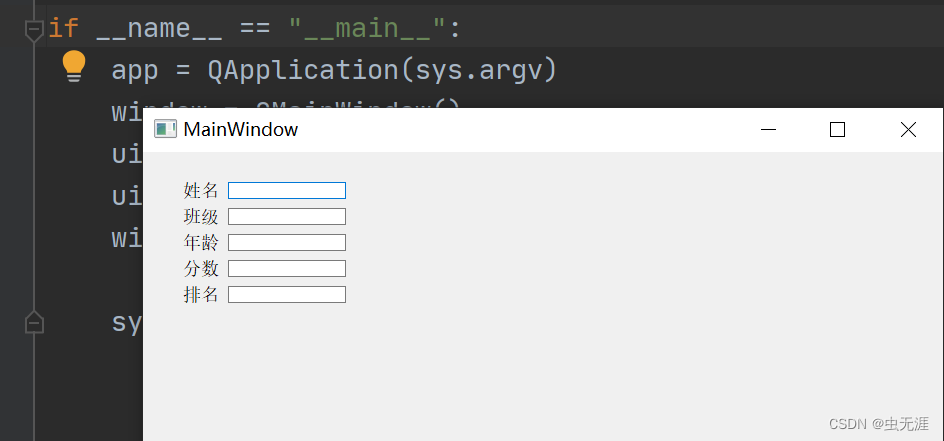

  • 创建main.py，并执行：
# -*- coding:utf-8 -*-
# 作者：虫无涯
# 日期：2023/8/28
# 文件名称：main.py
# 作用：主程序入口
# 联系：VX(NoamaNelson)
# 博客：https://blog.csdn.net/NoamaNelson

import sys
from test_case.ForLay import Ui_MainWindow
from PyQt5.QtWidgets import QApplication, QWidget, QMainWindow


if __name__ == "__main__":
    app = QApplication(sys.argv)
    window = QMainWindow()
    ui = Ui_MainWindow()
    ui.setupUi(window)
    window.show()

    sys.exit(app.exec_())

在这里插入图片描述

3 组合水平和垂直布局

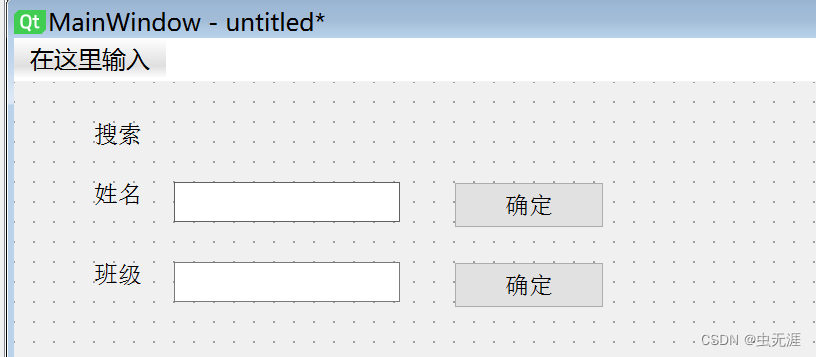

  • 拖入如下控件：
    在这里插入图片描述

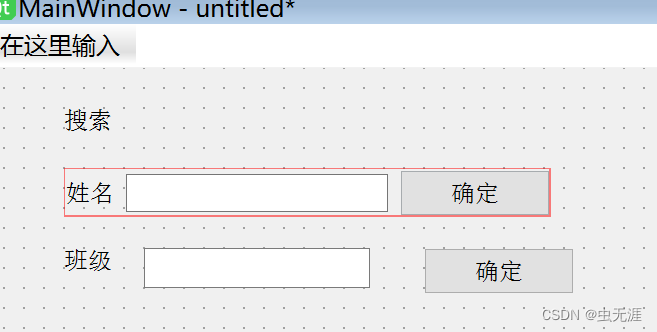

  • 第二行，设置水平布局：
    在这里插入图片描述

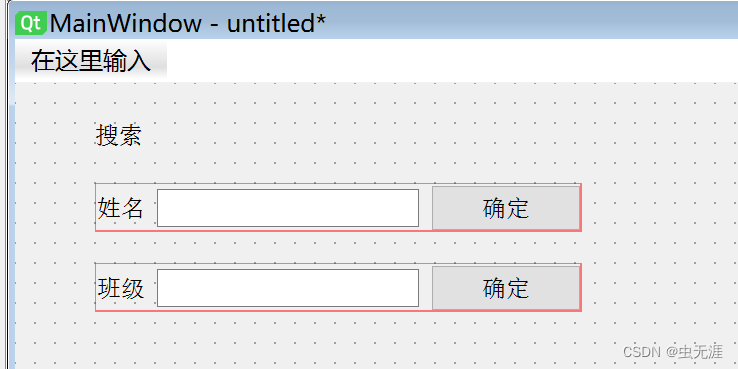

  • 第3行也是水平布局：
    在这里插入图片描述

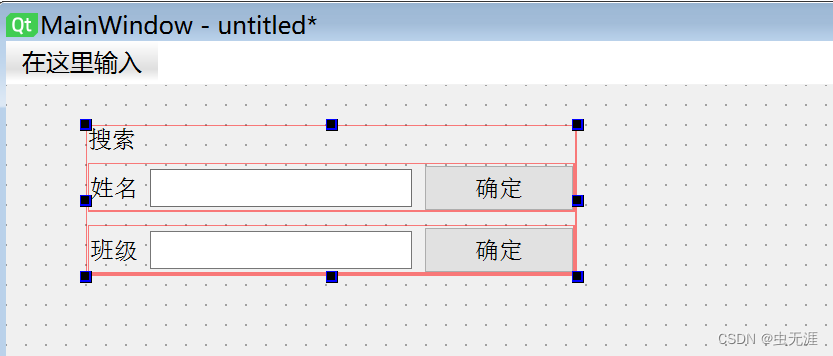

  • 全选所有的控件，选择垂直布局即可：
    在这里插入图片描述
  • 保存为Hor_Ver_Lay.ui，并生成Hor_Ver_Lay.py：
# -*- coding: utf-8 -*-

# Form implementation generated from reading ui file 'Hor_Ver_Lay.ui'
#
# Created by: PyQt5 UI code generator 5.15.4
#
# WARNING: Any manual changes made to this file will be lost when pyuic5 is
# run again.  Do not edit this file unless you know what you are doing.


from PyQt5 import QtCore, QtGui, QtWidgets


class Ui_MainWindow(object):
    def setupUi(self, MainWindow):
        MainWindow.setObjectName("MainWindow")
        MainWindow.resize(800, 600)
        self.centralwidget = QtWidgets.QWidget(MainWindow)
        self.centralwidget.setObjectName("centralwidget")
        self.widget = QtWidgets.QWidget(self.centralwidget)
        self.widget.setGeometry(QtCore.QRect(40, 20, 246, 76))
        self.widget.setObjectName("widget")
        self.verticalLayout = QtWidgets.QVBoxLayout(self.widget)
        self.verticalLayout.setContentsMargins(0, 0, 0, 0)
        self.verticalLayout.setObjectName("verticalLayout")
        self.label = QtWidgets.QLabel(self.widget)
        self.label.setObjectName("label")
        self.verticalLayout.addWidget(self.label)
        self.horizontalLayout = QtWidgets.QHBoxLayout()
        self.horizontalLayout.setObjectName("horizontalLayout")
        self.label_2 = QtWidgets.QLabel(self.widget)
        self.label_2.setObjectName("label_2")
        self.horizontalLayout.addWidget(self.label_2)
        self.lineEdit = QtWidgets.QLineEdit(self.widget)
        self.lineEdit.setObjectName("lineEdit")
        self.horizontalLayout.addWidget(self.lineEdit)
        self.pushButton = QtWidgets.QPushButton(self.widget)
        self.pushButton.setObjectName("pushButton")
        self.horizontalLayout.addWidget(self.pushButton)
        self.verticalLayout.addLayout(self.horizontalLayout)
        self.horizontalLayout_2 = QtWidgets.QHBoxLayout()
        self.horizontalLayout_2.setObjectName("horizontalLayout_2")
        self.label_3 = QtWidgets.QLabel(self.widget)
        self.label_3.setObjectName("label_3")
        self.horizontalLayout_2.addWidget(self.label_3)
        self.lineEdit_2 = QtWidgets.QLineEdit(self.widget)
        self.lineEdit_2.setObjectName("lineEdit_2")
        self.horizontalLayout_2.addWidget(self.lineEdit_2)
        self.pushButton_2 = QtWidgets.QPushButton(self.widget)
        self.pushButton_2.setObjectName("pushButton_2")
        self.horizontalLayout_2.addWidget(self.pushButton_2)
        self.verticalLayout.addLayout(self.horizontalLayout_2)
        MainWindow.setCentralWidget(self.centralwidget)
        self.menubar = QtWidgets.QMenuBar(MainWindow)
        self.menubar.setGeometry(QtCore.QRect(0, 0, 800, 22))
        self.menubar.setObjectName("menubar")
        MainWindow.setMenuBar(self.menubar)
        self.statusbar = QtWidgets.QStatusBar(MainWindow)
        self.statusbar.setObjectName("statusbar")
        MainWindow.setStatusBar(self.statusbar)

        self.retranslateUi(MainWindow)
        QtCore.QMetaObject.connectSlotsByName(MainWindow)

    def retranslateUi(self, MainWindow):
        _translate = QtCore.QCoreApplication.translate
        MainWindow.setWindowTitle(_translate("MainWindow", "MainWindow"))
        self.label.setText(_translate("MainWindow", "搜索"))
        self.label_2.setText(_translate("MainWindow", "姓名"))
        self.pushButton.setText(_translate("MainWindow", "确定"))
        self.label_3.setText(_translate("MainWindow", "班级"))
        self.pushButton_2.setText(_translate("MainWindow", "确定"))
  • 创建main.py并执行：
# -*- coding:utf-8 -*-
# 作者：虫无涯
# 日期：2023/8/28
# 文件名称：main.py
# 作用：主程序入口
# 联系：VX(NoamaNelson)
# 博客：https://blog.csdn.net/NoamaNelson

import sys
from test_case.Hor_Ver_Lay import Ui_MainWindow
from PyQt5.QtWidgets import QApplication, QWidget, QMainWindow


if __name__ == "__main__":
    app = QApplication(sys.argv)
    window = QMainWindow()
    ui = Ui_MainWindow()
    ui.setupUi(window)
    window.show()

    sys.exit(app.exec_())

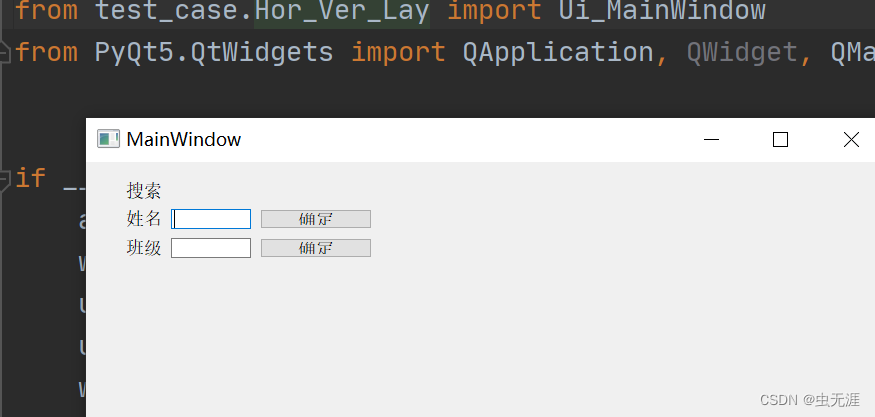

在这里插入图片描述

【版权声明】本文为华为云社区用户原创内容，转载时必须标注文章的来源（华为云社区）、文章链接、文章作者等基本信息， 否则作者和本社区有权追究责任。如果您发现本社区中有涉嫌抄袭的内容，欢迎发送邮件进行举报，并提供相关证据，一经查实，本社区将立刻删除涉嫌侵权内容，举报邮箱： cloudbbs@huaweicloud.com
Python Qt 自动化测试
  • 点赞
  • 收藏
  • 关注作者

评论（0）

0/1000
抱歉，系统识别当前为高风险访问，暂不支持该操作

全部回复

上滑加载中

设置昵称

在此一键设置昵称，即可参与社区互动！

*长度不超过10个汉字或20个英文字符，设置后3个月内不可修改。

*长度不超过10个汉字或20个英文字符，设置后3个月内不可修改。

确认 取消

加入云驻计划，成为创作者

  • 华为云周边好礼
  • 免费体验产品
  • 特殊身份标识
  • 线下官方门票
  • 内部专家零距离
  • 与10000+优质创作者共同成长
立即加入
