Java数据库项目之满汉楼
文章和代码已经归档至【Github仓库:https://github.com/timerring/java-tutorial 】或者公众号【AIShareLab】回复 java 也可获取。

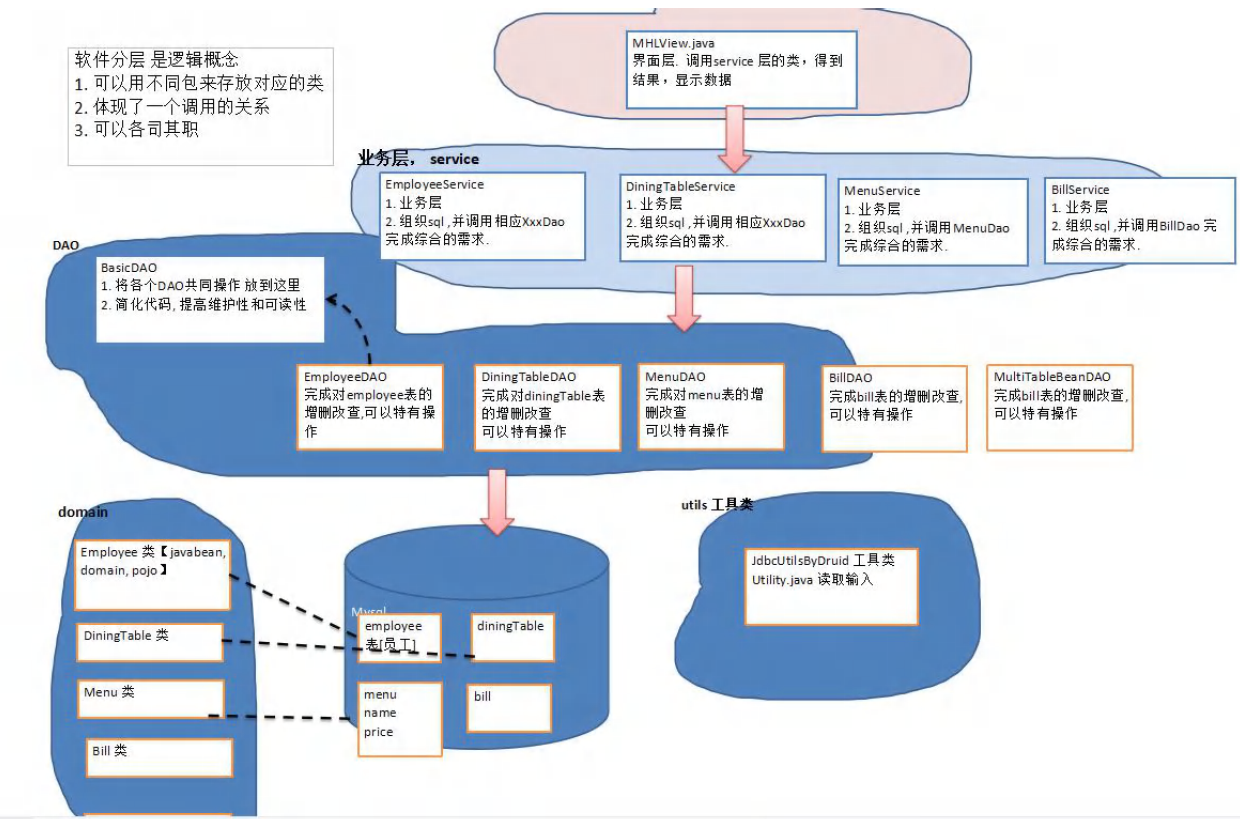

程序框架图
代码实现
数据库
-- 创建满汉楼的数据库
CREATE DATABASE mhl
-- 创建表 employee 表 (主键id, empId, name, pwd, job, 如果需要可以自己加字段等)
#用户表
CREATE TABLE employee (
id INT PRIMARY KEY AUTO_INCREMENT, #自增
empId VARCHAR(50) UNIQUE NOT NULL DEFAULT '',#员工号
pwd CHAR(32) NOT NULL DEFAULT '',#密码md5
NAME VARCHAR(50) NOT NULL DEFAULT '',#姓名
job VARCHAR(50) NOT NULL DEFAULT '' #岗位
)CHARSET=utf8;
DROP TABLE employee
#添加测试数据
INSERT INTO employee VALUES(NULL, '6668612', MD5('123456'), '张三丰', '经理');
INSERT INTO employee VALUES(NULL, '6668622', MD5('123456'),'小龙女', '服务员');
INSERT INTO employee VALUES(NULL, '6668633', MD5('123456'), '张无忌', '收银员');
INSERT INTO employee VALUES(NULL, '666666', MD5('123456'), '老韩', '经理');
SELECT * FROM employee;
SELECT * FROM employee WHERE empId='666666' AND pwd=MD5('123456')
-- 创建diningTable 表(id, state , orderName, orderTel ....)
CREATE TABLE diningTable (
id INT PRIMARY KEY AUTO_INCREMENT, #自增, 表示餐桌编号
state VARCHAR(20) NOT NULL DEFAULT '',#餐桌的状态
orderName VARCHAR(50) NOT NULL DEFAULT '',#预订人的名字
orderTel VARCHAR(20) NOT NULL DEFAULT ''
)CHARSET=utf8;
#测试数据
INSERT INTO diningTable VALUES(NULL, '空','','');
INSERT INTO diningTable VALUES(NULL, '空','','');
INSERT INTO diningTable VALUES(NULL, '空','','');
SELECT * FROM diningTable
SELECT * FROM diningTable
SELECT * FROM diningTable WHERE id = 1
UPDATE diningTable SET state='空', orderName='', orderTel='' WHERE id=1
-- 创建menu表(id, name, type, price)
#菜谱
CREATE TABLE menu (
id INT PRIMARY KEY AUTO_INCREMENT, #自增主键,作为菜谱编号(唯一)
NAME VARCHAR(50) NOT NULL DEFAULT '',#菜品名称
TYPE VARCHAR(50) NOT NULL DEFAULT '', #菜品种类
price DOUBLE NOT NULL DEFAULT 0#价格
)CHARSET=utf8;
#测试数据
INSERT INTO menu VALUES(NULL, '八宝饭', '主食', 10);
INSERT INTO menu VALUES(NULL, '叉烧包', '主食', 20);
INSERT INTO menu VALUES(NULL, '宫保鸡丁', '热菜', 30);
INSERT INTO menu VALUES(NULL, '山药拨鱼', '凉菜', 14);
INSERT INTO menu VALUES(NULL, '银丝卷', '甜食', 9);
INSERT INTO menu VALUES(NULL, '水煮鱼', '热菜', 26);
INSERT INTO menu VALUES(NULL, '甲鱼汤', '汤类', 100);
INSERT INTO menu VALUES(NULL, '鸡蛋汤', '汤类', 16);
SELECT * FROM menu;
#同学们可以单独创建一张表,表示菜品的类别
#增加表 bill 账单表(id, billId, menuId, nums, billDate, money, state, diningTableId )
#账单流水, 考虑可以分开结账, 并考虑将来分别统计各个不同菜品的销售情况
CREATE TABLE bill (
id INT PRIMARY KEY AUTO_INCREMENT, #自增主键
billId VARCHAR(50) NOT NULL DEFAULT '',#账单号可以按照自己规则生成 UUID
menuId INT NOT NULL DEFAULT 0,#菜品的编号, 也可以使用外键
nums INT NOT NULL DEFAULT 0,#份数
money DOUBLE NOT NULL DEFAULT 0, #金额
diningTableId INT NOT NULL DEFAULT 0, #餐桌
billDate DATETIME NOT NULL ,#订单日期
state VARCHAR(50) NOT NULL DEFAULT '' # 状态 '未结账' , '已经结账', '挂单','现金','支付宝','坏账'
)CHARSET=utf8;
SELECT * FROM bill;
select * from bill
SELECT * FROM menu WHERE id = 1
UPDATE diningTable SET state=? WHERE id=?
SELECT * FROM diningTable
-- 查出某个餐桌是否有未结账的账单
select * from bill where diningTableId=1 and state = '未结账' limit 0, 1
Java
`-- src
|-- com
| `-- hspedu
| `-- mhl
| |-- dao
| | |-- BasicDAO.java
| | |-- BillDAO.java
| | |-- DiningTableDAO.java
| | |-- EmployeeDAO.java
| | |-- MenuDAO.java
| | `-- MultiTableDAO.java
| |-- domain
| | |-- Bill.java
| | |-- DiningTable.java
| | |-- Employee.java
| | |-- Menu.java
| | `-- MultiTableBean.java
| |-- service
| | |-- BillService.java
| | |-- DiningTableService.java
| | |-- EmployeeService.java
| | `-- MenuService.java
| |-- utils
| | |-- JDBCUtilsByDruid.java
| | `-- Utility.java
| `-- view
| `-- MHLView.java
`-- druid.properties
src/com/hspedu/mhl/dao/BasicDAO.java
package com.hspedu.mhl.dao;
import com.hspedu.mhl.utils.JDBCUtilsByDruid;
import org.apache.commons.dbutils.QueryRunner;
import org.apache.commons.dbutils.handlers.BeanHandler;
import org.apache.commons.dbutils.handlers.BeanListHandler;
import org.apache.commons.dbutils.handlers.ScalarHandler;
import java.sql.Connection;
import java.sql.SQLException;
import java.util.List;
/**
* 开发BasicDAO , 是其他DAO的父类
*/
public class BasicDAO<T> { //泛型指定具体类型
private QueryRunner qr = new QueryRunner();
//开发通用的dml方法, 针对任意的表
public int update(String sql, Object... parameters) {
Connection connection = null;
try {
connection = JDBCUtilsByDruid.getConnection();
int update = qr.update(connection, sql, parameters);
return update;
} catch (SQLException e) {
throw new RuntimeException(e); //将编译异常->运行异常 ,抛出
} finally {
JDBCUtilsByDruid.close(null, null, connection);
}
}
//返回多个对象(即查询的结果是多行), 针对任意表
/**
*
* @param sql sql 语句,可以有 ?
* @param clazz 传入一个类的Class对象 比如 Actor.class
* @param parameters 传入 ? 的具体的值,可以是多个
* @return 根据Actor.class 返回对应的 ArrayList 集合
*/
public List<T> queryMulti(String sql, Class<T> clazz, Object... parameters) {
Connection connection = null;
try {
connection = JDBCUtilsByDruid.getConnection();
return qr.query(connection, sql, new BeanListHandler<T>(clazz), parameters);
} catch (SQLException e) {
throw new RuntimeException(e); //将编译异常->运行异常 ,抛出
} finally {
JDBCUtilsByDruid.close(null, null, connection);
}
}
//查询单行结果 的通用方法
public T querySingle(String sql, Class<T> clazz, Object... parameters) {
Connection connection = null;
try {
connection = JDBCUtilsByDruid.getConnection();
return qr.query(connection, sql, new BeanHandler<T>(clazz), parameters);
} catch (SQLException e) {
throw new RuntimeException(e); //将编译异常->运行异常 ,抛出
} finally {
JDBCUtilsByDruid.close(null, null, connection);
}
}
//查询单行单列的方法,即返回单值的方法
public Object queryScalar(String sql, Object... parameters) {
Connection connection = null;
try {
connection = JDBCUtilsByDruid.getConnection();
return qr.query(connection, sql, new ScalarHandler(), parameters);
} catch (SQLException e) {
throw new RuntimeException(e); //将编译异常->运行异常 ,抛出
} finally {
JDBCUtilsByDruid.close(null, null, connection);
}
}
}
src/com/hspedu/mhl/dao/BillDAO.java
package com.hspedu.mhl.dao;
import com.hspedu.mhl.domain.Bill;
public class BillDAO extends BasicDAO<Bill> {
}
src/com/hspedu/mhl/dao/DiningTableDAO.java
package com.hspedu.mhl.dao;
import com.hspedu.mhl.domain.DiningTable;
public class DiningTableDAO extends BasicDAO<DiningTable> {
//如果有特别的操作,可以写在 DiningTableDAO
}
src/com/hspedu/mhl/dao/EmployeeDAO.java
package com.hspedu.mhl.dao;
import com.hspedu.mhl.domain.Employee;
public class EmployeeDAO extends BasicDAO<Employee> {
//这里还可以写特有的操作.
}
src/com/hspedu/mhl/dao/MenuDAO.java
package com.hspedu.mhl.dao;
import com.hspedu.mhl.domain.Menu;
public class MenuDAO extends BasicDAO<Menu> {
}
src/com/hspedu/mhl/dao/MultiTableDAO.java
package com.hspedu.mhl.dao;
import com.hspedu.mhl.domain.MultiTableBean;
public class MultiTableDAO extends BasicDAO<MultiTableBean> {
}
src/com/hspedu/mhl/domain/Bill.java
package com.hspedu.mhl.domain;
import java.util.Date;
/**
* Bill 是javabean 和 bill对应
* id int primary key auto_increment, #自增主键
* billId varchar(50) not null default '',#账单号可以按照自己规则生成 UUID
* menuId int not null default 0,#菜品的编号, 也可以使用外键
* nums int not null default 0,#份数
* money double not null default 0, #金额
* diningTableId int not null default 0, #餐桌
* billDate datetime not null ,#订单日期
* state varchar(50) not null default '' # 状态 '未结账' , '已经结账', '挂单'
*/
public class Bill {
private Integer id;
private String billId;
private Integer menuId;
private Integer nums;
private Double money;
private Integer diningTableId;
private Date billDate;
private String state;
public Bill() {
}
public Bill(Integer id, String billId, Integer menuId, Integer nums, Double money, Integer diningTableId, Date billDate, String state) {
this.id = id;
this.billId = billId;
this.menuId = menuId;
this.nums = nums;
this.money = money;
this.diningTableId = diningTableId;
this.billDate = billDate;
this.state = state;
}
public Integer getId() {
return id;
}
public void setId(Integer id) {
this.id = id;
}
public String getBillId() {
return billId;
}
public void setBillId(String billId) {
this.billId = billId;
}
public Integer getMenuId() {
return menuId;
}
public void setMenuId(Integer menuId) {
this.menuId = menuId;
}
public Integer getNums() {
return nums;
}
public void setNums(Integer nums) {
this.nums = nums;
}
public Double getMoney() {
return money;
}
public void setMoney(Double money) {
this.money = money;
}
public Integer getDiningTableId() {
return diningTableId;
}
public void setDiningTableId(Integer diningTableId) {
this.diningTableId = diningTableId;
}
public Date getBillDate() {
return billDate;
}
public void setBillDate(Date billDate) {
this.billDate = billDate;
}
public String getState() {
return state;
}
public void setState(String state) {
this.state = state;
}
@Override
public String toString() {
return id +
"\t\t" + menuId +
"\t\t\t" + nums +
"\t\t\t" + money +
"\t" + diningTableId +
"\t\t" + billDate +
"\t\t" + state ;
}
}
src/com/hspedu/mhl/domain/DiningTable.java
package com.hspedu.mhl.domain;
/**
* 这是一个javabean 和 diningTable 表对应
* id int primary key auto_increment, #自增, 表示餐桌编号
* state varchar(20) not null default '',#餐桌的状态
* orderName varchar(50) not null default '',#预订人的名字
* orderTel varchar(20) not null default ''
*/
public class DiningTable {
private Integer id;
private String state;
private String orderName;
private String orderTel;
public DiningTable() {
}
public DiningTable(Integer id, String state, String orderName, String orderTel) {
this.id = id;
this.state = state;
this.orderName = orderName;
this.orderTel = orderTel;
}
public Integer getId() {
return id;
}
public void setId(Integer id) {
this.id = id;
}
public String getState() {
return state;
}
public void setState(String state) {
this.state = state;
}
public String getOrderName() {
return orderName;
}
public void setOrderName(String orderName) {
this.orderName = orderName;
}
public String getOrderTel() {
return orderTel;
}
public void setOrderTel(String orderTel) {
this.orderTel = orderTel;
}
@Override
public String toString() {
return id + "\t\t\t" + state;
}
}
src/com/hspedu/mhl/domain/Employee.java
package com.hspedu.mhl.domain;
/**
* 这是一个javabean 和 employee对应
* id int primary key auto_increment, #自增
* empId varchar(50) not null default '',#员工号
* pwd char(32) not null default '',#密码md5
* name varchar(50) not null default '',#姓名
* job varchar(50) not null default '' #岗位
*/
public class Employee {
private Integer id;
private String empId;
private String pwd;
private String name;
private String job;
public Employee() { //无参构造器,底层apache-dbutils反射需要
}
public Employee(Integer id, String empId, String pwd, String name, String job) {
this.id = id;
this.empId = empId;
this.pwd = pwd;
this.name = name;
this.job = job;
}
public Integer getId() {
return id;
}
public void setId(Integer id) {
this.id = id;
}
public String getEmpId() {
return empId;
}
public void setEmpId(String empId) {
this.empId = empId;
}
public String getPwd() {
return pwd;
}
public void setPwd(String pwd) {
this.pwd = pwd;
}
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
public String getJob() {
return job;
}
public void setJob(String job) {
this.job = job;
}
}
src/com/hspedu/mhl/domain/Menu.java
package com.hspedu.mhl.domain;
/**
* 该类(javabean)和 menu 表对应
* id int primary key auto_increment, #自增主键,作为菜谱编号(唯一)
* name varchar(50) not null default '',#菜品名称
* type varchar(50) not null default '', #菜品种类
* price double not null default 0#价格
*/
public class Menu {
private Integer id;
private String name;
private String type;
private Double price;
public Menu() {//无参构造器
}
public Menu(Integer id, String name, String type, Double price) {
this.id = id;
this.name = name;
this.type = type;
this.price = price;
}
public Integer getId() {
return id;
}
public void setId(Integer id) {
this.id = id;
}
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
public String getType() {
return type;
}
public void setType(String type) {
this.type = type;
}
public Double getPrice() {
return price;
}
public void setPrice(Double price) {
this.price = price;
}
@Override
public String toString() {
return id + "\t\t\t" + name + "\t\t" + type + "\t\t" + price;
}
}
src/com/hspedu/mhl/domain/MultiTableBean.java
package com.hspedu.mhl.domain;
import java.util.Date;
/**
* 这是一个javabean 可以和多张表进行对应
*/
public class MultiTableBean {
private Integer id;
private String billId;
private Integer menuId;
private Integer nums;
private Double money;
private Integer diningTableId;
private Date billDate;
private String state;
//增加一个来自menu表的列 name
//思考 这里的属性名是否一定要和表的列名保持一致.
//答: 可以不一致,但是需要sql做相应的修改, 规范需要保持一致(例如 SELECT Name AS name2 他会调用对应的setName2构造方法).
private String name;
//增加来自menu表的列 price
private Double price;//默认值 nulll
// 实际上是调用无参构造器,进行反射调用,然后通过setter和getter方法进行调用的:
public MultiTableBean() {
System.out.println("反射调用....");
}
// public MultiTableBean(Integer id, String billId, Integer menuId, Integer nums, Double money, Integer diningTableId, Date billDate, String state, String name, Double price) {
// this.id = id;
// this.billId = billId;
// this.menuId = menuId;
// this.nums = nums;
// this.money = money;
// this.diningTableId = diningTableId;
// this.billDate = billDate;
// this.state = state;
// this.name = name;
// this.price = price;
// }
//给price生成setter 和 getter
public Double getPrice() {
return price;
}
public void setPrice(Double price) {
this.price = price;
}
//给name生成setter 和 getter
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
public Integer getId() {
return id;
}
public void setId(Integer id) {
this.id = id;
}
public String getBillId() {
return billId;
}
public void setBillId(String billId) {
this.billId = billId;
}
public Integer getMenuId() {
return menuId;
}
public void setMenuId(Integer menuId) {
this.menuId = menuId;
}
public Integer getNums() {
return nums;
}
public void setNums(Integer nums) {
this.nums = nums;
}
public Double getMoney() {
return money;
}
public void setMoney(Double money) {
this.money = money;
}
public Integer getDiningTableId() {
return diningTableId;
}
public void setDiningTableId(Integer diningTableId) {
this.diningTableId = diningTableId;
}
public Date getBillDate() {
return billDate;
}
public void setBillDate(Date billDate) {
this.billDate = billDate;
}
public String getState() {
return state;
}
public void setState(String state) {
this.state = state;
}
@Override
public String toString() {
return id +
"\t\t" + menuId +
"\t\t\t" + nums +
"\t\t\t" + money +
"\t" + diningTableId +
"\t\t" + billDate +
"\t\t" + state +
"\t\t" + name +
"\t\t" + price;
}
}
src/com/hspedu/mhl/service/BillService.java
package com.hspedu.mhl.service;
import com.hspedu.mhl.dao.BillDAO;
import com.hspedu.mhl.dao.MultiTableDAO;
import com.hspedu.mhl.domain.Bill;
import com.hspedu.mhl.domain.MultiTableBean;
import java.util.List;
import java.util.UUID;
/**
* 处理和账单相关的业务逻辑
*/
public class BillService {
//定义BillDAO属性
private BillDAO billDAO = new BillDAO();
//定义MenuService 属性
private MenuService menuService = new MenuService();
//定义DiningTableService属性
private DiningTableService diningTableService = new DiningTableService();
private MultiTableDAO multiTableDAO = new MultiTableDAO();
//思考
//编写点餐的方法
//1. 生成账单
//2. 需要更新对应餐桌的状态
//3. 如果成功返回true, 否则返回false
public boolean orderMenu(int menuId, int nums, int diningTableId) {
//生成一个账单号,UUID
String billID = UUID.randomUUID().toString();
//将账单生成到bill表, 要求直接计算账单金额
int update = billDAO.update("insert into bill values(null,?,?,?,?,?,now(),'未结账')",
billID, menuId, nums, menuService.getMenuById(menuId).getPrice() * nums, diningTableId);
if (update <= 0) {
return false;
}
//需要更新对应餐桌的状态
return diningTableService.updateDiningTableState(diningTableId, "就餐中");
}
//返回所有的账单, 提供给View调用
public List<Bill> list() {
return billDAO.queryMulti("select * from bill", Bill.class);
}
//返回所有的账单并带有菜品名,价格, 提供给View调用
public List<MultiTableBean> list2() {
return multiTableDAO.queryMulti("SELECT bill.*, NAME " +
"FROM bill, menu " +
"WHERE bill.menuId = menu.id", MultiTableBean.class);
}
//查看某个餐桌是否有未结账的账单
public boolean hasPayBillByDiningTableId(int diningTableId) {
Bill bill =
billDAO.querySingle("SELECT * FROM bill WHERE diningTableId=? AND state = '未结账' LIMIT 0, 1", Bill.class, diningTableId);
return bill != null;
}
//完成结账[如果餐桌存在,并且该餐桌有未结账的账单]
//如果成功,返回true, 失败返回 false
public boolean payBill(int diningTableId, String payMode) {
//如果这里使用事务的话,需要用ThreadLocal来解决 , 框架中比如mybatis 提供了事务支持
//1. 修改bill表
int update = billDAO.update("update bill set state=? where diningTableId=? and state='未结账'", payMode, diningTableId);
if(update <= 0) { //如果更新没有成功,则表示失败...
return false;
}
//2. 修改diningTable表
//注意:不要直接在这里操作,而应该调用DiningTableService 方法,完成更新,体现各司其职
if(!diningTableService.updateDiningTableToFree(diningTableId, "空")) {
return false;
}
return true;
}
}
src/com/hspedu/mhl/service/DiningTableService.java
package com.hspedu.mhl.service;
import com.hspedu.mhl.dao.DiningTableDAO;
import com.hspedu.mhl.domain.DiningTable;
import java.util.List;
public class DiningTableService { //业务层
//定义一个DiningTableDAO对象
private DiningTableDAO diningTableDAO = new DiningTableDAO();
//返回所有餐桌的信息
public List<DiningTable> list() {
return diningTableDAO.queryMulti("select id, state from diningTable", DiningTable.class);
}
//根据id , 查询对应的餐桌DiningTable 对象
//,如果返回null , 表示id编号对应的餐桌不存在
public DiningTable getDiningTableById(int id) {
//小技巧:把sql语句放在查询分析器去测试一下.
return diningTableDAO.querySingle("select * from diningTable where id = ?", DiningTable.class, id);
}
//如果餐桌可以预定,调用方法,对其状态进行更新(包括预定人的名字和电话)
public boolean orderDiningTable(int id, String orderName, String orderTel) {
int update =
diningTableDAO.update("update diningTable set state='已经预定', orderName=?, orderTel=? where id=?", orderName, orderTel, id);
return update > 0;
}
//需要提供一个更新 餐桌状态的方法
public boolean updateDiningTableState(int id, String state) {
int update = diningTableDAO.update("update diningTable set state=? where id=?", state, id);
return update > 0;
}
//提供方法,将指定的餐桌设置为空闲状态
public boolean updateDiningTableToFree(int id, String state) {
int update = diningTableDAO.update("update diningTable set state=?,orderName='',orderTel='' where id=?", state, id);
return update > 0;
}
}
src/com/hspedu/mhl/service/EmployeeService.java
package com.hspedu.mhl.service;
import com.hspedu.mhl.dao.EmployeeDAO;
import com.hspedu.mhl.domain.Employee;
/**
* 该类完成对employee表的各种操作(通过调用EmployeeDAO对象完成)
*/
public class EmployeeService {
//定义一个 EmployeeDAO 属性
private EmployeeDAO employeeDAO = new EmployeeDAO();
//方法,根据empId 和 pwd 返回一个Employee对象
//如果查询不到,就返回null
public Employee getEmployeeByIdAndPwd(String empId, String pwd) {
return employeeDAO.querySingle("select * from employee where empId=? and pwd=md5(?)", Employee.class, empId, pwd);
}
}
src/com/hspedu/mhl/service/MenuService.java
package com.hspedu.mhl.service;
import com.hspedu.mhl.dao.MenuDAO;
import com.hspedu.mhl.domain.Menu;
import java.util.List;
/**
* 完成对menu表的各种操作(通过调用MenuDAO)
*/
public class MenuService {
//定义MenuDAO 属性
private MenuDAO menuDAO = new MenuDAO();
//返回所有的菜品, 返回给界面使用
public List<Menu> list() {
return menuDAO.queryMulti("select * from menu", Menu.class);
}
//需要方法,根据id, 返回Menu对象
public Menu getMenuById(int id) {
return menuDAO.querySingle("select * from menu where id = ?", Menu.class, id);
}
}
- 点赞
- 收藏
- 关注作者
评论(0)
