抖音小程序开发，唤起收银台支付

大家好，我是小悟

字节跳动也开放了小程序给商家接入，可以在旗下APP如抖音、今日头条、今日头条极速版等应用中即点即用，基于庞大的数亿用户量为其引流，帮助商家获取用户流量，销售商品，其模式和微信小程序差不多。

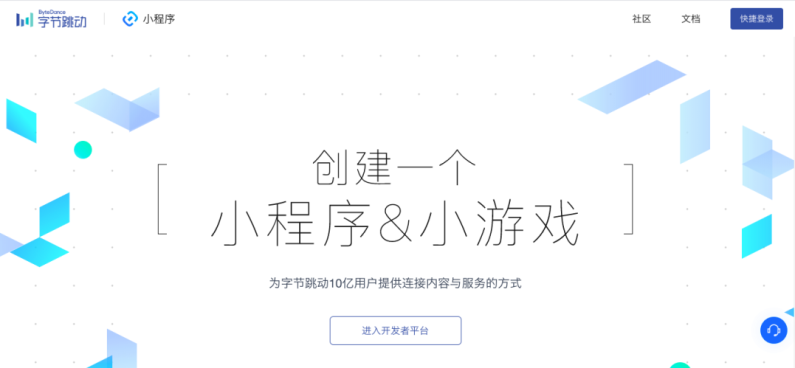

1、后台管理

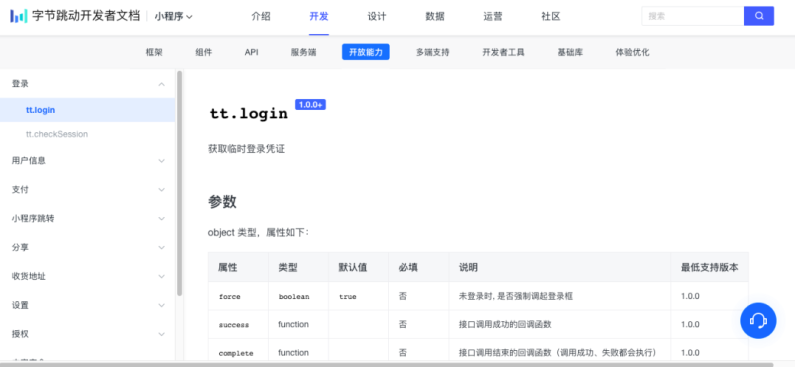

2、开发文档

不像微信和支付宝，字节跳动没有自己的支付，但是在小程序里集成了微信和支付宝支付可供商家满足支付的需求，接下来来看代码是怎么实现的。

首先要在小程序平台上开通支付功能，这个直接去看开发文档，里面的教程说得很清楚，这里就不再敖述。特别要注意的是，申请完微信支付，要登陆微信商户号对应的商户平台 - "产品中心" - "开发配置"自行配置H5 支付域名：snssdk.com，不然微信支付会报错。

再则字节跳动小程序集成微信和支付宝支付，前提要先调通单纯的微信H5支付和支付宝支付。

代码实现

实体类：TTPayParamIn

@Data
public class TTPayParamIn {
    /**
     * 头条小程序分配给商户的商户id
     */
    private String toutiaoMchId;
    /**
     * 头条小程序分配给商户的appid
     */
    private String toutiaoMchAppId;
    /**
     * 头条小程序分配给商户的appSecrect
     */
    private String toutiaoMchSecrect;
    /**
     * 唯一标识用户的id，小程序开发者请传open_id
     */
    private String uid;
    /**
     * 金额，单位：元
     */
    private Long totalAmount;
    /**
     * 商户订单名称
     */
    private String subject;
    /**
     * 商户订单详情
     */
    private String body;
    /**
     * 订单有效时间，单位：秒
     */
    private String validTime;
    /**
     * 服务器异步通知http地址，请填支付宝下单接口对应的异步通知url
     */
    private String notifyUrl;
    /**
     * 订单号
     */
    private String outOrderNo;
}

实体类：CheckoutCounterIn

@Data
public class CheckoutCounterIn extends  TTPayParamIn {
    //支付宝支付信息
    /**
     * 支付宝应用id
     */
    private String alipayAppId;
    /**
     * 支付宝应用私钥
     */
    private String alipayAppPrivateKey;
    /**
     * 支付宝公钥
     */
    private String alipayPublicKey;
    /**
     * 支付宝公共回传参数，如果请求时传递了该参数，则返回给商户时会在异步通知时将该参数原样返回。
     */
    private String passbackParams;
    /**
     * 支付宝回调地址
     */
    private String alipayNotifyUrl;
    //微信支付信息
    /**
     * 微信小程序appid
     */
    private String wxAppId;
    /**
     * 微信小程序商户id
     */
    private String wxMchId;
    /**
     * 微信小程序商户支付apikey
     */
    private String wxApiKey;
    /**
     * 微信小程序支付回调地址
     */
    private String wxNotifyUrl;
    /**
     * 服务器地址 如：https://xxx.xxx.com/xxx
     */
    private String serverPath;
    /**
     * 金额
     */
    private Double wxMoney;
    /**
     * 微信自定义参数
     */
    private String wxAttach;
}

支付通用工具类：PayCommonUtil

public class PayCommonUtil {
  private static Logger log = LoggerFactory.getLogger(PayCommonUtil.class);
  public static String CreateNoncestr() {
    String chars = "abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ0123456789";
    String res = "";
    for (int i = 0; i < 16; i++) {
      Random rd = new Random();
      res += chars.charAt(rd.nextInt(chars.length() - 1));
    }
    return res;
  }
  public static String createSign(String characterEncoding,SortedMap<Object,Object> parameters,String apiKey){
    StringBuffer sb = new StringBuffer();
    Set es = parameters.entrySet();
    Iterator it = es.iterator();
    while(it.hasNext()) {
      Map.Entry entry = (Map.Entry)it.next();
      String k = (String)entry.getKey();
      Object v = entry.getValue();
      if(null != v && !"".equals(v)
          && !"sign".equals(k) && !"key".equals(k)) {
        sb.append(k + "=" + v + "&");
      }
    }
    sb.append("key=" + apiKey);
    String sign = MD5Util.MD5Encode(sb.toString(), characterEncoding).toUpperCase();
    log.info("createSign方法sign签名=====:"+sign);
    return sign;
  }
  public static String getRequestXml(SortedMap<Object,Object> parameters){
    StringBuffer sb = new StringBuffer();
    sb.append("<xml>");
    Set es = parameters.entrySet();
    Iterator it = es.iterator();
    while(it.hasNext()) {
      Map.Entry entry = (Map.Entry)it.next();
      String k = (String)entry.getKey();
      String v = (String)entry.getValue();
      if ("attach".equalsIgnoreCase(k)||"body".equalsIgnoreCase(k)||"sign".equalsIgnoreCase(k)) {
        sb.append("<"+k+">"+"<![CDATA["+v+"]]></"+k+">");
      }else {
        sb.append("<"+k+">"+v+"</"+k+">");
      }
    }
    sb.append("</xml>");
    return sb.toString();
  }
  public static String setXML(String return_code, String return_msg) {
    return "<xml><return_code><![CDATA[" + return_code
        + "]]></return_code><return_msg><![CDATA[" + return_msg
        + "]]></return_msg></xml>";
  }
  public static String toutiaoAlipaySign(Map<String, Object> map,String salt) {
    String result = getSignCheckContent(map);
    if (StringUtils.isBlank(salt)) {
      return result;
    }
    result=result + salt;
    String sign = DigestUtils.md5Hex(result.toString());
    log.info("toutiaoAlipaySign-content={};sign={}",result,sign);
    return sign;
  }
  //组装参数
  public static String getSignCheckContent(Map<String, Object> map) {
    ArrayList<String> list = new ArrayList<String>();
    for (Map.Entry<String, Object> entry : map.entrySet()) {
      if (entry.getKey().equals("sign")) {
        continue;
      }
      if (entry.getValue() != null && entry.getValue() != "") {
        list.add(entry.getKey() + "=" + entry.getValue() + "&");
      }
    }
    int size = list.size();
    String[] arrayToSort = list.toArray(new String[size]);
    Arrays.sort(arrayToSort, String.CASE_INSENSITIVE_ORDER);
    StringBuilder sb = new StringBuilder();
    for (int i = 0; i < size; i++) {
      sb.append(arrayToSort[i]);
    }
    String result = sb.toString();
    result = result.substring(0, result.length()-1);
    return result;
  }
}

请求工具类：CommonUtil

public class CommonUtil {
  private static Logger log = LoggerFactory.getLogger(CommonUtil.class);
  public static String httpsRequest(String requestUrl, String requestMethod, String outputStr) {
    try {
      // 创建SSLContext对象，并使用我们指定的信任管理器初始化
      TrustManager[] tm = { new MyX509TrustManager() };
      SSLContext sslContext = SSLContext.getInstance("SSL", "SunJSSE");
      sslContext.init(null, tm, new java.security.SecureRandom());
      // 从上述SSLContext对象中得到SSLSocketFactory对象
      SSLSocketFactory ssf = sslContext.getSocketFactory();
      URL url = new URL(requestUrl);
      HttpsURLConnection conn = (HttpsURLConnection) url.openConnection();
      conn.setSSLSocketFactory(ssf);
      conn.setDoOutput(true);
      conn.setDoInput(true);
      conn.setUseCaches(false);
      // 设置请求方式（GET/POST）
      conn.setRequestMethod(requestMethod);
      conn.setRequestProperty("content-type", "application/x-www-form-urlencoded");
    //conn.setRequestProperty("Content-Type", "text/html;charset=utf-8");
      // 当outputStr不为null时向输出流写数据
      if (null != outputStr) {
        OutputStream outputStream = conn.getOutputStream();
        // 注意编码格式
        outputStream.write(outputStr.getBytes("UTF-8"));
        outputStream.close();
      }
      // 从输入流读取返回内容
      InputStream inputStream = conn.getInputStream();
      InputStreamReader inputStreamReader = new InputStreamReader(inputStream, "UTF-8");
      BufferedReader bufferedReader = new BufferedReader(inputStreamReader);
      String str = null;
      StringBuffer buffer = new StringBuffer();
      while ((str = bufferedReader.readLine()) != null) {
        buffer.append(str);
      }
      // 释放资源
      bufferedReader.close();
      inputStreamReader.close();
      inputStream.close();
      inputStream = null;
      conn.disconnect();
      System.out.println(buffer.toString());
      return buffer.toString();
    } catch (ConnectException ce) {
      log.error("连接超时：{}", ce);
    } catch (Exception e) {
      log.error("https请求异常：{}", e);
    }
    return null;
  }
}

xml 工具类：XMLUtil

public class XMLUtil {
  /**
   * 解析xml,返回第一级元素键值对。如果第一级元素有子节点，则此节点的值是子节点的xml数据。
   * @param strxml
   * @return
   * @throws JDOMException
   * @throws IOException
   */
  public static Map<String,String> doXMLParse(String strxml) throws JDOMException, IOException {
    strxml = strxml.replaceFirst("encoding=\".*\"", "encoding=\"UTF-8\"");

    if(null == strxml || "".equals(strxml)) {
      return null;
    }

    Map<String,String> m = new HashMap<>();

    InputStream in = new ByteArrayInputStream(strxml.getBytes("UTF-8"));
    SAXBuilder builder = new SAXBuilder();
    Document doc = builder.build(in);
    Element root = doc.getRootElement();
    List list = root.getChildren();
    Iterator it = list.iterator();
    while(it.hasNext()) {
      Element e = (Element) it.next();
      String k = e.getName();
      String v = "";
      List children = e.getChildren();
      if(children.isEmpty()) {
        v = e.getTextNormalize();
      } else {
        v = XMLUtil.getChildrenText(children);
      }

      m.put(k, v);
    }
    //关闭流
    in.close();

    return m;
  }

  /**
   * 获取子结点的xml
   * @param children
   * @return String
   */
  public static String getChildrenText(List children) {
    StringBuffer sb = new StringBuffer();
    if(!children.isEmpty()) {
      Iterator it = children.iterator();
      while(it.hasNext()) {
        Element e = (Element) it.next();
        String name = e.getName();
        String value = e.getTextNormalize();
        List list = e.getChildren();
        sb.append("<" + name + ">");
        if(!list.isEmpty()) {
          sb.append(XMLUtil.getChildrenText(list));
        }
        sb.append(value);
        sb.append("</" + name + ">");
      }
    }
    return sb.toString();
  }
}

支付宝app支付已经在另一篇文章写过了，请自行参考 [抖音小程序集成支付宝支付] 里面的内容

字节跳动小程序收银台：ToutiaoMicroApp

public class ToutiaoMicroApp {

    private static Logger logger = LoggerFactory.getLogger(ToutiaoMicroApp.class);

    /**
     * 字节跳动小程序收银台，支付宝APP支付、微信H5支付、银行卡支付
     * @return
     */
    public static JSONObject microCheckoutCounter(CheckoutCounterIn in,HttpServletRequest request) {
        Map<String, Object> payParams = new HashMap<>();
        payParams.put("merchant_id", in.getToutiaoMchId());
        payParams.put("app_id", in.getToutiaoMchAppId());
        payParams.put("sign_type", "MD5");
        payParams.put("timestamp", Long.toString(System.currentTimeMillis() / 1000));
        payParams.put("product_code", "pay");
        payParams.put("trade_type", "H5");
        payParams.put("payment_type", "direct");
        payParams.put("version", "2.0");
        payParams.put("out_order_no", in.getOutOrderNo());
        payParams.put("uid", in.getUid());
        payParams.put("total_amount", in.getTotalAmount());
        payParams.put("currency", "CNY");
        payParams.put("subject", in.getSubject());
        payParams.put("body", in.getBody());
        payParams.put("trade_time", Long.toString(System.currentTimeMillis() / 1000));
        payParams.put("valid_time", in.getValidTime());
        payParams.put("notify_url", in.getNotifyUrl());
        //调用支付宝 App 支付所需的支付请求参数（形如 'app_id=xxx&biz_content=xxx...'）
        payParams.put("alipay_url", "");
        WxPayParamVo vo = new WxPayParamVo();
        vo.setApiKey(in.getWxApiKey());
        vo.setAppId(in.getWxAppId());
        vo.setAttach(in.getWxAttach());
        vo.setBody(in.getBody());
        vo.setMchId(in.getWxMchId());
        vo.setMoney(in.getWxMoney());
        vo.setNotifyUrl(in.getWxNotifyUrl());
        vo.setServerPath(in.getServerPath());
        vo.setTradeType("MWEB");
        vo.setOutTradeNo(in.getOutOrderNo());
        SortedMap<Object, Object> params = WeixinPay.weixinPayMobile(vo,request);
        //调用微信 H5 支付统一下单接口 返回的 mweb_url 字段值（请注意不要进行 urlencode）
        payParams.put("wx_url", params.get("mwebUrl").toString());
        payParams.put("wx_type", "MWEB");
        String sign = PayCommonUtil.toutiaoAlipaySign(payParams, in.getToutiaoMchSecrect());
        payParams.put("sign", sign);
        payParams.put("ip", request.getRemoteAddr());
        payParams.put("deviceId", Long.toString(System.currentTimeMillis()));
        payParams.put("prepayId", params.get("prepayId").toString());
        logger.info("parameters==={}",payParams);
        return JSONObject.fromObject(payParams);
    }
}

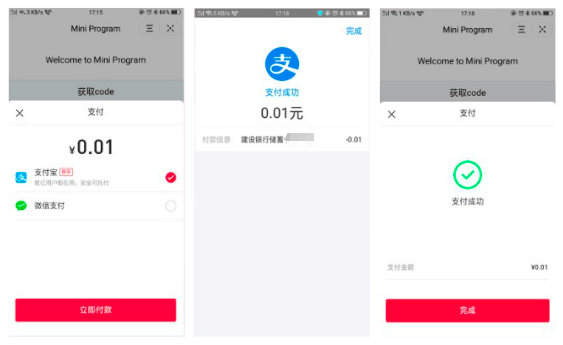

将payParams实体类字段内容返回给前端，前端调用tt.pay唤起收银台支付

前端代码：

 orderInfo: {
    app_id: "800000040005",
    sign_type: "MD5",
    out_order_no: "MicroApp7075638135",
    merchant_id: "1300000004",
    timestamp: "1566720681",
    product_code: "pay",
    payment_type: "direct",
    total_amount: 1,
    trade_type: "H5",
    uid: "2019012211",
    version: "2.0",
    currency: "CNY",
    subject: "microapp test",
    body: "microapp test",
    trade_time: "1566720681",
    valid_time: "300",
    notify_url: "https://tp-pay.snssdk.com/cashdesk/test/paycallback",
    wx_url:
      "https://wx.tenpay.com/cgi-bin/mmpayweb-bin/checkmweb?prepay_id=wx25161122572189727ea14cfd1832451500&package=2746219290",
    wx_type: "MWEB",
    alipay_url: "",
    sign: "15aa99cd80878661a4d442b7540bdf96",
    risk_info: '{"ip":"127.0.0.1","device_id":"485737374363263"}'
  },
  service: 1,
  getOrderStatus(res) {
    let { out_order_no } = res;
    return new Promise(function(resolve, reject) {
      // 商户前端根据 out_order_no 请求商户后端查询微信支付订单状态
      tt.request({
        url: "<your-backend-url>",
        success(res) {
          // 商户后端查询的微信支付状态，通知收银台支付结果
          resolve({ code: 0 | 1 | 2 | 3 | 9 });
        },
        fail(err) {
          reject(err);
        }
      });
    });
  },
  success(res) {
    if (res.code == 0) {
      // 支付成功处理逻辑，只有res.code=0时，才表示支付成功
      // 但是最终状态要以商户后端结果为准
    }
  },
  fail(res) {
    // 调起收银台失败处理逻辑
  }
});
