大家好，我是雄雄，欢迎关注微信公众号【雄雄的小课堂】。
前言
书接前文，昨天带着大家下载且配置了maven，以及在idea中创建maven项目，今天，我们就结合ssm框架，在idea中实现一个增删改查案例。
昨天的文章：手把手教你搭建Maven项目
01
配置pom文件
通常，我们需要使用ssm框架的时候，需要加载一系列的jar包，在未使用maven的时候，我们则采用的是将所需jar包统统复制到项目的lib目录中，现在我们不必那样做了，只需要简单的在pom文件中配置即可。
那么，怎么配置呢？
我们以mysql的驱动jar为例（其他jar包配置方式一样，可执行按此配置），mysql的驱动jar包我采用的是：mysql-connector-java-8.0.23，配置方式如下：

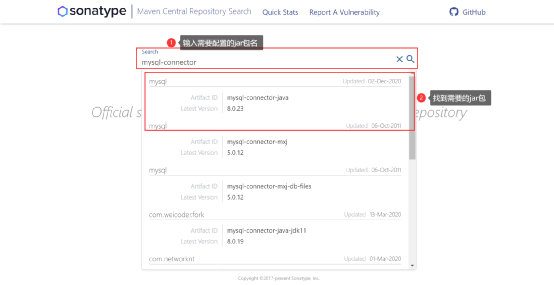

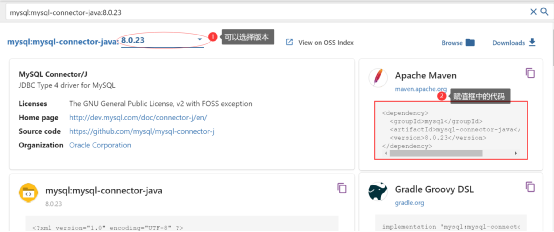

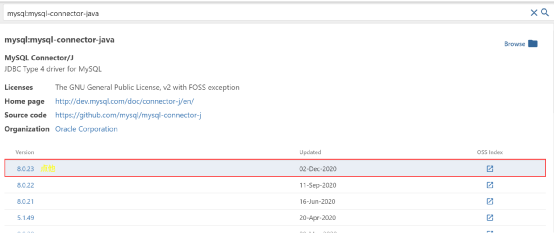

1）maven官网为我们提供了jar包在pom文件中的配置方式，打开官网：https://search.maven.org/，我们在输入框中输入需要配置的jar包名，如下：
编辑
编辑
编辑
可以在左边框中的下拉列表里选择版本，在右边的Apache Maven下面，复制所有代码。

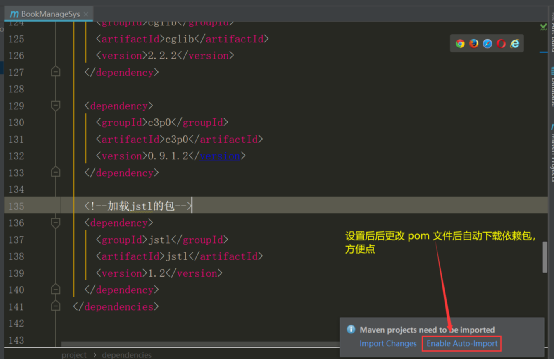

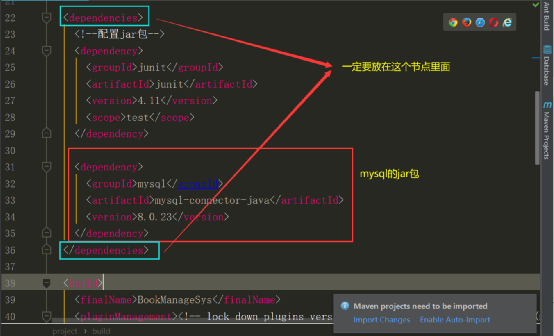

复制到项目中pom文件的这里：
编辑
编辑
如果你不知道ssm需要哪些jar包，可以去百度搜索，pom中配置方式是一样的，在这就不一一列举了，下面是整个pom.xml文件的代码：
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.xiongxiong</groupId>
<artifactId>BookManageSys</artifactId>
<version>1.0-SNAPSHOT</version>
<packaging>war</packaging>
<name>BookManageSys Maven Webapp</name>
<!-- FIXME change it to the project's website -->
<url>http://www.example.com</url>
<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<maven.compiler.source>1.7</maven.compiler.source>
<maven.compiler.target>1.7</maven.compiler.target>
</properties>
<dependencies>
<!--配置jar包-->
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.11</version>
<scope>test</scope>
</dependency>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>8.0.23</version>
</dependency>
<!--spring的jar包=-->
<!--springmvc的jar包-->
<dependency>
<groupId>javaee</groupId>
<artifactId>javaee-api</artifactId>
<version>5</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-core</artifactId>
<version>4.2.5.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-beans</artifactId>
<version>4.2.2.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context</artifactId>
<version>4.2.2.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-tx</artifactId>
<version>4.1.9.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-aspects</artifactId>
<version>4.2.1.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context-support</artifactId>
<version>4.1.9.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-jdbc</artifactId>
<version>4.2.3.release</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-test</artifactId>
<version>4.1.9.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-web</artifactId>
<version>4.2.3.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-webmvc</artifactId>
<version>4.1.9.RELEASE</version>
</dependency>
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis</artifactId>
<version>3.2.2</version>
</dependency>
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis-spring</artifactId>
<version>1.3.0</version>
</dependency>
<dependency>
<groupId>org.javassist</groupId>
<artifactId>javassist</artifactId>
<version>3.17.1-GA</version>
</dependency>
<dependency>
<groupId>cglib</groupId>
<artifactId>cglib</artifactId>
<version>2.2.2</version>
</dependency>
<dependency>
<groupId>c3p0</groupId>
<artifactId>c3p0</artifactId>
<version>0.9.1.2</version>
</dependency>
<!--加载jstl的包-->
<dependency>
<groupId>jstl</groupId>
<artifactId>jstl</artifactId>
<version>1.2</version>
</dependency>
</dependencies>
<build>
<finalName>BookManageSys</finalName>
<pluginManagement><!-- lock down plugins versions to avoid using Maven defaults (may be moved to parent pom) -->
<plugins>
<plugin>
<artifactId>maven-clean-plugin</artifactId>
<version>3.1.0</version>
</plugin>
<!-- see http://maven.apache.org/ref/current/maven-core/default-bindings.html#Plugin_bindings_for_war_packaging -->
<plugin>
<artifactId>maven-resources-plugin</artifactId>
<version>3.0.2</version>
</plugin>
<plugin>
<artifactId>maven-compiler-plugin</artifactId>
<version>3.8.0</version>
</plugin>
<plugin>
<artifactId>maven-surefire-plugin</artifactId>
<version>2.22.1</version>
</plugin>
<plugin>
<artifactId>maven-war-plugin</artifactId>
<version>3.2.2</version>
</plugin>
<plugin>
<artifactId>maven-install-plugin</artifactId>
<version>2.5.2</version>
</plugin>
<plugin>
<artifactId>maven-deploy-plugin</artifactId>
<version>2.8.2</version>
</plugin>
</plugins>
</pluginManagement>
</build>
</project>

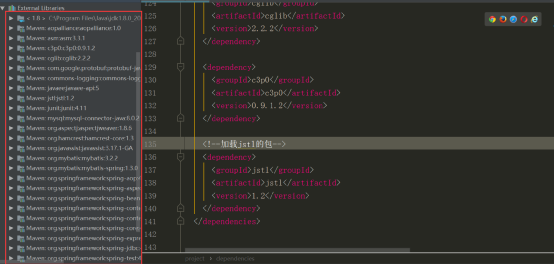

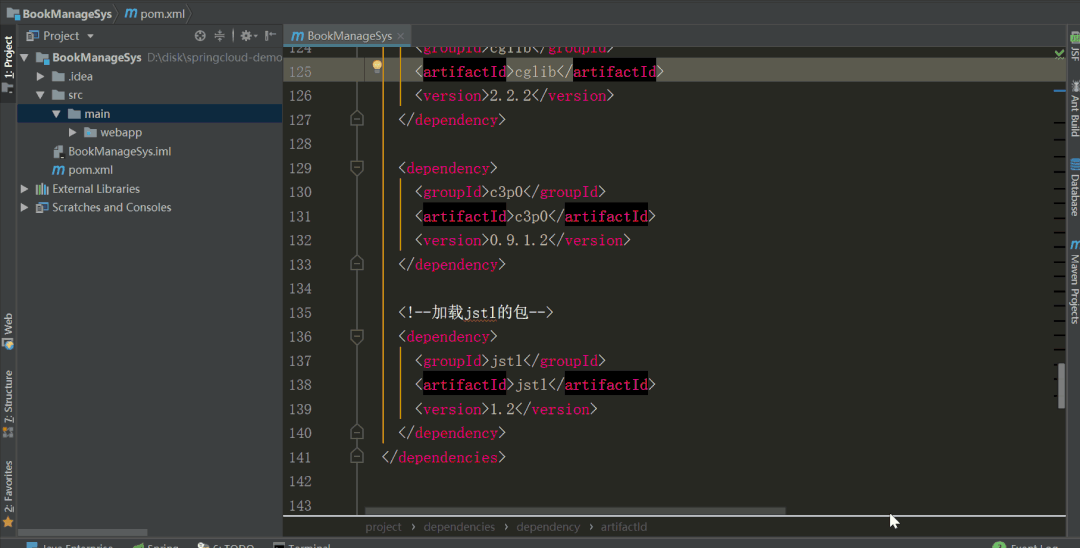

这是最后导入的jar包：
编辑
02

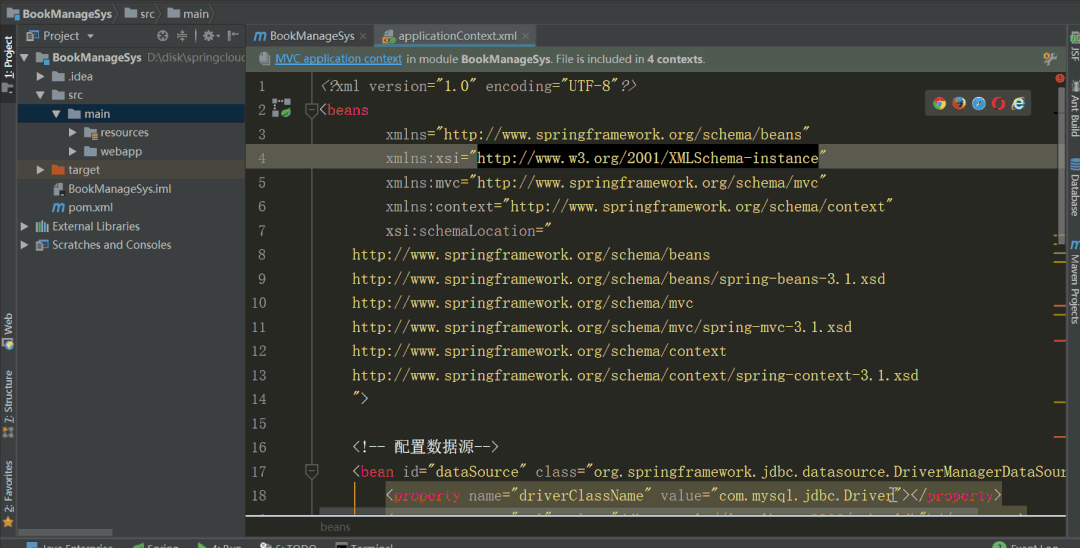

在main目录中创建resources资源文件夹

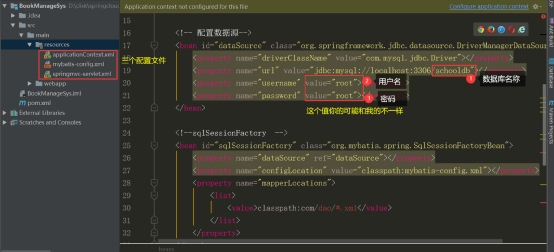

该资源文件夹用来存放ssm的配置文件，applicationContext.xml,springmvc-servlet.xml,mybatis-config.xml。
编辑
各配置文件代码如下：
applicationContext.xml文件：
<?xml version="1.0" encoding="UTF-8"?>
<beans
xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:mvc="http://www.springframework.org/schema/mvc"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="
http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-3.1.xsd
http://www.springframework.org/schema/mvc
http://www.springframework.org/schema/mvc/spring-mvc-3.1.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context-3.1.xsd
">
<!-- 配置数据源-->
<bean id="dataSource" class="org.springframework.jdbc.datasource.DriverManagerDataSource">
<property name="driverClassName" value="com.mysql.jdbc.Driver"></property>
<property name="url" value="jdbc:mysql://localhost:3306/schooldb"></property>
<property name="username" value="root"></property>
<property name="password" value="root"></property>
</bean>
<!--sqlSessionFactory -->
<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
<property name="dataSource" ref="dataSource"></property>
<property name="configLocation" value="classpath:mybatis-config.xml"></property>
<property name="mapperLocations">
<list>
<value>classpath:com/dao/*.xml</value>
</list>
</property>
</bean>
<!-- 配置自动映射器 -->
<bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
<property name="basePackage" value="com.dao"></property>
</bean>
<!-- 扫描所有注解信息 -->
<context:component-scan base-package="com.dao,com.service,com.web"/>
<mvc:annotation-driven/>
</beans>
springmvc-servlet.xml文件：
<?xml version="1.0" encoding="UTF-8"?>
<beans
xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:p="http://www.springframework.org/schema/p"
xmlns:aop="http://www.springframework.org/schema/aop"
xmlns:mvc="http://www.springframework.org/schema/mvc"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="
http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-3.1.xsd
http://www.springframework.org/schema/p
http://www.springframework.org/schema/p/spring-p-3.1.xsd
http://www.springframework.org/schema/aop
http://www.springframework.org/schema/aop/spring-aop-3.1.xsd
http://www.springframework.org/schema/mvc
http://www.springframework.org/schema/mvc/spring-mvc-3.1.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context-3.1.xsd
">
<!-- 扫描注解 -->
<context:component-scan base-package="com.web,com.dao,com.service"/>
<mvc:annotation-driven/>
<!--扫描静态资源文件-->
<mvc:default-servlet-handler/>
<!-- 配置前缀和后缀 -->
<bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
<property name="prefix" value="/"></property>
<property name="suffix" value=".jsp"></property>
</bean>
</beans>
mybatis-config.xml文件：
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
<settings>
<!-- 打印sql语句 -->
<setting name="logImpl" value="STDOUT_LOGGING"/>
</settings>
<!-- 起别名 -->
<typeAliases>
<package name="com.entity"/>
</typeAliases>
</configuration>
编辑
03
配置web.xml文件
web.xml文件所在的路径：src/main/webapp/WEB/INF/wen.xml
代码如下：
<!DOCTYPE web-app PUBLIC
"-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
"http://java.sun.com/dtd/web-app_2_3.dtd" >
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
version="4.0">
<display-name>Archetype Created Web Application</display-name>
<welcome-file-list>
<welcome-file>/</welcome-file>
</welcome-file-list>
<!-- springmvc的配置 -->
<servlet>
<servlet-name>springmvc</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<init-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:springmvc-servlet.xml</param-value>
</init-param>
<load-on-startup>1</load-on-startup>
</servlet>
<servlet-mapping>
<servlet-name>springmvc</servlet-name>
<url-pattern>/</url-pattern>
</servlet-mapping>
<!-- spring -->
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:applicationContext.xml</param-value>
</context-param>
<!-- 监听配置 -->
<listener>
<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>
<!-- 解决springmvc传递值乱码问题 -->
<filter>
<filter-name>encodingFilter</filter-name>
<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
<init-param>
<param-name>encoding</param-name>
<param-value>utf-8</param-value>
</init-param>
<init-param>
<param-name>forceEncoding</param-name>
<param-value>true</param-value>
</init-param>
</filter>
<filter-mapping>
<filter-name>encodingFilter</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
</web-app>
04
创建src资源资源文件夹

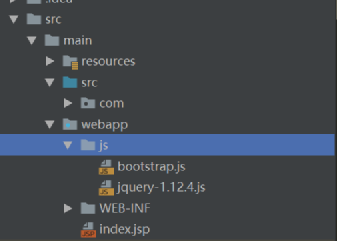

在main文件夹中创建资源文件夹src,且在里面创建实体层、Dao层、Service层和web层。
编辑

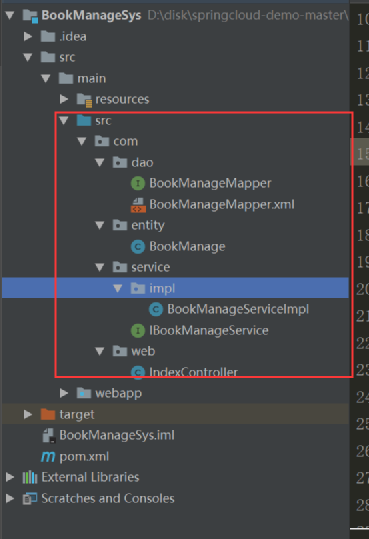

下面我们来在src中创建包com（包名随便起）,在com中分别创建entity、dao、service以及web包（Package）,分别在各个包中创建对应的类，其目录结构如下：
编辑
下面是各个类的代码：
BookManage.java：
package com.entity;
import org.springframework.format.annotation.DateTimeFormat;
import java.util.Date;
public class BookManage {
private int bid;
private String bname;
private String bauthor;
@DateTimeFormat(pattern = "yyyy-MM-dd")
private Date btime;
private int btype;
public int getBid() {
return bid;
}
public void setBid(int bid) {
this.bid = bid;
}
public String getBname() {
return bname;
}
public void setBname(String bname) {
this.bname = bname;
}
public String getBauthor() {
return bauthor;
}
public void setBauthor(String bauthor) {
this.bauthor = bauthor;
}
public Date getBtime() {
return btime;
}
public void setBtime(Date btime) {
this.btime = btime;
}
public int getBtype() {
return btype;
}
public void setBtype(int btype) {
this.btype = btype;
}
}
BookManageMapper.java
package com.dao;
import com.entity.BookManage;
import java.util.List;
public interface BookManageMapper {
//查询全部
List<BookManage> findBookAll();
//添加
int addBook(BookManage bookManage);
//删除
int delBook(int bid);
}

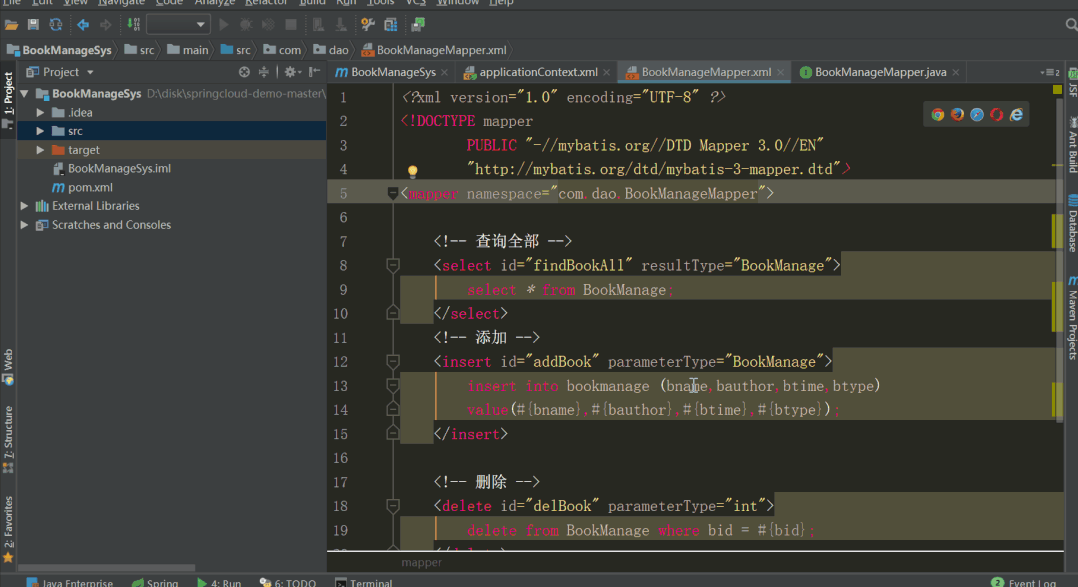

BookManageMapper.xml
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.dao.BookManageMapper">
<!-- 查询全部 -->
<select id="findBookAll" resultType="BookManage">
select * from BookManage;
</select>
<!-- 添加 -->
<insert id="addBook" parameterType="BookManage">
insert into bookmanage (bname,bauthor,btime,btype)
value(#{bname},#{bauthor},#{btime},#{btype});
</insert>
<!-- 删除 -->
<delete id="delBook" parameterType="int">
delete from BookManage where bid = #{bid};
</delete>
</mapper>
IBookManageService.java
package com.service;
import com.entity.BookManage;
import java.util.List;
public interface IBookManageService {
//查询全部
List<BookManage> findBookAll();
//添加
int addBook(BookManage bookManage);
//删除
int delBook(int bid);
}
BookManageServiceImpl.java
package com.service.impl;
import com.dao.BookManageMapper;
import com.entity.BookManage;
import com.service.IBookManageService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import java.util.List;
@Service("bookManageService")
public class BookManageServiceImpl implements IBookManageService {
@Autowired
private BookManageMapper bookManageMapper;
@Override
public List<BookManage> findBookAll() {
return bookManageMapper.findBookAll();
}
@Override
public int addBook(BookManage bookManage) {
return bookManageMapper.addBook(bookManage);
}
@Override
public int delBook(int bid) {
return bookManageMapper.delBook(bid);
}
public BookManageMapper getBookManageMapper() {
return bookManageMapper;
}
public void setBookManageMapper(BookManageMapper bookManageMapper) {
this.bookManageMapper = bookManageMapper;
}
}
IndexController.java
package com.web;
import com.entity.BookManage;
import com.service.IBookManageService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;
import java.util.List;
@Controller
@RequestMapping("/")
public class IndexController {
//创建Service的对象
@Autowired
private IBookManageService bookManageService;
//默认进入首页
@RequestMapping("/")
public String index(Model model){
List<BookManage> bookManageList =
bookManageService.findBookAll();
model.addAttribute("bookManageList",bookManageList);
return "index";
}
//删除
@RequestMapping("delBook")
public String delBook(Model model,int bid){
bookManageService.delBook(bid);
index(model);
return "index";
}
//添加
@RequestMapping("addBook")
public String addBook(BookManage bookManage,Model model){
bookManageService.addBook(bookManage);
index(model);
return "index";
}
public IBookManageService getBookManageService() {
return bookManageService;
}
public void setBookManageService(IBookManageService bookManageService) {
this.bookManageService = bookManageService;
}
}
05
引入jQuery环境
将jquery的环境拷贝到项目中的webapp下：
编辑
06
首页
修改index.jsp,使其实现进入页面即查询数据库中所有数据功能，代码如下：
<%--
Created by IntelliJ IDEA.
User: 24519
Date: 2021/1/20
Time: 10:38
To change this template use File | Settings | File Templates.
--%>
<%@ page isELIgnored="false"%>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@taglib prefix="f" uri="http://java.sun.com/jsp/jstl/fmt" %>
<html>
<head>
<title>首页</title>
</head>
<body>
<h1>图书信息</h1>
<table border="1">
<tr>
<td>图书名称</td>
<td>图书作者</td>
<td>购买时间</td>
<td>图书分类</td>
<td>操作</td>
</tr>
<c:forEach items="${bookManageList}" var="book">
<tr>
<td>${book.bname}</td>
<td>${book.bauthor}</td>
<td>
<f:formatDate value="${book.btime}" pattern="yyyy-MM-dd"></f:formatDate>
</td>
<td>
<c:if test="${book.btype==1}">
计算机/软件
</c:if>
<c:if test="${book.btype==2}">
小说/文摘
</c:if>
<c:if test="${book.btype==3}">
杂项
</c:if>
</td>
<td><a href="delBook?bid=${book.bid}">删除</a></td>
</tr>
</c:forEach>
</table>
<a href="addBook.jsp" style="color:red">新增图书信息</a>
<script src="js/jquery-1.12.4.js" type="text/javascript"></script>
<script type="text/javascript">
$(function(){
$("tr:even").css("background","green");
$("tr:first").css("background","blue");
});
</script>
</body>
</html>
07
添加图书的页面
创建添加数据的页面addBook.jsp,代码如下：
注意，addBook.jsp和index.jsp都需要放在webapp目录下。
08

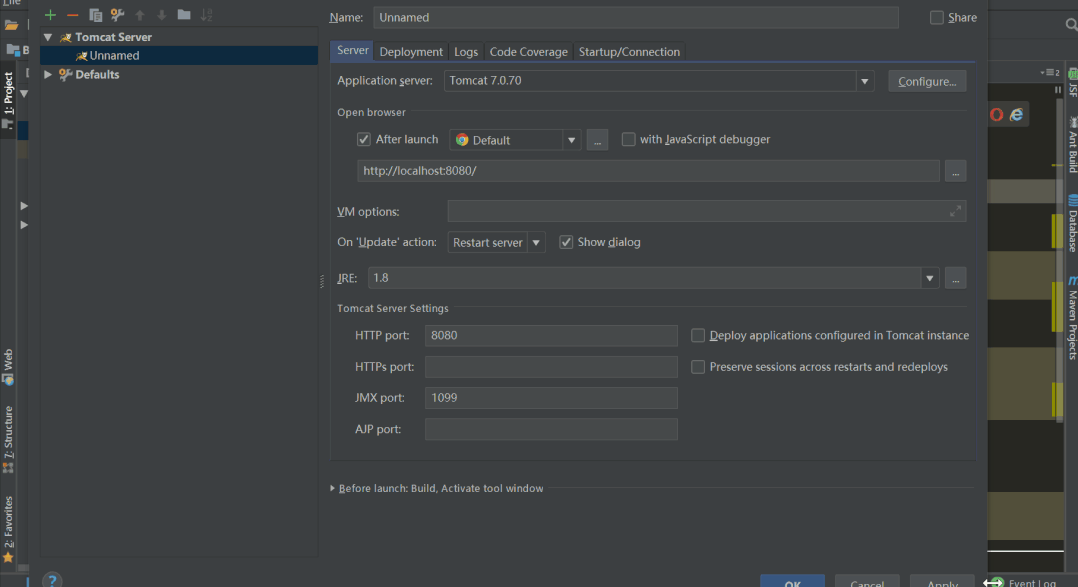

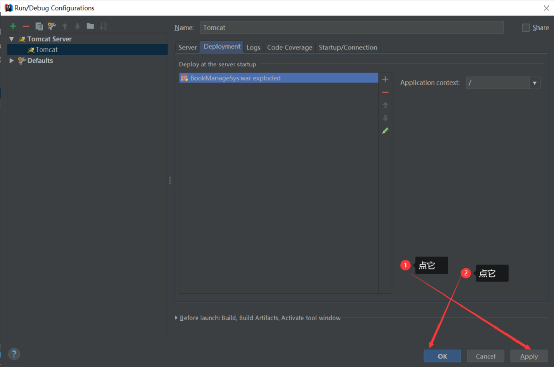

配置tomcat
配置tomcat
编辑
编辑
编辑
编辑
编辑
编辑

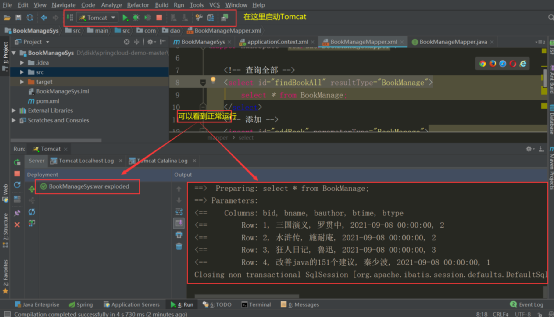

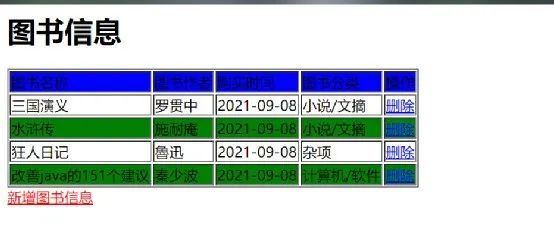

测试发现，正常运行。
最后附数据库脚本代码：
/*
SQLyog Professional v12.08 (32 bit)
MySQL - 5.5.27 : Database - schooldb
*********************************************************************
*/
/*!40101 SET NAMES utf8 */;
/*!40101 SET SQL_MODE=''*/;
/*!40014 SET @OLD_UNIQUE_CHECKS=@@UNIQUE_CHECKS, UNIQUE_CHECKS=0 */;
/*!40014 SET @OLD_FOREIGN_KEY_CHECKS=@@FOREIGN_KEY_CHECKS, FOREIGN_KEY_CHECKS=0 */;
/*!40101 SET @OLD_SQL_MODE=@@SQL_MODE, SQL_MODE='NO_AUTO_VALUE_ON_ZERO' */;
/*!40111 SET @OLD_SQL_NOTES=@@SQL_NOTES, SQL_NOTES=0 */;
CREATE DATABASE /*!32312 IF NOT EXISTS*/`schooldb` /*!40100 DEFAULT CHARACTER SET utf8 */;
USE `schooldb`;
/*Table structure for table `bookmanage` */
DROP TABLE IF EXISTS `bookmanage`;
CREATE TABLE `bookmanage` (
`bid` int(11) NOT NULL AUTO_INCREMENT,
`bname` varchar(40) NOT NULL,
`bauthor` varchar(40) NOT NULL,
`btime` datetime NOT NULL,
`btype` int(11) NOT NULL,
PRIMARY KEY (`bid`)
) ENGINE=InnoDB AUTO_INCREMENT=5 DEFAULT CHARSET=utf8;
/*Data for the table `bookmanage` */
insert into `bookmanage`(`bid`,`bname`,`bauthor`,`btime`,`btype`) values (1,'三国演义','罗贯中','2021-09-08 00:00:00',2),(2,'水浒传','施耐庵','2021-09-08 00:00:00',2),(3,'狂人日记','魯迅','2021-09-08 00:00:00',3),(4,'改善java的151个建议','秦少波','2021-09-08 00:00:00',1);
/*!40101 SET SQL_MODE=@OLD_SQL_MODE */;
/*!40014 SET FOREIGN_KEY_CHECKS=@OLD_FOREIGN_KEY_CHECKS */;
/*!40014 SET UNIQUE_CHECKS=@OLD_UNIQUE_CHECKS */;
/*!40111 SET SQL_NOTES=@OLD_SQL_NOTES */;
今天的分享就到这里了，明天见！
【版权声明】本文为华为云社区用户原创内容，转载时必须标注文章的来源（华为云社区）、文章链接、文章作者等基本信息， 否则作者和本社区有权追究责任。如果您发现本社区中有涉嫌抄袭的内容，欢迎发送邮件进行举报，并提供相关证据，一经查实，本社区将立刻删除涉嫌侵权内容，举报邮箱：
cloudbbs@huaweicloud.com
- 点赞
- 收藏
- 关注作者
评论（0）
