SAP CAP Fiori Elements 应用配置 UI 的两种方式以及自定义 index.html

举报
Jerry Wang 发表于 2022/10/31 23:24:46 2022/10/31
【摘要】 第一种方法编辑 app 里的 manifest.json 文件:{ "_version": "1.32.0", "sap.app": { ... "sap.ui5": { ... "routing": { ... "targets": { ... ...

第一种方法

编辑 app 里的 manifest.json 文件:

{
    "_version": "1.32.0",
    "sap.app": {
    ...
    "sap.ui5": {
        ...
        "routing": {
            ...
            "targets": {
                ...
                "RisksObjectPage": {
                    ...
                    "options": {
                        "settings": {
                            "editableHeaderContent": true,
                            "entitySet": "Risks"
                        }
                    }
                }
            }
        },
        ...
}

第二种方法:修改 .cds 文件

给对应的 Fiori Elements 字段(forms 中的)添加 Label,以及 table column 字段添加 header

using RiskService from './risk-service';

annotate RiskService.Risks with {
    title       @title: 'Title';
    prio        @title: 'Priority';
    descr       @title: 'Description';
    miti        @title: 'Mitigation';
    impact      @title: 'Impact';
}

添加 value help:

annotate RiskService.Mitigations with {
ID @(
    UI.Hidden,
    Common: {
    Text: description
    }
);
description  @title: 'Description';
owner        @title: 'Owner';
timeline     @title: 'Timeline';
risks        @title: 'Risks';
}

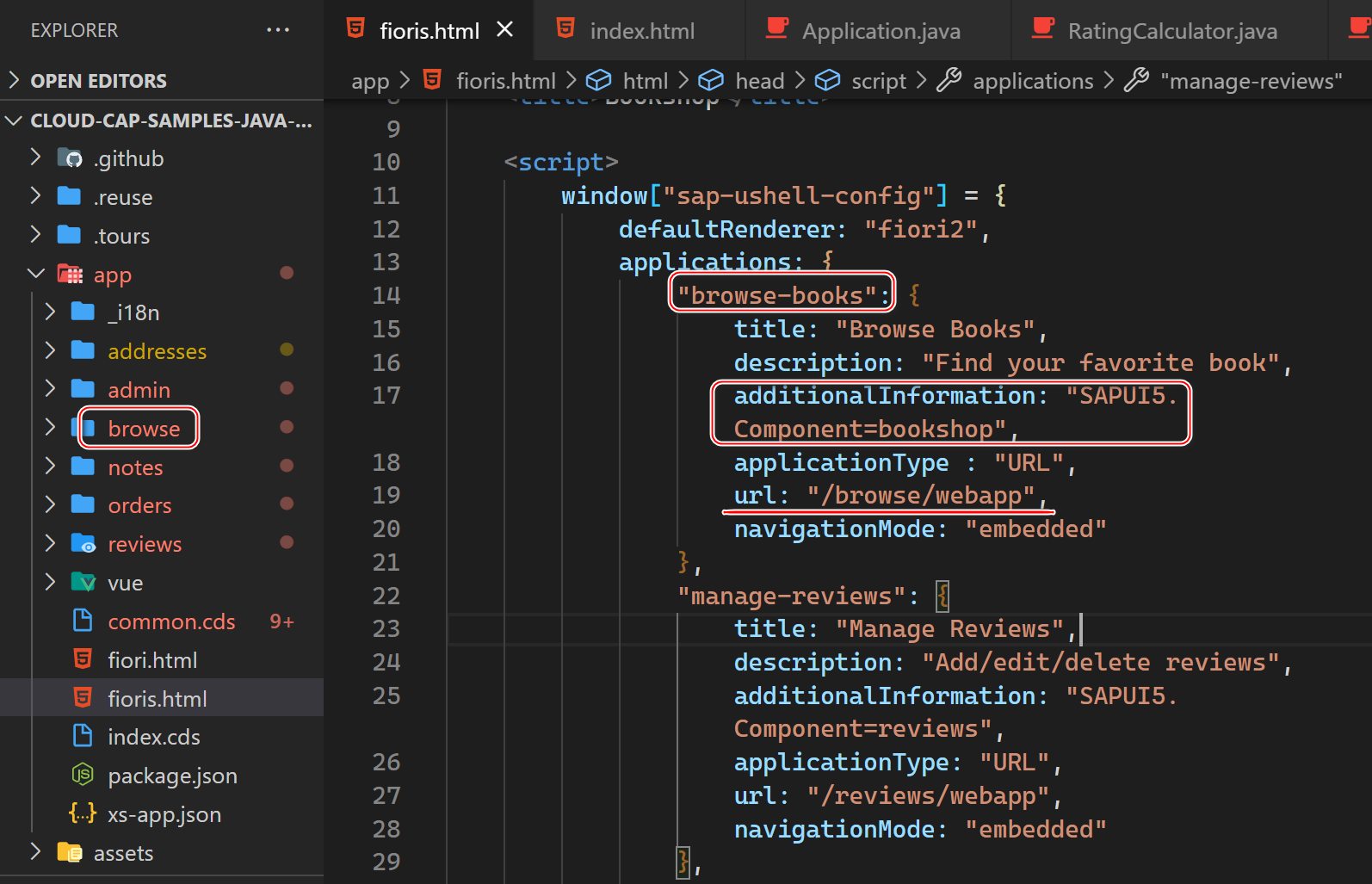

SAP CAP 提供了一个本地实现的仿 Fiori Launchpad 的 container:

在一个 CAP Java 应用的 app 文件夹里放置一个自定义 index.html 会怎么样?

首先直接执行 cds watch 是无法工作的。

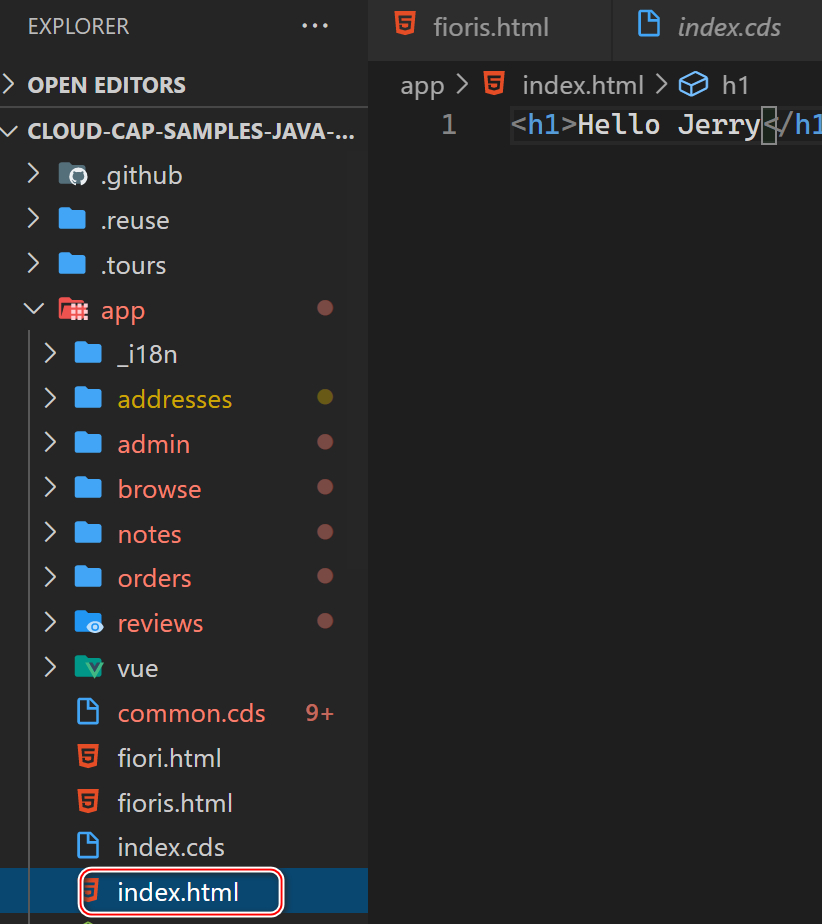

在应用的 app 文件夹里新建一个 index.html:

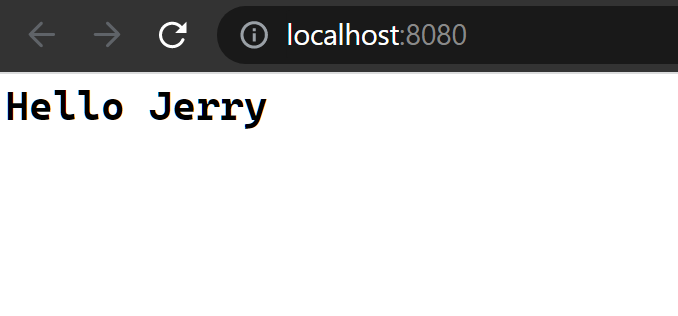

重启 SpringBoot 应用,这个 index.html 就生效了:

cds watch 默认在 app 文件夹中查找 index.html 文件。 如果 cds watch 找到这样的文件,它会将包含服务链接的默认页面替换为文件夹中的链接。 虽然这在许多情况下是有意义的,但出于开发目的,我们坚持使用 CDS 的索引页面并为我们的索引文件提供不同的名称。

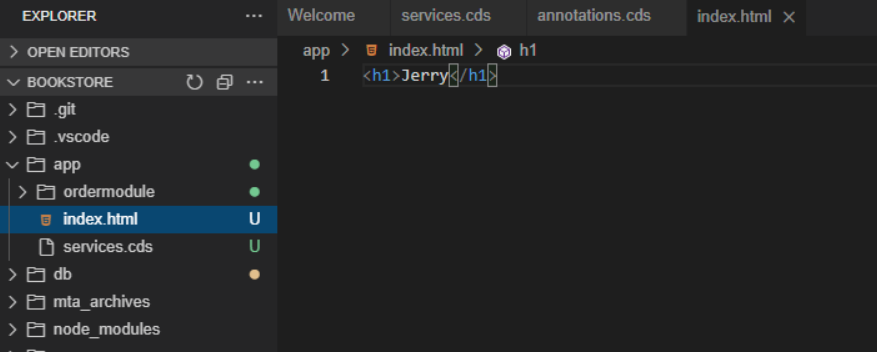

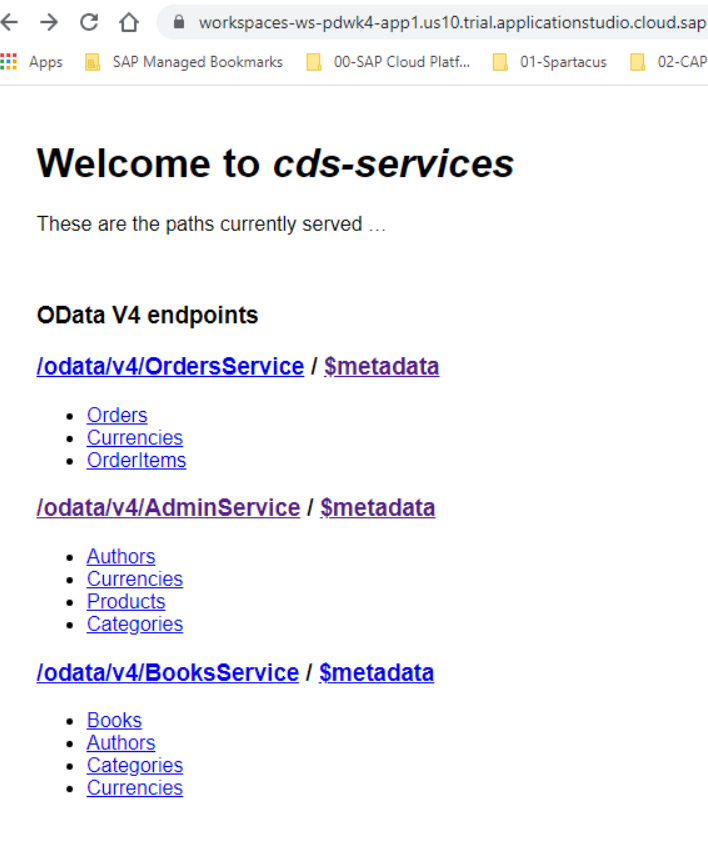

但是在 Business Application Studio 环境里测试不通过:

看不到自定义 index.html 里的内容:

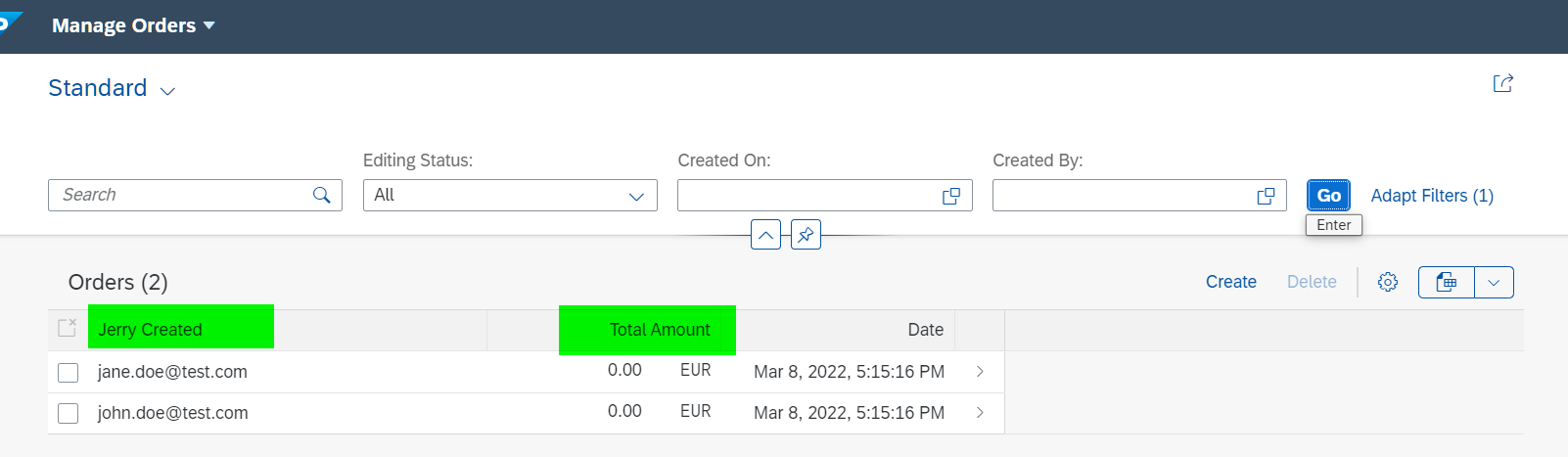

另外举一些例子,假设我想在 Fiori Elements List report 的表格控件里,将 table column 的文本进行自定义:

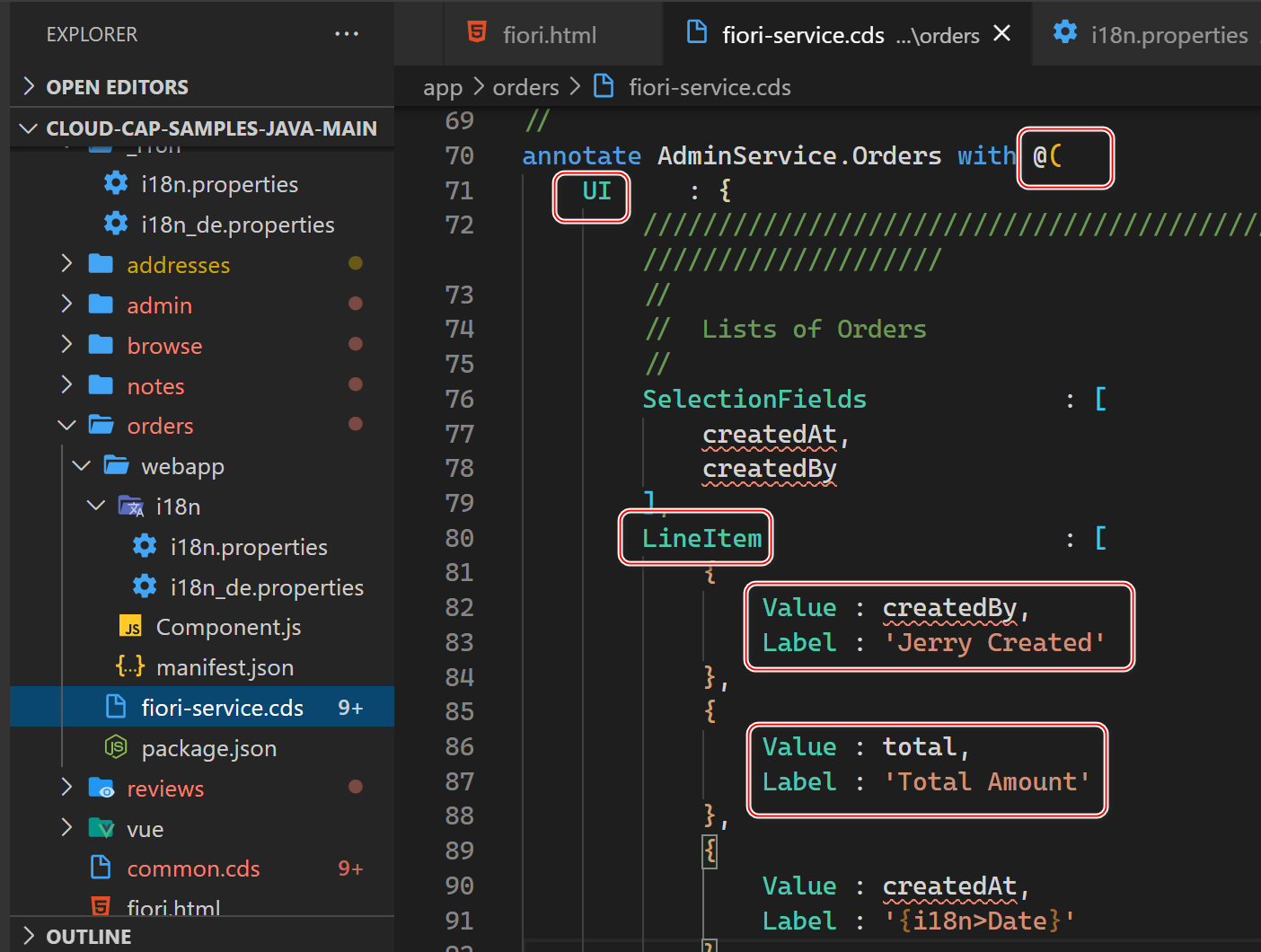

需要修改 web 应用里 fiori-service.cds 文件里对应的注解。

可以使用语法 annotate AdminService.Orders with 后面加实际的注解值。

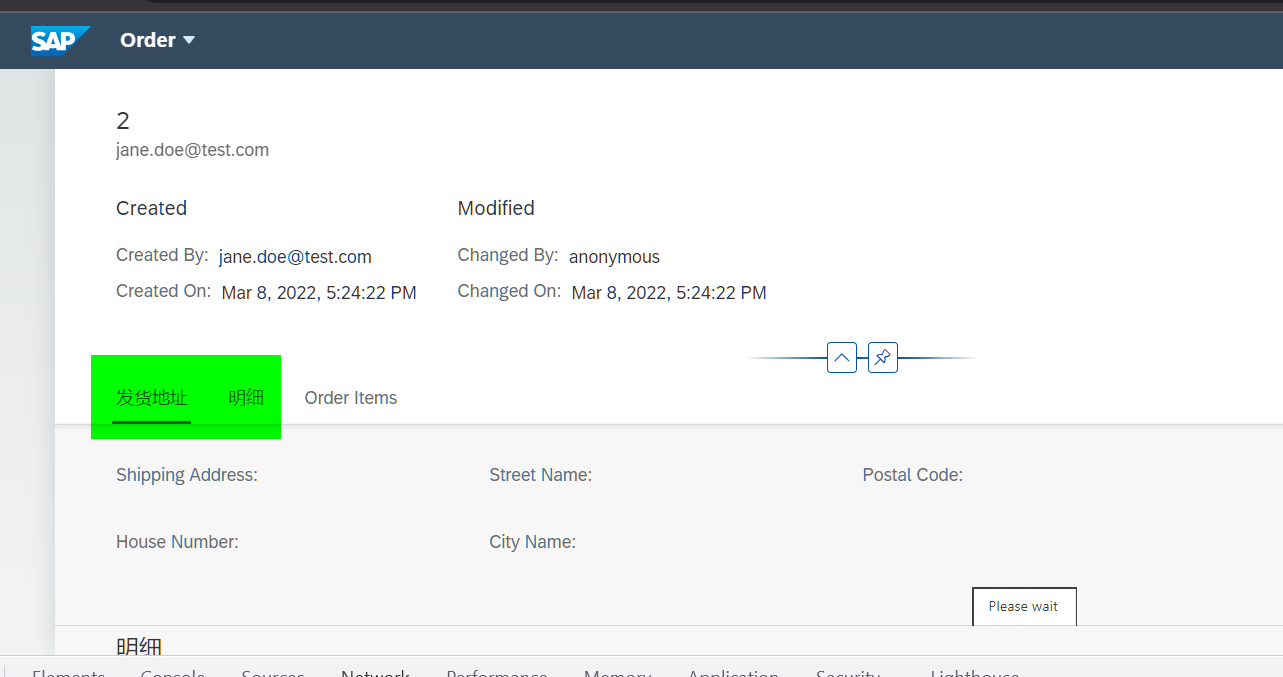

Object Page 里的 tab 标签:

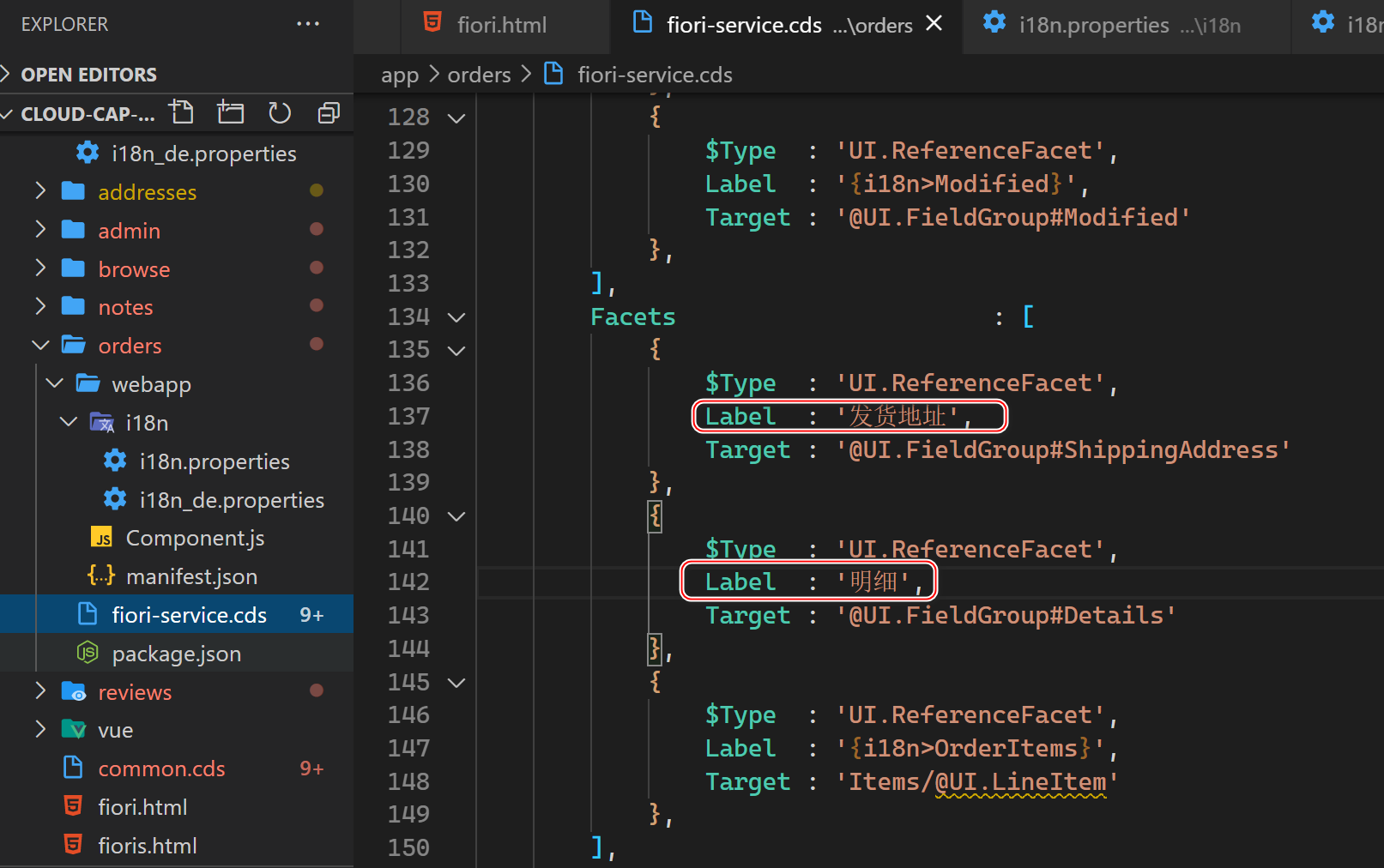

对应的注解源代码:

Facets                      : [
            {
                $Type  : 'UI.ReferenceFacet',
                Label  : '发货地址',
                Target : '@UI.FieldGroup#ShippingAddress'
            },
            {
                $Type  : 'UI.ReferenceFacet',
                Label  : '明细',
                Target : '@UI.FieldGroup#Details'
            },
            {
                $Type  : 'UI.ReferenceFacet',
                Label  : '{i18n>OrderItems}',
                Target : 'Items/@UI.LineItem'
            },
        ],
