十二、Unity编辑器开发之各类字段及滑动条绘制

1.各类字段：

为我们的Test类中添加以下字段：














      using UnityEngine;


























      public class Test : MonoBehaviour













      {












    public enum TestEnum













          {













              Enum1,













              Enum2,













          }

























    public string stringValue = "str";












    public int intValue = 30;












    public float floatValue = 50f;












    public AudioClip clipValue;












    public string passwordValue = "1a2s3xd455";












    public TestEnum EnumValue = TestEnum.Enum1;













      }

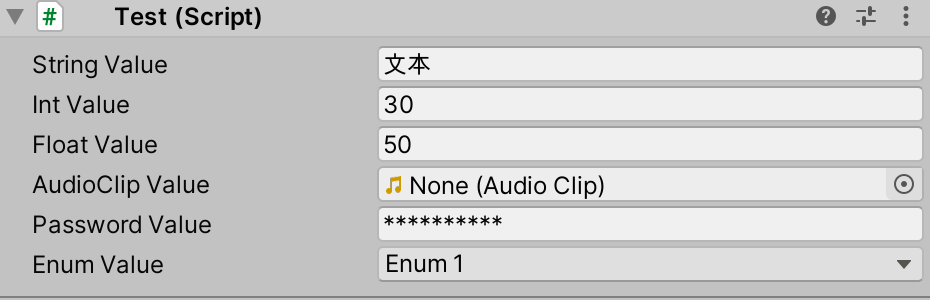

在TestEditor类中来绘制这些字段：














      using UnityEngine;













      using UnityEditor;













      ​













      [CustomEditor(typeof(Test))]













      public class TestEditor : Editor













      {












    private Test Target;












    private void OnEnable()













          {













              Target = target as Test;













          }













      ​












    public override void OnInspectorGUI()













          {












        //绘制String类型字段












        string newStringValue = EditorGUILayout.TextField("String Value", Target.stringValue);












        if (newStringValue != Target.stringValue)













              {













                  Target.stringValue = newStringValue;













              }












        //绘制Int类型字段












        int newIntValue = EditorGUILayout.IntField("Int Value", Target.intValue);












        if (newIntValue != Target.intValue)













              {













                  Target.intValue = newIntValue;













              }












        //绘制Float类型字段












        float newFloatValue = EditorGUILayout.FloatField("Float Value", Target.floatValue);












        if (newFloatValue != Target.floatValue)













              {













                  Target.floatValue = newFloatValue;













              }












        //绘制Object类型字段 通过as转化为其它类型













              AudioClip newClipValue = EditorGUILayout.ObjectField("AudioClip Value", Target.clipValue, typeof(AudioClip), false) as AudioClip;












        if (newClipValue != Target.clipValue)













              {













                  Target.clipValue = newClipValue;













              }












        //绘制密文类型的String字段












        string newPasswordValue = EditorGUILayout.PasswordField("Password Value", Target.passwordValue);












        if(newPasswordValue != Target.passwordValue)













              {













                  Target.passwordValue = newPasswordValue;













              }












        //绘制枚举类型字段













              Test.TestEnum newEnumValue = (Test.TestEnum)EditorGUILayout.EnumPopup("Enum Value", Target.EnumValue);












        if (newEnumValue != Target.EnumValue)













              {













                  Target.EnumValue = newEnumValue;













              }













          }













      }









2.滑动条














      using UnityEngine;













      using UnityEditor;













      ​













      [CustomEditor(typeof(Test))]













      public class TestEditor : Editor













      {












    private Test Target;












    private void OnEnable()













          {













              Target = target as Test;













          }













      ​












    public override void OnInspectorGUI()













          {












        //绘制Int类型滑动条












        int newIntValue = EditorGUILayout.IntSlider("Int Value", Target.intValue, 0, 30);












        if (newIntValue != Target.intValue)













              {













                  Target.intValue = newIntValue;













              }












        //绘制Float类型滑动条












        float newFloatValue = EditorGUILayout.Slider("Float Value", Target.floatValue, 0f, 100f);












        if (newFloatValue != Target.floatValue)













              {













                  Target.floatValue = newFloatValue;













              }













          }













      }
