python+openCV实现双目视差图及测距

测距公式：

这篇博文也比较详细：

使用OpenCV/python进行双目测距 - 走看看

通过matlab标定得到相机参数放到stereoconfig.py














      import numpy as np













      import cv2


























      #双目相机参数













      class stereoCameral(object):












    def __init__(self):

























        #左相机内参数













              self.cam_matrix_left = np.array([[249.82379, 0., 156.38459], [0., 249.07678, 122.46872], [0., 0., 1.]])












        #右相机内参数













              self.cam_matrix_right = np.array([[242.77875, 0., 153.22330], [0., 242.27426, 117.63536], [0., 0., 1.]])

























        #左右相机畸变系数:[k1, k2, p1, p2, k3]













              self.distortion_l = np.array([[-0.02712, -0.03795, -0.00409, 0.00526, 0.00000]])













              self.distortion_r = np.array([[-0.03348, 0.08901, -0.00327, 0.00330, 0.00000]])

























        #旋转矩阵













              om = np.array([-0.00320, -0.00163, -0.00069])













              self.R = cv2.Rodrigues(om)[0]  # 使用Rodrigues变换将om变换为R












        #平移矩阵













              self.T = np.array([-90.24602, 3.17981, -19.44558])





视差图及三维坐标














      import cv2













      import numpy as np













      import stereoconfig


























      def getRectifyTransform(height, width, config):












    #读取矩阵参数













          left_K = config.cam_matrix_left













          right_K = config.cam_matrix_right













          left_distortion = config.distortion_l













          right_distortion = config.distortion_r













          R = config.R













          T = config.T

























    #计算校正变换












    if type(height) != "int" or type(width) != "int":













              height = int(height)













              width = int(width)













          R1, R2, P1, P2, Q, roi1, roi2 = cv2.stereoRectify(left_K, left_distortion, right_K, right_distortion,













                                                            (width, height), R, T, alpha=0)













          map1x, map1y = cv2.initUndistortRectifyMap(left_K, left_distortion, R1, P1, (width, height), cv2.CV_32FC1)













          map2x, map2y = cv2.initUndistortRectifyMap(right_K, right_distortion, R2, P2, (width, height), cv2.CV_32FC1)

























    return map1x, map1y, map2x, map2y, Q


























      # 畸变校正和立体校正













      def rectifyImage(image1, image2, map1x, map1y, map2x, map2y):













          rectifyed_img1 = cv2.remap(image1, map1x, map1y, cv2.INTER_AREA)













          rectifyed_img2 = cv2.remap(image2, map2x, map2y, cv2.INTER_AREA)












    return rectifyed_img1, rectifyed_img2


























      #视差计算













      def sgbm(imgL, imgR):












    #SGBM参数设置













          blockSize = 8













          img_channels = 3













          stereo = cv2.StereoSGBM_create(minDisparity = 1,













                                         numDisparities = 64,













                                         blockSize = blockSize,













                                         P1 = 8 * img_channels * blockSize * blockSize,













                                         P2 = 32 * img_channels * blockSize * blockSize,













                                         disp12MaxDiff = -1,













                                         preFilterCap = 1,













                                         uniquenessRatio = 10,













                                         speckleWindowSize = 100,













                                         speckleRange = 100,













                                         mode = cv2.STEREO_SGBM_MODE_HH)












    # 计算视差图













          disp = stereo.compute(imgL, imgR)













          disp = np.divide(disp.astype(np.float32), 16.)#除以16得到真实视差图












    return disp













      #计算三维坐标，并删除错误点













      def threeD(disp, Q):












    # 计算像素点的3D坐标（左相机坐标系下）













          points_3d = cv2.reprojectImageTo3D(disp, Q)


























          points_3d = points_3d.reshape(points_3d.shape[0] * points_3d.shape[1], 3)


























          X = points_3d[:, 0]













          Y = points_3d[:, 1]













          Z = points_3d[:, 2]

























    #选择并删除错误的点













          remove_idx1 = np.where(Z <= 0)













          remove_idx2 = np.where(Z > 15000)













          remove_idx3 = np.where(X > 10000)













          remove_idx4 = np.where(X < -10000)













          remove_idx5 = np.where(Y > 10000)













          remove_idx6 = np.where(Y < -10000)













          remove_idx = np.hstack(













              (remove_idx1[0], remove_idx2[0], remove_idx3[0], remove_idx4[0], remove_idx5[0], remove_idx6[0]))


























          points_3d = np.delete(points_3d, remove_idx, 0)

























    #计算目标点（这里我选择的是目标区域的中位数，可根据实际情况选取）












    if points_3d.any():













              x = np.median(points_3d[:, 0])













              y = np.median(points_3d[:, 1])













              z = np.median(points_3d[:, 2])













              targetPoint = [x, y, z]












    else:













              targetPoint = [0, 0, -1]#无法识别目标区域

























    return targetPoint







































      imgL = cv2.imread("_left.jpg")













      imgR = cv2.imread("_right.jpg")


























      height, width = imgL.shape[0:2]













      # 读取相机内参和外参













      config = stereoconfig.stereoCameral()


























      map1x, map1y, map2x, map2y, Q = getRectifyTransform(height, width, config)













      iml_rectified, imr_rectified = rectifyImage(imgL, imgR, map1x, map1y, map2x, map2y)


























      disp = sgbm(iml_rectified, imr_rectified)













      cv2.imshow("disp", disp)













      target_point = threeD(disp, Q)#计算目标点的3D坐标（左相机坐标系下）













      print(target_point)

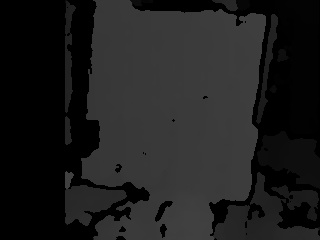

结果：
