蓝桥ROS机器人之第一个功能包helloros

zhangrelay 发表于 2022/03/25 23:23:31 2022/03/25

【摘要】 helloros   cmake_minimum_required(VERSION 2.8.3)project(helloros) ## Compile as C++11, supported in ROS Kinetic and newer# add_compile_options(-std=c++11) ## ...

helloros









      cmake_minimum_required(VERSION 2.8.3)








      project(helloros)
















      ## Compile as C++11, supported in ROS Kinetic and newer








      # add_compile_options(-std=c++11)
















      ## Find catkin macros and libraries








      ## if COMPONENTS list like find_package(catkin REQUIRED COMPONENTS xyz)








      ## is used, also find other catkin packages








      find_package(catkin REQUIRED COMPONENTS








        roscpp








      )
















      ## System dependencies are found with CMake's conventions








      # find_package(Boost REQUIRED COMPONENTS system)
























      ## Uncomment this if the package has a setup.py. This macro ensures








      ## modules and global scripts declared therein get installed








      ## See http://ros.org/doc/api/catkin/html/user_guide/setup_dot_py.html








      # catkin_python_setup()
















      ################################################








      ## Declare ROS messages, services and actions ##








      ################################################
















      ## To declare and build messages, services or actions from within this








      ## package, follow these steps:








      ## * Let MSG_DEP_SET be the set of packages whose message types you use in








      ## your messages/services/actions (e.g. std_msgs, actionlib_msgs, ...).








      ## * In the file package.xml:








      ## * add a build_depend tag for "message_generation"








      ## * add a build_depend and a exec_depend tag for each package in MSG_DEP_SET








      ## * If MSG_DEP_SET isn't empty the following dependency has been pulled in








      ## but can be declared for certainty nonetheless:








      ## * add a exec_depend tag for "message_runtime"








      ## * In this file (CMakeLists.txt):








      ## * add "message_generation" and every package in MSG_DEP_SET to








      ## find_package(catkin REQUIRED COMPONENTS ...)








      ## * add "message_runtime" and every package in MSG_DEP_SET to








      ## catkin_package(CATKIN_DEPENDS ...)








      ## * uncomment the add_*_files sections below as needed








      ## and list every .msg/.srv/.action file to be processed








      ## * uncomment the generate_messages entry below








      ## * add every package in MSG_DEP_SET to generate_messages(DEPENDENCIES ...)
















      ## Generate messages in the 'msg' folder








      # add_message_files(








      # FILES








      # Message1.msg








      # Message2.msg








      # )
















      ## Generate services in the 'srv' folder








      # add_service_files(








      # FILES








      # Service1.srv








      # Service2.srv








      # )
















      ## Generate actions in the 'action' folder








      # add_action_files(








      # FILES








      # Action1.action








      # Action2.action








      # )
















      ## Generate added messages and services with any dependencies listed here








      # generate_messages(








      # DEPENDENCIES








      # std_msgs # Or other packages containing msgs








      # )
















      ################################################








      ## Declare ROS dynamic reconfigure parameters ##








      ################################################
















      ## To declare and build dynamic reconfigure parameters within this








      ## package, follow these steps:








      ## * In the file package.xml:








      ## * add a build_depend and a exec_depend tag for "dynamic_reconfigure"








      ## * In this file (CMakeLists.txt):








      ## * add "dynamic_reconfigure" to








      ## find_package(catkin REQUIRED COMPONENTS ...)








      ## * uncomment the "generate_dynamic_reconfigure_options" section below








      ## and list every .cfg file to be processed
















      ## Generate dynamic reconfigure parameters in the 'cfg' folder








      # generate_dynamic_reconfigure_options(








      # cfg/DynReconf1.cfg








      # cfg/DynReconf2.cfg








      # )
















      ###################################








      ## catkin specific configuration ##








      ###################################








      ## The catkin_package macro generates cmake config files for your package








      ## Declare things to be passed to dependent projects








      ## INCLUDE_DIRS: uncomment this if your package contains header files








      ## LIBRARIES: libraries you create in this project that dependent projects also need








      ## CATKIN_DEPENDS: catkin_packages dependent projects also need








      ## DEPENDS: system dependencies of this project that dependent projects also need








      catkin_package(








      # INCLUDE_DIRS include








      # LIBRARIES helloros








      # CATKIN_DEPENDS roscpp








      # DEPENDS system_lib








      )
















      ###########








      ## Build ##








      ###########
















      ## Specify additional locations of header files








      ## Your package locations should be listed before other locations








      include_directories(








      # include







       ${catkin_INCLUDE_DIRS}








      )
















      ## Declare a C++ library








      # add_library(${PROJECT_NAME}








      # src/${PROJECT_NAME}/helloros.cpp








      # )
















      ## Add cmake target dependencies of the library








      ## as an example, code may need to be generated before libraries








      ## either from message generation or dynamic reconfigure








      # add_dependencies(${PROJECT_NAME} ${${PROJECT_NAME}_EXPORTED_TARGETS} ${catkin_EXPORTED_TARGETS})
















      ## Declare a C++ executable








      ## With catkin_make all packages are built within a single CMake context








      ## The recommended prefix ensures that target names across packages don't collide








      # add_executable(${PROJECT_NAME}_node src/helloros_node.cpp)








      add_executable(${PROJECT_NAME}_node src/helloros.cpp)
















      ## Rename C++ executable without prefix








      ## The above recommended prefix causes long target names, the following renames the








      ## target back to the shorter version for ease of user use








      ## e.g. "rosrun someones_pkg node" instead of "rosrun someones_pkg someones_pkg_node"








      # set_target_properties(${PROJECT_NAME}_node PROPERTIES OUTPUT_NAME node PREFIX "")
















      ## Add cmake target dependencies of the executable








      ## same as for the library above








      # add_dependencies(${PROJECT_NAME}_node ${${PROJECT_NAME}_EXPORTED_TARGETS} ${catkin_EXPORTED_TARGETS})
















      ## Specify libraries to link a library or executable target against








      # target_link_libraries(${PROJECT_NAME}_node








      # ${catkin_LIBRARIES}








      # )








      target_link_libraries(${PROJECT_NAME}_node







       ${catkin_LIBRARIES}








      )
















      #############








      ## Install ##








      #############
















      # all install targets should use catkin DESTINATION variables








      # See http://ros.org/doc/api/catkin/html/adv_user_guide/variables.html
















      ## Mark executable scripts (Python etc.) for installation








      ## in contrast to setup.py, you can choose the destination








      # install(PROGRAMS








      # scripts/my_python_script








      # DESTINATION ${CATKIN_PACKAGE_BIN_DESTINATION}








      # )
















      ## Mark executables and/or libraries for installation








      # install(TARGETS ${PROJECT_NAME} ${PROJECT_NAME}_node








      # ARCHIVE DESTINATION ${CATKIN_PACKAGE_LIB_DESTINATION}








      # LIBRARY DESTINATION ${CATKIN_PACKAGE_LIB_DESTINATION}








      # RUNTIME DESTINATION ${CATKIN_PACKAGE_BIN_DESTINATION}








      # )
















      ## Mark cpp header files for installation








      # install(DIRECTORY include/${PROJECT_NAME}/








      # DESTINATION ${CATKIN_PACKAGE_INCLUDE_DESTINATION}








      # FILES_MATCHING PATTERN "*.h"








      # PATTERN ".svn" EXCLUDE








      # )
















      ## Mark other files for installation (e.g. launch and bag files, etc.)








      # install(FILES








      # # myfile1








      # # myfile2








      # DESTINATION ${CATKIN_PACKAGE_SHARE_DESTINATION}








      # )
















      #############








      ## Testing ##








      #############
















      ## Add gtest based cpp test target and link libraries








      # catkin_add_gtest(${PROJECT_NAME}-test test/test_helloros.cpp)








      # if(TARGET ${PROJECT_NAME}-test)








      # target_link_libraries(${PROJECT_NAME}-test ${PROJECT_NAME})








      # endif()
















      ## Add folders to be run by python nosetests








      # catkin_add_nosetests(test)









      #include <ros/ros.h>
















      int main ( int argc , char ** argv ) {








      // Initialize the ROS system .








      	ros::init( argc , argv , "hello_ros" );








      // Establish this program as a ROS node .








      	ros::NodeHandle nh;








      // Send some output as a log message .







     	ROS_INFO_STREAM( "Hello nihao, ROS!" );








      }









      shiyanlou:src/ $ catkin_create_pkg -h                                 [9:38:58]








      usage: catkin_create_pkg [-h] [--meta] [-s [SYS_DEPS [SYS_DEPS ...]]]








                               [-b [BOOST_COMPS [BOOST_COMPS ...]]] [-V PKG_VERSION]








                               [-D DESCRIPTION] [-l LICENSE] [-a AUTHOR]








                               [-m MAINTAINER] [--rosdistro ROSDISTRO]








                               name [dependencies [dependencies ...]]
















      Creates a new catkin package
















      positional arguments:








        name                  The name for the package








        dependencies          Catkin package Dependencies
















      optional arguments:








        -h, --help            show this help message and exit








        --meta                Creates meta-package files








        -s [SYS_DEPS [SYS_DEPS ...]], --sys-deps [SYS_DEPS [SYS_DEPS ...]]








                              System Dependencies








        -b [BOOST_COMPS [BOOST_COMPS ...]], --boost-comps [BOOST_COMPS [BOOST_COMPS ...]]








                              Boost Components








        -V PKG_VERSION, --pkg_version PKG_VERSION








                              Initial Package version








        -D DESCRIPTION, --description DESCRIPTION








                              Description








        -l LICENSE, --license LICENSE








                              Name for License, (e.g. BSD, MIT, GPLv3...)








        -a AUTHOR, --author AUTHOR








                              A single author, may be used multiple times








        -m MAINTAINER, --maintainer MAINTAINER








                              A single maintainer, may be used multiple times








        --rosdistro ROSDISTRO








                              The ROS distro (default: environment variable








                              ROS_DISTRO if defined)








      shiyanlou:src/ $ catkin_create_pkg helloros roscpp                    [9:39:09]








      Created file helloros/package.xml








      Created file helloros/CMakeLists.txt








      Created folder helloros/include/helloros








      Created folder helloros/src








      Successfully created files in /home/shiyanlou/Code/helloros/src/helloros. Please adjust the values in package.xml.








      shiyanlou:src/ $ cd helloros/src                                      [9:40:06]








      shiyanlou:src/ $ ls                                                   [9:41:00]








      shiyanlou:src/ $ gedit helloros.cpp                                   [9:41:05]
















      (gedit:1618): GVFS-RemoteVolumeMonitor-WARNING **: remote volume monitor with dbus name org.gtk.vfs.UDisks2VolumeMonitor is not supported
















      (gedit:1618): Gtk-WARNING **: Calling Inhibit failed: GDBus.Error:org.freedesktop.DBus.Error.ServiceUnknown: The name org.gnome.SessionManager was not provided by any .service files

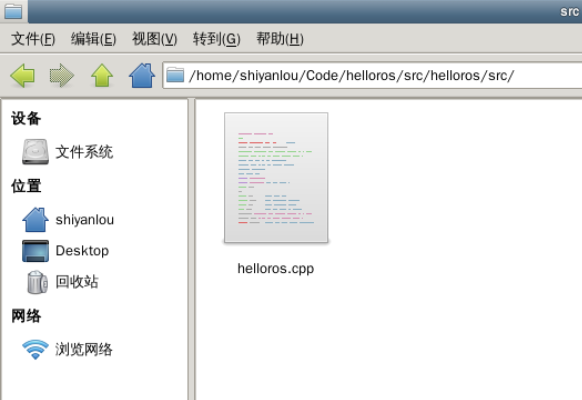

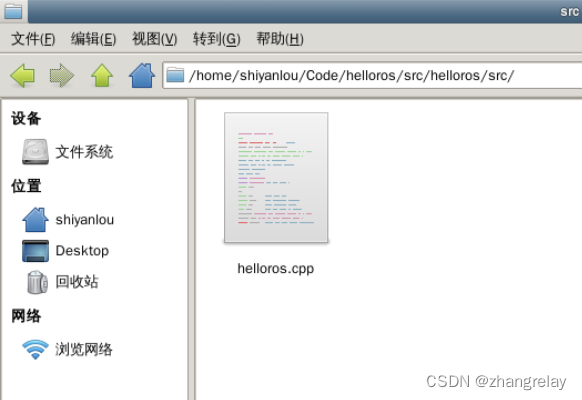

      shiyanlou:src/ $ ls                                                   [9:48:07]








      helloros.cpp








      shiyanlou:src/ $ cd ..                                                [9:48:11]

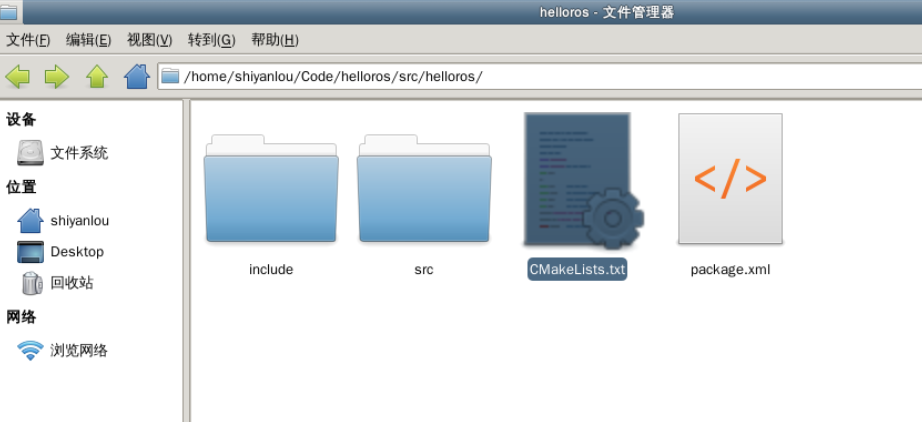

      shiyanlou:helloros/ $ l                                               [9:48:14]








      \u603b\u7528\u91cf 28K








      drwxrwxr-x 4 shiyanlou shiyanlou 4.0K 3\u6708  25 09:47 .








      drwxrwxr-x 3 shiyanlou shiyanlou 4.0K 3\u6708  25 09:40 ..








      -rw-rw-r-- 1 shiyanlou shiyanlou 6.8K 3\u6708  25 09:47 CMakeLists.txt








      drwxrwxr-x 3 shiyanlou shiyanlou 4.0K 3\u6708  25 09:40 include








      -rw-rw-r-- 1 shiyanlou shiyanlou 2.6K 3\u6708  25 09:40 package.xml








      drwxrwxr-x 2 shiyanlou shiyanlou 4.0K 3\u6708  25 09:44 src








      shiyanlou:helloros/ $ cd ..                                           [9:48:16]








      shiyanlou:src/ $ cd ..                                                [9:48:21]

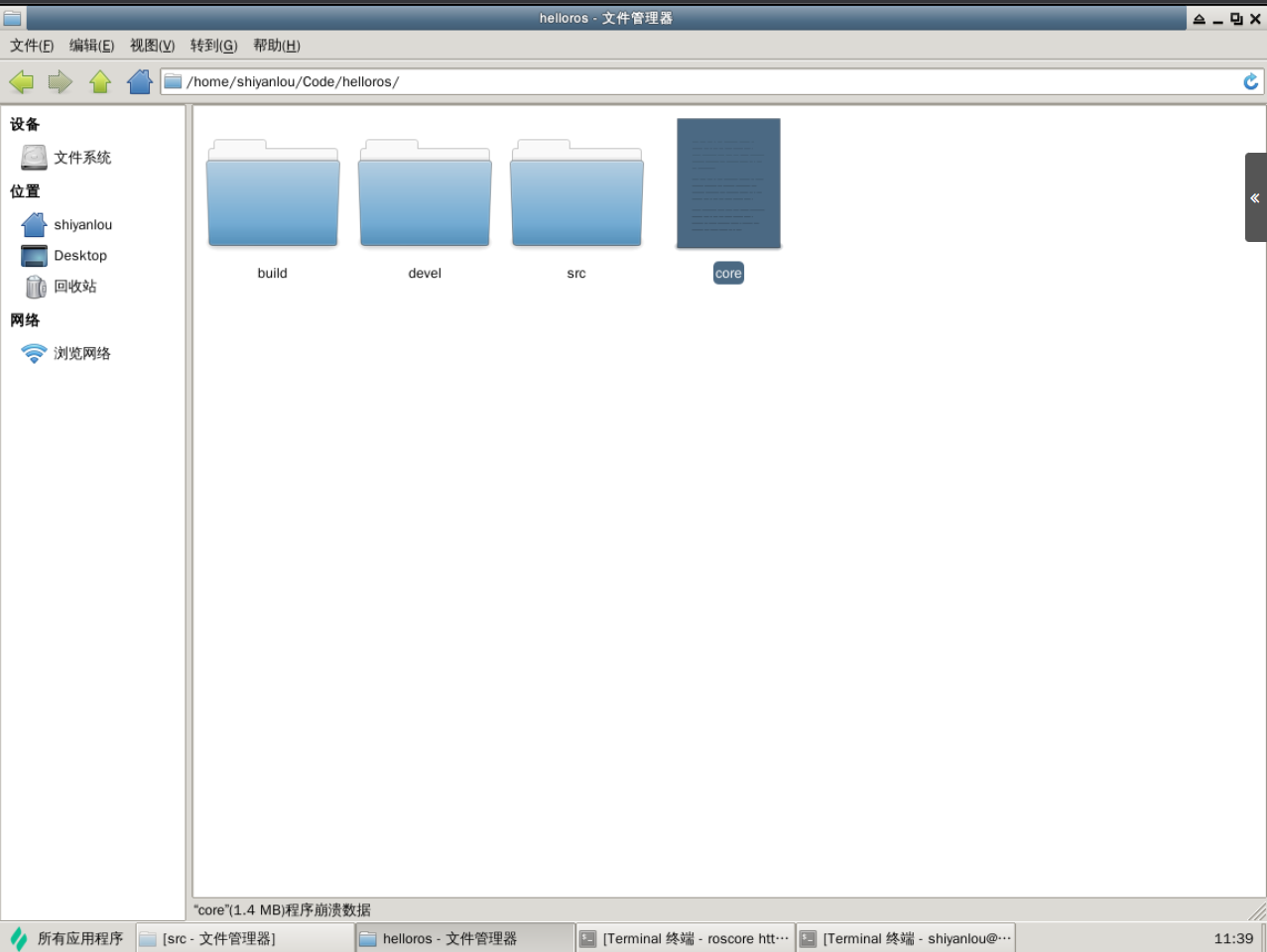

      shiyanlou:helloros/ $ catkin_make                                     [9:48:23]








      Base path: /home/shiyanlou/Code/helloros








      Source space: /home/shiyanlou/Code/helloros/src








      Build space: /home/shiyanlou/Code/helloros/build








      Devel space: /home/shiyanlou/Code/helloros/devel








      Install space: /home/shiyanlou/Code/helloros/install








      Creating symlink "/home/shiyanlou/Code/helloros/src/CMakeLists.txt" pointing to "/opt/ros/kinetic/share/catkin/cmake/toplevel.cmake"








      ####








      #### Running command: "cmake /home/shiyanlou/Code/helloros/src -DCATKIN_DEVEL_PREFIX=/home/shiyanlou/Code/helloros/devel -DCMAKE_INSTALL_PREFIX=/home/shiyanlou/Code/helloros/install -G Unix Makefiles" in "/home/shiyanlou/Code/helloros/build"








      ####








      -- The C compiler identification is GNU 5.4.0








      -- The CXX compiler identification is GNU 5.4.0








      -- Check for working C compiler: /usr/bin/cc








      -- Check for working C compiler: /usr/bin/cc -- works








      -- Detecting C compiler ABI info








      -- Detecting C compiler ABI info - done








      -- Detecting C compile features








      -- Detecting C compile features - done








      -- Check for working CXX compiler: /usr/bin/c++








      -- Check for working CXX compiler: /usr/bin/c++ -- works








      -- Detecting CXX compiler ABI info








      -- Detecting CXX compiler ABI info - done








      -- Detecting CXX compile features








      -- Detecting CXX compile features - done








      -- Using CATKIN_DEVEL_PREFIX: /home/shiyanlou/Code/helloros/devel








      -- Using CMAKE_PREFIX_PATH: /opt/ros/kinetic








      -- This workspace overlays: /opt/ros/kinetic








      -- Found PythonInterp: /usr/bin/python (found version "2.7.12")








      -- Using PYTHON_EXECUTABLE: /usr/bin/python








      -- Using Debian Python package layout








      -- Using empy: /usr/bin/empy








      -- Using CATKIN_ENABLE_TESTING: ON








      -- Call enable_testing()








      -- Using CATKIN_TEST_RESULTS_DIR: /home/shiyanlou/Code/helloros/build/test_results








      -- Found gmock sources under '/usr/src/gmock': gmock will be built








      -- Looking for pthread.h








      -- Looking for pthread.h - found








      -- Looking for pthread_create








      -- Looking for pthread_create - not found








      -- Looking for pthread_create in pthreads








      -- Looking for pthread_create in pthreads - not found








      -- Looking for pthread_create in pthread








      -- Looking for pthread_create in pthread - found








      -- Found Threads: TRUE








      -- Found gtest sources under '/usr/src/gmock': gtests will be built








      -- Using Python nosetests: /usr/bin/nosetests-2.7








      -- catkin 0.7.14








      -- BUILD_SHARED_LIBS is on








      -- ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~








      -- ~~  traversing 1 packages in topological order:








      -- ~~  - helloros








      -- ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~








      -- +++ processing catkin package: 'helloros'








      -- ==> add_subdirectory(helloros)








      -- Configuring done








      -- Generating done








      -- Build files have been written to: /home/shiyanlou/Code/helloros/build








      ####








      #### Running command: "make -j4 -l4" in "/home/shiyanlou/Code/helloros/build"








      ####








      Scanning dependencies of target helloros_node








      [ 50%] Building CXX object helloros/CMakeFiles/helloros_node.dir/src/helloros.cpp.o








      /home/shiyanlou/Code/helloros/src/helloros/src/helloros.cpp: In function \u2018int main(int, char**)\u2019:








      /home/shiyanlou/Code/helloros/src/helloros/src/helloros.cpp:7:2: error: \u2018NodeHandlenh\u2019 is not a member of \u2018ros\u2019








        ros::NodeHandlenh;








        ^








      helloros/CMakeFiles/helloros_node.dir/build.make:62: recipe for target 'helloros/CMakeFiles/helloros_node.dir/src/helloros.cpp.o' failed








      make[2]: *** [helloros/CMakeFiles/helloros_node.dir/src/helloros.cpp.o] Error 1








      CMakeFiles/Makefile2:907: recipe for target 'helloros/CMakeFiles/helloros_node.dir/all' failed








      make[1]: *** [helloros/CMakeFiles/helloros_node.dir/all] Error 2








      Makefile:138: recipe for target 'all' failed








      make: *** [all] Error 2








      Invoking "make -j4 -l4" failed








      shiyanlou:helloros/ $ catkin_make                                     [9:48:42]








      Base path: /home/shiyanlou/Code/helloros








      Source space: /home/shiyanlou/Code/helloros/src








      Build space: /home/shiyanlou/Code/helloros/build








      Devel space: /home/shiyanlou/Code/helloros/devel








      Install space: /home/shiyanlou/Code/helloros/install








      ####








      #### Running command: "make cmake_check_build_system" in "/home/shiyanlou/Code/helloros/build"








      ####








      ####








      #### Running command: "make -j4 -l4" in "/home/shiyanlou/Code/helloros/build"








      ####








      Scanning dependencies of target helloros_node








      [ 50%] Building CXX object helloros/CMakeFiles/helloros_node.dir/src/helloros.cpp.o








      [100%] Linking CXX executable /home/shiyanlou/Code/helloros/devel/lib/helloros/helloros_node








      [100%] Built target helloros_node








      shiyanlou:helloros/ $ source devel/setup.zsh                          [9:49:29]








      shiyanlou:helloros/ $ rosrun helloros helloros_node                   [9:49:50]








      terminate called after throwing an instance of 'ros::InvalidNameException'








        what():  Character [ ] is not valid as the first character in Graph Resource Name [ hello_ros ].  Valid characters are a-z, A-Z, / and in some cases ~.








      [1]    2109 abort (core dumped)  rosrun helloros helloros_node








      shiyanlou:helloros/ $ rosrun helloros helloros_node                   [9:50:11]








      terminate called after throwing an instance of 'ros::InvalidNameException'








        what():  Character [ ] is not valid as the first character in Graph Resource Name [ hello_ros ].  Valid characters are a-z, A-Z, / and in some cases ~.








      [1]    2121 abort (core dumped)  rosrun helloros helloros_node








      shiyanlou:helloros/ $ catkin_make                                     [9:50:27]








      Base path: /home/shiyanlou/Code/helloros








      Source space: /home/shiyanlou/Code/helloros/src








      Build space: /home/shiyanlou/Code/helloros/build








      Devel space: /home/shiyanlou/Code/helloros/devel








      Install space: /home/shiyanlou/Code/helloros/install








      ####








      #### Running command: "make cmake_check_build_system" in "/home/shiyanlou/Code/helloros/build"








      ####








      ####








      #### Running command: "make -j4 -l4" in "/home/shiyanlou/Code/helloros/build"








      ####








      Scanning dependencies of target helloros_node








      [ 50%] Building CXX object helloros/CMakeFiles/helloros_node.dir/src/helloros.cpp.o








      [100%] Linking CXX executable /home/shiyanlou/Code/helloros/devel/lib/helloros/helloros_node








      [100%] Built target helloros_node








      shiyanlou:helloros/ $ source devel/setup.zsh                          [9:51:22]








      shiyanlou:helloros/ $ rosrun helloros helloros_node                   [9:51:33]








      [ INFO] [1648173097.607466664]: Hello, ROS!








      shiyanlou:helloros/ $ catkin_make                                     [9:51:37]








      Base path: /home/shiyanlou/Code/helloros








      Source space: /home/shiyanlou/Code/helloros/src








      Build space: /home/shiyanlou/Code/helloros/build








      Devel space: /home/shiyanlou/Code/helloros/devel








      Install space: /home/shiyanlou/Code/helloros/install








      ####








      #### Running command: "make cmake_check_build_system" in "/home/shiyanlou/Code/helloros/build"








      ####








      ####








      #### Running command: "make -j4 -l4" in "/home/shiyanlou/Code/helloros/build"








      ####








      Scanning dependencies of target helloros_node








      [ 50%] Building CXX object helloros/CMakeFiles/helloros_node.dir/src/helloros.cpp.o








      [100%] Linking CXX executable /home/shiyanlou/Code/helloros/devel/lib/helloros/helloros_node








      [100%] Built target helloros_node








      shiyanlou:helloros/ $ rosrun helloros helloros_node                   [9:52:34]








      [ INFO] [1648173164.205589203]: Hello nihao, ROS!








      shiyanlou:helloros/ $                                                 [9:52:44]









      shiyanlou:~/ $ history                                               [11:37:17]








          1  git clone https://gitcode.net/ZhangRelay/v-rep_pro_edu_v3_6_2_ubuntu16_04.git








          2  tar








          3  tar --help








          4  tar --usage








          5  tar -xf v-rep_pro_edu_v3_6_2_ubuntu16_04/V-REP_PRO_EDU_V3_6_2_Ubuntu16_04.tar.xz








          6  cd V-REP_PRO_EDU_V3_6_2_Ubuntu16_04








          7  ls








          8  gedit vrep.sh








          9  vrep.sh








         10  ./vrep.sh








         11  roscore








         12  rosrun turtlesim turtlesim_node








         13  rosrun turtlesim turtle_teleop_key








         14  rosrun turtlesim turtlesim_node








         15  rospack list








         16  catkin_create_pkg








         17  catkin_create_pkg -h








         18  catkin_create_pkg helloros








         19  catkin_create_pkg -h








         20  catkin_create_pkg helloros roscpp








         21  cd helloros/src








         22  ls








         23  gedit helloros.cpp








         24  ls








         25  cd ..








         26  l








         27  cd ..








         28  catkin_make








         29  source devel/setup.zsh








         30  roscore








         31  rosrun helloros helloros_node








         32  catkin_make








         33  source devel/setup.zsh








         34  rosrun helloros helloros_node








         35  catkin_make








         36  rosrun helloros helloros_node








      shiyanlou:~/ $                                                       [11:37:20]

文章来源: zhangrelay.blog.csdn.net，作者：zhangrelay，版权归原作者所有，如需转载，请联系作者。

原文链接：zhangrelay.blog.csdn.net/article/details/123731254

点赞
收藏
关注作者

0/1000

抱歉，系统识别当前为高风险访问，暂不支持该操作

全部回复

上滑加载中

设置昵称

在此一键设置昵称，即可参与社区互动！

*长度不超过10个汉字或20个英文字符，设置后3个月内不可修改。

确认取消

加入云驻计划，成为创作者

华为云周边好礼
免费体验产品
特殊身份标识
线下官方门票
内部专家零距离
与10000+优质创作者共同成长

立即加入

蓝桥ROS机器人之第一个功能包helloros

全部回复

设置昵称

关于作者

目录

加入云驻计划，成为创作者

蓝桥ROS机器人之第一个功能包helloros

全部回复

设置昵称

关于作者

目录

加入云驻计划，成为创作者

推荐阅读

相关产品
