机器人工程毕业设计☞开源学习（扫地）

机器人工程毕业设计☞区域覆盖（扫地）

提及一个中文案例，非常好的案例。

这里存到如下位置：

zhangrelay / turtlebot3_cleaner · GitCode

功能包配置：

sudo apt install ros-noetic-turtlebot3 ros-noetic-navigation ros-noetic-dwa-local-planner ros-noetic-slam-karto

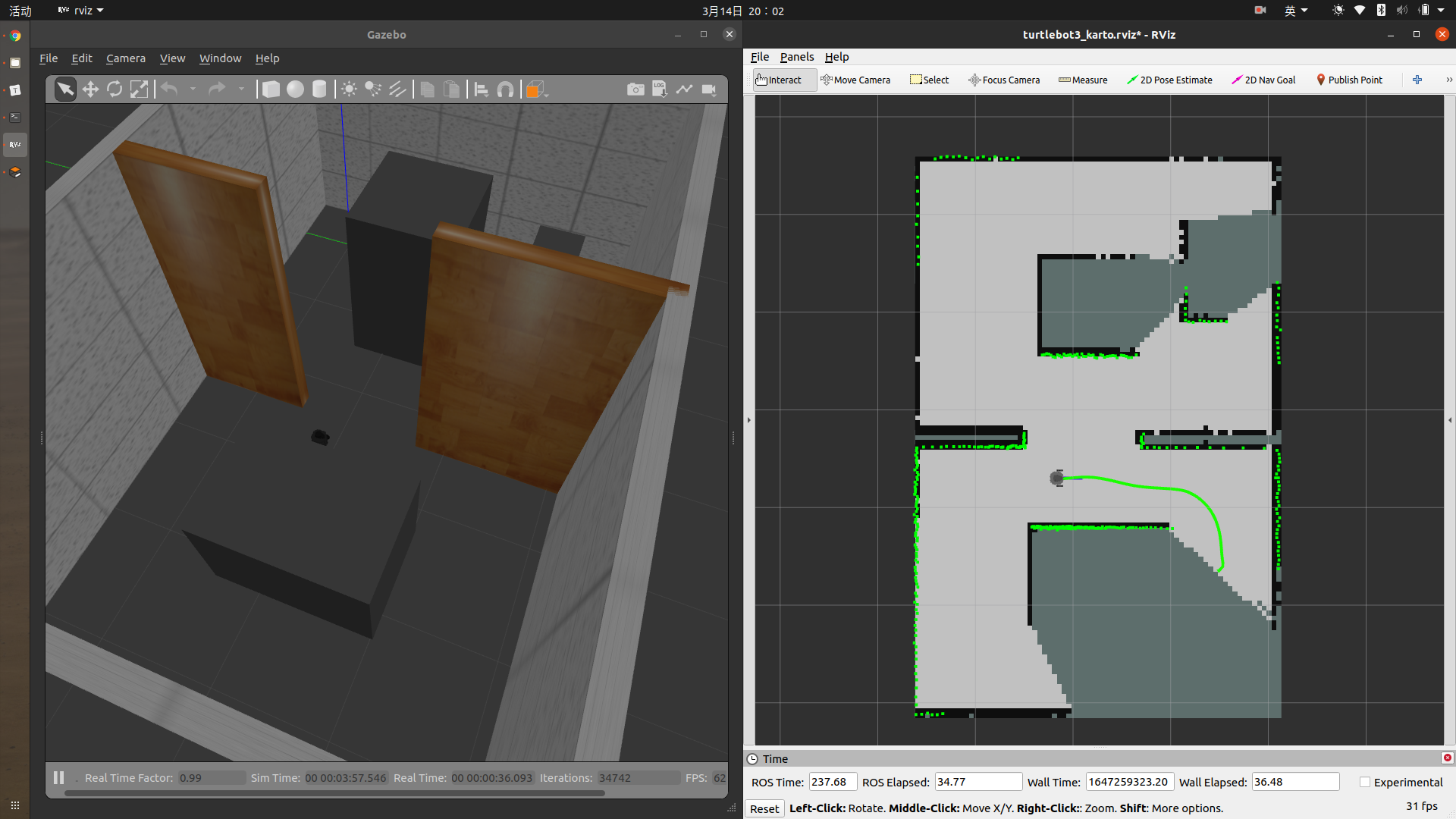

roslaunch clean_robot auto_slam.launch























      <?xml version="1.0"?>





















      <launch>









































  <!-- <arg name="slam_methods" default="karto" doc="slam type [gmapping, cartographer, hector, karto, frontier_exploration]"/> -->




















  <arg name="model" value="burger" doc="model type [burger, waffle, waffle_pi]"/>




















  <arg name="configuration_basename" default="turtlebot3_lds_2d.lua"/>




















  <arg name="open_rviz" default="true"/>




















  <include file="$(find turtlebot3_bringup)/launch/turtlebot3_remote.launch">




















    <arg name="model" value="$(arg model)" />




















  </include>




















  <!-- 启动仿真环境 -->




















  <include file="$(find clean_robot)/launch/gazebo.launch"/>









































  <!-- SLAM: Gmapping, Cartographer, Hector, Karto, Frontier_exploration, RTAB-Map -->




















  <include file="$(find turtlebot3_slam)/launch/turtlebot3_karto.launch">




















    <arg name="model" value="$(arg model)"/>




















    <arg name="configuration_basename" value="$(arg configuration_basename)"/>




















  </include>









































  <!-- 启动 rviz 的标签 -->




















  <group if="$(arg open_rviz)">




















    <node pkg="rviz" type="rviz" name="rviz" required="true" args="-d $(find clean_robot)/rviz/turtlebot3_karto.rviz"/>




















  </group>




















  <!-- 通过导航来实现自动建图 -->




















  <include file="$(find clean_robot)/launch/move_base.launch">




















  <arg name="model" value="$(arg model)" />




















  </include>




















    <!-- 自动探索 -->




















  <node pkg="explore_lite" type="explore" respawn="false" name="explore" output="screen">




















  <param name="robot_base_frame" value="base_link"/>




















  <param name="costmap_topic" value="map"/>




















  <param name="costmap_updates_topic" value="map_updates"/>




















  <param name="visualize" value="true"/>




















  <param name="planner_frequency" value="0.33"/>




















  <param name="progress_timeout" value="50.0"/>




















  <param name="potential_scale" value="3.0"/>




















  <param name="orientation_scale" value="0.0"/>




















  <param name="gain_scale" value="1.0"/>




















  <param name="transform_tolerance" value="0.3"/>




















  <param name="min_frontier_size" value="0.6"/>





















      </node>





















      <!-- 键盘操作 -->




















  <!-- <node pkg="turtlebot3_teleop" type="turtlebot3_teleop_key" name="turtlebot3_teleop_key" launch-prefix="xterm -e" output="screen"/> -->










































      </launch>

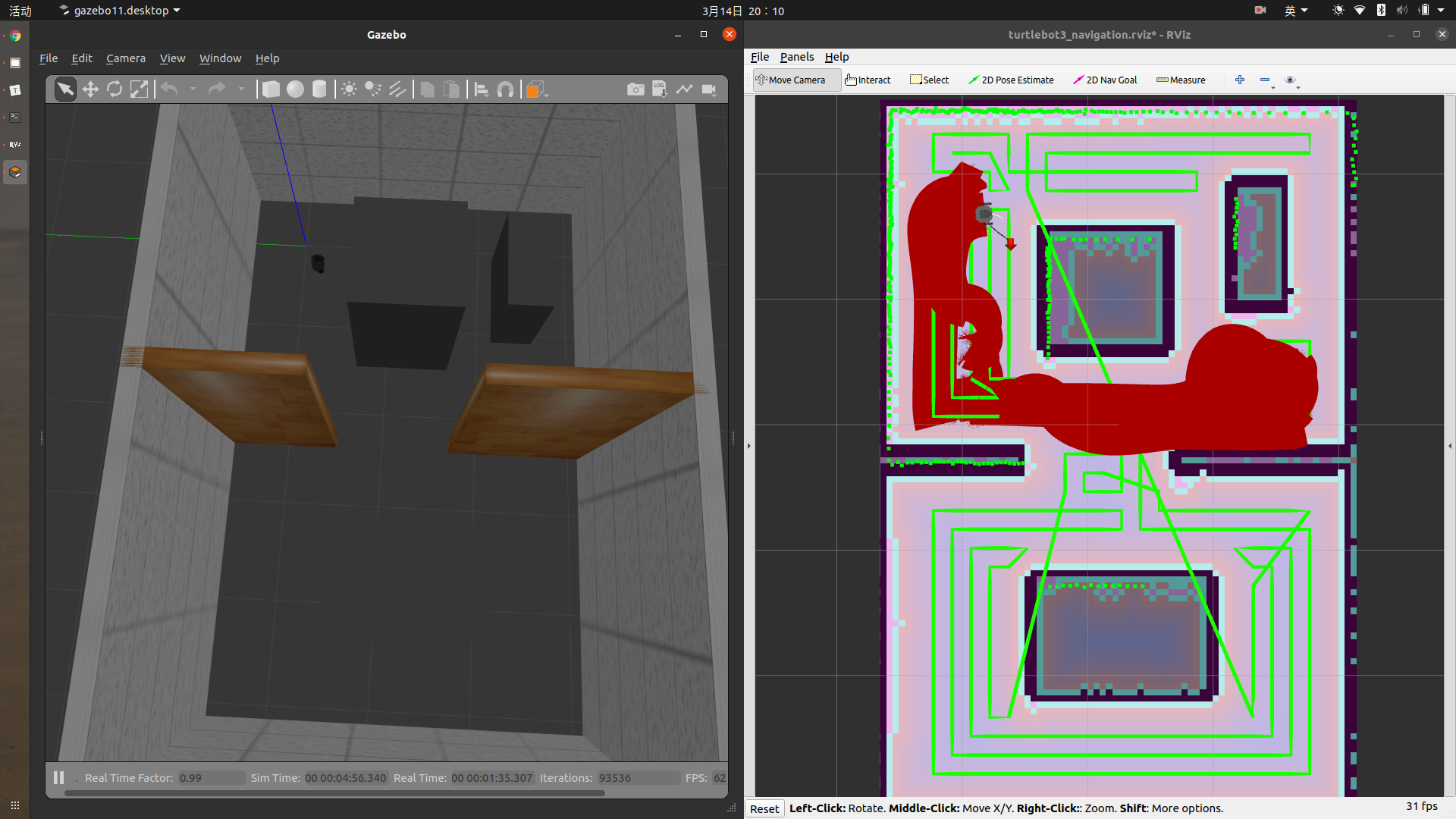

roslaunch clean_robot clean_work.launch























      <?xml version="1.0"?>





















      <launch>




















    <arg name="model" value="burger" doc="model type [burger, waffle, waffle_pi]"/>




















    <arg name="configuration_basename" default="turtlebot3_lds_2d.lua"/>




















    <arg name="open_rviz" default="true"/>




















    <!-- 启动仿真环境 -->




















    <include file="$(find turtlebot3_bringup)/launch/turtlebot3_remote.launch">




















        <arg name="model" value="$(arg model)" />




















    </include>




















    <include file="$(find clean_robot)/launch/gazebo.launch"/>




















    <!-- 启动导航系统，用作目标点路径规划，实现躲避小障碍物-->




















    <include file="$(find clean_robot)/launch/turtlebot3_navigation.launch">




















        <arg name="model" value="$(arg model)" />




















    </include>




















    <!-- 清扫路径规划器 -->




















    <node pkg="clean_robot" type="path_planning_node" respawn="false" name="path_planning_node" output="screen" clear_params="true">




















        <rosparam file="$(find clean_robot)/config/costmap_common_params.yaml" command="load" ns="cleaning_costmap" />




















        <rosparam file="$(find clean_robot)/config/cleaning_costmap_params.yaml" command="load" />




















    </node>




















    <!-- 根据清扫的路径向导航系统发送目标点位 -->




















    <!-- 设定距离当前目标点多进时候发布下一个目标点 -->




















    <param name="/NextGoal/tolerance_goal" value="0.25" />




















    <node pkg="clean_robot" type="next_goal" respawn="true" name="next_goal" output="screen" />





















      </launch>









1. 请仔细阅读源码进行学习。
2. 完成蓝桥ROS课程（初级+中级）

文章来源: zhangrelay.blog.csdn.net，作者：zhangrelay，版权归原作者所有，如需转载，请联系作者。

原文链接：zhangrelay.blog.csdn.net/article/details/123486706
