python复杂网络 学习笔记

networkx库

pip install --upgrade networkx

点和边示例：














      import networkx as nx













      import matplotlib.pyplot as plt













      G = nx.Graph()  #初始化一个图













      G.add_node('a')













      G.add_node('b')













      G.add_node('c')













      G.add_node('d')













      G.add_node('e')













      G.add_edge('a','b') #连接a、b得到ab边













      G.add_edge('a','d')













      G.add_edge('a','e')













      G.add_edge('a','c')













      nx.draw(G,with_labels=True)













      plt.show()





规则图：














      import networkx as nx


























      import matplotlib.pyplot as plt


























      RG = nx.random_graphs.random_regular_graph(3,20)  #生成包含20个节点、每个节点有3个邻居的规则图RG


























      pos = nx.spectral_layout(RG)          #定义一个布局，此处采用了spectral布局方式，后变还会介绍其它布局方式，注意图形上的区别


























      nx.draw(RG,pos,with_labels=False,node_size = 30)  #绘制规则图的图形，with_labels决定节点是非带标签(编号)，node_size是节点的直径


























      plt.show()  #显示图形





无向图示例：














      import networkx as nx


























      import matplotlib.pyplot as plt

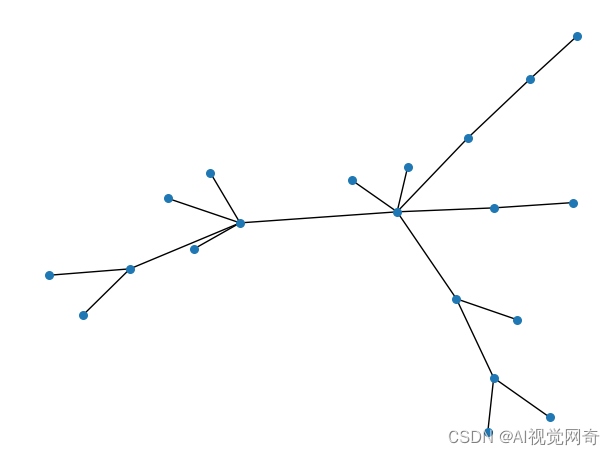

      # BA scale-free degree network


























      # generalize BA network which has 20 nodes, m = 1


























      BA = nx.random_graphs.barabasi_albert_graph(20, 1)


























      # spring layout


























      pos = nx.spring_layout(BA)


























      nx.draw(BA, pos, with_labels = False, node_size = 30)


























      plt.show()


















      # 导入相关依赖













      from matplotlib import pyplot as plt













      import networkx as nx













      import numpy as np

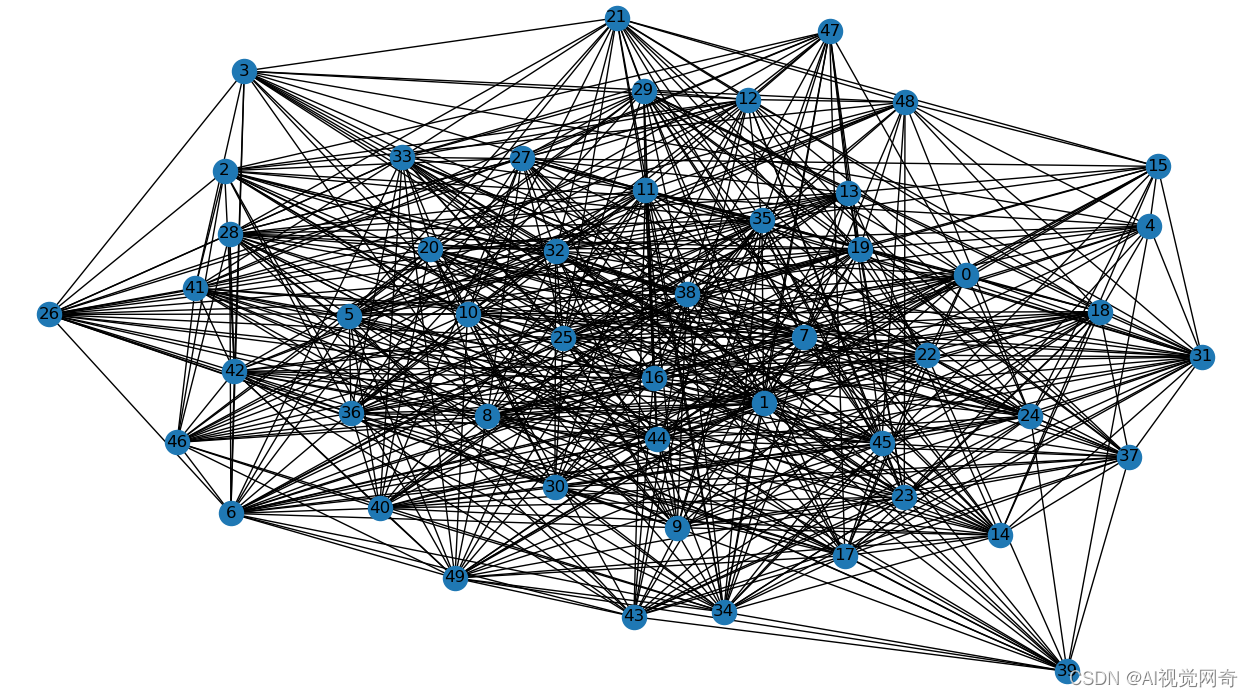

      # 生成随机数据













      G = nx.erdos_renyi_graph(50,0.5)


























      # 指定画布大小













      plt.figure(figsize=(18,18))


























      # 生成新的图













      G_new = nx.Graph()


























      # 依据图中边的数量，生成同样长度的随机权重值













      weightList = {}













      for i in range(len(G.edges())+1):













          weightList[i] = np.random.rand()


























      # 将生成的随机权重复制给G_new图













      i = 0













      for edge in G.edges():













          i += 1













          G_new.add_edges_from([(edge[0], edge[1], {'weight': weightList[i]})])













      # 绘制G_new图













      nx.draw_networkx(G_new)













      plt.show()
