 目录

摘要

Albumentations 的 pip 安装

基准测试结果

Spatial-level transforms(空间层次转换)

支持的列表

简单的使用案例

详细使用案例

VerticalFlip 围绕X轴垂直翻转输入。

Blur模糊输入图像

HorizontalFlip 围绕y轴水平翻转输入

Flip水平,垂直或水平和垂直翻转输入。

Transpose, 通过交换行和列来转置输入。

RandomCrop 随机裁剪

 RandomGamma 随机灰度系数

RandomRotate90 将输入随机旋转90度,N次

ShiftScaleRotate 随机平移,缩放和旋转输入。

CenterCrop 裁剪图像的中心部分

GridDistortion网格失真

ElasticTransform 弹性变换

RandomGridShuffle把图像切成网格单元随机排列。

HueSaturationValue随机更改图像的颜色,饱和度和值。

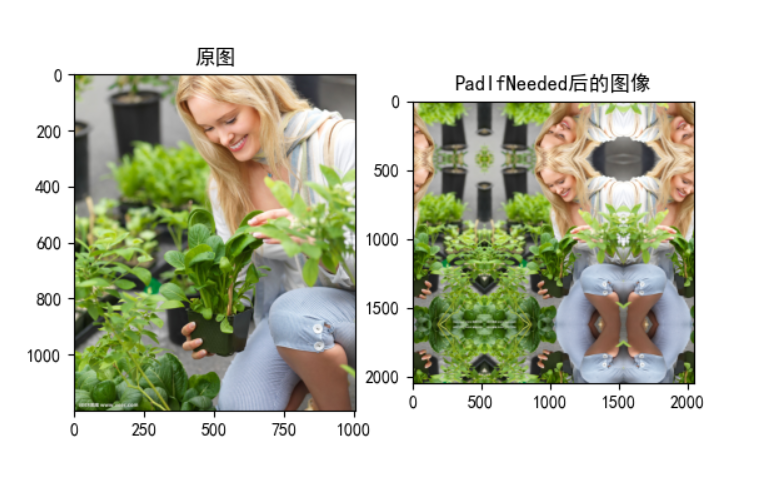

PadIfNeeded 填充图像

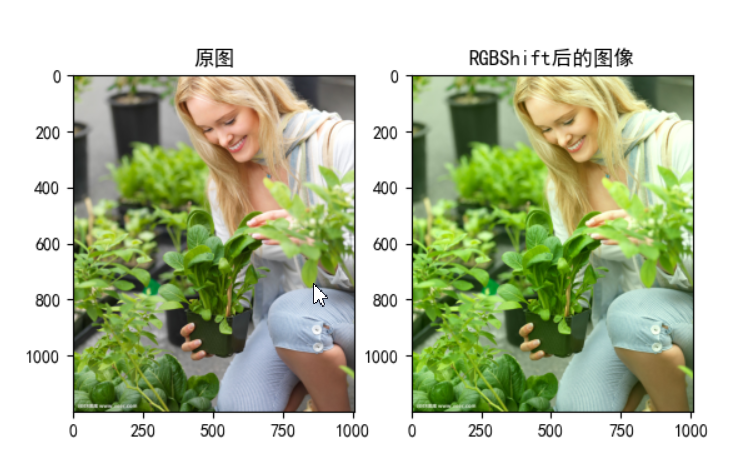

RGBShift,对图像RGB的每个通道随机移动值。

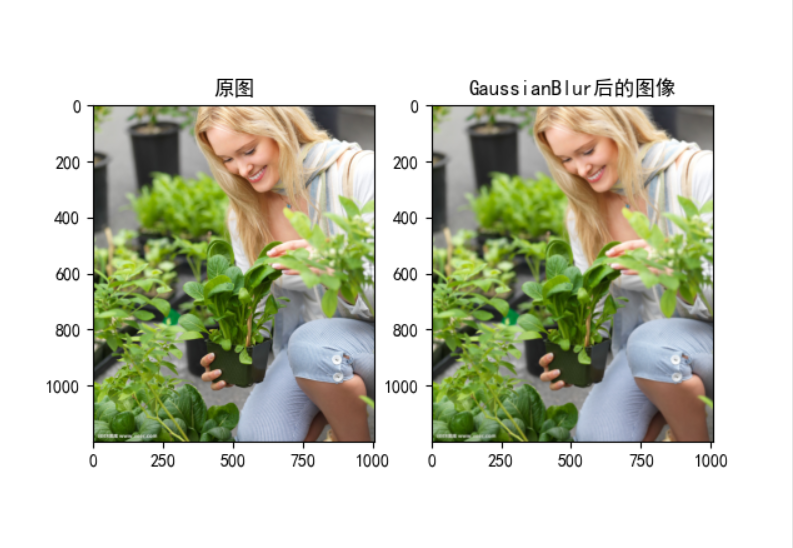

GaussianBlur 使用随机核大小的高斯滤波器对图像进行模糊处理

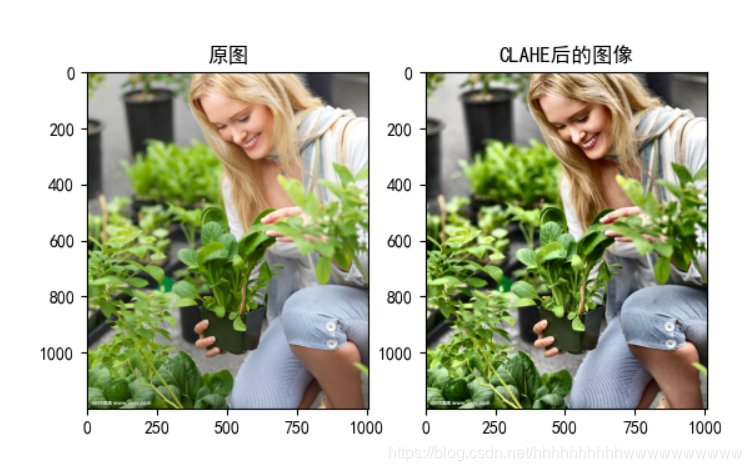

CLAHE自适应直方图均衡

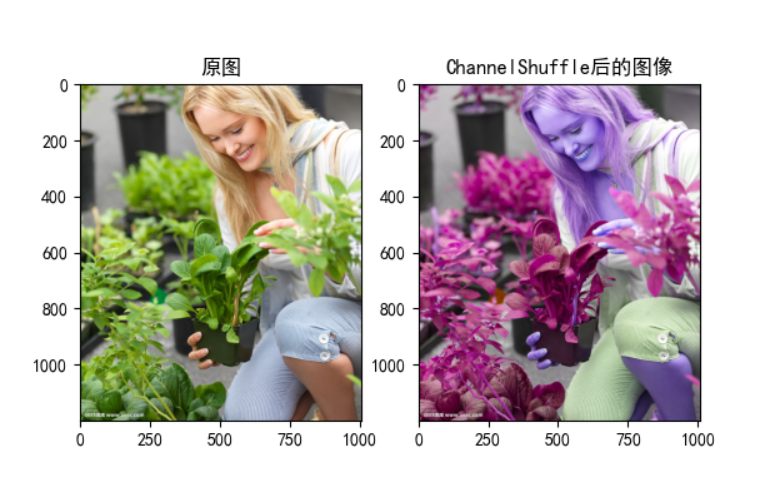

ChannelShuffle随机重新排列输入RGB图像的通道。

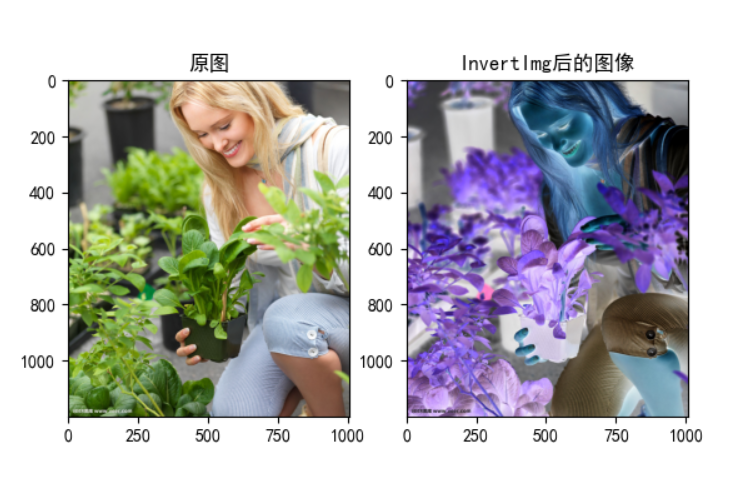

InvertImg反色

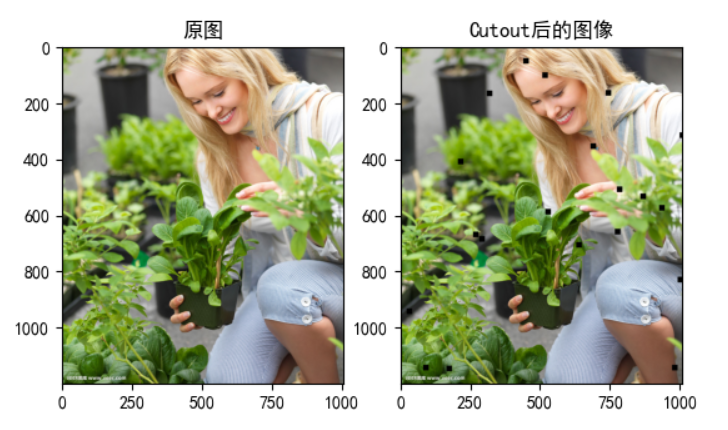

Cutout 随机擦除

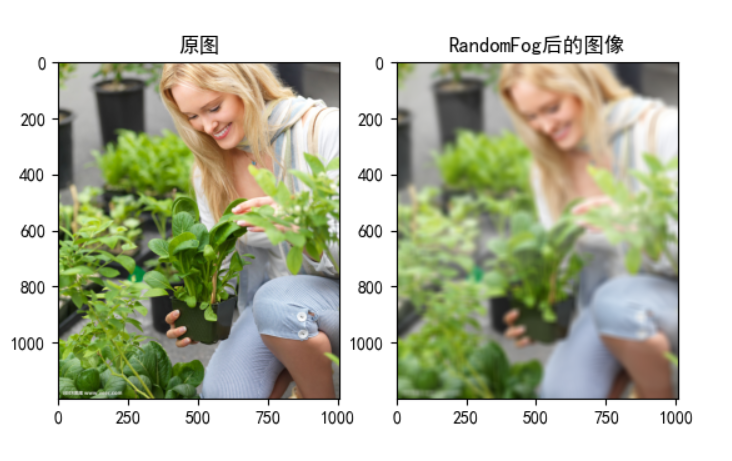

RandomFog随机雾化

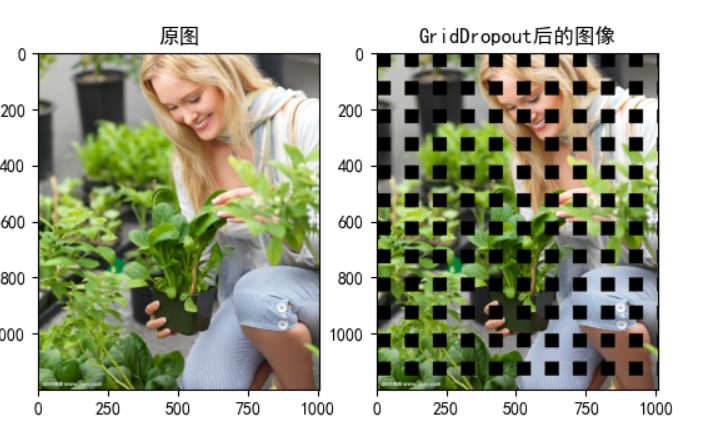

GridDropout网格擦除


摘要

albumentations包是一种针对数据增强专门写的API,里面基本包含大量的数据增强手段,其特点:

1Albumentations支持所有常见的计算机视觉任务,如分类、语义分割、实例分割、目标检测和姿态估计。

2、该库提供了一个简单统一的API,用于处理所有数据类型:图像(rbg图像、灰度图像、多光谱图像)、分割掩码、边界框和关键点。

3、该库包含70多种不同的增强功能,可以从现有数据中生成新的训练样本。

4Albumentations快。我们对每个新版本进行基准测试,以确保增强功能提供最大的速度。

5、它与流行的深度学习框架(PyTorchTensorFlow)一起工作。顺便说一下,AlbumentationsPyTorch生态系统的一部分。

6、由专家写的。作者既有生产计算机视觉系统的工作经验,也有参与竞争性机器学习的经验。许多核心团队成员是Kaggle MastersGrandmasters

7、该库广泛应用于工业、深度学习研究、机器学习竞赛和开源项目。

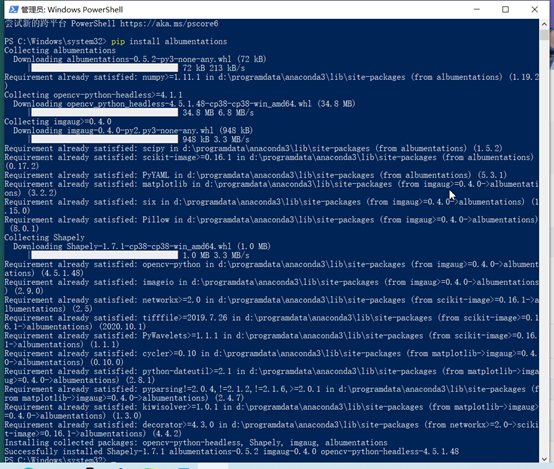

Albumentations 的 pip 安装

pip install albumentations

基准测试结果

测试使用ImageNet验证集的前2000张图像在Intel Xeon Gold 6140 CPU运行基准测试的结果。所有输出都被转换为带有np的连续NumPy数组。uint8数据类型。表格显示了在单个核上每秒可以处理的图像数量;高越好。


albumentations
0.5.0
imgaug
0.4.0
torchvision (Pillow-SIMD backend)
0.7.0
keras
2.4.3
augmentor
0.2.8
solt
0.1.9
HorizontalFlip 9909 2821 2267 873 2301 6223
VerticalFlip 4374 2218 1952 4339 1968 3562
Rotate 371 296 163 27 60 345
ShiftScaleRotate 635 437 147 28 - -
Brightness 2751 1178 419 229 418 2300
Contrast 2756 1213 352 - 348 2305
BrightnessContrast 2738 699 195 - 193 1179
ShiftRGB 2757 1176 - 348 - -
ShiftHSV 597 284 58 - - 137
Gamma 2844 - 382 - - 946
Grayscale 5159 428 709 - 1064 1273
RandomCrop64 175886 3018 52103 - 41774 20732
PadToSize512 3418 - 574 - - 2874
Resize512 1003 634 1036 - 1016 977
RandomSizedCrop_64_512 3191 939 1594 - 1529 2563
Posterize 2778 - - - - -
Solarize 2762 - - - - -
Equalize 644 413 - - 735 -
Multiply 2727 1248 - - - -
MultiplyElementwise 118 209 - - - -
ColorJitter 368 78 57 - - -

Python and library versions: Python 3.8.6 (default, Oct 13 2020, 20:37:26) [GCC 8.3.0], numpy 1.19.2, pillow-simd 7.0.0.post3, opencv-python 4.4.0.44, scikit-image 0.17.2, scipy 1.5.2.

Spatial-level transforms(空间层次转换)

空间级转换将同时改变输入图像和附加目标,如掩模、边界框和关键点。下表显示了每个转换支持哪些附加目标。

Transform Image Masks BBoxes Keypoints
Affine
CenterCrop
CoarseDropout
Crop
CropAndPad
CropNonEmptyMaskIfExists
ElasticTransform
Flip
GridDistortion
GridDropout
HorizontalFlip
IAAAffine
IAAPiecewiseAffine
Lambda
LongestMaxSize
MaskDropout
NoOp
OpticalDistortion
PadIfNeeded
Perspective
RandomCrop
RandomCropNearBBox
RandomGridShuffle
RandomResizedCrop
RandomRotate90
RandomScale
RandomSizedBBoxSafeCrop
RandomSizedCrop
Resize
Rotate
SafeRotate
ShiftScaleRotate
SmallestMaxSize
Transpose
VerticalFlip

支持的列表

简单的使用案例

import albumentations as A
import cv2

import matplotlib.pyplot as plt

# Declare an augmentation pipeline
transform = A.Compose([
    A.RandomCrop(width=512, height=512),
    A.HorizontalFlip(p=0.8),
    A.RandomBrightnessContrast(p=0.5),
])

# Read an image with OpenCV and convert it to the RGB colorspace
image = cv2.imread("aa.jpg")
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)

# Augment an image
transformed = transform(image=image)
transformed_image = transformed["image"]
plt.imshow(transformed_image)
plt.show()

原始图像:

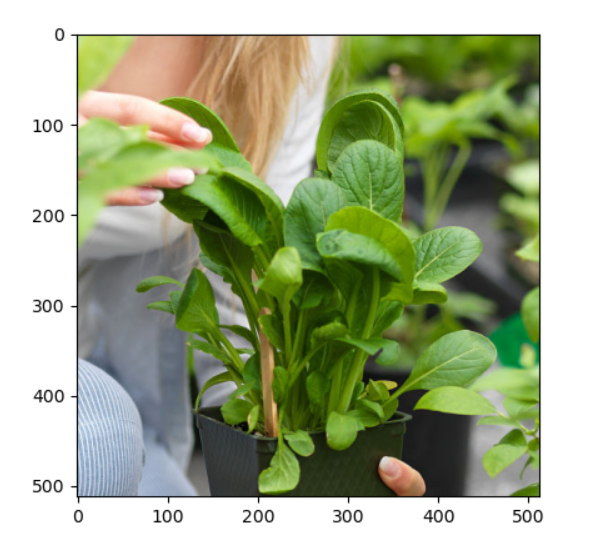

运行结果:



详细使用案例

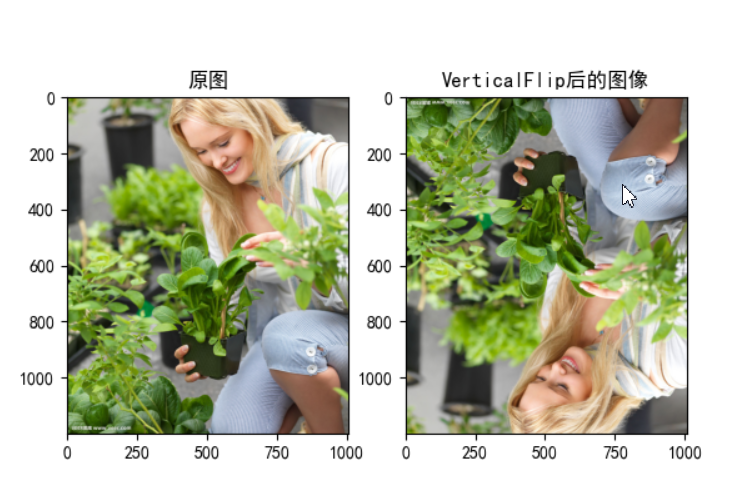

  • VerticalFlip 围绕X轴垂直翻转输入。

import albumentations as A
import cv2
import numpy as np
import matplotlib.pyplot as plt
#解决中文显示问题
plt.rcParams['font.sans-serif']=['SimHei']
plt.rcParams['axes.unicode_minus'] = False
# Read an image with OpenCV and convert it to the RGB colorspace
image = cv2.imread("aa.jpg")
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
# Augment an image
transformed = A.VerticalFlip(always_apply=False, p=1)(image=image)
transformed_image = transformed["image"]
plt.subplot(1, 2, 1)
plt.title('原图')   #第一幅图片标题
plt.imshow(image)
plt.subplot(1, 2, 2)
plt.title('Blur后的图像')
plt.imshow(transformed_image)
plt.show()

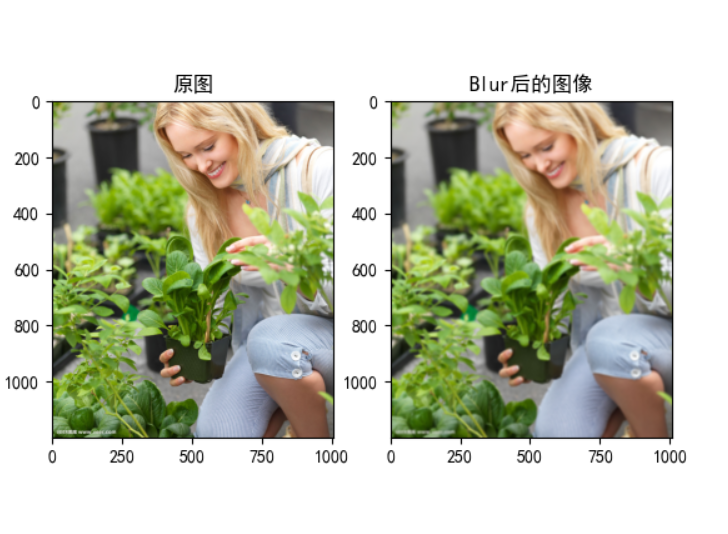

  • Blur模糊输入图像

import albumentations as A
import cv2
import numpy as np
import matplotlib.pyplot as plt
#解决中文显示问题
plt.rcParams['font.sans-serif']=['SimHei']
plt.rcParams['axes.unicode_minus'] = False
# Read an image with OpenCV and convert it to the RGB colorspace
image = cv2.imread("aa.jpg")
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
# Augment an image
transformed = A.Blur(blur_limit=15,always_apply=False, p=1)(image=image)
transformed_image = transformed["image"]
plt.subplot(1, 2, 1)
plt.title('原图')   #第一幅图片标题
plt.imshow(image)
plt.subplot(1, 2, 2)
plt.title('Blur后的图像')
plt.imshow(transformed_image)
plt.show()


  • HorizontalFlip 围绕y轴水平翻转输入

import albumentations as A
import cv2
import numpy as np
import matplotlib.pyplot as plt
#解决中文显示问题
plt.rcParams['font.sans-serif']=['SimHei']
plt.rcParams['axes.unicode_minus'] = False
# Read an image with OpenCV and convert it to the RGB colorspace
image = cv2.imread("aa.jpg")
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
# Augment an image
transformed = A.HorizontalFlip(always_apply=False, p=1)(image=image)
transformed_image = transformed["image"]
plt.subplot(1, 2, 1)
plt.title('原图')   #第一幅图片标题
plt.imshow(image)
plt.subplot(1, 2, 2)
plt.title('HorizontalFlip后的图像')
plt.imshow(transformed_image)
plt.show()

运行结果:

  • Flip水平,垂直或水平和垂直翻转输入。

import albumentations as A
import cv2
import numpy as np
import matplotlib.pyplot as plt
#解决中文显示问题
plt.rcParams['font.sans-serif']=['SimHei']
plt.rcParams['axes.unicode_minus'] = False
# Read an image with OpenCV and convert it to the RGB colorspace
image = cv2.imread("aa.jpg")
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
# Augment an image
transformed = A.Flip(always_apply=False, p=1)(image=image)
transformed_image = transformed["image"]
plt.subplot(1, 2, 1)
plt.title('原图')   #第一幅图片标题
plt.imshow(image)
plt.subplot(1, 2, 2)
plt.title('Flip后的图像')
plt.imshow(transformed_image)
plt.show()

运行结果有一定的随机性,如下图:

  • Transpose, 通过交换行和列来转置输入。

import albumentations as A
import cv2
import numpy as np
import matplotlib.pyplot as plt
#解决中文显示问题
plt.rcParams['font.sans-serif']=['SimHei']
plt.rcParams['axes.unicode_minus'] = False
# Read an image with OpenCV and convert it to the RGB colorspace
image = cv2.imread("aa.jpg")
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
# Augment an image
transformed = A.Transpose(always_apply=False, p=1)(image=image)
transformed_image = transformed["image"]
plt.subplot(1, 2, 1)
plt.title('原图')   #第一幅图片标题
plt.imshow(image)
plt.subplot(1, 2, 2)
plt.title('Transpose后的图像')
plt.imshow(transformed_image)
plt.show()

 运行结果:

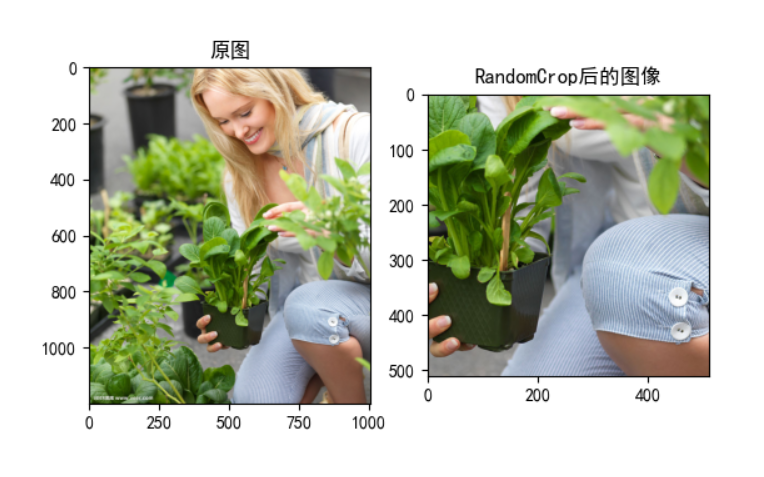

  • RandomCrop 随机裁剪

import albumentations as A
import cv2
import numpy as np
import matplotlib.pyplot as plt
#解决中文显示问题
plt.rcParams['font.sans-serif']=['SimHei']
plt.rcParams['axes.unicode_minus'] = False
# Read an image with OpenCV and convert it to the RGB colorspace
image = cv2.imread("aa.jpg")
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
# Augment an image
transformed = A.RandomCrop(512, 512,always_apply=False, p=1)(image=image)
transformed_image = transformed["image"]
plt.subplot(1, 2, 1)
plt.title('原图')   #第一幅图片标题
plt.imshow(image)
plt.subplot(1, 2, 2)
plt.title('RandomCrop后的图像')
plt.imshow(transformed_image)
plt.show()

运行结果:

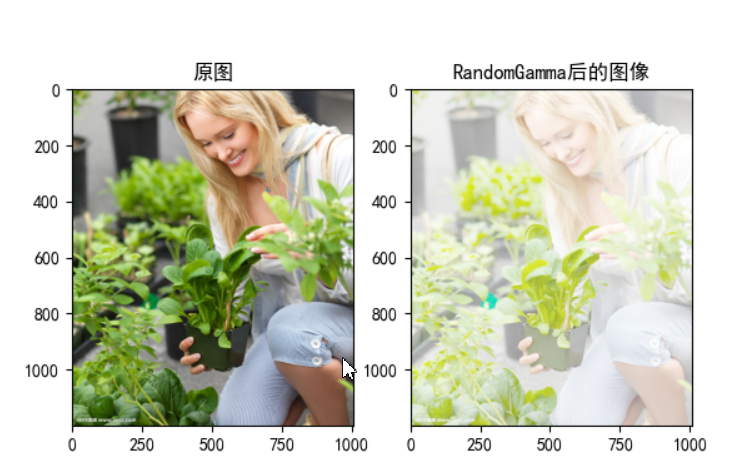

  •  RandomGamma 随机灰度系数

import albumentations as A
import cv2
import numpy as np
import matplotlib.pyplot as plt
#解决中文显示问题
plt.rcParams['font.sans-serif']=['SimHei']
plt.rcParams['axes.unicode_minus'] = False
# Read an image with OpenCV and convert it to the RGB colorspace
image = cv2.imread("aa.jpg")
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
# Augment an image
transformed = A.RandomGamma(gamma_limit=(20, 20), eps=None, always_apply=False, p=1)(image=image)
transformed_image = transformed["image"]
plt.subplot(1, 2, 1)
plt.title('原图')   #第一幅图片标题
plt.imshow(image)
plt.subplot(1, 2, 2)
plt.title('RandomGamma后的图像')
plt.imshow(transformed_image)
plt.show()

运行结果:

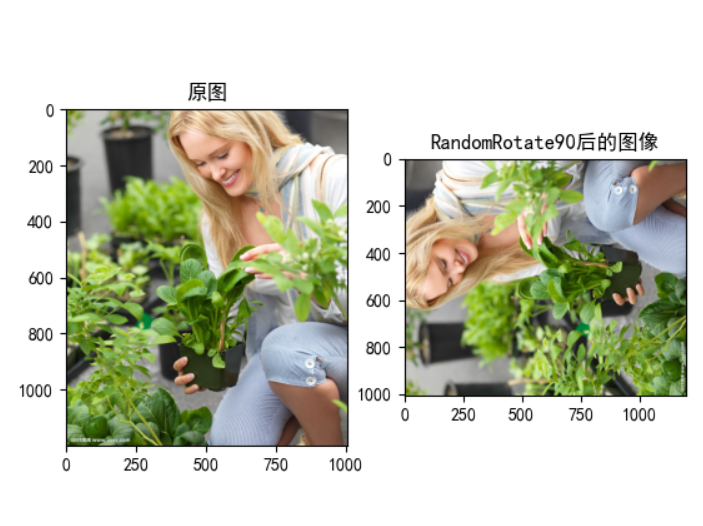

  • RandomRotate90 将输入随机旋转90度,N次

import albumentations as A
import cv2
import numpy as np
import matplotlib.pyplot as plt
#解决中文显示问题
plt.rcParams['font.sans-serif']=['SimHei']
plt.rcParams['axes.unicode_minus'] = False
# Read an image with OpenCV and convert it to the RGB colorspace
image = cv2.imread("aa.jpg")
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
# Augment an image
transformed = A.RandomRotate90(always_apply=False, p=1)(image=image)
transformed_image = transformed["image"]
plt.subplot(1, 2, 1)
plt.title('原图')   #第一幅图片标题
plt.imshow(image)
plt.subplot(1, 2, 2)
plt.title('RandomRotate90后的图像')
plt.imshow(transformed_image)
plt.show()

运行结果:

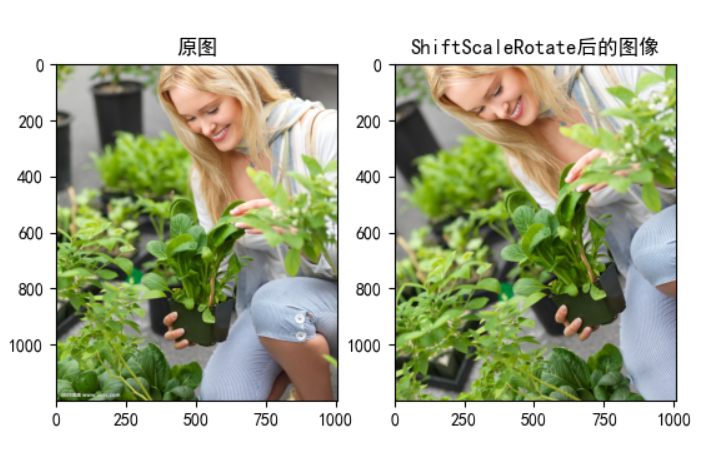

  • ShiftScaleRotate 随机平移,缩放和旋转输入。

import albumentations as A
import cv2
import numpy as np
import matplotlib.pyplot as plt
#解决中文显示问题
plt.rcParams['font.sans-serif']=['SimHei']
plt.rcParams['axes.unicode_minus'] = False
# Read an image with OpenCV and convert it to the RGB colorspace
image = cv2.imread("aa.jpg")
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
# Augment an image
transformed = A.ShiftScaleRotate(shift_limit=0.0625, scale_limit=0.1, rotate_limit=45, interpolation=1, border_mode=4, value=None, mask_value=None, always_apply=False, p=1)(image=image)
transformed_image = transformed["image"]
plt.subplot(1, 2, 1)
plt.title('原图')   #第一幅图片标题
plt.imshow(image)
plt.subplot(1, 2, 2)
plt.title('ShiftScaleRotate后的图像')
plt.imshow(transformed_image)
plt.show()

运行结果:

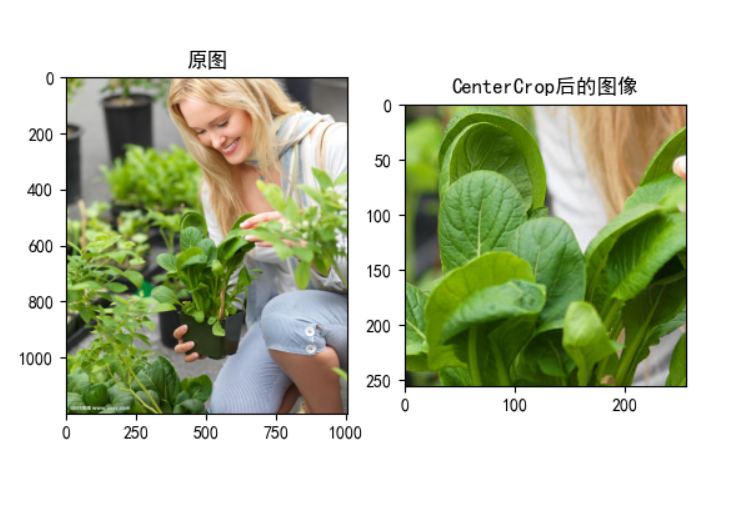

  • CenterCrop 裁剪图像的中心部分

import albumentations as A
import cv2
import numpy as np
import matplotlib.pyplot as plt

# 解决中文显示问题
plt.rcParams['font.sans-serif'] = ['SimHei']
plt.rcParams['axes.unicode_minus'] = False
# Read an image with OpenCV and convert it to the RGB colorspace
image = cv2.imread("aa.jpg")
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
# Augment an image
transformed = A.CenterCrop(256, 256, always_apply=False, p=1)(image=image)
transformed_image = transformed["image"]
plt.subplot(1, 2, 1)
plt.title('原图')  # 第一幅图片标题
plt.imshow(image)
plt.subplot(1, 2, 2)
plt.title("CenterCrop后的图像")
plt.imshow(transformed_image)
plt.show()

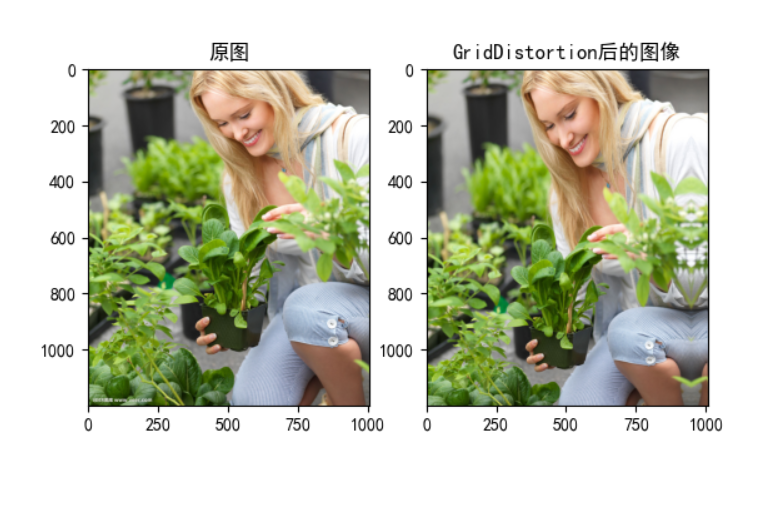

  • GridDistortion网格失真

import albumentations as A
import cv2
import numpy as np
import matplotlib.pyplot as plt

# 解决中文显示问题
plt.rcParams['font.sans-serif'] = ['SimHei']
plt.rcParams['axes.unicode_minus'] = False
# Read an image with OpenCV and convert it to the RGB colorspace
image = cv2.imread("aa.jpg")
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
# Augment an image
transformed = A.GridDistortion(num_steps=10, distort_limit=0.3,border_mode=4, always_apply=False, p=1)(image=image)
transformed_image = transformed["image"]
plt.subplot(1, 2, 1)
plt.title('原图')  # 第一幅图片标题
plt.imshow(image)
plt.subplot(1, 2, 2)
plt.title("GridDistortion后的图像")
plt.imshow(transformed_image)
plt.show()

运行结果:

  • ElasticTransform 弹性变换

  • import albumentations as A
    import cv2
    import numpy as np
    import matplotlib.pyplot as plt

    # 解决中文显示问题
    plt.rcParams['font.sans-serif'] = ['SimHei']
    plt.rcParams['axes.unicode_minus'] = False
    # Read an image with OpenCV and convert it to the RGB colorspace
    image = cv2.imread("aa.jpg")
    image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
    # Augment an image
    transformed = A.ElasticTransform(alpha=5, sigma=50, alpha_affine=50, interpolation=1, border_mode=4,always_apply=False, p=1)(image=image)
    transformed_image = transformed["image"]
    plt.subplot(1, 2, 1)
    plt.title('原图')  # 第一幅图片标题
    plt.imshow(image)
    plt.subplot(1, 2, 2)
    plt.title("ElasticTransform后的图像")
    plt.imshow(transformed_image)
    plt.show()


    运行结果:

  • RandomGridShuffle把图像切成网格单元随机排列。

  • import albumentations as A
    import cv2
    import numpy as np
    import matplotlib.pyplot as plt

    # 解决中文显示问题
    plt.rcParams['font.sans-serif'] = ['SimHei']
    plt.rcParams['axes.unicode_minus'] = False
    # Read an image with OpenCV and convert it to the RGB colorspace
    image = cv2.imread("aa.jpg")
    image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
    # Augment an image
    transformed = A.RandomGridShuffle(grid=(3, 3), always_apply=False, p=1) (image=image)
    transformed_image = transformed["image"]
    plt.subplot(1, 2, 1)
    plt.title('原图')  # 第一幅图片标题
    plt.imshow(image)
    plt.subplot(1, 2, 2)
    plt.title("RandomGridShuffle后的图像")
    plt.imshow(transformed_image)
    plt.show()


    运行结果:

  • HueSaturationValue随机更改图像的颜色,饱和度和值。

import albumentations as A
import cv2
import numpy as np
import matplotlib.pyplot as plt

# 解决中文显示问题
plt.rcParams['font.sans-serif'] = ['SimHei']
plt.rcParams['axes.unicode_minus'] = False
# Read an image with OpenCV and convert it to the RGB colorspace
image = cv2.imread("aa.jpg")
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
# Augment an image
transformed = A.HueSaturationValue(hue_shift_limit=20, sat_shift_limit=30, val_shift_limit=20, always_apply=False, p=1)(image=image)
transformed_image = transformed["image"]
plt.subplot(1, 2, 1)
plt.title('原图')  # 第一幅图片标题
plt.imshow(image)
plt.subplot(1, 2, 2)
plt.title("HueSaturationValue后的图像")
plt.imshow(transformed_image)
plt.show()

运行结果:



  • PadIfNeeded 填充图像

import albumentations as A
import cv2
import numpy as np
import matplotlib.pyplot as plt

# 解决中文显示问题
plt.rcParams['font.sans-serif'] = ['SimHei']
plt.rcParams['axes.unicode_minus'] = False
# Read an image with OpenCV and convert it to the RGB colorspace
image = cv2.imread("aa.jpg")
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
# Augment an image
transformed = A.PadIfNeeded(min_height=2048, min_width=2048, border_mode=4, always_apply=False, p=1)(image=image)
transformed_image = transformed["image"]
plt.subplot(1, 2, 1)
plt.title('原图')  # 第一幅图片标题
plt.imshow(image)
plt.subplot(1, 2, 2)
plt.title("PadIfNeeded后的图像")
plt.imshow(transformed_image)
plt.show()

运行结果:

  • RGBShift,对图像RGB的每个通道随机移动值。

import albumentations as A
import cv2
import numpy as np
import matplotlib.pyplot as plt

# 解决中文显示问题
plt.rcParams['font.sans-serif'] = ['SimHei']
plt.rcParams['axes.unicode_minus'] = False
# Read an image with OpenCV and convert it to the RGB colorspace
image = cv2.imread("aa.jpg")
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
# Augment an image
transformed = A.RGBShift(r_shift_limit=10, g_shift_limit=20, b_shift_limit=20, always_apply=False, p=1)(image=image)
transformed_image = transformed["image"]
plt.subplot(1, 2, 1)
plt.title('原图')  # 第一幅图片标题
plt.imshow(image)
plt.subplot(1, 2, 2)
plt.title("RGBShift后的图像")
plt.imshow(transformed_image)
plt.show()


  • GaussianBlur 使用随机核大小的高斯滤波器对图像进行模糊处理

import albumentations as A
import cv2
import numpy as np
import matplotlib.pyplot as plt

# 解决中文显示问题
plt.rcParams['font.sans-serif'] = ['SimHei']
plt.rcParams['axes.unicode_minus'] = False
# Read an image with OpenCV and convert it to the RGB colorspace
image = cv2.imread("aa.jpg")
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
# Augment an image
transformed = A.GaussianBlur(blur_limit=11, always_apply=False, p=1)(image=image)
transformed_image = transformed["image"]
plt.subplot(1, 2, 1)
plt.title('原图')  # 第一幅图片标题
plt.imshow(image)
plt.subplot(1, 2, 2)
plt.title("GaussianBlur后的图像")
plt.imshow(transformed_image)
plt.show()

 运行结果:

  • CLAHE自适应直方图均衡

import albumentations as A
import cv2
import numpy as np
import matplotlib.pyplot as plt

# 解决中文显示问题
plt.rcParams['font.sans-serif'] = ['SimHei']
plt.rcParams['axes.unicode_minus'] = False
# Read an image with OpenCV and convert it to the RGB colorspace
image = cv2.imread("aa.jpg")
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
# Augment an image
transformed = A.CLAHE(clip_limit=4.0, tile_grid_size=(8, 8), always_apply=False, p=0.5)(image=image)
transformed_image = transformed["image"]
plt.subplot(1, 2, 1)
plt.title('原图')  # 第一幅图片标题
plt.imshow(image)
plt.subplot(1, 2, 2)
plt.title("CLAHE后的图像")
plt.imshow(transformed_image)
plt.show()

运行结果:

  • ChannelShuffle随机重新排列输入RGB图像的通道。

import albumentations as A
import cv2
import numpy as np
import matplotlib.pyplot as plt

# 解决中文显示问题
plt.rcParams['font.sans-serif'] = ['SimHei']
plt.rcParams['axes.unicode_minus'] = False
# Read an image with OpenCV and convert it to the RGB colorspace
image = cv2.imread("aa.jpg")
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
# Augment an image
transformed = A.ChannelShuffle(always_apply=False, p=0.5)(image=image)
transformed_image = transformed["image"]
plt.subplot(1, 2, 1)
plt.title('原图')  # 第一幅图片标题
plt.imshow(image)
plt.subplot(1, 2, 2)
plt.title("ChannelShuffle后的图像")
plt.imshow(transformed_image)
plt.show()

运行结果:



  • InvertImg反色

import albumentations as A
import cv2
import numpy as np
import matplotlib.pyplot as plt

# 解决中文显示问题
plt.rcParams['font.sans-serif'] = ['SimHei']
plt.rcParams['axes.unicode_minus'] = False
# Read an image with OpenCV and convert it to the RGB colorspace
image = cv2.imread("aa.jpg")
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
# Augment an image
transformed = A.InvertImg(always_apply=False, p=0.5)(image=image)
transformed_image = transformed["image"]
plt.subplot(1, 2, 1)
plt.title('原图')  # 第一幅图片标题
plt.imshow(image)
plt.subplot(1, 2, 2)
plt.title("InvertImg后的图像")
plt.imshow(transformed_image)
plt.show()


  • Cutout 随机擦除

import albumentations as A
import cv2
import numpy as np
import matplotlib.pyplot as plt

# 解决中文显示问题
plt.rcParams['font.sans-serif'] = ['SimHei']
plt.rcParams['axes.unicode_minus'] = False
# Read an image with OpenCV and convert it to the RGB colorspace
image = cv2.imread("aa.jpg")
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
# Augment an image
transformed = A.Cutout(num_holes=20, max_h_size=20, max_w_size=20, fill_value=0, always_apply=False, p=1)(image=image)
transformed_image = transformed["image"]
plt.subplot(1, 2, 1)
plt.title('原图')  # 第一幅图片标题
plt.imshow(image)
plt.subplot(1, 2, 2)
plt.title("Cutout后的图像")
plt.imshow(transformed_image)
plt.show()

运行结果:

  • RandomFog随机雾化

import albumentations as A
import cv2
import numpy as np
import matplotlib.pyplot as plt

# 解决中文显示问题
plt.rcParams['font.sans-serif'] = ['SimHei']
plt.rcParams['axes.unicode_minus'] = False
# Read an image with OpenCV and convert it to the RGB colorspace
image = cv2.imread("aa.jpg")
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
# Augment an image
transformed = A.RandomFog(fog_coef_lower=0.3, fog_coef_upper=1, alpha_coef=0.08, always_apply=False, p=1)(image=image)
transformed_image = transformed["image"]
plt.subplot(1, 2, 1)
plt.title('原图')  # 第一幅图片标题
plt.imshow(image)
plt.subplot(1, 2, 2)
plt.title("RandomFog后的图像")
plt.imshow(transformed_image)
plt.show()

运行结果:



  • GridDropout网格擦除

import albumentations as A
import cv2
import numpy as np
import matplotlib.pyplot as plt

# 解决中文显示问题
plt.rcParams['font.sans-serif'] = ['SimHei']
plt.rcParams['axes.unicode_minus'] = False
# Read an image with OpenCV and convert it to the RGB colorspace
image = cv2.imread("aa.jpg")
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
# Augment an image
transformed = A.GridDropout(ratio=0.5, unit_size_min=None, unit_size_max=None, holes_number_x=None, holes_number_y=None,
                            shift_x=0, shift_y=0, always_apply=False, p=0.5)(image=image)
transformed_image = transformed["image"]
plt.subplot(1, 2, 1)
plt.title('原图')  # 第一幅图片标题
plt.imshow(image)
plt.subplot(1, 2, 2)
plt.title("GridDropout后的图像")
plt.imshow(transformed_image)
plt.show()

运行结果:

【版权声明】本文为华为云社区用户原创内容,转载时必须标注文章的来源(华为云社区)、文章链接、文章作者等基本信息, 否则作者和本社区有权追究责任。如果您发现本社区中有涉嫌抄袭的内容,欢迎发送邮件进行举报,并提供相关证据,一经查实,本社区将立刻删除涉嫌侵权内容,举报邮箱: cloudbbs@huaweicloud.com
  • 点赞
  • 收藏
  • 关注作者

评论(0

0/1000
抱歉,系统识别当前为高风险访问,暂不支持该操作

全部回复

上滑加载中

设置昵称

在此一键设置昵称,即可参与社区互动!

*长度不超过10个汉字或20个英文字符,设置后3个月内不可修改。

*长度不超过10个汉字或20个英文字符,设置后3个月内不可修改。
