如何在Kubernetes里给PostgreSQL创建secret

创建一个initdb.sql文件，输入如下内容：

– This is a postgres initialization script for the postgres container.
– Will be executed during container initialization ($> psql postgres -f initdb.sql)
CREATE ROLE adsuser WITH LOGIN PASSWORD ‘initial’ INHERIT CREATEDB;
CREATE DATABASE ads WITH ENCODING ‘UNICODE’ LC_COLLATE ‘C’ LC_CTYPE ‘C’ TEMPLATE template0;
GRANT ALL PRIVILEGES ON DATABASE ads TO adsuser;
CREATE SCHEMA ads AUTHORIZATION adsuser;
– ALTER DATABASE ads SET search_path TO ‘ads’;
ALTER DATABASE ads OWNER TO adsuser;

执行如下命令下，将输出重定向到一个名为ads-db-secret的yaml文件里。
kubectl create secret generic ads-db-secret --from-file initdb.sql --dry-run -o yaml > ads-db-secret.yaml

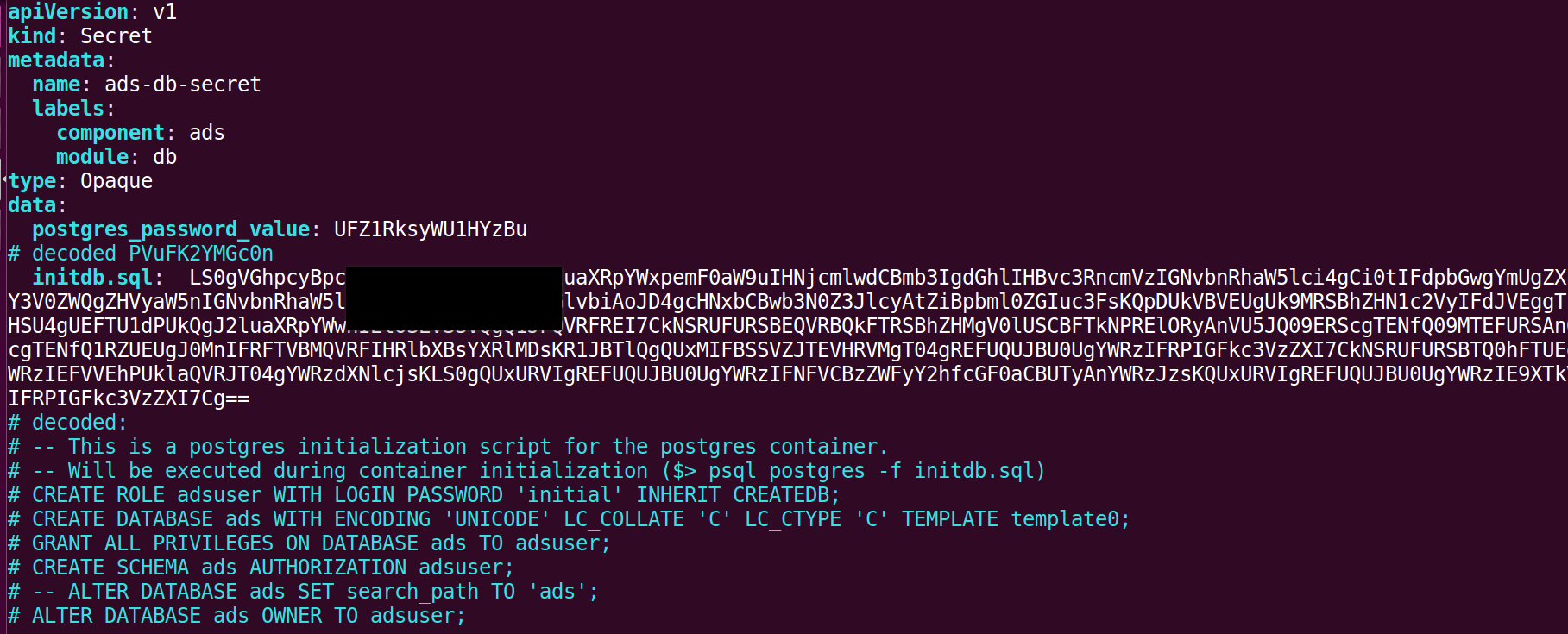

这个secret文件如下：
将自动生成的creationTimestamp删除，再添加postgres_password_value。

最后使用kubectl app生成secret。

Stateful Set是Kubernetes 1.9版本新引入的一个概念，用于管理有状态的应用。

Kubernetes官方文档：

https://kubernetes.io/docs/concepts/workloads/controllers/statefulset/

Manages the deployment and scaling of a set of Pods, and provides guarantees about the ordering and uniqueness of these Pods.

Like a Deployment, a StatefulSet manages Pods that are based on an identical container spec. Unlike a Deployment, a StatefulSet maintains a sticky identity for each of their Pods. These pods are created from the same spec, but are not interchangeable: each has a persistent identifier that it maintains across any rescheduling.

StatefulSet由以下几个部分组成：

1. 用于定义网络标志（DNS domain）的Headless Service

2. 用于创建PersistentVolumes的volumeClaimTemplates

3. 定义具体应用的StatefulSet

下面我给出了一个实际应用中的StatefulSet的yaml文件：

---

apiVersion: apps/v1

kind: StatefulSet

metadata:

name: ads-db-statefulset

labels:

component: ads

module: db

spec:

serviceName: ads-db-service

replicas: 1

selector:

matchLabels:

component: ads

module: db

template:

metadata:

labels:

component: ads

module: db

spec:

volumes:

- name: init

secret:

secretName: ads-db-secret

items:

- key: initdb.sql

path: initdb.sql

containers:

- name: ads-db-pod

image: postgres:9.6

ports:

- containerPort: 5432

name: ads-db-port

volumeMounts:

- name: ads-db-volume

mountPath: /var/lib/postgresql/data/

- name: init

mountPath: /docker-entrypoint-initdb.d/

env:

- name: PGDATA

valueFrom:

configMapKeyRef:

name: ads-db-configmap

key: pgdata_value

- name: POSTGRES_PASSWORD

valueFrom:

secretKeyRef:

name: ads-db-secret

key: postgres_password_value

volumeClaimTemplates:

- metadata:

name: ads-db-volume

labels:

component: ads

module: db

spec:

accessModes: [ "ReadWriteOnce" ]

resources:

requests:

storage: 1Gi

使用kubectl get statefulset查看生成的statefulset:

生成的headless service：

生成的pod：

当我把statefulset yaml文件里的replicas从1改成3之后，果然观察到有两个新的pod正在启动，并且名称满足命名规范<stateful set name >-X。

使用kubectl describe查看创建的statefulset明细：

statefulSet自动创建的persistentVolumeClaim：

The files belonging to this database system will be owned by user “postgres”.

This user must also own the server process.

The database cluster will be initialized with locale “en_US.utf8”.

The default database encoding has accordingly been set to “UTF8”.

The default text search configuration will be set to “english”.

Data page checksums are disabled.

fixing permissions on existing directory /var/lib/postgresql/data/pgdata … ok

creating subdirectories … ok

selecting default max_connections … 100

selecting default shared_buffers … 128MB

selecting dynamic shared memory implementation … posix

creating configuration files … ok

running bootstrap script … ok

performing post-bootstrap initialization … ok

syncing data to disk … ok

Success. You can now start the database server using:

pg_ctl -D /var/lib/postgresql/data/pgdata -l logfile start

使用下面的命令登录到statefulset提供的postgreSQL服务器上：

1. kubectl run tester -it --rm --image=postgres:9.6 --env=“PGCONNECT_TIMEOUT=5” --command – bash

看到root$之后，说明我们已经连接上pod了。

使用如下命令行连接postgreSQL服务器：

psql -h ads-db-statefulset-0.ads-db-service -p 5432 -U adsuser -W ads

当然如果不用命令行，也可以使用pgadmin，以图形化界面连接statefulSet里的postgreSQL服务器：

sudo apt install pgadmin3

进行端口转发，这样我们可以使用localhost：5432进行连接：

kubectl port-forward ads-db-statefulset-0 5432:5432

也能成功连接：
