逆向将物体检测数据集生成labelme标注的数据

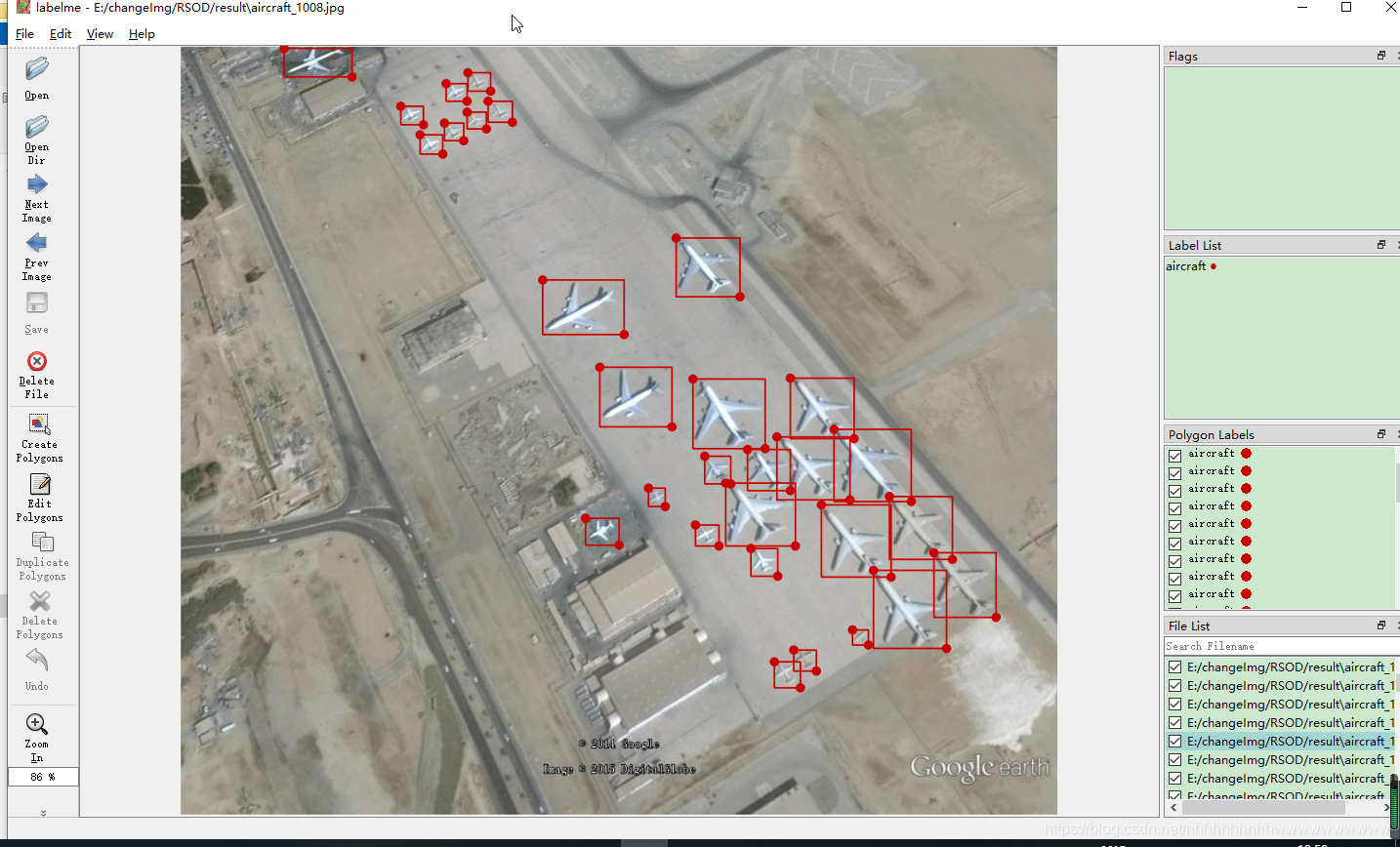

对一些现有的数据集进行反推，生成labelme标注的格式。生成的效果如下图：

使用了 RSOD部分数据，将VOC数据集反推为labelme的标注数据。

代码如下：














      import sys













      import os.path as osp













      import io













      from labelme.logger import logger













      from labelme import PY2













      from labelme import QT4













      import PIL.Image













      import base64













      from labelme import utils













      import os













      import cv2













      import xml.etree.ElementTree as ET


























      module_path = os.path.abspath(os.path.join('..'))













      if module_path not in sys.path:













          sys.path.append(module_path)













      import json













      from PIL import Image


























      Image.MAX_IMAGE_PIXELS = None













      imageroot = 'RSOD/'













      listDir = ['aircraft', 'oiltank']//数据的类别


























      def load_image_file(filename):













          try:













              image_pil = PIL.Image.open(filename)













          except IOError:













              logger.error('Failed opening image file: {}'.format(filename))













              return


























          # apply orientation to image according to exif













          image_pil = utils.apply_exif_orientation(image_pil)


























          with io.BytesIO() as f:













              ext = osp.splitext(filename)[1].lower()













              if PY2 and QT4:













                  format = 'PNG'













              elif ext in ['.jpg', '.jpeg']:













                  format = 'JPEG'













              else:













                  format = 'PNG'













              image_pil.save(f, format=format)













              f.seek(0)













              return f.read()







































      def dict_json(flags, imageData, shapes, imagePath, fillColor=None, lineColor=None, imageHeight=100, imageWidth=100):













          '''













          :param imageData: str













          :param shapes: list













          :param imagePath: str













          :param fillColor: list













          :param lineColor: list













          :return: dict













          '''













          return {"version": "3.16.4", "flags": flags, "shapes": shapes, 'lineColor': lineColor, "fillColor": fillColor,













                  'imagePath': imagePath.split('/')[-1], "imageData": imageData, 'imageHeight': imageHeight,













                  'imageWidth': imageWidth}







































      data = json.load(open('1.json'))













      for subPath in listDir:













          xmlpathName = imageroot + subPath + '/Annotation/xml'













          imagepath = imageroot + subPath + '/JPEGImages'













          resultFile = os.listdir(xmlpathName)













          for file in resultFile:













              print(file)













              imagePH = imagepath + '/' + file.split('.')[0] + '.jpg'













              print(imagePH)













              tree = ET.parse(xmlpathName + '/' + file)













              image = cv2.imread(imagePH)













              shapes = data["shapes"]













              version = data["version"]













              flags = data["flags"]













              lineColor = data["lineColor"]













              fillColor = data['fillColor']













              newshapes = []













              for elem in tree.iter():













                  if 'object' in elem.tag:













                      name = ''













                      xminNode = 0













                      yminNode = 0













                      xmaxNode = 0













                      ymaxNode = 0













                      for attr in list(elem):













                          if 'name' in attr.tag:













                              name = attr.text













                          if 'bndbox' in attr.tag:













                              for dim in list(attr):













                                  if 'xmin' in dim.tag:













                                      xminNode = int(round(float(dim.text)))













                                  if 'ymin' in dim.tag:













                                      yminNode = int(round(float(dim.text)))













                                  if 'xmax' in dim.tag:













                                      xmaxNode = int(round(float(dim.text)))













                                  if 'ymax' in dim.tag:













                                      ymaxNode = int(round(float(dim.text)))













                      line_color = None













                      fill_color = None













                      newPoints = [[float(xminNode), float(yminNode)], [float(xmaxNode), float(ymaxNode)]]













                      shape_type = 'rectangle'













                      flags = flags













                      newshapes.append(













                          {"label": name, "line_color": line_color, "fill_color": fill_color, "points": newPoints,













                           "shape_type": shape_type, "flags": flags})













              imageData_90 = load_image_file(imagePH)













              imageData_90 = base64.b64encode(imageData_90).decode('utf-8')













              imageHeight = image.shape[0]













              imageWidth = image.shape[1]













              data_90 = dict_json(flags, imageData_90, newshapes, imagePH, fillColor, lineColor, imageHeight, imageWidth)













              json_file = imagePH[:-4] + '.json'













              json.dump(data_90, open(json_file, 'w'))
