WinForm 如何自定义开关控件

先上结果：

由于WinForm中没有开关控件，需要自定义。下面就写我制作开关控件的步骤。

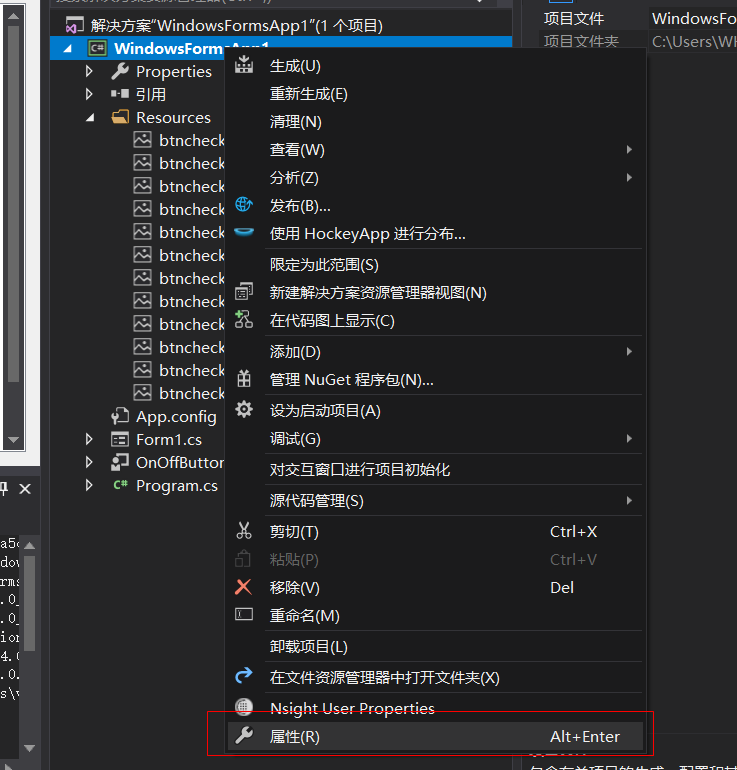

1、新建个WinForm程序，右键选择属性。

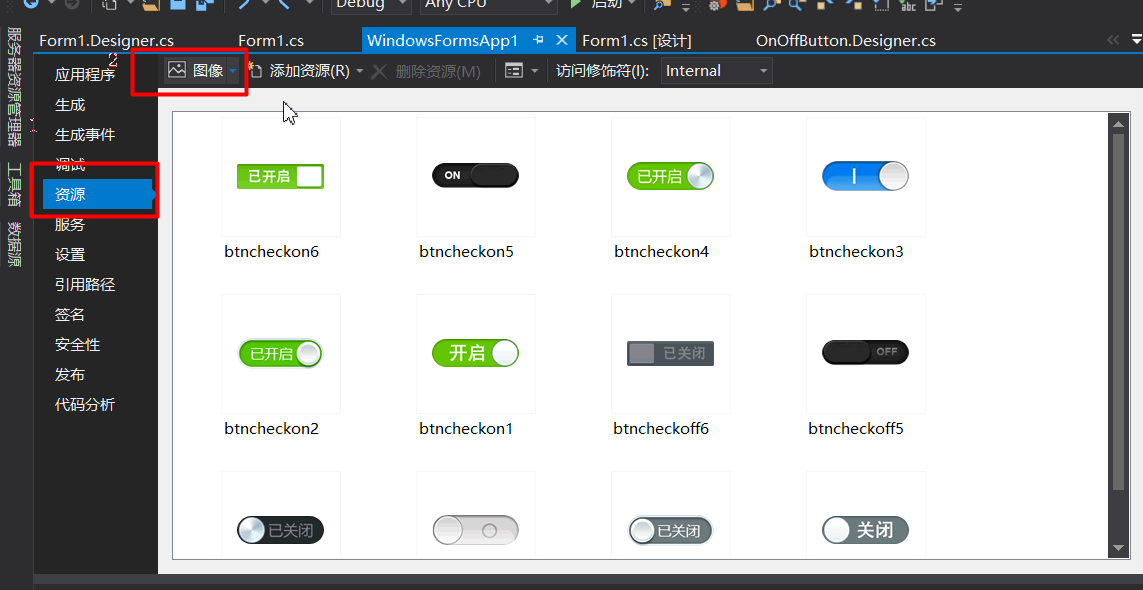

2、点击资源，将资源的类型修改为图像，然后将Button的图片复制进去（直接从文件夹里复制就行了）

3、新建用户控件，命名为OnOffButton。

在OnOffButton.cs中编写代码。














      using System;













      using System.Drawing;













      using System.Windows.Forms;


























      namespace WindowsFormsApp1













      {












    public enum CheckStyle













          {













              style1 = 0,













              style2 = 1,













              style3 = 2,













              style4 = 3,













              style5 = 4,













              style6 = 5













          };












    public partial class OnOffButton : UserControl













          {












        public OnOffButton()













              {













                  InitializeComponent();












            //设置Style支持透明背景色并且双缓冲












            this.SetStyle(ControlStyles.AllPaintingInWmPaint, true);












            this.SetStyle(ControlStyles.DoubleBuffer, true);












            this.SetStyle(ControlStyles.ResizeRedraw, true);












            this.SetStyle(ControlStyles.Selectable, true);












            this.SetStyle(ControlStyles.SupportsTransparentBackColor, true);












            this.SetStyle(ControlStyles.UserPaint, true);












            this.BackColor = Color.Transparent;












            this.Cursor = Cursors.Hand;












            this.Size = new Size(87, 27);













              }












        bool isCheck = false;

























        /// <summary>












        /// 是否选中












        /// </summary>












        public bool Checked













              {












            set { isCheck = value; this.Invalidate(); }












            get { return isCheck; }













              }


























              CheckStyle checkStyle = CheckStyle.style1;

























        /// <summary>












        /// 样式












        /// </summary>












        public CheckStyle CheckStyleX













              {












            set { checkStyle = value; this.Invalidate(); }












            get { return checkStyle; }













              }

























        protected override void OnPaint(PaintEventArgs e)













              {













                  Bitmap bitMapOn = null;













                  Bitmap bitMapOff = null;

























            if (checkStyle == CheckStyle.style1)













                  {













                      bitMapOn = global::WindowsFormsApp1.Properties.Resources.btncheckon1;













                      bitMapOff = global::WindowsFormsApp1.Properties.Resources.btncheckoff1;













                  }












            else if (checkStyle == CheckStyle.style2)













                  {













                      bitMapOn = global::WindowsFormsApp1.Properties.Resources.btncheckon2;













                      bitMapOff = global::WindowsFormsApp1.Properties.Resources.btncheckoff2;













                  }












            else if (checkStyle == CheckStyle.style3)













                  {













                      bitMapOn = global::WindowsFormsApp1.Properties.Resources.btncheckon3;













                      bitMapOff = global::WindowsFormsApp1.Properties.Resources.btncheckoff3;













                  }












            else if (checkStyle == CheckStyle.style4)













                  {













                      bitMapOn = global::WindowsFormsApp1.Properties.Resources.btncheckon4;













                      bitMapOff = global::WindowsFormsApp1.Properties.Resources.btncheckoff4;













                  }












            else if (checkStyle == CheckStyle.style5)













                  {













                      bitMapOn = global::WindowsFormsApp1.Properties.Resources.btncheckon5;













                      bitMapOff = global::WindowsFormsApp1.Properties.Resources.btncheckoff5;













                  }












            else if (checkStyle == CheckStyle.style6)













                  {













                      bitMapOn = global::WindowsFormsApp1.Properties.Resources.btncheckon6;













                      bitMapOff = global::WindowsFormsApp1.Properties.Resources.btncheckoff6;













                  }


























                  Graphics g = e.Graphics;













                  Rectangle rec = new Rectangle(0, 0, this.Size.Width, this.Size.Height);

























            if (isCheck)













                  {













                      g.DrawImage(bitMapOn, rec);













                  }












            else













                  {













                      g.DrawImage(bitMapOff, rec);













                  }













              }

























        private void OnOffButton_Click(object sender, EventArgs e)













              {













                  isCheck = !isCheck;












            this.Invalidate();













              }













          }













      }


















然后编写OnOffButton.Designer.cs代码。主要修改组件设计器生成的代码













     #region 组件设计器生成的代码

























        /// <summary>












        /// 设计器支持所需的方法 - 不要修改












        /// 使用代码编辑器修改此方法的内容。












        /// </summary>












        private void InitializeComponent()













              {












            this.SuspendLayout();












            this.AutoScaleDimensions = new System.Drawing.SizeF(6F, 12F);












            this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;












            this.Name = "myButtonCheck";












            this.Click += new System.EventHandler(this.OnOffButton_Click);












            this.ResumeLayout(false);













              }

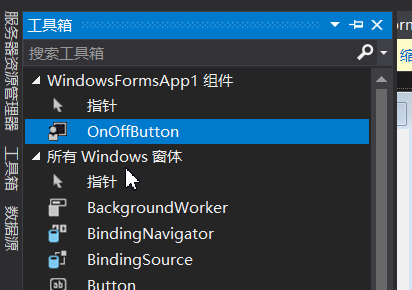

然后生成解决方案。就可以在工具箱里看到组件了。

将组件拖入Form中就可以使用。

代码链接：https://download.csdn.net/download/hhhhhhhhhhwwwwwwwwww/14044575
