Win10 Labelme标注数据转为YOLOV5 训练的数据集

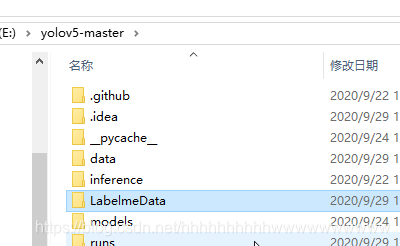

• 将Labelme标注的数据复制到工程的根目录，并将其命名为LabelmeData。我的工程根目录是yolov5-master，如下图：

• 打开工程，在根目录新建LabelmeToYolov5.py。写入下面的代码














      import os













      import numpy as np













      import json













      from glob import glob













      import cv2













      from sklearn.model_selection import train_test_split













      from os import getcwd


























      classes = ["aircraft", "oiltank"]













      # 1.标签路径













      labelme_path = "LabelmeData/"













      isUseTest = True  # 是否创建test集













      # 3.获取待处理文件













      files = glob(labelme_path + "*.json")













      files = [i.replace("\\", "/").split("/")[-1].split(".json")[0] for i in files]













      print(files)













      if isUseTest:













          trainval_files, test_files = train_test_split(files, test_size=0.1, random_state=55)













      else:













          trainval_files = files













      # split













      train_files, val_files = train_test_split(trainval_files, test_size=0.1, random_state=55)







































      def convert(size, box):













          dw = 1. / (size[0])













          dh = 1. / (size[1])













          x = (box[0] + box[1]) / 2.0 - 1













          y = (box[2] + box[3]) / 2.0 - 1













          w = box[1] - box[0]













          h = box[3] - box[2]













          x = x * dw













          w = w * dw













          y = y * dh













          h = h * dh












    return (x, y, w, h)







































      wd = getcwd()













      print(wd)







































      def ChangeToYolo5(files, txt_Name):












    if not os.path.exists('tmp/'):













              os.makedirs('tmp/')













          list_file = open('tmp/%s.txt' % (txt_Name), 'w')












    for json_file_ in files:













              json_filename = labelme_path + json_file_ + ".json"













              imagePath = labelme_path + json_file_ + ".jpg"













              list_file.write('%s/%s\n' % (wd, imagePath))













              out_file = open('%s/%s.txt' % (labelme_path, json_file_), 'w')













              json_file = json.load(open(json_filename, "r", encoding="utf-8"))













              height, width, channels = cv2.imread(labelme_path + json_file_ + ".jpg").shape












        for multi in json_file["shapes"]:













                  points = np.array(multi["points"])













                  xmin = min(points[:, 0]) if min(points[:, 0]) > 0 else 0













                  xmax = max(points[:, 0]) if max(points[:, 0]) > 0 else 0













                  ymin = min(points[:, 1]) if min(points[:, 1]) > 0 else 0













                  ymax = max(points[:, 1]) if max(points[:, 1]) > 0 else 0













                  label = multi["label"]












            if xmax <= xmin:












                pass












            elif ymax <= ymin:












                pass












            else:













                      cls_id = classes.index(label)













                      b = (float(xmin), float(xmax), float(ymin), float(ymax))













                      bb = convert((width, height), b)













                      out_file.write(str(cls_id) + " " + " ".join([str(a) for a in bb]) + '\n')












                print(json_filename, xmin, ymin, xmax, ymax, cls_id)







































      ChangeToYolo5(train_files, "train")













      ChangeToYolo5(val_files, "val")













      ChangeToYolo5(test_files, "test")













      '''













      file1 = open("tmp/train.txt", "r")













      file2 = open("tmp/val.txt", "r")













      file_list1 = file1.readlines() # 将所有变量读入列表file_list1



























      file_list2 = file2.readlines() # 将所有变量读入列表file_list2













      file3 = open("tmp/trainval.txt", "w")













      for line in file_list1:













       print(line)













       file3.write(line)













      for line in file_list2:













       print(line)













       file3.write(line)













      '''





这段代码执行完成会在LabelmeData生成每个图片的txt标注数据，同时在tmp文件夹下面生成训练集、验证集和测试集的txt，txt记录的是图片的路径，为下一步生成YoloV5训练和测试用的数据集做准备。

• 在tmp文件夹新建makedata.py。执行完成后会在工程的根目录生成VOC数据集。














      import shutil













      import os


























      file_List = ["train", "val", "test"]













      for file in file_List:












    if not os.path.exists('../VOC/images/%s' % file):













              os.makedirs('../VOC/images/%s' % file)












    if not os.path.exists('../VOC/labels/%s' % file):













              os.makedirs('../VOC/labels/%s' % file)












    print(os.path.exists('../tmp/%s.txt' % file))













          f = open('../tmp/%s.txt' % file, 'r')













          lines = f.readlines()












    for line in lines:












        print(line)













              line = "/".join(line.split('/')[-5:]).strip()













              shutil.copy(line, "../VOC/images/%s" % file)













              line = line.replace('jpg', 'txt')













              shutil.copy(line, "../VOC/labels/%s/" % file)

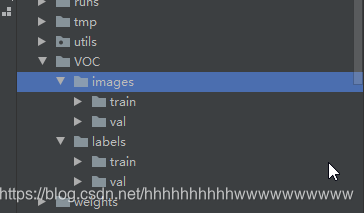

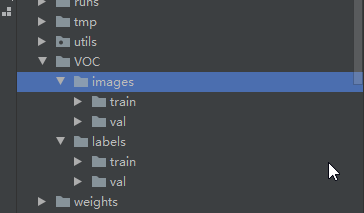

运行结果如下：
