点云发布（pointcloud_publisher）之ROS2案例

二维曲线绘制玩腻了，可以来搞一搞三维点云了，效果更棒哦。

官方示例给出了点云发布案例效果很好。

致敬Matlab

官方原版

源代码如下：














      # Copyright 2020 Evan Flynn













      #













      # Licensed under the Apache License, Version 2.0 (the "License");













      # you may not use this file except in compliance with the License.













      # You may obtain a copy of the License at













      #













      # http://www.apache.org/licenses/LICENSE-2.0













      #













      # Unless required by applicable law or agreed to in writing, software













      # distributed under the License is distributed on an "AS IS" BASIS,













      # WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.













      # See the License for the specific language governing permissions and













      # limitations under the License.


























      import numpy as np


























      import rclpy













      from rclpy.node import Node













      from sensor_msgs.msg import PointCloud2













      from sensor_msgs.msg import PointField













      from sensor_msgs_py import point_cloud2













      from std_msgs.msg import Header







































      class PointCloudPublisher(Node):


























          rate = 30













          moving = True













          width = 100













          height = 100


























          header = Header()













          header.frame_id = 'map'


























          dtype = PointField.FLOAT32













          point_step = 16













          fields = [PointField(name='x', offset=0, datatype=dtype, count=1),













                    PointField(name='y', offset=4, datatype=dtype, count=1),













                    PointField(name='z', offset=8, datatype=dtype, count=1),













                    PointField(name='intensity', offset=12, datatype=dtype, count=1)]

























    def __init__(self):













              super().__init__('pc_publisher')













              self.publisher_ = self.create_publisher(PointCloud2, 'test_cloud', 10)













              timer_period = 1 / self.rate













              self.timer = self.create_timer(timer_period, self.timer_callback)













              self.counter = 0

























    def timer_callback(self):













              self.header.stamp = self.get_clock().now().to_msg()













              x, y = np.meshgrid(np.linspace(-2, 2, self.width), np.linspace(-2, 2, self.height))













              z = 0.5 * np.sin(2*x-self.counter/10.0) * np.sin(2*y)













              points = np.array([x, y, z, z]).reshape(4, -1).T













              pc2_msg = point_cloud2.create_cloud(self.header, self.fields, points)













              self.publisher_.publish(pc2_msg)

























        if self.moving:













                  self.counter += 1







































      def main(args=None):













          rclpy.init(args=args)













          pc_publisher = PointCloudPublisher()













          rclpy.spin(pc_publisher)













          pc_publisher.destroy_node()













          rclpy.shutdown()







































      if __name__ == '__main__':













          main()





参考如上代码可以给出很多点云效果的。

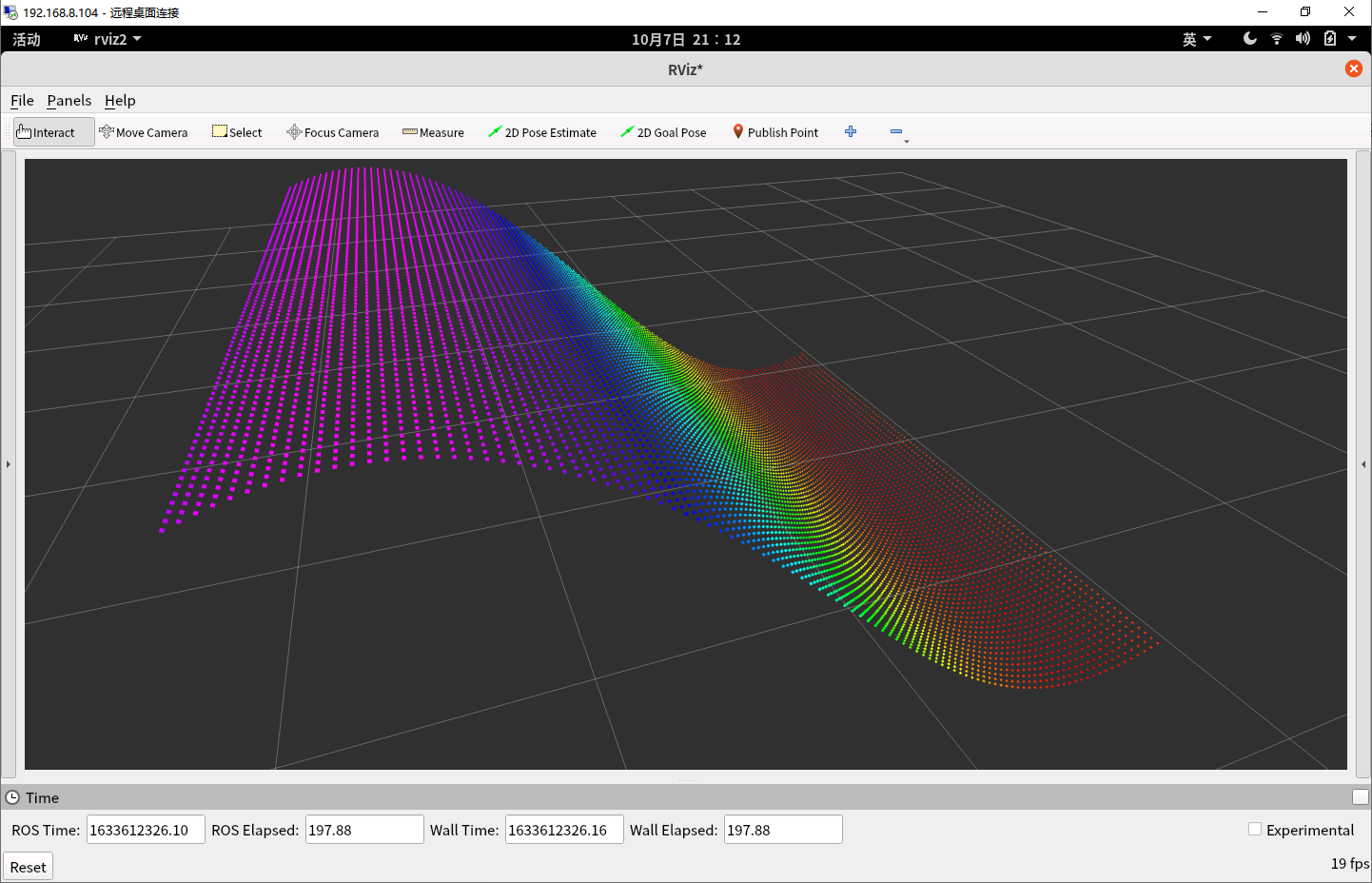

z = np.sin(x)


 供参考

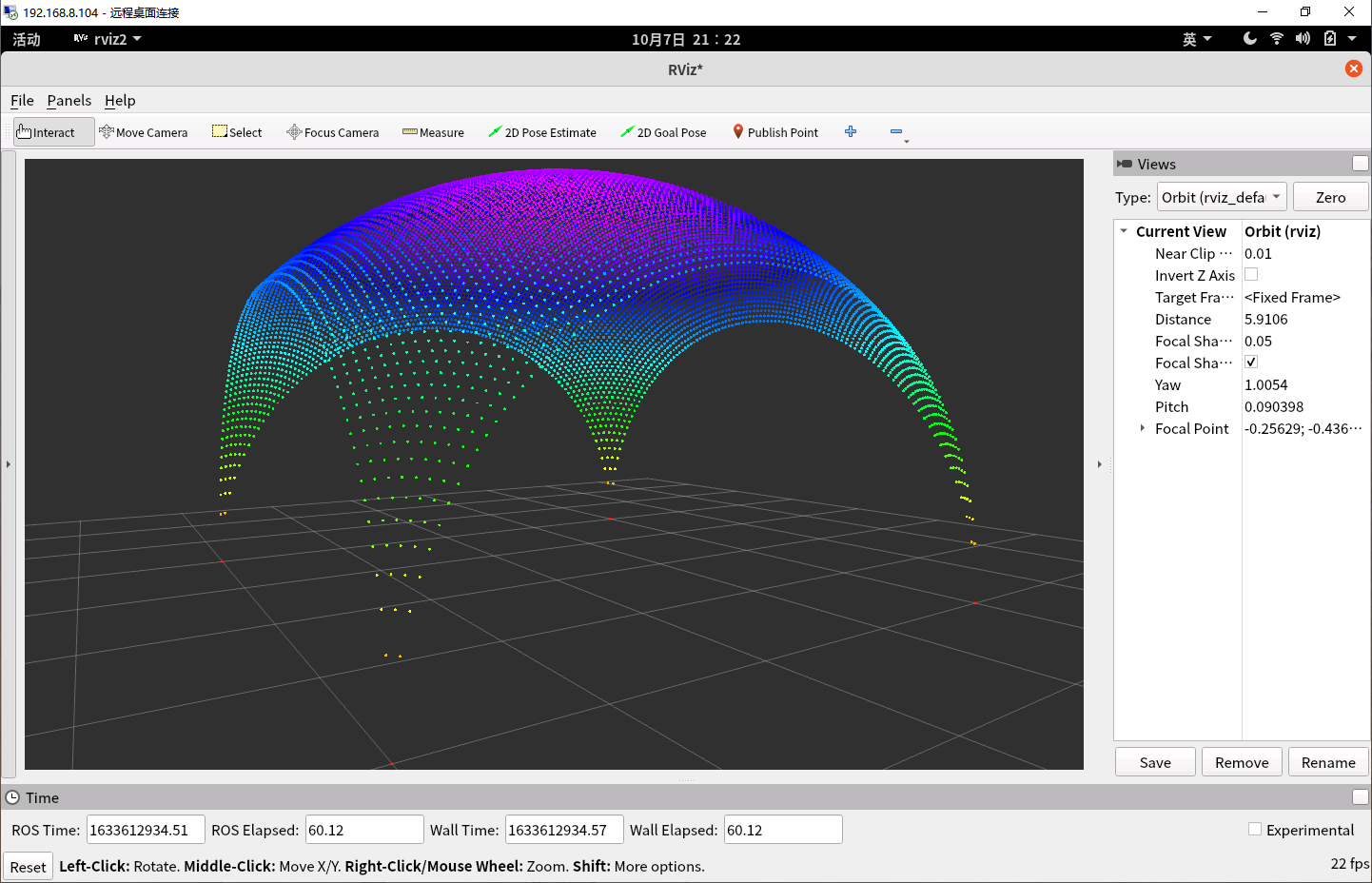

z = np.sqrt(8-x*x-y*y)


供参考

z = 0.2*y * np.sin(2*x-self.counter/10.0) + 0.2*x * np.cos(2*y+self.counter/10.0)


供参考

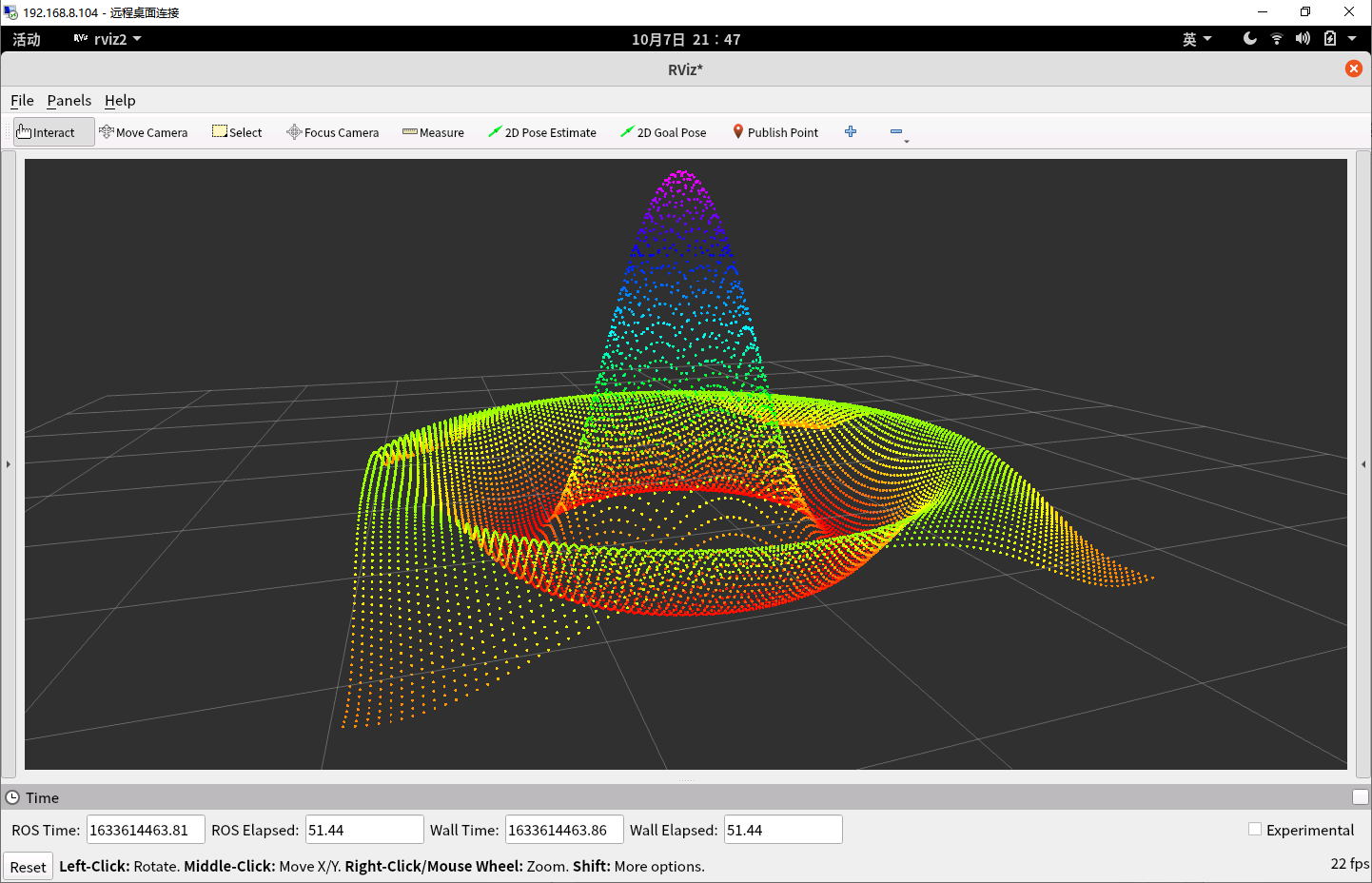

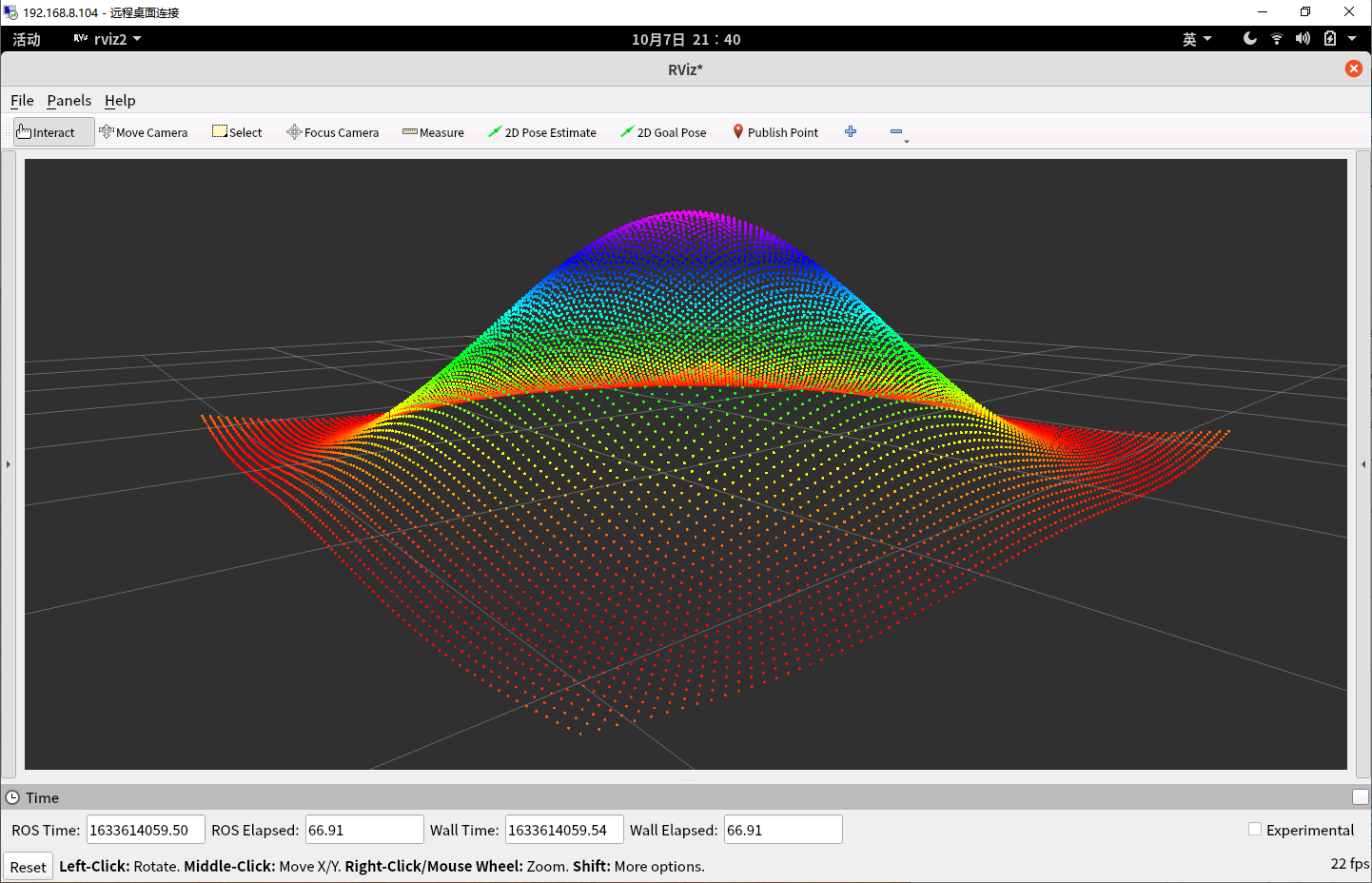

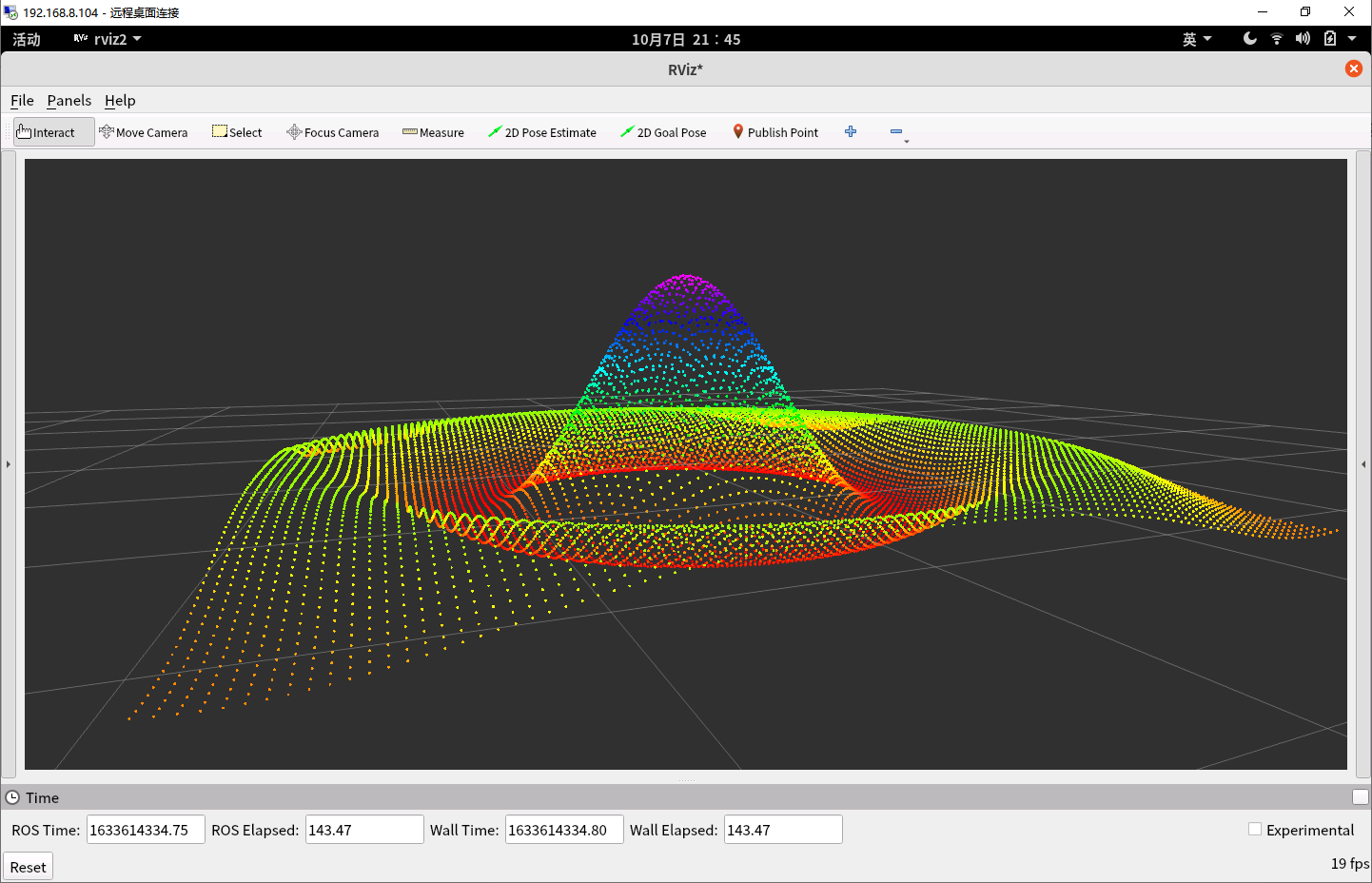

 思考题：

        r = np.sqrt(4*x*x+4*y*y)
        z = np.sin(r)/r

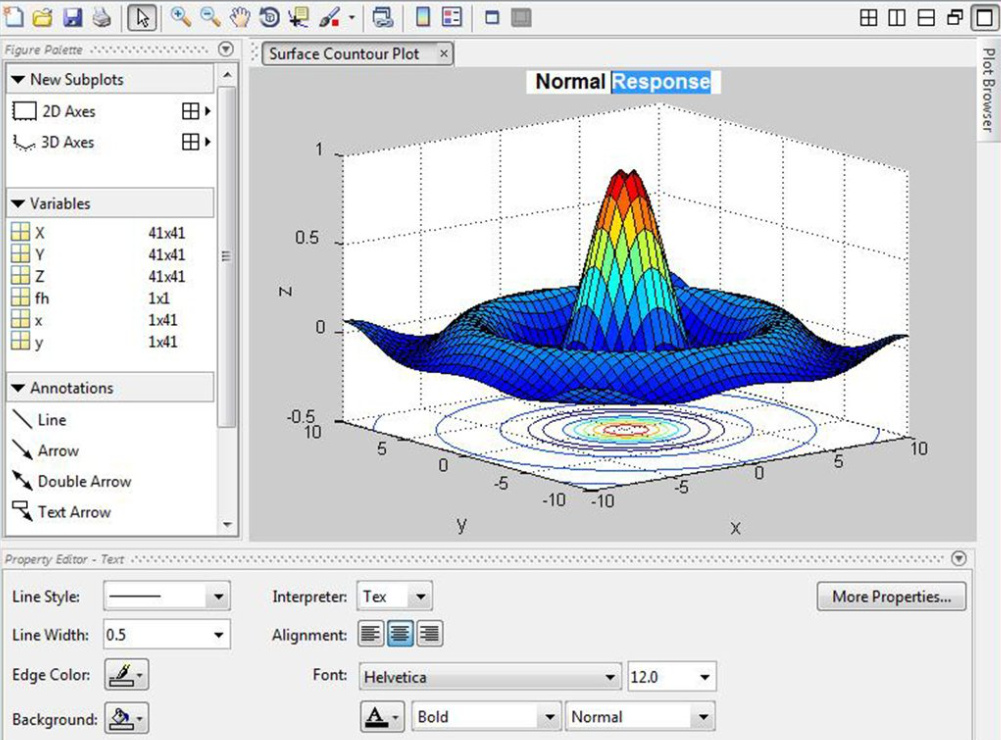

致敬matlab

-Fin-
