esp32(ROS2foxy)从字符串发布到速度发布turtlesim

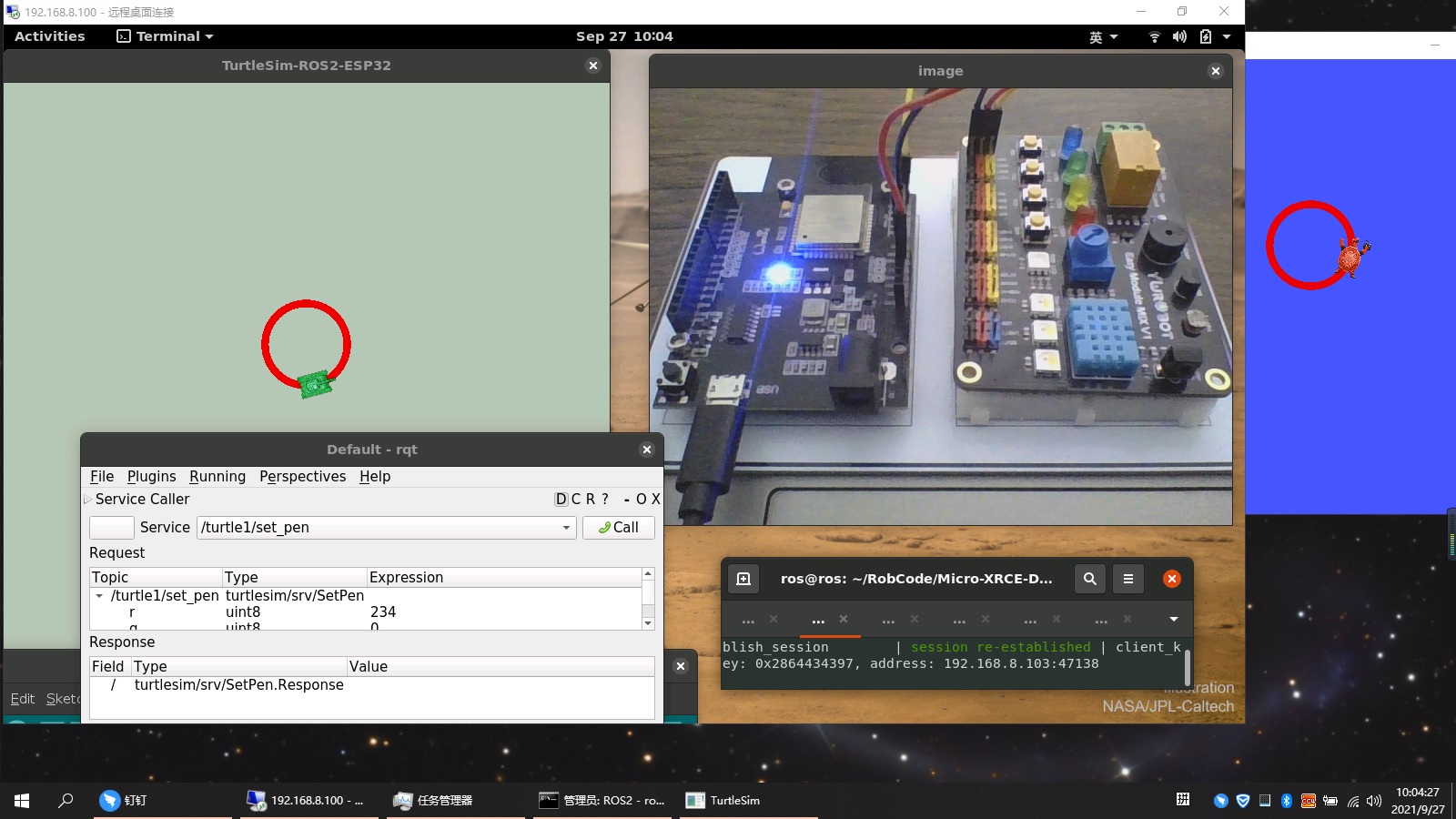

直播课演示如下，从点亮一个小灯，发送字符串到发布速度指令控制turtlesim。

字符串参考：

eps32和ros2之稳稳点亮一个LED灯（IO4）_zhangrelay的专栏-CSDN博客

速度代码如下：














      #include <ros2arduino.h>


























      #include <WiFi.h>













      #include <WiFiUdp.h>













      #define SSID "***"













      #define SSID_PW "***"













      #define AGENT_IP "***"













      #define AGENT_PORT 2021 //AGENT port number


























      #define PUBLISH_FREQUENCY 2 //hz


























      void publishVel(geometry_msgs::Twist* vel, void* arg)













      {













        (void)(arg);












  static int cnt = 0;













        vel->linear.x = 0.1+0.01*cnt;  //线速度













        vel->angular.z = 0.1+0.01*cnt; //角速度













      // vel->linear.x = ((double)rand()/(RAND_MAX)); //随机线速度













      // vel->angular.z = ((double)rand()/(RAND_MAX)); //随机角速度













      // vel->linear.x = 0.2; //固定线速度













      // vel->angular.z = 1.0 - 0.001*cnt; //变化角速度













        cnt++;













      }


























      class VelPub : public ros2::Node













      {













      public:













        VelPub()













        : Node("esp32_cmdvel")













        {













          ros2::Publisher<geometry_msgs::Twist>* publisher_ = this->createPublisher<geometry_msgs::Twist>("turtle1/cmd_vel");












    this->createWallFreq(PUBLISH_FREQUENCY, (ros2::CallbackFunc)publishVel, nullptr, publisher_);













        }













      };


























      WiFiUDP udp;


























      void setup()













      {













        WiFi.begin(SSID, SSID_PW);












  while(WiFi.status() != WL_CONNECTED);


























        ros2::init(&udp, AGENT_IP, AGENT_PORT);













      }


























      void loop()













      {












  static VelPub VelNode;


























        ros2::spin(&VelNode);













      }
