micro-ROS之esp32与ros2发布pub与接收sub

先看源码














      #include <string.h>













      #include <stdio.h>













      #include <unistd.h>


























      #include "freertos/FreeRTOS.h"













      #include "freertos/task.h"













      #include "esp_log.h"













      #include "esp_system.h"


























      #include <uros_network_interfaces.h>













      #include <rcl/rcl.h>













      #include <rcl/error_handling.h>













      #include <std_msgs/msg/int32.h>













      #include <rclc/rclc.h>













      #include <rclc/executor.h>













      #include <rmw_microros/rmw_microros.h>













      #include "uxr/client/config.h"


























      #define RCCHECK(fn) { rcl_ret_t temp_rc = fn; if((temp_rc != RCL_RET_OK)){printf("Failed status on line %d: %d. Aborting.\n",__LINE__,(int)temp_rc);vTaskDelete(NULL);}}













      #define RCSOFTCHECK(fn) { rcl_ret_t temp_rc = fn; if((temp_rc != RCL_RET_OK)){printf("Failed status on line %d: %d. Continuing.\n",__LINE__,(int)temp_rc);}}


























      rcl_publisher_t publisher;













      rcl_subscription_t subscriber;













      std_msgs__msg__Int32 send_msg;













      std_msgs__msg__Int32 recv_msg;


























      void timer_callback(rcl_timer_t * timer, int64_t last_call_time)













      {













      	(void) last_call_time;












	if (timer != NULL) {













      		RCSOFTCHECK(rcl_publish(&publisher, &send_msg, NULL));












		printf("Sent: %d\n", send_msg.data);













      		send_msg.data++;













      	}













      }


























      void subscription_callback(const void * msgin)













      {












	const std_msgs__msg__Int32 * msg = (const std_msgs__msg__Int32 *)msgin;












	printf("Received: %d\n", msg->data);













      }


























      void micro_ros_task(void * arg)













      {












	rcl_allocator_t allocator = rcl_get_default_allocator();












	rclc_support_t support;

























	// Create init_options.












	rcl_init_options_t init_options = rcl_get_zero_initialized_init_options();













      	RCCHECK(rcl_init_options_init(&init_options, allocator));












	rmw_init_options_t* rmw_options = rcl_init_options_get_rmw_init_options(&init_options);












	// Use static agent IP and port.













      	RCCHECK(rmw_uros_options_set_udp_address(CONFIG_MICRO_ROS_AGENT_IP, CONFIG_MICRO_ROS_AGENT_PORT, rmw_options));

























	// Setup support structure.













      	RCCHECK(rclc_support_init_with_options(&support, 0, NULL, &init_options, &allocator));

























	// Create node.












	rcl_node_t node = rcl_get_zero_initialized_node();













      	RCCHECK(rclc_node_init_default(&node, "esp32_int32_publisher_subscriber_rclc", "", &support));

























	// Create publisher.













      	RCCHECK(rclc_publisher_init_default(













      		&publisher,













      		&node,













      		ROSIDL_GET_MSG_TYPE_SUPPORT(std_msgs, msg, Int32),












		"esp32_int32_publisher"));

























	// Create subscriber.













      	RCCHECK(rclc_subscription_init_default(













      		&subscriber,













      		&node,













      		ROSIDL_GET_MSG_TYPE_SUPPORT(std_msgs, msg, Int32),












		"esp32_int32_subscriber"));

























	// Create timer.












	rcl_timer_t timer = rcl_get_zero_initialized_timer();












	const unsigned int timer_timeout = 1000;













      	RCCHECK(rclc_timer_init_default(













      		&timer,













      		&support,













      		RCL_MS_TO_NS(timer_timeout),













      		timer_callback));

























	// Create executor.












	rclc_executor_t executor = rclc_executor_get_zero_initialized_executor();













      	RCCHECK(rclc_executor_init(&executor, &support.context, 2, &allocator));












	unsigned int rcl_wait_timeout = 1000;   // in ms













      	RCCHECK(rclc_executor_set_timeout(&executor, RCL_MS_TO_NS(rcl_wait_timeout)));

























	// Add timer and subscriber to executor.













      	RCCHECK(rclc_executor_add_timer(&executor, &timer));













      	RCCHECK(rclc_executor_add_subscription(&executor, &subscriber, &recv_msg, &subscription_callback, ON_NEW_DATA));

























	// Spin forever.













      	send_msg.data = 0;












	while(1){













      		rclc_executor_spin_some(&executor, RCL_MS_TO_NS(100));













      		usleep(100000);













      	}

























	// Free resources.













      	RCCHECK(rcl_subscription_fini(&subscriber, &node));













      	RCCHECK(rcl_publisher_fini(&publisher, &node));













      	RCCHECK(rcl_node_fini(&node));


























        	vTaskDelete(NULL);













      }


























      void app_main(void)













      {













      #ifdef UCLIENT_PROFILE_UDP












    // Start the networking if required













          ESP_ERROR_CHECK(uros_network_interface_initialize());













      #endif // UCLIENT_PROFILE_UDP

























    //pin micro-ros task in APP_CPU to make PRO_CPU to deal with wifi:













          xTaskCreate(micro_ros_task,












            "uros_task",













                  CONFIG_MICRO_ROS_APP_STACK,












            NULL,













                  CONFIG_MICRO_ROS_APP_TASK_PRIO,












            NULL);













      }

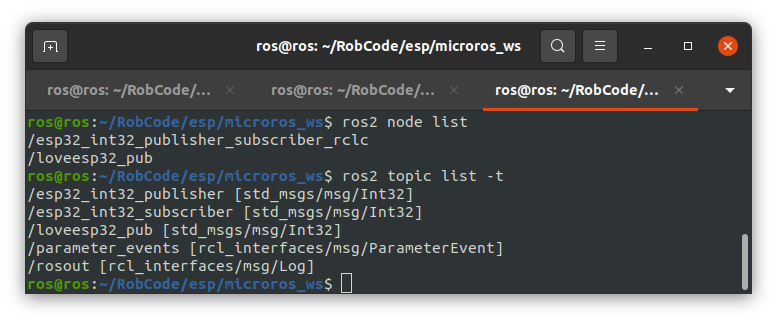

代码做稳定性测试，目前就是觉得节点好像不能自动注销呢。

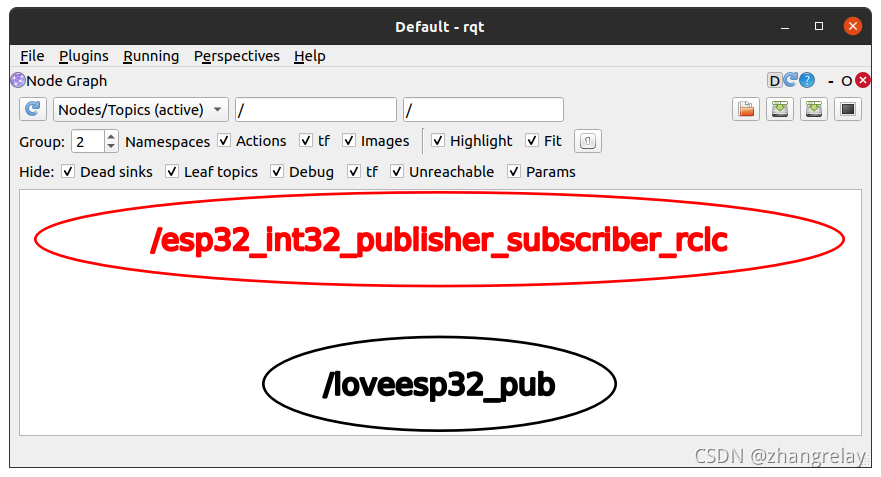

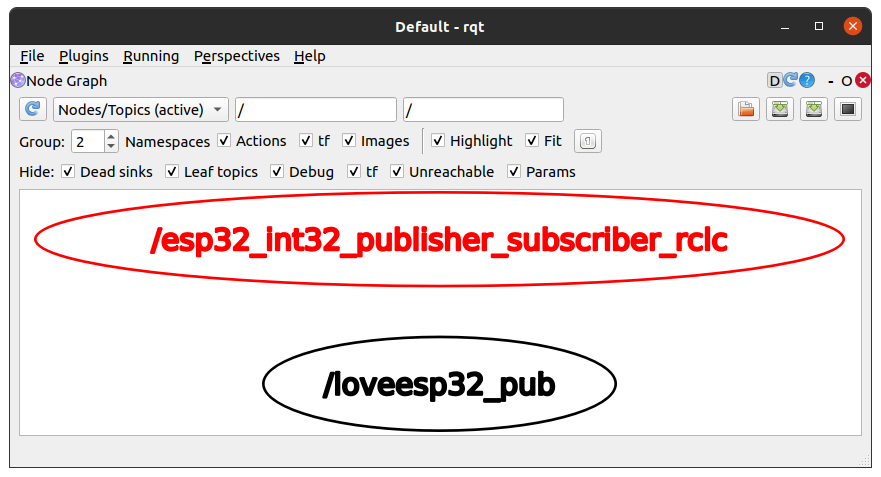

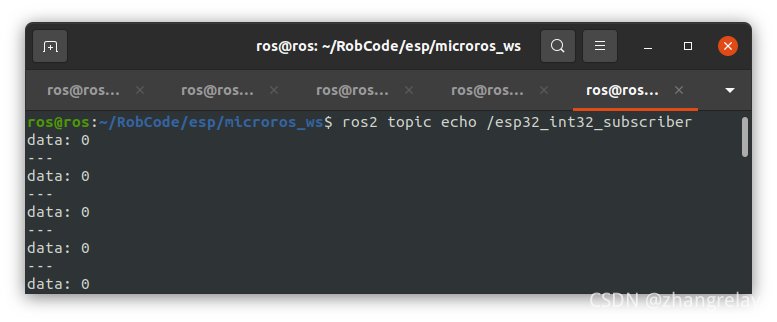

 看这个红红！

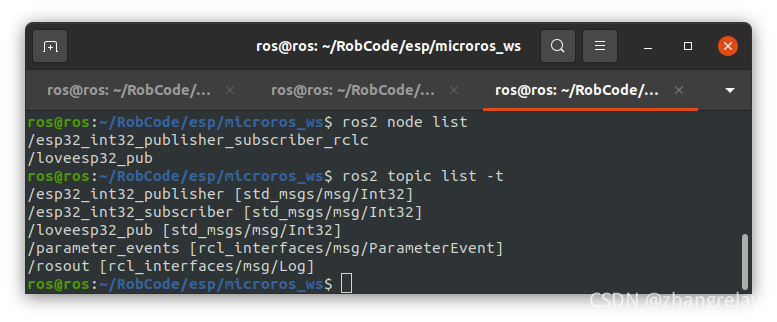

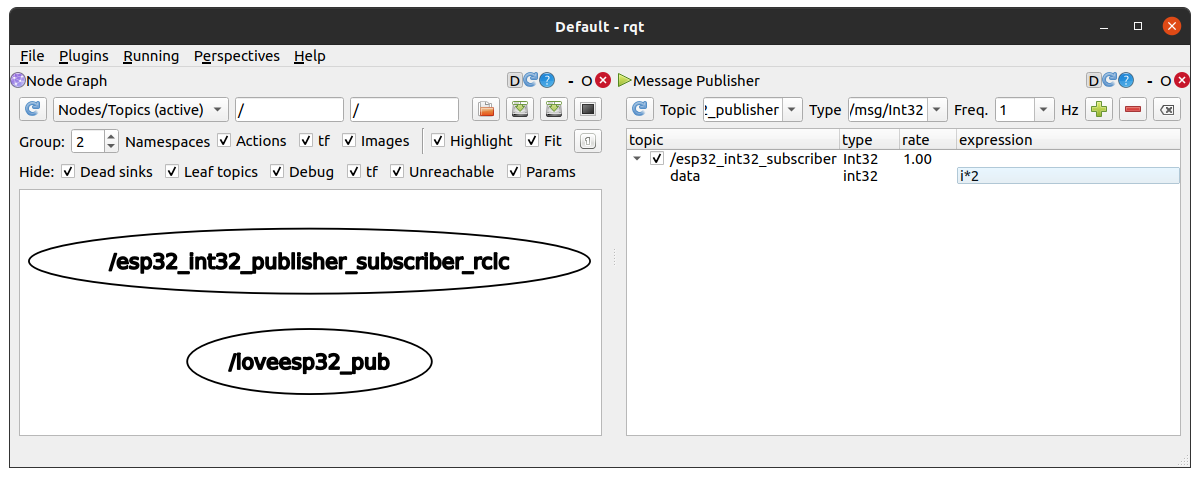

这是一个节点，既有收又能发。
