micro-ROS之esp32与ros2资料（freertos）

重中之重：micro.ros.org/docs/tutorials/core/overview/

所有案例都是流畅稳定运行的。

比arduino+esp32+ros2稳定性好很多哦。

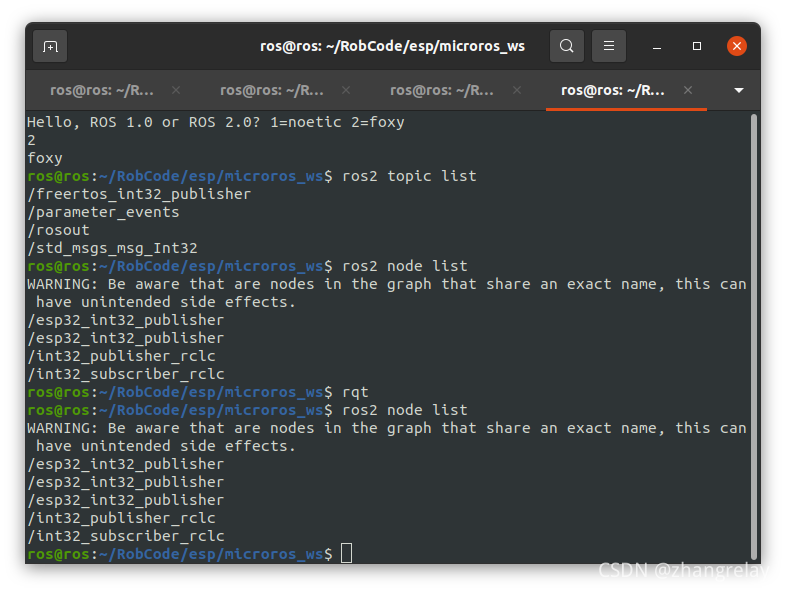

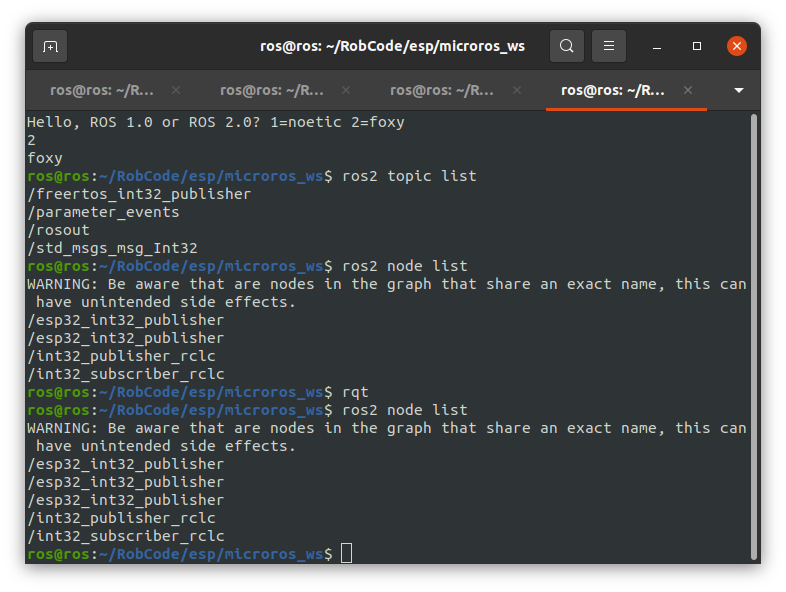

eps32复位重联，会有节点重名现象。

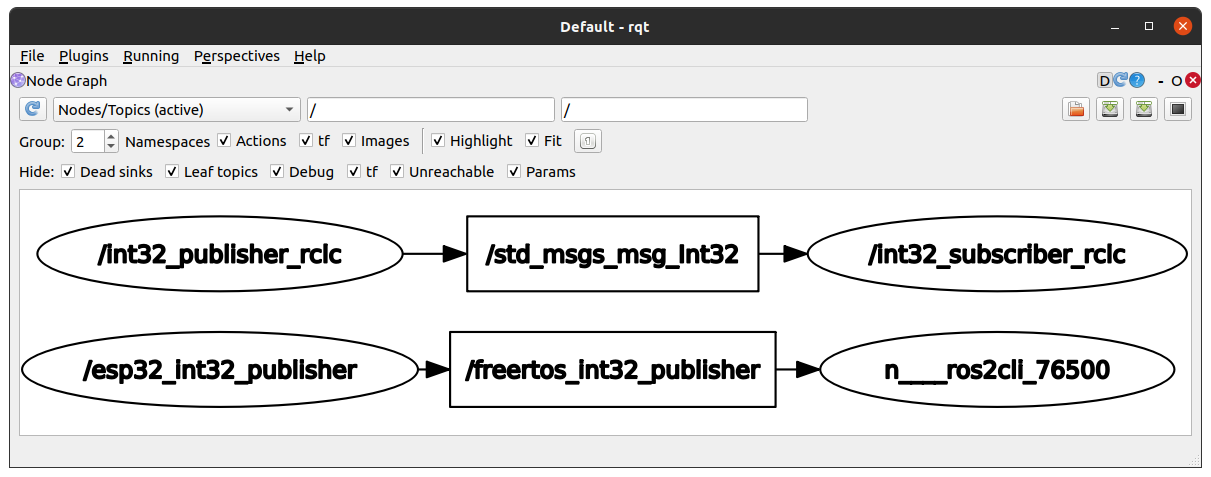

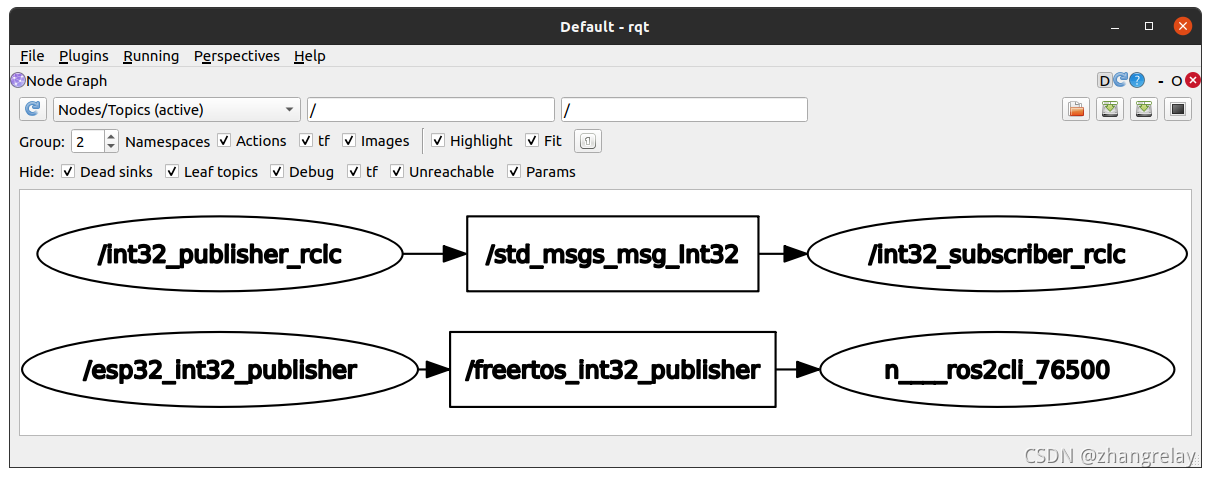

 不过，rqt图正常

源码都是开放的，稍微改一下也是非常方便的。














      #include <string.h>













      #include <stdio.h>













      #include <unistd.h>


























      #include "freertos/FreeRTOS.h"













      #include "freertos/task.h"













      #include "esp_log.h"













      #include "esp_system.h"


























      #include <uros_network_interfaces.h>













      #include <rcl/rcl.h>













      #include <rcl/error_handling.h>













      #include <std_msgs/msg/int32.h>













      #include <rclc/rclc.h>













      #include <rclc/executor.h>













      #include <rmw_microros/rmw_microros.h>













      #include "uxr/client/config.h"


























      #define RCCHECK(fn) { rcl_ret_t temp_rc = fn; if((temp_rc != RCL_RET_OK)){printf("Failed status on line %d: %d. Aborting.\n",__LINE__,(int)temp_rc);vTaskDelete(NULL);}}













      #define RCSOFTCHECK(fn) { rcl_ret_t temp_rc = fn; if((temp_rc != RCL_RET_OK)){printf("Failed status on line %d: %d. Continuing.\n",__LINE__,(int)temp_rc);}}


























      rcl_publisher_t publisher;













      std_msgs__msg__Int32 msg;


























      void timer_callback(rcl_timer_t * timer, int64_t last_call_time)













      {













      	RCLC_UNUSED(last_call_time);












	if (timer != NULL) {













      		RCSOFTCHECK(rcl_publish(&publisher, &msg, NULL));













      		msg.data++;













      	}













      }


























      void micro_ros_task(void * arg)













      {












	rcl_allocator_t allocator = rcl_get_default_allocator();












	rclc_support_t support;

























	rcl_init_options_t init_options = rcl_get_zero_initialized_init_options();













      	RCCHECK(rcl_init_options_init(&init_options, allocator));












	rmw_init_options_t* rmw_options = rcl_init_options_get_rmw_init_options(&init_options);

























	// Static Agent IP and port can be used instead of autodisvery.













      	RCCHECK(rmw_uros_options_set_udp_address(CONFIG_MICRO_ROS_AGENT_IP, CONFIG_MICRO_ROS_AGENT_PORT, rmw_options));












	//RCCHECK(rmw_uros_discover_agent(rmw_options));

























	// create init_options













      	RCCHECK(rclc_support_init_with_options(&support, 0, NULL, &init_options, &allocator));

























	// create node












	rcl_node_t node;













      	RCCHECK(rclc_node_init_default(&node, "esp32_int32_publisher", "", &support));

























	// create publisher













      	RCCHECK(rclc_publisher_init_default(













      		&publisher,













      		&node,













      		ROSIDL_GET_MSG_TYPE_SUPPORT(std_msgs, msg, Int32),












		"freertos_int32_publisher"));

























	// create timer,












	rcl_timer_t timer;












	const unsigned int timer_timeout = 1000;













      	RCCHECK(rclc_timer_init_default(













      		&timer,













      		&support,













      		RCL_MS_TO_NS(timer_timeout),













      		timer_callback));

























	// create executor












	rclc_executor_t executor;













      	RCCHECK(rclc_executor_init(&executor, &support.context, 1, &allocator));













      	RCCHECK(rclc_executor_add_timer(&executor, &timer));


























      	msg.data = 0;

























	while(1){













      		rclc_executor_spin_some(&executor, RCL_MS_TO_NS(100));













      		usleep(10000);













      	}

























	// free resources













      	RCCHECK(rcl_publisher_fini(&publisher, &node));













      	RCCHECK(rcl_node_fini(&node));


























        	vTaskDelete(NULL);













      }


























      void app_main(void)













      {













      #ifdef UCLIENT_PROFILE_UDP












    // Start the networking if required













          ESP_ERROR_CHECK(uros_network_interface_initialize());













      #endif // UCLIENT_PROFILE_UDP

























    //pin micro-ros task in APP_CPU to make PRO_CPU to deal with wifi:













          xTaskCreate(micro_ros_task,












            "uros_task",













                  CONFIG_MICRO_ROS_APP_STACK,












            NULL,













                  CONFIG_MICRO_ROS_APP_TASK_PRIO,












            NULL);













      }





数值每次是加1：

msg.data++;


修改为+10；

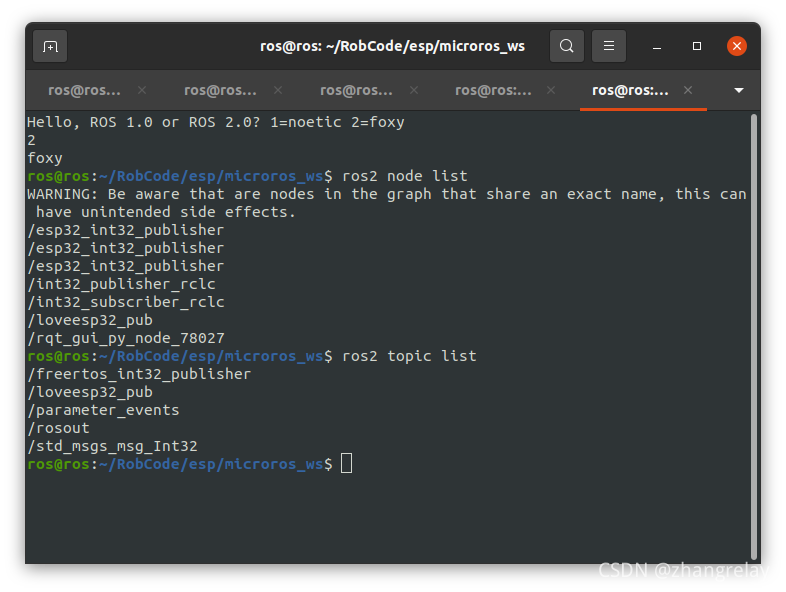

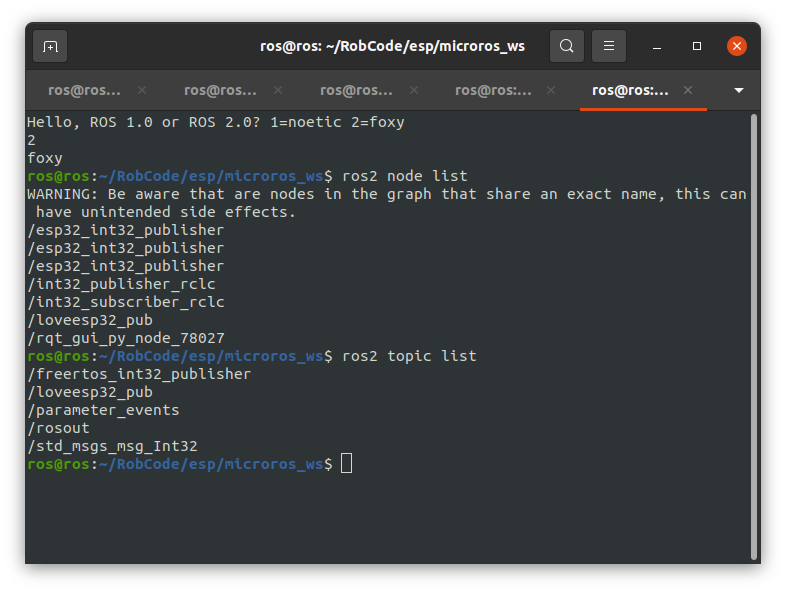

节点名称：

RCCHECK(rclc_node_init_default(&node, "esp32_int32_publisher", "", &support));


修改一下：

RCCHECK(rclc_node_init_default(&node, "love_esp32_pub", "", &support));

主题名称：














          RCCHECK(rclc_publisher_init_default(













              &publisher,













              &node,













              ROSIDL_GET_MSG_TYPE_SUPPORT(std_msgs, msg, Int32),













              "freertos_int32_publisher"));

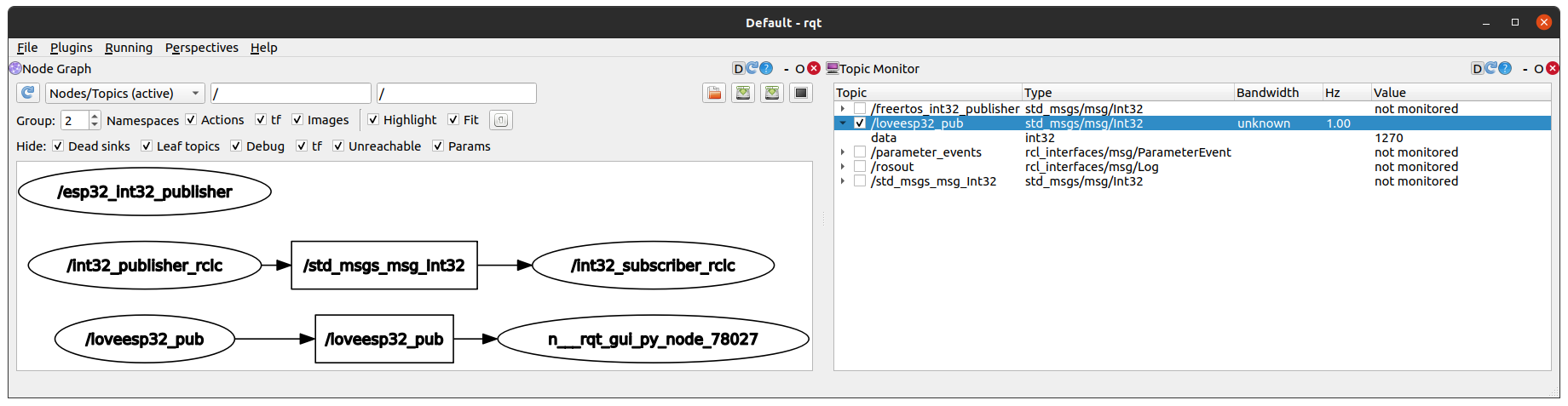

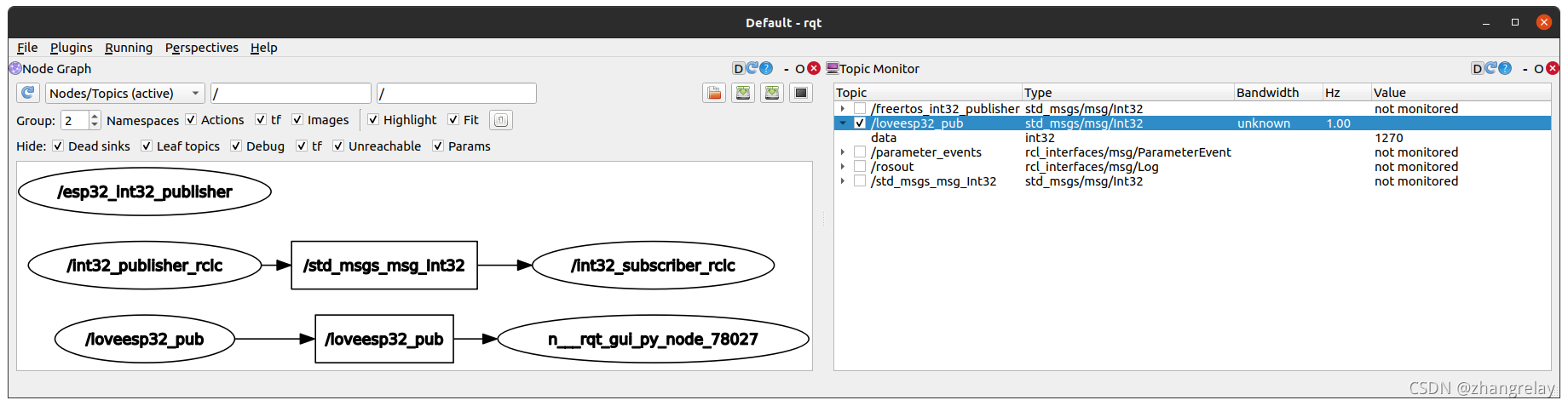

修改一下：

love_esp32_pub

（随意修改看看效果？）

超级稳定，测试半天，无任何丢包。
