esp32与ros2的欢乐启程

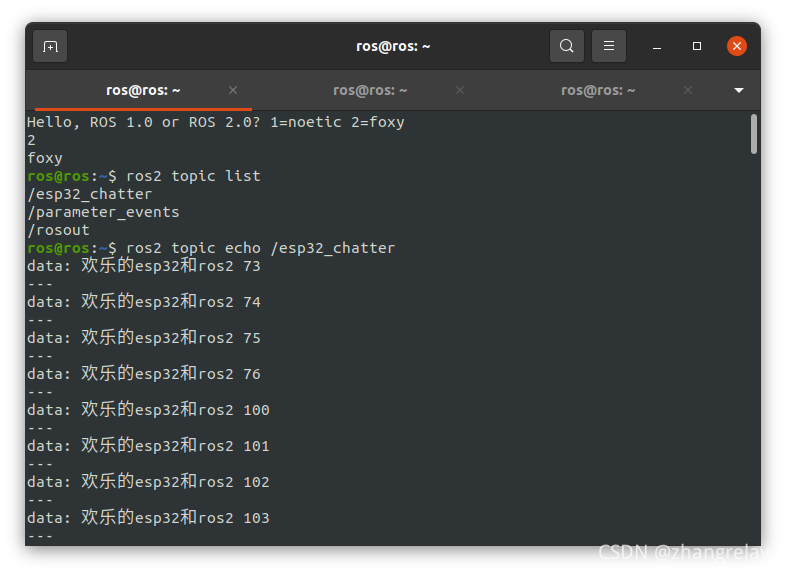

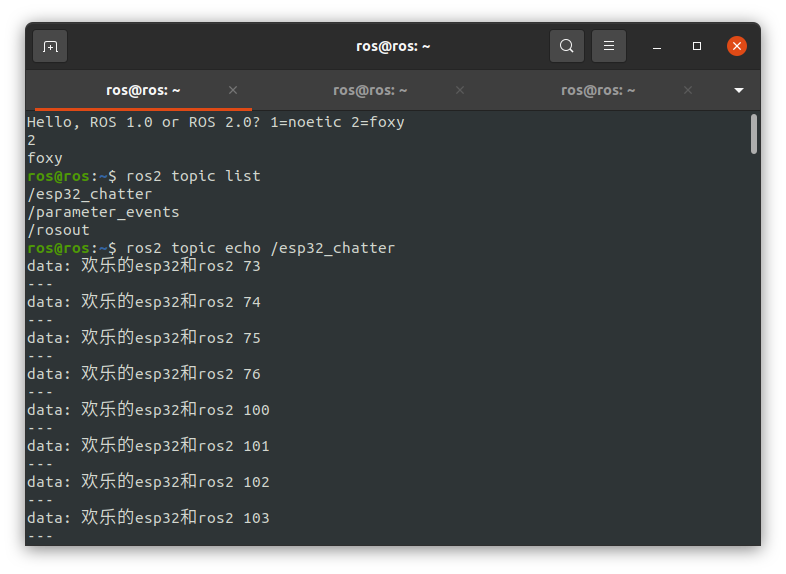

超级简单，先看效果：

esp32的代码也超级简单（udp4）：














      #include <ros2arduino.h>


























      #include <WiFi.h>













      #include <WiFiUdp.h>













      #define SSID "Relay_iPhone"













      #define SSID_PW "66666666"













      #define AGENT_IP "172.20.10.2"













      #define AGENT_PORT 2021 //AGENT port number


























      #define PUBLISH_FREQUENCY 1 //hz


























      void publishString(std_msgs::String* msg, void* arg)













      {













        (void)(arg);

























  static int cnt = 0;












  sprintf(msg->data, "欢乐的esp32和ros2 %d", cnt++);













      }


























      class StringPub : public ros2::Node













      {













      public:













        StringPub()













        : Node("esp32_pub_node")













        {













          ros2::Publisher<std_msgs::String>* publisher_ = this->createPublisher<std_msgs::String>("esp32_chatter");












    this->createWallFreq(PUBLISH_FREQUENCY, (ros2::CallbackFunc)publishString, nullptr, publisher_);













        }













      };


























      WiFiUDP udp;


























      void setup()













      {













        WiFi.begin(SSID, SSID_PW);












  while(WiFi.status() != WL_CONNECTED);


























        ros2::init(&udp, AGENT_IP, AGENT_PORT);













      }


























      void loop()













      {












  static StringPub StringNode;


























        ros2::spin(&StringNode);













      }





 稳定程度感觉上一般。

更有趣的各种功能会逐步介绍的。

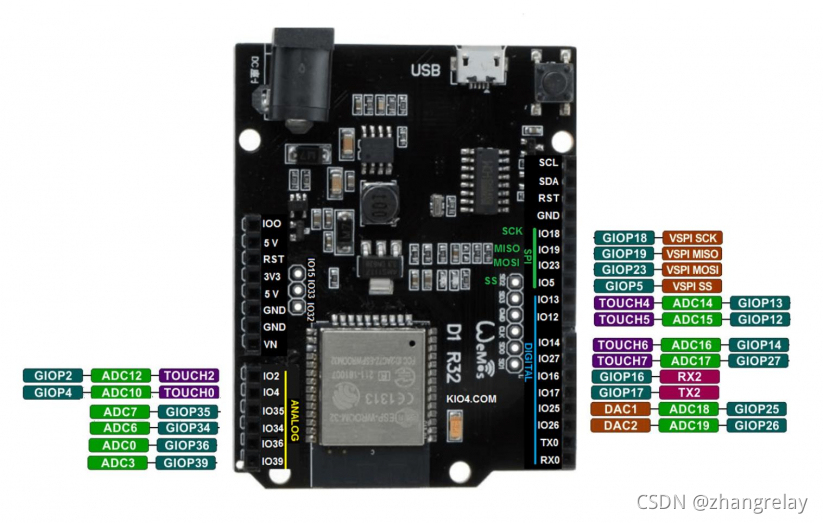

比如esp32 wemos版

 具体引脚：














      static const uint8_t TX = 1;













      static const uint8_t RX = 3;


























      static const uint8_t SDA = 21;













      static const uint8_t SCL = 22;


























      static const uint8_t SS    = 5;













      static const uint8_t MOSI  = 23;













      static const uint8_t MISO  = 19;













      static const uint8_t SCK   = 18;


























      static const uint8_t A0 = 36;













      static const uint8_t A3 = 39;













      static const uint8_t A4 = 32;













      static const uint8_t A5 = 33;













      static const uint8_t A6 = 34;













      static const uint8_t A7 = 35;













      static const uint8_t A10 = 4;













      static const uint8_t A11 = 0;













      static const uint8_t A12 = 2;













      static const uint8_t A13 = 15;













      static const uint8_t A14 = 13;













      static const uint8_t A15 = 12;













      static const uint8_t A16 = 14;













      static const uint8_t A17 = 27;













      static const uint8_t A18 = 25;













      static const uint8_t A19 = 26;


























      static const uint8_t T0 = 4;













      static const uint8_t T1 = 0;













      static const uint8_t T2 = 2;













      static const uint8_t T3 = 15;













      static const uint8_t T4 = 13;













      static const uint8_t T5 = 12;













      static const uint8_t T6 = 14;













      static const uint8_t T7 = 27;













      static const uint8_t T8 = 33;













      static const uint8_t T9 = 32;


























      static const uint8_t DAC1 = 25;













      static const uint8_t DAC2 = 26;





LED_BUILTIN等














      static const uint8_t LED_BUILTIN = 2;













      #define BUILTIN_LED LED_BUILTIN // backward compatibility













      static const uint8_t _VBAT = 35; // battery voltage


























      #define PIN_WIRE_SDA SDA // backward compatibility













      #define PIN_WIRE_SCL SCL // backward compatibility


























      static const uint8_t D0   = 26;













      static const uint8_t D1   = 22;













      static const uint8_t D2   = 21;













      static const uint8_t D3   = 17;













      static const uint8_t D4   = 16;













      static const uint8_t D5   = 18;













      static const uint8_t D6   = 19;













      static const uint8_t D7   = 23;













      static const uint8_t D8   = 5;













      static const uint8_t RXD  = 3;













      static const uint8_t TXD  = 1;





与图示对应。
