usb_cam的ROS2甜点

最近收到一些反馈，不多但是都非常有价值，感谢反馈的朋友们。关于ROS2的实践和应用类型课程已经开发完成，ROS1最终版Noetic也会出一版纪念版镜像配合教程，但博客更新主要集中于ROS2的相关应用。

usb_cam这是非常典型有价值的摄像头包。主要有两个：

• ros2_usb_camera-foxy-devel
• usb_cam-ros2

代码差异还是有不少的。

推荐使用usb_cam。

•  ros2 launch usb_cam demo_launch.py

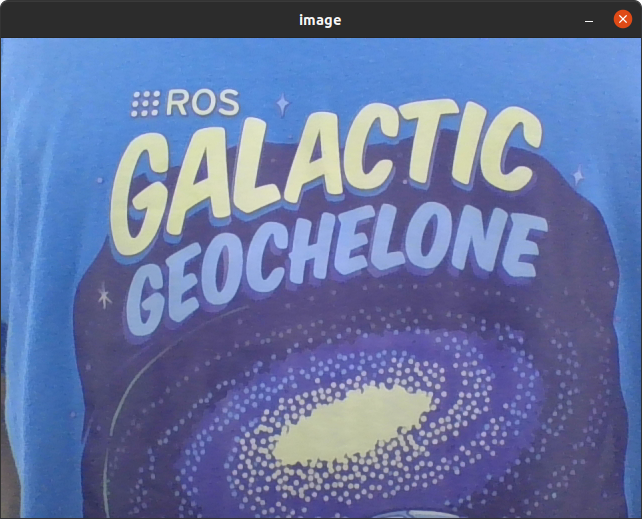

效果如下：

这个是640*480

如果需要1280*720，需要修改如下：

usb_cam_node.cpp













  // declare params












  this->declare_parameter("camera_name", "default_cam");












  this->declare_parameter("camera_info_url", "");












  this->declare_parameter("framerate", 10.0);












  this->declare_parameter("frame_id", "default_cam");












  this->declare_parameter("image_height", 720);












  this->declare_parameter("image_width", 1280);












  this->declare_parameter("io_method", "mmap");












  this->declare_parameter("pixel_format", "yuyv");












  this->declare_parameter("video_device", "/dev/video0");





这样就可以吗？应该是不行的，还需要的操作如下：

先看下启动文件launch














      # Copyright 2018 Lucas Walter













      # All rights reserved.













      #













      # Software License Agreement (BSD License 2.0)













      #













      # Redistribution and use in source and binary forms, with or without













      # modification, are permitted provided that the following conditions













      # are met:













      #













      # * Redistributions of source code must retain the above copyright













      # notice, this list of conditions and the following disclaimer.













      # * Redistributions in binary form must reproduce the above













      # copyright notice, this list of conditions and the following













      # disclaimer in the documentation and/or other materials provided













      # with the distribution.













      # * Neither the name of Lucas Walter nor the names of its













      # contributors may be used to endorse or promote products derived













      # from this software without specific prior written permission.













      #













      # THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS













      # "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT













      # LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS













      # FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE













      # COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,













      # INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING,













      # BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;













      # LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER













      # CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT













      # LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN













      # ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE













      # POSSIBILITY OF SUCH DAMAGE.







































      import argparse













      from launch import LaunchDescription













      from launch_ros.actions import Node


























      import os













      import sys


























      from ament_index_python.packages import get_package_share_directory







































      def generate_launch_description():













          ld = LaunchDescription()


























          parser = argparse.ArgumentParser(description='usb_cam demo')













          parser.add_argument('-n', '--node-name', dest='node_name', type=str,













                              help='name for device', default='usb_cam')


























          args, unknown = parser.parse_known_args(sys.argv[4:])


























          usb_cam_dir = get_package_share_directory('usb_cam')

























    # get path to params file













          params_path = os.path.join(













              usb_cam_dir,












        'config',












        'params.yaml'













          )


























          node_name = args.node_name


























          print(params_path)













          ld.add_action(Node(













              package='usb_cam', executable='usb_cam_node_exe', output='screen',













              name=node_name,












        # namespace=ns,













              parameters=[params_path]













              ))













          ld.add_action(Node(













              package='usb_cam', executable='show_image.py', output='screen',












        # namespace=ns,












        # arguments=[image_manip_dir + "/data/mosaic.jpg"])












        # remappings=[('image_in', 'image_raw')]













              ))

























    return ld





注意到如下这一段：







































    # get path to params file













          params_path = os.path.join(













              usb_cam_dir,












        'config',












        'params.yaml'













          )


















需要修改啦：

camera_info.yaml














      image_width: 1280













      image_height: 720













      camera_name: test_camera













      camera_matrix:













        rows: 3













        cols: 3













        data: [438.783367, 0.000000, 305.593336, 0.000000, 437.302876, 243.738352, 0.000000, 0.000000, 1.000000]













      distortion_model: plumb_bob













      distortion_coefficients:













        rows: 1













        cols: 5













        data: [-0.361976, 0.110510, 0.001014, 0.000505, 0.000000]













      rectification_matrix:













        rows: 3













        cols: 3













        data: [0.999978, 0.002789, -0.006046, -0.002816, 0.999986, -0.004401, 0.006034, 0.004417, 0.999972]













      projection_matrix:













        rows: 3













        cols: 4













        data: [393.653800, 0.000000, 322.797939, 0.000000, 0.000000, 393.653800, 241.090902, 0.000000, 0.000000, 0.000000, 1.000000, 0.000000]





params.yaml














      /**:













          ros__parameters:













            video_device: "/dev/video0"













            framerate: 30.0













            io_method: "mmap"













            frame_id: "camera"













            pixel_format: "yuyv"













            image_width: 1280













            image_height: 720













            camera_name: "test_camera"













            camera_info_url: "package://usb_cam/config/camera_info.yaml"

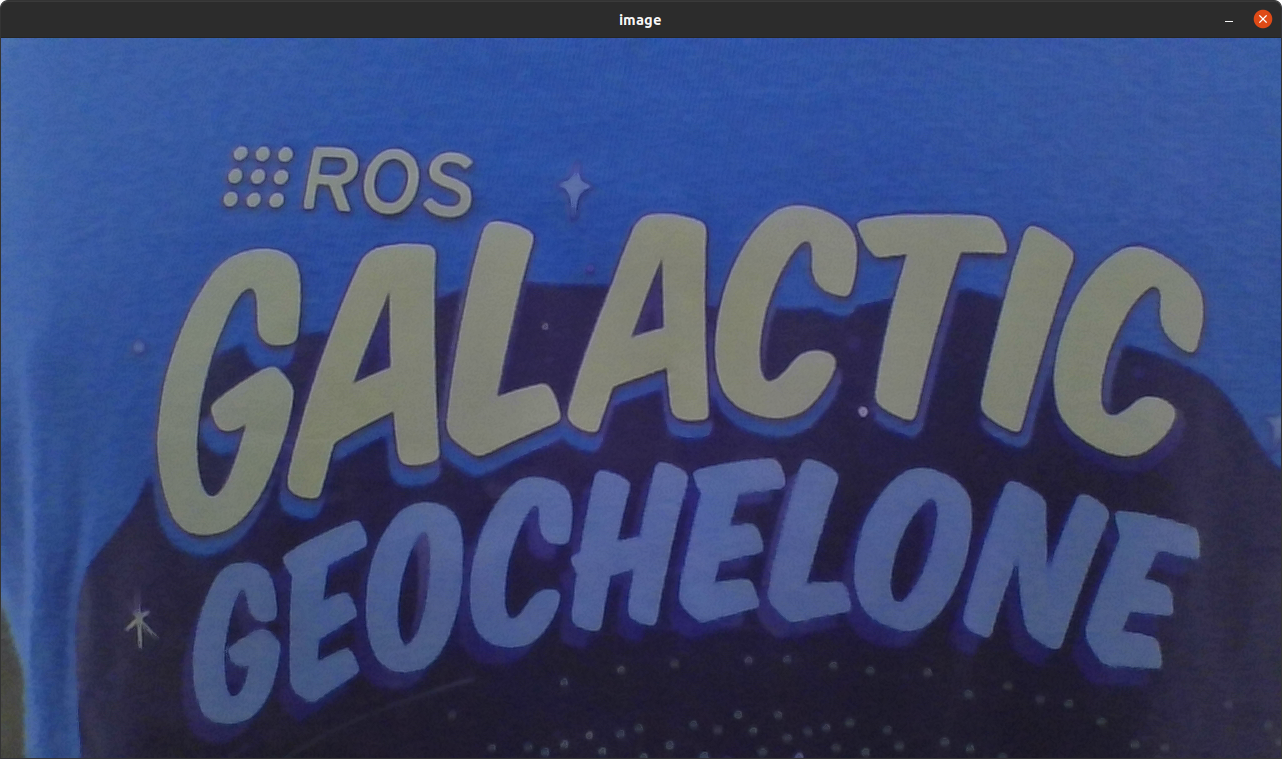

参数合适吗？不管，效果还是有的：

然后，就可以愉快玩耍各种图形处理算法啦，欢乐不^_^
