pyqt制作电子钟表

pyqt制作电子钟表

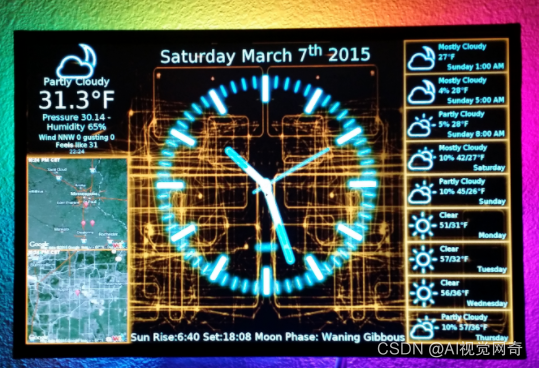

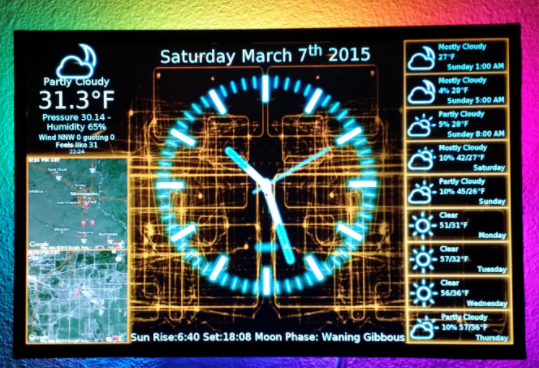

https://github.com/n0bel/PiClock

自定义表盘背景：

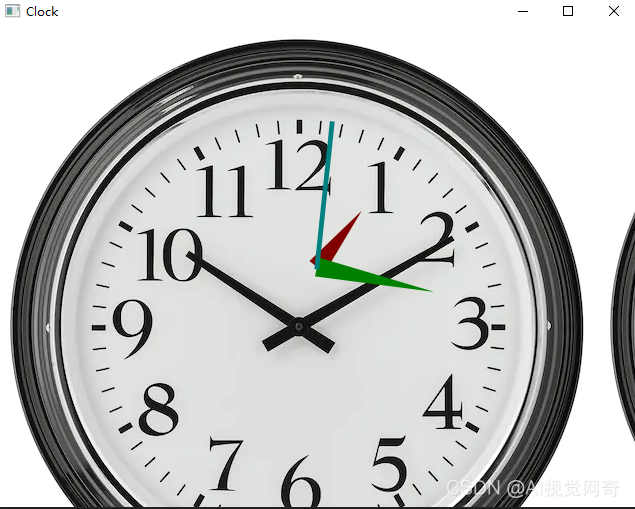

 效果图：

 code：














      from PyQt5.QtCore import *













      from PyQt5.QtGui import *













      from PyQt5.QtWidgets import *







































      class clockForm(QWidget):












    def __init__(self, parent=None):













              super(clockForm, self).__init__(parent)













              self.setWindowTitle("Clock")













              self.timer = QTimer()












        # 设置窗口计时器


























              window_pale = QPalette()













              window_pale.setBrush(self.backgroundRole(), QBrush(QPixmap("clock.png")))













              self.setPalette(window_pale)


























              self.timer.timeout.connect(self.update)













              self.timer.start(1000)

























    def paintEvent(self, event):













              painter = QPainter(self)













              painter.setRenderHint(QPainter.Antialiasing)

























        # 设置表盘中的文字字体













              font = QFont("Times", 6)













              fm = QFontMetrics(font)













              fontRect = fm.boundingRect("99")  # 获取绘制字体的矩形范围

























        # 分针坐标点













              minPoints = [QPointF(50, 25), QPointF(48, 50), QPointF(52, 50)]

























        # 时钟坐标点













              hourPoints = [QPointF(50, 35), QPointF(48, 50), QPointF(52, 50)]


























              side = min(self.width(), self.height())













              painter.setViewport((self.width() - side) / 2, (self.height() - side) / 2, side, side)  # 始终处于窗口中心位置显示

























        # 设置QPainter的坐标系统，无论窗体大小如何变化，












        # 窗体左上坐标为(0,0),右下坐标为(100,100),












        # 因此窗体中心坐标为(50,50)













              painter.setWindow(0, 0, 100, 100)


























              transform = QTransform()






































        # transform.reset()

























        # 获取当前时间













              currentTime = QTime().currentTime()













              hour = currentTime.hour() if currentTime.hour() < 12 else currentTime.hour() - 12













              minite = currentTime.minute()













              second = currentTime.second()

























        # 获取所需旋转角度













              hour_angle = hour * 30.0 + (minite / 60.0) * 30.0













              minite_angle = (minite / 60.0) * 360.0













              second_angle = second * 6.0

























        # 时针













              transform.translate(50, 50)













              transform.rotate(hour_angle)













              transform.translate(-50, -50)













              painter.setWorldTransform(transform)













              painter.setPen(Qt.NoPen)













              painter.setBrush(QBrush(Qt.darkRed))













              painter.drawPolygon(QPolygonF(hourPoints))


























              transform.reset()

























        # 分针













              transform.translate(50, 50)













              transform.rotate(minite_angle)













              transform.translate(-50, -50)













              painter.setWorldTransform(transform)













              painter.setBrush(QBrush(Qt.darkGreen))













              painter.drawPolygon(QPolygonF(minPoints))


























              transform.reset()












        # 秒针













              transform.translate(50, 50)













              transform.rotate(second_angle)













              transform.translate(-50, -50)













              painter.setWorldTransform(transform)













              painter.setPen(QPen(Qt.darkCyan, 1))













              painter.drawLine(50, 50, 50, 20)







































      if __name__ == "__main__":












    import sys


























          app = QApplication(sys.argv)













          form = clockForm()













          form.show()













          app.exec_()

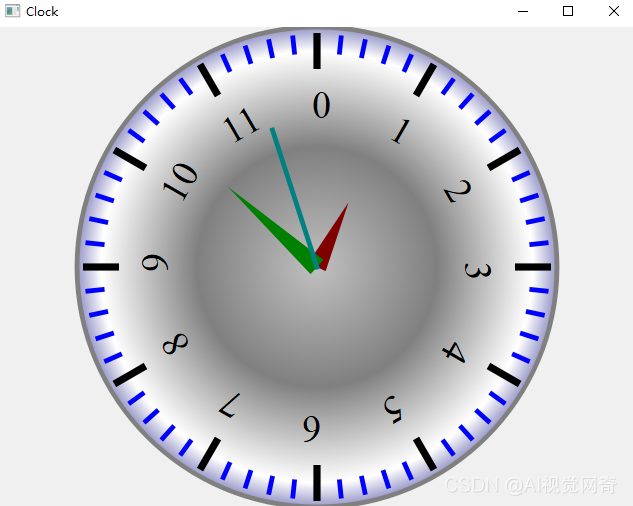

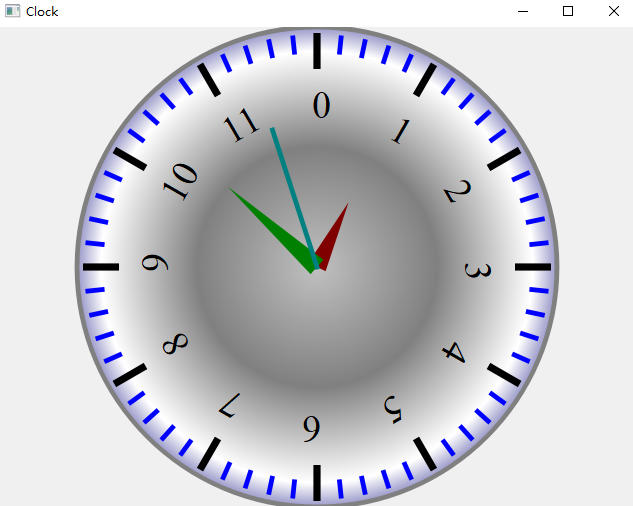

绘制表盘，效果图：














      '''













      Created on 2013-7-2













      @author: badboy













      Email:lucky.haiyu@gmail.com













      QQ:43831266













      '''













      from PyQt5.QtCore import *













      from PyQt5.QtGui import *













      from PyQt5.QtWidgets import *


























      class clockForm(QWidget):












    def __init__(self,parent=None):













              super(clockForm,self).__init__(parent)













              self.setWindowTitle("Clock")













              self.timer=QTimer()












        #设置窗口计时器













              self.timer.timeout.connect(self.update)













              self.timer.start(1000)

























    def paintEvent(self,event):













              painter=QPainter(self)













              painter.setRenderHint(QPainter.Antialiasing)

























        #设置表盘中的文字字体













              font=QFont("Times",6)













              fm=QFontMetrics(font)













              fontRect=fm.boundingRect("99")#获取绘制字体的矩形范围

























        #分针坐标点













              minPoints=[QPointF(50,25),













                         QPointF(48,50),













                         QPointF(52,50)]

























        #时钟坐标点













              hourPoints=[QPointF(50,35),













                         QPointF(48,50),













                         QPointF(52,50)]


























              side=min(self.width(),self.height())













              painter.setViewport((self.width()-side)/2,(self.height()-side)/2,













                                  side,side)#始终处于窗口中心位置显示






































        #设置QPainter的坐标系统，无论窗体大小如何变化，












        #窗体左上坐标为(0,0),右下坐标为(100,100),












        #因此窗体中心坐标为(50,50)













              painter.setWindow(0,0,100,100)

























        #绘制表盘，使用环形渐变色













              niceBlue=QColor(150,150,200)













              haloGrident=QRadialGradient(50,50,50,50,50)













              haloGrident.setColorAt(0.0,Qt.lightGray)













              haloGrident.setColorAt(0.5,Qt.darkGray)













              haloGrident.setColorAt(0.9,Qt.white)













              haloGrident.setColorAt(1.0,niceBlue)













              painter.setBrush(haloGrident)













              painter.setPen(QPen(Qt.darkGray,1))













              painter.drawEllipse(0,0,100,100)







































              transform=QTransform()

























        #绘制时钟为0的字，以及刻度













              painter.setPen(QPen(Qt.black,1.5))













              fontRect.moveCenter(QPoint(50,10+fontRect.height()/2))













              painter.setFont(font)













              painter.drawLine(50,2,50,8)#













              painter.drawText(QRectF(fontRect),Qt.AlignHCenter|Qt.AlignTop,"0")

























        for i in range(1,12):













                  transform.translate(50, 50)













                  transform.rotate(30)













                  transform.translate(-50,-50)













                  painter.setWorldTransform(transform)













                  painter.drawLine(50,2,50,8)













                  painter.drawText(QRectF(fontRect),Qt.AlignHCenter|Qt.AlignTop,"%d" % i)


























              transform.reset()

























        #绘制分钟刻度线













              painter.setPen(QPen(Qt.blue,1))












        for i in range(1,60):













                  transform.translate(50,50)













                  transform.rotate(6)













                  transform.translate(-50,-50)












            if i%5!=0:













                      painter.setWorldTransform(transform)













                      painter.drawLine(50,2,50,5)







































              transform.reset()

























        #获取当前时间













              currentTime=QTime().currentTime()













              hour=currentTime.hour() if currentTime.hour()<12 else currentTime.hour()-12













              minite=currentTime.minute()













              second=currentTime.second()

























        #获取所需旋转角度













              hour_angle=hour*30.0+(minite/60.0)*30.0













              minite_angle=(minite/60.0)*360.0













              second_angle=second*6.0

























        #时针













              transform.translate(50,50)













              transform.rotate(hour_angle)













              transform.translate(-50,-50)













              painter.setWorldTransform(transform)













              painter.setPen(Qt.NoPen)













              painter.setBrush(QBrush(Qt.darkRed))













              painter.drawPolygon(QPolygonF(hourPoints))


























              transform.reset()

























        #分针













              transform.translate(50,50)













              transform.rotate(minite_angle)













              transform.translate(-50,-50)













              painter.setWorldTransform(transform)













              painter.setBrush(QBrush(Qt.darkGreen))













              painter.drawPolygon(QPolygonF(minPoints))


























              transform.reset()












        #秒针













              transform.translate(50,50)













              transform.rotate(second_angle)













              transform.translate(-50,-50)













              painter.setWorldTransform(transform)













              painter.setPen(QPen(Qt.darkCyan,1))













              painter.drawLine(50,50,50,20)


























      if __name__=="__main__":












    import sys













          app=QApplication(sys.argv)













          form=clockForm()













          form.show()













          app.exec_()
