Nav2极简笔记01-安装与试用
【摘要】
安装
功能包：
ros-foxy-navigation2ros-foxy-nav2-bringupros-foxy-turtlebot3*
推荐使用新立得，例如nav2的地图服务器：
图形化安装适合初学者入门！
选择需要的包下载安装即可。
源码编译：
github中navigation2，按照官网流程说明...
安装
功能包：
- ros-foxy-navigation2
- ros-foxy-nav2-bringup
- ros-foxy-turtlebot3*

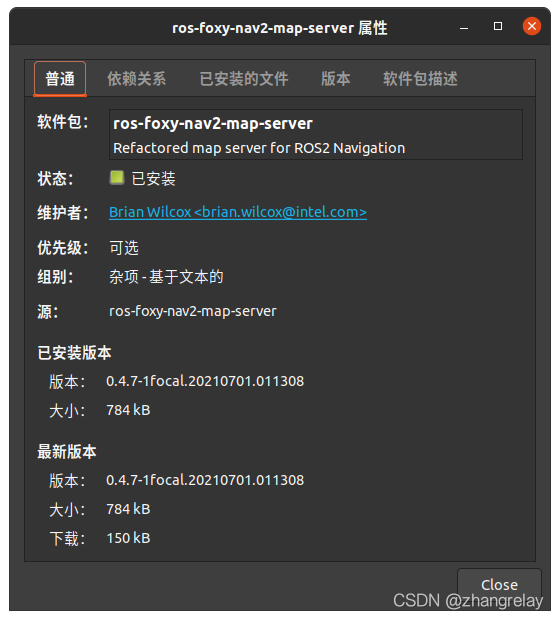

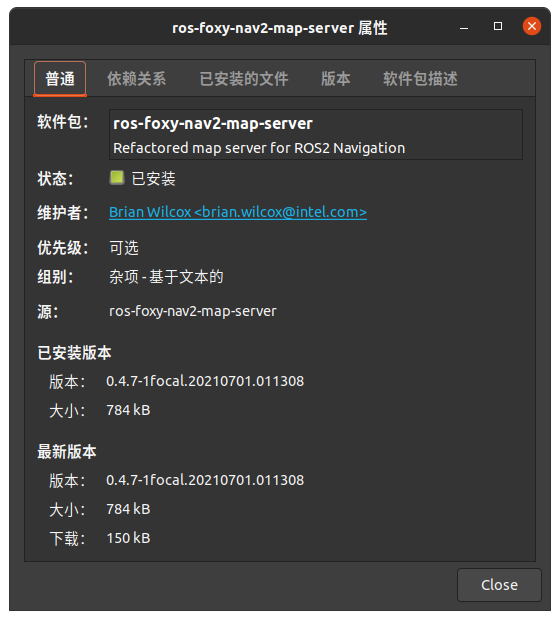

推荐使用新立得，例如nav2的地图服务器：
图形化安装适合初学者入门！
选择需要的包下载安装即可。
源码编译：
github中navigation2，按照官网流程说明配置安装，文档更新较快，为避免误导，不再赘述。
-
ros@ros:~/RobCode/navigation2$ colcon build
-
Starting >>> nav2_common
-
Starting >>> nav_2d_msgs
-
Starting >>> nav2_gazebo_spawner
-
Finished <<< nav2_common [0.68s]
-
Starting >>> nav2_msgs
-
Starting >>> nav2_voxel_grid
-
Finished <<< nav2_gazebo_spawner [0.72s]
-
Finished <<< nav_2d_msgs [14.3s]
-
Starting >>> dwb_msgs
-
Finished <<< nav2_voxel_grid [33.6s]
-
Finished <<< dwb_msgs [29.2s]
-
Finished <<< nav2_msgs [53.0s]
-
Starting >>> nav2_util
-
[Processing: nav2_util]
-
Finished <<< nav2_util [34.1s]
-
Starting >>> nav_2d_utils
-
Starting >>> nav2_behavior_tree
-
Starting >>> nav2_lifecycle_manager
-
Starting >>> nav2_map_server
-
Starting >>> nav2_amcl
-
Starting >>> nav2_waypoint_follower
-
Finished <<< nav_2d_utils [19.4s]
-
Finished <<< nav2_waypoint_follower [30.0s]
-
Finished <<< nav2_lifecycle_manager [33.4s]
-
Starting >>> nav2_rviz_plugins
-
Finished <<< nav2_map_server [1min 1s]
-
Starting >>> nav2_costmap_2d
-
Finished <<< nav2_amcl [1min 7s]
-
Finished <<< nav2_rviz_plugins [58.3s]
-
[Processing: nav2_behavior_tree, nav2_costmap_2d]
-
[Processing: nav2_behavior_tree, nav2_costmap_2d]
-
Finished <<< nav2_behavior_tree [2min 58s]
-
Starting >>> nav2_bt_navigator
-
Finished <<< nav2_costmap_2d [2min 21s]
-
Starting >>> nav2_core
-
Starting >>> costmap_queue
-
Finished <<< nav2_core [4.58s]
-
Starting >>> dwb_core
-
Starting >>> nav2_controller
-
Starting >>> nav2_navfn_planner
-
Starting >>> nav2_planner
-
Starting >>> nav2_recoveries
-
Starting >>> nav2_regulated_pure_pursuit_controller
-
Finished <<< nav2_bt_navigator [51.2s]
-
Starting >>> smac_planner
-
Finished <<< costmap_queue [45.9s]
-
Finished <<< nav2_navfn_planner [57.8s]
-
Finished <<< dwb_core [57.9s]
-
Starting >>> dwb_critics
-
Starting >>> dwb_plugins
-
Finished <<< nav2_planner [1min 15s]
-
Finished <<< nav2_regulated_pure_pursuit_controller [1min 17s]
-
[Processing: dwb_critics, dwb_plugins, nav2_controller, nav2_recoveries, smac_planner]
-
Finished <<< dwb_plugins [54.7s]
-
Finished <<< nav2_controller [2min 4s]
-
Finished <<< dwb_critics [1min 8s]
-
Starting >>> nav2_dwb_controller
-
Finished <<< nav2_dwb_controller [2.32s]
-
Finished <<< nav2_recoveries [2min 14s]
-
Finished <<< smac_planner [2min 17s]
-
Starting >>> navigation2
-
Finished <<< navigation2 [1.05s]
-
Starting >>> nav2_bringup
-
Finished <<< nav2_bringup [1.19s]
-
Starting >>> nav2_system_tests
-
[Processing: nav2_system_tests]
-
[Processing: nav2_system_tests]
-
[Processing: nav2_system_tests]
-
Finished <<< nav2_system_tests [1min 58s]
-
-
Summary: 31 packages finished [9min 34s]
-
ros@ros:~/RobCode/navigation2$
-
示例
测试安装后，是否能够正常使用（ros2-foxy为例）。
功能包
-
source /opt/ros/foxy/setup.bash
-
-
export TURTLEBOT3_MODEL=waffle
-
-
export GAZEBO_MODEL_PATH=$GAZEBO_MODEL_PATH:/opt/ros/foxy/share/turtlebot3_gazebo/models
路径依据实际情况，稍有不同。
源码编译
source /home/ros/RobCode/navigation2/install/setup.bash
运行
ros2 launch nav2_bringup tb3_simulation_launch.py

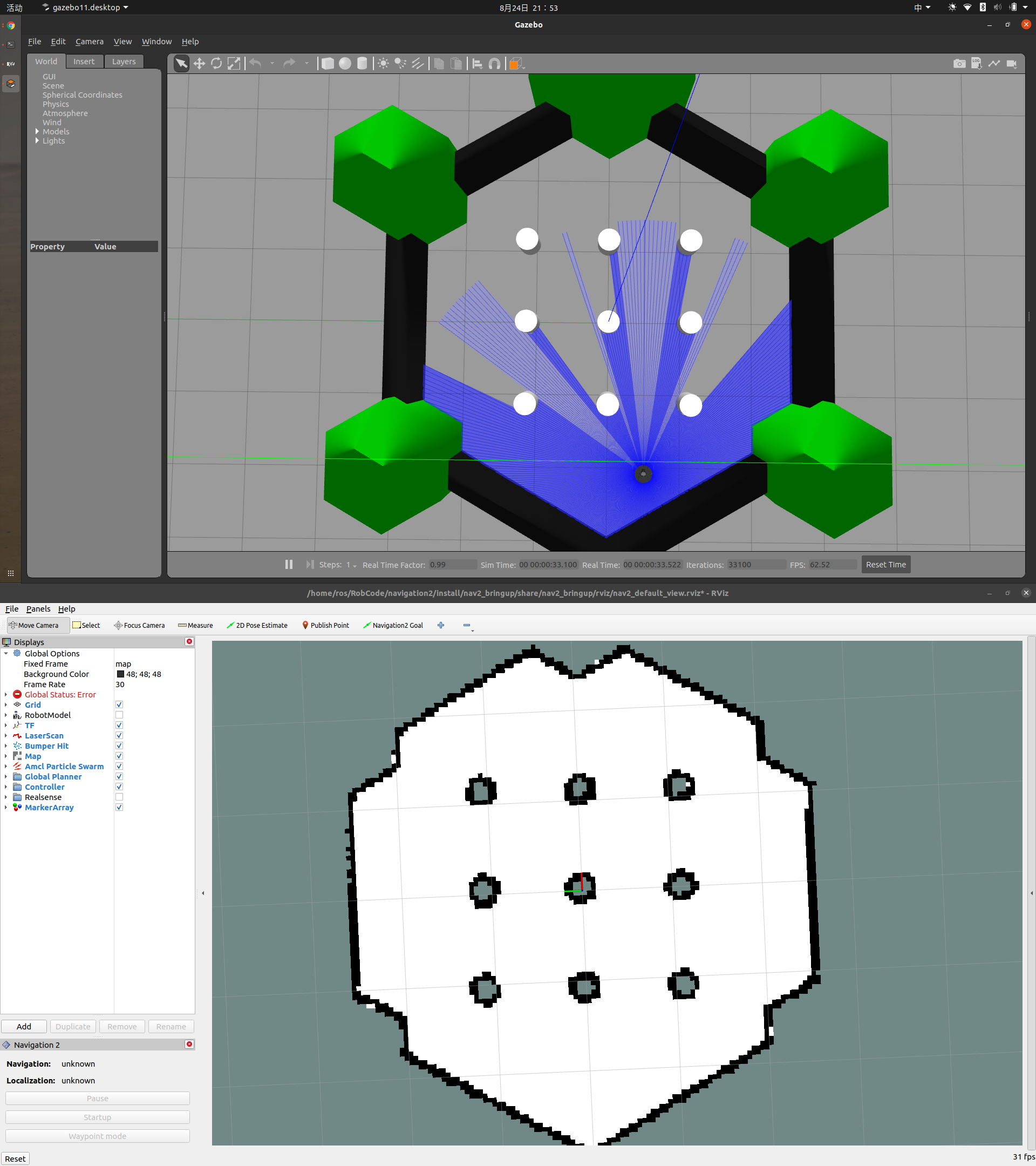

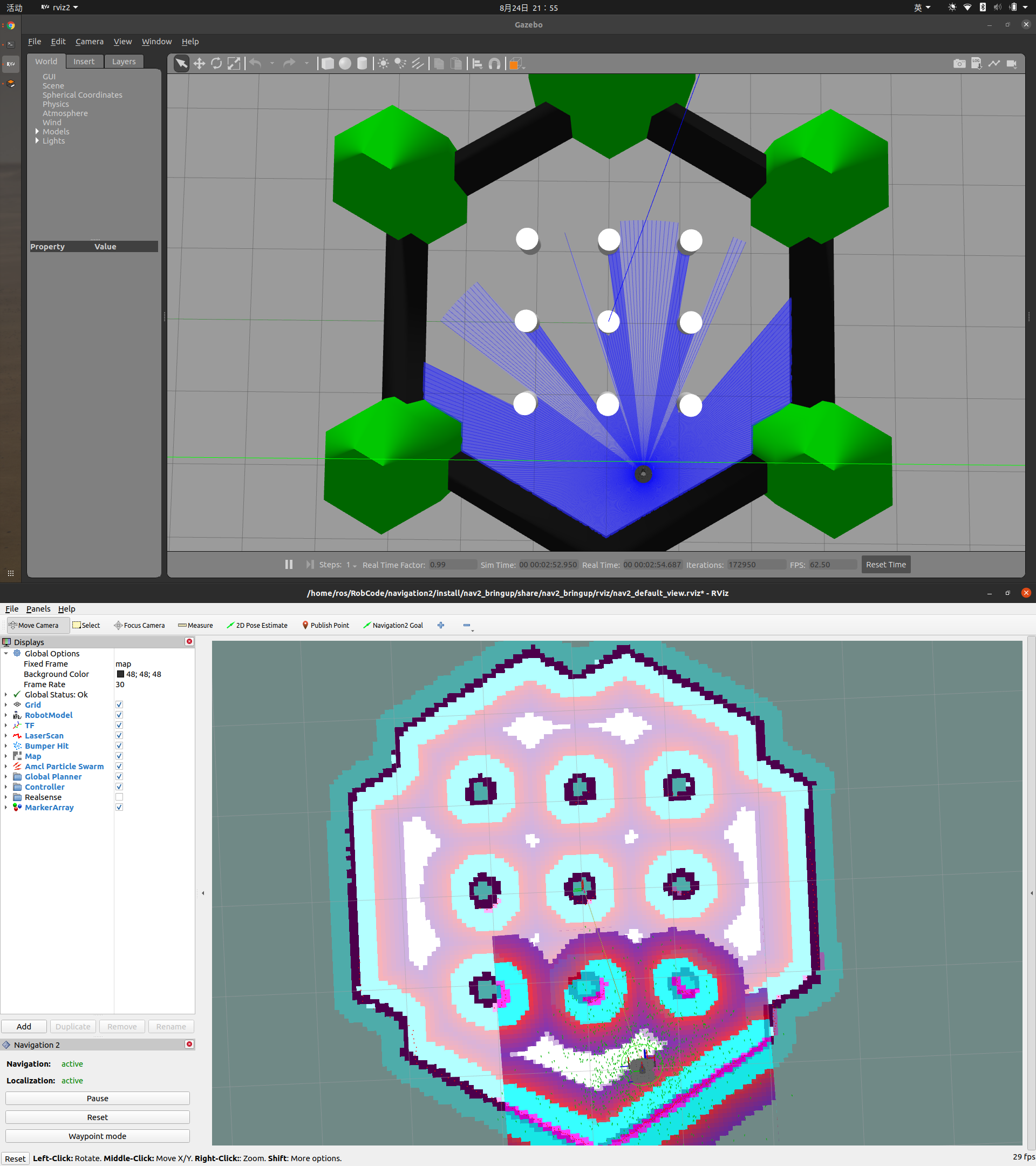

设置初始位置（2D Pose Estimate）：

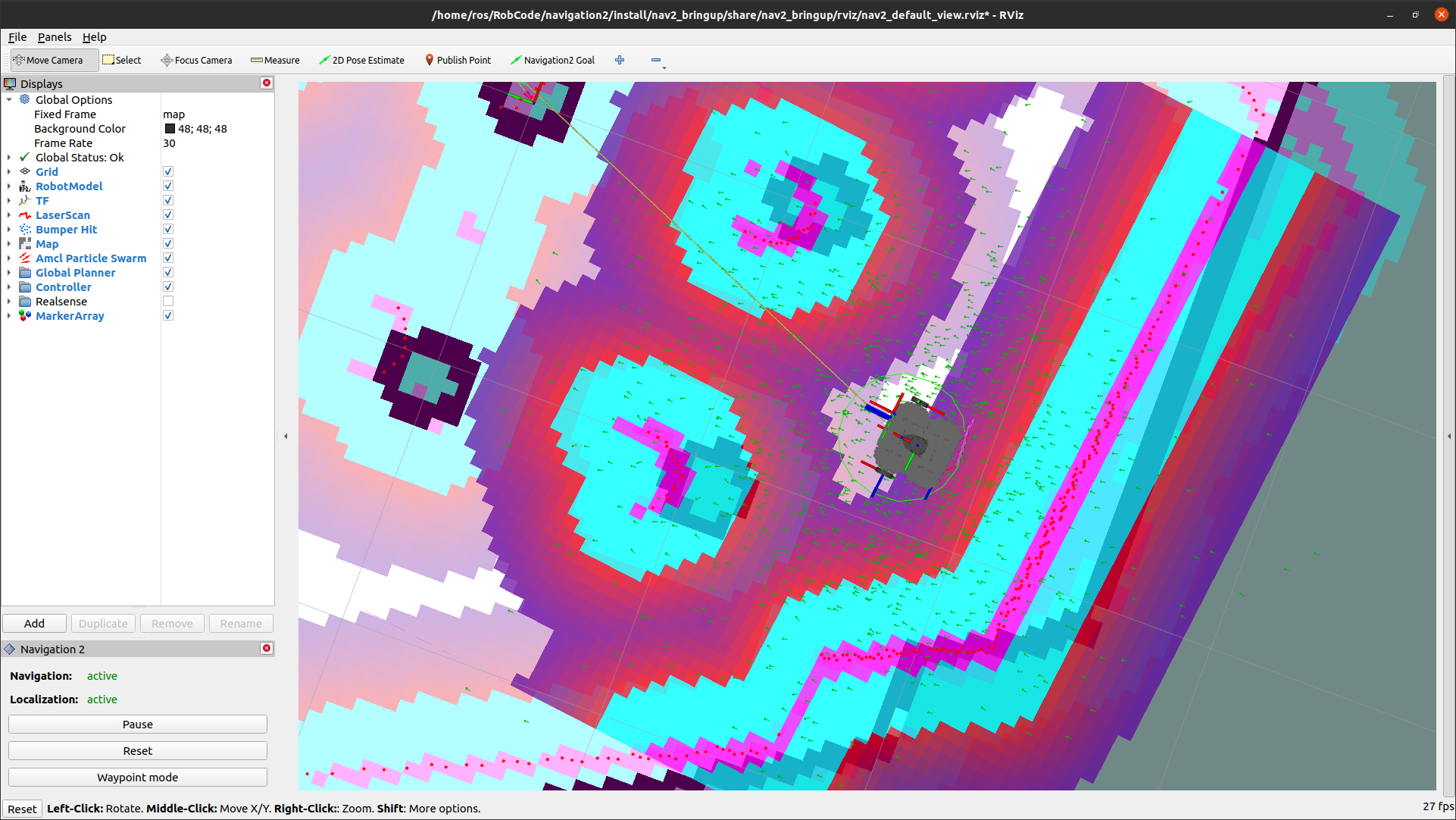

在rviz2中加入机器人模型（RobotModel），调整TF大小：

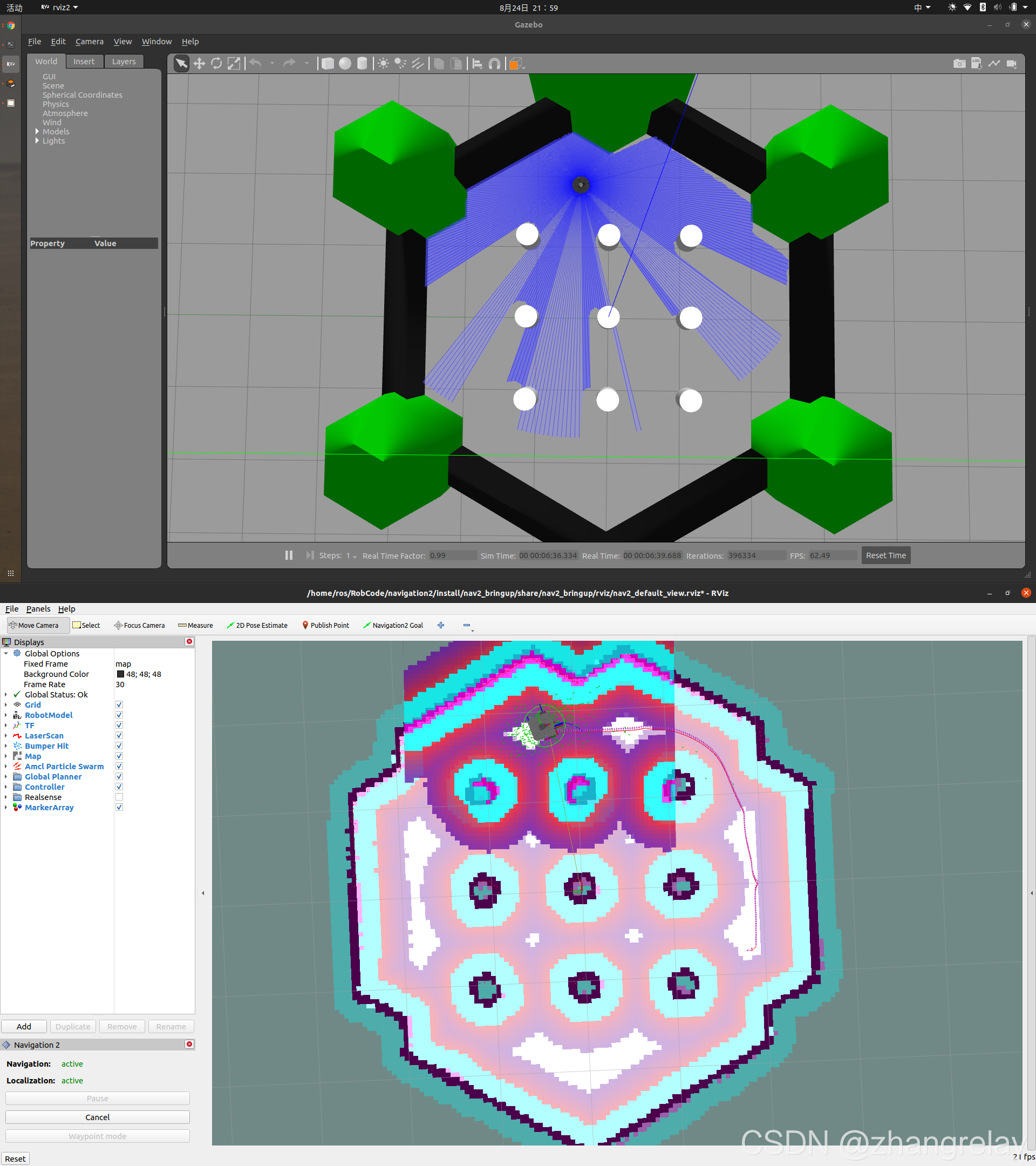

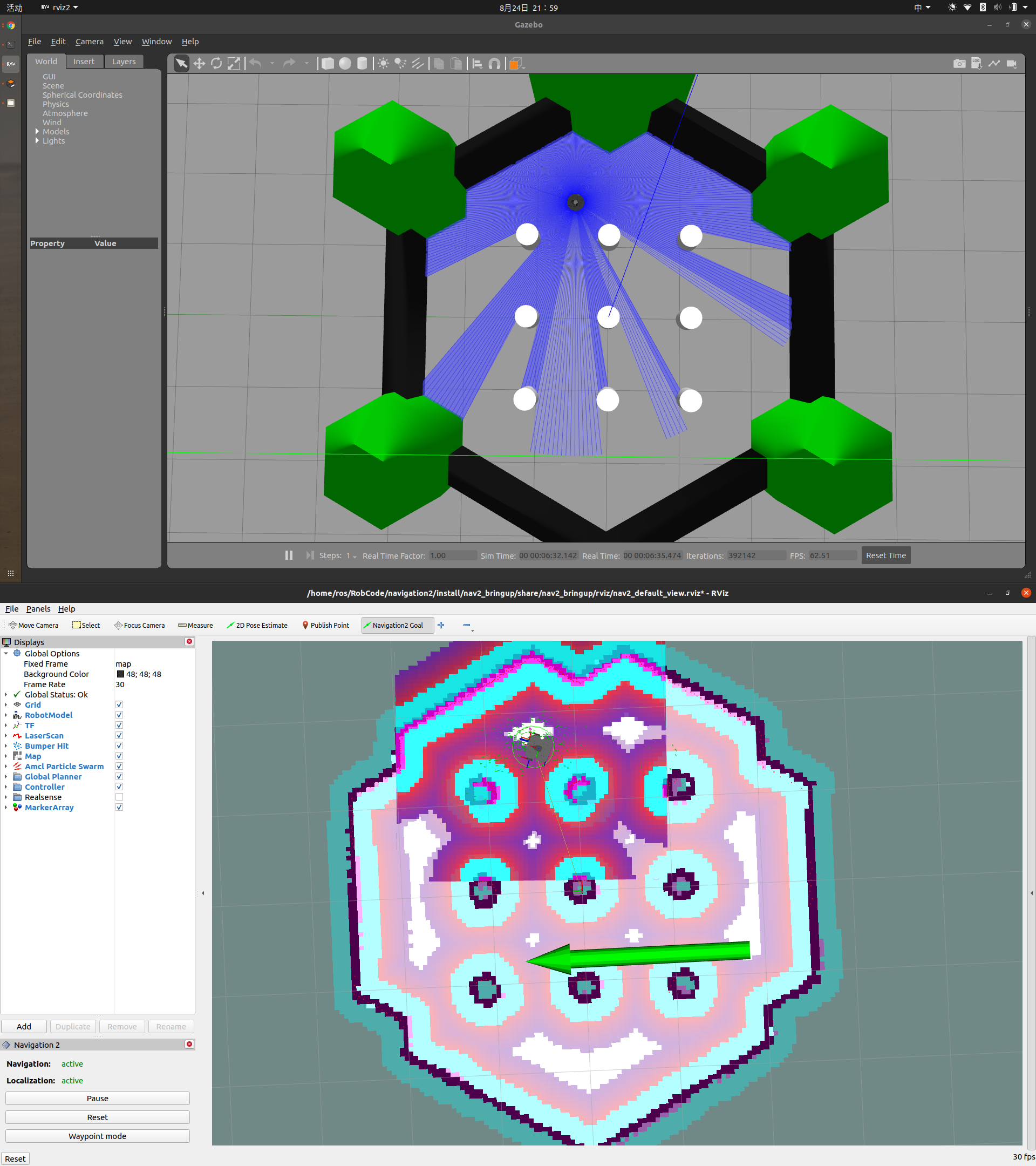

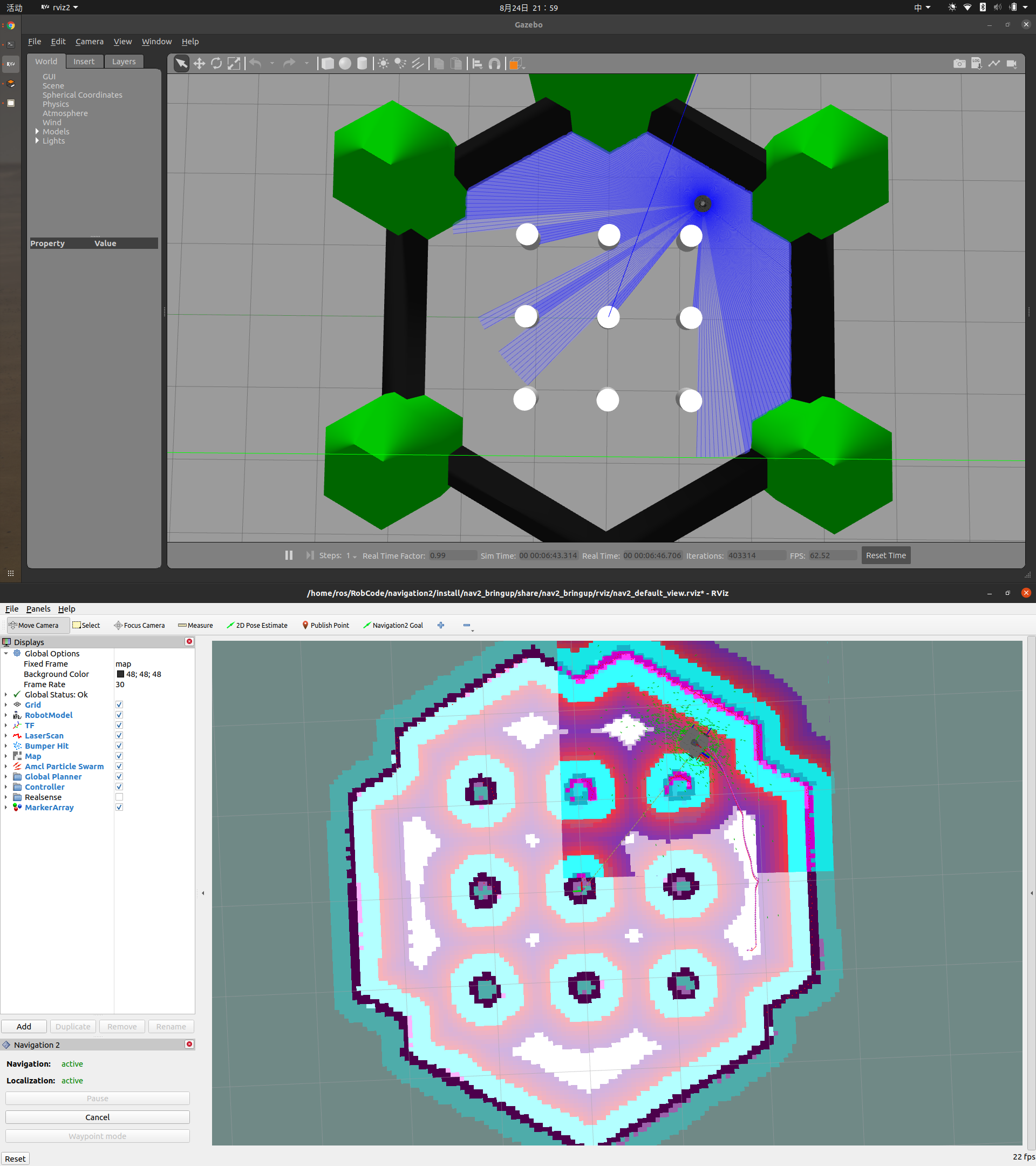

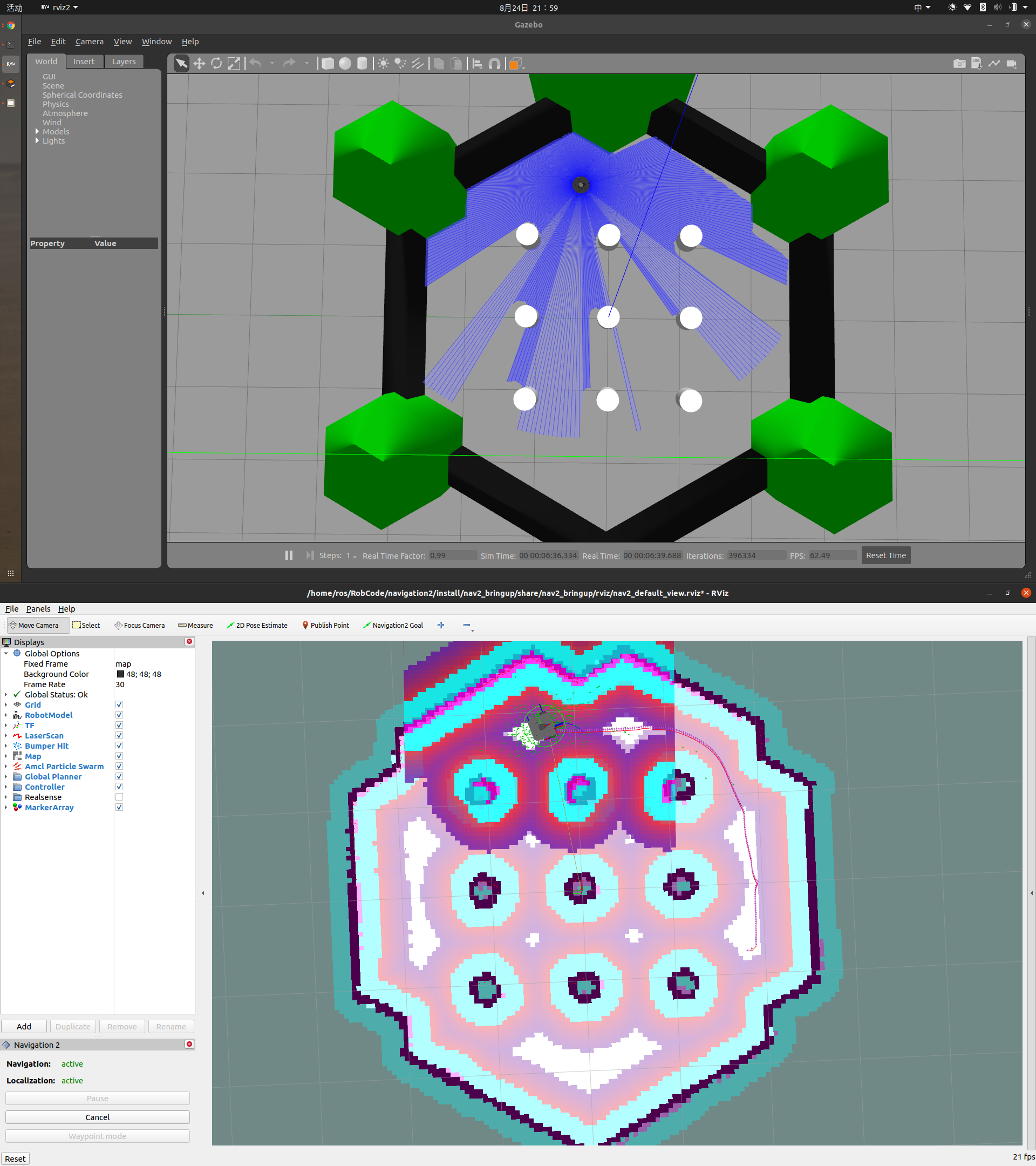

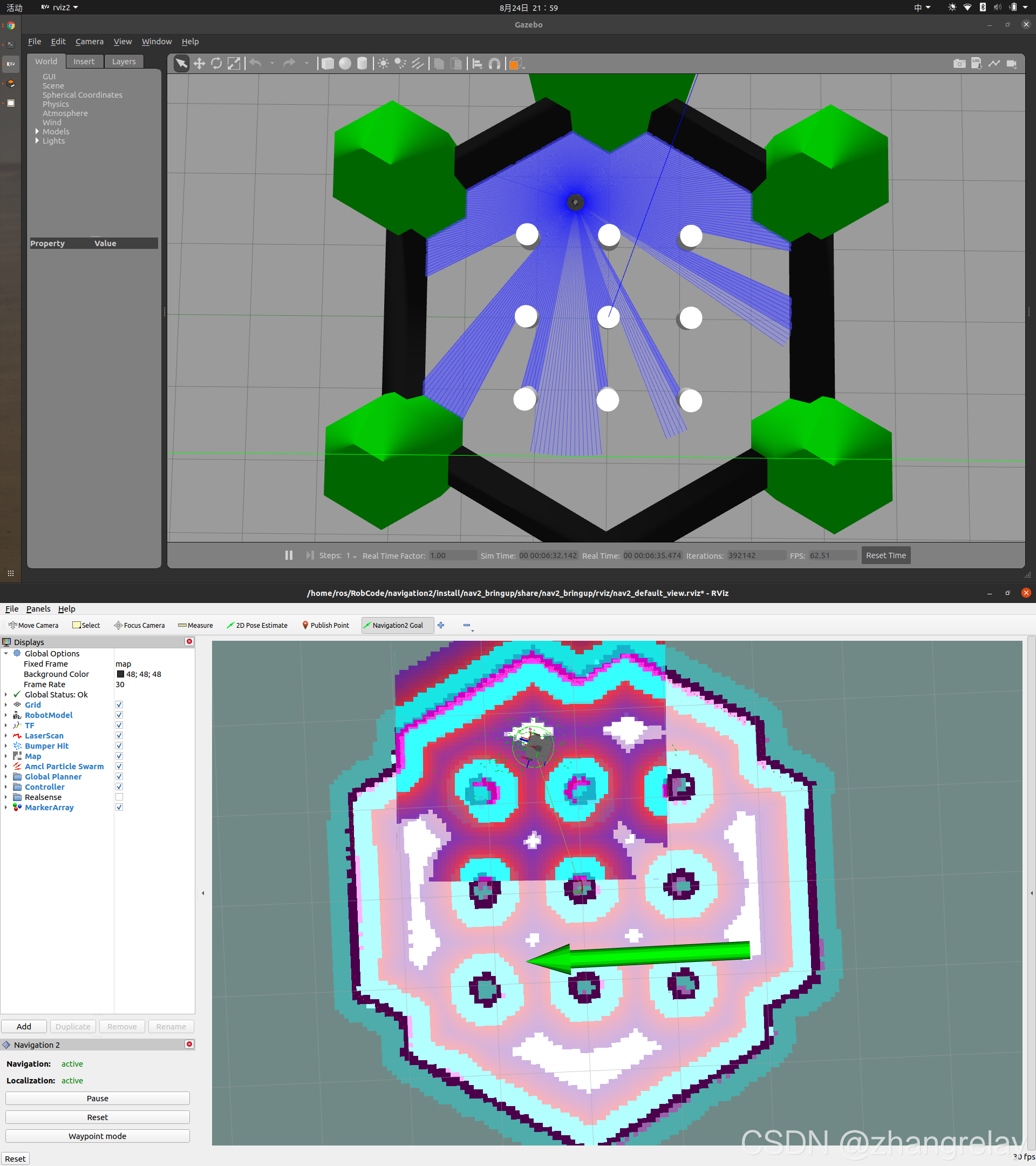

使用目标（Navigation2 Goal）设置终点，看效果如何？
定位思考：
如何提高定位精度呢？
tb3_simulation_launch.py（Intel）
-
# Copyright (c) 2018 Intel Corporation
-
#
-
# Licensed under the Apache License, Version 2.0 (the "License");
-
# you may not use this file except in compliance with the License.
-
# You may obtain a copy of the License at
-
#
-
# http://www.apache.org/licenses/LICENSE-2.0
-
#
-
# Unless required by applicable law or agreed to in writing, software
-
# distributed under the License is distributed on an "AS IS" BASIS,
-
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
-
# See the License for the specific language governing permissions and
-
# limitations under the License.
-
-
"""This is all-in-one launch script intended for use by nav2 developers."""
-
-
import os
-
-
from ament_index_python.packages import get_package_share_directory
-
-
from launch import LaunchDescription
-
from launch.actions import DeclareLaunchArgument, ExecuteProcess, IncludeLaunchDescription
-
from launch.conditions import IfCondition
-
from launch.launch_description_sources import PythonLaunchDescriptionSource
-
from launch.substitutions import LaunchConfiguration, PythonExpression
-
from launch_ros.actions import Node
-
-
-
def generate_launch_description():
-
# Get the launch directory
-
bringup_dir = get_package_share_directory('nav2_bringup')
-
launch_dir = os.path.join(bringup_dir, 'launch')
-
-
# Create the launch configuration variables
-
slam = LaunchConfiguration('slam')
-
namespace = LaunchConfiguration('namespace')
-
use_namespace = LaunchConfiguration('use_namespace')
-
map_yaml_file = LaunchConfiguration('map')
-
use_sim_time = LaunchConfiguration('use_sim_time')
-
params_file = LaunchConfiguration('params_file')
-
default_bt_xml_filename = LaunchConfiguration('default_bt_xml_filename')
-
autostart = LaunchConfiguration('autostart')
-
-
# Launch configuration variables specific to simulation
-
rviz_config_file = LaunchConfiguration('rviz_config_file')
-
use_simulator = LaunchConfiguration('use_simulator')
-
use_robot_state_pub = LaunchConfiguration('use_robot_state_pub')
-
use_rviz = LaunchConfiguration('use_rviz')
-
headless = LaunchConfiguration('headless')
-
world = LaunchConfiguration('world')
-
-
# Map fully qualified names to relative ones so the node's namespace can be prepended.
-
# In case of the transforms (tf), currently, there doesn't seem to be a better alternative
-
# https://github.com/ros/geometry2/issues/32
-
# https://github.com/ros/robot_state_publisher/pull/30
-
# TODO(orduno) Substitute with `PushNodeRemapping`
-
# https://github.com/ros2/launch_ros/issues/56
-
remappings = [('/tf', 'tf'),
-
('/tf_static', 'tf_static')]
-
-
# Declare the launch arguments
-
declare_namespace_cmd = DeclareLaunchArgument(
-
'namespace',
-
default_value='',
-
description='Top-level namespace')
-
-
declare_use_namespace_cmd = DeclareLaunchArgument(
-
'use_namespace',
-
default_value='false',
-
description='Whether to apply a namespace to the navigation stack')
-
-
declare_slam_cmd = DeclareLaunchArgument(
-
'slam',
-
default_value='False',
-
description='Whether run a SLAM')
-
-
declare_map_yaml_cmd = DeclareLaunchArgument(
-
'map',
-
default_value=os.path.join(bringup_dir, 'maps', 'turtlebot3_world.yaml'),
-
description='Full path to map file to load')
-
-
declare_use_sim_time_cmd = DeclareLaunchArgument(
-
'use_sim_time',
-
default_value='true',
-
description='Use simulation (Gazebo) clock if true')
-
-
declare_params_file_cmd = DeclareLaunchArgument(
-
'params_file',
-
default_value=os.path.join(bringup_dir, 'params', 'nav2_params.yaml'),
-
description='Full path to the ROS2 parameters file to use for all launched nodes')
-
-
declare_bt_xml_cmd = DeclareLaunchArgument(
-
'default_bt_xml_filename',
-
default_value=os.path.join(
-
get_package_share_directory('nav2_bt_navigator'),
-
'behavior_trees', 'navigate_w_replanning_and_recovery.xml'),
-
description='Full path to the behavior tree xml file to use')
-
-
declare_autostart_cmd = DeclareLaunchArgument(
-
'autostart', default_value='true',
-
description='Automatically startup the nav2 stack')
-
-
declare_rviz_config_file_cmd = DeclareLaunchArgument(
-
'rviz_config_file',
-
default_value=os.path.join(bringup_dir, 'rviz', 'nav2_default_view.rviz'),
-
description='Full path to the RVIZ config file to use')
-
-
declare_use_simulator_cmd = DeclareLaunchArgument(
-
'use_simulator',
-
default_value='True',
-
description='Whether to start the simulator')
-
-
declare_use_robot_state_pub_cmd = DeclareLaunchArgument(
-
'use_robot_state_pub',
-
default_value='True',
-
description='Whether to start the robot state publisher')
-
-
declare_use_rviz_cmd = DeclareLaunchArgument(
-
'use_rviz',
-
default_value='True',
-
description='Whether to start RVIZ')
-
-
declare_simulator_cmd = DeclareLaunchArgument(
-
'headless',
-
default_value='False',
-
description='Whether to execute gzclient)')
-
-
declare_world_cmd = DeclareLaunchArgument(
-
'world',
-
# TODO(orduno) Switch back once ROS argument passing has been fixed upstream
-
# https://github.com/ROBOTIS-GIT/turtlebot3_simulations/issues/91
-
# default_value=os.path.join(get_package_share_directory('turtlebot3_gazebo'),
-
# 'worlds/turtlebot3_worlds/waffle.model'),
-
default_value=os.path.join(bringup_dir, 'worlds', 'waffle.model'),
-
description='Full path to world model file to load')
-
-
# Specify the actions
-
start_gazebo_server_cmd = ExecuteProcess(
-
condition=IfCondition(use_simulator),
-
cmd=['gzserver', '-s', 'libgazebo_ros_init.so', world],
-
cwd=[launch_dir], output='screen')
-
-
start_gazebo_client_cmd = ExecuteProcess(
-
condition=IfCondition(PythonExpression([use_simulator, ' and not ', headless])),
-
cmd=['gzclient'],
-
cwd=[launch_dir], output='screen')
-
-
urdf = os.path.join(bringup_dir, 'urdf', 'turtlebot3_waffle.urdf')
-
-
start_robot_state_publisher_cmd = Node(
-
condition=IfCondition(use_robot_state_pub),
-
package='robot_state_publisher',
-
executable='robot_state_publisher',
-
name='robot_state_publisher',
-
namespace=namespace,
-
output='screen',
-
parameters=[{'use_sim_time': use_sim_time}],
-
remappings=remappings,
-
arguments=[urdf])
-
-
rviz_cmd = IncludeLaunchDescription(
-
PythonLaunchDescriptionSource(os.path.join(launch_dir, 'rviz_launch.py')),
-
condition=IfCondition(use_rviz),
-
launch_arguments={'namespace': '',
-
'use_namespace': 'False',
-
'rviz_config': rviz_config_file}.items())
-
-
bringup_cmd = IncludeLaunchDescription(
-
PythonLaunchDescriptionSource(os.path.join(launch_dir, 'bringup_launch.py')),
-
launch_arguments={'namespace': namespace,
-
'use_namespace': use_namespace,
-
'slam': slam,
-
'map': map_yaml_file,
-
'use_sim_time': use_sim_time,
-
'params_file': params_file,
-
'default_bt_xml_filename': default_bt_xml_filename,
-
'autostart': autostart}.items())
-
-
# Create the launch description and populate
-
ld = LaunchDescription()
-
-
# Declare the launch options
-
ld.add_action(declare_namespace_cmd)
-
ld.add_action(declare_use_namespace_cmd)
-
ld.add_action(declare_slam_cmd)
-
ld.add_action(declare_map_yaml_cmd)
-
ld.add_action(declare_use_sim_time_cmd)
-
ld.add_action(declare_params_file_cmd)
-
ld.add_action(declare_bt_xml_cmd)
-
ld.add_action(declare_autostart_cmd)
-
-
ld.add_action(declare_rviz_config_file_cmd)
-
ld.add_action(declare_use_simulator_cmd)
-
ld.add_action(declare_use_robot_state_pub_cmd)
-
ld.add_action(declare_use_rviz_cmd)
-
ld.add_action(declare_simulator_cmd)
-
ld.add_action(declare_world_cmd)
-
-
# Add any conditioned actions
-
ld.add_action(start_gazebo_server_cmd)
-
ld.add_action(start_gazebo_client_cmd)
-
-
# Add the actions to launch all of the navigation nodes
-
ld.add_action(start_robot_state_publisher_cmd)
-
ld.add_action(rviz_cmd)
-
ld.add_action(bringup_cmd)
-
-
return ld
