【 MATLAB 】使用 MATLAB 比较占空比不同的周期方波的 DFS 图

周期方波的表达式我就不提炼了，既然你来看文章了，我就不信你周期方波都不知道。

占空比定义为：L/N，N为周期，下面我们对 L = 5，N = 20； L = 5，N = 40；L = 5，N = 60；L = 7，N = 60分别画出它们的DFS图作比较。

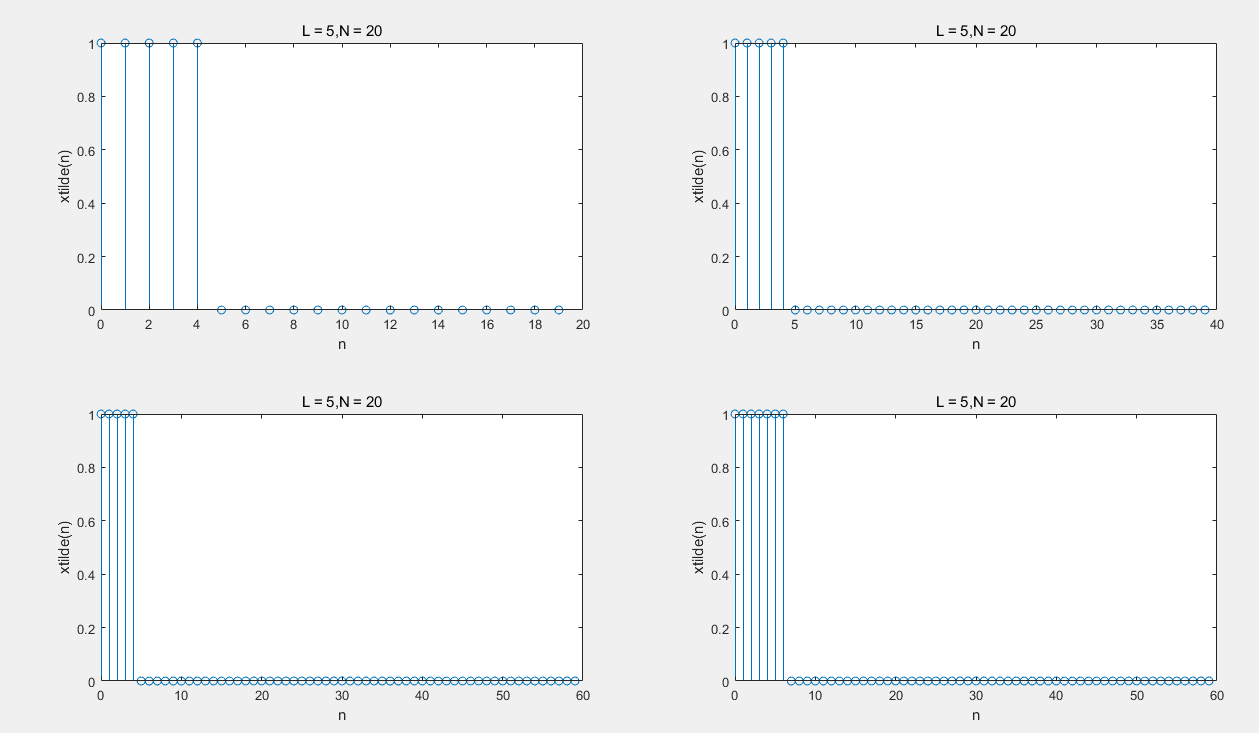

我觉得有必要先把对应的周期方波给出来（每幅图都只给出一个周期）：














      clc;clear;close all;







































      % Periodic square wave parameters L = 5,N = 20













      L = 5;













      N = 20;













      n = 0:N-1;













      xn = [ones(1,L),zeros(1,N-L)];


























      subplot(2,2,1)













      stem(n,xn);













      title('L = 5,N = 20');













      xlabel('n');ylabel('xtilde(n)');







































      % Periodic square wave parameters L = 5,N = 40













      L = 5;













      N = 40;













      n = 0:N-1;













      xn = [ones(1,L),zeros(1,N-L)];


























      subplot(2,2,2)













      stem(n,xn);













      title('L = 5,N = 20');













      xlabel('n');ylabel('xtilde(n)');







































      % Periodic square wave parameters L = 5,N = 60













      L = 5;













      N = 60;













      n = 0:N-1;













      xn = [ones(1,L),zeros(1,N-L)];


























      subplot(2,2,3)













      stem(n,xn);













      title('L = 5,N = 20');













      xlabel('n');ylabel('xtilde(n)');




















































      % Periodic square wave parameters L = 7,N = 60













      L = 7;













      N = 60;













      n = 0:N-1;













      xn = [ones(1,L),zeros(1,N-L)];













      subplot(2,2,4)













      stem(n,xn);













      title('L = 5,N = 20');













      xlabel('n');ylabel('xtilde(n)');


















上面程序中的DFS函数定义在另一篇博文中：【 MATLAB 】离散傅里叶级数（DFS）及 IDFS 的 MATLAB 实现

直接给出MATLAB脚本：














      clc;clear;close all;







































      % Periodic square wave parameters L = 5,N = 20













      L = 5;













      N = 20;













      k = [-N/2:N/2];


























      xn = [ones(1,L),zeros(1,N-L)];













      Xk = dfs(xn,N);













      magXk = abs( [ Xk(N/2+1:N),Xk(1:N/2+1) ] );













      subplot(2,2,1)













      stem(k,magXk);













      title('DFS of Square: L = 5,N = 20');













      xlabel('k');ylabel('Xtilde(k)');







































      % Periodic square wave parameters L = 5,N = 40













      L = 5;













      N = 40;













      k = [-N/2:N/2];


























      xn = [ones(1,L),zeros(1,N-L)];













      Xk = dfs(xn,N);













      magXk = abs( [ Xk(N/2+1:N),Xk(1:N/2+1) ] );













      subplot(2,2,2)













      stem(k,magXk);













      title('DFS of Square: L = 5,N = 40');













      xlabel('k');ylabel('Xtilde(k)');







































      % Periodic square wave parameters L = 5,N = 60













      L = 5;













      N = 60;













      k = [-N/2:N/2];


























      xn = [ones(1,L),zeros(1,N-L)];













      Xk = dfs(xn,N);













      magXk = abs( [ Xk(N/2+1:N),Xk(1:N/2+1) ] );













      subplot(2,2,3)













      stem(k,magXk);













      title('DFS of Square: L = 5,N = 60');













      xlabel('k');ylabel('Xtilde(k)');




















































      % Periodic square wave parameters L = 7,N = 60













      L = 7;













      N = 60;













      k = [-N/2:N/2];


























      xn = [ones(1,L),zeros(1,N-L)];













      Xk = dfs(xn,N);













      magXk = abs( [ Xk(N/2+1:N),Xk(1:N/2+1) ] );













      subplot(2,2,4)













      stem(k,magXk);













      title('DFS of Square: L = 7,N = 60');













      xlabel('k');ylabel('Xtilde(k)');
