Webots中使用大疆“御”2专业版-DJI-Mavic 2 Pro进行无人机仿真实践

兼顾体积和性能的超强无人机大疆-“御”-DJI-Mavic现在有了Webots仿真版，可以零成本愉快玩耍了。

控制器支持C++、Python，并全面支持ROS。

DJI-Tello：https://blog.csdn.net/ZhangRelay/article/details/99291395

Webots-ROS：https://blog.csdn.net/ZhangRelay/article/details/85247284

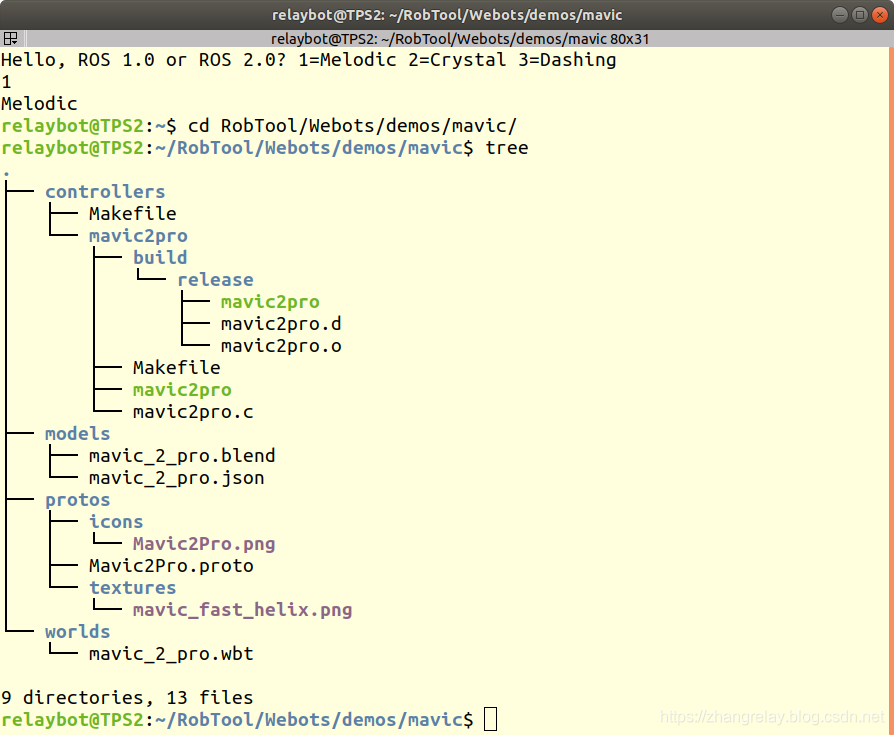

将demo下载到对应文件下：

第一次使用时，控制器需要编译，否则会出现无控制器报错～

使用Mavic：

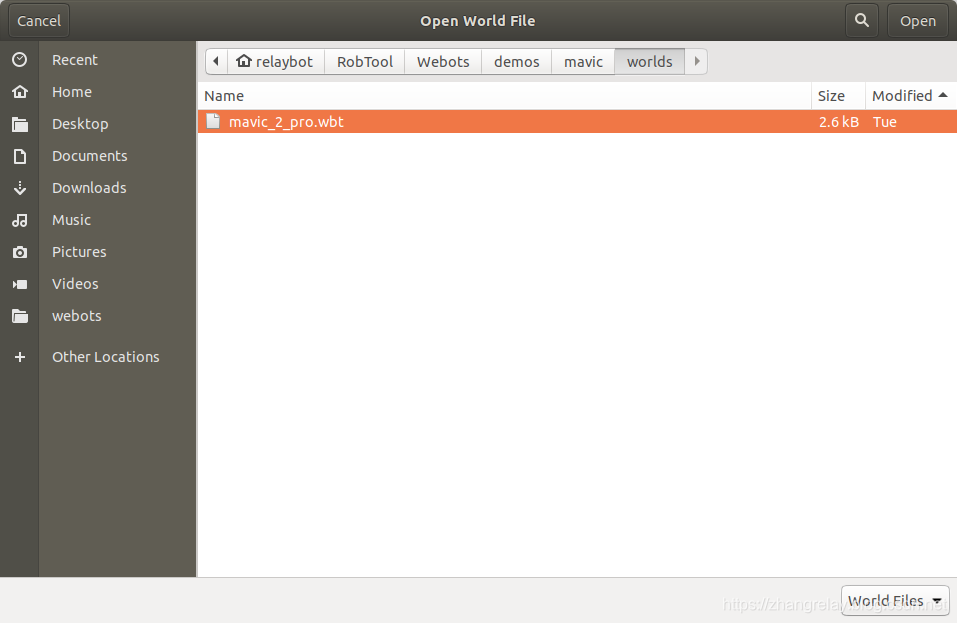

打开Webots，单击File->Open World->mavic_2_pro.wbt。

这时候会加载如下环境：

如果报错～请在右侧程序编辑部分，编译代码，生成控制器即可。

使用键盘就可以控制Mavic 2 pro了。













  // Constants, empirically found.












  const double k_vertical_thrust = 68.5;  // with this thrust, the drone lifts.












  const double k_vertical_offset = 0.6;   // Vertical offset where the robot actually targets to stabilize itself.












  const double k_vertical_p = 3.0; // P constant of the vertical PID.












  const double k_roll_p = 50.0; // P constant of the roll PID.












  const double k_pitch_p = 30.0; // P constant of the pitch PID.

























  // Variables.












  double target_altitude = 1.0;  // The target altitude. Can be changed by the user.





初始参数和配置，可以修改。如果使用键盘控制而非手柄，键盘控制的指令需要调整，修改如下代码：













 switch (key) {












 case WB_KEYBOARD_UP:













       pitch_disturbance = 2.0;












 break;












 case WB_KEYBOARD_DOWN:













       pitch_disturbance = -2.0;












 break;












 case WB_KEYBOARD_RIGHT:













       yaw_disturbance = 1.3;












 break;












 case WB_KEYBOARD_LEFT:













       yaw_disturbance = -1.3;












 break;












 case (WB_KEYBOARD_SHIFT + WB_KEYBOARD_RIGHT):













       roll_disturbance = -1.0;












 break;












 case (WB_KEYBOARD_SHIFT + WB_KEYBOARD_LEFT):













       roll_disturbance = 1.0;












 break;












 case (WB_KEYBOARD_SHIFT + WB_KEYBOARD_UP):













       target_altitude += 0.05;












 printf("target altitude: %f [m]\n", target_altitude);












 break;












 case (WB_KEYBOARD_SHIFT + WB_KEYBOARD_DOWN):













       target_altitude -= 0.05;












 printf("target altitude: %f [m]\n", target_altitude);












 break;













       }





 默认，每次点击按键给出的控制量如上所示，需要修改可以适当调整数值。

当然啦，可以使用OpenCV和OpenAI等进行编程，实现自主飞行。

参考文献，使用ROS加入更多复杂功能，比如SLAM等。留作思考题吧。

 https://github.com/omichel/webots/tree/revision/projects/robots/dji/mavic














      /*













       * Copyright 1996-2019 Cyberbotics Ltd.













       *













       * Licensed under the Apache License, Version 2.0 (the "License");













       * you may not use this file except in compliance with the License.













       * You may obtain a copy of the License at













       *













       * http://www.apache.org/licenses/LICENSE-2.0













       *













       * Unless required by applicable law or agreed to in writing, software













       * distributed under the License is distributed on an "AS IS" BASIS,













       * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.













       * See the License for the specific language governing permissions and













       * limitations under the License.













       */


























      /*













       * Description: Simplistic drone control:













       * - Stabilize the robot using the embedded sensors.













       * - Use PID technique to stabilize the drone roll/pitch/yaw.













       * - Use a cubic function applied on the vertical difference to stabilize the robot vertically.













       * - Stabilize the camera.













       * - Control the robot using the computer keyboard.













       */


























      #include <math.h>













      #include <stdio.h>













      #include <stdlib.h>


























      #include <webots/robot.h>


























      #include <webots/camera.h>













      #include <webots/compass.h>













      #include <webots/gps.h>













      #include <webots/gyro.h>













      #include <webots/inertial_unit.h>













      #include <webots/keyboard.h>













      #include <webots/led.h>













      #include <webots/motor.h>


























      #define SIGN(x) ((x) > 0) - ((x) < 0)













      #define CLAMP(value, low, high) ((value) < (low) ? (low) : ((value) > (high) ? (high) : (value)))


























      int main(int argc, char **argv) {













        wb_robot_init();












  int timestep = (int)wb_robot_get_basic_time_step();

























  // Get and enable devices.













        WbDeviceTag camera = wb_robot_get_device("camera");













        wb_camera_enable(camera, timestep);













        WbDeviceTag front_left_led = wb_robot_get_device("front left led");













        WbDeviceTag front_right_led = wb_robot_get_device("front right led");













        WbDeviceTag imu = wb_robot_get_device("inertial unit");













        wb_inertial_unit_enable(imu, timestep);













        WbDeviceTag gps = wb_robot_get_device("gps");













        wb_gps_enable(gps, timestep);













        WbDeviceTag compass = wb_robot_get_device("compass");













        wb_compass_enable(compass, timestep);













        WbDeviceTag gyro = wb_robot_get_device("gyro");













        wb_gyro_enable(gyro, timestep);













        wb_keyboard_enable(timestep);













        WbDeviceTag camera_roll_motor = wb_robot_get_device("camera roll");













        WbDeviceTag camera_pitch_motor = wb_robot_get_device("camera pitch");












  // WbDeviceTag camera_yaw_motor = wb_robot_get_device("camera yaw"); // Not used in this example.

























  // Get propeller motors and set them to velocity mode.













        WbDeviceTag front_left_motor = wb_robot_get_device("front left propeller");













        WbDeviceTag front_right_motor = wb_robot_get_device("front right propeller");













        WbDeviceTag rear_left_motor = wb_robot_get_device("rear left propeller");













        WbDeviceTag rear_right_motor = wb_robot_get_device("rear right propeller");













        WbDeviceTag motors[4] = {front_left_motor, front_right_motor, rear_left_motor, rear_right_motor};












  int m;












  for (m = 0; m < 4; ++m) {













       wb_motor_set_position(motors[m], INFINITY);













       wb_motor_set_velocity(motors[m], 1.0);













        }

























  // Display the welcome message.












  printf("Start the drone...\n");

























  // Wait one second.












  while (wb_robot_step(timestep) != -1) {












 if (wb_robot_get_time() > 1.0)












 break;













        }

























  // Display manual control message.












  printf("You can control the drone with your computer keyboard:\n");












  printf("- 'up': move forward.\n");












  printf("- 'down': move backward.\n");












  printf("- 'right': turn right.\n");












  printf("- 'left': turn left.\n");












  printf("- 'shift + up': increase the target altitude.\n");












  printf("- 'shift + down': decrease the target altitude.\n");












  printf("- 'shift + right': strafe right.\n");












  printf("- 'shift + left': strafe left.\n");

























  // Constants, empirically found.












  const double k_vertical_thrust = 68.5;  // with this thrust, the drone lifts.












  const double k_vertical_offset = 0.6;   // Vertical offset where the robot actually targets to stabilize itself.












  const double k_vertical_p = 3.0; // P constant of the vertical PID.












  const double k_roll_p = 50.0; // P constant of the roll PID.












  const double k_pitch_p = 30.0; // P constant of the pitch PID.

























  // Variables.












  double target_altitude = 1.0;  // The target altitude. Can be changed by the user.

























  // Main loop












  while (wb_robot_step(timestep) != -1) {












 const double time = wb_robot_get_time();  // in seconds.

























 // Retrieve robot position using the sensors.












 const double roll = wb_inertial_unit_get_roll_pitch_yaw(imu)[0] + M_PI / 2.0;












 const double pitch = wb_inertial_unit_get_roll_pitch_yaw(imu)[1];












 const double altitude = wb_gps_get_values(gps)[1];












 const double roll_acceleration = wb_gyro_get_values(gyro)[0];












 const double pitch_acceleration = wb_gyro_get_values(gyro)[1];

























 // Blink the front LEDs alternatively with a 1 second rate.












 const bool led_state = ((int)time) % 2;













       wb_led_set(front_left_led, led_state);













       wb_led_set(front_right_led, !led_state);

























 // Stabilize the Camera by actuating the camera motors according to the gyro feedback.













       wb_motor_set_position(camera_roll_motor, -0.115 * roll_acceleration);













       wb_motor_set_position(camera_pitch_motor, -0.1 * pitch_acceleration);

























 // Transform the keyboard input to disturbances on the stabilization algorithm.












 double roll_disturbance = 0.0;












 double pitch_disturbance = 0.0;












 double yaw_disturbance = 0.0;












 int key = wb_keyboard_get_key();












 while (key > 0) {












 switch (key) {












 case WB_KEYBOARD_UP:













       pitch_disturbance = 2.0;












 break;












 case WB_KEYBOARD_DOWN:













       pitch_disturbance = -2.0;












 break;












 case WB_KEYBOARD_RIGHT:













       yaw_disturbance = 1.3;












 break;












 case WB_KEYBOARD_LEFT:













       yaw_disturbance = -1.3;












 break;












 case (WB_KEYBOARD_SHIFT + WB_KEYBOARD_RIGHT):













       roll_disturbance = -1.0;












 break;












 case (WB_KEYBOARD_SHIFT + WB_KEYBOARD_LEFT):













       roll_disturbance = 1.0;












 break;












 case (WB_KEYBOARD_SHIFT + WB_KEYBOARD_UP):













       target_altitude += 0.05;












 printf("target altitude: %f [m]\n", target_altitude);












 break;












 case (WB_KEYBOARD_SHIFT + WB_KEYBOARD_DOWN):













       target_altitude -= 0.05;












 printf("target altitude: %f [m]\n", target_altitude);












 break;













       }













       key = wb_keyboard_get_key();













       }

























 // Compute the roll, pitch, yaw and vertical inputs.












 const double roll_input = k_roll_p * CLAMP(roll, -1.0, 1.0) + roll_acceleration + roll_disturbance;












 const double pitch_input = k_pitch_p * CLAMP(pitch, -1.0, 1.0) - pitch_acceleration + pitch_disturbance;












 const double yaw_input = yaw_disturbance;












 const double clamped_difference_altitude = CLAMP(target_altitude - altitude + k_vertical_offset, -1.0, 1.0);












 const double vertical_input = k_vertical_p * pow(clamped_difference_altitude, 3.0);

























 // Actuate the motors taking into consideration all the computed inputs.












 const double front_left_motor_input = k_vertical_thrust + vertical_input - roll_input - pitch_input + yaw_input;












 const double front_right_motor_input = k_vertical_thrust + vertical_input + roll_input - pitch_input - yaw_input;












 const double rear_left_motor_input = k_vertical_thrust + vertical_input - roll_input + pitch_input - yaw_input;












 const double rear_right_motor_input = k_vertical_thrust + vertical_input + roll_input + pitch_input + yaw_input;













       wb_motor_set_velocity(front_left_motor, front_left_motor_input);













       wb_motor_set_velocity(front_right_motor, -front_right_motor_input);













       wb_motor_set_velocity(rear_left_motor, -rear_left_motor_input);













       wb_motor_set_velocity(rear_right_motor, rear_right_motor_input);













        };


























        wb_robot_cleanup();

























  return EXIT_SUCCESS;













      }





文章来源: zhangrelay.blog.csdn.net，作者：zhangrelay，版权归原作者所有，如需转载，请联系作者。

原文链接：zhangrelay.blog.csdn.net/article/details/99670331
