Shift register1

Shift register2

Shift register1

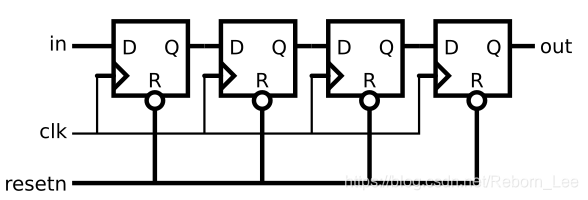

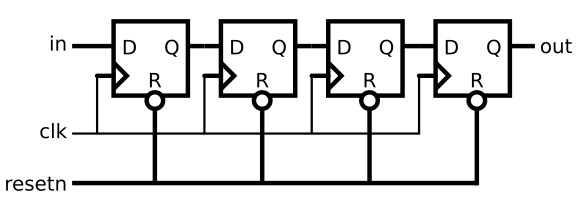

实现下面的电路：














      module top_module (












 input clk,












 input resetn, // synchronous reset












 input in,












 output out);

























 reg q1, q2, q3, q4;












 always@(posedge clk) begin












 if(~resetn) begin












 q1 <= 0;












 q2 <= 0;












 q3 <= 0;












 q4 <= 0;












 end












 else begin












 q4 <= q3;












 q3 <= q2;












 q2 <= q1;












 q1 <= in;












 end












 end












 assign out = q4;


























      endmodule





奇怪地是，既然是同步复位，为什么RTL图画的不符合，有点不严谨了哈。

Shift register2

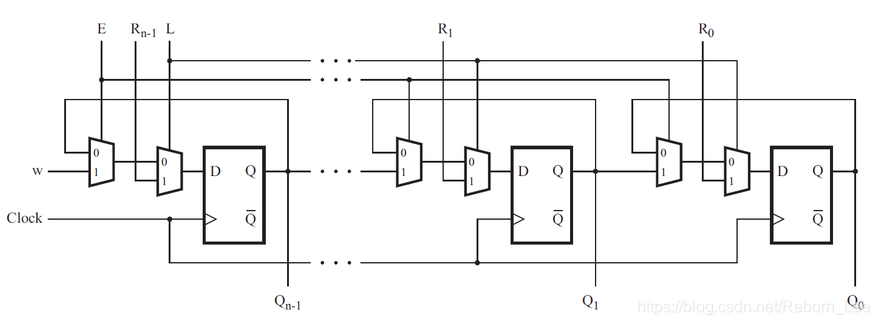

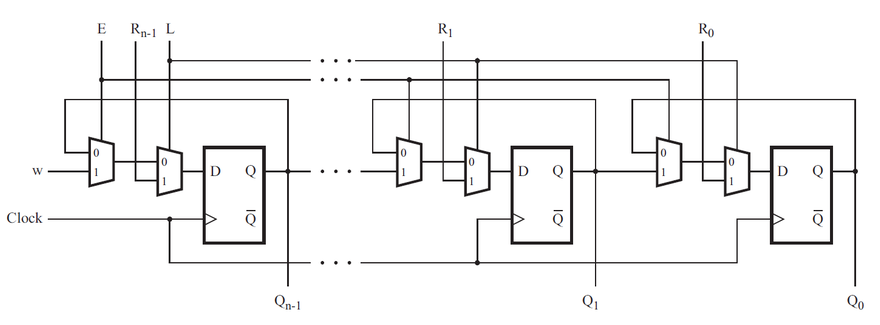

Consider the n-bit shift register circuit shown below:

Write a top-level Verilog module (named top_module) for the shift register, assuming that n = 4. Instantiate four copies of your MUXDFF subcircuit in your top-level module. Assume that you are going to implement the circuit on the DE2 board.

• Connect the R inputs to the SW switches,
• clk to KEY[0],
• E to KEY[1],
• L to KEY[2], and
• w to KEY[3].
• Connect the outputs to the red lights LEDR[3:0].

先给出每一个子模块的设计：














      module MUXDFF (












 input clk,












 input w, R, E, L,












 output Q













      );












	//reg Q;












	wire mid1, mid2;












	assign mid1 = E ? w : Q;












	assign mid2 = L ? R : mid1;












	always@(posedge clk) begin












		Q <= mid2;












	end


























      endmodule





通过例化子模块，得到顶层设计：














      module top_module (












 input [3:0] SW,












 input [3:0] KEY,












 output [3:0] LEDR













      ); //













      wire q4, q3, q2, q1;


























      MUXDFF inst4(












 .clk(KEY[0]),












 .w(KEY[3]),












 .R(SW[3]),












 .E(KEY[1]),












 .L(KEY[2]),












 .Q(q4)












	);


























      MUXDFF inst3(












 .clk(KEY[0]),












 .w(q4),












 .R(SW[2]),












 .E(KEY[1]),












 .L(KEY[2]),












 .Q(q3)












	);


























      MUXDFF inst2(












 .clk(KEY[0]),












 .w(q3),












 .R(SW[1]),












 .E(KEY[1]),












 .L(KEY[2]),












 .Q(q2)












	);


























      MUXDFF inst1(












 .clk(KEY[0]),












 .w(q2),












 .R(SW[0]),












 .E(KEY[1]),












 .L(KEY[2]),












 .Q(q1)












	);













      assign LEDR = {q4, q3, q2, q1};







































      endmodule
