HDLBits 系列（33）Sequence Recognition with Mealy FSM

目录

原题复现

状态转移图

我的设计

测试

原题复现

原题重现：

Implement a Mealy-type finite state machine that recognizes the sequence "101" on an input signal named x. Your FSM should have an output signal, z, that is asserted to logic-1 when the "101" sequence is detected. Your FSM should also have an active-low asynchronous reset. You may only have 3 states in your state machine. Your FSM should recognize overlapping sequences.

翻译一下：

实现一个Mealy型有限状态机，该机可以识别名为x的输入信号上的序列“ 101”。 您的FSM应该有一个输出信号z，当检测到“ 101”序列时，该信号将置为逻辑1。 您的FSM还应该具有低电平有效的异步复位。 您的状态机中可能只有3个状态。 您的FSM应该识别重叠的序列。

状态转移图

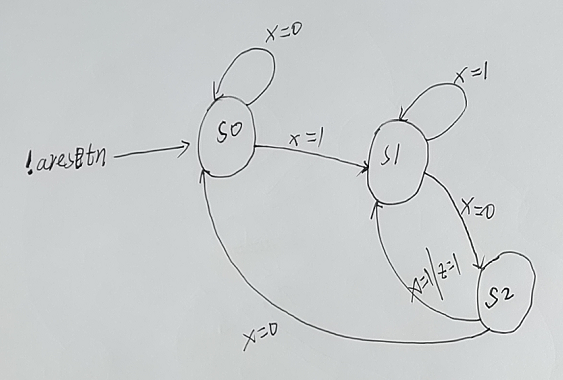

这是一个最普遍的题目，要求用Mealy状态机来实现序列“101”重叠检测，我们可以先画出状态转移图：

自我为是天衣无缝了呀。给出我的设计：

我的设计














      module top_module (













       input clk,













       input aresetn, // Asynchronous active-low reset













       input x,













       output z );


























       localparam S0 = 0, S1 = 1, S2 = 2;













       reg [1:0] state, next_state;













       always@(*) begin












 case(state)












 S0: begin












 if(x) next_state = S1;












 else next_state = S0;












 end












 S1: begin












 if(~x) next_state = S2;












 else next_state = S1;












 end












 S2: begin












 if(x) next_state = S1;












 else next_state = S0;












 end












 default: begin













       next_state = S0;












 end













       endcase












 end


























       always@(posedge clk or negedge aresetn) begin












 if(~aresetn) state <= S0;












 else state <= next_state;












 end


























       assign z = (state == S2 && x == 1) ? 1 : 0;







































      endmodule

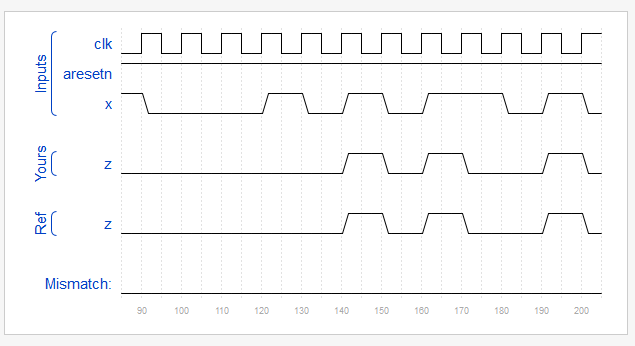

测试

测试一下：

成功！
