ROS 1和2需要零代码！

现在，您已经安装了代理，每次运行ROS并开始将数据上传到Freedom时，ROS Shadow节点都会打开。

ROS 1和ROS 2

如果要使用启动脚本，播放ROS程序包或运行ROS节点，则无需执行其他任何操作。您的数据将自动开始上传到云端！在这里，我们将通过一个最小的示例向您展示更多有关其工作原理的信息。

没有ROS吗？

Freedom自动旋转一个节点（名为link_ros）以自省使用ROS发布的主题。启动某些内容并开始发布以进行检查-ROS袋也可以工作！

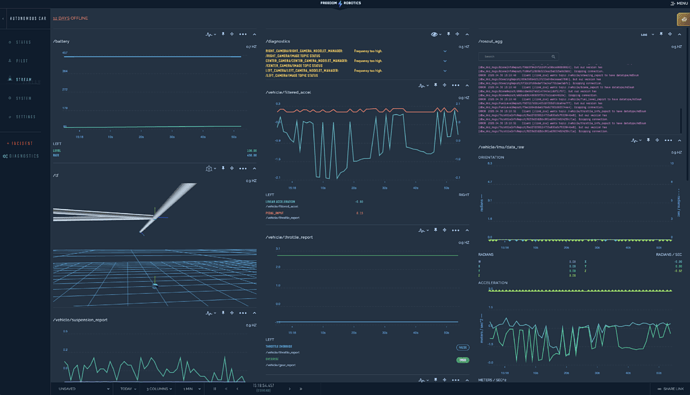

数据将显示在STREAM仪表板的Freedom App中。

ROS2：














       # Launch your own nodes and the Agent will automatically













       # start a node (link_ros) that listens to what is published.













       # Make sure to source your ROS workspace before launching.


























       ros2 launch my_package my_launch.launch





ROS2 Bag：














       # Not many good quality ROS2 bags exist yet - here we show a













       # workaround with a ROS1 bag run in ROS2


























       # Make sure you have installed ros2 bag packages













       apt-get update













       sudo apt-get install ros-dashing-ros2bag-* ros-dashing-rosbag2*


























       # Source ROS1 workspace first













       source /opt/ros/melodic/setup.bash


























       # Now source ROS2 workspace













       source /opt/ros/dashing/setup.bash


























       # Download a ROS bag to play, saving it as rosbag-example.bag













       curl -L -o rosbag-example.bag https://bit.ly/freedom-rosbag-example-car


























       # Play the ROS bag and the Agent will listen to the topics it publishes













       ros2 bag play -s rosbag_v2 rosbag-example.bag





发送和接收消息

我们将通过一个示例演示ROS节点如何既可以将消息发送到Freedom，又可以响应从Freedom API发送的命令。

创建一个名为的文件，demo_node.py并复制下面的代码。

ROS2：














       #!/usr/bin/env python


























       # Please note that there are no references to Freedom in this ROS node.













       # The ROS Shadow node will automatically interact with this node and













       # stream the data.


























       import time













       import rclpy













       import rclpy.logging













       from std_msgs.msg import String













       from sensor_msgs.msg import NavSatFix


























       logger = rclpy.logging.get_logger('node_logger')


























       # Create a callback to handle this topic













       def callback(data):













        logger.info("I heard {}".format(data.data))












 if data.data == "mission":













        logger.info("Running mission...")












 elif data.data == "shutdown":













        logger.info("Received shutdown command")













        rclpy.shutdown()


























       # There is nothing you need to do. The ROS Shadow node













       # will automatically start when this starts













       if __name__ == '__main__':













        rclpy.init()


























        node = rclpy.create_node('node_name')


























        subscription = node.create_subscription(String, 'commands', callback, 10)

























 # Create our satellite GPS location topic













        pub_nav = node.create_publisher(NavSatFix, 'location', 10)













        nav_msg = NavSatFix(latitude=37.778454, longitude=-122.389171)


























        rclpy.spin(node)

























 while rclpy.ok():













        pub_nav.publish(nav_msg)













        time.sleep(1)

























 # Destroy the node explicitly












 # (optional - otherwise it will be done automatically












 # when the garbage collector destroys the node object)













        node.destroy_node()













        rclpy.shutdown()





使用以下命令启动节点。














       # Source ROS2 workspace













       source /opt/ros/dashing/setup.bash


























       # Execute created script with python3 (mandatory for ROS2)













       python3 demo_node.py
