ESP32与ROS调试笔记（Linux和Windows）

ESP32支持ROS1和ROS2，很方便使用，有两种主流方式：

• arduino IDE （1.8.13）
• esp idf（4.2）

网上和Github上有很多方式，用了一下都感觉不适合我！

其实很简单，和esp8266类似，只用arduino自带的ros包即可，注意版本号0.7.8。

参考如下：ESP8266和ESP32配置（需使用ROS1和ROS2）

这里，主要看源码需要修改的地方，头文件！

esp8266使用/home/ros/.arduino15/packages/esp8266/hardware/esp8266/2.7.4/libraries/ESP8266WiFi/src

• ESP8266WiFi.h














      #ifndef WiFi_h













      #define WiFi_h


























      #include <stdint.h>


























      extern "C" {













      #include "include/wl_definitions.h"













      }


























      #include "IPAddress.h"


























      #include "ESP8266WiFiType.h"













      #include "ESP8266WiFiSTA.h"













      #include "ESP8266WiFiAP.h"













      #include "ESP8266WiFiScan.h"













      #include "ESP8266WiFiGeneric.h"


























      #include "WiFiClient.h"













      #include "WiFiServer.h"













      #include "WiFiServerSecure.h"













      #include "WiFiClientSecure.h"













      #include "BearSSLHelpers.h"













      #include "CertStoreBearSSL.h"


























      #ifdef DEBUG_ESP_WIFI













      #ifdef DEBUG_ESP_PORT













      #define DEBUG_WIFI(fmt, ...) DEBUG_ESP_PORT.printf_P( (PGM_P)PSTR(fmt), ##__VA_ARGS__ )













      #endif













      #endif


























      #ifndef DEBUG_WIFI













      #define DEBUG_WIFI(...) do { (void)0; } while (0)













      #endif







































      class ESP8266WiFiClass : public ESP8266WiFiGenericClass, public ESP8266WiFiSTAClass, public ESP8266WiFiScanClass, public ESP8266WiFiAPClass {












 public:

























 // workaround same function name with different signature












 using ESP8266WiFiGenericClass::channel;

























 using ESP8266WiFiSTAClass::SSID;












 using ESP8266WiFiSTAClass::RSSI;












 using ESP8266WiFiSTAClass::BSSID;












 using ESP8266WiFiSTAClass::BSSIDstr;

























 using ESP8266WiFiScanClass::SSID;












 using ESP8266WiFiScanClass::encryptionType;












 using ESP8266WiFiScanClass::RSSI;












 using ESP8266WiFiScanClass::BSSID;












 using ESP8266WiFiScanClass::BSSIDstr;












 using ESP8266WiFiScanClass::channel;












 using ESP8266WiFiScanClass::isHidden;

























 // ----------------------------------------------------------------------------------------------












 // ------------------------------------------- Debug --------------------------------------------












 // ----------------------------------------------------------------------------------------------

























 public:

























 void printDiag(Print& dest);

























 friend class WiFiClient;












 friend class WiFiServer;


























      };


























      extern ESP8266WiFiClass WiFi;


























      #endif





esp32使用/home/ros/.arduino15/packages/esp32/hardware/esp32/1.0.4/libraries/WiFi/src

• WiFi.h

这个会和系统目录中wifi.h重合，请务必保证编译时头文件路径正确！














      #ifndef WiFi_h













      #define WiFi_h


























      #include <stdint.h>


























      #include "Print.h"













      #include "IPAddress.h"













      #include "IPv6Address.h"


























      #include "WiFiType.h"













      #include "WiFiSTA.h"













      #include "WiFiAP.h"













      #include "WiFiScan.h"













      #include "WiFiGeneric.h"


























      #include "WiFiClient.h"













      #include "WiFiServer.h"













      #include "WiFiUdp.h"


























      class WiFiClass : public WiFiGenericClass, public WiFiSTAClass, public WiFiScanClass, public WiFiAPClass













      {













      public:












 using WiFiGenericClass::channel;

























 using WiFiSTAClass::SSID;












 using WiFiSTAClass::RSSI;












 using WiFiSTAClass::BSSID;












 using WiFiSTAClass::BSSIDstr;

























 using WiFiScanClass::SSID;












 using WiFiScanClass::encryptionType;












 using WiFiScanClass::RSSI;












 using WiFiScanClass::BSSID;












 using WiFiScanClass::BSSIDstr;












 using WiFiScanClass::channel;


























      public:












 void printDiag(Print& dest);












 friend class WiFiClient;












 friend class WiFiServer;












 friend class WiFiUDP;













      };


























      extern WiFiClass WiFi;


























      #endif

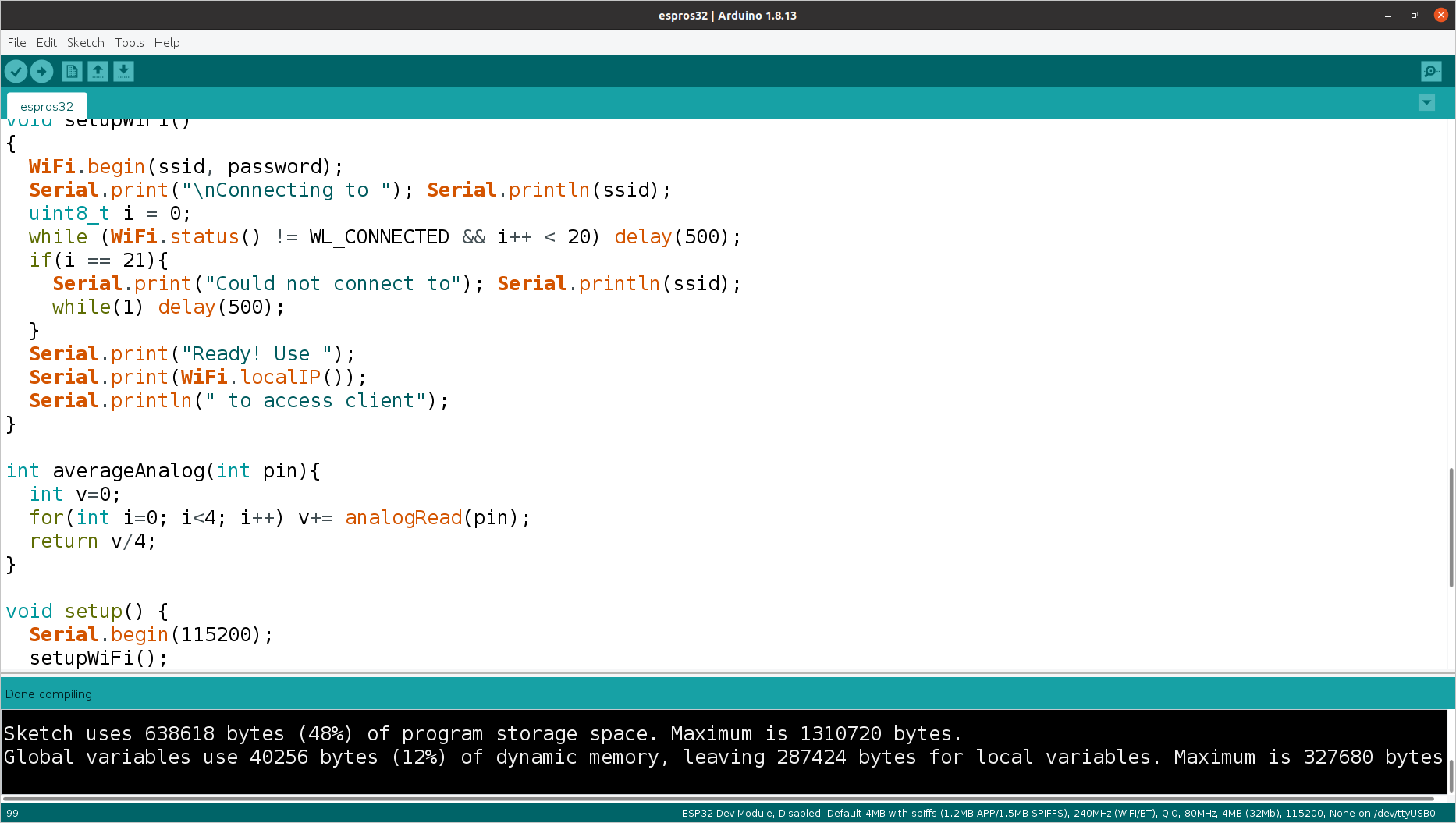

一切正常愉快玩耍：

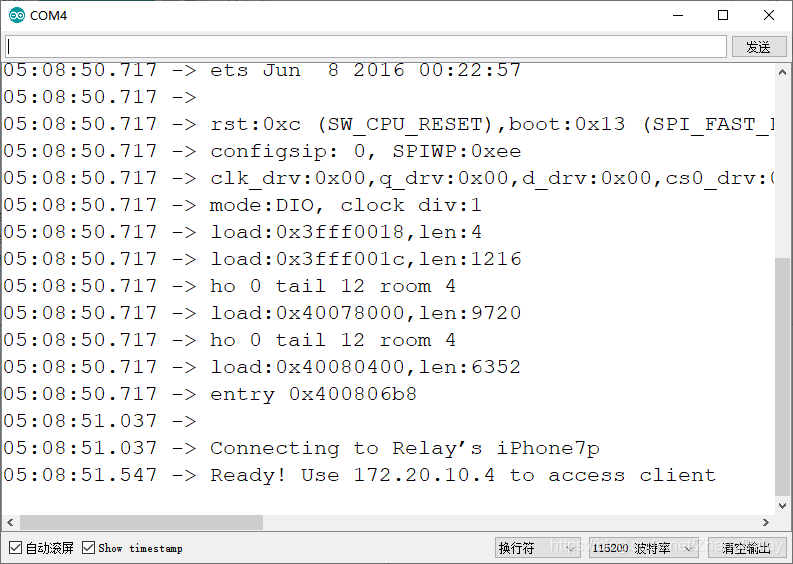

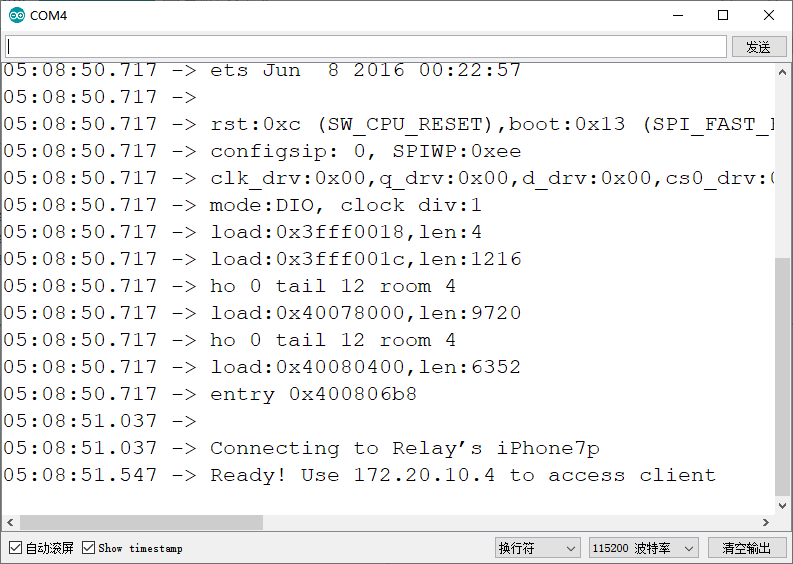

编译如有问题请自行查错修订，测试过代码如下，wifi名和密码为***，请用实际替换，UART使用如教程一致：














      #include "WiFi.h"













      #include <ros.h>













      #include <std_msgs/String.h>













      #include <std_msgs/Int16.h>













      #include <std_msgs/Float64.h>













      #include <rosserial_arduino/Adc.h>


























      //













      // WiFi Definitions //













      //













      const char* ssid = "********";













      const char* password = "*********";


























      IPAddress server(172, 20, 10, 3); // ip of your ROS server













      IPAddress ip_address;













      int status = WL_IDLE_STATUS;


























      WiFiClient client;


























      class WiFiHardware {

























  public:













        WiFiHardware() {};

























  void init() {












 // do your initialization here. this probably includes TCP server/client setup













       client.connect(server, 11411);













        }

























  // read a byte from the serial port. -1 = failure












  int read() {












 // implement this method so that it reads a byte from the TCP connection and returns it












 // you may return -1 is there is an error; for example if the TCP connection is not open












 return client.read(); //will return -1 when it will works













        }

























  // write data to the connection to ROS












  void write(uint8_t* data, int length) {












 // implement this so that it takes the arguments and writes or prints them to the TCP connection












 for(int i=0; i<length; i++)













       client.write(data[i]);













        }

























  // returns milliseconds since start of program












  unsigned long time() {












 return millis(); // easy; did this one for you













        }













      };


























      int i;


























      void chatterCallback(const std_msgs::String& msg) {













        i = atoi(msg.data);













      }







































      std_msgs::String str_msg;













      rosserial_arduino::Adc adc_msg;













      ros::Publisher chatter("chatter", &str_msg);













      ros::Publisher p("adc", &adc_msg);













      ros::Subscriber<std_msgs::String> sub("message", &chatterCallback);













      ros::NodeHandle_<WiFiHardware> nh;













      char hello[20] = "ESP32 wifi alive!";







































      void setupWiFi()













      {













        WiFi.begin(ssid, password);













        Serial.print("\nConnecting to "); Serial.println(ssid);












  uint8_t i = 0;












  while (WiFi.status() != WL_CONNECTED && i++ < 20) delay(500);












  if(i == 21){













       Serial.print("Could not connect to"); Serial.println(ssid);












 while(1) delay(500);













        }













        Serial.print("Ready! Use ");













        Serial.print(WiFi.localIP());













        Serial.println(" to access client");













      }


























      int averageAnalog(int pin){












  int v=0;












  for(int i=0; i<4; i++) v+= analogRead(pin);












  return v/4;













      }


























      void setup() {













        Serial.begin(115200);













        setupWiFi();













        delay(2000);













        nh.initNode();













        nh.advertise(chatter);













        nh.subscribe(sub);













        nh.advertise(p);













      }


























      void loop() {













        str_msg.data = hello;













        chatter.publish( &str_msg );













        adc_msg.adc0 = averageAnalog(0);













        p.publish(&adc_msg);













        nh.spinOnce();













        delay(500);













      }

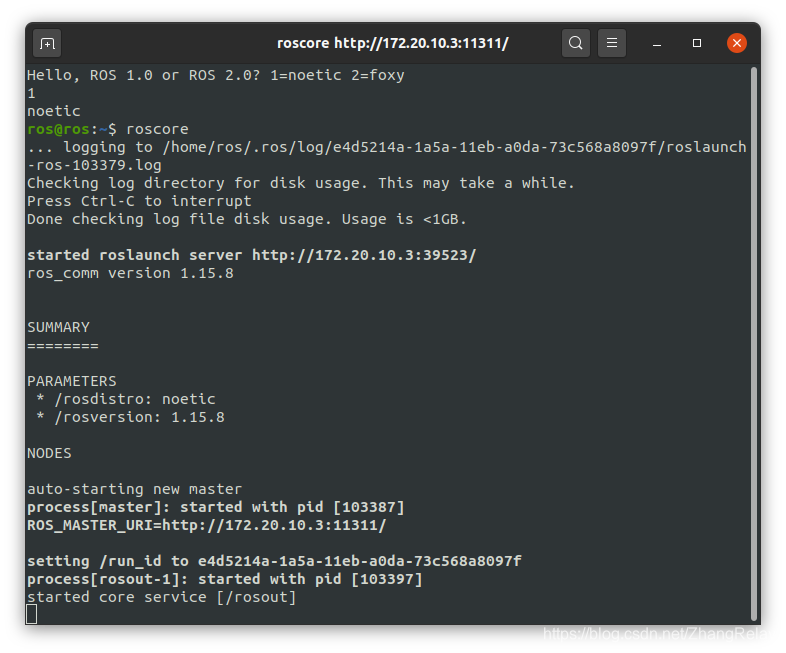

主机端配置对应IP。

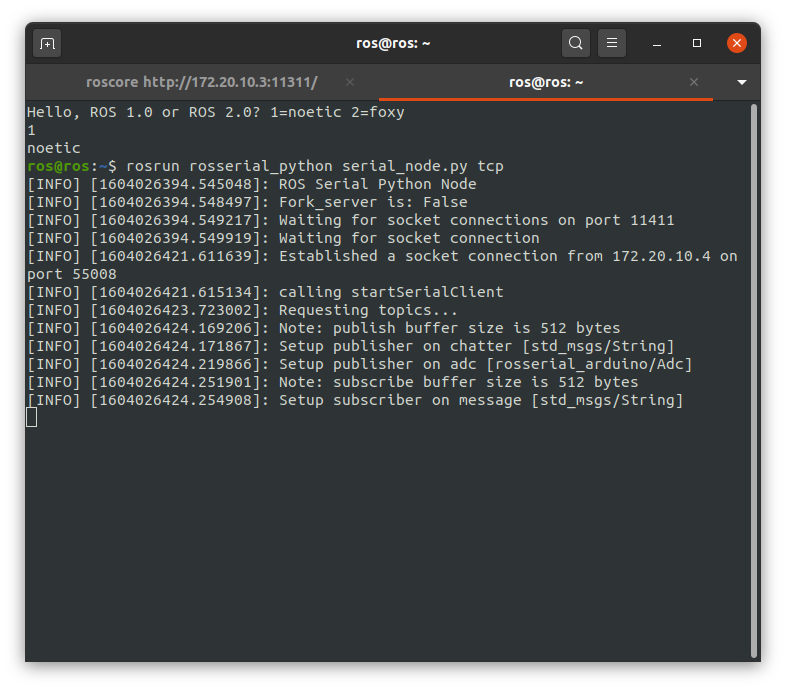

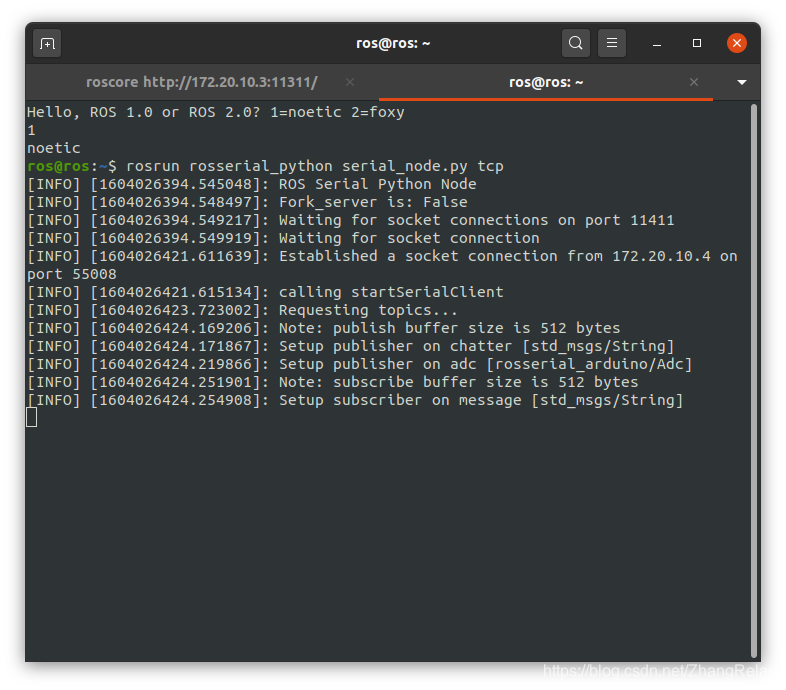

rosrun rosserial_python serial_node.py tcp

连接成功！！！

查看一下主题？

很愉快，一次成功，没有遇到什么奇怪的问题。和8266几乎一致，但是esp32性能强于8266。

windows环境下测试：

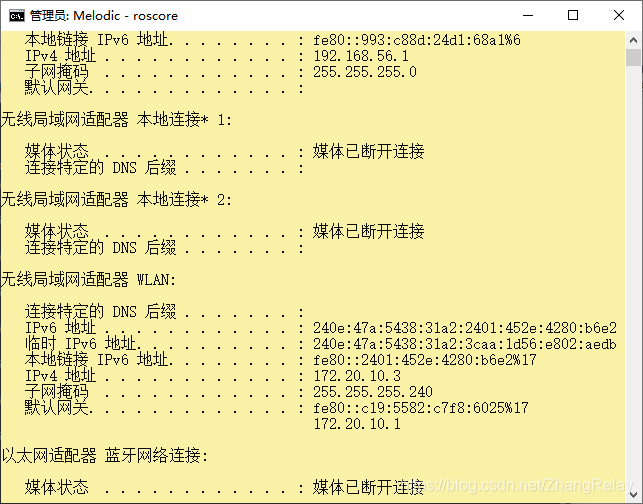

先看IP是否匹配，注意UART看串口号，wifi看IP，一定要正确才可以！

接着，直接用可以使用了。

然后启动，tcp节点：

rosrun rosserial_server socket_node tcp

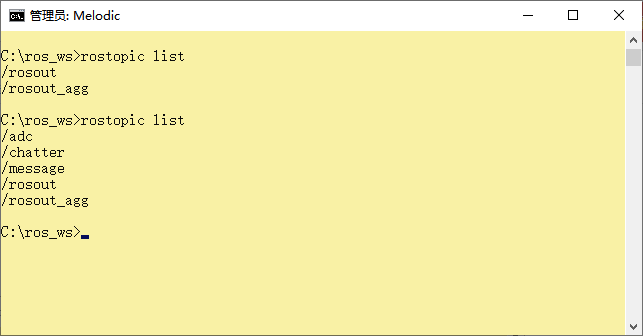

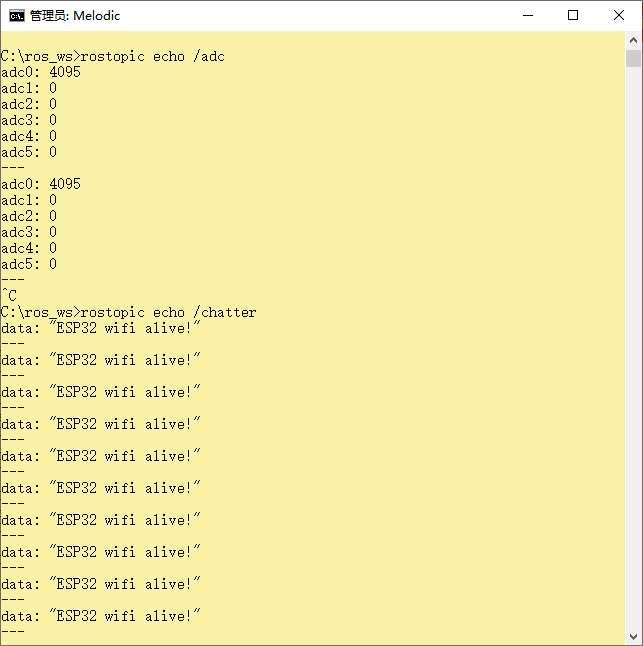

查看一下：

注意，如果配置不正确，无法看到/adc，/chatter，/message等主题哦。

支持ros版本（melodic，neotic），系统版本（linux，windows），已全部测试均可以。

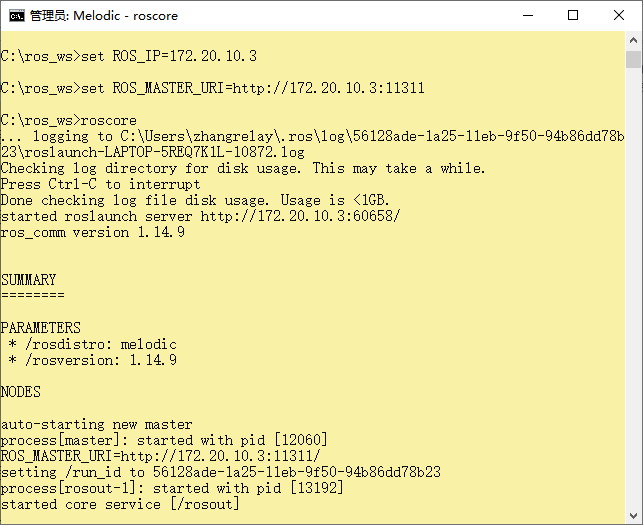

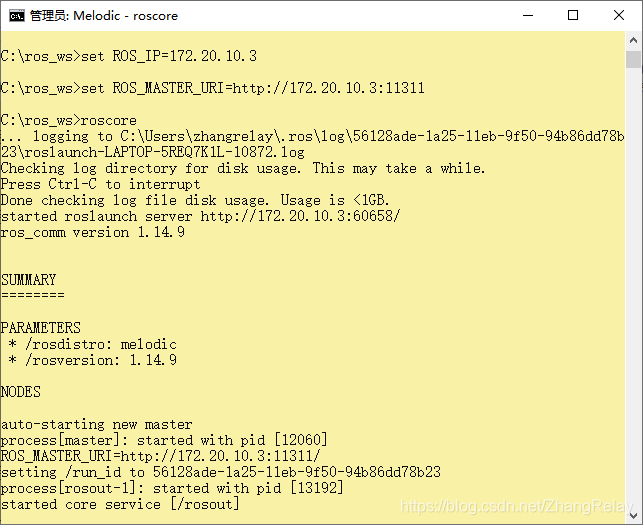

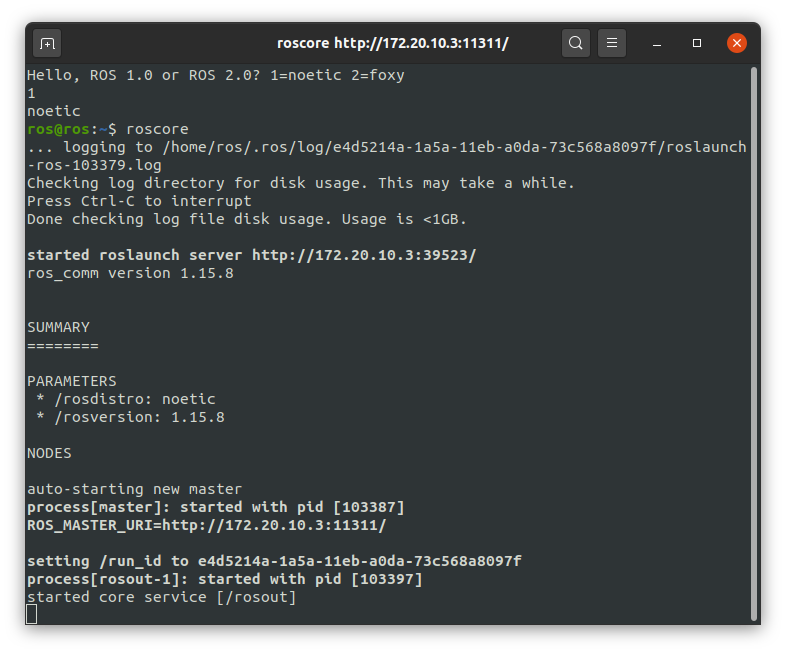

C:\ros_ws>set ROS_IP=172.20.10.3 C:\ros_ws>set ROS_MASTER_URI=http://172.20.10.3:11311 C:\ros_ws>roscore ... logging to C:\Users\zhangrelay\.ros\log\56128ade-1a25-11eb-9f50-94b86dd78b23\roslaunch-LAPTOP-5REQ7K1L-10872.log Checking log directory for disk usage. This may take a while. Press Ctrl-C to interrupt Done checking log file disk usage. Usage is <1GB. started roslaunch server http://172.20.10.3:60658/ ros_comm version 1.14.9 SUMMARY ======== PARAMETERS * /rosdistro: melodic * /rosversion: 1.14.9 NODES auto-starting new master process[master]: started with pid [12060] ROS_MASTER_URI=http://172.20.10.3:11311/ setting /run_id to 56128ade-1a25-11eb-9f50-94b86dd78b23 process[rosout-1]: started with pid [13192] started core service [/rosout]
