单片机补充案例--LCD1602普通字符显示

说明：使用LCD1602显示普通字符

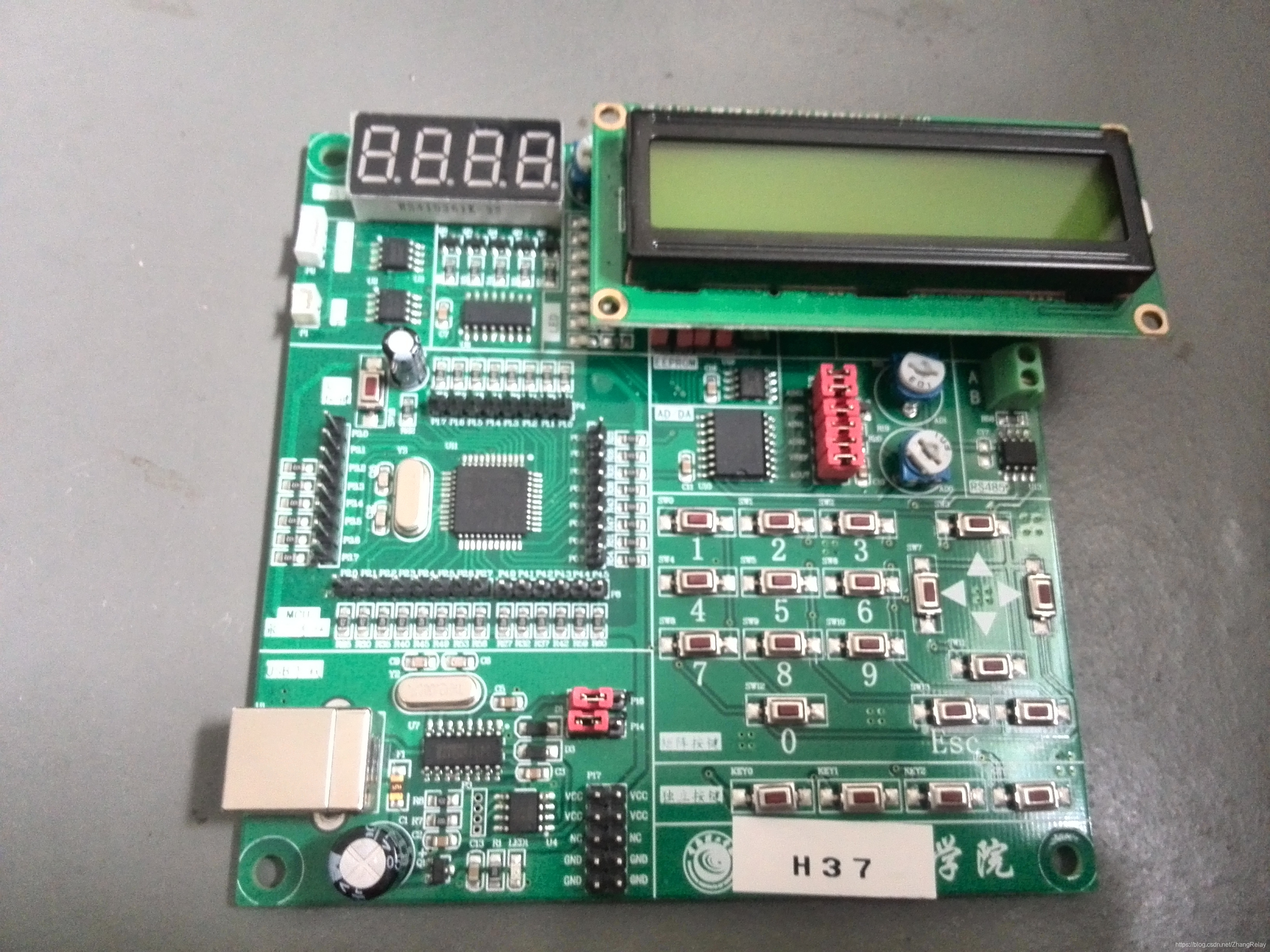

设备：

可参考教材或下面提供的代码。

程序：














      #include<8052.h>


























      #define uchar unsigned char













      #define uint unsigned int


























      #define lcden P1_2













      #define lcdrs P1_0













      #define rw P1_1


























      uchar table1[] = "Happy Happy ";













      uchar table2[] = "1234567890 ";


























      uchar num;


























      void delay(uint z) {













       uint x, y;












 for(x = z; x > 0; x--)












 for(y = 110; y > 0; y--);













      }


























      void write_com(uchar com) {













       lcdrs = 0;













       P0 = com;













       delay(5);













       lcden = 1;













       delay(5);













       lcden = 0;













      }


























      void write_data(uchar date) {













       lcdrs = 1;













       P0 = date;













       delay(5);













       lcden = 1;













       delay(5);













       lcden = 0;













      }


























      void init() {













       rw = 0;













       lcden = 0;













       write_com(0x38);













       write_com(0x0e);













       write_com(0x06);













       write_com(0x01);













       write_com(0x80);













      }


























      void main() {













       init();












 for(num = 0; num < 12; num++) {













       write_data(table1[num]);













       delay(100);













       }













       write_com( 0x40 | 0x80 );












 for(num = 0; num < 12; num++) {













       write_data(table2[num]);













       delay(100);













       }












 while(1);













      }
