前言
Verilog中的延迟控制有两种类型–延迟和事件表达式。
下面一一道来。
正文
延迟控制语句
如果延迟表达式的值为未知值或高阻抗值，将被解释为零延迟。对于这个语句会用即可，用于仿真延时使用嘛，例如：
`timescale 1ns/1ps
module tb; reg [3:0] a, b; initial begin {a,b} = 0; $display ("T=%0t a=%0d b=%0d", $realtime, a, b); #10 a = 10; $display ("T=%0t a=%0d b=%0d", $realtime, a, b); #(2*10) b = 8; $display ("T=%0t a=%0d b=%0d", $realtime, a, b); #('dz)
a = 2;
b = 2;
$display ("T=%0t a=%0d b=%0d", $realtime, a, b); #('h10) a = 3;
b = 3;
$display ("T=%0t a=%0d b=%0d", $realtime, a, b); end
endmodule
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
# run 1000ns
T=0 a=0 b=0
T=10000 a=10 b=0
T=30000 a=10 b=8
T=30000 a=2 b=2
T=46000 a=3 b=3
- 1
- 2
- 3
- 4
- 5
- 6
事件控制语句
线网和变量的值变化可以作为同步事件来触发执行其他程序语句，是一个隐含事件。该事件也可以基于变化的方向，比如朝0的变化使其成为negedge，朝1的变化使其成为posedge。（并不一定非要是时钟）
- negedge是指从1到X、Z或0，以及从X或Z到0的过渡。
- posedge是指从0到X、Z或1，以及从X或Z到1的过渡。
module tb;
reg a, b; initial begin a <= 0; #10 a <= 1; #10 b <= 1; #10 a <= 0; #15 a <= 1; end
// Start another procedural block that waits for an update to
// signals made in the above procedural block
initial begin @(posedge a); $display ("T=%0t Posedge of a detected for 0->1", $time); @(posedge b); $display ("T=%0t Posedge of b detected for X->1", $time); @(posedge (a + b)) $display ("T=%0t Posedge of a+b", $time); @(a) $display ("T=%0t Change in a found", $time);
end
endmodule
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
Time resolution is 1 ps
T=10000 Posedge of a detected for 0->1
T=20000 Posedge of b detected for X->1
T=30000 Posedge of a+b
T=45000 Change in a found
- 1
- 2
- 3
- 4
- 5

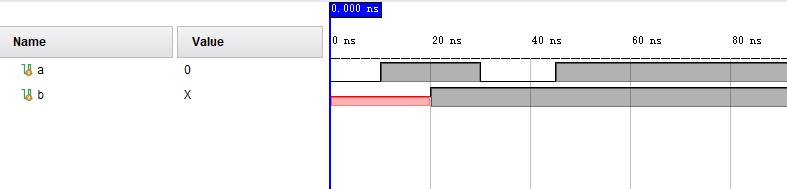

如果是这样：
module tb;
reg a, b; initial begin a <= 0;
$display ("T=%0t a=%0d b=%0d", $realtime, a, b); #10 a <= 1; $display ("T=%0t a=%0d b=%0d", $realtime, a, b); #10 b <= 1;
$display ("T=%0t a=%0d b=%0d", $realtime, a, b); #10 a <= 0; $display ("T=%0t a=%0d b=%0d", $realtime, a, b); #15 a <= 1; end
// Start another procedural block that waits for an update to
// signals made in the above procedural block
initial begin @(posedge a); $display ("T=%0t Posedge of a detected for 0->1", $time); @(posedge b); $display ("T=%0t Posedge of b detected for X->1", $time); @(posedge (a + b)) $display ("T=%0t Posedge of a+b", $time); @(a) $display ("T=%0t Change in a found", $time);
end
endmodule
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
则仿真log为：
Time resolution is 1 ps
T=0 a=x b=x
T=10000 a=0 b=x
T=10000 Posedge of a detected for 0->1
T=20000 a=1 b=x
T=20000 Posedge of b detected for X->1
T=30000 a=1 b=1
T=30000 Posedge of a+b
T=45000 Change in a found
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
Named Events
关键字event可以用来声明一个可以明确触发的命名事件。一个事件不能保存任何数据，没有时间长度，可以在任何特定的时间发生。命名的事件可以通过在命名的事件句柄前加上->操作符来触发。命名事件可以通过使用上面描述的@操作符来等待。
module tb;
event a_event;
event b_event; initial begin #20 -> a_event; #30; ->a_event; #50 ->a_event; #10 ->b_event;
end always @ (a_event) $display ("T=%0t [always] a_event is triggered", $time); initial begin #25; @(a_event) $display ("T=%0t [initial] a_event is triggered", $time); #10 @(b_event) $display ("T=%0t [initial] b_event is triggered", $time);
end
endmodule
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
Time resolution is 1 ps
T=20000 [always] a_event is triggered
T=50000 [initial] a_event is triggered
T=50000 [always] a_event is triggered
T=100000 [always] a_event is triggered
T=110000 [initial] b_event is triggered
- 1
- 2
- 3
- 4
- 5
- 6
Event or operator
或操作符可以用来等待，直到表达式中的任何一个事件被触发。也可以用逗号 ，代替or操作符。
module tb;
reg a, b; initial begin $monitor ("T=%0t a=%0d b=%0d", $time, a, b); {a, b} <= 0; #10 a <= 1; #5 b <= 1;
#5 b <= 0;
end // Use "or" between events
always @ (posedge a or posedge b) $display ("T=%0t posedge of a or b found", $time); // Use a comma between
always @ (posedge a, negedge b) $display ("T=%0t posedge of a or negedge of b found", $time); always @ (a, b) $display ("T=%0t Any change on a or b", $time);
endmodule
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
Time resolution is 1 ps
T=0 Any change on a or b
T=0 posedge of a or negedge of b found
T=0 a=0 b=0
T=10000 Any change on a or b
T=10000 posedge of a or b found
T=10000 posedge of a or negedge of b found
T=10000 a=1 b=0
T=15000 Any change on a or b
T=15000 posedge of a or b found
T=15000 a=1 b=1
T=20000 Any change on a or b
T=20000 posedge of a or negedge of b found
T=20000 a=1 b=0
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
好了，不再多说，其实最常用还是：
@(posedge a)
...
@(b)
...
#10
....
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
