webots和ros2笔记03-解析
【摘要】 在完成02-启程：https://zhangrelay.blog.csdn.net/article/details/112675018
那么会思考两个机械臂拿起易拉罐的过程是如何实现了。
简要分析一下：
launch（armed_robots.launch.py）：
import osimport launchfrom ament_index_python.packa...
在完成02-启程：https://zhangrelay.blog.csdn.net/article/details/112675018
那么会思考两个机械臂拿起易拉罐的过程是如何实现了。
简要分析一下：
launch（armed_robots.launch.py）：
-
import os
-
import launch
-
from ament_index_python.packages import get_package_share_directory
-
from webots_ros2_core.utils import ControllerLauncher
-
from webots_ros2_core.webots_launcher import WebotsLauncher
-
-
-
def generate_launch_description():
-
# Webots
-
webots = WebotsLauncher(world=os.path.join(get_package_share_directory('webots_ros2_demos'), 'worlds', 'armed_robots.wbt'))
-
-
# Controller nodes
-
synchronization = launch.substitutions.LaunchConfiguration('synchronization', default=False)
-
abb_controller = ControllerLauncher(
-
package='webots_ros2_core',
-
executable='webots_robotic_arm_node',
-
arguments=['--webots-robot-name=abbirb4600'],
-
parameters=[{'synchronization': synchronization, 'controller_name': 'abb'}],
-
output='screen'
-
)
-
ure5_controller = ControllerLauncher(
-
package='webots_ros2_core',
-
executable='webots_robotic_arm_node',
-
arguments=['--webots-robot-name=UR5e'],
-
parameters=[{'synchronization': synchronization, 'controller_name': 'ur'}],
-
output='screen'
-
)
-
-
# Control nodes
-
armed_robots_ur = ControllerLauncher(
-
package='webots_ros2_demos',
-
executable='armed_robots_ur',
-
output='screen'
-
)
-
armed_robots_abb = ControllerLauncher(
-
package='webots_ros2_demos',
-
executable='armed_robots_abb',
-
output='screen'
-
)
-
return launch.LaunchDescription([
-
webots, abb_controller, ure5_controller, armed_robots_ur, armed_robots_abb,
-
launch.actions.RegisterEventHandler(
-
event_handler=launch.event_handlers.OnProcessExit(
-
target_action=webots,
-
on_exit=[launch.actions.EmitEvent(event=launch.events.Shutdown())],
-
)
-
),
-
])

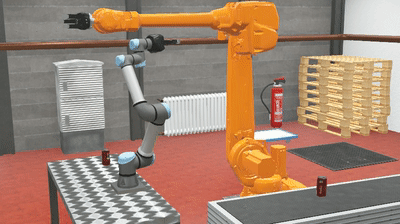

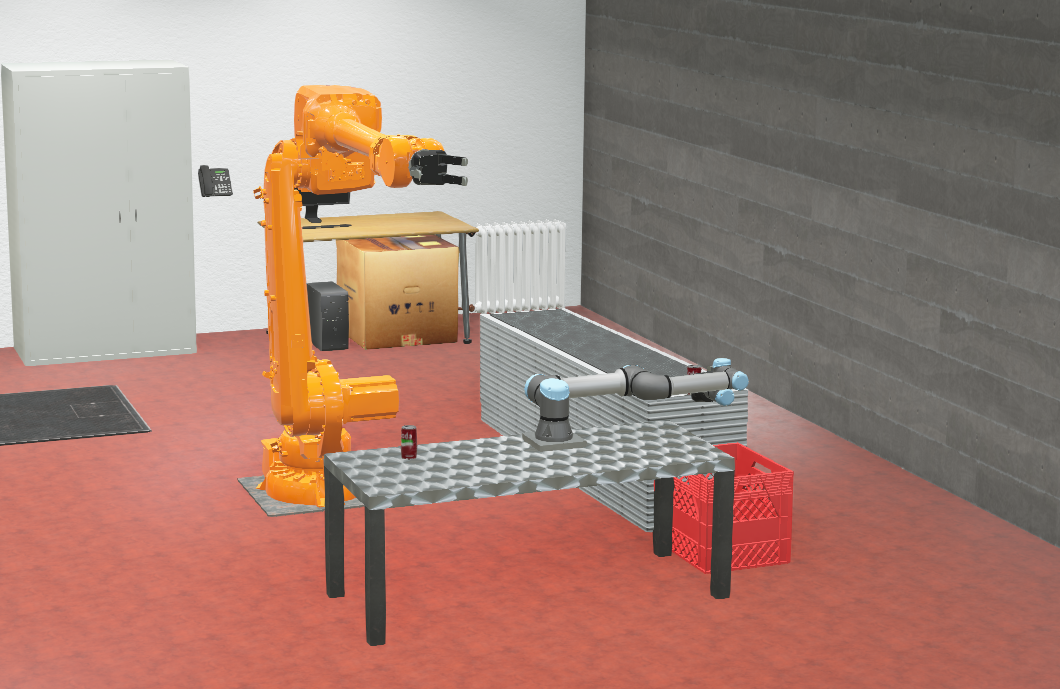

启动环境和机械臂：
成功
失败
使用world下armed_robots环境文件。
-
# Webots
-
webots = WebotsLauncher(world=os.path.join(get_package_share_directory('webots_ros2_demos'), 'worlds', 'armed_robots.wbt'))
控制器节点（两个机械臂分别为ur和abb）：
ur：
-
ure5_controller = ControllerLauncher(
-
package='webots_ros2_core',
-
executable='webots_robotic_arm_node',
-
arguments=['--webots-robot-name=UR5e'],
-
parameters=[{'synchronization': synchronization, 'controller_name': 'ur'}],
-
output='screen'
-
)
abb：
-
abb_controller = ControllerLauncher(
-
package='webots_ros2_core',
-
executable='webots_robotic_arm_node',
-
arguments=['--webots-robot-name=abbirb4600'],
-
parameters=[{'synchronization': synchronization, 'controller_name': 'abb'}],
-
output='screen'
-
)
这里需要注意（synchronization同步）两个机械臂要同步运动否则无法协调完成任务。
控制器不同于控制，对于两个机械臂有具体的控制节点完成对应的控制指令，如下：
ur：
-
armed_robots_ur = ControllerLauncher(
-
package='webots_ros2_demos',
-
executable='armed_robots_ur',
-
output='screen'
-
)
具体指令为一系列轨迹和抓取动作坐标。
-
import rclpy
-
from webots_ros2_demos.follow_joint_trajectory_client import FollowJointTrajectoryClient
-
-
-
def main(args=None):
-
rclpy.init(args=args)
-
armed_robot_ur = FollowJointTrajectoryClient('armed_robots_ur', '/ur/follow_joint_trajectory')
-
armed_robot_ur.send_goal({
-
'joint_names': [
-
'shoulder_pan_joint',
-
'shoulder_lift_joint',
-
'elbow_joint',
-
'wrist_1_joint',
-
'finger_1_joint_1',
-
'finger_2_joint_1',
-
'finger_middle_joint_1'
-
],
-
'points': [
-
{
-
'positions': [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0],
-
'velocities': [5] * 7,
-
'accelerations': [5] * 7,
-
'time_from_start': {'sec': 3, 'nanosec': 0}
-
},
-
{
-
'positions': [0.0, 0.0, 0.0, 0.0, 0.85, 0.85, 0.6],
-
'velocities': [5] * 7,
-
'accelerations': [5] * 7,
-
'time_from_start': {'sec': 4, 'nanosec': 0}
-
},
-
{
-
'positions': [0.63, -2.26, -1.88, -2.14, 0.85, 0.85, 0.6],
-
'velocities': [5] * 7,
-
'accelerations': [5] * 7,
-
'time_from_start': {'sec': 5, 'nanosec': 0}
-
},
-
{
-
'positions': [0.63, -2.26, -1.88, -2.14, 0.0, 0.0, 0.0],
-
'velocities': [5] * 7,
-
'accelerations': [5] * 7,
-
'time_from_start': {'sec': 6, 'nanosec': 0}
-
},
-
{
-
'positions': [0.63, -2.0, -1.88, -2.14, 0.0, 0.0, 0.0],
-
'velocities': [5] * 7,
-
'accelerations': [5] * 7,
-
'time_from_start': {'sec': 7, 'nanosec': 0}
-
},
-
{
-
'positions': [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0],
-
'velocities': [5] * 7,
-
'accelerations': [5] * 7,
-
'time_from_start': {'sec': 8, 'nanosec': 0}
-
},
-
{
-
'positions': [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0],
-
'velocities': [5] * 7,
-
'accelerations': [5] * 7,
-
'time_from_start': {'sec': 9, 'nanosec': 0}
-
}
-
]
-
}, 10)
-
rclpy.spin(armed_robot_ur)
-
-
-
if __name__ == '__main__':
-
main()
要能够知道位置指令中抓取部分：
-
{
-
'positions': [0.0, 0.0, 0.0, 0.0, 0.85, 0.85, 0.6],
-
'velocities': [5] * 7,
-
'accelerations': [5] * 7,
-
'time_from_start': {'sec': 4, 'nanosec': 0}
-
},
-
{
-
'positions': [0.63, -2.26, -1.88, -2.14, 0.85, 0.85, 0.6],
-
'velocities': [5] * 7,
-
'accelerations': [5] * 7,
-
'time_from_start': {'sec': 5, 'nanosec': 0}
-
},
abb：
-
armed_robots_abb = ControllerLauncher(
-
package='webots_ros2_demos',
-
executable='armed_robots_abb',
-
output='screen'
-
)
具体指令为一系列轨迹和抓取动作坐标。
-
import rclpy
-
from webots_ros2_demos.follow_joint_trajectory_client import FollowJointTrajectoryClient
-
-
-
def main(args=None):
-
rclpy.init(args=args)
-
armed_robot_abb = FollowJointTrajectoryClient('armed_robots_abb', '/abb/follow_joint_trajectory')
-
armed_robot_abb.send_goal({
-
'joint_names': [
-
'A motor',
-
'B motor',
-
'C motor',
-
'E motor',
-
'finger_1_joint_1',
-
'finger_2_joint_1',
-
'finger_middle_joint_1'
-
],
-
'points': [
-
{
-
'positions': [0.0, 0.0, 0.0, 0., 0.0, 0.0, 0.0],
-
'velocities': [5] * 7,
-
'accelerations': [5] * 7,
-
'time_from_start': {'sec': 0, 'nanosec': 0}
-
},
-
{
-
'positions': [-0.025, 0.0, 0.82, -0.86, 0.0, 0.0, 0.0],
-
'velocities': [5] * 7,
-
'accelerations': [5] * 7,
-
'time_from_start': {'sec': 1, 'nanosec': 0}
-
},
-
{
-
'positions': [-0.025, 0.1, 0.82, -0.86, 0.0, 0.0, 0.0],
-
'velocities': [5] * 7,
-
'accelerations': [5] * 7,
-
'time_from_start': {'sec': 2, 'nanosec': 0}
-
},
-
{
-
'positions': [-0.025, 0.1, 0.82, -0.86, 0.85, 0.85, 0.6],
-
'velocities': [5] * 7,
-
'accelerations': [5] * 7,
-
'time_from_start': {'sec': 3, 'nanosec': 0}
-
},
-
{
-
'positions': [-0.025, -0.44, 0.82, -0.86, 0.85, 0.85, 0.6],
-
'velocities': [5] * 7,
-
'accelerations': [5] * 7,
-
'time_from_start': {'sec': 4, 'nanosec': 0}
-
},
-
{
-
'positions': [1.57, -0.1, 0.95, -0.71, 0.85, 0.85, 0.6],
-
'velocities': [5] * 7,
-
'accelerations': [5] * 7,
-
'time_from_start': {'sec': 5, 'nanosec': 0}
-
},
-
{
-
'positions': [1.57, -0.1, 0.8, -0.81, 0.0, 0.0, 0.0],
-
'velocities': [5] * 7,
-
'accelerations': [5] * 7,
-
'time_from_start': {'sec': 6, 'nanosec': 0}
-
},
-
{
-
'positions': [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0],
-
'velocities': [5] * 7,
-
'accelerations': [5] * 7,
-
'time_from_start': {'sec': 7, 'nanosec': 0}
-
},
-
{
-
'positions': [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0],
-
'velocities': [5] * 7,
-
'accelerations': [5] * 7,
-
'time_from_start': {'sec': 9, 'nanosec': 0}
-
}
-
]
-
}, 10)
-
rclpy.spin(armed_robot_abb)
-
-
-
if __name__ == '__main__':
-
main()
更多内容和教程，稍后补充。

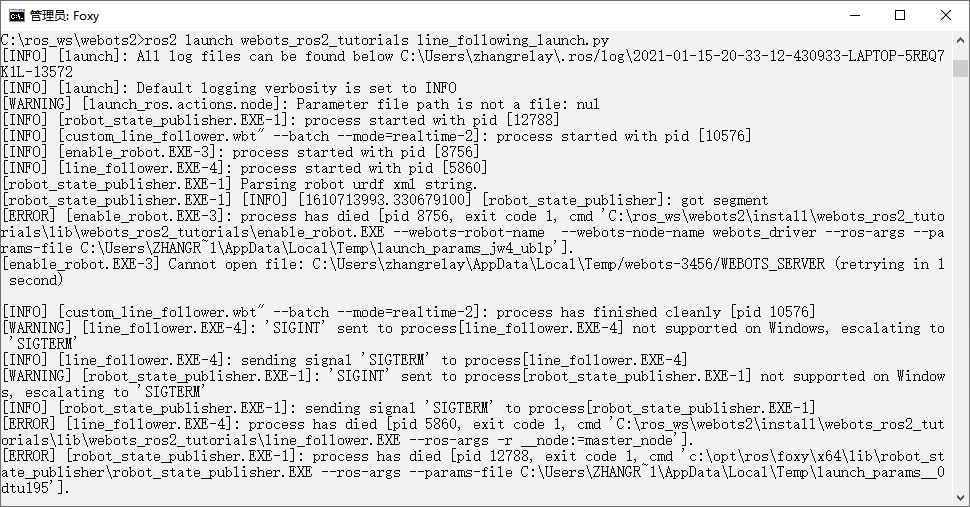

- C:\ros_ws\webots2>ros2 launch webots_ros2_tutorials line_following_launch.py
