机器人编程趣味实践18-他山之石(功能包)

机器人操作系统功能包可以使用如下两种方式使用：

1. sudo apt install xxx
2. colcon build xxx

第一种是打包的安装文件，第二种是源代码编译。

如何自己编写功能包后续细说，本节介绍如何使用github下载的功能包源码编译使用。

先上一个思考题：

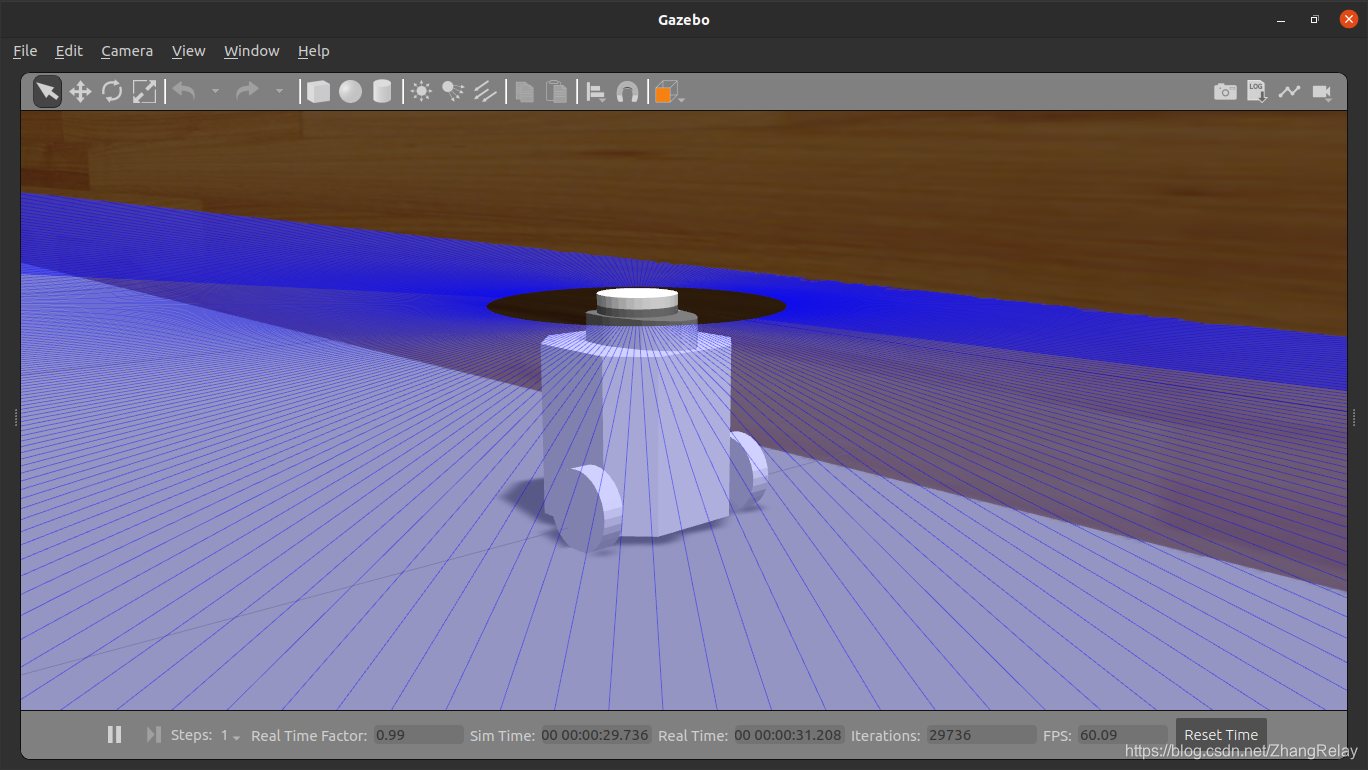

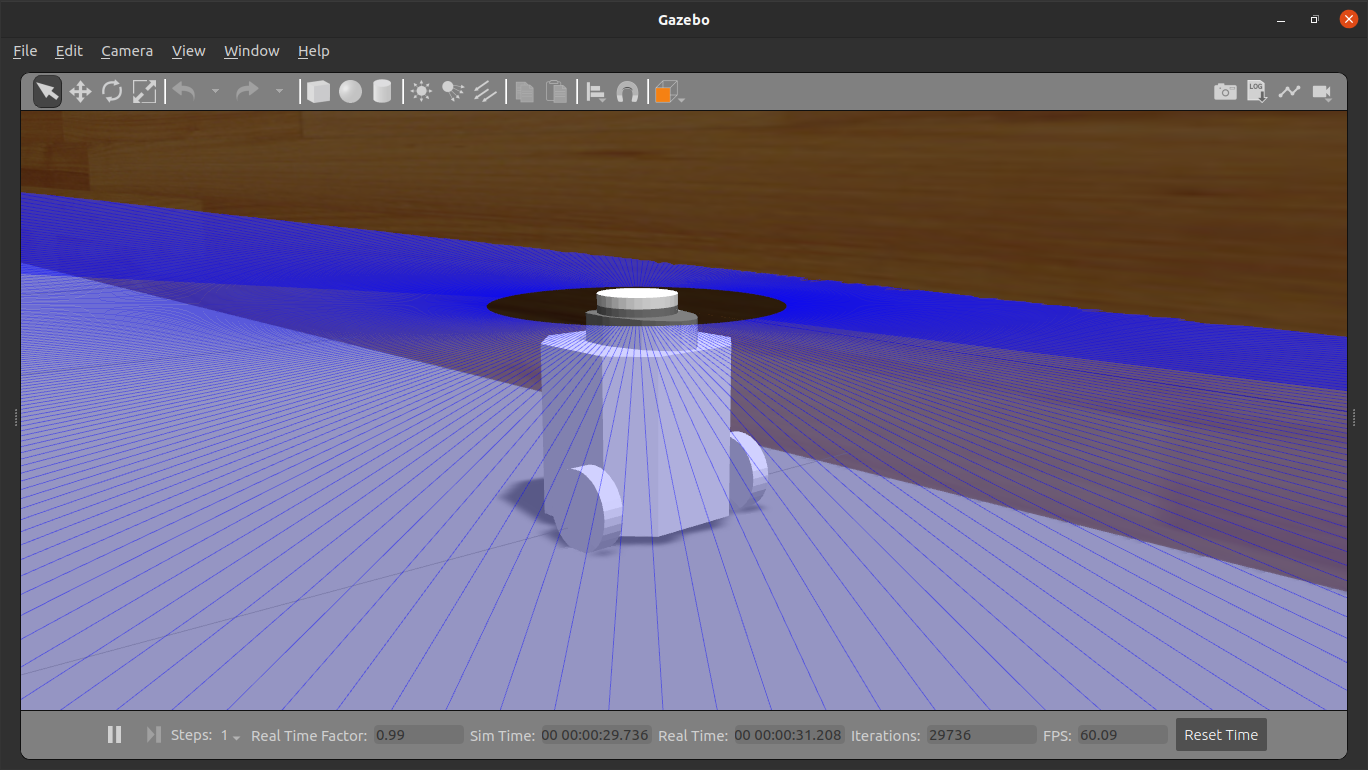

模型之简

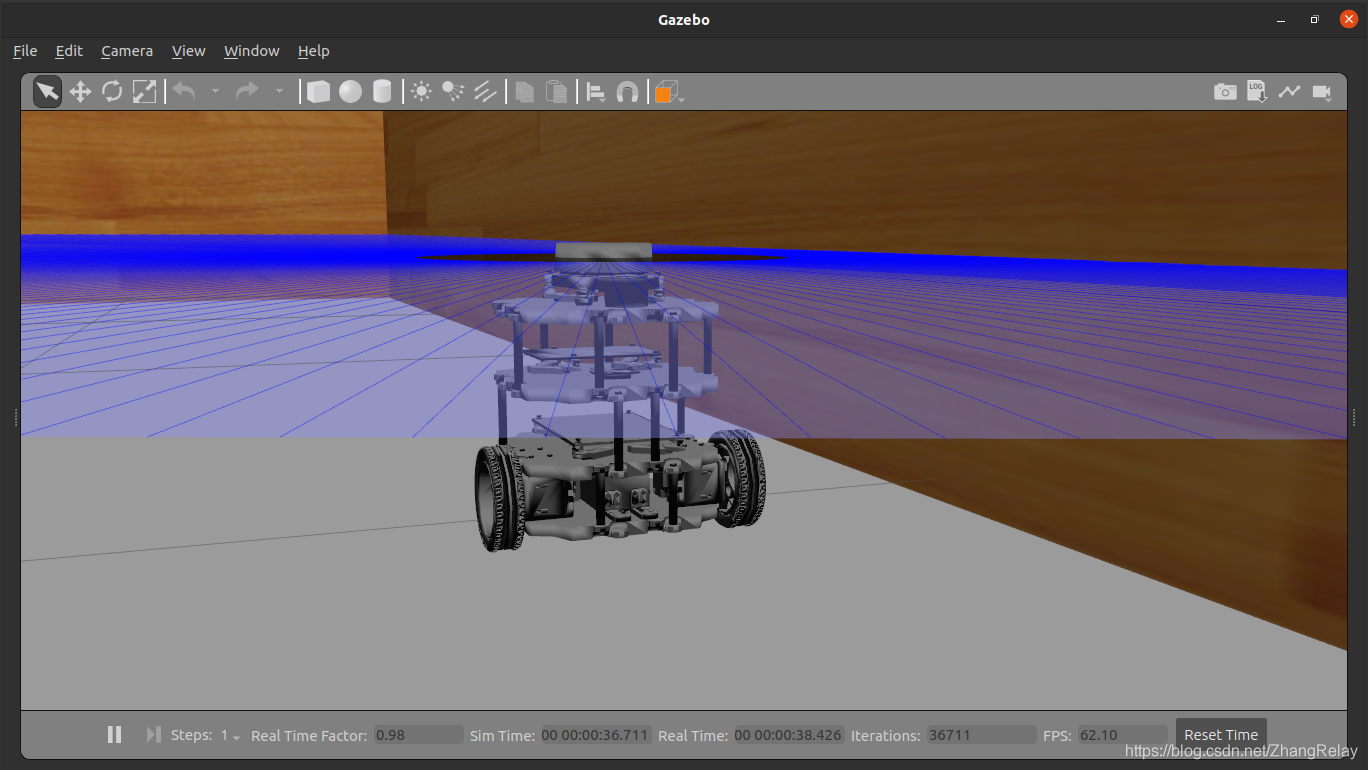

模型之细

代码也是类似，有极简风，也有全家福。

现在很多APP界面很精美，但其内核其实并不复杂，大量的工作放在了如何吸引用户的眼球上。

github下载速度？

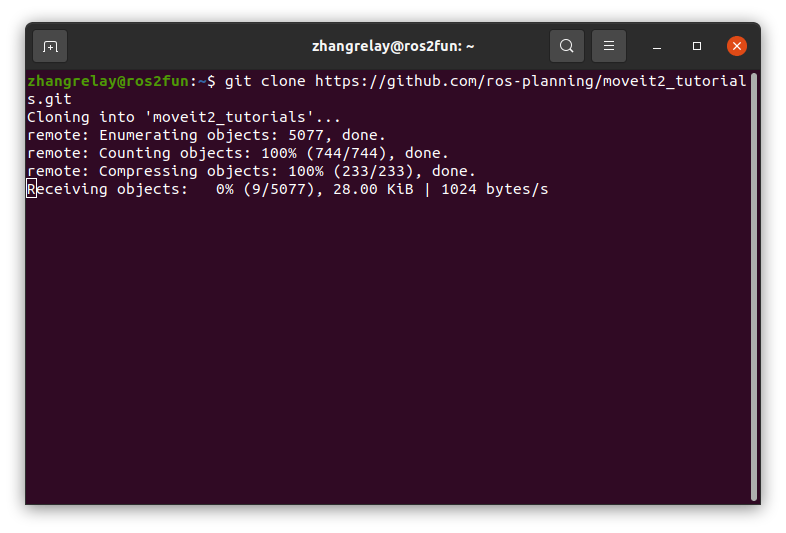

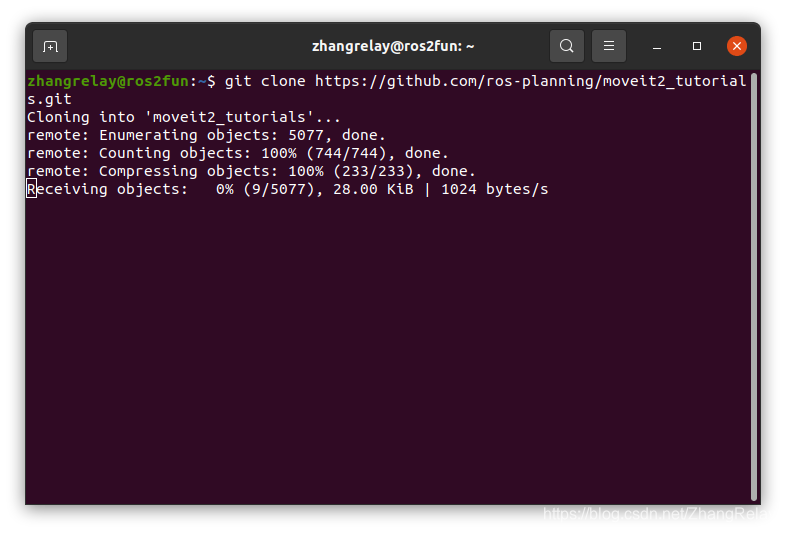

• git clone https://github.com/ros-planning/moveit2_tutorials.git

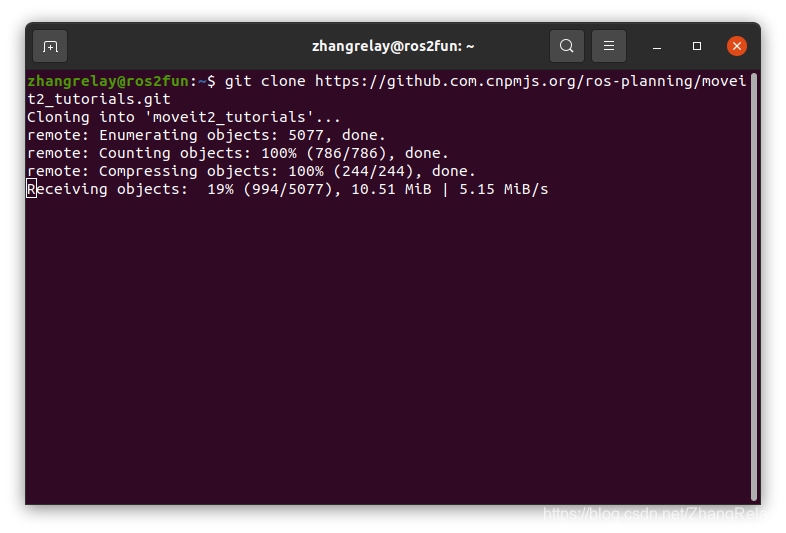

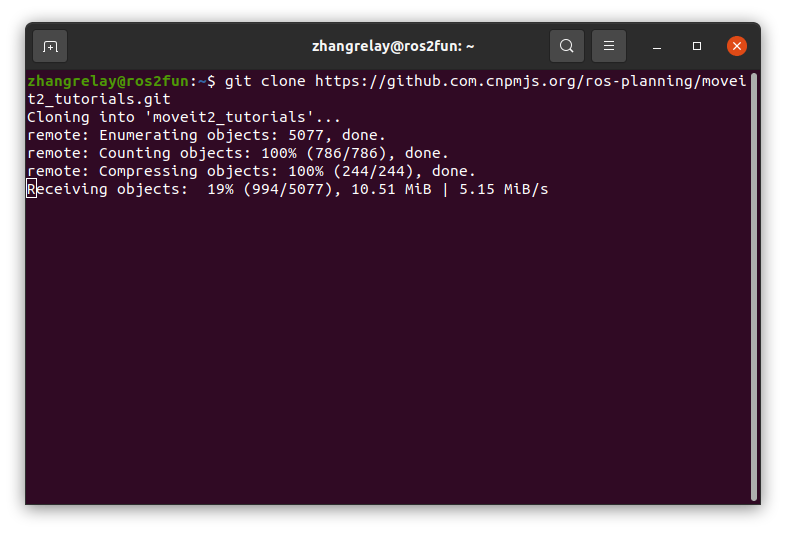

• git clone https://github.com.cnpmjs.org/ros-planning/moveit2_tutorials.git

编译工具

colcon














      zhangrelay@ros2fun:~$ colcon -h













      usage: colcon [-h] [--log-base LOG_BASE] [--log-level LOG_LEVEL]













       {build,extension-points,extensions,graph,info,list,metadata,test,test-result,version-check} ...


























      optional arguments:













        -h, --help show this help message and exit













        --log-base LOG_BASE   The base path for all log directories (default: ./log, to disable: /dev/null)













        --log-level LOG_LEVEL













       Set log level for the console output, either by numeric or string value (default: warning)


























      colcon verbs:













        build Build a set of packages













        extension-points List extension points













        extensions List extensions













        graph Generate a visual representation of the dependency graph













        info Package information













        list List packages, optionally in topological ordering













        metadata Manage metadata of packages












  test Test a set of packages












  test-result Show the test results generated when testing a set of













       packages













        version-check Compare local package versions with PyPI


























        {build,extension-points,extensions,graph,info,list,metadata,test,test-result,version-check}













       call `colcon VERB -h` for specific help


























      Environment variables:













        CMAKE_COMMAND The full path to the CMake executable













        COLCON_ALL_SHELLS Flag to enable all shell extensions













        COLCON_COMPLETION_LOGFILE













       Set the logfile for completion time













        COLCON_DEFAULTS_FILE  Set path to the yaml file containing the default values












 for the command line arguments (default:












 $COLCON_HOME/defaults.yaml)













        COLCON_DEFAULT_EXECUTOR













       Select the default executor extension













        COLCON_EXTENSION_BLOCKLIST













       Block extensions which should not be used













        COLCON_HOME Set the configuration directory (default: ~/.colcon)













        COLCON_LOG_LEVEL Set the log level (debug|10, info|20, warn|30,













       error|40, critical|50, or any other positive numeric













       value)













        COLCON_WARNINGS Set the warnings filter similar to PYTHONWARNINGS













       except that the module entry is implicitly set to












 'colcon.*'













        CTEST_COMMAND The full path to the CTest executable













        POWERSHELL_COMMAND The full path to the PowerShell executable


























      For more help and usage tips, see https://colcon.readthedocs.io





colcon build

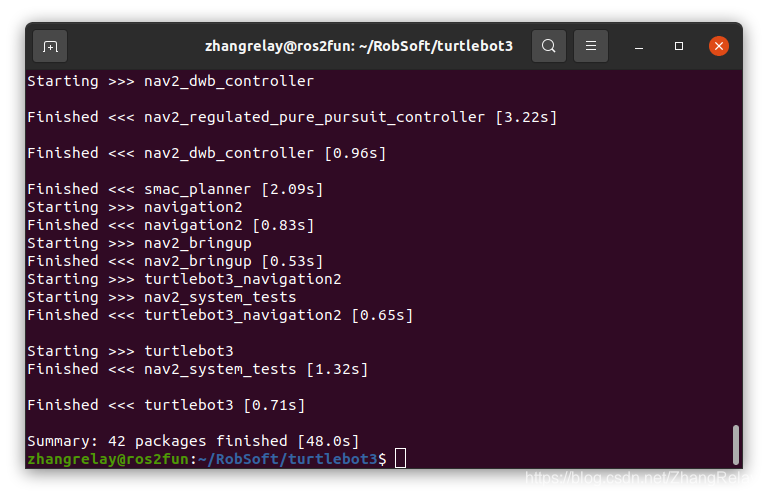

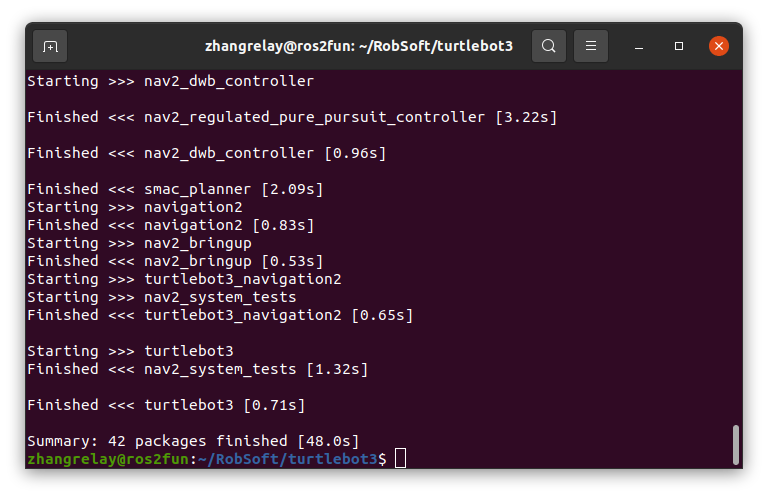

完成后显示：

如果要使用自编译功能包中的程序，需要：

 . install/local_setup.bash

运行

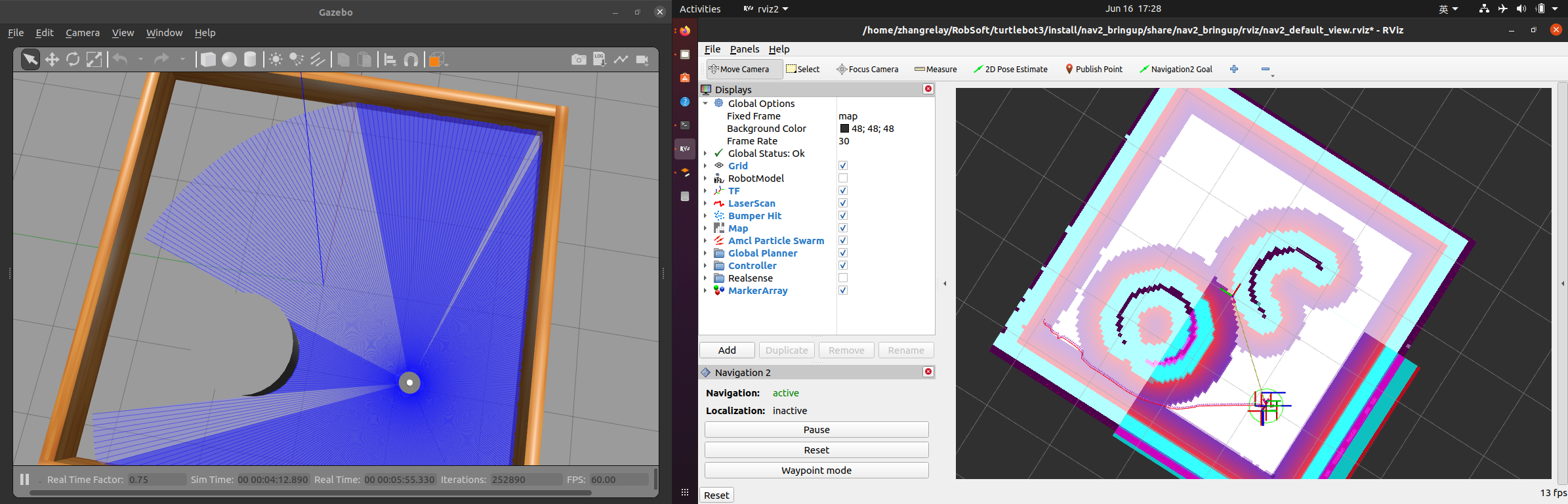

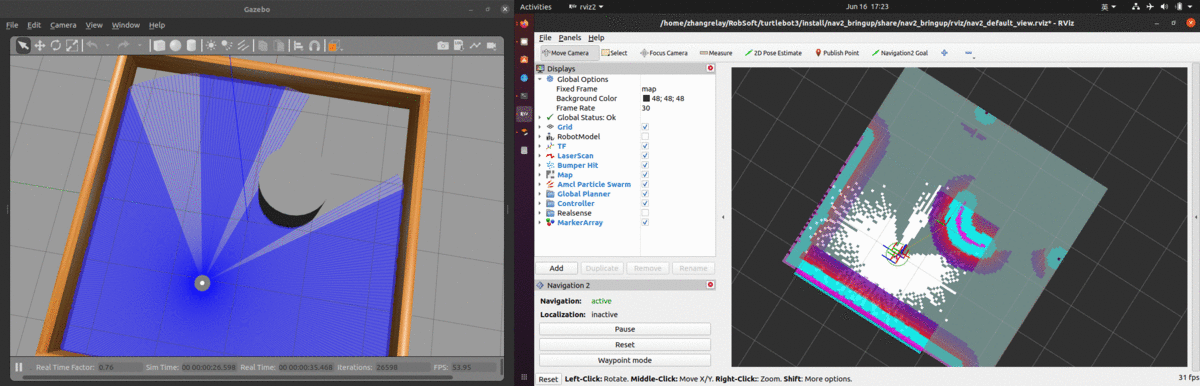

ros2 launch nav2_bringup tb3_simulation_launch.py slam:=True

好不好用呢？

非常稀烂！

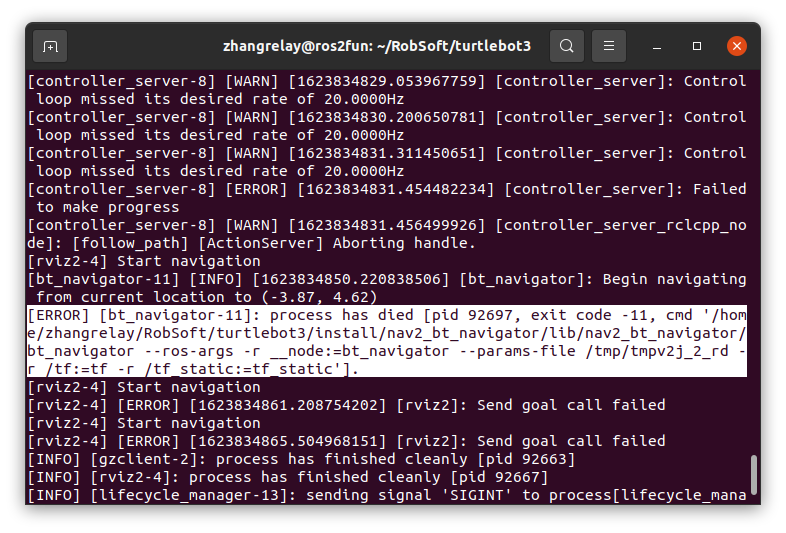

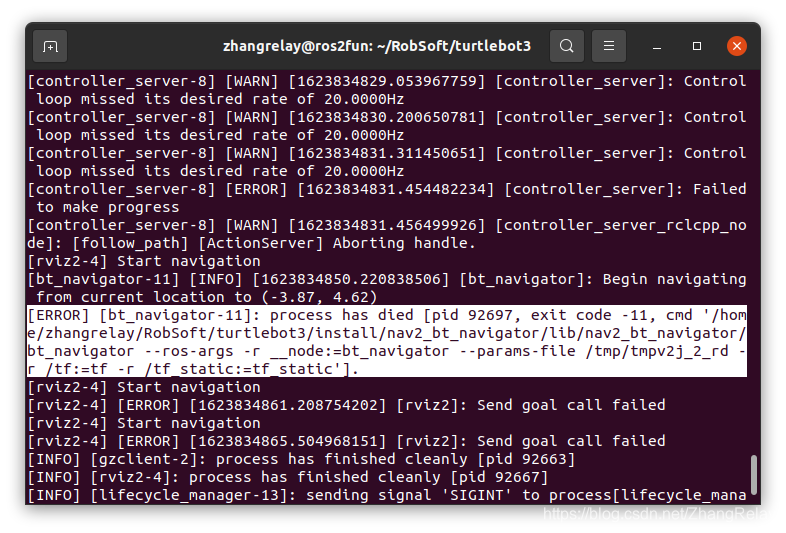

特别容易挂

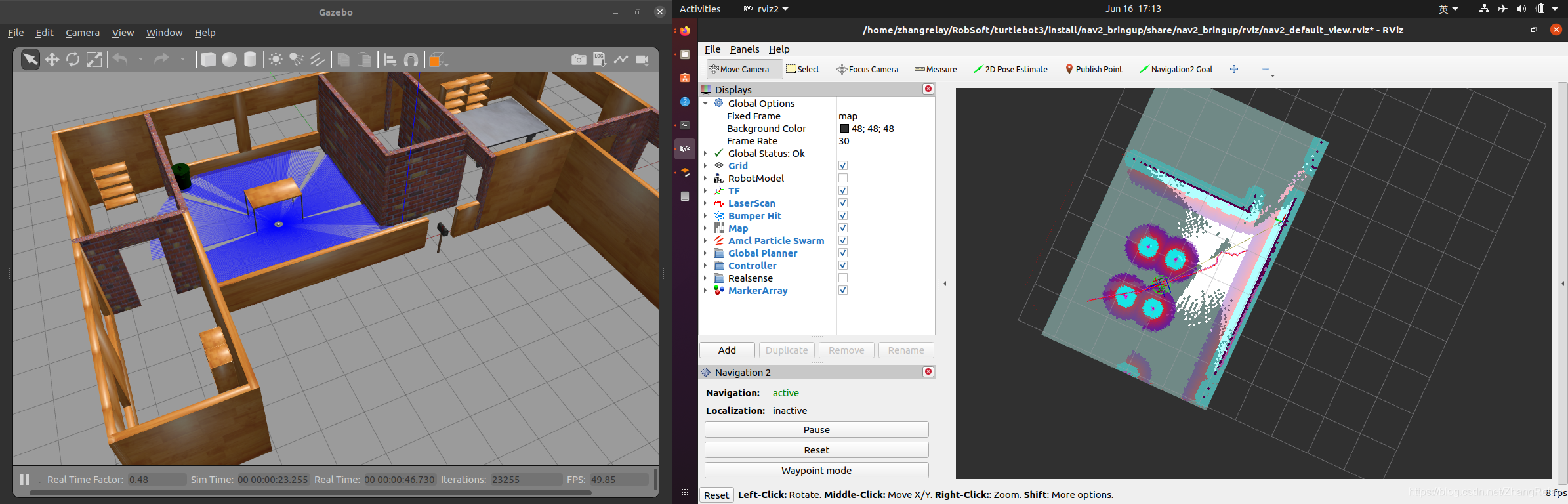

为何呢？是算法不行，还是参数不合适？换个地图试一试？

调参也是一门学问呢^_^

-End-
