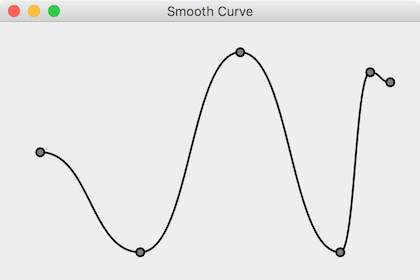

swing GeneralPath::cubicTo绘制平滑曲线



 import javax.swing.*;



 import java.awt.*;



 import java.awt.geom.GeneralPath;





 public class DrawSmoothCurve extends JPanel {



 private Point[] points = {



 new Point( 0, 0),



 new Point( 100, 100),



 new Point( 200, - 100),



 new Point( 300, 100),



 new Point( 330, - 80),



 new Point( 350, - 70)




        };






        GeneralPath path = new GeneralPath();





 public DrawSmoothCurve() {




        path.moveTo(points[ 0].x, points[ 0].y);





 for ( int i = 0; i < points.length- 1; ++i) {




        Point sp = points[i];




        Point ep = points[i+ 1];




        Point c1 = new Point((sp.x + ep.x)/ 2, sp.y);




        Point c2 = new Point((sp.x + ep.x)/ 2, ep.y);






        path.curveTo(c1.x, c1.y, c2.x, c2.y, ep.x, ep.y);




        }




        }





 @Override



 protected void paintComponent(Graphics g) {



 super.paintComponent(g);






        Graphics2D g2d = (Graphics2D) g;




        g2d.setRenderingHint(RenderingHints.KEY_ANTIALIASING, RenderingHints.VALUE_ANTIALIAS_ON);




        g2d.setStroke( new BasicStroke( 2));




        g2d.translate( 40, 130);




        g2d.draw(path);





 for ( int i = 0; i < points.length; ++i) {




        g2d.setColor(Color.GRAY);




        g2d.fillOval(points[i].x- 4, points[i].y- 4, 8, 8);




        g2d.setColor(Color.BLACK);




        g2d.drawOval(points[i].x- 4, points[i].y- 4, 8, 8);




        }




        }





 private static void createAndShowGui() {




        JFrame frame = new JFrame( "Smooth Curve");




        frame.setContentPane( new DrawSmoothCurve());




        frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);




        frame.setSize( 420, 280);




        frame.setLocationRelativeTo( null);




        frame.setVisible( true);




        }





 public static void main(String[] args) {




        SwingUtilities.invokeLater( new Runnable() {



 public void run() {




        createAndShowGui();




        }




        });




        }




        }
