【SLAM】【ROS】摄像头标定camera calibration

第一步：先准备一张标定板

（下图中间是6x4个角点，角点请看下边实验中的彩线点。实际打印的A4纸一个格子是4cm ）

第二步：知道文件夹运行位置

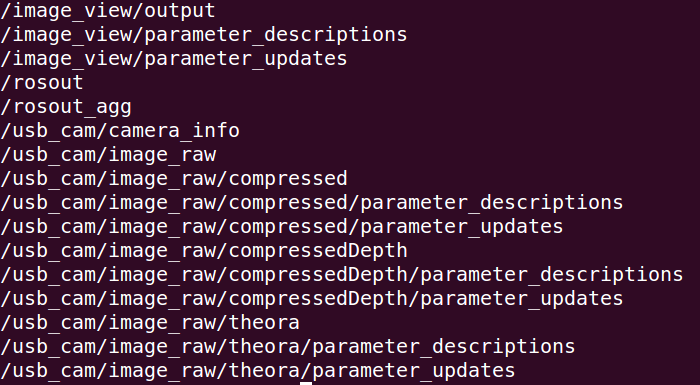

rostopic  list


/image_view/output
/image_view/parameter_descriptions
/image_view/parameter_updates
/rosout
/rosout_agg
/usb_cam/camera_info
/usb_cam/image_raw
/usb_cam/image_raw/compressed
/usb_cam/image_raw/compressed/parameter_descriptions
/usb_cam/image_raw/compressed/parameter_updates
/usb_cam/image_raw/compressedDepth
/usb_cam/image_raw/compressedDepth/parameter_descriptions
/usb_cam/image_raw/compressedDepth/parameter_updates
/usb_cam/image_raw/theora
/usb_cam/image_raw/theora/parameter_descriptions
/usb_cam/image_raw/theora/parameter_updates

第三步：运行标定程序

注意下面这句话，不要生搬硬套，要根据实际调整！！！

rosrun camera_calibration cameracalibrator.py --size 6x4 --square 0.04 image:=/usb_cam/image_raw camera:=/usb_cam

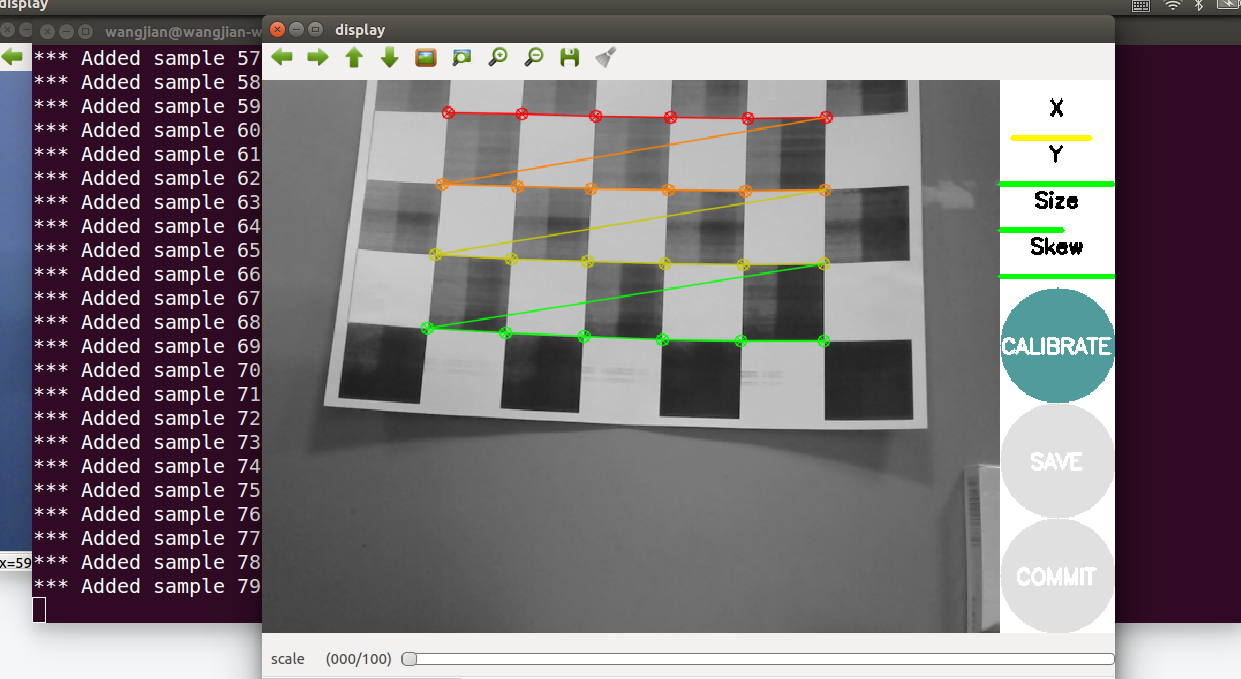

拿着标定板移动，它会自动识别然后标定出6*4个点，这就是刚刚为什么是6*4的原因了

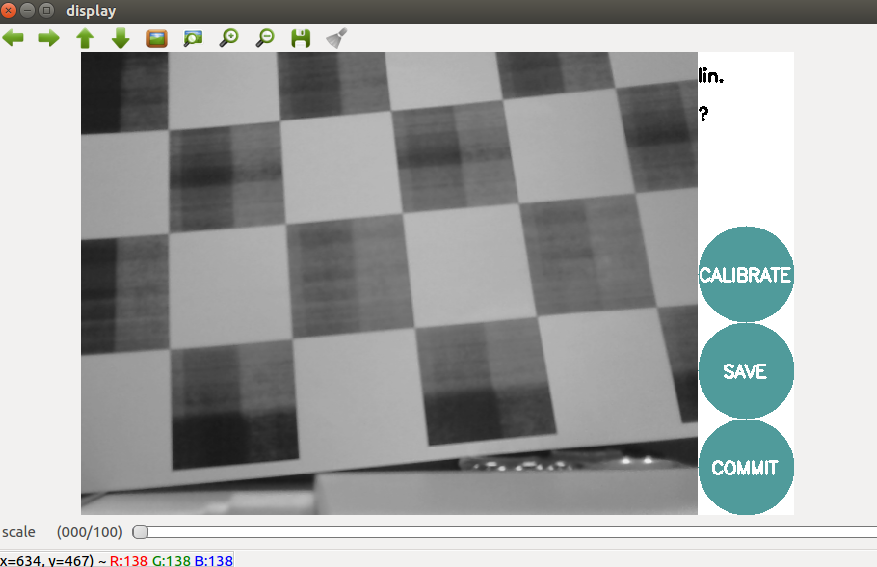

大概标定出几十个后，左侧第一个CALIBRATE按钮会亮起来

点击CALIBRATE按钮，此时会变灰色图像，耐心等待，不是死机

点击SAVE,COMMIT按钮

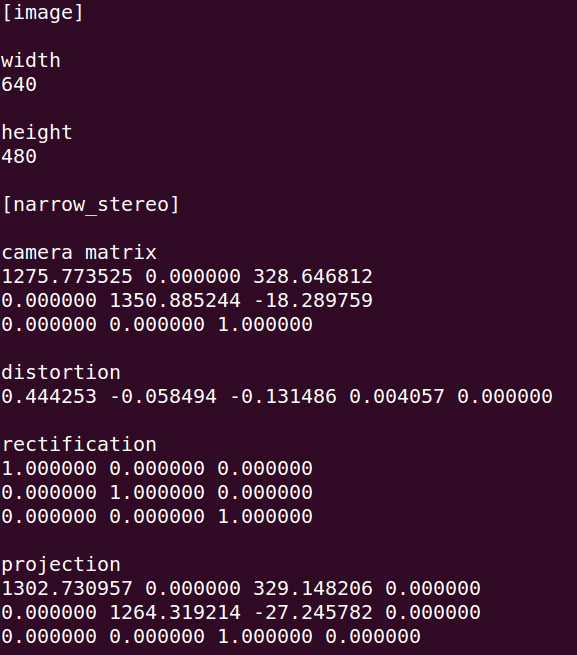

 窗口提示1

[image]

width
640

height
480

[narrow_stereo]

camera matrix
1275.773525 0.000000 328.646812
0.000000 1350.885244 -18.289759
0.000000 0.000000 1.000000

distortion
0.444253 -0.058494 -0.131486 0.004057 0.000000

rectification
1.000000 0.000000 0.000000
0.000000 1.000000 0.000000
0.000000 0.000000 1.000000

projection
1302.730957 0.000000 329.148206 0.000000
0.000000 1264.319214 -27.245782 0.000000
0.000000 0.000000 1.000000 0.000000



窗口提示2

[ INFO] [1571392954.109543476]: writing calibration data to /home/user/.ros/camera_info/head_camera.yaml

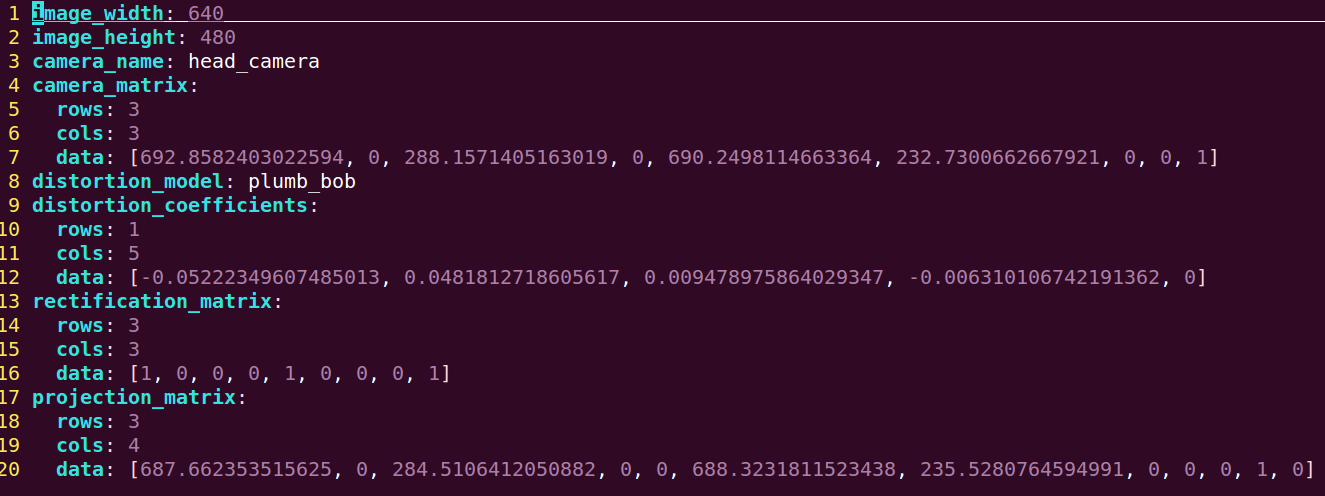

标定文件
