序

HELLO ,这里是百里,一个学习中的ABAPER,在工作中,我们会经常遇到代码复用,或者只需要一些修改就可以实现某些功能的需求. 或者相同界面,不同TCODE显示不同的功能按键.来解决不同公司的业务场景. 此时就用到了今天的需求,隐藏不同的TCODE按钮.

什么是隐藏按钮

们昨天讲了增加按钮,那么讲一下如何隐藏按钮. 隐藏按钮的动作是按照不同业务场景实现对应的业务功能,比如实际场景中,我们一个ALV中过账的区别,针对所有数据,A按钮过账A公司的数据,B按钮过账B公司的数据,C按钮过账C 公司数据. 或者当触发某个条件时我们就不显示什么按钮.

技术解析

我们主要是通过调用slis_t_extab中的函数,实现将传入的按钮内容隐藏的效果.

DATA : lw_tab LIKE LINE OF rt_extab.

lw_tab-fcode = '&按钮名称1'.
    APPEND lw_tab TO rt_extab.
    lw_tab-fcode = '&按钮名称2'.
    APPEND lw_tab TO rt_extab
 SET PF-STATUS 'STD' EXCLUDING rt_extab.   .

实例讲解

本案例主要讲述内容是在ALV展示界面中增加3个按钮,通过配置将两个按钮隐藏,从而达到实现效果.

数据准备

" 数据准备

TYPES : BEGIN OF ty_Data ,
   DOCCODE TYPE char20 ,
  ZROWID TYPE char20 ,
  MATCODE TYPE char20 ,
MATNAME TYPE char20 ,
 UOM TYPE char20 ,
 MEMO TYPE char20 ,

  message TYPE char20 ,

  END OF ty_Data .


data : gs_Data TYPE ty_Data .
data : gt_data TYPE TABLE of ty_Data .


  " alv 通用变量
  DATA: wa_layout   TYPE lvc_s_layo.
DATA:wa_fieldcat TYPE lvc_s_fcat,
     gt_fieldcat TYPE lvc_t_fcat.

DATA gs_grid TYPE lvc_s_glay.   "新

选择屏幕

" 选择屏幕

SELECTION-SCREEN BEGIN OF BLOCK block WITH FRAME TITLE text-001 .
PARAMETERS : p_text TYPE char20 .
SELECTION-SCREEN  END OF BLOCK block .

子例程设定

FORM get_Data .

select * from ZWDEMOTABLE1 AS A INTO CORRESPONDING FIELDS OF TABLE @gt_datA .

ENDFORM.
*&---------------------------------------------------------------------*
*& Form diaplay_data
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*& -->  p1        text
*& <--  p2        text
*&---------------------------------------------------------------------*
FORM diaplay_data .
   PERFORM set_alv_layout.
  PERFORM bulid_fieldcat.
  PERFORM call_alv_func.
ENDFORM.

FORM set_alv_layout .
  CLEAR: wa_layout.
  wa_layout-zebra      = 'X'.      "斑马线
  wa_layout-cwidth_opt = 'X'.      "自动列宽


ENDFORM.
*&---------------------------------------------------------------------*
*& Form bulid_fieldcat
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*& -->  p1        text
*& <--  p2        text
*&---------------------------------------------------------------------*
FORM bulid_fieldcat .
DEFINE add_col.

*    ADD 1 TO pos.
*    lw_fieldcat-col_pos = pos.
    wa_fieldcat-fieldname = &1.
    wa_fieldcat-ref_field = &2.
    wa_fieldcat-ref_table = &3.
    wa_fieldcat-scrtext_l = &4.
    wa_fieldcat-outputlen = &5.
    wa_fieldcat-no_zero = &6.
    wa_fieldcat-edit = &7.
    wa_fieldcat-edit_mask = &8.
    wa_fieldcat-key = &9.


   CASE  wa_fieldcat-fieldname.

      WHEN OTHERS.
ENDCASE .

    APPEND wa_fieldcat TO gt_fieldcat.

  CLEAR : wa_fieldcat.
  END-OF-DEFINITION.
  REFRESH: gt_fieldcat.


  " add_col 'slbox'     space space '选项'           space space space space space.
  add_col 'DOCCODE'     space space '单号'           space space space space space.
  add_col 'ZROWID'     space space 'zrowid'           space space space space space.


ENDFORM.
*&---------------------------------------------------------------------*
*& Form call_alv_func
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*& -->  p1        text
*& <--  p2        text
*&---------------------------------------------------------------------*
FORM call_alv_func .
DATA :gt_event TYPE slis_t_event,
        gs_event TYPE slis_alv_event.



 " MOVE 'DATA_CHANGED'     TO gs_event-name.
 " MOVE 'ALV_DATA_CHANGED' TO gs_event-form.
  APPEND gs_event TO gt_event.

  gs_grid-edt_cll_cb = abap_true.     " 选中复选款，立刻触发data changed 事件

  CALL FUNCTION 'REUSE_ALV_GRID_DISPLAY_LVC'
    EXPORTING
      i_callback_program       = sy-repid           "回调程序
      i_callback_pf_status_set = 'SET_PF_STATUS'
      i_callback_user_command  = 'USER_COMMAND'
      i_grid_settings          = gs_grid
      is_layout_lvc            = wa_layout
      it_fieldcat_lvc          = gt_fieldcat        "需要显示的内表的列
      i_save                   = 'A'
      it_events                = gt_event
    TABLES
      t_outtab                 = gt_DAta         "需要显示的数据
    EXCEPTIONS
      program_error            = 1
      OTHERS                   = 2.
  IF sy-subrc <> 0.
  ENDIF.
ENDFORM.


FORM set_pf_status USING rt_extab TYPE slis_t_extab.
  DATA : lw_tab LIKE LINE OF rt_extab.
  REFRESH rt_extab.
IF p_text = '1' .
    " 删除按钮
 lw_tab-fcode = 'DEMO1'.
   APPEND lw_tab TO rt_extab.
ENDIF.

IF p_text = '2' .
    " 删除按钮
 lw_tab-fcode = 'DEMO2'.
   APPEND lw_tab TO rt_extab.
ENDIF.
IF p_text = '3' .
    " 删除按钮
 lw_tab-fcode = 'DEMO3'.
   APPEND lw_tab TO rt_extab.
ENDIF.

  SET PF-STATUS 'STD' EXCLUDING rt_extab.

  "  SET TITLEBAR 'TIT_1000'.
ENDFORM.

调用子例程

INITIALIZATION .


AT SELECTION-SCREEN .

START-OF-SELECTION .
 PERFORM  get_Data .

ENd-OF-SELECTION .

  PERFORM diaplay_data.

结果

我们在选择屏幕界面通过配置内容,从而实现按钮的显示及隐藏

选择屏幕额界面

当我们输入 1 时, 隐藏1显示demo2 ,demo3

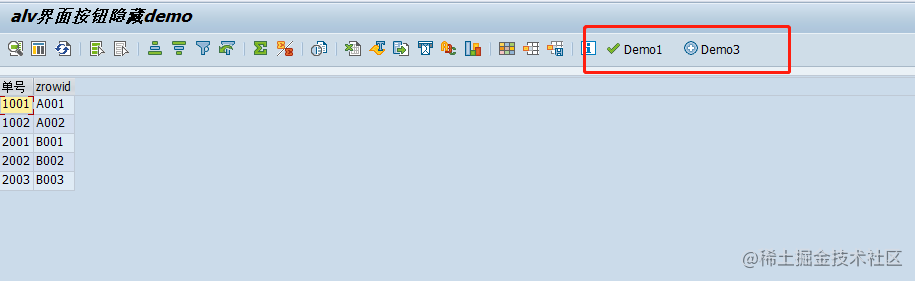

当我们输入2 时, 隐藏2 显示demo1 ,demo3

以上实现我们所需功能.

技术总结

今天讲的内容是,在工作中常用的隐藏ALV界面当中的按钮, 学会此需求以后可以应对当同一ALV界面根据权限显示不同按钮的需求. 活灵活用以解决更多问题.
