RK3588 AI 应用开发 (ResNet50V2-关键点检测)

一、模型训练与转换

ResNet50V2 是改进版的深度卷积神经网络,基于 ResNet 架构发展而来。它采用前置激活(将 BN 和 ReLU 移至卷积前)与身份映射,优化了信息传播和模型训练性能。作为 50 层深度的网络,ResNet50V2 广泛应用于图像分类、目标检测等任务,支持迁移学习,适合快速适配新数据集,具有良好的泛化能力和较高准确率。

模型的训练与转换教程已经开放在AI Gallery中,其中包含训练数据、训练代码、模型转换脚本。

在ModelArts的Notebook环境中训练后,再转换成对应平台的模型格式:onnx格式可以用在Windows设备上,RK系列设备上需要转换为rknn格式。

二、应用开发

1. 开发 Gradio 界面

import cv2
import json
import base64
import requests
import numpy as np
import gradio as gr
def test_image(image_path):
    try:
        image_bgr = cv2.imread(image_path)
        image_string = cv2.imencode('.jpg', image_bgr)[1].tobytes()
        image_base64 = base64.b64encode(image_string).decode('utf-8')
        params = {"image_base64": image_base64}

        response = requests.post(f'http://{ip}:{port}{url}', data=json.dumps(params),
                                headers={"Content-Type": "application/json"})

        if response.status_code == 200:
            image_base64 = response.json().get("image_base64")
            image_binary = base64.b64decode(image_base64)
            image_array = np.frombuffer(image_binary, dtype=np.uint8)
            image_rgb = cv2.imdecode(image_array, cv2.IMREAD_COLOR)
        else:
            image_rgb = None

    except Exception as e:
        return None
    else:
        return image_rgb
if __name__ == "__main__":
    port = 8000
    ip = "127.0.0.1"
    url = "/v1/ResNet50V2"

    demo = gr.Interface(fn=test_image, inputs=gr.Image(type="filepath"), outputs=["image"], title="ResNet50V2 猫脸关键点检测")
    demo.launch(share=False, server_port=3000)
/home/orangepi/miniconda3/envs/python-3.10.10/lib/python3.10/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm
* Running on local URL:  http://127.0.0.1:3000
* To create a public link, set `share=True` in `launch()`.

2. 编写推理代码

class ResNet50V2:
    def __init__(self, model_path):
        self.rknn_lite = RKNNLite()
        self.rknn_lite.load_rknn(model_path)
        self.rknn_lite.init_runtime(core_mask=RKNNLite.NPU_CORE_0_1_2)
    def preprocess(self, image):
        image = image[:, :, ::-1]
        image = cv2.resize(image, (224, 224))
        return np.expand_dims(image, axis=0)
    def rknn_infer(self, data):
        outputs = self.rknn_lite.inference(inputs=[data])
        return outputs[0]
    def post_process(self, pred):
        feat = pred.squeeze().reshape(-1, 2)
        return feat
    def predict(self, image):
        # 图像预处理
        data = self.preprocess(image)
        # 模型推理
        pred = self.rknn_infer(data)
        # 模型后处理
        keypoints = self.post_process(pred)
        # 绘制关键点检测结果
        h, w, _ = image.shape
        for x, y in keypoints:
            cv2.circle(image, (int(x * w), int(y * h)), 5, (0, 255, 0), -1)
        return image[..., ::-1]

    def release(self):
        self.rknn_lite.release()

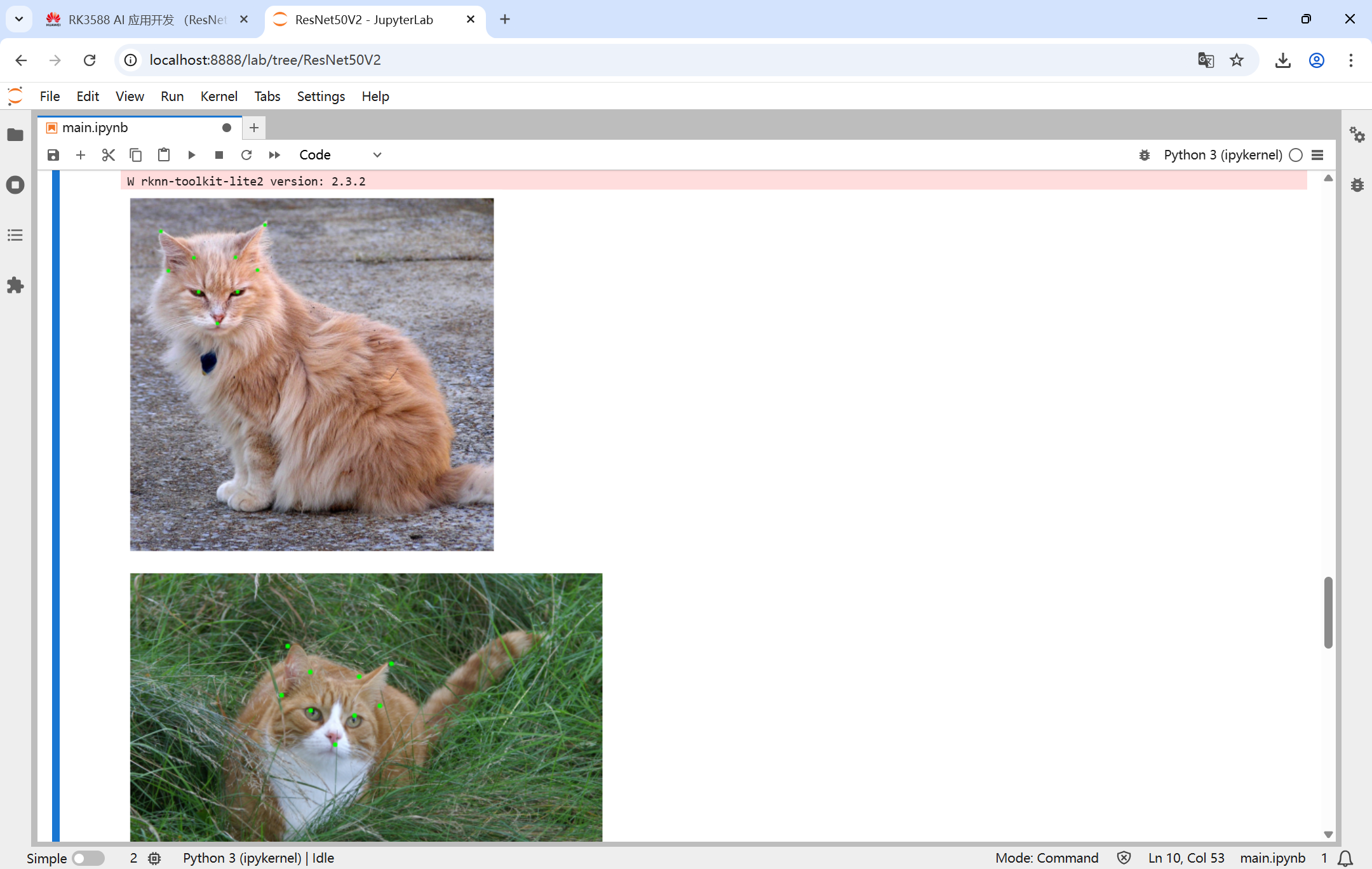

3. 图片批量预测

import os
import cv2
import numpy as np
import matplotlib.pyplot as plt
from rknnlite.api import RKNNLite

model = ResNet50V2('model/ResNet50V2.rknn')

for image in os.listdir("image"):
    image = cv2.imread(os.path.join("image", image))
    image = model.predict(image)
    plt.imshow(image)
    plt.axis('off')
    plt.show()

model.release()

4. 创建 Flask 服务

import cv2
import base64
import numpy as np
from rknnlite.api import RKNNLite
from flask import Flask, request, jsonify
from flask_cors import CORS

app = Flask(__name__)
CORS(app)

@app.route('/v1/ResNet50V2', methods=['POST'])
def inference():
    data = request.get_json()
    image_base64 = data.get("image_base64")
    image_binary = base64.b64decode(image_base64)
    image_array = np.frombuffer(image_binary, dtype=np.uint8)
    image_bgr = cv2.imdecode(image_array, cv2.IMREAD_COLOR)

    image_rgb = model.predict(image_bgr)

    image_string = cv2.imencode('.jpg', image_rgb)[1].tobytes()
    image_base64 = base64.b64encode(image_string).decode('utf-8')

    return jsonify({
        "image_base64": image_base64
    }), 200

if __name__ == '__main__':
    model = ResNet50V2('model/ResNet50V2.rknn')
    app.run(host='0.0.0.0', port=8000)
    model.release()
W rknn-toolkit-lite2 version: 2.3.2
 * Serving Flask app '__main__'
 * Debug mode: off
WARNING: This is a development server. Do not use it in a production deployment. Use a production WSGI server instead.
 * Running on all addresses (0.0.0.0)
 * Running on http://127.0.0.1:8000
 * Running on http://192.168.3.50:8000
Press CTRL+C to quit
127.0.0.1 - - [02/May/2025 02:13:40] "POST /v1/ResNet50V2 HTTP/1.1" 200 -
127.0.0.1 - - [02/May/2025 02:13:46] "POST /v1/ResNet50V2 HTTP/1.1" 200 -

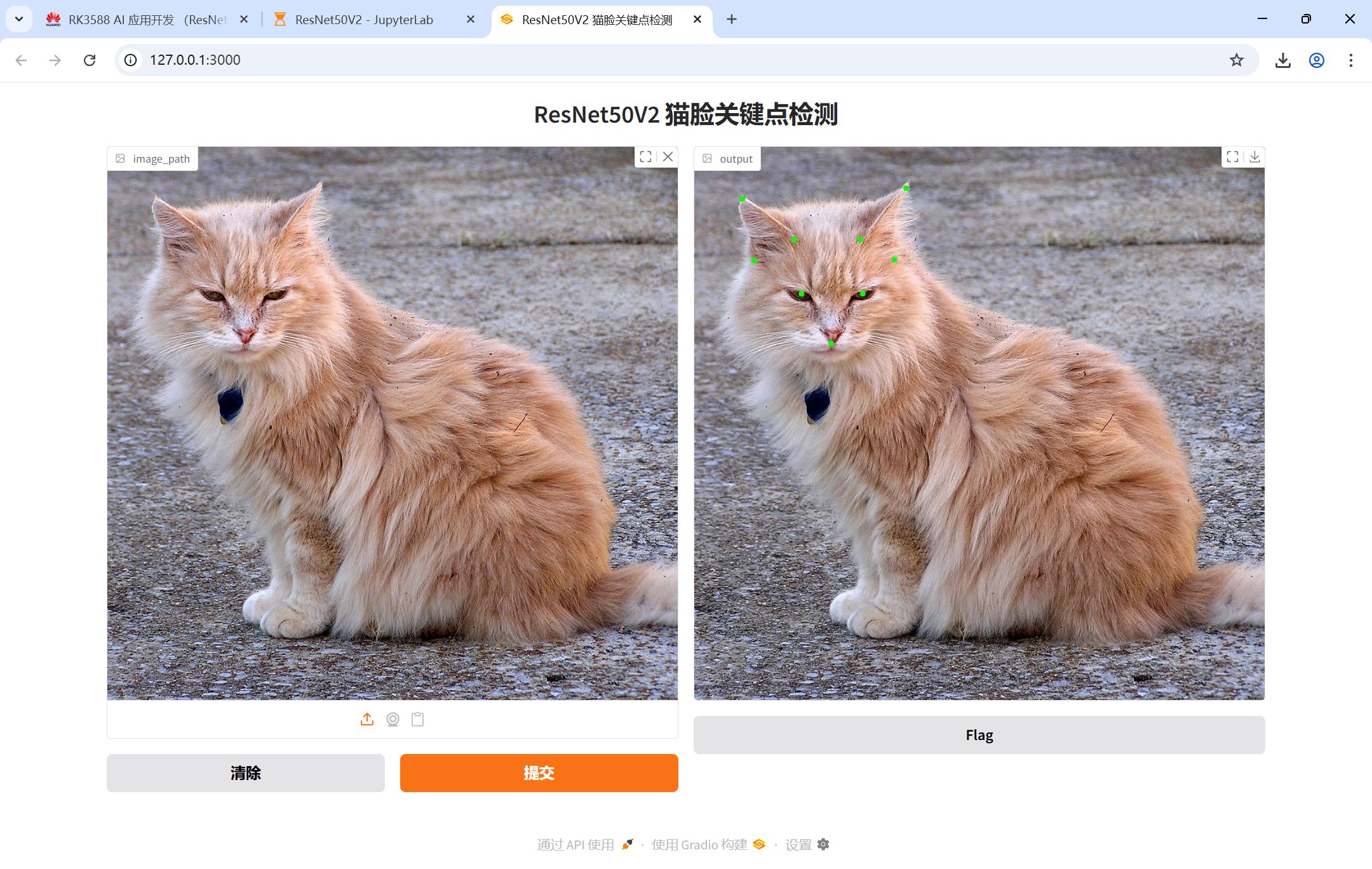

5. 上传图片预测

三、小结

本章介绍了基于 RK3588 的 ResNet50V2 关键点检测应用开发全流程,包括模型训练与转换、Gradio 界面设计、推理代码实现、批量预测处理及 Flask 服务部署,完整实现了从模型到端到端应用的落地。
