NEON AOP 表面定向反射率数据是一种高光谱 VSWIR（可见光到短波红外）数据产品，包含 426 个波段

此星光明发表于 2025/01/28 18:07:48 2025/01/28

【摘要】简介NEON AOP 表面定向反射率数据是一种高光谱 VSWIR（可见光到短波红外）数据产品，包含 426 个波段，波长从 ~380 nm 到 2510 nm。波长在 1340-1445 nm 和 1790-1955 nm 之间的波段设置为-100；这些波段是水蒸气吸收波段，没有有效值。数据集还包含 QA 栅格波段（B427 - B442）。主要处理步骤包括正射矫正和大气校正。数据由...

简介

NEON AOP 表面定向反射率数据是一种高光谱 VSWIR（可见光到短波红外）数据产品，包含 426 个波段，波长从 ~380 nm 到 2510 nm。波长在 1340-1445 nm 和 1790-1955 nm 之间的波段设置为-100；这些波段是水蒸气吸收波段，没有有效值。数据集还包含 QA 栅格波段（B427 - B442）。主要处理步骤包括正射矫正和大气校正。数据由美国国家航空航天局喷气推进实验室（JPL）制造的 AVIRIS-NG 传感器的三个 NEON 成像分光计单元之一收集。利用云层覆盖最少的飞行线路上的最下端像素，将反射率转换为马赛克图像。空间分辨率为 1 米，光谱分辨率为 ~5 纳米。图像属性中提供了每个波段的中心波长和最大半宽（FWHM）。

摘要

Catalog owner

Dataset Availability

2013-01-01T00:00:00 -

Dataset Provider

NEON

Contact

Contact information not available.

Collection Snippet

ee.ImageCollection("projects/neon-prod-earthengine/assets/HSI_REFL/001")

Resolution

1 meters

Bands Table

Name	Description	Units	Wavelength
B001	VNIR Band B001		382.2587nm, FWHM: 5.6785nm
B002	VNIR Band B002		387.2674nm, FWHM: 5.6774nm
B003	VNIR Band B003		392.2761nm, FWHM: 5.6762nm
B004	VNIR Band B004		397.2848nm, FWHM: 5.6751nm
B005	VNIR Band B005		402.2935nm, FWHM: 5.674nm
B006	VNIR Band B006		407.3022nm, FWHM: 5.6729nm
B007	VNIR Band B007		412.3109nm, FWHM: 5.6719nm
B008	VNIR Band B008		417.3195nm, FWHM: 5.6708nm
B009	VNIR Band B009		422.3282nm, FWHM: 5.6697nm
B010	VNIR Band B010		427.3369nm, FWHM: 5.6687nm
B011	VNIR Band B011		432.3455nm, FWHM: 5.6677nm
B012	VNIR Band B012		437.3542nm, FWHM: 5.6667nm
B013	VNIR Band B013		442.363nm, FWHM: 5.6657nm
B014	VNIR Band B014		447.3716nm, FWHM: 5.6647nm
B015	VNIR Band B015		452.3804nm, FWHM: 5.6638nm
B016	VNIR Band B016		457.389nm, FWHM: 5.6628nm
B017	VNIR Band B017		462.3978nm, FWHM: 5.6619nm
B018	VNIR Band B018		467.4064nm, FWHM: 5.661nm
B019	VNIR Band B019		472.415nm, FWHM: 5.6601nm
B020	VNIR Band B020		477.4238nm, FWHM: 5.6592nm
B021	VNIR Band B021		482.4324nm, FWHM: 5.6583nm
B022	VNIR Band B022		487.4412nm, FWHM: 5.6575nm
B023	VNIR Band B023		492.4498nm, FWHM: 5.6566nm
B024	VNIR Band B024		497.4585nm, FWHM: 5.6558nm
B025	VNIR Band B025		502.4672nm, FWHM: 5.655nm
B026	VNIR Band B026		507.4759nm, FWHM: 5.6542nm
B027	VNIR Band B027		512.4846nm, FWHM: 5.6534nm
B028	VNIR Band B028		517.4932nm, FWHM: 5.6526nm
B029	VNIR Band B029		522.502nm, FWHM: 5.6519nm
B030	VNIR Band B030		527.5106nm, FWHM: 5.6511nm
B031	VNIR Band B031		532.5194nm, FWHM: 5.6504nm
B032	VNIR Band B032		537.528nm, FWHM: 5.6497nm
B033	VNIR Band B033		542.5367nm, FWHM: 5.649nm
B034	VNIR Band B034		547.5454nm, FWHM: 5.6483nm
B035	VNIR Band B035		552.5542nm, FWHM: 5.6476nm
B036	VNIR Band B036		557.5628nm, FWHM: 5.647nm
B037	VNIR Band B037		562.5714nm, FWHM: 5.6463nm
B038	VNIR Band B038		567.5802nm, FWHM: 5.6457nm
B039	VNIR Band B039		572.5888nm, FWHM: 5.6451nm
B040	VNIR Band B040		577.5974nm, FWHM: 5.6445nm
B041	VNIR Band B041		582.6062nm, FWHM: 5.6439nm
B042	VNIR Band B042		587.6148nm, FWHM: 5.6433nm
B043	VNIR Band B043		592.6236nm, FWHM: 5.6428nm
B044	VNIR Band B044		597.6322nm, FWHM: 5.6422nm
B045	VNIR Band B045		602.641nm, FWHM: 5.6417nm
B046	VNIR Band B046		607.6496nm, FWHM: 5.6412nm
B047	VNIR Band B047		612.6584nm, FWHM: 5.6407nm
B048	VNIR Band B048		617.667nm, FWHM: 5.6402nm
B049	VNIR Band B049		622.6757nm, FWHM: 5.6397nm
B050	VNIR Band B050		627.6844nm, FWHM: 5.6393nm
B051	VNIR Band B051		632.693nm, FWHM: 5.6388nm
B052	VNIR Band B052		637.7017nm, FWHM: 5.6384nm
B053	VNIR Band B053		642.7104nm, FWHM: 5.638nm
B054	VNIR Band B054		647.7191nm, FWHM: 5.6376nm
B055	VNIR Band B055		652.7278nm, FWHM: 5.6372nm
B056	VNIR Band B056		657.7365nm, FWHM: 5.6368nm
B057	VNIR Band B057		662.7452nm, FWHM: 5.6365nm
B058	VNIR Band B058		667.7538nm, FWHM: 5.6361nm
B059	VNIR Band B059		672.7626nm, FWHM: 5.6358nm
B060	VNIR Band B060		677.7712nm, FWHM: 5.6355nm
B061	VNIR Band B061		682.78nm, FWHM: 5.6352nm
B062	VNIR Band B062		687.7886nm, FWHM: 5.6349nm
B063	VNIR Band B063		692.7974nm, FWHM: 5.6347nm
B064	VNIR Band B064		697.806nm, FWHM: 5.6344nm
B065	VNIR Band B065		702.8148nm, FWHM: 5.6342nm
B066	VNIR Band B066		707.8233nm, FWHM: 5.6339nm
B067	VNIR Band B067		712.832nm, FWHM: 5.6337nm
B068	VNIR Band B068		717.8408nm, FWHM: 5.6335nm
B069	VNIR Band B069		722.8495nm, FWHM: 5.6334nm
B070	VNIR Band B070		727.858nm, FWHM: 5.6332nm
B071	VNIR Band B071		732.8668nm, FWHM: 5.633nm
B072	VNIR Band B072		737.8754nm, FWHM: 5.6329nm
B073	VNIR Band B073		742.8842nm, FWHM: 5.6328nm
B074	VNIR Band B074		747.8928nm, FWHM: 5.6327nm
B075	VNIR Band B075		752.9016nm, FWHM: 5.6326nm
B076	VNIR Band B076		757.9102nm, FWHM: 5.6325nm
B077	VNIR Band B077		762.9189nm, FWHM: 5.6324nm
B078	VNIR Band B078		767.9276nm, FWHM: 5.6324nm
B079	VNIR Band B079		772.9364nm, FWHM: 5.6323nm
B080	VNIR Band B080		777.945nm, FWHM: 5.6323nm
B081	VNIR Band B081		782.9538nm, FWHM: 5.6323nm
B082	VNIR Band B082		787.9624nm, FWHM: 5.6323nm
B083	VNIR Band B083		792.9712nm, FWHM: 5.6323nm
B084	VNIR Band B084		797.9798nm, FWHM: 5.6324nm
B085	VNIR Band B085		802.9884nm, FWHM: 5.6324nm
B086	VNIR Band B086		807.997nm, FWHM: 5.6325nm
B087	VNIR Band B087		813.0058nm, FWHM: 5.6326nm
B088	VNIR Band B088		818.0144nm, FWHM: 5.6326nm
B089	VNIR Band B089		823.023nm, FWHM: 5.6328nm
B090	VNIR Band B090		828.0318nm, FWHM: 5.6329nm
B091	VNIR Band B091		833.0404nm, FWHM: 5.633nm
B092	VNIR Band B092		838.0492nm, FWHM: 5.6332nm
B093	VNIR Band B093		843.0579nm, FWHM: 5.6333nm
B094	VNIR Band B094		848.0665nm, FWHM: 5.6335nm
B095	VNIR Band B095		853.0753nm, FWHM: 5.6337nm
B096	VNIR Band B096		858.084nm, FWHM: 5.6339nm
B097	VNIR Band B097		863.0927nm, FWHM: 5.6341nm
B098	VNIR Band B098		868.1014nm, FWHM: 5.6344nm
B099	VNIR Band B099		873.11nm, FWHM: 5.6346nm
B100	VNIR Band B100		878.1187nm, FWHM: 5.6349nm
B101	VNIR Band B101		883.1274nm, FWHM: 5.6352nm
B102	VNIR Band B102		888.1361nm, FWHM: 5.6354nm
B103	VNIR Band B103		893.1447nm, FWHM: 5.6358nm
B104	VNIR Band B104		898.1534nm, FWHM: 5.6361nm
B105	VNIR Band B105		903.1621nm, FWHM: 5.6364nm
B106	VNIR Band B106		908.1708nm, FWHM: 5.6368nm
B107	VNIR Band B107		913.1795nm, FWHM: 5.6371nm
B108	VNIR Band B108		918.1882nm, FWHM: 5.6375nm
B109	VNIR Band B109		923.1968nm, FWHM: 5.6379nm
B110	VNIR Band B110		928.2056nm, FWHM: 5.6383nm
B111	VNIR Band B111		933.2143nm, FWHM: 5.6387nm
B112	VNIR Band B112		938.223nm, FWHM: 5.6392nm
B113	VNIR Band B113		943.2316nm, FWHM: 5.6396nm
B114	VNIR Band B114		948.2403nm, FWHM: 5.6401nm
B115	VNIR Band B115		953.249nm, FWHM: 5.6406nm
B116	VNIR Band B116		958.2578nm, FWHM: 5.641nm
B117	VNIR Band B117		963.2663nm, FWHM: 5.6416nm
B118	VNIR Band B118		968.275nm, FWHM: 5.6421nm
B119	VNIR Band B119		973.2838nm, FWHM: 5.6426nm
B120	VNIR Band B120		978.2924nm, FWHM: 5.6432nm
B121	VNIR Band B121		983.301nm, FWHM: 5.6437nm
B122	VNIR Band B122		988.3098nm, FWHM: 5.6443nm
B123	VNIR Band B123		993.3184nm, FWHM: 5.6449nm
B124	VNIR Band B124		998.3272nm, FWHM: 5.6455nm
B125	VNIR Band B125		1003.3359nm, FWHM: 5.6461nm
B126	VNIR Band B126		1008.3444nm, FWHM: 5.6468nm
B127	VNIR Band B127		1013.3532nm, FWHM: 5.6474nm
B128	VNIR Band B128		1018.3619nm, FWHM: 5.6481nm
B129	VNIR Band B129		1023.3706nm, FWHM: 5.6487nm
B130	VNIR Band B130		1028.3793nm, FWHM: 5.6494nm
B131	VNIR Band B131		1033.388nm, FWHM: 5.6501nm
B132	VNIR Band B132		1038.3966nm, FWHM: 5.6508nm
B133	VNIR Band B133		1043.4054nm, FWHM: 5.6516nm
B134	VNIR Band B134		1048.414nm, FWHM: 5.6523nm
B135	VNIR Band B135		1053.4227nm, FWHM: 5.6531nm
B136	VNIR Band B136		1058.4314nm, FWHM: 5.6539nm
B137	VNIR Band B137		1063.4401nm, FWHM: 5.6547nm
B138	VNIR Band B138		1068.4487nm, FWHM: 5.6555nm
B139	VNIR Band B139		1073.4574nm, FWHM: 5.6563nm
B140	VNIR Band B140		1078.4661nm, FWHM: 5.6571nm
B141	VNIR Band B141		1083.4749nm, FWHM: 5.6579nm
B142	VNIR Band B142		1088.4836nm, FWHM: 5.6588nm
B143	VNIR Band B143		1093.4922nm, FWHM: 5.6597nm
B144	VNIR Band B144		1098.5009nm, FWHM: 5.6606nm
B145	VNIR Band B145		1103.5095nm, FWHM: 5.6615nm
B146	VNIR Band B146		1108.5182nm, FWHM: 5.6624nm
B147	VNIR Band B147		1113.527nm, FWHM: 5.6633nm
B148	VNIR Band B148		1118.5356nm, FWHM: 5.6642nm
B149	VNIR Band B149		1123.5443nm, FWHM: 5.6652nm
B150	VNIR Band B150		1128.553nm, FWHM: 5.6662nm
B151	VNIR Band B151		1133.5616nm, FWHM: 5.6672nm
B152	VNIR Band B152		1138.5704nm, FWHM: 5.6682nm
B153	VNIR Band B153		1143.5791nm, FWHM: 5.6692nm
B154	VNIR Band B154		1148.5878nm, FWHM: 5.6702nm
B155	VNIR Band B155		1153.5964nm, FWHM: 5.6712nm
B156	VNIR Band B156		1158.6051nm, FWHM: 5.6723nm
B157	VNIR Band B157		1163.6138nm, FWHM: 5.6733nm
B158	VNIR Band B158		1168.6224nm, FWHM: 5.6744nm
B159	VNIR Band B159		1173.6312nm, FWHM: 5.6755nm
B160	VNIR Band B160		1178.6398nm, FWHM: 5.6766nm
B161	VNIR Band B161		1183.6484nm, FWHM: 5.6778nm
B162	VNIR Band B162		1188.6571nm, FWHM: 5.6789nm
B163	VNIR Band B163		1193.6658nm, FWHM: 5.68nm
B164	VNIR Band B164		1198.6746nm, FWHM: 5.6812nm
B165	VNIR Band B165		1203.6833nm, FWHM: 5.6824nm
B166	VNIR Band B166		1208.692nm, FWHM: 5.6836nm
B167	VNIR Band B167		1213.7006nm, FWHM: 5.6848nm
B168	VNIR Band B168		1218.7092nm, FWHM: 5.686nm
B169	VNIR Band B169		1223.718nm, FWHM: 5.6872nm
B170	VNIR Band B170		1228.7267nm, FWHM: 5.6885nm
B171	VNIR Band B171		1233.7355nm, FWHM: 5.6897nm
B172	VNIR Band B172		1238.7441nm, FWHM: 5.691nm
B173	VNIR Band B173		1243.7528nm, FWHM: 5.6923nm
B174	VNIR Band B174		1248.7616nm, FWHM: 5.6936nm
B175	VNIR Band B175		1253.7703nm, FWHM: 5.6949nm
B176	VNIR Band B176		1258.7789nm, FWHM: 5.6962nm
B177	VNIR Band B177		1263.7875nm, FWHM: 5.6976nm
B178	VNIR Band B178		1268.7963nm, FWHM: 5.6989nm
B179	VNIR Band B179		1273.8049nm, FWHM: 5.7003nm
B180	VNIR Band B180		1278.8136nm, FWHM: 5.7017nm
B181	VNIR Band B181		1283.8223nm, FWHM: 5.7031nm
B182	VNIR Band B182		1288.831nm, FWHM: 5.7045nm
B183	VNIR Band B183		1293.8397nm, FWHM: 5.7059nm
B184	VNIR Band B184		1298.8485nm, FWHM: 5.7073nm
B185	VNIR Band B185		1303.857nm, FWHM: 5.7088nm
B186	VNIR Band B186		1308.8656nm, FWHM: 5.7102nm
B187	VNIR Band B187		1313.8743nm, FWHM: 5.7117nm
B188	VNIR Band B188		1318.8829nm, FWHM: 5.7132nm
B189	VNIR Band B189		1323.8917nm, FWHM: 5.7147nm
B190	VNIR Band B190		1328.9004nm, FWHM: 5.7162nm
B191	VNIR Band B191		1333.909nm, FWHM: 5.7177nm
B192	VNIR Band B192		1338.9178nm, FWHM: 5.7193nm
B193	VNIR Band B193		1343.9265nm, FWHM: 5.7208nm
B194	VNIR Band B194		1348.9352nm, FWHM: 5.7224nm
B195	VNIR Band B195		1353.9437nm, FWHM: 5.724nm
B196	VNIR Band B196		1358.9528nm, FWHM: 5.7256nm
B197	VNIR Band B197		1363.9613nm, FWHM: 5.7272nm
B198	VNIR Band B198		1368.97nm, FWHM: 5.7288nm
B199	VNIR Band B199		1373.9788nm, FWHM: 5.7305nm
B200	VNIR Band B200		1378.9873nm, FWHM: 5.7321nm
B201	VNIR Band B201		1383.9961nm, FWHM: 5.7338nm
B202	VNIR Band B202		1389.0048nm, FWHM: 5.7355nm
B203	VNIR Band B203		1394.0135nm, FWHM: 5.7371nm
B204	VNIR Band B204		1399.0221nm, FWHM: 5.7388nm
B205	SWIR Band B205		1404.0309nm, FWHM: 5.7406nm
B206	SWIR Band B206		1409.0394nm, FWHM: 5.7423nm
B207	SWIR Band B207		1414.0481nm, FWHM: 5.744nm
B208	SWIR Band B208		1419.0569nm, FWHM: 5.7458nm
B209	SWIR Band B209		1424.0656nm, FWHM: 5.7476nm
B210	SWIR Band B210		1429.0742nm, FWHM: 5.7493nm
B211	SWIR Band B211		1434.083nm, FWHM: 5.7511nm
B212	SWIR Band B212		1439.0917nm, FWHM: 5.7529nm
B213	SWIR Band B213		1444.1003nm, FWHM: 5.7548nm
B214	SWIR Band B214		1449.1088nm, FWHM: 5.7566nm
B215	SWIR Band B215		1454.1174nm, FWHM: 5.7584nm
B216	SWIR Band B216		1459.1263nm, FWHM: 5.7603nm
B217	SWIR Band B217		1464.135nm, FWHM: 5.7622nm
B218	SWIR Band B218		1469.1436nm, FWHM: 5.7641nm
B219	SWIR Band B219		1474.1522nm, FWHM: 5.766nm
B220	SWIR Band B220		1479.161nm, FWHM: 5.7679nm
B221	SWIR Band B221		1484.1697nm, FWHM: 5.7698nm
B222	SWIR Band B222		1489.1785nm, FWHM: 5.7717nm
B223	SWIR Band B223		1494.1871nm, FWHM: 5.7737nm
B224	SWIR Band B224		1499.1959nm, FWHM: 5.7757nm
B225	SWIR Band B225		1504.2045nm, FWHM: 5.7776nm
B226	SWIR Band B226		1509.2135nm, FWHM: 5.7796nm
B227	SWIR Band B227		1514.2219nm, FWHM: 5.7816nm
B228	SWIR Band B228		1519.2306nm, FWHM: 5.7837nm
B229	SWIR Band B229		1524.2394nm, FWHM: 5.7857nm
B230	SWIR Band B230		1529.2479nm, FWHM: 5.7877nm
B231	SWIR Band B231		1534.2566nm, FWHM: 5.7898nm
B232	SWIR Band B232		1539.2654nm, FWHM: 5.7919nm
B233	SWIR Band B233		1544.2742nm, FWHM: 5.7939nm
B234	SWIR Band B234		1549.2828nm, FWHM: 5.796nm
B235	SWIR Band B235		1554.2914nm, FWHM: 5.7981nm
B236	SWIR Band B236		1559.3nm, FWHM: 5.8003nm
B237	SWIR Band B237		1564.3088nm, FWHM: 5.8024nm
B238	SWIR Band B238		1569.3175nm, FWHM: 5.8045nm
B239	SWIR Band B239		1574.326nm, FWHM: 5.8067nm
B240	SWIR Band B240		1579.3348nm, FWHM: 5.8089nm
B241	SWIR Band B241		1584.3436nm, FWHM: 5.8111nm
B242	SWIR Band B242		1589.3522nm, FWHM: 5.8133nm
B243	SWIR Band B243		1594.361nm, FWHM: 5.8155nm
B244	SWIR Band B244		1599.3695nm, FWHM: 5.8177nm
B245	SWIR Band B245		1604.3783nm, FWHM: 5.8199nm
B246	SWIR Band B246		1609.387nm, FWHM: 5.8222nm
B247	SWIR Band B247		1614.3956nm, FWHM: 5.8244nm
B248	SWIR Band B248		1619.4043nm, FWHM: 5.8267nm
B249	SWIR Band B249		1624.413nm, FWHM: 5.829nm
B250	SWIR Band B250		1629.4215nm, FWHM: 5.8313nm
B251	SWIR Band B251		1634.4303nm, FWHM: 5.8336nm
B252	SWIR Band B252		1639.4388nm, FWHM: 5.8359nm
B253	SWIR Band B253		1644.4475nm, FWHM: 5.8383nm
B254	SWIR Band B254		1649.4563nm, FWHM: 5.8406nm
B255	SWIR Band B255		1654.465nm, FWHM: 5.843nm
B256	SWIR Band B256		1659.4736nm, FWHM: 5.8454nm
B257	SWIR Band B257		1664.4824nm, FWHM: 5.8478nm
B258	SWIR Band B258		1669.4911nm, FWHM: 5.8502nm
B259	SWIR Band B259		1674.5nm, FWHM: 5.8526nm
B260	SWIR Band B260		1679.5085nm, FWHM: 5.855nm
B261	SWIR Band B261		1684.5175nm, FWHM: 5.8574nm
B262	SWIR Band B262		1689.526nm, FWHM: 5.8599nm
B263	SWIR Band B263		1694.5345nm, FWHM: 5.8623nm
B264	SWIR Band B264		1699.5432nm, FWHM: 5.8648nm
B265	SWIR Band B265		1704.5518nm, FWHM: 5.8673nm
B266	SWIR Band B266		1709.5605nm, FWHM: 5.8698nm
B267	SWIR Band B267		1714.5692nm, FWHM: 5.8723nm
B268	SWIR Band B268		1719.578nm, FWHM: 5.8749nm
B269	SWIR Band B269		1724.5868nm, FWHM: 5.8774nm
B270	SWIR Band B270		1729.5955nm, FWHM: 5.88nm
B271	SWIR Band B271		1734.6042nm, FWHM: 5.8825nm
B272	SWIR Band B272		1739.613nm, FWHM: 5.8851nm
B273	SWIR Band B273		1744.6215nm, FWHM: 5.8877nm
B274	SWIR Band B274		1749.6302nm, FWHM: 5.8903nm
B275	SWIR Band B275		1754.6388nm, FWHM: 5.8929nm
B276	SWIR Band B276		1759.6476nm, FWHM: 5.8955nm
B277	SWIR Band B277		1764.6562nm, FWHM: 5.8982nm
B278	SWIR Band B278		1769.665nm, FWHM: 5.9008nm
B279	SWIR Band B279		1774.6738nm, FWHM: 5.9035nm
B280	SWIR Band B280		1779.6824nm, FWHM: 5.9062nm
B281	SWIR Band B281		1784.691nm, FWHM: 5.9089nm
B282	SWIR Band B282		1789.6996nm, FWHM: 5.9116nm
B283	SWIR Band B283		1794.7083nm, FWHM: 5.9143nm
B284	SWIR Band B284		1799.717nm, FWHM: 5.917nm
B285	SWIR Band B285		1804.7256nm, FWHM: 5.9197nm
B286	SWIR Band B286		1809.7343nm, FWHM: 5.9225nm
B287	SWIR Band B287		1814.7432nm, FWHM: 5.9253nm
B288	SWIR Band B288		1819.752nm, FWHM: 5.928nm
B289	SWIR Band B289		1824.7604nm, FWHM: 5.9308nm
B290	SWIR Band B290		1829.7692nm, FWHM: 5.9336nm
B291	SWIR Band B291		1834.778nm, FWHM: 5.9364nm
B292	SWIR Band B292		1839.7864nm, FWHM: 5.9393nm
B293	SWIR Band B293		1844.7952nm, FWHM: 5.9421nm
B294	SWIR Band B294		1849.8038nm, FWHM: 5.945nm
B295	SWIR Band B295		1854.8124nm, FWHM: 5.9478nm
B296	SWIR Band B296		1859.8214nm, FWHM: 5.9507nm
B297	SWIR Band B297		1864.83nm, FWHM: 5.9536nm
B298	SWIR Band B298		1869.8387nm, FWHM: 5.9565nm
B299	SWIR Band B299		1874.8474nm, FWHM: 5.9594nm
B300	SWIR Band B300		1879.8562nm, FWHM: 5.9623nm
B301	SWIR Band B301		1884.8646nm, FWHM: 5.9653nm
B302	SWIR Band B302		1889.8734nm, FWHM: 5.9682nm
B303	SWIR Band B303		1894.882nm, FWHM: 5.9712nm
B304	SWIR Band B304		1899.8907nm, FWHM: 5.9741nm
B305	SWIR Band B305		1904.8997nm, FWHM: 5.9771nm
B306	SWIR Band B306		1909.9082nm, FWHM: 5.9801nm
B307	SWIR Band B307		1914.9167nm, FWHM: 5.9831nm
B308	SWIR Band B308		1919.9257nm, FWHM: 5.9862nm
B309	SWIR Band B309		1924.9344nm, FWHM: 5.9892nm
B310	SWIR Band B310		1929.9427nm, FWHM: 5.9923nm
B311	SWIR Band B311		1934.9517nm, FWHM: 5.9953nm
B312	SWIR Band B312		1939.9604nm, FWHM: 5.9984nm
B313	SWIR Band B313		1944.9688nm, FWHM: 6.0015nm
B314	SWIR Band B314		1949.9775nm, FWHM: 6.0046nm
B315	SWIR Band B315		1954.9865nm, FWHM: 6.0077nm
B316	SWIR Band B316		1959.995nm, FWHM: 6.0108nm
B317	SWIR Band B317		1965.0035nm, FWHM: 6.0139nm
B318	SWIR Band B318		1970.0125nm, FWHM: 6.0171nm
B319	SWIR Band B319		1975.0208nm, FWHM: 6.0202nm
B320	SWIR Band B320		1980.0295nm, FWHM: 6.0234nm
B321	SWIR Band B321		1985.0385nm, FWHM: 6.0266nm
B322	SWIR Band B322		1990.047nm, FWHM: 6.0298nm
B323	SWIR Band B323		1995.0558nm, FWHM: 6.033nm
B324	SWIR Band B324		2000.0645nm, FWHM: 6.0362nm
B325	SWIR Band B325		2005.0732nm, FWHM: 6.0394nm
B326	SWIR Band B326		2010.082nm, FWHM: 6.0427nm
B327	SWIR Band B327		2015.0906nm, FWHM: 6.0459nm
B328	SWIR Band B328		2020.0992nm, FWHM: 6.0492nm
B329	SWIR Band B329		2025.1078nm, FWHM: 6.0525nm
B330	SWIR Band B330		2030.1165nm, FWHM: 6.0558nm
B331	SWIR Band B331		2035.1252nm, FWHM: 6.0591nm
B332	SWIR Band B332		2040.134nm, FWHM: 6.0624nm
B333	SWIR Band B333		2045.1428nm, FWHM: 6.0657nm
B334	SWIR Band B334		2050.1516nm, FWHM: 6.0691nm
B335	SWIR Band B335		2055.16nm, FWHM: 6.0724nm
B336	SWIR Band B336		2060.1687nm, FWHM: 6.0758nm
B337	SWIR Band B337		2065.1772nm, FWHM: 6.0792nm
B338	SWIR Band B338		2070.186nm, FWHM: 6.0826nm
B339	SWIR Band B339		2075.1948nm, FWHM: 6.086nm
B340	SWIR Band B340		2080.2034nm, FWHM: 6.0894nm
B341	SWIR Band B341		2085.2122nm, FWHM: 6.0928nm
B342	SWIR Band B342		2090.221nm, FWHM: 6.0962nm
B343	SWIR Band B343		2095.2295nm, FWHM: 6.0997nm
B344	SWIR Band B344		2100.2383nm, FWHM: 6.1032nm
B345	SWIR Band B345		2105.2466nm, FWHM: 6.1066nm
B346	SWIR Band B346		2110.2556nm, FWHM: 6.1101nm
B347	SWIR Band B347		2115.2642nm, FWHM: 6.1136nm
B348	SWIR Band B348		2120.273nm, FWHM: 6.1171nm
B349	SWIR Band B349		2125.2817nm, FWHM: 6.1207nm
B350	SWIR Band B350		2130.2903nm, FWHM: 6.1242nm
B351	SWIR Band B351		2135.299nm, FWHM: 6.1277nm
B352	SWIR Band B352		2140.3079nm, FWHM: 6.1313nm
B353	SWIR Band B353		2145.3164nm, FWHM: 6.1349nm
B354	SWIR Band B354		2150.325nm, FWHM: 6.1385nm
B355	SWIR Band B355		2155.3337nm, FWHM: 6.1421nm
B356	SWIR Band B356		2160.3423nm, FWHM: 6.1457nm
B357	SWIR Band B357		2165.351nm, FWHM: 6.1493nm
B358	SWIR Band B358		2170.3599nm, FWHM: 6.1529nm
B359	SWIR Band B359		2175.3684nm, FWHM: 6.1566nm
B360	SWIR Band B360		2180.3774nm, FWHM: 6.1602nm
B361	SWIR Band B361		2185.386nm, FWHM: 6.1639nm
B362	SWIR Band B362		2190.3948nm, FWHM: 6.1676nm
B363	SWIR Band B363		2195.4033nm, FWHM: 6.1713nm
B364	SWIR Band B364		2200.4119nm, FWHM: 6.175nm
B365	SWIR Band B365		2205.4207nm, FWHM: 6.1787nm
B366	SWIR Band B366		2210.4292nm, FWHM: 6.1824nm
B367	SWIR Band B367		2215.4377nm, FWHM: 6.1862nm
B368	SWIR Band B368		2220.4468nm, FWHM: 6.1899nm
B369	SWIR Band B369		2225.4556nm, FWHM: 6.1937nm
B370	SWIR Band B370		2230.464nm, FWHM: 6.1975nm
B371	SWIR Band B371		2235.473nm, FWHM: 6.2013nm
B372	SWIR Band B372		2240.4817nm, FWHM: 6.2051nm
B373	SWIR Band B373		2245.49nm, FWHM: 6.2089nm
B374	SWIR Band B374		2250.4988nm, FWHM: 6.2127nm
B375	SWIR Band B375		2255.5073nm, FWHM: 6.2166nm
B376	SWIR Band B376		2260.516nm, FWHM: 6.2204nm
B377	SWIR Band B377		2265.5247nm, FWHM: 6.2243nm
B378	SWIR Band B378		2270.5334nm, FWHM: 6.2282nm
B379	SWIR Band B379		2275.5422nm, FWHM: 6.2321nm
B380	SWIR Band B380		2280.551nm, FWHM: 6.236nm
B381	SWIR Band B381		2285.5598nm, FWHM: 6.2399nm
B382	SWIR Band B382		2290.5684nm, FWHM: 6.2438nm
B383	SWIR Band B383		2295.577nm, FWHM: 6.2478nm
B384	SWIR Band B384		2300.5857nm, FWHM: 6.2517nm
B385	SWIR Band B385		2305.5942nm, FWHM: 6.2557nm
B386	SWIR Band B386		2310.603nm, FWHM: 6.2597nm
B387	SWIR Band B387		2315.6116nm, FWHM: 6.2637nm
B388	SWIR Band B388		2320.6204nm, FWHM: 6.2677nm
B389	SWIR Band B389		2325.6292nm, FWHM: 6.2717nm
B390	SWIR Band B390		2330.638nm, FWHM: 6.2757nm
B391	SWIR Band B391		2335.6465nm, FWHM: 6.2797nm
B392	SWIR Band B392		2340.655nm, FWHM: 6.2838nm
B393	SWIR Band B393		2345.6638nm, FWHM: 6.2879nm
B394	SWIR Band B394		2350.6724nm, FWHM: 6.2919nm
B395	SWIR Band B395		2355.6812nm, FWHM: 6.296nm
B396	SWIR Band B396		2360.69nm, FWHM: 6.3001nm
B397	SWIR Band B397		2365.6985nm, FWHM: 6.3042nm
B398	SWIR Band B398		2370.7073nm, FWHM: 6.3084nm
B399	SWIR Band B399		2375.716nm, FWHM: 6.3125nm
B400	SWIR Band B400		2380.7246nm, FWHM: 6.3167nm
B401	SWIR Band B401		2385.7332nm, FWHM: 6.3208nm
B402	SWIR Band B402		2390.7422nm, FWHM: 6.325nm
B403	SWIR Band B403		2395.7507nm, FWHM: 6.3292nm
B404	SWIR Band B404		2400.7593nm, FWHM: 6.3334nm
B405	SWIR Band B405		2405.7678nm, FWHM: 6.3376nm
B406	SWIR Band B406		2410.7769nm, FWHM: 6.3418nm
B407	SWIR Band B407		2415.7854nm, FWHM: 6.3461nm
B408	SWIR Band B408		2420.7942nm, FWHM: 6.3503nm
B409	SWIR Band B409		2425.803nm, FWHM: 6.3546nm
B410	SWIR Band B410		2430.8113nm, FWHM: 6.3589nm
B411	SWIR Band B411		2435.82nm, FWHM: 6.3632nm
B412	SWIR Band B412		2440.8286nm, FWHM: 6.3675nm
B413	SWIR Band B413		2445.8374nm, FWHM: 6.3718nm
B414	SWIR Band B414		2450.846nm, FWHM: 6.3761nm
B415	SWIR Band B415		2455.855nm, FWHM: 6.3805nm
B416	SWIR Band B416		2460.8635nm, FWHM: 6.3848nm
B417	SWIR Band B417		2465.8723nm, FWHM: 6.3892nm
B418	SWIR Band B418		2470.881nm, FWHM: 6.3936nm
B419	SWIR Band B419		2475.89nm, FWHM: 6.398nm
B420	SWIR Band B420		2480.8987nm, FWHM: 6.4024nm
B421	SWIR Band B421		2485.907nm, FWHM: 6.4068nm
B422	SWIR Band B422		2490.9158nm, FWHM: 6.4112nm
B423	SWIR Band B423		2495.9243nm, FWHM: 6.4157nm
B424	SWIR Band B424		2500.933nm, FWHM: 6.4201nm
B425	SWIR Band B425		2505.9417nm, FWHM: 6.4246nm
B426	SWIR Band B426		2510.9507nm, FWHM: 6.4291nm
B427	Aerosol Optical Depth	deg
B428	Aspect used as input to ATCOR	deg
B429	Cast Shadow mask used as input to ATCOR
B430	Dark Dense Vegetation Classification
B431	Haze Cloud Water Map generate by ATCOR
B432	Illumination Factor used as input to ATCOR	deg
B433	Path length between sensor and surface	m
B434	Sky View Factor used as input to ATCOR	%
B435	Slope used as input to ATCOR	deg
B436	Smooth Surface Elevation used as input to ATCOR	m
B437	Visibility Index Map - sea level values of visibility index / total optical thickeness	km
B438	Water Vapor Column - (cm)*1000 ground-to-space used in ATCOR	cm
B439	to-sensor Azimuth Angle	deg
B440	to-sensor Zenith Angle	deg
B441	Weather Quality Indicator - estimated percentage of overhead cloud cover during acquisition
B442	Acquisition Date, YYYYMMDD

Class Table: B429

Value	Color	Color Value	Description
0		#ffffff	no shadow
1		#a9a9a9	shadow

Class Table: B430

Value	Color Value	Description
0	#0a0a0a	geocoded background
1	#135e9c	water
2	#063d08	DDV reference
3	#e1e3e1	non-reference
4	#383734	topographic shadow

Class Table: B431

Value	Color Value	Description
0	#000000	geocoded background
1	#474747	shadow
2	#9db8d1	thin cirrus (water)
3	#5a6978	medium cirrus (water)
4	#3d4a57	thick cirrus (water)
5	#5d7554	land (clear)
6	#454d42	saturated
7	#f7f7f7	snow/ice
8	#d5e3d3	thin cirrus (land)
9	#9da89b	medium cirrus (land)
10	#5a6359	thick cirrus (land)
11	#ced4cd	thin haze (land)
12	#8c918c	medium haze (land)
13	#ceddde	thin haze/glint (water)
14	#849596	med. haze/glint (water)
15	#98a39b	cloud (land)
16	#9899a3	cloud (water)
17	#135e9c	water
18	#e1e8ed	cirrus cloud
19	#9ea7ad	cirrus cloud (thick)
20	#dffa11	bright
21	#383734	topographic shadow
22	#4f4f4e	cloud (building) shadow

Class Table: B441

Value	Color Value	Description
0	#239e2f	mostly clear: <10% cloud cover
1	#f5ee1d	partly cloudy: 10-50% cloud cover
2	#c40a0a	mostly cloudy: >50% cloud cover

Name	Type	Description
AOP_VISIT_NUMBER	Int	Unique visit number to the NEON site.
CITATION	String	Data citation. See NEON Data Policies and Citation Guidelines.
DOI	String	Digital Object Identifier. NEON data that have been released are assigned a DOI.
FLIGHT_YEAR	Int	Year the data were collected.
NEON_DOMAIN	String	NEON eco-climatic domain code, "D01" to "D20". See NEON Field Sites and Domains.
NEON_SITE	String	NEON four-digit site code. See NEON Field Sites.
NEON_SITE_NAME	String	Full name of the NEON site. See NEON Field Sites.
NEON_DATA_PROD_URL	String	NEON data product url. Always set to: NEON \| Data Product.
PROVISIONAL_RELEASED	String	Whether the data are Provisional or Released. See NEON Data Revisions and Release.
RELEASE_YEAR	Int	If data are released, the year of the NEON Release Tag.
SCALE_FACTOR	Double	Reflectance scale factor.
SENSOR_ID	String	ID of NEON Imaging Spectrometer (NIS), or Global Airborne Observatory (GAO): "NIS1", "NIS2", "NIS3", "GAO".

代码

// Read in the NEON AOP Directional Reflectance Image Collection
var refl001 = ee.ImageCollection(
  "projects/neon-prod-earthengine/assets/HSI_REFL/001");

// Display available images in the HSI_REFL/001 Image Collection
print('NEON Directional Reflectance Images', refl001.aggregate_array('system:index'))

// Specify the start and end dates and filter by dates
var startDate = ee.Date('2017-01-01');
var endDate = startDate.advance(1, 'year');
var refl001_2017 = refl001.filterDate(startDate, endDate);

// Filter by NEON site name (see https://www.neonscience.org/field-sites/explore-field-sites)
var reflGRSM_2017 = refl001_2017.filter('NEON_SITE == "GRSM"').mosaic();

// Define the visualization parameters, display the red, green, and blue bands for a true-color image
var rgbVis = {min: 340, max: 2150, bands: ['B053','B035','B019'], gamma: 2}

// Add the reflectance layer to the Map and center on the site
Map.addLayer(reflGRSM_2017, rgbVis, 'GRSM 2017 Directional Reflectance RGB Image');
Map.setCenter(-83.5, 35.65, 14);

代码2

var sdr = ee.ImageCollection(
  'projects/neon-prod-earthengine/assets/HSI_REFL/001');

var startDate = ee.Date('2017-01-01');
var endDate = startDate.advance(1, 'year');
var sdr2017 = sdr.filterDate(startDate, endDate);

var grsm2017 = sdr2017.filter('NEON_SITE == "GRSM"').mosaic();
var grsm_rgb = grsm2017.select(['B053', 'B035', 'B019'])

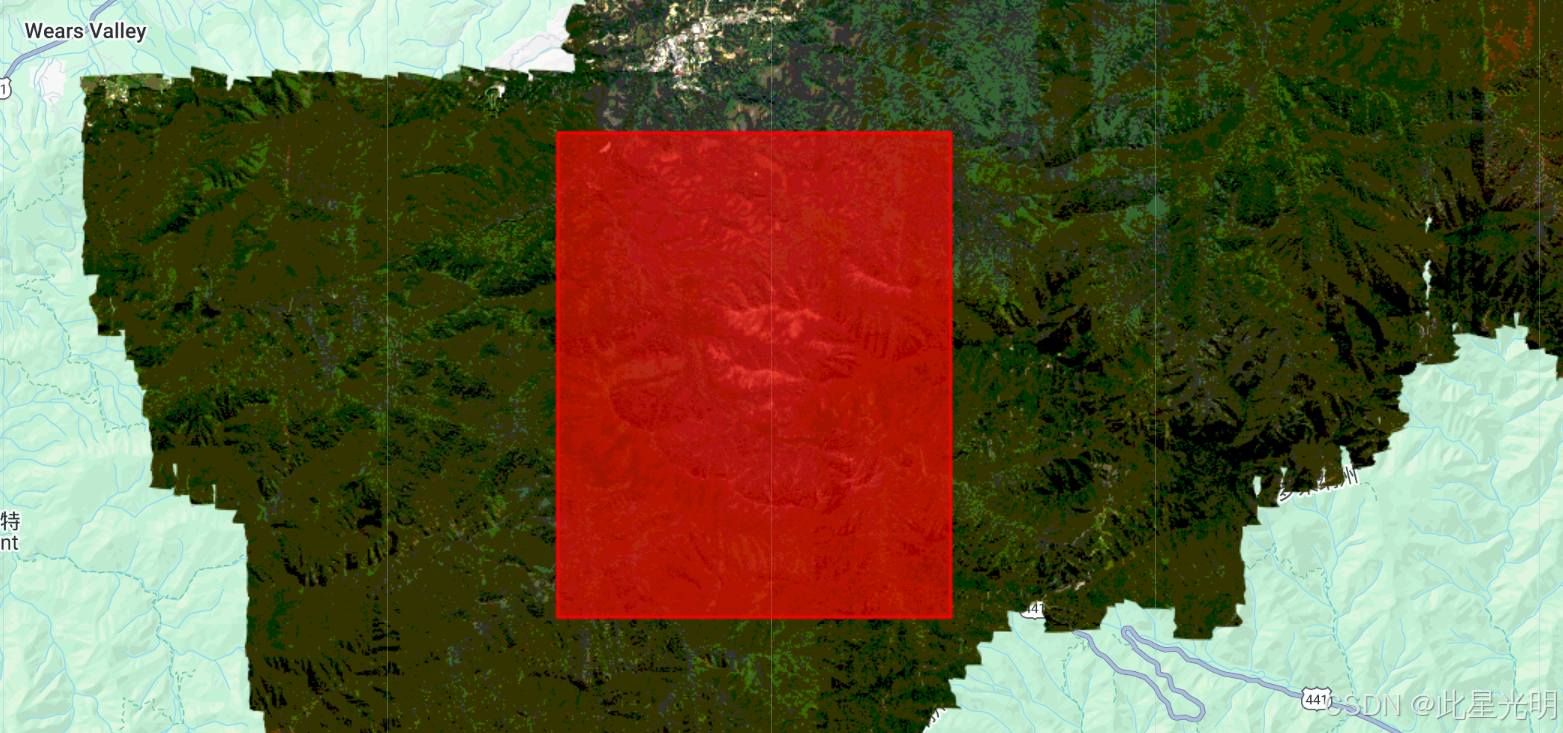

//center on burn scar from 2016 Chimney Tops fire
var lon = -83.5;
var lat = 35.65;

Map.setCenter(lon, lat, 12);

// Degrees in EPSG:3857.
var delta = 0.045;
// Width and Height of the thumbnail image.
var pixels = 256;

var areaOfInterest = ee.Geometry.Rectangle(
  [lon - delta, lat - delta, lon + delta, lat + delta], null, false);

var visParams = {
  min: 128, max: 133,
  dimensions: [pixels, pixels],
  region: areaOfInterest, crs: 'EPSG:3857', format: 'png'};

var image = grsm_rgb.visualize();
var imageClip = grsm_rgb.visualize().clip(areaOfInterest);

Map.addLayer(image, {min: 128, max: 133}, 'GRSM 2017 Directional Reflectance RGB Image');

Map.addLayer(areaOfInterest, {color: 'red', opacity: 0.5}, 'Area of Interest');

print(ui.Thumbnail({image: imageClip, params: visParams}));

引用

由 NEON 收集并作为数据产品提供的所有数据（与稀有、受威胁或濒危 (RTE) 物种相关的数据除外）均根据知识共享 CC0 1.0 "无保留权利 "协议发布到公共领域。 NEON 数据没有版权；任何人都可以出于商业或非商业目的复制、修改或分发这些数据，而无需征得许可。 NEON 数据可能仍受其他法律或权利（如隐私权）的限制，NEON 不对数据作任何保证，并不承担任何责任。在使用或引用 NEON 数据时，不得暗示 NEON 已认可这些数据。在大多数国家，数据和事实不享有版权。通过将 NEON 数据置于公共领域，我们鼓励广泛使用，特别是在科学分析和数据汇总方面。但是，请注意以下学术规范： NEON 数据的使用应注意数据的局限性，并以数据包的相关文档为指导。有关如何正确使用和引用 NEON 数据的详细信息，以及使用 NEON 数据发表研究成果的最佳实践，请参阅《NEON 数据指南和政策》。

网址推荐

知识星球

知识星球 | 深度连接铁杆粉丝，运营高品质社群，知识变现的工具 (zsxq.com)https://wx.zsxq.com/group/48888525452428

机器学习

https://www.cbedai.net/xg

干旱监测平台

慧天干旱监测与预警-首页https://www.htdrought.com/

【声明】本内容来自华为云开发者社区博主，不代表华为云及华为云开发者社区的观点和立场。转载时必须标注文章的来源（华为云社区）、文章链接、文章作者等基本信息，否则作者和本社区有权追究责任。如果您发现本社区中有涉嫌抄袭的内容，欢迎发送邮件进行举报，并提供相关证据，一经查实，本社区将立刻删除涉嫌侵权内容，举报邮箱： cloudbbs@huaweicloud.com

点赞
收藏
关注作者

0/1000

抱歉，系统识别当前为高风险访问，暂不支持该操作

全部回复

上滑加载中

设置昵称

在此一键设置昵称，即可参与社区互动！

*长度不超过10个汉字或20个英文字符，设置后3个月内不可修改。

确认取消

加入云驻计划，成为创作者

华为云周边好礼
免费体验产品
特殊身份标识
线下官方门票
内部专家零距离
与10000+优质创作者共同成长

立即加入

NEON AOP 表面定向反射率数据是一种高光谱 VSWIR（可见光到短波红外）数据产品，包含 426 个波段

简介

摘要

Catalog owner

Dataset Availability

Dataset Provider

Contact

Collection Snippet

Resolution

Bands Table

Class Table: B429

Class Table: B430

Class Table: B431

Class Table: B441

代码

代码2

引用

网址推荐

知识星球

机器学习

干旱监测平台

全部回复

设置昵称

关于作者

目录

加入云驻计划，成为创作者

NEON AOP 表面定向反射率数据是一种高光谱 VSWIR（可见光到短波红外）数据产品，包含 426 个波段

简介

摘要

Catalog owner

Dataset Availability

Dataset Provider

Contact

Collection Snippet

Resolution

Bands Table

Class Table: B429

Class Table: B430

Class Table: B431

Class Table: B441

代码

代码2

引用

网址推荐

知识星球

机器学习

干旱监测平台

全部回复

设置昵称

关于作者

目录

热门推荐查看更多

相关文章

加入云驻计划，成为创作者

相关产品
