实验背景

本文以PaddleOCR的模型推理为例，介绍如何将PaddleOCR模型的推理迁移至ModelArts的昇腾环境上，并部署成AI应用和在线服务。

任务一：环境准备

步骤1 进入ModelArts管理控制台

可以通过如下链接进入ModelArts管理控制台：https://console.huaweicloud.com/modelarts/?region=cn-southwest-2&locale=zh-cn#/dashboard。

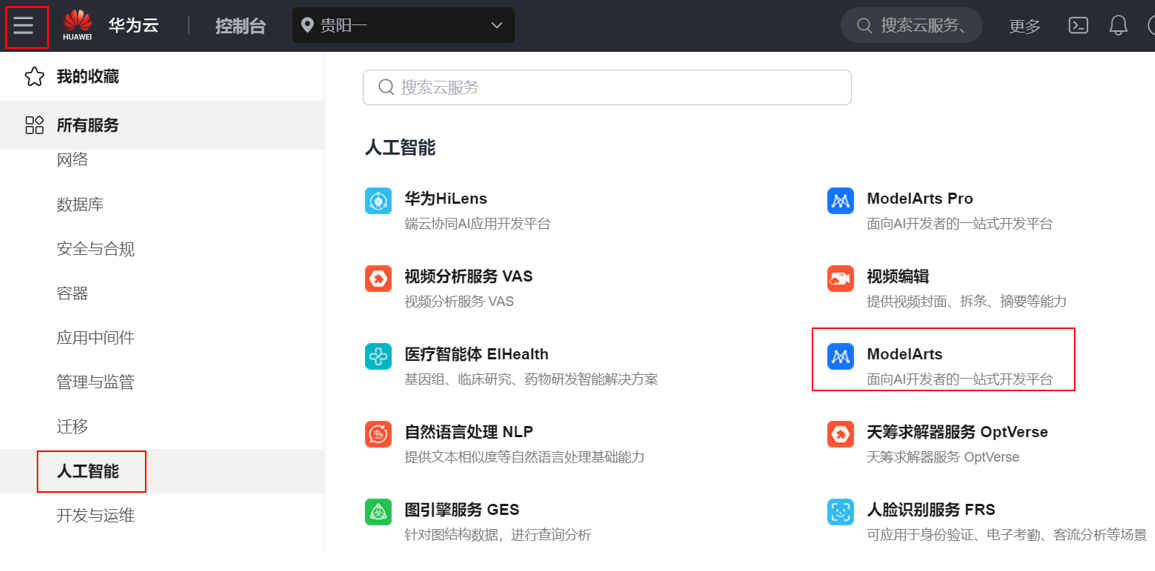

此外，您也可以在控制台点击左上角“服务列表”，在“人工智能”服务下点击“ModelArts”进入ModelArts管理控制台。

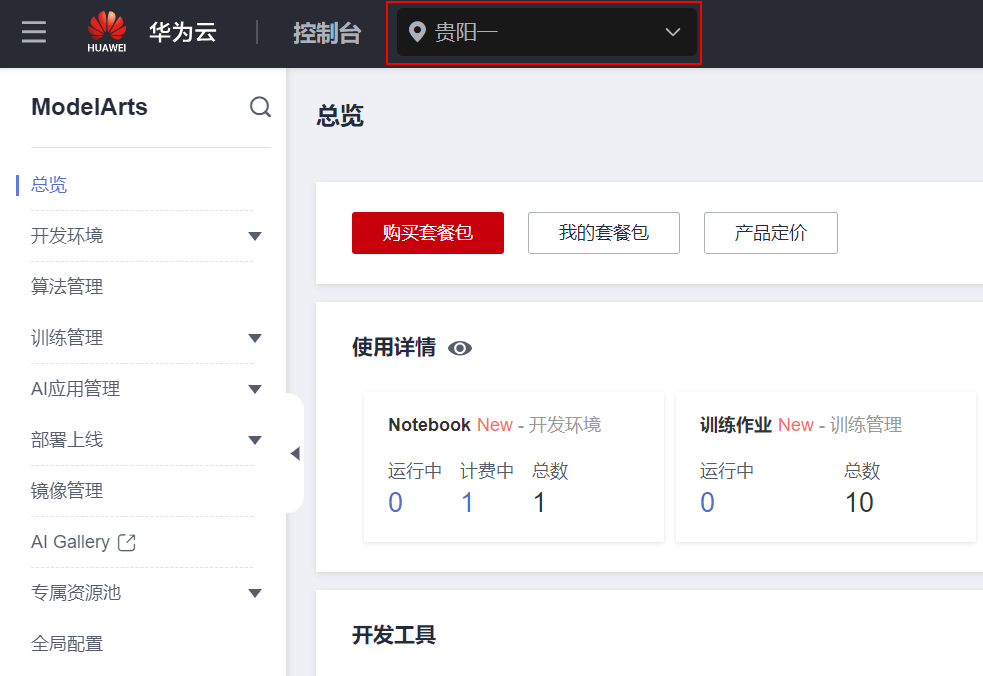

进入到ModelArts管理控制台后，请确认区域是否为“贵阳一”，如果不是，请选择“西南-贵阳一”。

步骤2 创建Notebook

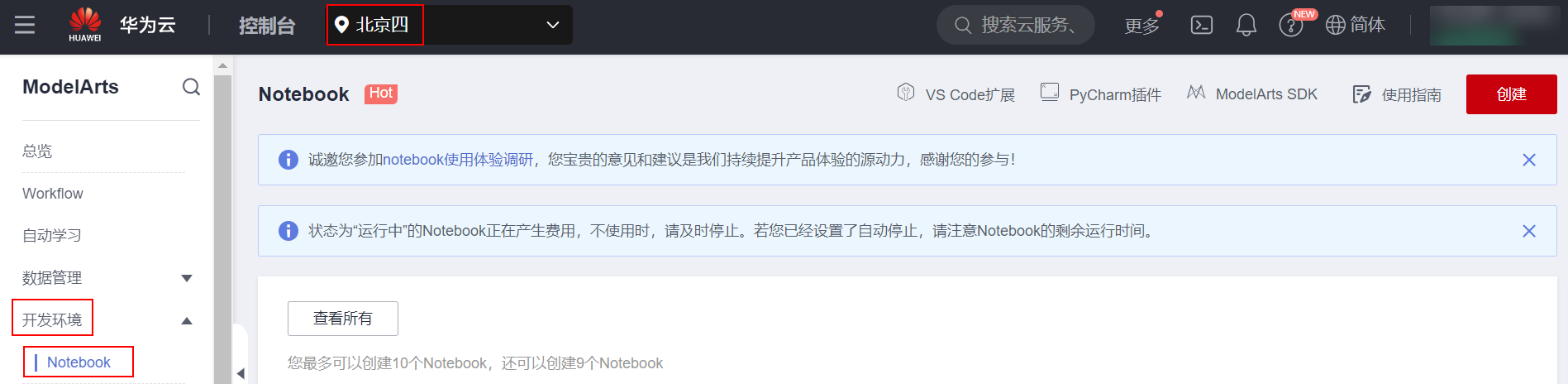

在ModelArts管理控制台左侧导航栏中选择“开发环境 > Notebook”，进入“Notebook”管理页面。

单击“创建”按钮，进入“创建Notebook”页面。

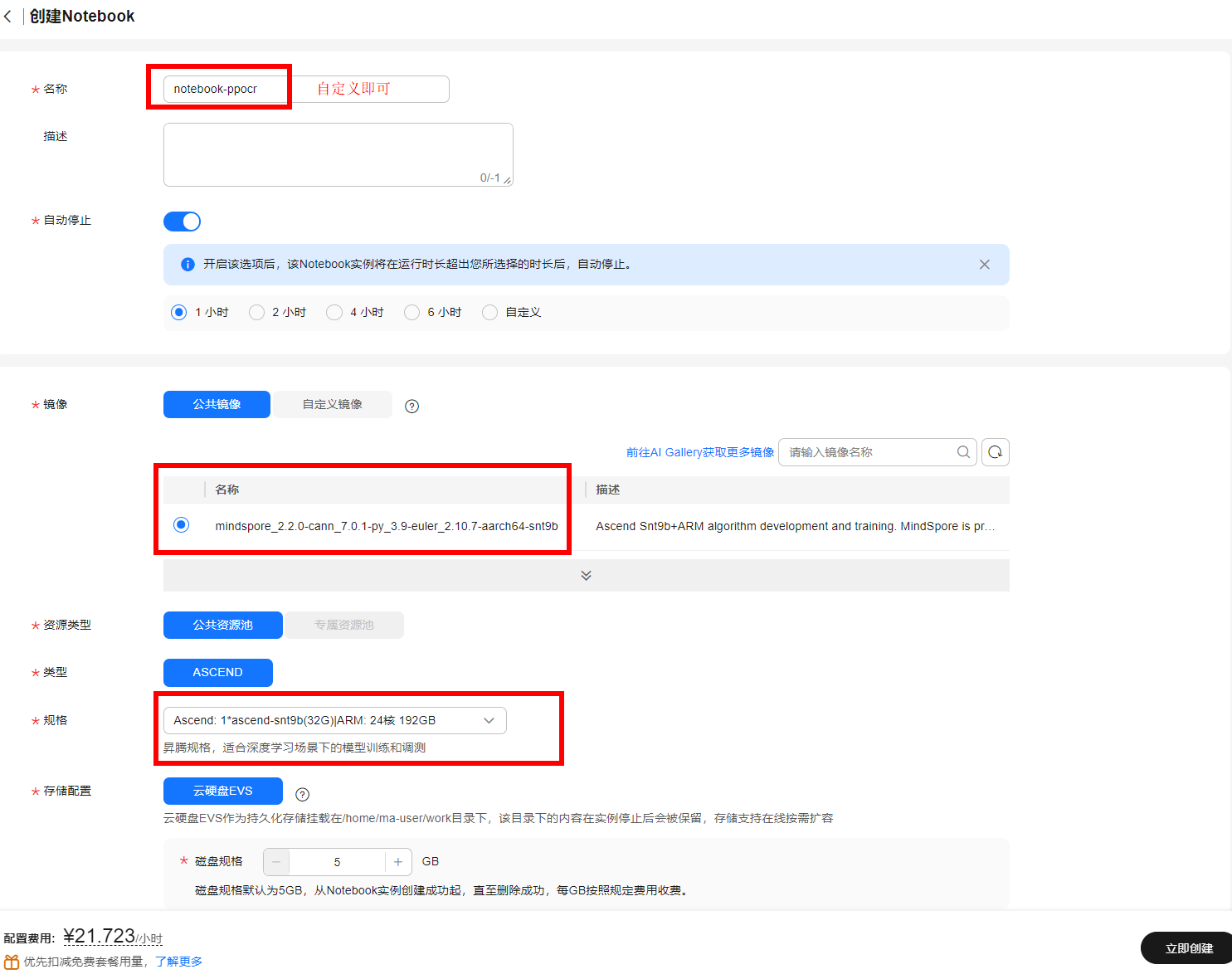

在创建notebook页面，按照如下参数进行配置（均为默认参数无需修改）：

名称：notebook-ppocr

自动停止：开启，1小时

镜像：“公共镜像”，选择“mindspore_2.2.0-cann_7.0.1-py_3.9-euler_2.10.7-aarch64-snt9b”

资源类型：公共资源池

类型：ASCEND

规格：Ascend: 1ascend-snt9b(32G)|ARM: 24核 192GB 或者 Ascend: 1ascend-snt9b1|ARM: 24核 192GB

存储配置：云硬盘EVS，5G

SSH远程开发：不开启

点击“立即创建”，确认产品规格后点击“提交”，并点击“立即返回”。

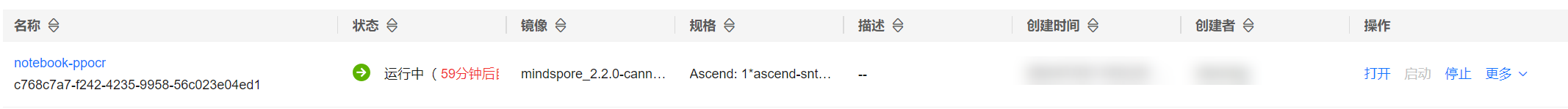

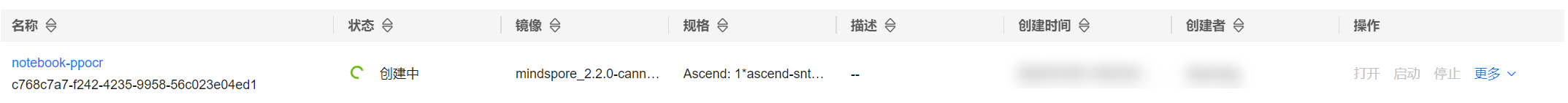

此时，notebook正在创建中，创建时长大约1分钟左右。待notebook状态变为“运行中”，点击该notebook实例右侧“打开”，即可进入到jupyterlab环境中。

步骤3 学习Notebook操作

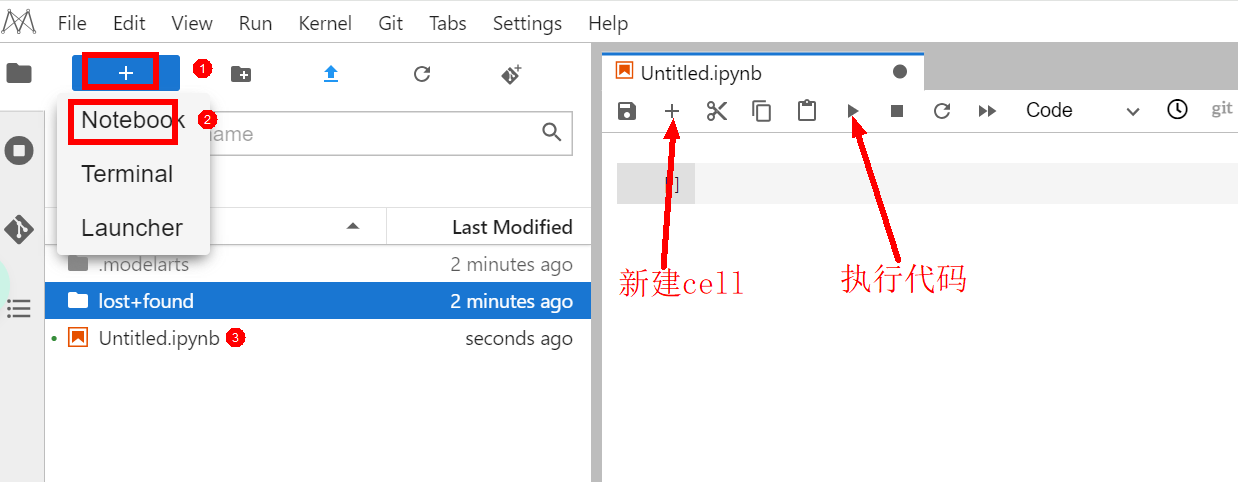

进入Notebook页面后，在打开的notebook页面左上角点击“+”号，点击Notebook进行创建，双击下方新的的Untitled.ipynb文件，弹出代码开发界面，如下图：

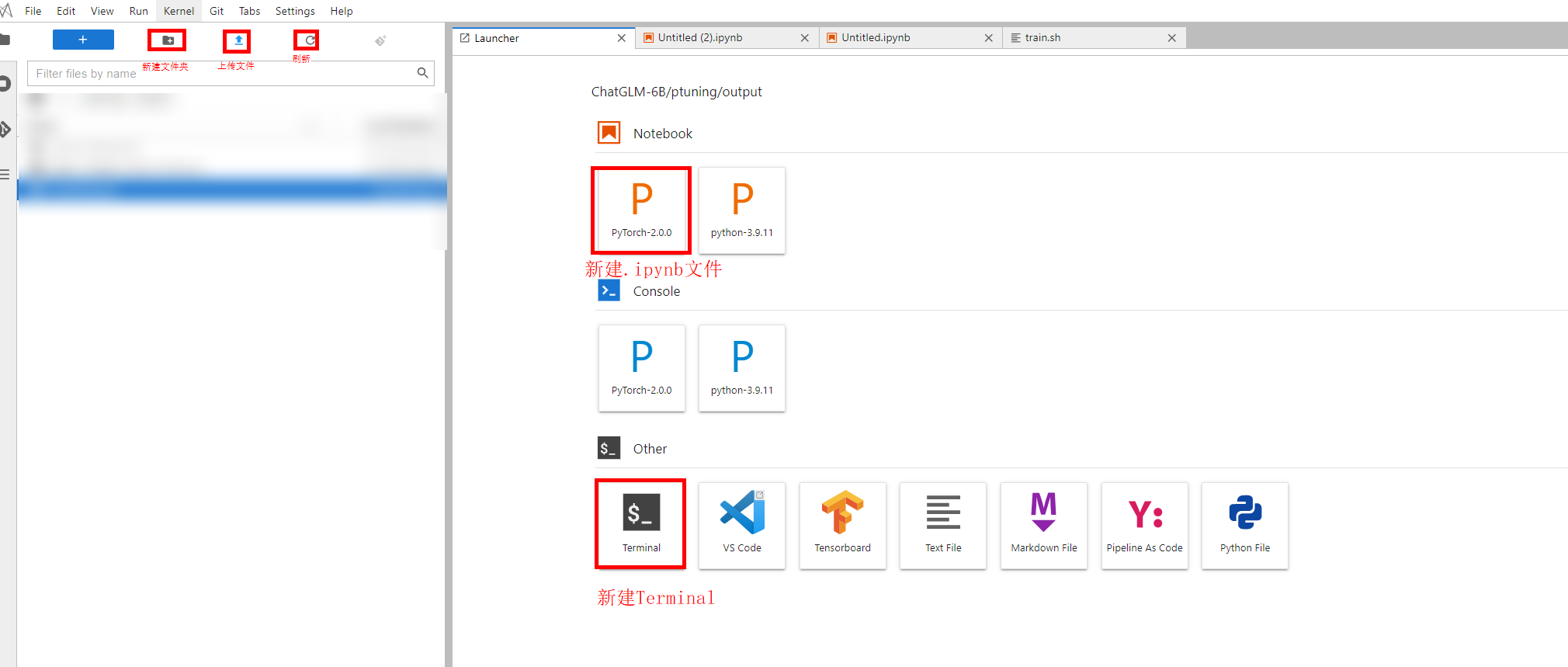

在notebook内的一些基本操作，例如新建文件夹、从本地上传文件、刷新目录、新建terminal等：

任务二：PaddleOCR推理

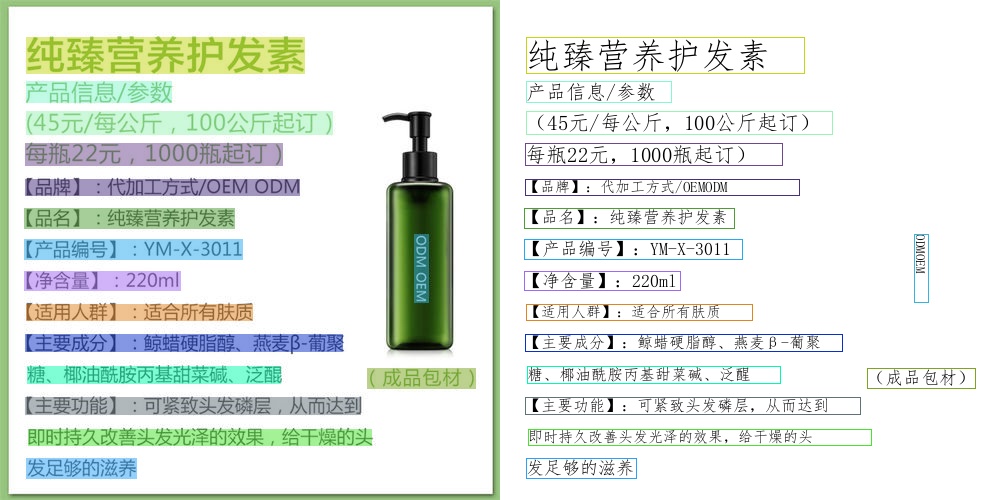

OCR的推理流程：①对输入图片中的文本框进行检测；②对检测到的文本框进行方向分类并纠正；③对纠正过方向的文本框进行文字识别。因此一个完整的OCR pipeline包含了检测模型、分类器和识别模型。本实验中的检测模型使用 ch_PP-OCRv4_server_det，识别模型使用 ch_PP-OCRv4_server_rec，不使用方向分类模型。

步骤1 下载代码并安装依赖

• 在 /home/ma-user/work目录下，新建一个 jupyter代码环境，然后可以选择方式一或方式二准备代码
• 方式一：在notebook中执行如下代码，将拉取PaddleOCR的官方代码（大约耗时2分钟）

输入：

!git clone -b main https://gitee.com/paddlepaddle/PaddleOCR.git
%cd /home/ma-user/work/PaddleOCR
# 为确保一致的代码环境，可以切换到指定的commit-id
!git reset --hard 433677182

输出：

Cloning into 'PaddleOCR'...
remote: Enumerating objects: 50663, done.
remote: Counting objects: 100% (1887/1887), done.
remote: Compressing objects: 100% (1173/1173), done.
remote: Total 50663 (delta 826), reused 1668 (delta 673), pack-reused 48776
Receiving objects: 100% (50663/50663), 382.59 MiB | 679.00 KiB/s, done.
Resolving deltas: 100% (35192/35192), done.
Updating files: 100% (2448/2448), done.
/home/ma-user/work/PaddleOCR
HEAD is now at 43367718 fix opencv import error for numpy 2.0 (#13105)

• 方式二（推荐）：为避免下文对PaddleOCR的代码修改，也可以选择直接从OBS下载，在notebook中执行如下代码

输入：

import moxing as mox
mox.file.copy_parallel("obs://dtse-model-guiyangyi/course/paddle_ocr/PaddleOCR", "PaddleOCR")

输出：

INFO:root:Using MoXing-v2.2.3.2c7f2141-2c7f2141
INFO:root:Using OBS-Python-SDK-3.20.9.1
INFO:root:Using OBS-C-SDK-2.23.1
INFO:root:An exception occurred in function copy_parallel_c: /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages/moxing/framework/file/csrc/obs/lib/aarch64/libobs_cxx.so: cannot open shared object file: No such file or directory
INFO:root:load shared library failed, retry with copy parallel python
INFO:root:Multiprocessing connection patch for bpo-17560 not applied, not an applicable Python version: 3.9.10 | packaged by conda-forge | (main, Feb  1 2022, 21:53:27)
[GCC 9.4.0]
INFO:root:Listing OBS: 1000
INFO:root:Listing OBS: 2000
INFO:root:List OBS time cost: 4.35 seconds.
INFO:root:1000/1925
INFO:root:Copy parallel total time cost: 8.13 seconds.

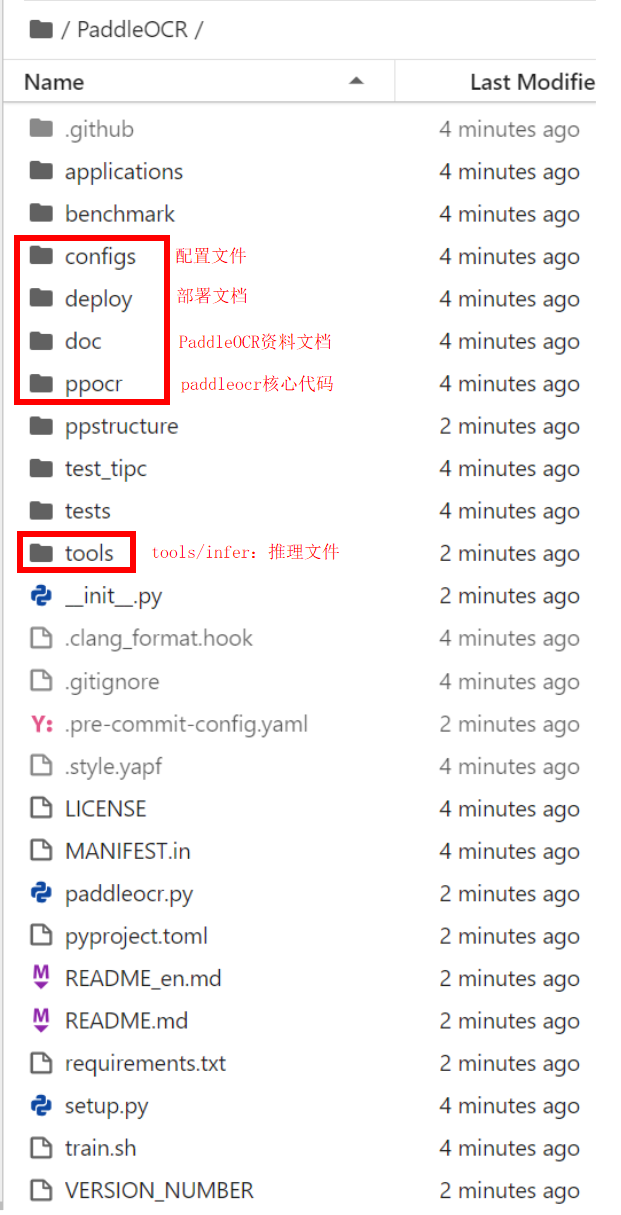

• PaddleOCR代码目录说明：
  • 主要使用： tools/infer目录下的OCR推理文件，以及 doc目录下测试图片 imgs和 字体文件 fonts

• 在notebook中执行如下命令，将安装第三方依赖

输入：

%cd /home/ma-user/work/PaddleOCR
!pip install -r requirements.txt
!pip install paddlepaddle==2.6.1 paddle2onnx==1.2.4

输出：

/home/ma-user/work/PaddleOCR
Looking in indexes: http://pip.modelarts.private.com:8888/repository/pypi/simple
Requirement already satisfied: shapely in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from -r requirements.txt (line 1)) (2.0.2)
Requirement already satisfied: scikit-image in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from -r requirements.txt (line 2)) (0.21.0)
Requirement already satisfied: imgaug in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from -r requirements.txt (line 3)) (0.4.0)
Collecting pyclipper
  Downloading http://pip.modelarts.private.com:8888/repository/pypi/packages/pyclipper/1.3.0.post5/pyclipper-1.3.0.post5-cp39-cp39-manylinux_2_17_aarch64.manylinux2014_aarch64.whl (925 kB)
     |████████████████████████████████| 925 kB 44.3 MB/s eta 0:00:01
Collecting lmdb
  Downloading http://pip.modelarts.private.com:8888/repository/pypi/packages/lmdb/1.5.1/lmdb-1.5.1.tar.gz (881 kB)
     |████████████████████████████████| 881 kB 61.6 MB/s eta 0:00:01
Requirement already satisfied: tqdm in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from -r requirements.txt (line 6)) (4.66.1)
Requirement already satisfied: numpy<2.0 in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from -r requirements.txt (line 7)) (1.22.0)
Collecting rapidfuzz
  Downloading http://pip.modelarts.private.com:8888/repository/pypi/packages/rapidfuzz/3.9.4/rapidfuzz-3.9.4-cp39-cp39-manylinux_2_17_aarch64.manylinux2014_aarch64.whl (1.6 MB)
     |████████████████████████████████| 1.6 MB 37.8 MB/s eta 0:00:01
Requirement already satisfied: opencv-python in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from -r requirements.txt (line 9)) (4.8.0.76)
Collecting opencv-contrib-python
  Downloading http://pip.modelarts.private.com:8888/repository/pypi/packages/opencv-contrib-python/4.10.0.84/opencv_contrib_python-4.10.0.84-cp37-abi3-manylinux_2_17_aarch64.manylinux2014_aarch64.whl (47.4 MB)
     |████████████████████████████████| 47.4 MB 56.7 MB/s eta 0:00:01
Requirement already satisfied: cython in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from -r requirements.txt (line 11)) (3.0.2)
Requirement already satisfied: Pillow in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from -r requirements.txt (line 12)) (10.0.1)
Requirement already satisfied: pyyaml in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from -r requirements.txt (line 13)) (6.0.1)
Requirement already satisfied: requests in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from -r requirements.txt (line 14)) (2.27.1)
Requirement already satisfied: imageio in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from imgaug->-r requirements.txt (line 3)) (2.33.1)
Requirement already satisfied: matplotlib in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from imgaug->-r requirements.txt (line 3)) (3.5.1)
Requirement already satisfied: six in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from imgaug->-r requirements.txt (line 3)) (1.16.0)
Requirement already satisfied: scipy in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from imgaug->-r requirements.txt (line 3)) (1.10.1)
Requirement already satisfied: lazy_loader>=0.2 in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from scikit-image->-r requirements.txt (line 2)) (0.3)
Requirement already satisfied: networkx>=2.8 in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from scikit-image->-r requirements.txt (line 2)) (3.2.1)
Requirement already satisfied: PyWavelets>=1.1.1 in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from scikit-image->-r requirements.txt (line 2)) (1.4.1)
Requirement already satisfied: tifffile>=2022.8.12 in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from scikit-image->-r requirements.txt (line 2)) (2023.12.9)
Requirement already satisfied: packaging>=21 in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from scikit-image->-r requirements.txt (line 2)) (23.2)
Requirement already satisfied: charset-normalizer~=2.0.0 in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from requests->-r requirements.txt (line 14)) (2.0.12)
Requirement already satisfied: idna<4,>=2.5 in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from requests->-r requirements.txt (line 14)) (2.10)
Requirement already satisfied: certifi>=2017.4.17 in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from requests->-r requirements.txt (line 14)) (2023.11.17)
Requirement already satisfied: urllib3<1.27,>=1.21.1 in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from requests->-r requirements.txt (line 14)) (1.26.7)
Requirement already satisfied: python-dateutil>=2.7 in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from matplotlib->imgaug->-r requirements.txt (line 3)) (2.8.2)
Requirement already satisfied: kiwisolver>=1.0.1 in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from matplotlib->imgaug->-r requirements.txt (line 3)) (1.4.5)
Requirement already satisfied: cycler>=0.10 in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from matplotlib->imgaug->-r requirements.txt (line 3)) (0.12.1)
Requirement already satisfied: fonttools>=4.22.0 in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from matplotlib->imgaug->-r requirements.txt (line 3)) (4.47.0)
Requirement already satisfied: pyparsing>=2.2.1 in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from matplotlib->imgaug->-r requirements.txt (line 3)) (3.1.1)
Building wheels for collected packages: lmdb
  Building wheel for lmdb (setup.py) ... done
  Created wheel for lmdb: filename=lmdb-1.5.1-cp39-cp39-linux_aarch64.whl size=119128 sha256=a8131b59f335ee2e8f1d72f88bdf002c82746032dfa458bad76fd8b654760ca9
  Stored in directory: /home/ma-user/.cache/pip/wheels/44/25/6a/3b016d67df9564aeec95808128a3230cf8fd8c88f0e94d77f3
Successfully built lmdb
Installing collected packages: rapidfuzz, pyclipper, opencv-contrib-python, lmdb
Successfully installed lmdb-1.5.1 opencv-contrib-python-4.10.0.84 pyclipper-1.3.0.post5 rapidfuzz-3.9.4
WARNING: You are using pip version 21.0.1; however, version 24.1.2 is available.
You should consider upgrading via the '/home/ma-user/anaconda3/envs/MindSpore/bin/python3.9 -m pip install --upgrade pip' command.
Looking in indexes: http://pip.modelarts.private.com:8888/repository/pypi/simple
Collecting paddlepaddle==2.6.1
  Downloading http://pip.modelarts.private.com:8888/repository/pypi/packages/paddlepaddle/2.6.1/paddlepaddle-2.6.1-cp39-cp39-manylinux2014_aarch64.whl (74.2 MB)
     |████████████████████████████████| 74.2 MB 43.3 MB/s eta 0:00:01    |█▊                              | 4.0 MB 43.3 MB/s eta 0:00:02     |████████                        | 18.7 MB 43.3 MB/s eta 0:00:02
Collecting paddle2onnx==1.2.4
  Downloading http://pip.modelarts.private.com:8888/repository/pypi/packages/paddle2onnx/1.2.4/paddle2onnx-1.2.4-cp39-cp39-manylinux_2_17_aarch64.manylinux2014_aarch64.whl (3.6 MB)
     |████████████████████████████████| 3.6 MB 34.7 MB/s eta 0:00:01
Requirement already satisfied: onnxruntime>=1.10.0 in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from paddle2onnx==1.2.4) (1.15.1)
Collecting opt-einsum==3.3.0
  Downloading http://pip.modelarts.private.com:8888/repository/pypi/packages/opt-einsum/3.3.0/opt_einsum-3.3.0-py3-none-any.whl (65 kB)
     |████████████████████████████████| 65 kB 44.2 MB/s eta 0:00:01
Requirement already satisfied: decorator in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from paddlepaddle==2.6.1) (4.4.1)
Requirement already satisfied: numpy>=1.13 in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from paddlepaddle==2.6.1) (1.22.0)
Collecting astor
  Downloading http://pip.modelarts.private.com:8888/repository/pypi/packages/astor/0.8.1/astor-0.8.1-py2.py3-none-any.whl (27 kB)
Requirement already satisfied: Pillow in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from paddlepaddle==2.6.1) (10.0.1)
Requirement already satisfied: httpx in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from paddlepaddle==2.6.1) (0.26.0)
Requirement already satisfied: protobuf>=3.20.2 in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from paddlepaddle==2.6.1) (3.20.2)
Requirement already satisfied: flatbuffers in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from onnxruntime>=1.10.0->paddle2onnx==1.2.4) (23.5.26)
Requirement already satisfied: coloredlogs in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from onnxruntime>=1.10.0->paddle2onnx==1.2.4) (15.0.1)
Requirement already satisfied: packaging in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from onnxruntime>=1.10.0->paddle2onnx==1.2.4) (23.2)
Requirement already satisfied: sympy in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from onnxruntime>=1.10.0->paddle2onnx==1.2.4) (1.4)
Requirement already satisfied: humanfriendly>=9.1 in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from coloredlogs->onnxruntime>=1.10.0->paddle2onnx==1.2.4) (10.0)
Requirement already satisfied: sniffio in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from httpx->paddlepaddle==2.6.1) (1.3.0)
Requirement already satisfied: idna in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from httpx->paddlepaddle==2.6.1) (2.10)
Requirement already satisfied: httpcore==1.* in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from httpx->paddlepaddle==2.6.1) (1.0.2)
Requirement already satisfied: certifi in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from httpx->paddlepaddle==2.6.1) (2023.11.17)
Requirement already satisfied: anyio in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from httpx->paddlepaddle==2.6.1) (4.2.0)
Requirement already satisfied: h11<0.15,>=0.13 in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from httpcore==1.*->httpx->paddlepaddle==2.6.1) (0.14.0)
Requirement already satisfied: typing-extensions>=4.1 in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from anyio->httpx->paddlepaddle==2.6.1) (4.9.0)
Requirement already satisfied: exceptiongroup>=1.0.2 in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from anyio->httpx->paddlepaddle==2.6.1) (1.2.0)
Requirement already satisfied: mpmath>=0.19 in /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages (from sympy->onnxruntime>=1.10.0->paddle2onnx==1.2.4) (1.3.0)
Installing collected packages: opt-einsum, astor, paddlepaddle, paddle2onnx
Successfully installed astor-0.8.1 opt-einsum-3.3.0 paddle2onnx-1.2.4 paddlepaddle-2.6.1
WARNING: You are using pip version 21.0.1; however, version 24.1.2 is available.
You should consider upgrading via the '/home/ma-user/anaconda3/envs/MindSpore/bin/python3.9 -m pip install --upgrade pip' command.

步骤2 准备推理模型

本步骤将下载原始的 *.pdmodel模型文件，先将其转换为 onnx模型，然后再转换为昇腾推理模型 mindir。

下载paddle模型

• 在notebook中新建一个cell，然后执行如下命令，将下载 *.pdmodel模型至 ~/work/inference目录下

输入：

!mkdir /home/ma-user/work/inference
%cd /home/ma-user/work/inference
!echo "Stage1 -- Downloading Inference Models ..."
!wget -nc https://paddleocr.bj.bcebos.com/PP-OCRv4/chinese/ch_PP-OCRv4_det_server_infer.tar
!tar -xf ch_PP-OCRv4_det_server_infer.tar

!wget -nc https://paddleocr.bj.bcebos.com/PP-OCRv4/chinese/ch_PP-OCRv4_rec_server_infer.tar
!tar -xf ch_PP-OCRv4_rec_server_infer.tar

输出：

/home/ma-user/work/inference
Stage1 -- Downloading Inference Models ...
--2024-07-29 17:40:26--  https://paddleocr.bj.bcebos.com/PP-OCRv4/chinese/ch_PP-OCRv4_det_server_infer.tar
Resolving proxy-notebook.modelarts.com (proxy-notebook.modelarts.com)... 192.168.0.33
Connecting to proxy-notebook.modelarts.com (proxy-notebook.modelarts.com)|192.168.0.33|:8083... connected.
Proxy request sent, awaiting response... 200 OK
Length: 113479680 (108M) [application/x-tar]
Saving to: ‘ch_PP-OCRv4_det_server_infer.tar’

ch_PP-OCRv4_det_ser 100%[===================>] 108.22M  9.41MB/s    in 11s

2024-07-29 17:40:38 (9.66 MB/s) - ‘ch_PP-OCRv4_det_server_infer.tar’ saved [113479680/113479680]

--2024-07-29 17:40:39--  https://paddleocr.bj.bcebos.com/PP-OCRv4/chinese/ch_PP-OCRv4_rec_server_infer.tar
Resolving proxy-notebook.modelarts.com (proxy-notebook.modelarts.com)... 192.168.0.33
Connecting to proxy-notebook.modelarts.com (proxy-notebook.modelarts.com)|192.168.0.33|:8083... connected.
Proxy request sent, awaiting response... 200 OK
Length: 92385280 (88M) [application/x-tar]
Saving to: ‘ch_PP-OCRv4_rec_server_infer.tar’

ch_PP-OCRv4_rec_ser 100%[===================>]  88.11M  9.00MB/s    in 11s

2024-07-29 17:40:50 (8.18 MB/s) - ‘ch_PP-OCRv4_rec_server_infer.tar’ saved [92385280/92385280]

paddle2onnx

参考：PaddleOCR/deploy/paddle2onnx/readme.md

• 在notebook中执行如下命令，将检测和识别的模型均转换为onnx模型，并保存在 ~/work/inference目录下

输入：

%cd /home/ma-user/work
!echo "Stage2 -- Convert Models to ONNX by \`paddle2onnx\`"
!paddle2onnx --model_dir inference/ch_PP-OCRv4_det_server_infer \
    --model_filename inference.pdmodel \
    --params_filename inference.pdiparams \
    --save_file inference/det/model.onnx \
    --opset_version 11 \
    --enable_onnx_checker True

!paddle2onnx --model_dir inference/ch_PP-OCRv4_rec_server_infer \
    --model_filename inference.pdmodel \
    --params_filename inference.pdiparams \
    --save_file inference/rec/model.onnx \
    --opset_version 11 \
    --enable_onnx_checker True

输出：

/home/ma-user/work
Stage2 -- Convert Models to ONNX by `paddle2onnx`
[Paddle2ONNX] Start to parse PaddlePaddle model...
[Paddle2ONNX] Model file path: inference/ch_PP-OCRv4_det_server_infer/inference.pdmodel
[Paddle2ONNX] Parameters file path: inference/ch_PP-OCRv4_det_server_infer/inference.pdiparams
[Paddle2ONNX] Start to parsing Paddle model...
[Paddle2ONNX] Use opset_version = 11 for ONNX export.
[Paddle2ONNX] PaddlePaddle model is exported as ONNX format now.
[Paddle2ONNX] Start to parse PaddlePaddle model...
[Paddle2ONNX] Model file path: inference/ch_PP-OCRv4_rec_server_infer/inference.pdmodel
[Paddle2ONNX] Parameters file path: inference/ch_PP-OCRv4_rec_server_infer/inference.pdiparams
[Paddle2ONNX] Start to parsing Paddle model...
[Paddle2ONNX] Use opset_version = 11 for ONNX export.
[Paddle2ONNX] PaddlePaddle model is exported as ONNX format now.

• 注意：这里 paddle2onnx命令转换的模型，默认输入为动态shape

  • 例如，检测模型输入为 x:[-1,3,-1,-1]，识别模型输入为 x:[-1,3,48,-1]，表示输入名称为 x且同时支持动态batch和动态分辨率
  • 如何重新指定模型的动态shape：①可以通过 paddle2onnx.optimize的 --input_shape_dict指定，②也可以在 onnx2mindir阶段，使用配置文件中 input_shape_range参数指定，见示例

• 示例①：paddle2onnx指定模型的动态shape（仅供参考无需运行）

python3 -m paddle2onnx.optimize \
    --input_model inference/det/model.onnx \
    --output_model inference/det/model_demo.onnx \
    --input_shape_dict "{'x': [1,3,640,-1]}"

onnx2mindir

本节主要使用 converter_lite工具将onnx推理模型转换为 mindir格式，它可以针对NPU或GPU做专门的优化从而提升推理性能。

参考官网文档：https://www.mindspore.cn/lite/docs/zh-CN/r2.3.0rc2/use/cloud_infer/converter_tool.html

• 在notebook中执行如下命令，将使用 converter_lite工具将检测和识别模型分别转换为 mindir格式（大约耗时10分钟）

输入：

%cd /home/ma-user/work
!echo "Stage3 -- Convert Models to MINDIR by \`converter_lite\`"
!converter_lite --fmk=ONNX \
    --saveType=MINDIR \
    --optimize=ascend_oriented \
    --modelFile=inference/det/model.onnx \
    --outputFile=inference/det/model

!converter_lite --fmk=ONNX \
    --saveType=MINDIR \
    --optimize=ascend_oriented \
    --modelFile=inference/rec/model.onnx \
    --outputFile=inference/rec/model

输出：

/home/ma-user/work
Stage3 -- Convert Models to MINDIR by `converter_lite`
[WARNING] LITE(23190,ffffab316010,converter_lite):2024-07-29-17:42:48.077.738 [mindspore/lite/build/tools/converter/parser/onnx/onnx_op_parser.cc:1409] GetConvChannel] not find node: conv2d_0.w_0
[WARNING] LITE(23190,ffffab316010,converter_lite):2024-07-29-17:42:48.077.927 [mindspore/lite/build/tools/converter/parser/onnx/onnx_op_parser.cc:1409] GetConvChannel] not find node: conv2d_1.w_0
...
[WARNING] LITE(23190,ffffab316010,converter_lite):2024-07-29-17:42:48.087.483 [mindspore/lite/build/tools/converter/parser/onnx/onnx_op_parser.cc:1409] GetConvChannel] not find node: conv2d_105.w_0
[WARNING] LITE(23190,ffffab316010,converter_lite):2024-07-29-17:42:48.087.589 [mindspore/lite/build/tools/converter/parser/onnx/onnx_op_parser.cc:1660] Parse] parsing of channelIn/Out is delayed.
[WARNING] LITE(23190,ffffab316010,converter_lite):2024-07-29-17:42:48.087.698 [mindspore/lite/build/tools/converter/parser/onnx/onnx_op_parser.cc:1660] Parse] parsing of channelIn/Out is delayed.
[WARNING] LITE(23190,ffffab316010,converter_lite):2024-07-29-17:42:48.087.821 [mindspore/lite/build/tools/converter/parser/onnx/onnx_op_parser.cc:1409] GetConvChannel] not find node: conv2d_107.w_0
[WARNING] LITE(23190,ffffab316010,converter_lite):2024-07-29-17:42:48.087.918 [mindspore/lite/build/tools/converter/parser/onnx/onnx_op_parser.cc:1409] GetConvChannel] not find node: conv2d_108.w_0
[WARNING] LITE(23190,ffffab316010,converter_lite):2024-07-29-17:42:49.243.821 [mindspore/lite/tools/converter/adapter/acl/mapper/primitive_mapper.cc:66] AttrAdjust] GlobalAveragePool has no attr kernel_size
...
/usr/local/Ascend/ascend-toolkit/latest/python/site-packages/tbe/dsl/unify_schedule/extract_image_patches_without_cbuf_schedule.py:317: SyntaxWarning: "is not" with a literal. Did you mean "!="?
  if _ is not 1:
...
/usr/local/Ascend/ascend-toolkit/latest/python/site-packages/tbe/dsl/unify_schedule/extract_image_patches_without_cbuf_schedule.py:317: SyntaxWarning: "is not" with a literal. Did you mean "!="?
  if _ is not 1:
CONVERT RESULT SUCCESS:0
[WARNING] LITE(35984,ffff81bca010,converter_lite):2024-07-29-17:45:47.372.823 [mindspore/lite/build/tools/converter/parser/onnx/onnx_op_parser.cc:1409] GetConvChannel] not find node: conv2d_0.w_0
[WARNING] LITE(35984,ffff81bca010,converter_lite):2024-07-29-17:45:47.373.004 [mindspore/lite/build/tools/converter/parser/onnx/onnx_op_parser.cc:1409] GetConvChannel] not find node: conv2d_1.w_0
...
[WARNING] LITE(35984,ffff81bca010,converter_lite):2024-07-29-17:45:48.347.334 [mindspore/lite/tools/converter/adapter/acl/mapper/primitive_mapper.cc:66] AttrAdjust] GlobalAveragePool has no attr kernel_size
[WARNING] LITE(35984,ffff81bca010,converter_lite):2024-07-29-17:45:48.348.056 [mindspore/lite/tools/converter/adapter/acl/mapper/primitive_mapper.cc:66] AttrAdjust] GlobalAveragePool has no attr kernel_size
...
/usr/local/Ascend/ascend-toolkit/latest/python/site-packages/tbe/dsl/unify_schedule/extract_image_patches_without_cbuf_schedule.py:317: SyntaxWarning: "is not" with a literal. Did you mean "!="?
  if _ is not 1:
...
/usr/local/Ascend/ascend-toolkit/latest/python/site-packages/tbe/dsl/unify_schedule/extract_image_patches_without_cbuf_schedule.py:317: SyntaxWarning: "is not" with a literal. Did you mean "!="?
  if _ is not 1:
Warning: set_tiling_params does not take effect because get_op_mode is dynamic
Warning: set_tiling_params does not take effect because get_op_mode is dynamic
Warning: set_tiling_params does not take effect because get_op_mode is dynamic
Warning: set_tiling_params does not take effect because get_op_mode is dynamic
CONVERT RESULT SUCCESS:0

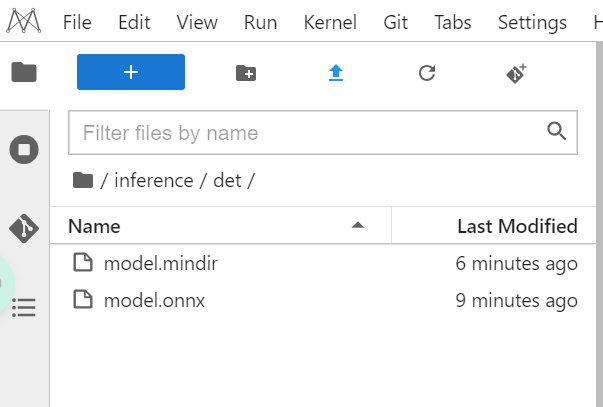

• 出现 CONVERT RESULT SUCCESS:0，表示转换成功。转换之后的模型如下：

• 示例②：onnx2mindir指定模型的动态shape（仅供参考无需运行）

CONFIG_FILE=config_demo.conf
echo "[acl_build_options]" > $CONFIG_FILE
echo "input_format=NCHW" >> $CONFIG_FILE
echo "input_shape_range=x:[1,3,640,-1]" >> $CONFIG_FILE
converter_lite --fmk=ONNX --saveType=MINDIR \
    --optimize=ascend_oriented \
    --modelFile=inference/det/model.onnx \
    --outputFile=inference/det/model_demo \
    --configFile=$CONFIG_FILE

步骤3 适配推理代码

PaddleOCR原始代码不支持使用 mindir模型格式进行推理，本实验的推理适配复用了PaddleOCR的前处理和后处理逻辑，主要涉及 PaddleOCR/tools/infer目录下4个代码文件的修改：

注意：如果步骤1选择直接从OBS下载适配好的PaddleOCR代码，则跳过此步骤即可。

utility.py

• 在 init_args函数，新增 --use_mindir，用于指示开启mindir推理

parser.add_argument("--use_mindir", type=str2bool, default=False)

• 在 create_perdictor函数中，大约 214行的位置，新增mindir模型的初始化逻辑，这部分代码检测/识别/分类共用

if args.use_onnx:
    ...
elif args.use_mindir:  # for ascend inference
    import mindspore_lite as mslite

    model_file_path = model_dir
    if not os.path.exists(model_file_path):
        raise ValueError("not find model file path {}".format(model_file_path))

    # init context, and set target is ascend.
    context = mslite.Context()
    context.target = ["ascend"]     # cpu/gpu/ascend
    context.ascend.device_id = args.gpu_id  # default to 0
    # context.ascend.provider = "ge"
    model = mslite.Model()
    model.build_from_file(model_file_path, mslite.ModelType.MINDIR, context)
    return model, model.get_inputs(), None, None
else:
    ...

predict_det.py

• 在 __init__函数中，保存 args.use_mindir的值，即：

self.use_mindir = args.use_mindir

• 在 TextDetector -- predict函数中，大约 254行的位置，新增使用mindir模型推理的逻辑

if self.use_onnx:
    ...
elif self.use_mindir:   # for ascend inference
    self.predictor.resize(self.input_tensor, [img.shape])   # dynamic shape
    inputs = self.predictor.get_inputs()
    inputs[0].set_data_from_numpy(img)
    # execute inference
    outputs = self.predictor.predict(inputs)
    outputs = [o.get_data_to_numpy() for o in outputs]
else:
    self.input_tensor.copy_from_cpu(img)
    ...

predict_rec.py

• 在 __init__函数中，保存 args.use_mindir的值
• 在 TextRecognizer -- __call__函数中，大约 676行的位置，新增使用mindir模型推理的逻辑

if self.use_onnx:
    ...
elif self.use_mindir:   # for ascend inference
    self.predictor.resize(self.input_tensor, [norm_img_batch.shape])
    inputs = self.predictor.get_inputs()
    inputs[0].set_data_from_numpy(norm_img_batch)
    outputs = self.predictor.predict(inputs)
    outputs = [o.get_data_to_numpy() for o in outputs]
    preds = outputs[0]
else:
    self.input_tensor.copy_from_cpu(norm_img_batch)
    ...

predict_cls.py

• 在 __init__函数中，保存 args.use_mindir的值
• 在 TextClassifier -- __call__函数中，大约 112行的位置，新增使用mindir模型推理的逻辑

if self.use_onnx:
    ...
elif self.use_mindir:   # for ascend inference
    self.predictor.resize(self.input_tensor, [norm_img_batch.shape])
    inputs = self.predictor.get_inputs()
    inputs[0].set_data_from_numpy(norm_img_batch)
    outputs = self.predictor.predict(inputs)
    outputs = [o.get_data_to_numpy() for o in outputs]
    prob_out = outputs[0]
else:
    self.input_tensor.copy_from_cpu(norm_img_batch)
    ...

步骤4 测试推理pipeline

• 在notebook中执行如下命令，将对 PaddleOCR/doc/imags/11.jpg图片执行检测和识别，并将结果保存在 inference_results中

注意：--image_dir支持输入目录，对目录下的所有图片做OCR推理

输入：

%cd /home/ma-user/work
!python PaddleOCR/tools/infer/predict_system.py \
    --use_mindir True --gpu_id 0 \
    --image_dir PaddleOCR/doc/imgs/11.jpg \
    --det_model_dir inference/det/model.mindir \
    --rec_model_dir inference/rec/model.mindir \
    --rec_char_dict_path PaddleOCR/ppocr/utils/ppocr_keys_v1.txt \
    --use_angle_cls False \
    --vis_font_path PaddleOCR/doc/fonts/simfang.ttf

输出：

/home/ma-user/work
[2024-07-29 17:52:18,673] [ WARNING] model.py:109 - mslite ascendc custom kernel path not found
[2024-07-29 17:52:25,511] [ WARNING] model.py:109 - mslite ascendc custom kernel path not found
[2024/07/29 17:52:29] ppocr INFO: In PP-OCRv3, rec_image_shape parameter defaults to '3, 48, 320', if you are using recognition model with PP-OCRv2 or an older version, please set --rec_image_shape='3,32,320
[WARNING] ME(51741,ffff9f6470b0,python):2024-07-29-17:52:29.030.425 [mindspore/lite/src/extendrt/kernel/ascend/src/custom_ascend_kernel.cc:168] Resize] Invalid inputs or output shapes.
[2024/07/29 17:52:29] ppocr DEBUG: dt_boxes num : 16, elapsed : 0.06305480003356934
[WARNING] ME(51741,ffff9f6470b0,python):2024-07-29-17:52:29.082.780 [mindspore/lite/src/extendrt/kernel/ascend/src/custom_ascend_kernel.cc:168] Resize] Invalid inputs or output shapes.
[2024/07/29 17:52:29] ppocr DEBUG: rec_res num  : 16, elapsed : 0.23969674110412598
[2024/07/29 17:52:29] ppocr DEBUG: 0  Predict time of PaddleOCR/doc/imgs/11.jpg: 0.310s
[2024/07/29 17:52:29] ppocr DEBUG: 纯臻营养护发素, 0.995
[2024/07/29 17:52:29] ppocr DEBUG: 产品信息/参数, 0.993
[2024/07/29 17:52:29] ppocr DEBUG: （45元/每公斤，100公斤起订）, 0.964
[2024/07/29 17:52:29] ppocr DEBUG: 每瓶22元，1000瓶起订）, 0.996
[2024/07/29 17:52:29] ppocr DEBUG: 【品牌】：代加工方式/OEMODM, 0.985
[2024/07/29 17:52:29] ppocr DEBUG: 【品名】：纯臻营养护发素, 0.998
[2024/07/29 17:52:29] ppocr DEBUG: 【产品编号】：YM-X-3011, 0.989
[2024/07/29 17:52:29] ppocr DEBUG: ODMOEM, 0.995
[2024/07/29 17:52:29] ppocr DEBUG: 【净含量】：220ml, 0.991
[2024/07/29 17:52:29] ppocr DEBUG: 【适用人群】：适合所有肤质, 0.989
[2024/07/29 17:52:29] ppocr DEBUG: 【主要成分】：鲸蜡硬脂醇、燕麦β-葡聚, 0.977
[2024/07/29 17:52:29] ppocr DEBUG: 糖、椰油酰胺丙基甜菜碱、泛醒, 0.983
[2024/07/29 17:52:29] ppocr DEBUG: （成品包材）, 0.998
[2024/07/29 17:52:29] ppocr DEBUG: 【主要功能】：可紧致头发磷层，从而达到, 0.996
[2024/07/29 17:52:29] ppocr DEBUG: 即时持久改善头发光泽的效果，给干燥的头, 0.989
[2024/07/29 17:52:29] ppocr DEBUG: 发足够的滋养, 0.998
[2024/07/29 17:52:29] ppocr DEBUG: The visualized image saved in ./inference_results/11.jpg
[2024/07/29 17:52:29] ppocr INFO: The predict total time is 0.41288328170776367

识别效果如下图：

任务三：推理性能调优–固定/分档

任务二中的OCR推理模型默认为动态shape，此时的识别效果最优，但与此同时推理速度最慢。为了进一步提升OCR的推理性能，本任务中我们将探讨动态shape、固定shape和分档shape三种情况下，推理性能和识别效果的差异。

固定shape需要对模型的输入图片进行缩放，有可能造成失真，从而劣化识别性能，适合使用在输入是固定大小图片的测试场景。分档shape支持对多种大小的输入图片进行推理，同时维持了和固定shape同样的推理性能，提供了一种权衡识别准确率和推理性能的手段。因此，可以将固定shape理解为单档shape的场景。

Lite在Ascend上推理支持动态BatchSize和动态分辨率场景，在convert阶段通过congFile配置[ascend_context]中dynamic_dims动态参数，推理时使用model的Resize功能，改变输入shape。

参考官方文档：https://www.mindspore.cn/lite/docs/zh-CN/r2.0/use/cloud_infer/converter_tool_ascend.html

注意：OCR的输入图片可以是各种大小，因此识别准确率和推理性能不可兼得。

步骤1 下载数据集

• 在notebook中执行如下命令，将下载用于评估识别准确率的数据集，并将图片和标注文件分别放在 data/rctw_images和 data/rctw_gts目录下：

输入：

%cd /home/ma-user/work
import moxing as mox
mox.file.copy_parallel("obs://dtse-model-guiyangyi/course/paddle_ocr/data", "data")

输出：

INFO:root:An exception occurred in function copy_parallel_c: /home/ma-user/anaconda3/envs/MindSpore/lib/python3.9/site-packages/moxing/framework/file/csrc/obs/lib/aarch64/libobs_cxx.so: cannot open shared object file: No such file or directory
INFO:root:load shared library failed, retry with copy parallel python
INFO:root:Multiprocessing connection patch for bpo-17560 not applied, not an applicable Python version: 3.9.10 | packaged by conda-forge | (main, Feb  1 2022, 21:53:27)
[GCC 9.4.0]
INFO:root:List OBS time cost: 0.37 seconds.
INFO:root:Copy parallel total time cost: 0.59 seconds.

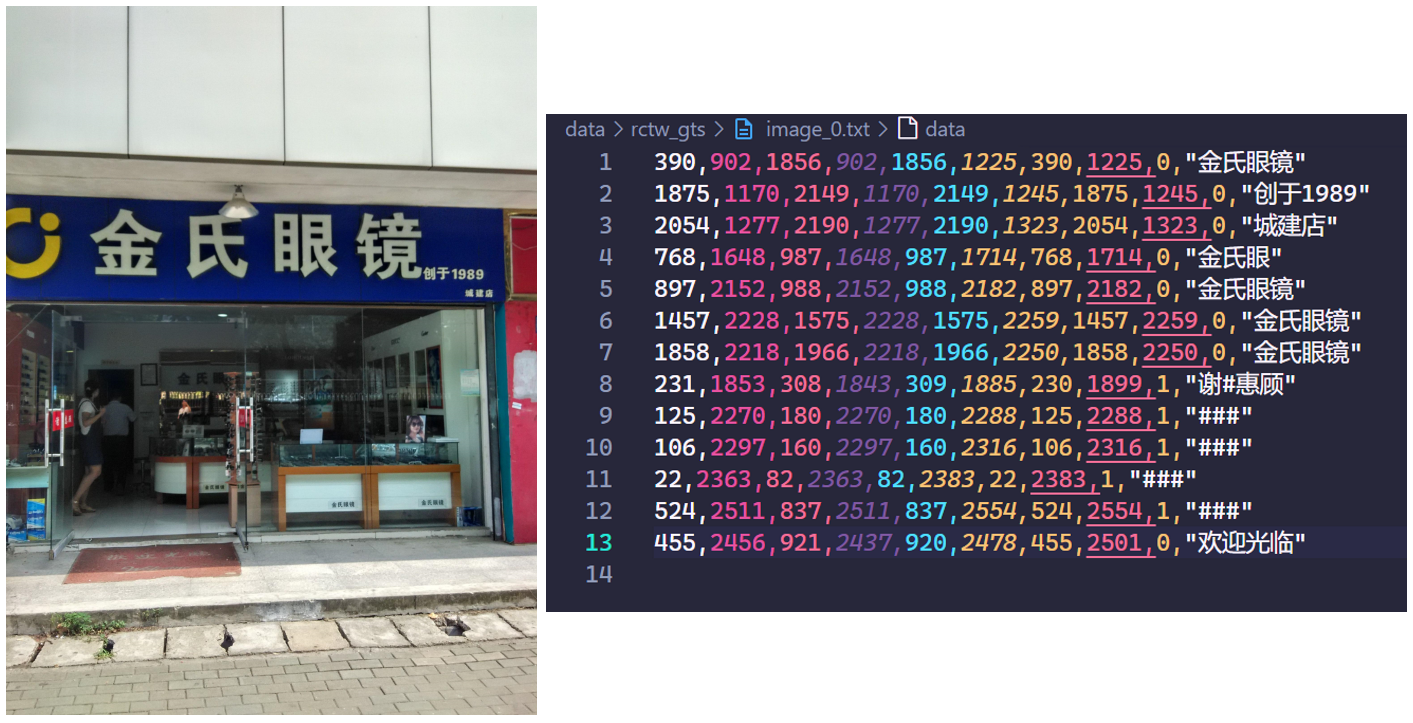

• 我们选择从ICDAR 2017 RCTW的训练集中挑选4个样本用于简单评估性能，样例如下：

步骤2 准备评估代码

为了评估OCR推理的识别性能，这里我们利用RCTW2017的数据集，分别评估检测模型和识别模型的性能。其中，检测模型使用 hmean指标评估，而识别模型则使用 acc和编辑距离指标评估。需要注意的是，识别模型使用了标注的 boxes去推理，而非检测模型输出的 boxes。

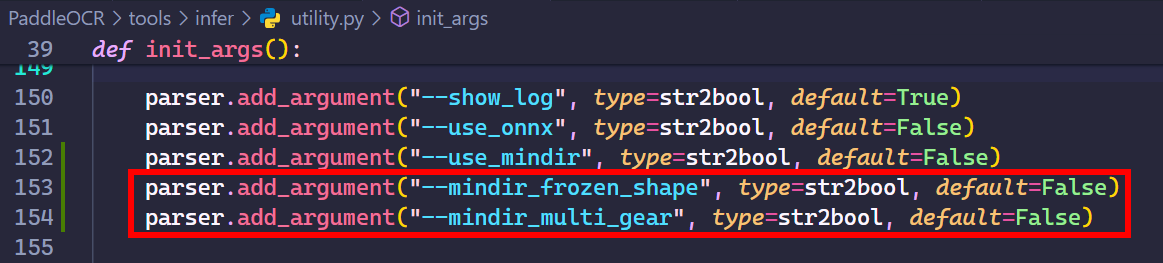

除新建评估代码 evaluate.py文件外，还需要额外修改 PaddleOCR/tools/infer目录下的推理文件，来支持固定shape和分档shape的推理，修改细节如下：

注意：如果“任务二步骤1”选择直接从OBS下载适配好的PaddleOCR代码，则只需要新建 evaluate.py文件，其他代码修改可跳过。

evaluate.py

在 /home/ma-user/work目录下，新建 evaluate.py文件，并输入如下内容：

import argparse
import copy
import glob
import json
import os
from typing import Dict, List, Tuple

import cv2
import numpy as np
from numpy import ndarray

os.sys.path.append(os.path.join(os.path.dirname(__file__), "PaddleOCR"))

from tools.infer.predict_det import TextDetector
from tools.infer.predict_rec import TextRecognizer
from tools.infer.predict_system import sorted_boxes
from tools.infer.utility import get_minarea_rect_crop, get_rotate_crop_image
from tools.infer.utility import init_args as ppocr_init_args

from ppocr.metrics.det_metric import DetMetric
from ppocr.metrics.rec_metric import RecMetric


class OCRTestDataset(object):
    def __init__(self, image_dir: str, annotation_dir: str) -> None:
        super(OCRTestDataset, self).__init__()
        self.image_dir = image_dir
        self.annotation_dir = annotation_dir
        self.data_list = glob.glob(os.path.join(image_dir, "*.jpg"))
        self.data_list.sort()
        self.label_list = []
        for image_file in self.data_list:
            f = os.path.basename(image_file)
            f = f.removesuffix(".jpg") + ".txt"
            self.label_list.append(os.path.join(annotation_dir, f))

    @classmethod
    def annotation2boxes(self, annotation: List[str]) -> ndarray:
        assert len(annotation) == 8, "[annotation] error boxes"
        try:
            flatten_boxes = list(map(float, annotation))
        except ValueError:
            print(annotation)
            exit(1)
        boxes = np.array(flatten_boxes).astype(np.float32).reshape(4, 2)
        return boxes

    def __getitem__(self, index: int) -> Tuple[str, Dict[str, List]]:
        image_file = self.data_list[index]
        annotation = {"gt_boxes": [], "gt_texts": [], "ignore_tags": []}
        with open(self.label_list[index], "r", encoding="utf8") as fout:
            lines = fout.readlines()
        for line in lines:
            elements = line.strip().split(",")
            boxes = self.annotation2boxes(elements[:8])
            diffculty = int(elements[8])
            text = elements[-1].replace("\"", "")
            ignore = "###" in text
            annotation["gt_boxes"].append(boxes)
            annotation["gt_texts"].append([text, None])     # text, score
            annotation["ignore_tags"].append(ignore)
        return image_file, annotation

    def __len__(self) -> int:
        return len(self.data_list)


class InferTextSystem:
    def __init__(self, det_model: str, rec_model: str, infer_type: str, **kwargs) -> None:
        args, unknown = ppocr_init_args().parse_known_args()
        args.use_mindir = True
        if infer_type in ["frozen_shape", "multi_gear"]:
            args.mindir_frozen_shape = (infer_type == "frozen_shape")
            args.mindir_multi_gear = not args.mindir_frozen_shape
        if args.mindir_multi_gear:
            args.rec_image_shape="3,48,-1"  # use the actual `max_wh_ratio`
        args.det_model_dir = det_model
        args.rec_model_dir = rec_model
        paddle_ocr_project_path = os.path.join(os.path.dirname(__file__), 'PaddleOCR')
        args.rec_char_dict_path = os.path.join(paddle_ocr_project_path, 'ppocr/utils/ppocr_keys_v1.txt')
        args.vis_font_path = os.path.join(paddle_ocr_project_path, 'doc/fonts/simfang.ttf')

        self.paddle_ocr_project_path = paddle_ocr_project_path
        self.text_detector = TextDetector(args)
        self.text_recognizer = TextRecognizer(args)
        self.det_box_type = args.det_box_type
        self.drop_score = args.drop_score

    def detect(self, image: ndarray) -> ndarray:
        dt_boxes, elapse = self.text_detector(image)
        dt_boxes = sorted_boxes(dt_boxes)
        return dt_boxes, elapse

    def recognize(self, image: ndarray, dt_boxes: ndarray) -> List[str]:
        img_crop_list = []
        for bno in range(len(dt_boxes)):
            tmp_box = copy.deepcopy(dt_boxes[bno])
            if self.det_box_type == "quad":
                img_crop = get_rotate_crop_image(image, tmp_box)
            else:
                img_crop = get_minarea_rect_crop(image, tmp_box)
            img_crop_list.append(img_crop)
        rec_res, elapse = self.text_recognizer(img_crop_list)
        return rec_res, elapse

    def __call__(self, image_file: str):
        image = cv2.imread(image_file)
        dt_boxes, dt_elapse = self.detect(image)
        rec_res, rec_elapse = self.recognize(image, dt_boxes)
        print(dt_elapse, rec_elapse)
        filter_boxes, filter_rec_res = [], []
        for box, rec_result in zip(dt_boxes, rec_res):
            text, score = rec_result[0], rec_result[1]
            if score >= self.drop_score:
                filter_boxes.append(box)
                filter_rec_res.append(rec_result)
        return filter_boxes, filter_rec_res


class Evaluator:
    def __init__(self):
        self.det_metric = DetMetric()
        self.rec_metric = RecMetric()

    def evaluate(self, dt_boxes: List[ndarray],
                 gt_boxes: List[ndarray],
                 ignore_tags: List[bool],
                 rec_texts: List[str],
                 gt_texts: List[str], **kwargs
    ) -> Dict[str, float]:
        metrics = {}
        # box_num = len(ignore_tags)
        # gt_boxes = [gt_boxes[i] for i in range(box_num) if not ignore_tags[i]]
        points = np.stack(dt_boxes) if dt_boxes else np.zeros((0, 4, 2), dtype=np.float32)
        self.det_metric(preds=[{"points": points}],
                        batch=[None, None,
                               np.expand_dims(np.stack(gt_boxes), axis=0),
                               np.expand_dims(np.stack(ignore_tags), axis=0)]
                        )
        det_metric_results_backup = self.det_metric.results
        self.det_metric.results = [det_metric_results_backup[-1]]
        out = self.det_metric.get_metric()
        self.det_metric.results = det_metric_results_backup
        metrics.update(out)

        box_num = len(ignore_tags)
        pred_texts = [rec_texts[i] for i in range(box_num) if not ignore_tags[i]]
        label_texts = [gt_texts[i] for i in range(box_num) if not ignore_tags[i]]
        metrics.update(
            self.rec_metric([pred_texts, label_texts])
        )
        return metrics

    def get(self) -> Dict[str, float]:
        metrics = {}
        metrics.update(self.det_metric.get_metric())
        metrics.update(self.rec_metric.get_metric())
        return metrics


def init_args():
    parser = argparse.ArgumentParser()
    parser.add_argument("--dset_image_dir", type=str, default="data/rctw_images")
    parser.add_argument("--dset_annotation_dir", type=str, default="data/rctw_gts")
    parser.add_argument("--det_model", type=str, default="inference/det/model.mindir")
    parser.add_argument("--rec_model", type=str, default="inference/rec/model.mindir")
    parser.add_argument("--infer_type", type=str, default="dynamic_shape",
                        choices=["dynamic_shape", "frozen_shape", "multi_gear"])
    args = parser.parse_args()
    return args


if __name__ == "__main__":
    args = init_args()
    testset = OCRTestDataset(args.dset_image_dir, args.dset_annotation_dir)
    infer_text_system = InferTextSystem(**vars(args))
    # infer_text_system("PaddleOCR/doc/imgs/00018069.jpg")
    evaluator = Evaluator()
    results = {}
    total_det_elapse = 0
    total_rec_elapse = 0
    for i in range(len(testset)):
        image_file, labels = testset[i]
        image = cv2.imread(image_file)
        dt_boxes, dt_elapse = infer_text_system.detect(image)
        rec_texts, rec_elapse = infer_text_system.recognize(image, labels["gt_boxes"])
        metrics = evaluator.evaluate(dt_boxes=dt_boxes, rec_texts=rec_texts, **labels)
        metrics.update({"det_elapse": dt_elapse, "rec_elapse": rec_elapse})
        total_det_elapse += dt_elapse
        total_rec_elapse += rec_elapse
        results[os.path.basename(image_file)] = metrics
    results["total"] = {**evaluator.get(),
                        "det_elapse": total_det_elapse / len(testset),
                        "rec_elapse": total_rec_elapse / len(testset),
                        }
    print(json.dumps(results, indent=2))

utility.py

• 在 init_args函数，新增 --mindir_frozen_shape用于指示开启固定shape推理；新增 --mindir_multi_gear用于指示开启多档shape推理

    parser.add_argument("--mindir_frozen_shape", type=str2bool, default=False)
    parser.add_argument("--mindir_multi_gear", type=str2bool, default=False)

predict_det.py

• 在 __init__函数中，保存 args.mindir_frozen_shape和 args.mindir_multi_gear的值

self.mindir_frozen_shape = args.mindir_frozen_shape
self.mindir_multi_gear = args.mindir_multi_gear
try:
    assert not (self.mindir_frozen_shape and self.mindir_multi_gear)
except AssertionError:
    logger.warn("`mindir_frozen_shape` and `mindir_multi_gear` are both enabled, \
                defaultly, set `mindir_frozen_shape=False` to prevent errors.")
    self.mindir_frozen_shape = False

• 在 __init__函数中，新增前处理初始化逻辑，分别针对固定shape和多档shape，示例如下：

if self.use_onnx:
    img_h, img_w = self.input_tensor.shape[2:]
    ...
elif self.use_mindir and self.mindir_frozen_shape:
    img_h, img_w = self.input_tensor[0].shape[2:]
    assert isinstance(img_h, int) and img_h > 0, "[mindir] error frozen shape -- img_h"
    assert isinstance(img_w, int) and img_w > 0, "[mindir] error frozen shape -- img_w"
    pre_process_list[0] = {
        "DetResizeForTest": {"image_shape": [img_h, img_w]}
    }
elif self.use_mindir and self.mindir_multi_gear:
    # img_h: 320, 480, 640
    # img_w: (wh_ratios, 0.5 -> 2.0)
    pre_process_list[0] = {
        "DetResizeForTest": {"image_shape": [640, -1],
                              "keep_ratio": True}
    }
self.preprocess_op = create_operators(pre_process_list)
...

• 在 TextDetector -- predict函数中，修改mindir模型的resize逻辑，最小示例如下：

if self.use_onnx:
    ...
elif self.use_mindir:   # for ascend inference
    if not self.mindir_frozen_shape:    # dynamic-shape or multi-gear
        self.predictor.resize(self.input_tensor, [img.shape])
    inputs = self.predictor.get_inputs()
    inputs[0].set_data_from_numpy(img)
    # execute inference
    outputs = self.predictor.predict(inputs)
    outputs = [o.get_data_to_numpy() for o in outputs]
else:
    self.input_tensor.copy_from_cpu(img)
    ...

predict_rec.py

• 在 __init__函数中，保存 args.mindir_frozen_shape和 args.mindir_multi_gear的值

self.mindir_frozen_shape = args.mindir_frozen_shape
self.mindir_multi_gear = args.mindir_multi_gear
try:
    assert not (self.mindir_frozen_shape and self.mindir_multi_gear)
except AssertionError:
    logger.warn("`mindir_frozen_shape` and `mindir_multi_gear` are both enabled, \
                defaultly, set `mindir_frozen_shape=False` to prevent errors.")
    self.mindir_frozen_shape = False

• 在 TextDetector -- resize_norm_img函数中，新增前处理初始化逻辑，分别针对固定shape和多档shape，示例如下：

if self.use_onnx:
    w = self.input_tensor.shape[3:][0]
    ...
elif self.use_mindir and self.mindir_frozen_shape:
    w = self.input_tensor[0].shape[3]
    assert isinstance(w, int) and w > 0, "[mindir] error fronzen shape -- w"
    imgW = w
elif self.use_mindir and self.mindir_multi_gear:
    # img_h=48, img_w: 32, ..., 960
    imgW = math.ceil(imgH * max_wh_ratio / 32) * 32
h, w = img.shape[:2]
...

• 在 TextRecognizer -- __call__函数中，大约 579行的位置，新增填充batch-size的逻辑

norm_img_batch = np.concatenate(norm_img_batch)
norm_img_batch = norm_img_batch.copy()
# padding batch-size ===> start
if self.mindir_frozen_shape or self.mindir_multi_gear:
    padding_img_batch_size = self.rec_batch_num - len(norm_img_batch)
    padding_img_shape = norm_img_batch.shape[1:]
    paddign_img_batch = np.zeros((padding_img_batch_size, *padding_img_shape),
                                  dtype=np.float32)
    norm_img_batch = np.concatenate([norm_img_batch, paddign_img_batch], axis=0)
# padding batch-size ===> end
if self.benchmark:
    self.autolog.times.stamp()

• 在 TextRecognizer -- __call__函数中，大约 700行的位置，修改mindir模型的resize逻辑，最小示例如下：

if self.use_onnx:
    ...
elif self.use_mindir:   # for ascend inference
    if not self.mindir_frozen_shape:    # dynamic-shape or multi-gear
        self.predictor.resize(self.input_tensor, [norm_img_batch.shape])
    inputs = self.predictor.get_inputs()
    inputs[0].set_data_from_numpy(norm_img_batch)
    outputs = self.predictor.predict(inputs)
    outputs = [o.get_data_to_numpy() for o in outputs]
    preds = outputs[0]
    # drop results of dummy-data
    if self.mindir_frozen_shape or self.mindir_multi_gear:
        vaild_img_batch_size = self.rec_batch_num - padding_img_batch_size
        preds = preds[:vaild_img_batch_size]
else:
    self.input_tensor.copy_from_cpu(norm_img_batch)
    ...

步骤3 动态shape评估

• 支持动态shape的模型已在任务一中生成： inference/det/model.mindir和 inference/rec/model.mindir
• 在notebook中执行如下命令，将评估动态shape下模型的识别性能和推理耗时：

输入：

%cd /home/ma-user/work/
!python evaluate.py --det_model inference/det/model.mindir \
                    --rec_model inference/rec/model.mindir \
                    --infer_type dynamic_shape

输出：

/home/ma-user/work
[2024-07-29 18:11:14,197] [ WARNING] model.py:109 - mslite ascendc custom kernel path not found
[2024-07-29 18:11:21,208] [ WARNING] model.py:109 - mslite ascendc custom kernel path not found
[WARNING] ME(75276,ffff833360b0,python):2024-07-29-18:11:25.078.141 [mindspore/lite/src/extendrt/kernel/ascend/src/custom_ascend_kernel.cc:168] Resize] Invalid inputs or output shapes.
[WARNING] ME(75276,ffff833360b0,python):2024-07-29-18:11:25.134.488 [mindspore/lite/src/extendrt/kernel/ascend/src/custom_ascend_kernel.cc:168] Resize] Invalid inputs or output shapes.
{
  "image_0.jpg": {
    "precision": 1.0,
    "recall": 0.7777777777777778,
    "hmean": 0.8750000000000001,
    "acc": 0.7777769135812072,
    "norm_edit_dis": 0.9444445061727709,
    "det_elapse": 0.08648085594177246,
    "rec_elapse": 0.17359185218811035
  },
  "image_1.jpg": {
    "precision": 1.0,
    "recall": 1.0,
    "hmean": 1.0,
    "acc": 0.9999985714306123,
    "norm_edit_dis": 1.0,
    "det_elapse": 0.07720947265625,
    "rec_elapse": 0.050136566162109375
  },
  "image_1013.jpg": {
    "precision": 1.0,
    "recall": 1.0,
    "hmean": 1.0,
    "acc": 0.9999950000249999,
    "norm_edit_dis": 1.0,
    "det_elapse": 0.047595977783203125,
    "rec_elapse": 0.01030421257019043
  },
  "image_1016.jpg": {
    "precision": 1.0,
    "recall": 1.0,
    "hmean": 1.0,
    "acc": 0.9999950000249999,
    "norm_edit_dis": 1.0,
    "det_elapse": 0.0553433895111084,
    "rec_elapse": 0.010103225708007812
  },
  "total": {
    "precision": 1.0,
    "recall": 0.9,
    "hmean": 0.9473684210526316,
    "acc": 0.899999550000225,
    "norm_edit_dis": 0.9750000124999938,
    "det_elapse": 0.0666574239730835,
    "rec_elapse": 0.06103396415710449
  }
}

步骤4 固定shape评估

• 首先使用 converter_lite工具，将onnx模型转换为支持固定shape的 mindir模型，输出 CONVERT RESULT SUCCESS:0即表示转换成功

%cd /home/ma-user/work/
!converter_lite --fmk=ONNX \
    --saveType=MINDIR \
    --optimize=ascend_oriented \
    --modelFile=inference/det/model.onnx \
    --outputFile=inference/det/model_frozen_shape \
    --inputShape=x:1,3,640,640
!converter_lite --fmk=ONNX \
    --saveType=MINDIR \
    --optimize=ascend_oriented \
    --modelFile=inference/rec/model.onnx \
    --outputFile=inference/rec/model_frozen_shape \
    --inputShape=x:6,3,48,320

• 然后在notebook中执行如下命令，将评估固定shape下模型的识别性能和推理耗时：

输入：

%cd /home/ma-user/work/
!python evaluate.py --det_model inference/det/model_frozen_shape.mindir \
                    --rec_model inference/rec/model_frozen_shape.mindir \
                    --infer_type frozen_shape

输出：

/home/ma-user/work
[2024-07-29 18:15:53,058] [ WARNING] model.py:109 - mslite ascendc custom kernel path not found
[2024-07-29 18:15:54,389] [ WARNING] model.py:109 - mslite ascendc custom kernel path not found
{
  "image_0.jpg": {
    "precision": 0.75,
    "recall": 0.6666666666666666,
    "hmean": 0.7058823529411765,
    "acc": 0.7777769135812072,
    "norm_edit_dis": 0.9500000555554938,
    "det_elapse": 0.054441213607788086,
    "rec_elapse": 0.05269813537597656
  },
  "image_1.jpg": {
    "precision": 0.8571428571428571,
    "recall": 0.8571428571428571,
    "hmean": 0.8571428571428571,
    "acc": 0.9999985714306123,
    "norm_edit_dis": 1.0,
    "det_elapse": 0.04184436798095703,
    "rec_elapse": 0.03612112998962402
  },
  "image_1013.jpg": {
    "precision": 1.0,
    "recall": 1.0,
    "hmean": 1.0,
    "acc": 0.9999950000249999,
    "norm_edit_dis": 1.0,
    "det_elapse": 0.034049034118652344,
    "rec_elapse": 0.01288747787475586
  },
  "image_1016.jpg": {
    "precision": 1.0,
    "recall": 1.0,
    "hmean": 1.0,
    "acc": 0.9999950000249999,
    "norm_edit_dis": 1.0,
    "det_elapse": 0.03696155548095703,
    "rec_elapse": 0.013694524765014648
  },
  "total": {
    "precision": 0.8421052631578947,
    "recall": 0.8,
    "hmean": 0.8205128205128205,
    "acc": 0.899999550000225,
    "norm_edit_dis": 0.9775000112499944,
    "det_elapse": 0.04182404279708862,
    "rec_elapse": 0.028850317001342773
  }
}

步骤5 多档shape评估

• 首先在 inference目录下，新建两个配置文件 config_det.conf和 config_rec.conf，并填入如下内容：

# inference/config_det.conf
[ascend_context]
input_format=NCHW
input_shape=x:[1,3,-1,-1]
dynamic_dims=[640,480],[640,640],[640,992]

# inference/config_rec.conf
[ascend_context]
input_format=NCHW
input_shape=x:[6,3,-1,-1]
dynamic_dims=[48,160],[48,288],[48,320],[48,352],[48,416],[48,512],[48,800]

• 注意：这里的dynamic_dims参数可以指定模型输入的shape，最高支持1000档。对于检测模型，我们先固定height=640，假定高宽比范围为[0.5, 2]，然后在保持高宽比的情况下，将宽缩放为最接近32的倍数。对于识别模型，我们固定batch-size=6，假定高宽比范围为[0.5, 20]，以32的步长设置输入图片的宽。
• 然后使用 converter_lite工具，将onnx模型转换为支持多档shape的 mindir模型，输出 CONVERT RESULT SUCCESS:0即表示转换成功

%cd /home/ma-user/work/
!converter_lite --fmk=ONNX \
    --saveType=MINDIR \
    --optimize=ascend_oriented \
    --modelFile=inference/det/model.onnx \
    --outputFile=inference/det/model_multi_gear \
    --configFile=inference/config_det.conf

!converter_lite --fmk=ONNX \
    --saveType=MINDIR \
    --optimize=ascend_oriented \
    --modelFile=inference/rec/model.onnx \
    --outputFile=inference/rec/model_multi_gear \
    --configFile=inference/config_rec.conf

• 最后在notebook中执行如下命令，评估多档shape下模型的识别性能和推理耗时：

输入：

%cd /home/ma-user/work/
!python evaluate.py --det_model inference/det/model_multi_gear.mindir \
                    --rec_model inference/rec/model_multi_gear.mindir \
                    --infer_type multi_gear

输出：

/home/ma-user/work
[2024-07-29 18:31:22,812] [ WARNING] model.py:109 - mslite ascendc custom kernel path not found
[2024-07-29 18:31:24,821] [ WARNING] model.py:109 - mslite ascendc custom kernel path not found
{
  "image_0.jpg": {
    "precision": 1.0,
    "recall": 0.6666666666666666,
    "hmean": 0.8,
    "acc": 0.7777769135812072,
    "norm_edit_dis": 0.9444445061727709,
    "det_elapse": 0.04750823974609375,
    "rec_elapse": 0.04743814468383789
  },
  "image_1.jpg": {
    "precision": 0.8571428571428571,
    "recall": 0.8571428571428571,
    "hmean": 0.8571428571428571,
    "acc": 0.9999985714306123,
    "norm_edit_dis": 1.0,
    "det_elapse": 0.042635202407836914,
    "rec_elapse": 0.05770230293273926
  },
  "image_1013.jpg": {
    "precision": 1.0,
    "recall": 1.0,
    "hmean": 1.0,
    "acc": 0.9999950000249999,
    "norm_edit_dis": 1.0,
    "det_elapse": 0.05117201805114746,
    "rec_elapse": 0.011896610260009766
  },
  "image_1016.jpg": {
    "precision": 1.0,
    "recall": 1.0,
    "hmean": 1.0,
    "acc": 0.9999950000249999,
    "norm_edit_dis": 1.0,
    "det_elapse": 0.030267953872680664,
    "rec_elapse": 0.013908863067626953
  },
  "total": {
    "precision": 0.9411764705882353,
    "recall": 0.8,
    "hmean": 0.8648648648648648,
    "acc": 0.899999550000225,
    "norm_edit_dis": 0.9750000124999938,
    "det_elapse": 0.0428958535194397,
    "rec_elapse": 0.03273648023605347
  }
}

步骤6 结果总览

由评估结果可知，动态shape性能最好而推理耗时最高，多档shape能够在维持固定shape推理速度的同时，提高识别性能。

(MindSpore) [ma-user work]$ll inference/det/
total 378724
-r-------- 1 ma-user ma-group  59014052 Jul 30 14:24 model_frozen_shape.mindir
-r-------- 1 ma-user ma-group 150020584 Jul 30 14:11 model.mindir
-r-------- 1 ma-user ma-group  65421312 Jul 30 14:30 model_multi_gear.mindir
-rw-r----- 1 ma-user ma-group 113352102 Jul 30 14:07 model.onnx
(MindSpore) [ma-user work]$ll inference/rec/
total 289676
-r-------- 1 ma-user ma-group 47409656 Jul 30 14:26 model_frozen_shape.mindir
-r-------- 1 ma-user ma-group 99480481 Jul 30 14:15 model.mindir
-r-------- 1 ma-user ma-group 59226954 Jul 30 14:34 model_multi_gear.mindir
-rw-r----- 1 ma-user ma-group 90504445 Jul 30 14:07 model.onnx

参考资料

converter_lite工具使用：https://www.mindspore.cn/lite/docs/zh-CN/r2.3.0rc2/use/cloud_infer/converter_tool.html

动态batch和动态分辨率：https://www.mindspore.cn/lite/docs/zh-CN/r2.0/use/cloud_infer/converter_tool_ascend.html
