extern "C" __global__ __aicore__ void add_custom(GM_ADDR x, GM_ADDR y, GM_ADDR z)
{
KernelAdd op;
op.Init(x, y, z);
op.Process();
}

#define GM_ADDR __gm__ uint8_t* __restrict__

class KernelAdd {
public:
    __aicore__ inline KernelAdd(){}
    // 初始化函数，完成内存初始化相关操作
    __aicore__ inline void Init(GM_ADDR x, GM_ADDR y, GM_ADDR z){}

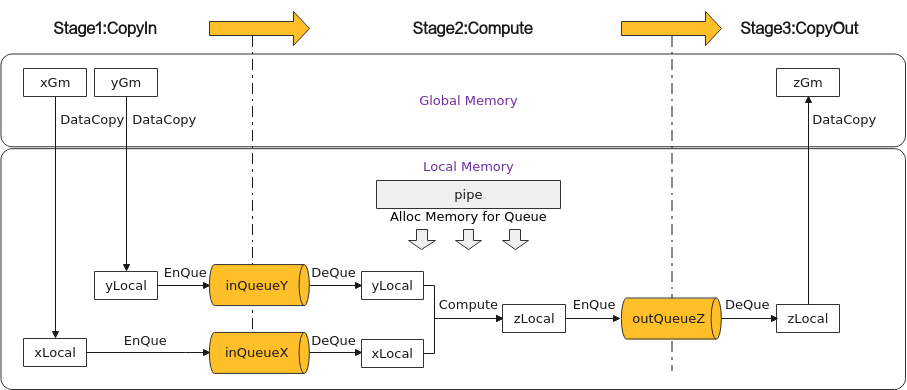

    // 核心处理函数，实现算子逻辑，调用私有成员函数CopyIn、Compute、CopyOut完成矢量算子的三级流水操作
    __aicore__ inline void Process(){}
private:
    // 搬入函数，完成CopyIn阶段的处理，被核心Process函数调用
    __aicore__ inline void CopyIn(int32_t progress){}
    // 计算函数，完成Compute阶段的处理，被核心Process函数调用
    __aicore__ inline void Compute(int32_t progress){}
    // 搬出函数，完成CopyOut阶段的处理，被核心Process函数调用
    __aicore__ inline void CopyOut(int32_t progress){}
private:
    TPipe pipe;  //Pipe内存管理对象
    TQue<QuePosition::VECIN, BUFFER_NUM> inQueueX, inQueueY;  //输入数据Queue队列管理对象，QuePosition为VECIN
    TQue<QuePosition::VECOUT, BUFFER_NUM> outQueueZ;  //输出数据Queue队列管理对象，QuePosition为VECOUT
    GlobalTensor<half> xGm, yGm, zGm;  //管理输入输出Global Memory内存地址的对象，其中xGm, yGm为输入，zGm为输出
};

__aicore__ inline void Init(GM_ADDR x, GM_ADDR y, GM_ADDR z)
{

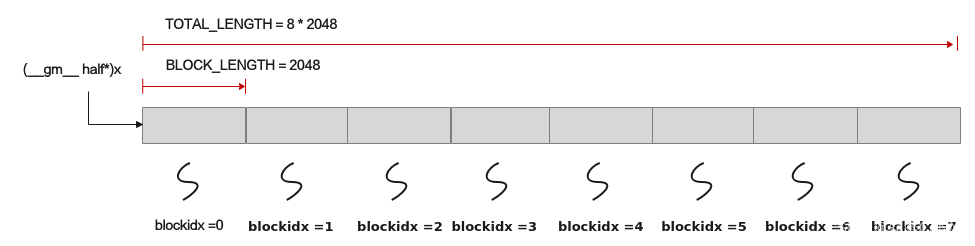

    // 多核并行，设定当前核上Global Memory的起始地址以及长度    xGm.SetGlobalBuffer((__gm__ half*)x + BLOCK_LENGTH * GetBlockIdx(), BLOCK_LENGTH);
    yGm.SetGlobalBuffer((__gm__ half*)y + BLOCK_LENGTH * GetBlockIdx(), BLOCK_LENGTH);
    zGm.SetGlobalBuffer((__gm__ half*)z + BLOCK_LENGTH * GetBlockIdx(), BLOCK_LENGTH);

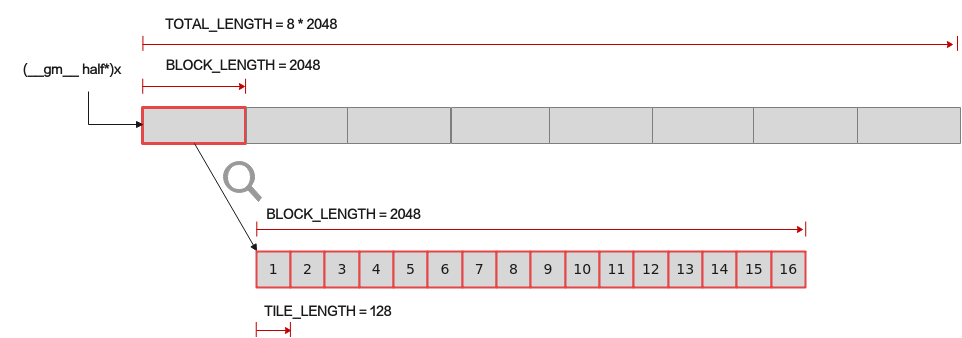

    // 通过pipe为queue分配内存，单位为Bytes
    pipe.InitBuffer(inQueueX, BUFFER_NUM, TILE_LENGTH * sizeof(half));
    pipe.InitBuffer(inQueueY, BUFFER_NUM, TILE_LENGTH * sizeof(half));
    pipe.InitBuffer(outQueueZ, BUFFER_NUM, TILE_LENGTH * sizeof(half));
}

    __aicore__ inline void Process()
    {
        // 开启double buffer后循环次数需要乘以2
        constexpr int32_t loopCount = TILE_NUM * BUFFER_NUM;
        // 多个任务实现流水并行
        for (int32_t i = 0; i < loopCount; i++) {
            CopyIn(i);
            Compute(i);
            CopyOut(i);
        }
    }

__aicore__ inline void CopyIn(int32_t progress)
    {
        // 1、从队列中分配Tensor
        LocalTensor<half> xLocal = inQueueX.AllocTensor<half>();
        LocalTensor<half> yLocal = inQueueY.AllocTensor<half>();
        // 2、使用DataCopy接口将GlobalTensor数据拷贝到LocalTensor
        DataCopy(xLocal, xGm[progress * TILE_LENGTH], TILE_LENGTH);
        DataCopy(yLocal, yGm[progress * TILE_LENGTH], TILE_LENGTH);
        // 3、将LocalTensor放入搬入数据的存放位置VecIn的Queue中
        inQueueX.EnQue(xLocal);
        inQueueY.EnQue(yLocal);
    }

__aicore__ inline void Compute(int32_t progress)
{
                // 1、使用DeQue从VecIn中取出LocalTensor
LocalTensor<half> xLocal = inQueueX.DeQue<half>();
    LocalTensor<half> yLocal = inQueueY.DeQue<half>();
    LocalTensor<half> zLocal = outQueueZ.AllocTensor<half>();
    // 2、调用Add指令完成双目矢量计算
    Add(zLocal, xLocal, yLocal, TILE_LENGTH);
               // 3、使用EnQue将计算结果LocalTensor放入到搬出数据的存放位置VECOUT的Queue中
    outQueueZ.EnQue<half>(zLocal);
    // 4、使用FreeTensor将释放不再使用的LocalTensor
    inQueueX.FreeTensor(xLocal);
    inQueueY.FreeTensor(yLocal);
}

__aicore__ inline void CopyOut(int32_t progress)
{
    // 1、使用DeQue接口从VecOut的Queue中取出LocalTensor
    LocalTensor<half> zLocal = outQueueZ.DeQue<half>();
// 2、使用DataCopy接口将LocalTensor拷贝到GlobalTensor上
 DataCopy(zGm[progress * TILE_LENGTH], zLocal, TILE_LENGTH);
    // 3、使用FreeTensor将不再使用的LocalTensor进行回收
    outQueueZ.FreeTensor(zLocal);
}

int32_t main(int32_t argc, char* argv[])
{
    size_t inputByteSize = 8 * 2048 * sizeof(uint16_t);  // uint16_t represent half
    size_t outputByteSize = 8 * 2048 * sizeof(uint16_t);  // uint16_t represent half
    uint32_t blockDim = 8;
#ifdef __CCE_KT_TEST__
    // 用于CPU调试的调用程序

#else
    // NPU侧运行算子的调用程序
#endif
    return 0;
}

 uint8_t* x = (uint8_t*)AscendC::GmAlloc(inputByteSize);
    uint8_t* y = (uint8_t*)AscendC::GmAlloc(inputByteSize);
    uint8_t* z = (uint8_t*)AscendC::GmAlloc(outputByteSize);
    ReadFile("./input/input_x.bin", inputByteSize, x, inputByteSize);
    ReadFile("./input/input_y.bin", inputByteSize, y, inputByteSize);
    AscendC::SetKernelMode(KernelMode::AIV_MODE);
    ICPU_RUN_KF(add_custom, blockDim, x, y, z); // use this macro for cpu debug
    WriteFile("./output/output_z.bin", z, outputByteSize);
    AscendC::GmFree((void *)x);
    AscendC::GmFree((void *)y);
    AscendC::GmFree((void *)z);

    // AscendCL初始化
    CHECK_ACL(aclInit(nullptr));
    // 创建Context绑定设备
    aclrtContext context;
    int32_t deviceId = 0;
    CHECK_ACL(aclrtSetDevice(deviceId));
    CHECK_ACL(aclrtCreateContext(&context, deviceId));
    aclrtStream stream = nullptr;
    CHECK_ACL(aclrtCreateStream(&stream));
    // 分配Host内存，并进行数据初始化
    uint8_t *xHost, *yHost, *zHost;
    uint8_t *xDevice, *yDevice, *zDevice;
    CHECK_ACL(aclrtMallocHost((void**)(&xHost), inputByteSize));
    CHECK_ACL(aclrtMallocHost((void**)(&yHost), inputByteSize));
    CHECK_ACL(aclrtMallocHost((void**)(&zHost), outputByteSize));
    // 分配Device内存，并将数据从Host上拷贝到Device上
    CHECK_ACL(aclrtMalloc((void**)&xDevice, inputByteSize, ACL_MEM_MALLOC_HUGE_FIRST));
    CHECK_ACL(aclrtMalloc((void**)&yDevice, outputByteSize, ACL_MEM_MALLOC_HUGE_FIRST));
    CHECK_ACL(aclrtMalloc((void**)&zDevice, outputByteSize, ACL_MEM_MALLOC_HUGE_FIRST));
    ReadFile("./input/input_x.bin", inputByteSize, xHost, inputByteSize);
    ReadFile("./input/input_y.bin", inputByteSize, yHost, inputByteSize);
    CHECK_ACL(aclrtMemcpy(xDevice, inputByteSize, xHost, inputByteSize, ACL_MEMCPY_HOST_TO_DEVICE));
    CHECK_ACL(aclrtMemcpy(yDevice, inputByteSize, yHost, inputByteSize, ACL_MEMCPY_HOST_TO_DEVICE));
    // 用内核调用符<<<>>>调用核函数完成指定的运算
    add_custom_do(blockDim, nullptr, stream, xDevice, yDevice, zDevice);
    CHECK_ACL(aclrtSynchronizeStream(stream));
    // 将Device上的运算结果拷贝回Host
    CHECK_ACL(aclrtMemcpy(zHost, outputByteSize, zDevice, outputByteSize, ACL_MEMCPY_DEVICE_TO_HOST));
    WriteFile("./output/output_z.bin", zHost, outputByteSize);
    // 释放申请的资源
    CHECK_ACL(aclrtFree(xDevice));
    CHECK_ACL(aclrtFree(yDevice));
    CHECK_ACL(aclrtFree(zDevice));
    CHECK_ACL(aclrtFreeHost(xHost));
    CHECK_ACL(aclrtFreeHost(yHost));
    CHECK_ACL(aclrtFreeHost(zHost));
    CHECK_ACL(aclrtDestroyStream(stream));
    CHECK_ACL(aclrtDestroyContext(context));
    CHECK_ACL(aclrtResetDevice(deviceId));
    CHECK_ACL(aclFinalize());
