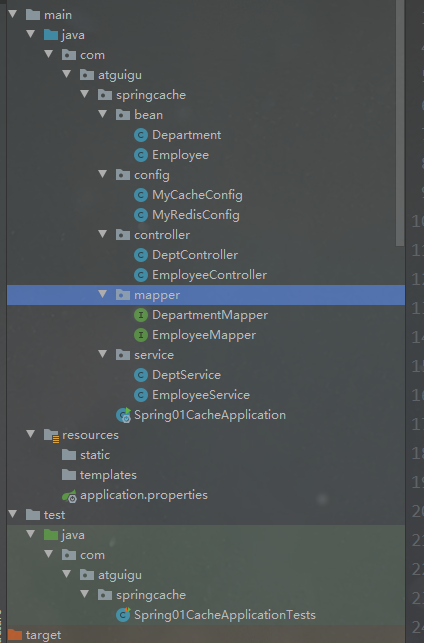

1、项目目录结构：

2、application.properties配置文件：

我这里redis连的是虚拟机上面的，你改下host地址就行

spring.datasource.url=jdbc:mysql://localhost:3306/spring_cache
spring.datasource.username=root
spring.datasource.password=123456
spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver
spring.datasource.type=org.springframework.jdbc.datasource.DriverManagerDataSource


#开启驼峰命名匹配规则
mybatis.configuration.map-underscore-to-camel-case=true

logging.level.com.atguigu.springcache.mapper=debug

#debug=true

#配置redis
spring.redis.host=192.168.56.101

3、MyRedisConfig

package com.atguigu.springcache.config;

import com.atguigu.springcache.bean.Department;
import com.atguigu.springcache.bean.Employee;
import com.fasterxml.jackson.annotation.JsonAutoDetect;
import com.fasterxml.jackson.annotation.PropertyAccessor;
import com.fasterxml.jackson.databind.ObjectMapper;
import com.fasterxml.jackson.databind.jsontype.impl.LaissezFaireSubTypeValidator;
import org.springframework.boot.autoconfigure.condition.ConditionalOnMissingBean;
import org.springframework.boot.autoconfigure.condition.ConditionalOnSingleCandidate;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Primary;
import org.springframework.data.redis.cache.RedisCacheConfiguration;
import org.springframework.data.redis.cache.RedisCacheManager;
import org.springframework.data.redis.cache.RedisCacheWriter;
import org.springframework.data.redis.connection.RedisConnectionFactory;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.data.redis.serializer.Jackson2JsonRedisSerializer;
import org.springframework.data.redis.serializer.RedisSerializationContext;
import org.springframework.data.redis.serializer.RedisSerializer;
import org.springframework.data.redis.serializer.StringRedisSerializer;

import java.net.UnknownHostException;

@Configuration
public class MyRedisConfig {

    /*@Bean
    public RedisTemplate<Object, Employee> empRedisTemplate(RedisConnectionFactory redisConnectionFactory) {
        RedisTemplate<Object, Employee> template = new RedisTemplate();
        template.setConnectionFactory(redisConnectionFactory);
        Jackson2JsonRedisSerializer<Employee> ser = new Jackson2JsonRedisSerializer<Employee>(Employee.class);
        template.setDefaultSerializer(ser);
        return template;
    }*/
    //CacheManagerCustomizers可以来定制缓存的一些规则
  /*  @Primary  //将某个缓存管理器作为默认的
    @Bean
    public RedisCacheManager employeeCacheManager(RedisTemplate<Object, Employee> empRedisTemplate){
        RedisCacheManager cacheManager = new RedisCacheManager(empRedisTemplate);
        //key多了一个前缀

        //使用前缀，默认会将CacheName作为key的前缀
       // cacheManager.setUsePrefix(true);

        return cacheManager;
    }
    @Bean
    public RedisCacheManager deptCacheManager(RedisTemplate<Object, Department> deptRedisTemplate){
        RedisCacheManager cacheManager = new RedisCacheManager(deptRedisTemplate);
        //key多了一个前缀

        //使用前缀，默认会将CacheName作为key的前缀
       // cacheManager.setUsePrefix(true);

        return cacheManager;
    }
*/
    /**
     * 往容器中添加RedisTemplate对象，设置序列化方式
     * @param redisConnectionFactory
     * @return
     * @throws UnknownHostException
     */
    @Bean
    public RedisTemplate<String, Object> redisTemplate(RedisConnectionFactory redisConnectionFactory) throws UnknownHostException {
        RedisTemplate<String, Object> template = new RedisTemplate();
        template.setConnectionFactory(redisConnectionFactory);
        template.setKeySerializer(new StringRedisSerializer());
        template.setValueSerializer(valueSerializer());
        template.setHashKeySerializer(new StringRedisSerializer());
        template.setHashValueSerializer(valueSerializer());
        template.afterPropertiesSet();
        return template;
    }

    /**
     * 往容器中添加RedisCacheManager容器，并设置序列化方式
     * @param redisConnectionFactory
     * @return
     */
    @Primary    //将某个缓存管理器作为默认使用的
    @Bean
    public RedisCacheManager redisCacheManager(RedisConnectionFactory redisConnectionFactory) {
        RedisCacheWriter redisCacheWriter = RedisCacheWriter.nonLockingRedisCacheWriter(redisConnectionFactory);
        RedisCacheConfiguration redisCacheConfiguration = RedisCacheConfiguration.defaultCacheConfig()
                .serializeValuesWith(RedisSerializationContext.SerializationPair.fromSerializer(valueSerializer()));
        redisCacheConfiguration.serializeKeysWith(RedisSerializationContext.SerializationPair.fromSerializer(new StringRedisSerializer()));
        return new RedisCacheManager(redisCacheWriter, redisCacheConfiguration);
    }
    /**
     * 使用Jackson序列化器
     * @return
     */
    private RedisSerializer<Object> valueSerializer() {
        Jackson2JsonRedisSerializer<Object> serializer = new Jackson2JsonRedisSerializer<Object>(Object.class);
        ObjectMapper objectMapper = new ObjectMapper();
        objectMapper.setVisibility(PropertyAccessor.ALL, JsonAutoDetect.Visibility.ANY);
        /**
         * 这一句必须要，作用是序列化时将对象全类名一起保存下来
         * 设置之后的序列化结果如下：
         *  [
         *   "com.dxy.cache.pojo.Dept",
         *   {
         *     "pid": 1,
         *     "code": "11",
         *     "name": "财务部1"
         *   }
         * ]
         *
         * 不设置的话，序列化结果如下，将无法反序列化
         *
         *  {
         *     "pid": 1,
         *     "code": "11",
         *     "name": "财务部1"
         *   }
         */
//                objectMapper.enableDefaultTyping(ObjectMapper.DefaultTyping.NON_FINAL);
        //因为上面那句代码已经被标记成作废，因此用下面这个方法代替，仅仅测试了一下，不知道是否完全正确
        objectMapper.activateDefaultTyping(LaissezFaireSubTypeValidator.instance, ObjectMapper.DefaultTyping.NON_FINAL);
        serializer.setObjectMapper(objectMapper);
        return serializer;
    }


}

4、DeptController:

package com.atguigu.springcache.controller;

import com.atguigu.springcache.bean.Department;
import com.atguigu.springcache.service.DeptService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class DeptController {
    @Autowired
    DeptService deptService;


    @GetMapping("/dept/{id}")
    public Department getDept(@PathVariable("id") Integer id){
        Department deptById = deptService.getDeptById(id);
        return deptById;
    }
}

5、DeptService:

package com.atguigu.springcache.service;

import com.atguigu.springcache.bean.Department;
import com.atguigu.springcache.mapper.DepartmentMapper;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.cache.Cache;
import org.springframework.cache.annotation.Cacheable;
import org.springframework.data.redis.cache.RedisCacheManager;
import org.springframework.stereotype.Service;

@Service
public class DeptService {
    @Autowired
    DepartmentMapper departmentMapper;

    @Qualifier("redisCacheManager")
    @Autowired
    RedisCacheManager redisCacheManager;
    /**
     * 缓存的数据能存入redis
     * 注解方式存数据
     */
    @Cacheable(cacheNames = "dept")
    public Department getDeptById(Integer id){
        System.out.println("查询部门"+id);
        Department department=departmentMapper.getDeptById(id);
       return department;
    }


}

6、DeptMapper:

package com.atguigu.springcache.mapper;

import com.atguigu.springcache.bean.Department;
import org.apache.ibatis.annotations.Mapper;
import org.apache.ibatis.annotations.Select;

@Mapper
public interface DepartmentMapper {

    @Select("select * from department where id=#{id}")
    Department getDeptById(Integer id);
}

7、测试：

先清空redis数据库，否则会报错

启动项目，访问：localhost:8080/dept/1

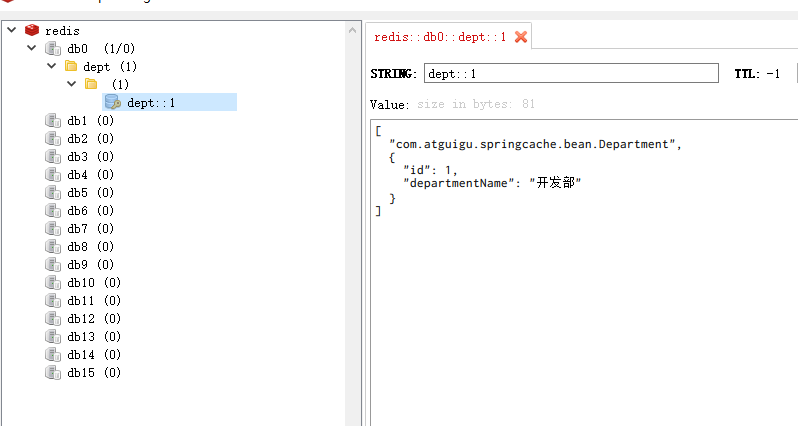

查看redis数据库：

再查一次部门1，控制台并没有打印sql语句，而是从缓存中取

MyRedisConfig配置类的参考链接
