GEE ——多种机器学习方法（随机森林、cart、svm等）进行土地分类用光谱指数、植被、土壤、雪和烧毁区

//加载研究区样本点信息
var rois = ee.FeatureCollection(train_p1);
var rois2 = ee.FeatureCollection(testing_p1);

//地形参数
var ALOSDSMDEM = ee.Image('JAXA/ALOS/AW3D30_V1_1');
var ALOSDM = ALOSDSMDEM.select('AVE').toDouble().clip (puna).rename("ELEVACION");
var SLOPE_F = ee.Terrain.slope(ALOSDM).toDouble().clip (puna).rename("PENDIENTE");
var ASPECT_F = ee.Terrain.aspect(ALOSDM).toDouble().rename("ASPECTO");
var SIN_ASPECT =
ASPECT_F.divide(180).multiply(Math.PI).sin().toDouble().rename("ASPECTO");

//光学影像
var IMGLandsat8= ee.ImageCollection ('LANDSAT/LC08/C01/T1_SR')
 .filterDate ('2018-01-31', '2018-06-30') //fechas disponibles ('2013-04-11' - actualidad)
 .filterBounds (puna);

 //影像去云
function maskLXsr(image){
 var cloudShadowBitMask = ee.Number(2).pow(3).int();
 var cloudsBitMask = ee.Number(2).pow(5).int();
 var qa = image.select('pixel_qa');
 var mask = qa.bitwiseAnd(cloudShadowBitMask).eq(0)
 .and(qa.bitwiseAnd(cloudsBitMask).eq(0));
 return image.updateMask(mask).divide(10000).clamp(1e-6, 1)
 .copyProperties(image, ["system:time_start"]);
}
//影像去云映射和中位数合成
var lXmask = IMGLandsat8.map(maskLXsr);
var Landsat8_NRG1 = ee.Image(lXmask.median());
//波段替换和转化为双精度
var Landsat8a = Landsat8_NRG1.clip (puna)
 .select(['B2', 'B3', 'B4', 'B5', 'B6', 'B7'])
 .rename(['blue','green','red','nir','swir1','swir2'])
 .toDouble();
//
var Landsat8 = (Landsat8a.select('blue','green','red','nir','swir1','swir2')
 .divide((Landsat8a.select('blue','green','red','nir','swir1','swir2')
 .reduce(ee.Reducer.sum())).divide(ee.Number(6))))
 .multiply(ee.Number(100));

//添加指数
//添加 NDVI
var addNDVI=function(imagen){
 var NIR='nir';
 var RED='red';
 var ndvi= imagen.normalizedDifference([NIR, RED]).rename('NDVI');
 return imagen.addBands(ndvi).select('NDVI')};
var ndvi = addNDVI(Landsat8).select('NDVI').toDouble().rename("NDVI");
var NDVI_FIN = ndvi.clamp(-1, 1);
//print(NDVI_FIN,"NDVI_FIN")
//Map.addLayer(NDVI_FIN,{min: 0, max: 1},"ndvi");

//添加NDBI
// Normalized Difference Builtup Index (NDBI) NDBI = (SWIR1 – NIR) / (SWIR1 + NIR)
var addNDBI=function(imagen){
 var NIR='nir';
 var SWIR1='swir1';
 var ndbi= imagen.normalizedDifference([SWIR1,NIR]).rename('NDBI');
 return imagen.addBands(ndbi).select('NDBI')};
var NDBI = addNDBI(Landsat8).select('NDBI').toDouble().rename("NDBI");
var NDBI_FIN = NDBI.clamp(-1, 1);
//print(NDBI_FIN,"NDBI_FIN")
//Map.addLayer(NDBI_FIN,{min: 0, max: 1},"NDBI");

//添加NBR
//Normalized BURN RATIO "(NIR - SWIR1) / (NIR + SWIR1)"
var addNBR=function(imagen){
 var NIR='nir';
 var SWIR1='swir1';
 var nbr= imagen.normalizedDifference([NIR, SWIR1]).rename('NBR');
 return imagen.addBands(nbr).select('NBR')};
var NBR = addNBR(Landsat8).select('NBR').toDouble().rename("NBR");
var NBR_FIN = NBR.clamp(-1, 1);
//print(NBR_FIN,"NBR_FIN")
//Map.addLayer(NBR_FIN,{min: 0, max: 1},"NBR");

//添加NDWI
// Normalized Difference Water Index (NDWI) NDWI = (Green – NIR) / (Green + NIR)
var addNDWI=function(imagen){
 var NIR='nir';
 var GREEN='green';
 var ndwi= imagen.normalizedDifference([GREEN, NIR]).rename('NDWI');
 return imagen.addBands(ndwi).select('NDWI')};
var NDWI = addNDWI(Landsat8).select('NDWI').toDouble().rename("NDWI");
var NDWI_FIN = NDWI.clamp(-1, 1);
//print(NDWI_FIN,"NDWI_FIN")
//Map.addLayer(NDWI_FIN,{min: 0, max: 1},"NDWI");


//添加NBR NDSI
// Modified Normalized Difference Water Index (mNDWI) or Normalized Difference Snow Index (NDSI)
// A common index for detecting water (mNDWI) or snow (NDSI), where mNDWI = NDSI = (Green – SWIR1) / (Green + SWIR1).
var addNDSI=function(imagen){
 var GREEN='green';
 var SWIR1='swir1';
 var ndsi= imagen.normalizedDifference([GREEN, SWIR1]).rename('NDSI');
 return imagen.addBands(ndsi).select('NDSI')};
var NDSI = addNDSI(Landsat8).select('NDSI').toDouble().rename("NDSI");
var NDSI_FIN = NDSI.clamp(-1, 1);
//print(NDSI_FIN,"NDSI_FIN")
//Map.addLayer(NDSI_FIN,{min: 0, max: 1},"NDSI");

// 添加 MSAVI
var MSAVI = Landsat8.select('nir').multiply(2).add(1)
 .subtract(Landsat8.select('nir').multiply(2).add(1).pow(2)
 .subtract(Landsat8.select('nir').subtract(Landsat8.select('red')).multiply(8)).sqrt()
 ).divide(2)
var MSAVI_FIN = MSAVI.toDouble().rename("MSAVI");
//print(MSAVI_FIN,"MSAVI_FIN")
//Map.addLayer(MSAVI_FIN,{min: 0, max: 0.5},"MSAVI_FIN");

// 添加 Enhanced Vegetation Index (EVI)
//An "optimized" vegetation index designed to enhance the vegetation signal with improved
sensitivity
//in high biomass regions. Landsat EVI = 2.5 * (NIR – Red) / ( NIR + 6*Red – 7.5*Blue + 1).
var EVI1 = ((Landsat8.select('nir').subtract(Landsat8.select('red')))
 .divide(Landsat8.select('nir').add(((Landsat8.select('red').multiply(6))
 .subtract(Landsat8.select('blue').multiply(7.5))).add(1)))).multiply(2.5)
var EVI = EVI1.toDouble().rename("EVI");
//print (EVI, 'EVI')
//Map.addLayer(EVI, {min: -1, max: 1}, 'EVI');

//添加光谱变异植被指数 Spectral Variability Vegetation Index (SVVI)
var SVV1a = Landsat8.select('blue','green','red','nir','swir1','swir2').reduce(ee.Reducer.stdDev());
var SVV1b = Landsat8.select('nir','swir1','swir2').reduce(ee.Reducer.stdDev());
var SVVI = SVV1a.subtract(SVV1b).rename("SVVI");
//var bands = ['blue','green','red','nir','swir1','swir2']
//var bands = ['NDVI','NDBI','NBR', 'NDWI','NDSI','MSAVI','EVI','SVVI'];
//var bands = ['blue','green','red','nir','swir1','swir2', 'NDVI','NDBI','NBR', 'NDWI','NDSI','MSAVI','EVI','SVVI']
//var bands = ['blue','green','red','nir','swir1','swir2','ELEVACION', 'PENDIENTE', 'ASPECTO'];
//var bands = ['NDVI','NDBI','NBR', 'NDWI','NDSI','MSAVI','EVI','SVVI', 'ELEVACION', 'PENDIENTE', 'ASPECTO'];
//var bands = ['blue','green','red','nir','swir1','swir2','NDVI','NDBI','NBR', 'NDWI','NDSI','MSAVI','EVI','SVVI','ELEVACION', 'PENDIENTE', 'ASPECTO'];

//多波段融合
var predictors_base = Landsat8.addBands(NDVI_FIN).addBands(NDBI_FIN).addBands(NBR_FIN)
 .addBands(NDWI_FIN).addBands(NDSI_FIN).addBands(MSAVI_FIN)
 .addBands(EVI).addBands(SVVI)
 .addBands(ALOSDM).addBands(SLOPE_F).addBands(SIN_ASPECT);

//选择不同波段用于训练模型
var predictors = predictors_base.select(bands);

//这里有两个一个是训练样本一个是测试样本
//提取样本点这里直接变成矢量集合
var trainingPartition = predictors.sampleRegions({
 collection: rois,
 properties: ['Clave'],
 scale: 30
});
var testingPartition = predictors.sampleRegions({
 collection: rois2,
 properties: ['Clave'],
 scale: 30
});

//多分类器集合为一个变量 为下一步应用不同模型进行准备
var classifiers = [ee.Classifier.libsvm(),
 ee.Classifier.minimumDistance(),
 ee.Classifier.smileCart(),
 ee.Classifier.smileGradientTreeBoost(100),
 ee.Classifier.smileNaiveBayes(),
 ee.Classifier.smileRandomForest(100)];

//进行随机森林训练
var classifier = ee.Classifier.smileRandomForest({numberOfTrees: 100,}).train({
 features: trainingPartition,
 classProperty: 'Clave',
 inputProperties: bands
});
//描述经过训练的分类器的结果。
var dict = classifier.explain();

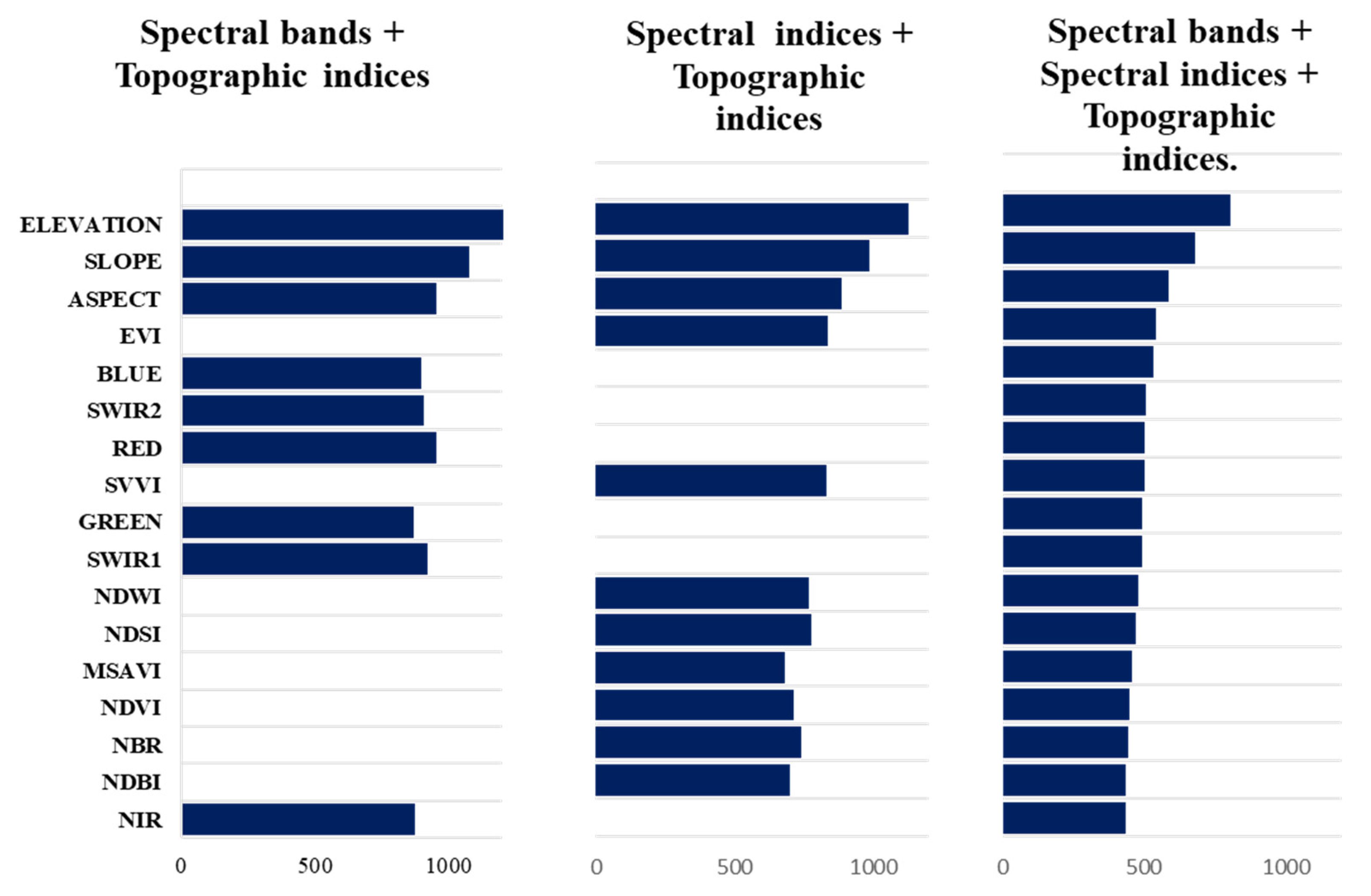

//变量重要性重要性发分析
var variable_importance = ee.Feature(null, ee.Dictionary(dict).get('importance'));

//加载变量重要性图表
 var chart =
ui.Chart.feature.byProperty(variable_importance)
.setChartType('ColumnChart')
.setOptions({
title: 'Random Forest Variable Importance',
legend: {position: 'none'},
hAxis: {title: 'Bands'},
vAxis: {title: 'Importance'}
});
var votes = ee.Image().clip(puna);

//这里遍历所有分类方法得出结果
for(var i in classifiers) {
 votes = votes.addBands(predictors.classify(classifiers[i].train(trainingPartition,"Clave")))}
print(votes, "votes");
var votes1 = votes.select('classification_4').toDouble()
print(votes1, 'vot1')

 //导出分类结果
*Export.image.toDrive({
 image: votes.select('classification','classification_1',
 'classification_2', 'classification_3',
 'classification_4', 'classification_5'),
 description: 'C1',
 scale: 30,
 folder : 'COVER_NYC',
 maxPixels: 8000000000,
 region: puna});
