@[toc]

前言

本节配套案例代码:Gitee仓库Github仓库

所有博客文件目录索引:博客目录索引(持续更新)

学习视频:SpringCloud 教程 已完结(IDEA 2022.1最新版)4K蓝光画质 微服务开发

PS:本章节中部分图片是直接引用学习课程课件,如有侵权,请联系删除。

当前项目环境版本:springboot 2.3.12.RELEASEspringcloud alibaba 2.2.7.RELEASESpringCloud Hoxton-SR12

一、Seata介绍

1.1、认识Seata

SpringCloud Alibaba为我们提供了用于处理分布式事务的组件Seata。


Seata 是一款开源的分布式事务解决方案,致力于提供高性能和简单易用的分布式事务服务。Seata 将为用户提供了 AT、TCC、SAGA 和 XA 事务模式,为用户打造一站式的分布式解决方案。

实际上,就是多了一个中间人来协调所有服务的事务。


1.2、Seata的四种事务模式

Seata支持4种事务模式,官网文档:https://seata.io/zh-cn/docs/overview/what-is-seata.html

  • AT:本质上就是2PC的升级版,在 AT 模式下,用户只需关心自己的 “业务SQL”
    1. 一阶段,Seata 会拦截“业务 SQL”,首先解析 SQL 语义,找到“业务 SQL”要更新的业务数据,在业务数据被更新前,将其保存成“before image”,然后执行“业务 SQL”更新业务数据,在业务数据更新之后,再将其保存成“after image”,最后生成行锁。以上操作全部在一个数据库事务内完成,这样保证了一阶段操作的原子性。
    2. 二阶段如果确认提交的话,因为“业务 SQL”在一阶段已经提交至数据库, 所以 Seata 框架只需将一阶段保存的快照数据和行锁删掉,完成数据清理即可,当然如果需要回滚,那么就用“before image”还原业务数据;但在还原前要首先要校验脏写,对比“数据库当前业务数据”和 “after image”,如果两份数据完全一致就说明没有脏写,可以还原业务数据,如果不一致就说明有脏写,出现脏写就需要转人工处理。
  • TCC:和我们上面讲解的思路是一样的。

  • XA:同上,但是要求数据库本身支持这种模式才可以。

  • Saga:用于处理长事务,每个执行者需要实现事务的正向操作和补偿操作:


二、实战:集成Seata实现分布式事务(AT模式)

说明:demo项目其中的部分代码写的比较简陋,我们将重心放在分布式事务上即可!

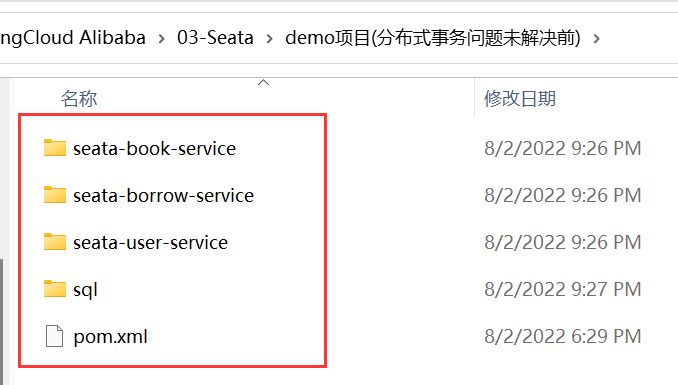

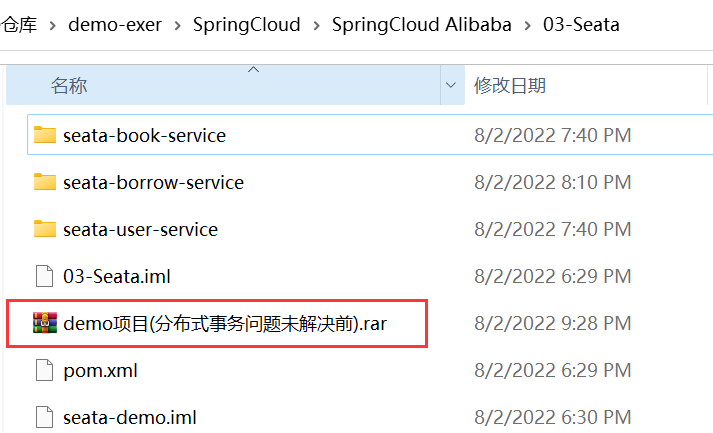

对于2.1部分的代码我已经进行了打包:在对应gitee或github仓库的指定位置下载即可,可直接复现分布式事务问题!

image-20220802212750356

image-20220802212851648


2.1、本地项目搭建(复现分布式事务问题)

项目介绍

为了能够集成Seata组件来实现分布式事务数据一致性的效果,来构建多个微服务进行远程调用。

image-20220802202850589

本次使用到的分布式组件包含:nacos(注册中心)、feign(远程调用组件)

服务包含:book-service(图书服务)、borrow-service(借阅服务)、user-service(用户服务)。

事务问题描述(目标复现):在borrow-service服务中会在一个service中会执行本地事务,远程调用book-service以及user-service的接口,这两个服务的接口都与数据库有交互操作,在没有使用Seata组件前,若是其中某个服务出现异常,那么之前提交的操作都不能够进行回滚,因为这涉及到多个不同的事务管理器。

看一下数据库表:

image-20220802203238768

db_book:图书表,其中count表示该数的库存数量。对应的是book-service。

image-20220802203304750

db_borrow:借阅表。对应的是borrow-service。

image-20220802203319177

db_user:用户表。对应的是user-service。

image-20220802203331754

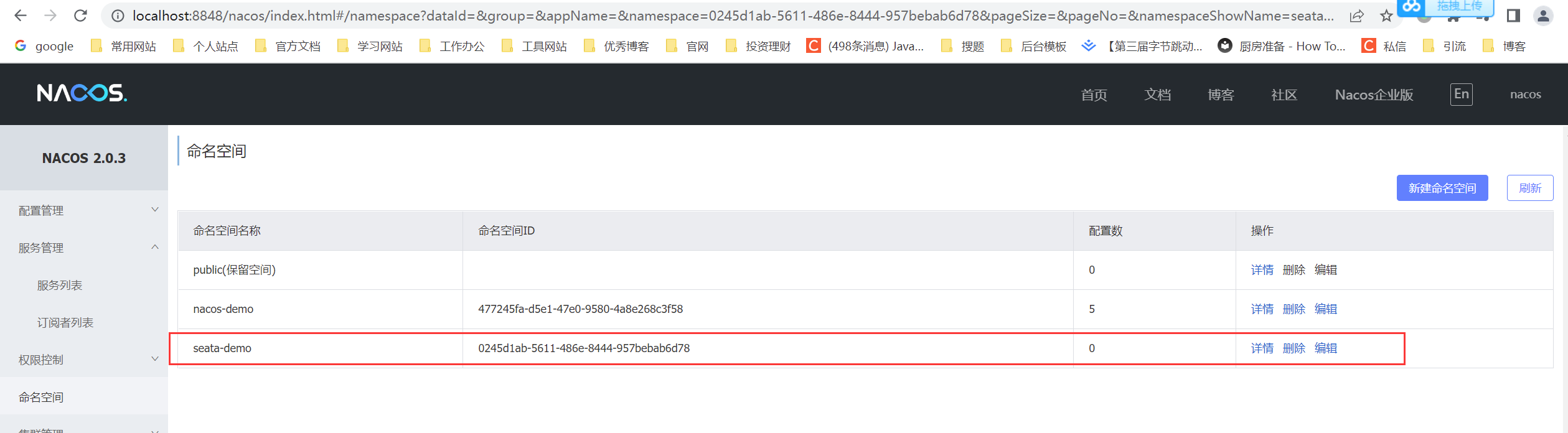

Nacos服务创建命名空间

创建命名空间为seata-demo:

image-20220802210001056

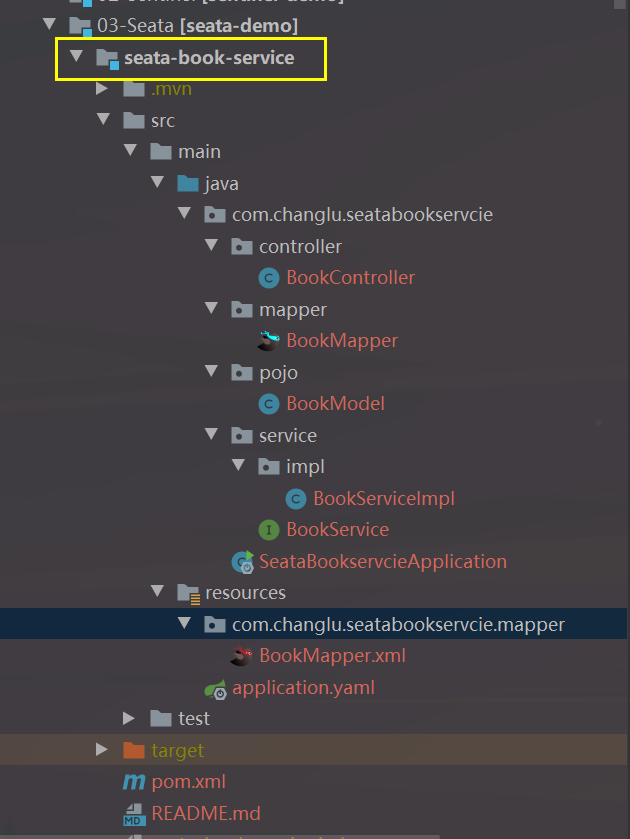

book-service服务

image-20220802205815764

引入依赖:

<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>

    <dependency>
        <groupId>com.alibaba.cloud</groupId>
        <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
    </dependency>

    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
        <optional>true</optional>
    </dependency>

    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <scope>runtime</scope>
    </dependency>
    <dependency>
        <groupId>com.baomidou</groupId>
        <artifactId>mybatis-plus-boot-starter</artifactId>
        <version>3.4.0</version>
    </dependency>
</dependencies>

1、yaml配置项:application.yaml

server:
  port: 8083

spring:
  application:
    name: book-service
  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://127.0.0.1:3306/seata-demo?useUnicode=true&characterEncoding=UTF-8&serverTimezone=Asia/Shanghai
    username: root
    password: 123456
  cloud:
    nacos:  # 如果不指定命名空间会默认注册到public里面去 如果没有指定分组 会注册到DEFAULT_GROUP
      server-addr: localhost:8848  # 指定服务注册地址
      username: nacos
      password: nacos
      discovery:
        namespace: 0245d1ab-5611-486e-8444-957bebab6d78   # 若是不指定,默认就是public
        group: BOOK_GROUP   # 若是不指定,默认是DEFAULT_GROUP
        service: book-service   # 默认使用的是spring.application.name,这里可以进行指定

#控制台打印sql(默认不会有打印sql语句)
mybatis-plus:
  mapper-locations: classpath*:/mapperxxx/**/*.xml
  configuration:
    log-impl: org.apache.ibatis.logging.stdout.StdOutImpl

2、Mapper接口以及Mapper配置文件、pojo对象

package com.changlu.seatauserservice.pojo;

import com.baomidou.mybatisplus.annotation.TableField;
import com.baomidou.mybatisplus.annotation.TableId;
import com.baomidou.mybatisplus.annotation.TableName;
import lombok.Data;
import lombok.EqualsAndHashCode;

import java.io.Serializable;

@Data
@EqualsAndHashCode(callSuper = false)
@TableName("db_user")
public class UserModel implements Serializable {

    private static final long serialVersionUID = 1L;

    @TableId("uid")
    private Integer uid;

    @TableField("name")
    private String name;

    @TableField("age")
    private Integer age;

    @TableField("book_count")
    private Integer bookCount;
}
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.changlu.seatabookservcie.mapper.BookMapper">

    <!-- 通用查询映射结果 -->
    <resultMap id="BaseResultMap" type="com.changlu.seatabookservcie.pojo.BookModel">
        <id column="id" property="id" />
        <result column="name" property="name" />
        <result column="count" property="count" />
    </resultMap>

</mapper>
package com.changlu.seatabookservcie.mapper;


import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.changlu.seatabookservcie.pojo.BookModel;
import org.apache.ibatis.annotations.Select;
import org.apache.ibatis.annotations.Update;

/**
 * <p>
 *  Mapper 接口
 * </p>
 *
 * @author ChangLu
 * @since 2022-08-02
 */
public interface BookMapper extends BaseMapper<BookModel> {

    @Select("SELECT count from db_book WHERE id = #{id}")
    int bookRemain(Integer id);

    @Update("UPDATE db_book set count = count - 1 where id = #{id} and count > 0")
    int minusBookRemain(Integer id);

}

3、Service接口以及实现类:com.changlu.seatabookservcie.service.BookService

package com.changlu.seatabookservcie.service;


import com.baomidou.mybatisplus.extension.service.IService;
import com.changlu.seatabookservcie.pojo.BookModel;

/**
 * <p>
 *  服务类
 * </p>
 *
 * @author ChangLu
 * @since 2022-08-02
 */
public interface BookService extends IService<BookModel> {

    int bookRemain(Integer id);

    int minusBookRemain(Integer id);

}
package com.changlu.seatabookservcie.service.impl;


import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import com.changlu.seatabookservcie.mapper.BookMapper;
import com.changlu.seatabookservcie.pojo.BookModel;
import com.changlu.seatabookservcie.service.BookService;
import org.springframework.stereotype.Service;

import javax.annotation.Resource;

/**
 * <p>
 *  服务实现类
 * </p>
 *
 * @author ChangLu
 * @since 2022-08-02
 */
@Service
public class BookServiceImpl extends ServiceImpl<BookMapper, BookModel> implements BookService {

    @Resource
    private BookMapper bookMapper;

    @Override
    public int bookRemain(Integer id) {
        return bookMapper.bookRemain(id);
    }

    @Override
    public int minusBookRemain(Integer id) {
        return bookMapper.minusBookRemain(id);
    }
}

4、控制器,对外暴露两个接口,一个是查询以及一个更改数据:

package com.changlu.seatabookservcie.controller;


import com.changlu.seatabookservcie.service.BookService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * <p>
 *  前端控制器
 * </p>
 *
 * @author ChangLu
 * @since 2022-08-02
 */
@RestController
@RequestMapping("/book")
public class BookController {

    @Autowired
    private BookService bookService;

    @GetMapping("/remain/{id}")
    public int bookRemain(@PathVariable("id") Integer id) {
        return bookService.bookRemain(id);
    }

    @GetMapping("/minus/{id}")
    public int minusBookRemain(@PathVariable("id") Integer id) {
        return bookService.minusBookRemain(id);
    }

}

5、启动器开启服务注册以及Mapper扫描:启动器上添加

@MapperScan("com.changlu.seatabookservcie.mapper")
@EnableDiscoveryClient

user-service服务

image-20220802210350173

引入的依赖与book-service一致,不再贴出。

1、配置文件:application.yaml

server:
  port: 8081

spring:
  application:
    name: user-service
  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://127.0.0.1:3306/seata-demo?useUnicode=true&characterEncoding=UTF-8&serverTimezone=Asia/Shanghai
    username: root
    password: 123456
  cloud:
    nacos:  # 如果不指定命名空间会默认注册到public里面去 如果没有指定分组 会注册到DEFAULT_GROUP
      server-addr: localhost:8848  # 指定服务注册地址
      username: nacos
      password: nacos
      discovery:
        namespace: 0245d1ab-5611-486e-8444-957bebab6d78   # 若是不指定,默认就是public
        group: BOOK_GROUP   # 若是不指定,默认是DEFAULT_GROUP
        service: user-service   # 默认使用的是spring.application.name,这里可以进行指定

#控制台打印sql(默认不会有打印sql语句)
mybatis-plus:
  mapper-locations: classpath*:/mapperxxx/**/*.xml
  configuration:
    log-impl: org.apache.ibatis.logging.stdout.StdOutImpl

2、mapper接口以及mapper映射配置文件、pojo类

package com.changlu.seataborrowservice.pojo;

import com.baomidou.mybatisplus.annotation.TableField;
import com.baomidou.mybatisplus.annotation.TableId;
import com.baomidou.mybatisplus.annotation.TableName;
import lombok.Data;
import lombok.EqualsAndHashCode;

import java.io.Serializable;

/**
 * <p>
 *
 * </p>
 *
 * @author ChangLu
 * @since 2022-08-02
 */
@Data
@EqualsAndHashCode(callSuper = false)
@TableName("db_borrow")
public class BorrowModel implements Serializable {

    private static final long serialVersionUID = 1L;

    @TableId("user_id")
    private Integer userId;

    @TableField("book_id")
    private Integer bookId;
}
package com.changlu.seatauserservice.mapper;


import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.changlu.seatauserservice.pojo.UserModel;
import org.apache.ibatis.annotations.Select;
import org.apache.ibatis.annotations.Update;

/**
 * <p>
 *  Mapper 接口
 * </p>
 *
 * @author ChangLu
 * @since 2022-08-02
 */
public interface UserMapper extends BaseMapper<UserModel> {

    @Select("SELECT book_count from db_user WHERE uid = #{uid}")
    int getUserRemainBook(Integer uid);

    @Update("UPDATE db_user set book_count = book_count - 1 where uid = #{uid}  and book_count > 0")
    int minusUserBookCount(Integer uid);

}
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.changlu.seatauserservice.mapper.UserMapper">

    <!-- 通用查询映射结果 -->
    <resultMap id="BaseResultMap" type="com.changlu.seatauserservice.pojo.UserModel">
        <id column="uid" property="uid" />
        <result column="name" property="name" />
        <result column="age" property="age" />
        <result column="book_count" property="bookCount" />
    </resultMap>

</mapper>

3、service接口:

package com.changlu.seatauserservice.service;
import com.baomidou.mybatisplus.extension.service.IService;
import com.changlu.seatauserservice.pojo.UserModel;

/**
 * <p>
 *  服务类
 * </p>
 *
 * @author ChangLu
 * @since 2022-08-02
 */
public interface UserService extends IService<UserModel> {

    int getUserRemainBook(Integer uid);

    int minusUserBookCount(Integer uid);

}
package com.changlu.seatauserservice.service.impl;

import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import com.changlu.seatauserservice.mapper.UserMapper;
import com.changlu.seatauserservice.pojo.UserModel;
import com.changlu.seatauserservice.service.UserService;
import org.springframework.stereotype.Service;
import javax.annotation.Resource;

/**
 * <p>
 *  服务实现类
 * </p>
 *
 * @author ChangLu
 * @since 2022-08-02
 */
@Service
public class UserServiceImpl extends ServiceImpl<UserMapper, UserModel> implements UserService {

    @Resource
    private UserMapper userMapper;

    @Override
    public int getUserRemainBook(Integer uid) {
        return userMapper.getUserRemainBook(uid);
    }

    @Override
    public int minusUserBookCount(Integer uid) {
        return userMapper.minusUserBookCount(uid);
    }
}

4、控制器:

package com.changlu.seatauserservice.controller;


import com.changlu.seatauserservice.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

/**
 * <p>
 *  前端控制器
 * </p>
 *
 * @author ChangLu
 * @since 2022-08-02
 */
@RestController
@RequestMapping("/user")
public class UserController {

    @Autowired
    private UserService userService;

    @GetMapping("/remainbook/{uid}")
    public int getUserRemainBook(@PathVariable("uid")Integer uid) {
        return userService.getUserRemainBook(uid);
    }

    @GetMapping("/minusbook/{uid}")
    public int minusUserBookCount(@PathVariable("uid")Integer uid) {
        return userService.minusUserBookCount(uid);
    }

}

5、启动器上添加注解,与book-service一致

@MapperScan("com.changlu.seatauserservice.mapper")
@EnableDiscoveryClient

borrow-service服务(分布式事务问题产生见其中service方法)

在borrow-service服务中,还包含有feign组件,该服务会对book-service、user-service服务来进行远程调用,那么本次服务的分布式事务问题也是从这里产生的!

image-20220802210800467

引入依赖:与前面服务一致同样也有nacos注册依赖,唯一多了一个就是feign组件

<dependency>
    <groupId>com.alibaba.cloud</groupId>
    <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
</dependency>

<dependencyManagement>
     <dependencies>
         <dependency>
             <groupId>org.springframework.cloud</groupId>
             <artifactId>spring-cloud-dependencies</artifactId>
             <version>${spring-cloud.version}</version>
             <type>pom</type>
             <scope>import</scope>
         </dependency>
     </dependencies>
</dependencyManagement>

1、配置文件:applicaion.yaml

server:
  port: 8082

spring:
  application:
    name: borrow-service
  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://127.0.0.1:3306/seata-demo?useUnicode=true&characterEncoding=UTF-8&serverTimezone=Asia/Shanghai
    username: root
    password: 123456
  cloud:
    nacos:  # 如果不指定命名空间会默认注册到public里面去 如果没有指定分组 会注册到DEFAULT_GROUP
      server-addr: localhost:8848  # 指定服务注册地址
      username: nacos
      password: nacos
      discovery:
        namespace: 0245d1ab-5611-486e-8444-957bebab6d78   # 若是不指定,默认就是public
        group: BOOK_GROUP   # 若是不指定,默认是DEFAULT_GROUP
        service: borrow-service   # 默认使用的是spring.application.name,这里可以进行指定

#控制台打印sql(默认不会有打印sql语句)
mybatis-plus:
  mapper-locations: classpath*:/mapperxxx/**/*.xml
  configuration:
    log-impl: org.apache.ibatis.logging.stdout.StdOutImpl

2、mapper接口以及mapper映射文件、pojo类

package com.changlu.seataborrowservice.pojo;

import com.baomidou.mybatisplus.annotation.TableField;
import com.baomidou.mybatisplus.annotation.TableId;
import com.baomidou.mybatisplus.annotation.TableName;
import lombok.Data;
import lombok.EqualsAndHashCode;

import java.io.Serializable;

/**
 * @author ChangLu
 * @since 2022-08-02
 */
@Data
@EqualsAndHashCode(callSuper = false)
@TableName("db_borrow")
public class BorrowModel implements Serializable {

    private static final long serialVersionUID = 1L;

    @TableId("user_id")
    private Integer userId;

    @TableField("book_id")
    private Integer bookId;
}
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.changlu.seataborrowservice.mapper.BorrowMapper">

    <!-- 通用查询映射结果 -->
    <resultMap id="BaseResultMap" type="com.changlu.seataborrowservice.pojo.BorrowModel">
        <id column="user_id" property="userId" />
        <result column="book_id" property="bookId" />
    </resultMap>

</mapper>
package com.changlu.seataborrowservice.mapper;


import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.changlu.seataborrowservice.pojo.BorrowModel;
import org.apache.ibatis.annotations.Insert;
import org.apache.ibatis.annotations.Param;
import org.apache.ibatis.annotations.Select;

/**
 * <p>
 *  Mapper 接口
 * </p>
 *
 * @author ChangLu
 * @since 2022-08-02
 */
public interface BorrowMapper extends BaseMapper<BorrowModel> {

    @Select("select * from db_borrow where user_id = #{userId} AND book_id = #{bookId}")
    BorrowModel getBorrow(@Param("userId")Integer userId, @Param("bookId")Integer bookId);

    @Insert("insert into db_borrow(user_id, book_id) values(#{userId}, #{bookId})")
    int addBorrow(@Param("userId")Integer userId, @Param("bookId")Integer bookId);

}

3、两个服务的feign接口:

package com.changlu.seataborrowservice.feign;

import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;

/**
 * @Description:
 * @Author: changlu
 * @Date: 7:52 PM
 */
@FeignClient(value = "user-service")
public interface BorrowUserFeign {

    @GetMapping("/user/remainbook/{uid}")
    int getUserRemainBook(@PathVariable("uid")Integer uid);

    @GetMapping("/user/minusbook/{uid}")
    int minusUserBookCount(@PathVariable("uid")Integer uid);

}
package com.changlu.seataborrowservice.feign;

import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;

/**
 * @Description:
 * @Author: changlu
 * @Date: 7:52 PM
 */
@FeignClient(value = "book-service")
public interface BorrowBookFeign {

    @GetMapping("/book/minus/{id}")
    int minusBookRemain(@PathVariable("id") Integer id);

    @GetMapping("/book/remain/{id}")
    int bookRemain(@PathVariable("id") Integer id);

}

4、出现分布式事务问题的service方法:

package com.changlu.seataborrowservice.service;


import com.baomidou.mybatisplus.extension.service.IService;
import com.changlu.seataborrowservice.pojo.BorrowModel;

/**
 * @author ChangLu
 * @since 2022-08-02
 */
public interface BorrowService extends IService<BorrowModel> {

    Boolean borrow(Integer uid, Integer bookId);
}
package com.changlu.seataborrowservice.service.impl;

import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import com.changlu.seataborrowservice.feign.BorrowBookFeign;
import com.changlu.seataborrowservice.feign.BorrowUserFeign;
import com.changlu.seataborrowservice.mapper.BorrowMapper;
import com.changlu.seataborrowservice.pojo.BorrowModel;
import com.changlu.seataborrowservice.service.BorrowService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import javax.annotation.Resource;

/**
 * @author ChangLu
 * @since 2022-08-02
 */
@Service
public class BorrowServiceImpl extends ServiceImpl<BorrowMapper, BorrowModel> implements BorrowService {

    @Resource
    private BorrowMapper borrowMapper;

    @Autowired
    private BorrowBookFeign borrowBookFeign;

    @Autowired
    private BorrowUserFeign borrowUserFeign;

    @Override
    public Boolean borrow(Integer uid, Integer bookId) {
        //1、判断图书与用户是否都支持借阅
        if (borrowBookFeign.bookRemain(bookId) < 0) {
            throw new RuntimeException("该图书库存不足,无法借阅!");
        }
        if (borrowUserFeign.getUserRemainBook(uid) < 1){
            throw new RuntimeException("该用户借阅图书数量已上限!");
        }
        //2、扣减图书库存数量
        if (borrowBookFeign.minusBookRemain(bookId) < 1) {  //book-service服务修改数据
            throw new RuntimeException("扣减图书数量失败!");
        }
        //3、添加图书用户借阅记录
        if (borrowMapper.getBorrow(uid, bookId) != null) {
            throw new RuntimeException("用户已借阅该图书!");
        }
        if (borrowMapper.addBorrow(uid, bookId) < 1) {  //本身服务新增数据
            throw new RuntimeException("图书借阅失败!");
        }
        //4、用户自己本身借阅数量-1
        if (borrowUserFeign.minusUserBookCount(uid) < 1) {  //user-service服务修改数据
            throw new RuntimeException("用户借阅书籍数量更新有误!");
        }
        return true;
    }
}

5、控制器:

package com.changlu.seataborrowservice.controller;


import com.alibaba.fastjson.JSONObject;
import com.changlu.seataborrowservice.service.BorrowService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * <p>
 *  前端控制器
 * </p>
 *
 * @author ChangLu
 * @since 2022-08-02
 */
@RestController
@RequestMapping("/borrow")
public class BorrowController {

    @Autowired
    private BorrowService borrowService;

    @GetMapping("/{uid}/{bookId}")
    public JSONObject borrow(@PathVariable("uid") Integer uid, @PathVariable("bookId") Integer bookId) {
        JSONObject object = new JSONObject();
        Boolean res = false;
        try {
            res = borrowService.borrow(uid, bookId);
        }catch (Exception ex) {
            object.put("code", 500);
            object.put("msg", ex.getMessage());
            return object;
        }
        if (res) {
            object.put("code", 200);
            object.put("msg", "借阅成功!");
        }else {
            object.put("code", 500);
            object.put("msg", "借阅失败!");
        }
        return object;
    }
}

6、启动器上添加注解来进行服务注册、mapper扫描以及feign包扫描增强

@MapperScan("com.changlu.seataborrowservice.mapper")
@EnableDiscoveryClient
@EnableFeignClients

问题复现测试

提前准备

ok,此时我们的项目环境搭建已经完成,此时就来启动nacos以及我们的三个服务,来进行接口测试吧!

image-20220802211708450

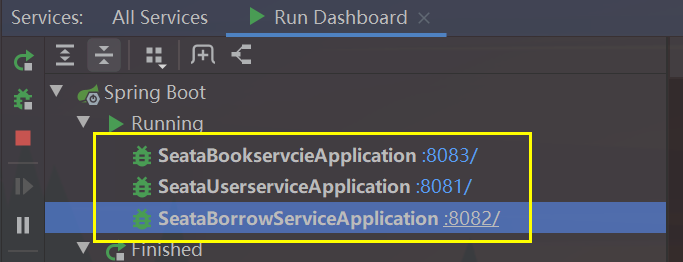

image-20220802211721999

我们来看下数据库当前的一些数据信息:每本书的库存是3本,借阅记录当前没有,用户借阅次数是3次

image-20220802211804627

image-20220802211813954

image-20220802211821247

开始测试

我们来访问borrow-service接口:http://localhost:8082/borrow/1/2

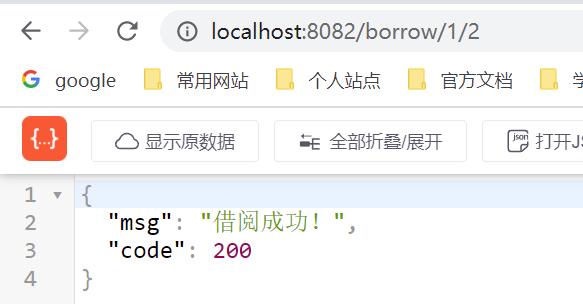

image-20220802211914740

可以看到借阅成功!此时看一下数据库的信息:

image-20220802211947163 image-20220802211953487 image-20220802212002422

可以看到西游记库存扣减1,借阅记录+1,用户借阅书籍数量-1,没有问题,那么我们此时再次调用找个接口试下:

问题提前指出:再次进行请求前我们来看下在borrow-service中的借阅方法怎么写的,若是我们再次调用上次接口,由于我们已经借阅了该书,那么此时就会在下面x位置报出异常,问题就出现了,那么book-service这里做的-1操作就产生数据不一致问题!

image-20220802212156716

来吧,测试一下:果然不出所料

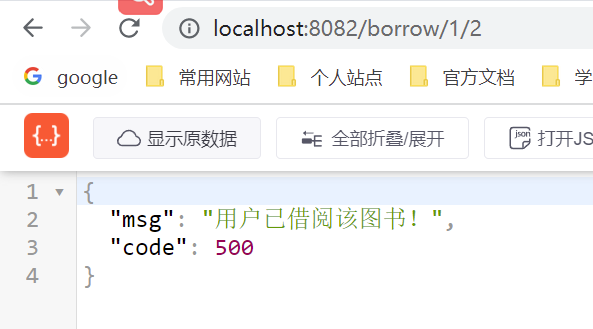

image-20220802212309849

来看下当前的数据库吧:

image-20220802212336883 image-20220802212344575 image-20220802212353100

可以看到红色横线的部分就是未回滚的book-service服务,如何解决这类问题呢?我们可以集成阿里的Seata组件来进行尝试!


2.2、采用file模式来集成seata服务

2.2.1、启动seata-server

服务端下载地址:seata-server 1.4.2,由于是外网下载太慢,可使用下面链接下载

链接:https://pan.baidu.com/s/1AqmcHZY9Op2IucG7rHbjOQ
提取码:bb6f

下载解压后的目录如下:

image-20220803134023879

进入到bin目录之后,我们来进行输入命令执行其中bat工具,直接来启动服务就好(默认是file模式):

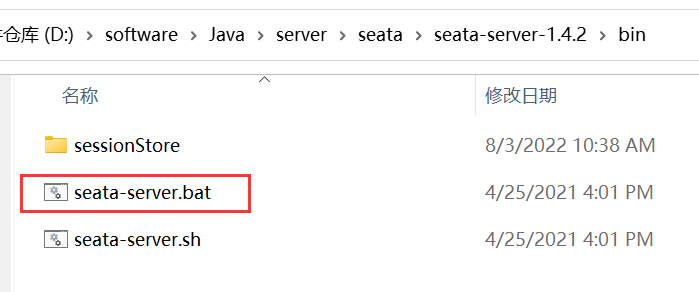

image-20220803134101188

seata-server.bat -p 8868

指定在8868端口来进行执行,启动效果如下:

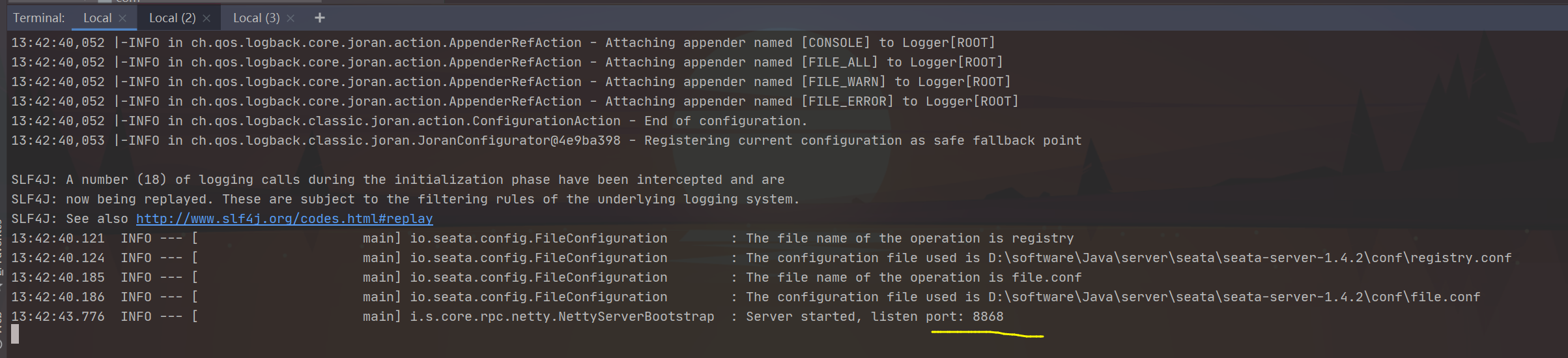

image-20220803134304947

【版权声明】本文为华为云社区用户原创内容,转载时必须标注文章的来源(华为云社区)、文章链接、文章作者等基本信息, 否则作者和本社区有权追究责任。如果您发现本社区中有涉嫌抄袭的内容,欢迎发送邮件进行举报,并提供相关证据,一经查实,本社区将立刻删除涉嫌侵权内容,举报邮箱: cloudbbs@huaweicloud.com
  • 点赞
  • 收藏
  • 关注作者

评论(0

0/1000
抱歉,系统识别当前为高风险访问,暂不支持该操作

全部回复

上滑加载中

设置昵称

在此一键设置昵称,即可参与社区互动!

*长度不超过10个汉字或20个英文字符,设置后3个月内不可修改。

*长度不超过10个汉字或20个英文字符,设置后3个月内不可修改。
