IDEA使用Maven整合搭建SSM框架

海风极客发表于 2022/11/26 14:35:46 2022/11/26

【摘要】 1 新建和配置maven项目完成后项目视图： 2 在pom.xml中引入依赖<?xml version="1.0" encoding="UTF-8"?><project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" ...

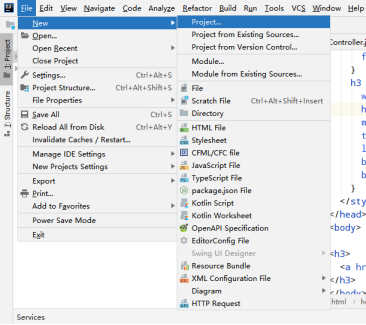

1 新建和配置maven项目

完成后项目视图：

2 在pom.xml中引入依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.ymx</groupId>
    <artifactId>MavenSSM</artifactId>
    <version>1.0-SNAPSHOT</version>
    <packaging>war</packaging>
    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.source>1.7</maven.compiler.source>
        <maven.compiler.target>1.7</maven.compiler.target>
    </properties>

    <dependencies>
        <!--Junit-->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
        </dependency>
        <!--数据库驱动-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.47</version>
        </dependency>
        <!-- 数据库连接池 -->
        <dependency>
            <groupId>com.mchange</groupId>
            <artifactId>c3p0</artifactId>
            <version>0.9.5.2</version>
        </dependency>

        <!--Servlet - JSP -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>servlet-api</artifactId>
            <version>2.5</version>
        </dependency>
        <dependency>
            <groupId>javax.servlet.jsp</groupId>
            <artifactId>jsp-api</artifactId>
            <version>2.2</version>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jstl</artifactId>
            <version>1.2</version>
        </dependency>

        <!--Mybatis-->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.5.2</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>2.0.2</version>
        </dependency>

        <!--Spring-->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>5.1.9.RELEASE</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
            <version>5.1.9.RELEASE</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>5.1.9.RELEASE</version>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.projectlombok/lombok -->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.8</version>
        </dependency>
    </dependencies>


    <build>
        <resources>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>false</filtering>
            </resource>
            <resource>
                <directory>src/main/resources</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>false</filtering>
            </resource>
        </resources>
        <finalName>MavenSSM</finalName>
        <pluginManagement><!-- lock down plugins versions to avoid using Maven defaults (may be moved to parent pom) -->
            <plugins>
                <plugin>
                    <artifactId>maven-clean-plugin</artifactId>
                    <version>3.1.0</version>
                </plugin>
                <!-- see http://maven.apache.org/ref/current/maven-core/default-bindings.html#Plugin_bindings_for_war_packaging -->
                <plugin>
                    <artifactId>maven-resources-plugin</artifactId>
                    <version>3.0.2</version>
                </plugin>
                <plugin>
                    <artifactId>maven-compiler-plugin</artifactId>
                    <version>3.8.0</version>
                </plugin>
                <plugin>
                    <artifactId>maven-surefire-plugin</artifactId>
                    <version>2.22.1</version>
                </plugin>
                <plugin>
                    <artifactId>maven-war-plugin</artifactId>
                    <version>3.2.2</version>
                </plugin>
                <plugin>
                    <artifactId>maven-install-plugin</artifactId>
                    <version>2.5.2</version>
                </plugin>
                <plugin>
                    <artifactId>maven-deploy-plugin</artifactId>
                    <version>2.8.2</version>
                </plugin>
            </plugins>
        </pluginManagement>
    </build>


</project>

3 建立基本框架

3.1 三层框架

3.2 配置文件

4 引入Mybatis配置

4.1 db.properties文件

jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/ssmbuild?useSSL=true&useUnicode=true&characterEncoding=utf8
jdbc.username=root
jdbc.password=123

4.2 mybatis.xml文件

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <typeAliases>
        <package name="org.ymx.Entity"/>
    </typeAliases>
    <mappers>
        <mapper resource="org/ymx/Dao/booksMapper.xml"/>
    </mappers>
</configuration>

4.3 spring-dao.xml文件

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       https://www.springframework.org/schema/context/spring-context.xsd">

    <!-- 配置整合mybatis -->
    <!-- 1.关联数据库文件 -->
    <context:property-placeholder location="classpath:db.properties"/>

    <!-- 2.数据库连接池 -->
    <!--数据库连接池
        dbcp 半自动化操作 不能自动连接
        c3p0 自动化操作（自动的加载配置文件 并且设置到对象里面）
    -->
    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <!-- 配置连接池属性 -->
        <property name="driverClass" value="${jdbc.driver}"/>
        <property name="jdbcUrl" value="${jdbc.url}"/>
        <property name="user" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>

        <!-- c3p0连接池的私有属性 -->
        <property name="maxPoolSize" value="30"/>
        <property name="minPoolSize" value="10"/>
        <!-- 关闭连接后不自动commit -->
        <property name="autoCommitOnClose" value="false"/>
        <!-- 获取连接超时时间 -->
        <property name="checkoutTimeout" value="10000"/>
        <!-- 当获取连接失败重试次数 -->
        <property name="acquireRetryAttempts" value="2"/>
    </bean>

    <!-- 3.配置SqlSessionFactory对象 -->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!-- 注入数据库连接池 -->
        <property name="dataSource" ref="dataSource"/>
        <!-- 配置MyBaties全局配置文件:mybatis-config.xml -->
        <property name="configLocation" value="classpath:mybatis-config.xml"/>
    </bean>

    <!-- 4.配置扫描Dao接口包，动态实现Dao接口注入到spring容器中 -->
    <!--解释 ：https://www.cnblogs.com/jpfss/p/7799806.html-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <!-- 注入sqlSessionFactory -->
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
        <!-- 给出需要扫描Dao接口包 -->
        <property name="basePackage" value="org.ymx.Dao"/>
    </bean>

</beans>

5 引入Spring配置

5.1 主配置文件applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd">

    <import resource="spring-dao.xml"/>
    <import resource="spring-service.xml"/>
    <import resource="spring-mvc.xml"/>

</beans>

5.2 service层配置文件spring-service.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context.xsd">

    <!-- 扫描service相关的bean -->
    <context:component-scan base-package="org.ymx.Service" />

    <!--BookServiceImpl注入到IOC容器中-->
    <bean id="booksServiceImpl" class="org.ymx.Service.booksServiceImpl">
        <!--要先有setter方法-->
        <property name="booksMapper" ref="booksMapper"/>
    </bean>

    <!-- 配置事务管理器 -->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <!-- 注入数据库连接池 -->
        <property name="dataSource" ref="dataSource" />
    </bean>

</beans>

*5.3 注意

6 引入SpringMVC

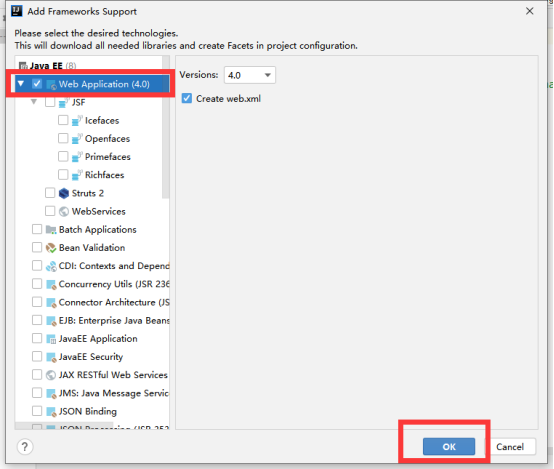

6.1 引入Web框架

6.2 配置web.xml

<?xml version="1.0" encoding="utf-8"?>
<web-app xmlns="http://java.sun.com/xml/ns/j2ee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://java.sun.com/xml/ns/j2ee
         http://java.sun.com/xml/ns/j2ee/web-app_2_4.xsd"
         version="2.4">
    <display-name>Archetype Created Web Application</display-name>
    <!--DispatcherServlet-->
    <servlet>
        <servlet-name>DispatcherServlet</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <!--一定要注意:我们这里加载的是总的配置文件，之前被这里坑了！-->
            <param-value>classpath:applicationContext.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>DispatcherServlet</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>

    <!--encodingFilter-->
    <filter>
        <filter-name>encodingFilter</filter-name>
        <filter-class>
            org.springframework.web.filter.CharacterEncodingFilter
        </filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>utf-8</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>encodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

    <!--Session过期时间-->
    <session-config>
        <session-timeout>15</session-timeout>
    </session-config>
</web-app>

6.3 配置spring-mvc.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context.xsd
   http://www.springframework.org/schema/mvc
   https://www.springframework.org/schema/mvc/spring-mvc.xsd">

    <!-- 配置SpringMVC -->
    <!-- 1.开启SpringMVC注解驱动 -->
    <mvc:annotation-driven />
    <!-- 2.静态资源默认servlet配置-->
    <mvc:default-servlet-handler/>

    <!-- 3.配置jsp 显示ViewResolver视图解析器 -->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="viewClass" value="org.springframework.web.servlet.view.JstlView" />
        <property name="prefix" value="/WEB-INF/jsp/" />
        <property name="suffix" value=".jsp" />
    </bean>

    <!-- 4.扫描web相关的bean -->
    <context:component-scan base-package="org.ymx.Controller" />

</beans>

7 配置tomcat

8 三层代码和数据库

8.0 数据库和实体类

数据库

CREATE DATABASE `ssmbuild`;

USE `ssmbuild`;

DROP TABLE IF EXISTS `books`;

CREATE TABLE `books` (
  `bookID` INT(10) NOT NULL AUTO_INCREMENT COMMENT '书id',
  `bookName` VARCHAR(100) NOT NULL COMMENT '书名',
  `bookCounts` INT(11) NOT NULL COMMENT '数量',
  `detail` VARCHAR(200) NOT NULL COMMENT '描述',
  KEY `bookID` (`bookID`)
) ENGINE=INNODB DEFAULT CHARSET=utf8

INSERT  INTO `books`(`bookID`,`bookName`,`bookCounts`,`detail`)VALUES
(1,'Java',1,'从入门到放弃'),
(2,'MySQL',10,'从删库到跑路'),
(3,'Linux',5,'从进门到进牢');

实体类
package org.ymx.Entity;

public class Books {
private int bookID;
private String bookName;
private int bookCounts;
private String detail;
public Books() {

}
public Books(int bookID, String bookName, int bookCounts, String detail) {
    this.bookID = bookID;
    this.bookName = bookName;
    this.bookCounts = bookCounts;
    this.detail = detail;
}

public int getBookID() {
    return bookID;
}

public void setBookID(int bookID) {
    this.bookID = bookID;
}

public String getBookName() {
    return bookName;
}

public void setBookName(String bookName) {
    this.bookName = bookName;
}

public int getBookCounts() {
    return bookCounts;
}

public void setBookCounts(int bookCounts) {
    this.bookCounts = bookCounts;
}

public String getDetail() {
    return detail;
}

public void setDetail(String detail) {
    this.detail = detail;
}

}

8.1 Dao层

接口
package org.ymx.Dao;

import org.ymx.Entity.Books;

import java.util.List;

public interface booksMapper {
//增加一个Book
int addBook(Books book);

//根据id删除一个Book
int deleteBookById(int id);

//更新Book
int updateBook(Books books);

//根据id查询,返回一个Book
Books queryBookById(int id);

//查询全部Book,返回list集合
List<Books> queryAllBook();

}

Mapper

<?xml version="1.0" encoding="UTF-8" ?> <!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd"> <mapper namespace="org.ymx.Dao.booksMapper">

<!--增加一个Book-->
<insert id="addBook" parameterType="Books">
  insert into ssmbuild.books(bookName,bookCounts,detail)
  values (#{bookName}, #{bookCounts}, #{detail})

</insert>

<!--根据id删除一个Book-->
<delete id="deleteBookById" parameterType="int">
  delete from ssmbuild.books where bookID=#{bookID}

</delete>

<!--更新Book-->
<update id="updateBook" parameterType="Books">
  update ssmbuild.books
  set bookName = #{bookName},bookCounts = #{bookCounts},detail = #{detail}
  where bookID = #{bookID}

</update>

<!--根据id查询,返回一个Book-->
<select id="queryBookById" resultType="Books">
  select * from ssmbuild.books
  where bookID = #{bookID}

</select>

<!--查询全部Book-->
<select id="queryAllBook" resultType="Books">
  SELECT * from ssmbuild.books

</select> </mapper>

8.2 Service层

接口
package org.ymx.Service;

import org.ymx.Entity.Books;

import java.util.List;

public interface booksService {
//增加一个Book
int addBook(Books book);
//根据id删除一个Book
int deleteBookById(int id);
//更新Book
int updateBook(Books books);
//根据id查询,返回一个Book
Books queryBookById(int id);
//查询全部Book,返回list集合
List<Books> queryAllBook();
}

实现类
package org.ymx.Service;

import org.ymx.Dao.booksMapper;
import org.ymx.Entity.Books;

import java.util.List;

public class booksServiceImpl implements booksService{

private org.ymx.Dao.booksMapper booksMapper;

public void setBooksMapper(org.ymx.Dao.booksMapper booksMapper) {
    this.booksMapper = booksMapper;
}

public int addBook(Books book) {
    return booksMapper.addBook(book);
}

public int deleteBookById(int id) {
    return booksMapper.deleteBookById(id);
}

public int updateBook(Books books) {
    return booksMapper.updateBook(books);
}

public Books queryBookById(int id) {
    return booksMapper.queryBookById(id);
}

public List<Books> queryAllBook() {
    return booksMapper.queryAllBook();
}

}

8.3 Controller层

package org.ymx.Controller;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;
import org.ymx.Entity.Books;

import java.util.List;

@Controller
@RequestMapping("/book")
public class booksController {

    @Autowired
    @Qualifier("booksServiceImpl")
    private org.ymx.Service.booksService booksService;

    @RequestMapping("/allBook")
    public String list(Model model) {
        List<Books> list = booksService.queryAllBook();
        model.addAttribute("list", list);
        return "allBook";
    }

}

9 报错解决

查看依赖

完整项目下载地址：https://download.csdn.net/download/Mr_YanMingXin/12626222

点赞
收藏
关注作者

0/1000

抱歉，系统识别当前为高风险访问，暂不支持该操作

全部回复

上滑加载中

设置昵称

在此一键设置昵称，即可参与社区互动！

*长度不超过10个汉字或20个英文字符，设置后3个月内不可修改。

确认取消

加入云驻计划，成为创作者

华为云周边好礼
免费体验产品
特殊身份标识
线下官方门票
内部专家零距离
与10000+优质创作者共同成长

立即加入

IDEA使用Maven整合搭建SSM框架

1 新建和配置maven项目

2 在pom.xml中引入依赖

3 建立基本框架

3.1 三层框架

3.2 配置文件

4 引入Mybatis配置

4.1 db.properties文件

4.2 mybatis.xml文件

4.3 spring-dao.xml文件

5 引入Spring配置

5.1 主配置文件applicationContext.xml

5.2 service层配置文件spring-service.xml

*5.3 注意

6 引入SpringMVC

6.1 引入Web框架

6.2 配置web.xml

6.3 配置spring-mvc.xml

7 配置tomcat

8 三层代码和数据库

8.0 数据库和实体类

8.1 Dao层

8.2 Service层

8.3 Controller层

9 报错解决

全部回复

设置昵称

关于作者

目录

加入云驻计划，成为创作者

IDEA使用Maven整合搭建SSM框架

1 新建和配置maven项目

2 在pom.xml中引入依赖

3 建立基本框架

3.1 三层框架

3.2 配置文件

4 引入Mybatis配置

4.1 db.properties文件

4.2 mybatis.xml文件

4.3 spring-dao.xml文件

5 引入Spring配置

5.1 主配置文件applicationContext.xml

5.2 service层配置文件spring-service.xml

*5.3 注意

6 引入SpringMVC

6.1 引入Web框架

6.2 配置web.xml

6.3 配置spring-mvc.xml

7 配置tomcat

8 三层代码和数据库

8.0 数据库和实体类

8.1 Dao层

8.2 Service层

8.3 Controller层

9 报错解决

全部回复

设置昵称

关于作者

目录

加入云驻计划，成为创作者

推荐阅读

相关产品
