1 回顾JDBC的执行原理和流程

MyBatis是一个Dao层映射框架,底层还是用的JDBC来访问数据库,在学习MyBatis之前有必要先回顾一下JDBC的执行过程:

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-tVqVMs7q-1630124901283)(一文搞懂Mybatis执行原理.assets/image-20210827104046769.png)]

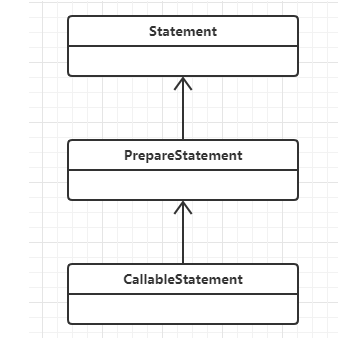

在这里重点说一下预编译SQL部分的Statement也就是预编译器,通过该组件来发送对应的SQL与参数。它有三种类型:分别是简单Statement(Statement)预处理Statement(PrepareStatement)存储过程Statement(CallableStatement)。后者继承自前者,也就是说简单执行器的所有功能,预处理执行器和存储过程执行器都有。

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-8CXO7qjU-1630124901286)(一文搞懂Mybatis执行原理.assets/image-20210827105002597.png)]

预编译器的主要作用:设置和执行SQL语句

2 Mybatis执行流程

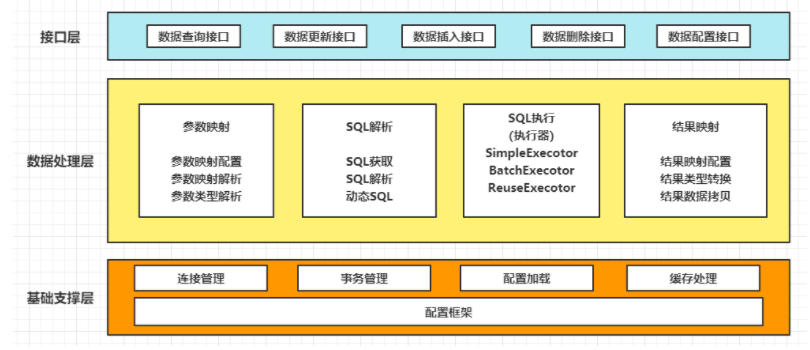

2.1 内部基本架构

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-KTsFxPrG-1630124901287)(一文搞懂Mybatis执行原理.assets/image-20210827105211708.png)]

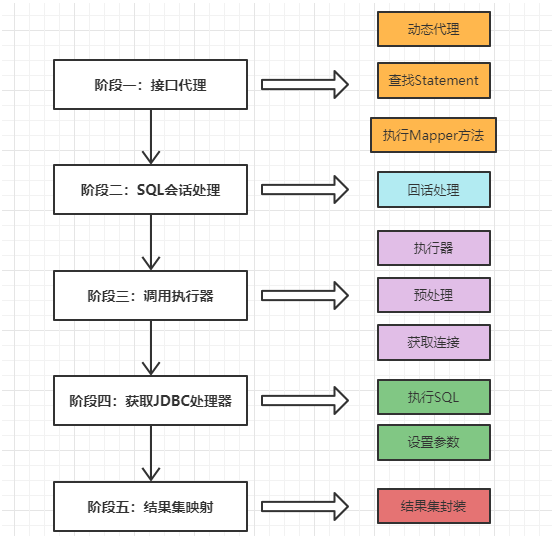

2.2 执行流程

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-zMihGht8-1630124901289)(一文搞懂Mybatis执行原理.assets/image-20210827110958405.png)]

3 各阶段分析

3.1 阶段一:接口代理

大家都知道Mybatis有两种使用方式,分别为注解XML形式,因此两种形式必然有与之匹配的配置,我们看下Mybatis源码的builder包:

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-94g8UseG-1630124901291)(一文搞懂Mybatis执行原理.assets/image-20210827131617750.png)]

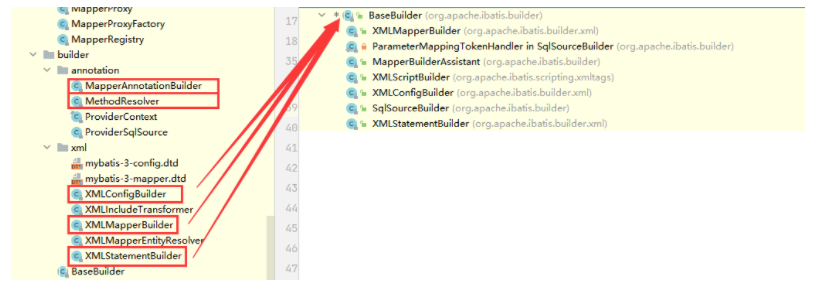

果然在这个包下有annotation和xml两个子包:

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-sbtmBRfC-1630124901292)(一文搞懂Mybatis执行原理.assets/image-20210827133010906.png)]

XMLStatementBuilder类代码:

public class XMLStatementBuilder extends BaseBuilder {

  //用来构建Mapper
  private final MapperBuilderAssistant builderAssistant;
  //表示全局配置
  private final XNode context;
  //数据库ID
  private final String requiredDatabaseId;

  public XMLStatementBuilder(Configuration configuration, MapperBuilderAssistant builderAssistant, XNode context) {
    this(configuration, builderAssistant, context, null);
  }

  public XMLStatementBuilder(Configuration configuration, MapperBuilderAssistant builderAssistant, XNode context, String databaseId) {
    super(configuration);
    this.builderAssistant = builderAssistant;
    this.context = context;
    this.requiredDatabaseId = databaseId;
  }

  ......

  //获取驱动
  private LanguageDriver getLanguageDriver(String lang) {
    Class<?> langClass = null;
    if (lang != null) {
      langClass = resolveClass(lang);
    }
    return builderAssistant.getLanguageDriver(langClass);
  }
}

3.2 阶段二:SQL会话处理

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-Eenxcqj8-1630124901294)(一文搞懂Mybatis执行原理.assets/image-20210828120052355.png)]

三者关系:

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-XboRUzzl-1630124901295)(一文搞懂Mybatis执行原理.assets/image-20210828120211918.png)]

SqlSessionFactory接口源码:

public interface SqlSessionFactory {

  SqlSession openSession();

  SqlSession openSession(boolean autoCommit);
  SqlSession openSession(Connection connection);
  SqlSession openSession(TransactionIsolationLevel level);

  SqlSession openSession(ExecutorType execType);
  SqlSession openSession(ExecutorType execType, boolean autoCommit);
  SqlSession openSession(ExecutorType execType, TransactionIsolationLevel level);
  SqlSession openSession(ExecutorType execType, Connection connection);

  Configuration getConfiguration();

}

DefaultSqlSessionFactory类源码:

public class DefaultSqlSessionFactory implements SqlSessionFactory {

  private final Configuration configuration;

  public DefaultSqlSessionFactory(Configuration configuration) {
    this.configuration = configuration;
  }

  @Override
  public SqlSession openSession() {
    return openSessionFromDataSource(configuration.getDefaultExecutorType(), null, false);
  }

  @Override
  public SqlSession openSession(boolean autoCommit) {
    return openSessionFromDataSource(configuration.getDefaultExecutorType(), null, autoCommit);
  }

  @Override
  public SqlSession openSession(ExecutorType execType) {
    return openSessionFromDataSource(execType, null, false);
  }

  @Override
  public SqlSession openSession(TransactionIsolationLevel level) {
    return openSessionFromDataSource(configuration.getDefaultExecutorType(), level, false);
  }

  @Override
  public SqlSession openSession(ExecutorType execType, TransactionIsolationLevel level) {
    return openSessionFromDataSource(execType, level, false);
  }

  @Override
  public SqlSession openSession(ExecutorType execType, boolean autoCommit) {
    return openSessionFromDataSource(execType, null, autoCommit);
  }

  @Override
  public SqlSession openSession(Connection connection) {
    return openSessionFromConnection(configuration.getDefaultExecutorType(), connection);
  }

  @Override
  public SqlSession openSession(ExecutorType execType, Connection connection) {
    return openSessionFromConnection(execType, connection);
  }

  @Override
  public Configuration getConfiguration() {
    return configuration;
  }

  private SqlSession openSessionFromDataSource(ExecutorType execType, TransactionIsolationLevel level, boolean autoCommit) {
    Transaction tx = null;
    try {
      final Environment environment = configuration.getEnvironment();
      final TransactionFactory transactionFactory = getTransactionFactoryFromEnvironment(environment);
      tx = transactionFactory.newTransaction(environment.getDataSource(), level, autoCommit);
      final Executor executor = configuration.newExecutor(tx, execType);
      return new DefaultSqlSession(configuration, executor, autoCommit);
    } catch (Exception e) {
      closeTransaction(tx); // may have fetched a connection so lets call close()
      throw ExceptionFactory.wrapException("Error opening session.  Cause: " + e, e);
    } finally {
      ErrorContext.instance().reset();
    }
  }

  private SqlSession openSessionFromConnection(ExecutorType execType, Connection connection) {
    try {
      boolean autoCommit;
      try {
        autoCommit = connection.getAutoCommit();
      } catch (SQLException e) {
        // Failover to true, as most poor drivers
        // or databases won't support transactions
        autoCommit = true;
      }
      final Environment environment = configuration.getEnvironment();
      final TransactionFactory transactionFactory = getTransactionFactoryFromEnvironment(environment);
      final Transaction tx = transactionFactory.newTransaction(connection);
      final Executor executor = configuration.newExecutor(tx, execType);
      return new DefaultSqlSession(configuration, executor, autoCommit);
    } catch (Exception e) {
      throw ExceptionFactory.wrapException("Error opening session.  Cause: " + e, e);
    } finally {
      ErrorContext.instance().reset();
    }
  }

  private TransactionFactory getTransactionFactoryFromEnvironment(Environment environment) {
    if (environment == null || environment.getTransactionFactory() == null) {
      return new ManagedTransactionFactory();
    }
    return environment.getTransactionFactory();
  }

  private void closeTransaction(Transaction tx) {
    if (tx != null) {
      try {
        tx.close();
      } catch (SQLException ignore) {
        // Intentionally ignore. Prefer previous error.
      }
    }
  }

}

SqlSessionManager源码:

SqlSessionManager本身实现了SqlSessionFactory, SqlSession两个接口,所以本身能够构建Sqlsession和使用Sqlsesion声明的CURD相关的查询方法。

public class SqlSessionManager implements SqlSessionFactory, SqlSession {

  private final SqlSessionFactory sqlSessionFactory;
  private final SqlSession sqlSessionProxy;

  private final ThreadLocal<SqlSession> localSqlSession = new ThreadLocal<SqlSession>();

  private SqlSessionManager(SqlSessionFactory sqlSessionFactory) {
    this.sqlSessionFactory = sqlSessionFactory;
    this.sqlSessionProxy = (SqlSession) Proxy.newProxyInstance(
        SqlSessionFactory.class.getClassLoader(),
        new Class[]{SqlSession.class},
        new SqlSessionInterceptor());
  }

  public static SqlSessionManager newInstance(Reader reader) {
    return new SqlSessionManager(new SqlSessionFactoryBuilder().build(reader, null, null));
  }

  public static SqlSessionManager newInstance(Reader reader, String environment) {
    return new SqlSessionManager(new SqlSessionFactoryBuilder().build(reader, environment, null));
  }

  ......

  @Override
  public SqlSession openSession(Connection connection) {
    return sqlSessionFactory.openSession(connection);
  }

  @Override
  public Configuration getConfiguration() {
    return sqlSessionFactory.getConfiguration();
  }

  @Override
  public <T> T selectOne(String statement) {
    return sqlSessionProxy.<T> selectOne(statement);
  }

  相关CRUD方法......

  @Override
  public Connection getConnection() {
    final SqlSession sqlSession = localSqlSession.get();
    if (sqlSession == null) {
      throw new SqlSessionException("Error:  Cannot get connection.  No managed session is started.");
    }
    return sqlSession.getConnection();
  }

  @Override
  public void clearCache() {
    final SqlSession sqlSession = localSqlSession.get();
    if (sqlSession == null) {
      throw new SqlSessionException("Error:  Cannot clear the cache.  No managed session is started.");
    }
    sqlSession.clearCache();
  }

  @Override
  public void commit() {
    final SqlSession sqlSession = localSqlSession.get();
    if (sqlSession == null) {
      throw new SqlSessionException("Error:  Cannot commit.  No managed session is started.");
    }
    sqlSession.commit();
  }

  @Override
  public void commit(boolean force) {
    final SqlSession sqlSession = localSqlSession.get();
    if (sqlSession == null) {
      throw new SqlSessionException("Error:  Cannot commit.  No managed session is started.");
    }
    sqlSession.commit(force);
  }

  @Override
  public void rollback() {
    final SqlSession sqlSession = localSqlSession.get();
    if (sqlSession == null) {
      throw new SqlSessionException("Error:  Cannot rollback.  No managed session is started.");
    }
    sqlSession.rollback();
  }

  @Override
  public void rollback(boolean force) {
    final SqlSession sqlSession = localSqlSession.get();
    if (sqlSession == null) {
      throw new SqlSessionException("Error:  Cannot rollback.  No managed session is started.");
    }
    sqlSession.rollback(force);
  }

  @Override
  public List<BatchResult> flushStatements() {
    final SqlSession sqlSession = localSqlSession.get();
    if (sqlSession == null) {
      throw new SqlSessionException("Error:  Cannot rollback.  No managed session is started.");
    }
    return sqlSession.flushStatements();
  }

  @Override
  public void close() {
    final SqlSession sqlSession = localSqlSession.get();
    if (sqlSession == null) {
      throw new SqlSessionException("Error:  Cannot close.  No managed session is started.");
    }
    try {
      sqlSession.close();
    } finally {
      localSqlSession.set(null);
    }
  }

  private class SqlSessionInterceptor implements InvocationHandler {
    public SqlSessionInterceptor() {
        // Prevent Synthetic Access
    }

    @Override
    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
      final SqlSession sqlSession = SqlSessionManager.this.localSqlSession.get();
      if (sqlSession != null) {
        try {
          return method.invoke(sqlSession, args);
        } catch (Throwable t) {
          throw ExceptionUtil.unwrapThrowable(t);
        }
      } else {
        final SqlSession autoSqlSession = openSession();
        try {
          final Object result = method.invoke(autoSqlSession, args);
          autoSqlSession.commit();
          return result;
        } catch (Throwable t) {
          autoSqlSession.rollback();
          throw ExceptionUtil.unwrapThrowable(t);
        } finally {
          autoSqlSession.close();
        }
      }
    }
  }

}

3.3 阶段三:调用执行器

执行器相关部分请看这篇文章:https://blog.csdn.net/Mr_YanMingXin/article/details/118719270

3.4 阶段四:获取JDBC处理器

public abstract class AbstractSQL<T> {

  private static final String AND = ") \nAND (";
  private static final String OR = ") \nOR (";

  private final SQLStatement sql = new SQLStatement();

  public abstract T getSelf();

  public T UPDATE(String table) {
    sql().statementType = SQLStatement.StatementType.UPDATE;
    sql().tables.add(table);
    return getSelf();
  }

  private static class SQLStatement {

    public enum StatementType {
      DELETE, INSERT, SELECT, UPDATE
    }

    private String selectSQL(SafeAppendable builder) {
      if (distinct) {
        sqlClause(builder, "SELECT DISTINCT", select, "", "", ", ");
      } else {
        sqlClause(builder, "SELECT", select, "", "", ", ");
      }

      sqlClause(builder, "FROM", tables, "", "", ", ");
      joins(builder);
      sqlClause(builder, "WHERE", where, "(", ")", " AND ");
      sqlClause(builder, "GROUP BY", groupBy, "", "", ", ");
      sqlClause(builder, "HAVING", having, "(", ")", " AND ");
      sqlClause(builder, "ORDER BY", orderBy, "", "", ", ");
      return builder.toString();
    }

      ......

      switch (statementType) {
        case DELETE:
          answer = deleteSQL(builder);
          break;

        case INSERT:
          answer = insertSQL(builder);
          break;

        case SELECT:
          answer = selectSQL(builder);
          break;

        case UPDATE:
          answer = updateSQL(builder);
          break;

        default:
          answer = null;
      }
      return answer;
    }
  }
}

3.5 阶段五:结果集映射

首先是有一个ResultSetHandler接口

public interface ResultSetHandler {

  <E> List<E> handleResultSets(Statement stmt) throws SQLException;

  <E> Cursor<E> handleCursorResultSets(Statement stmt) throws SQLException;

  void handleOutputParameters(CallableStatement cs) throws SQLException;

}

然后它对应了一个实现类:

public class DefaultResultSetHandler implements ResultSetHandler {
    ......
}

这个类里边有几个非常重要的方法,我们下面通过源码看下:

//调用getFirstResultSet 得到结果集的包装类
private ResultSetWrapper getFirstResultSet(Statement stmt) throws SQLException {
  ResultSet rs = stmt.getResultSet();
  while (rs == null) {
    // move forward to get the first resultset in case the driver
    // doesn't return the resultset as the first result (HSQLDB 2.1)
    if (stmt.getMoreResults()) {
      rs = stmt.getResultSet();
    } else {
      if (stmt.getUpdateCount() == -1) {
        // no more results. Must be no resultset
        break;
      }
    }
  }
  return rs != null ? new ResultSetWrapper(rs, configuration) : null;
}

//获取结果集映射集合
private ResultSetWrapper getNextResultSet(Statement stmt) throws SQLException {
  // Making this method tolerant of bad JDBC drivers
  try {
    if (stmt.getConnection().getMetaData().supportsMultipleResultSets()) {
      // Crazy Standard JDBC way of determining if there are more results
      if (!(!stmt.getMoreResults() && stmt.getUpdateCount() == -1)) {
        ResultSet rs = stmt.getResultSet();
        if (rs == null) {
          return getNextResultSet(stmt);
        } else {
          return new ResultSetWrapper(rs, configuration);
        }
      }
    }
  } catch (Exception e) {
    // Intentionally ignored.
  }
  return null;
}

//遍历结果集映射 处理结果集 生成java对象
private void handleResultSet(ResultSetWrapper rsw, ResultMap resultMap, List<Object> multipleResults, ResultMapping parentMapping) throws SQLException {
    try {
      if (parentMapping != null) {
        handleRowValues(rsw, resultMap, null, RowBounds.DEFAULT, parentMapping);
      } else {
        if (resultHandler == null) {
          DefaultResultHandler defaultResultHandler = new DefaultResultHandler(objectFactory);
          handleRowValues(rsw, resultMap, defaultResultHandler, rowBounds, null);
          multipleResults.add(defaultResultHandler.getResultList());
        } else {
          handleRowValues(rsw, resultMap, resultHandler, rowBounds, null);
        }
      }
    } finally {
      // issue #228 (close resultsets)
      closeResultSet(rsw.getResultSet());
    }
  }

4 总结

Mybatis其实就是对JDBC的大量重复代码进行了封装,也对ORM(对象关系映射)进行了实现,可以说是一款很优秀的ORM框架,除了简单的CRUD之外,还支持事务和分页以及批量增加等等,因此Mybatis的源码很值得探究,由于作者能力有限,这篇文章对Mybatis的源码分析并不是非常的全面,因此还望读者指出不足!

【版权声明】本文为华为云社区用户原创内容,转载时必须标注文章的来源(华为云社区)、文章链接、文章作者等基本信息, 否则作者和本社区有权追究责任。如果您发现本社区中有涉嫌抄袭的内容,欢迎发送邮件进行举报,并提供相关证据,一经查实,本社区将立刻删除涉嫌侵权内容,举报邮箱: cloudbbs@huaweicloud.com
  • 点赞
  • 收藏
  • 关注作者

评论(0

0/1000
抱歉,系统识别当前为高风险访问,暂不支持该操作

全部回复

上滑加载中

设置昵称

在此一键设置昵称,即可参与社区互动!

*长度不超过10个汉字或20个英文字符,设置后3个月内不可修改。

*长度不超过10个汉字或20个英文字符,设置后3个月内不可修改。
